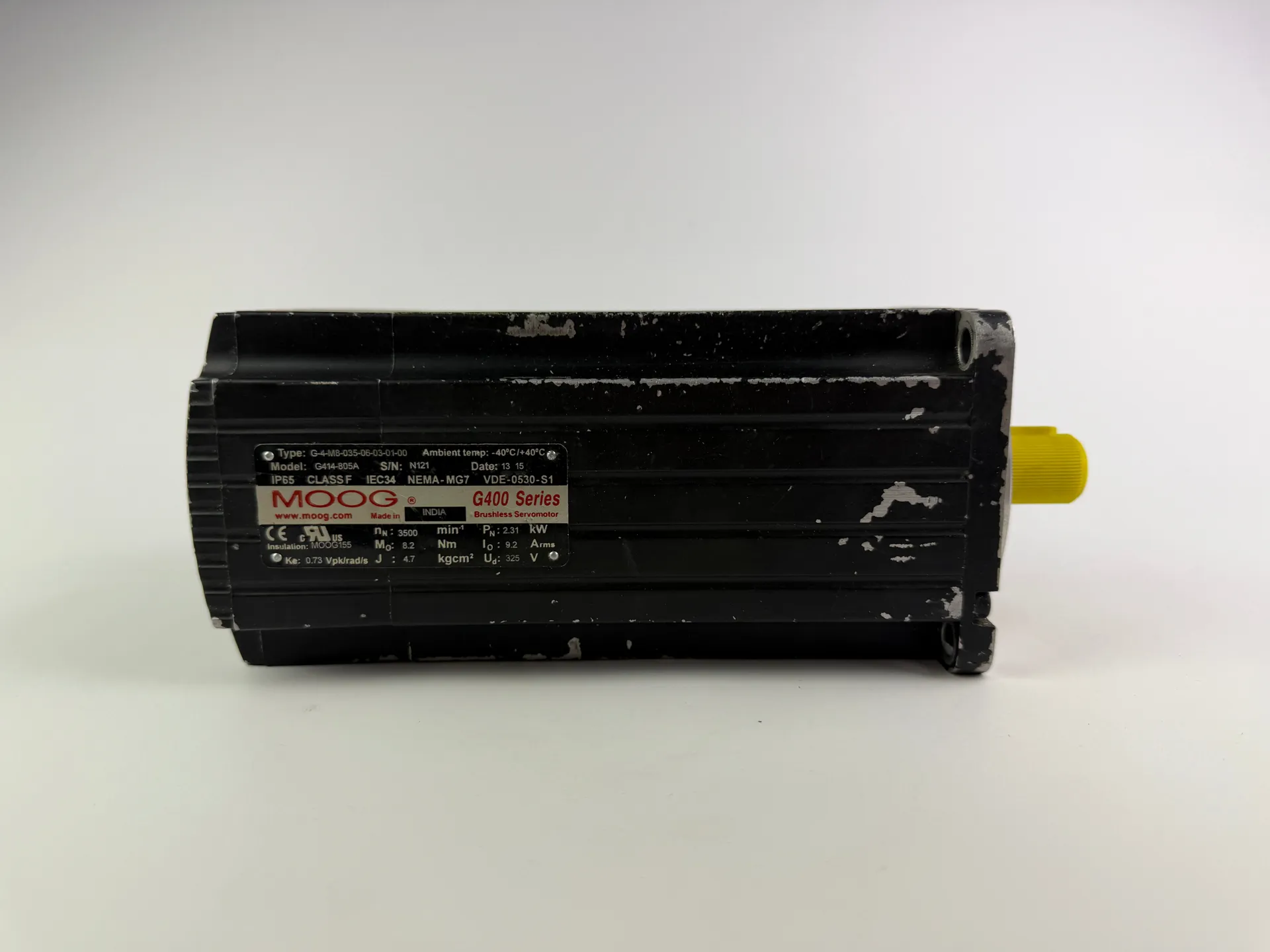

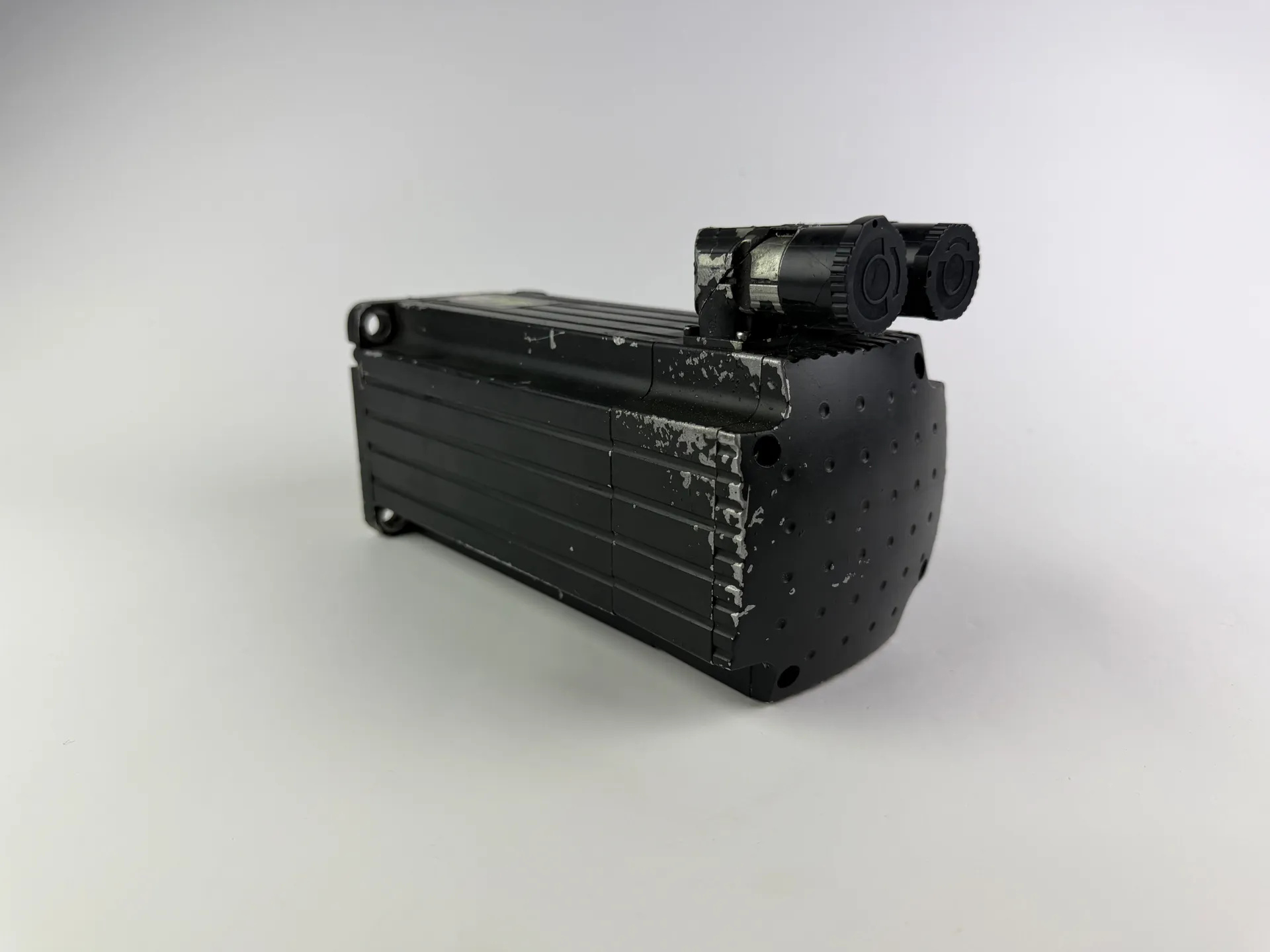

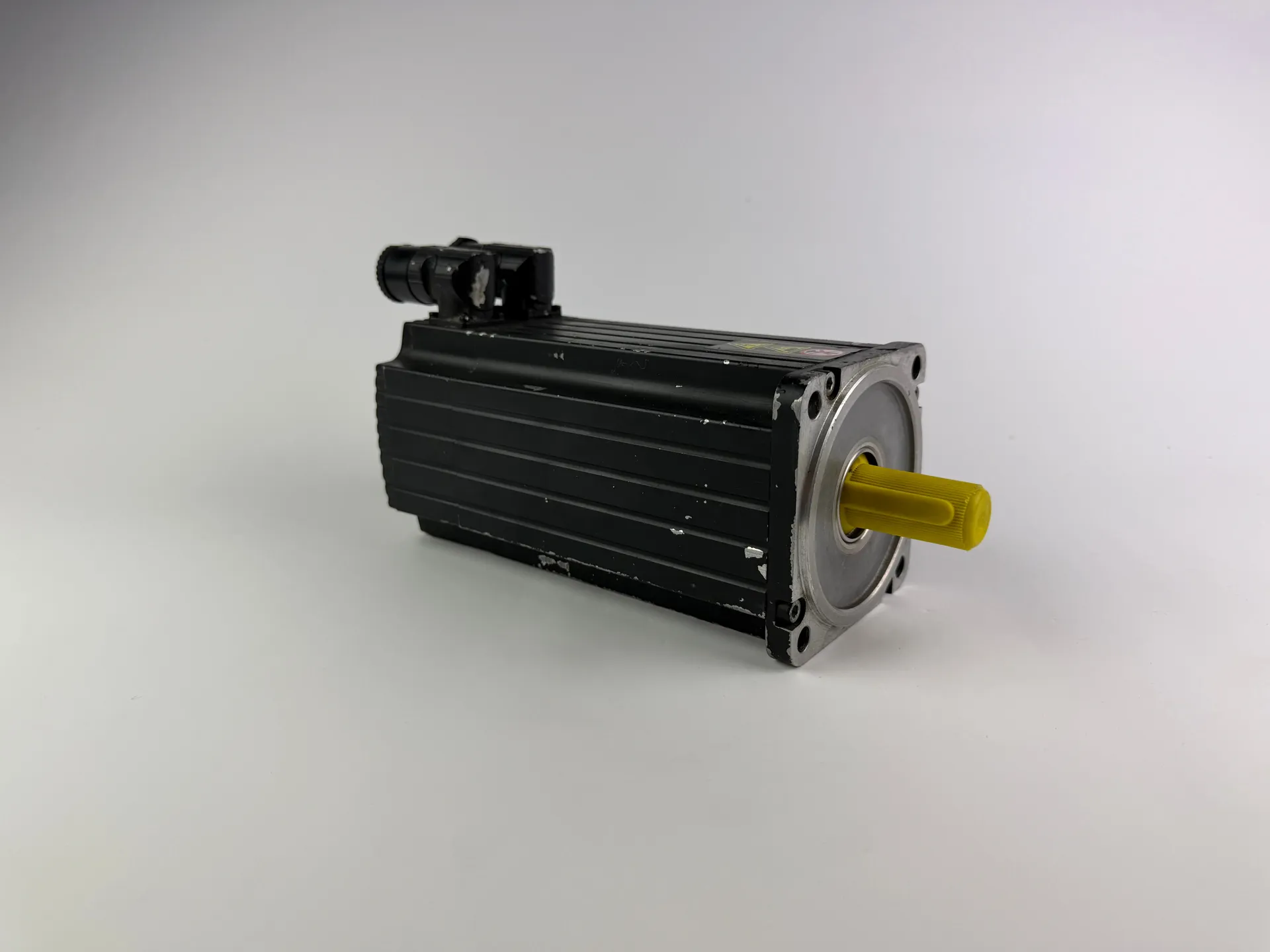

MOOG G414-805A Brushless Servomotor – 2.31 kW – G400 Series

Machine Description

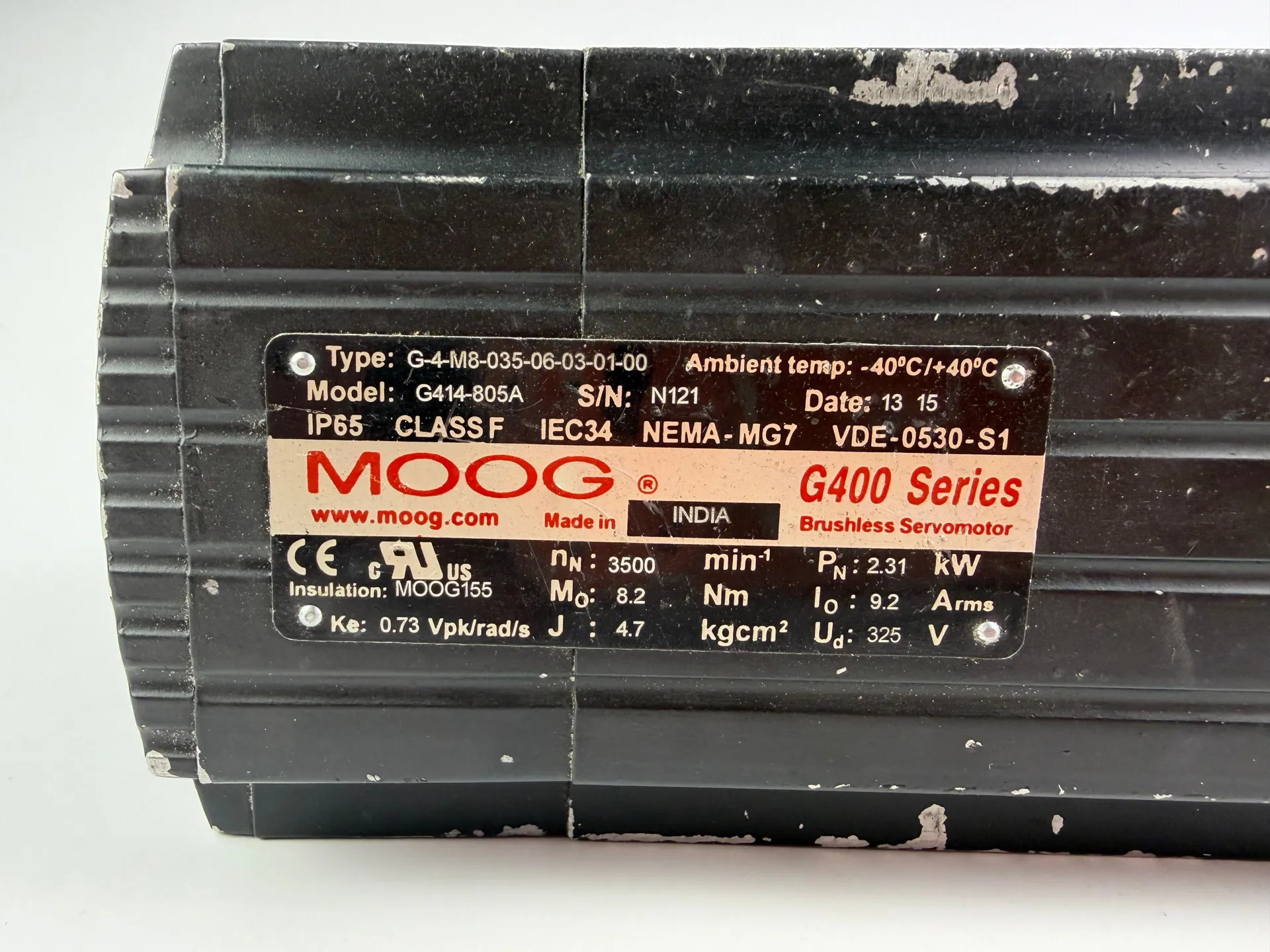

The MOOG G414-805A is a high-performance brushless servomotor from the renowned G400 Series, designed for demanding industrial automation, CNC machinery, robotics, and high-precision motion systems. This powerful motor delivers 2.31 kW, high torque capability, and fast dynamic response, making it ideal for heavy-duty servo applications. Rated IP65 for harsh industrial environments and built with premium insulation (MOOG155), it ensures long service life and stable, reliable operation. Technical Specifications: • Model: G414-805A • Type Code: G-4-M8-035-06-03-01-00 • Series: G400 Series • Motor Type: Brushless servomotor • Power (PN): 2.31 kW • Speed (nN): 3500 min⁻¹ • Torque (MN): 8.0 Nm • Rated Current (Io): 9.2 Arms • Rotor Inertia (J): 3.7 kgcm² • Back EMF Constant (Ke): 0.73 Vpk/rad/s • Insulation Class: F (MOOG155) • Protection: IP65 • Voltage (Ud): 325 V • Ambient Temperature: −40°C to +40°C • Country: India (MOOG manufacturing) Item condition: Used, in perfect working condition.
