SICK IME18-12BPOZC0S 1071261 Inductive Proximity Sensor M18 PNP NC 12mm

Machine Description

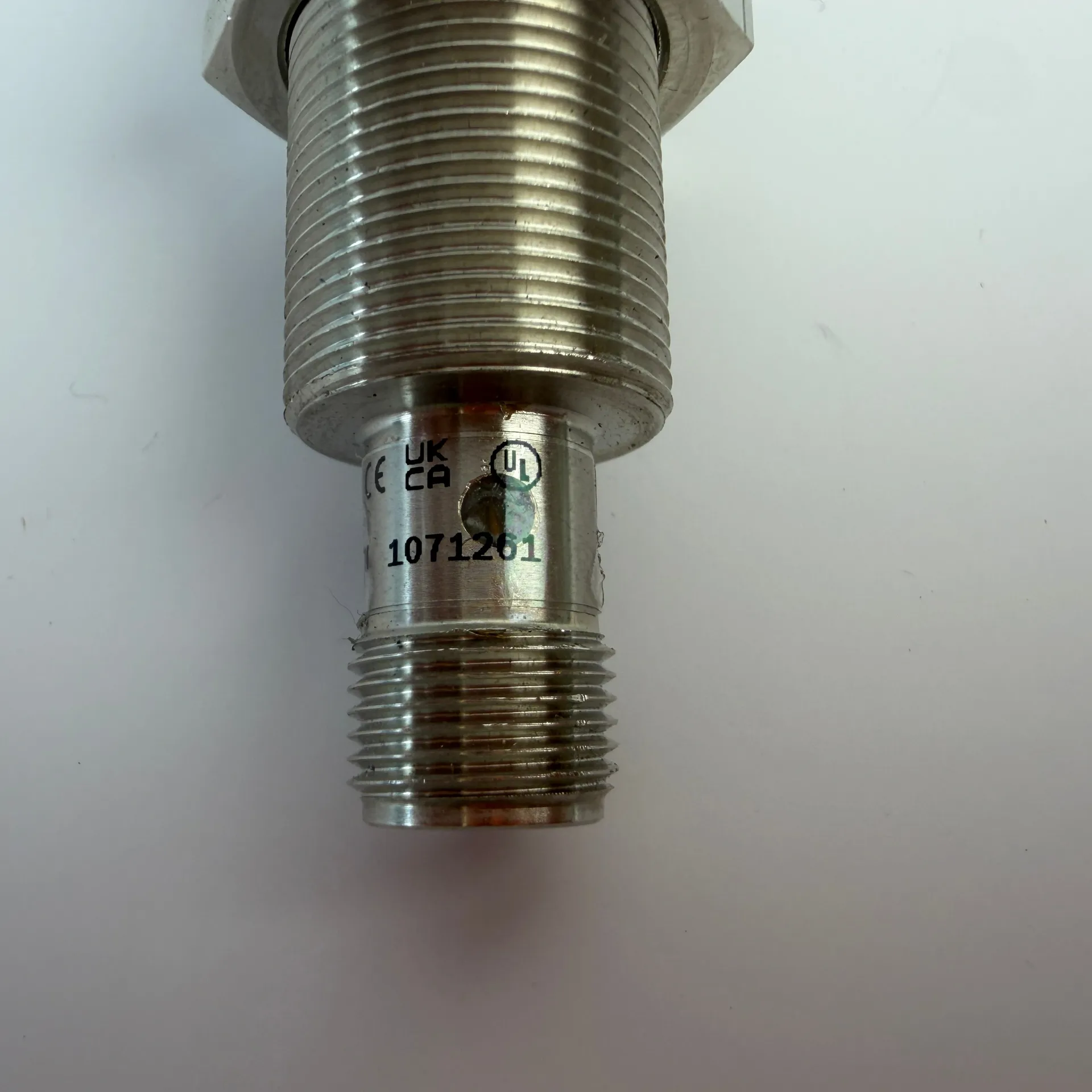

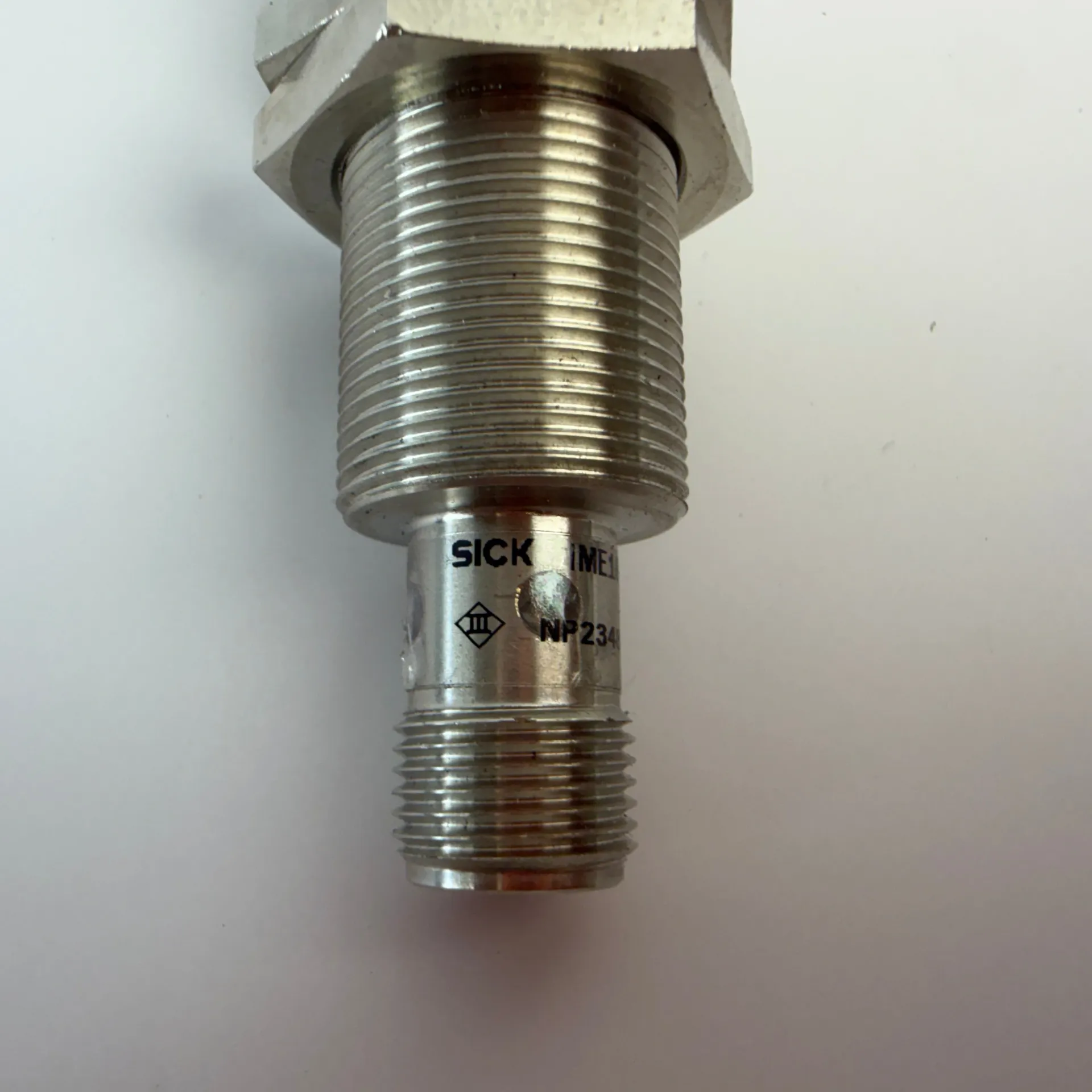

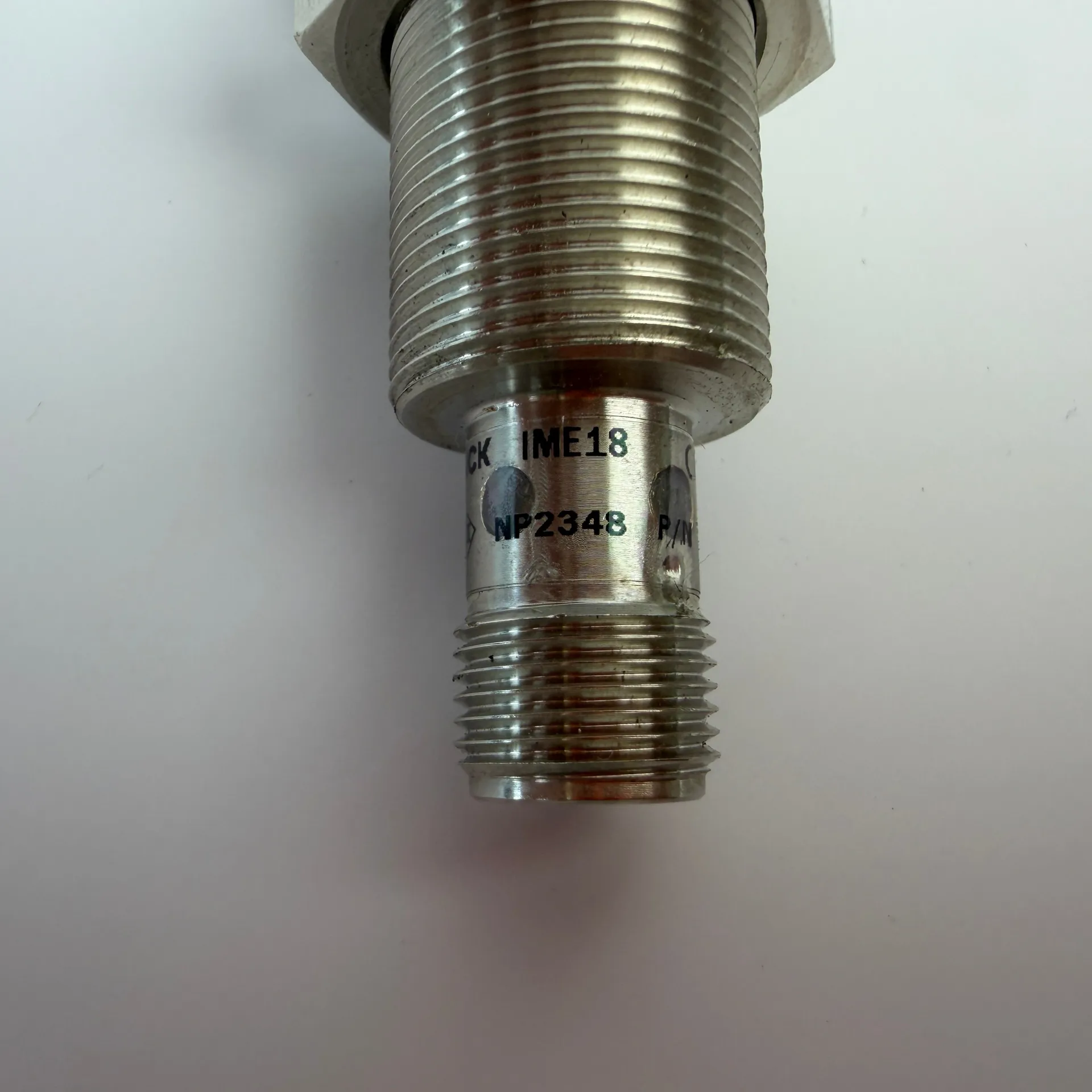

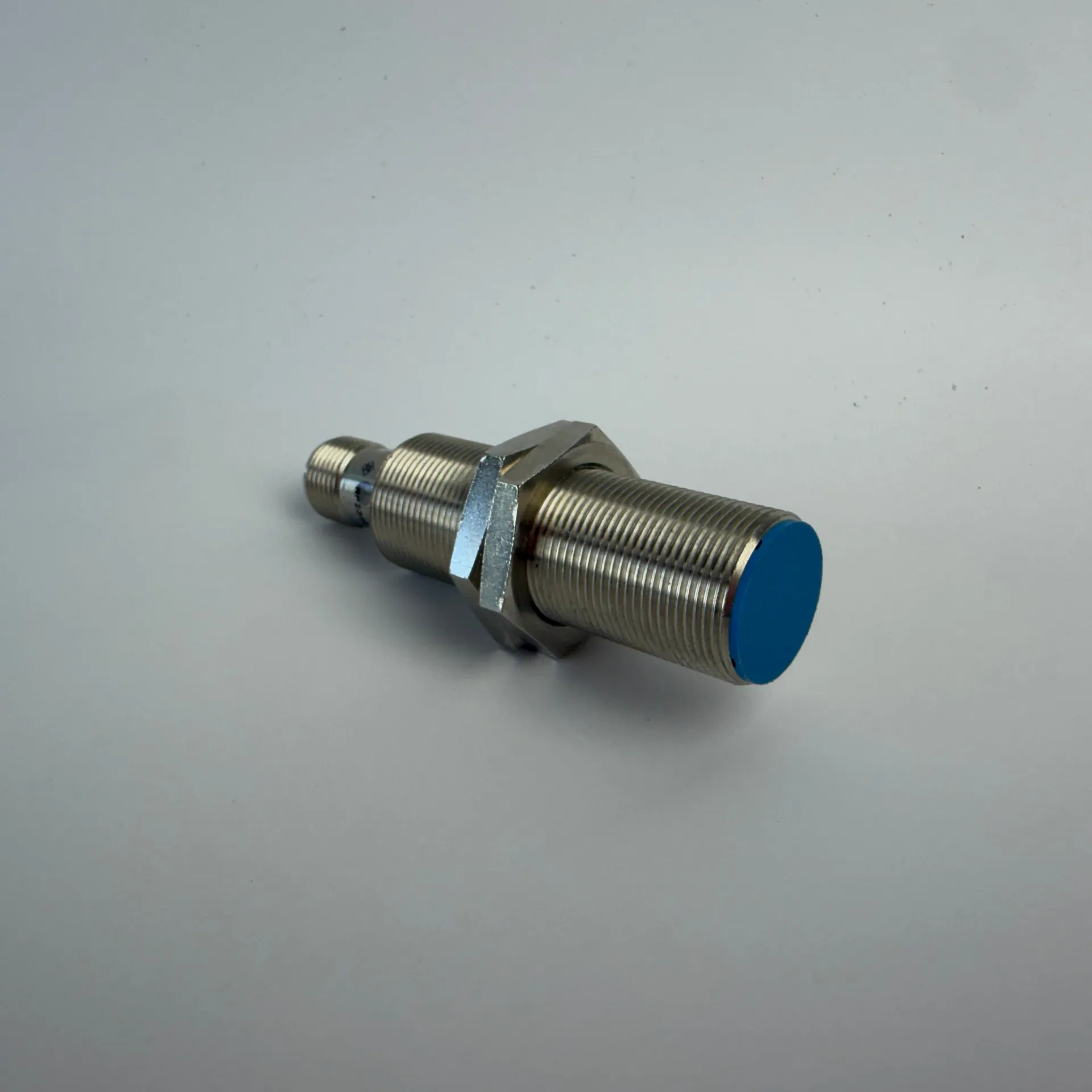

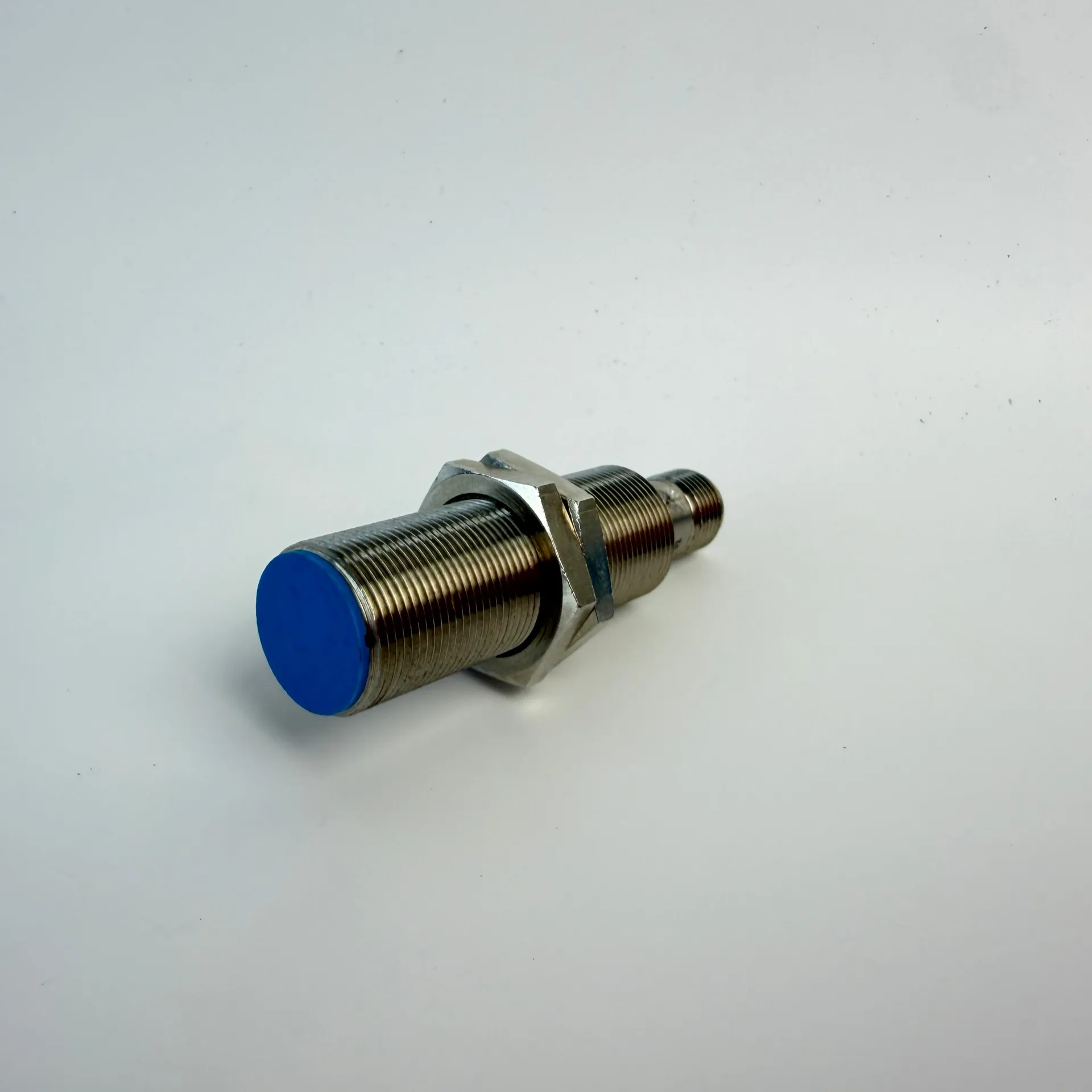

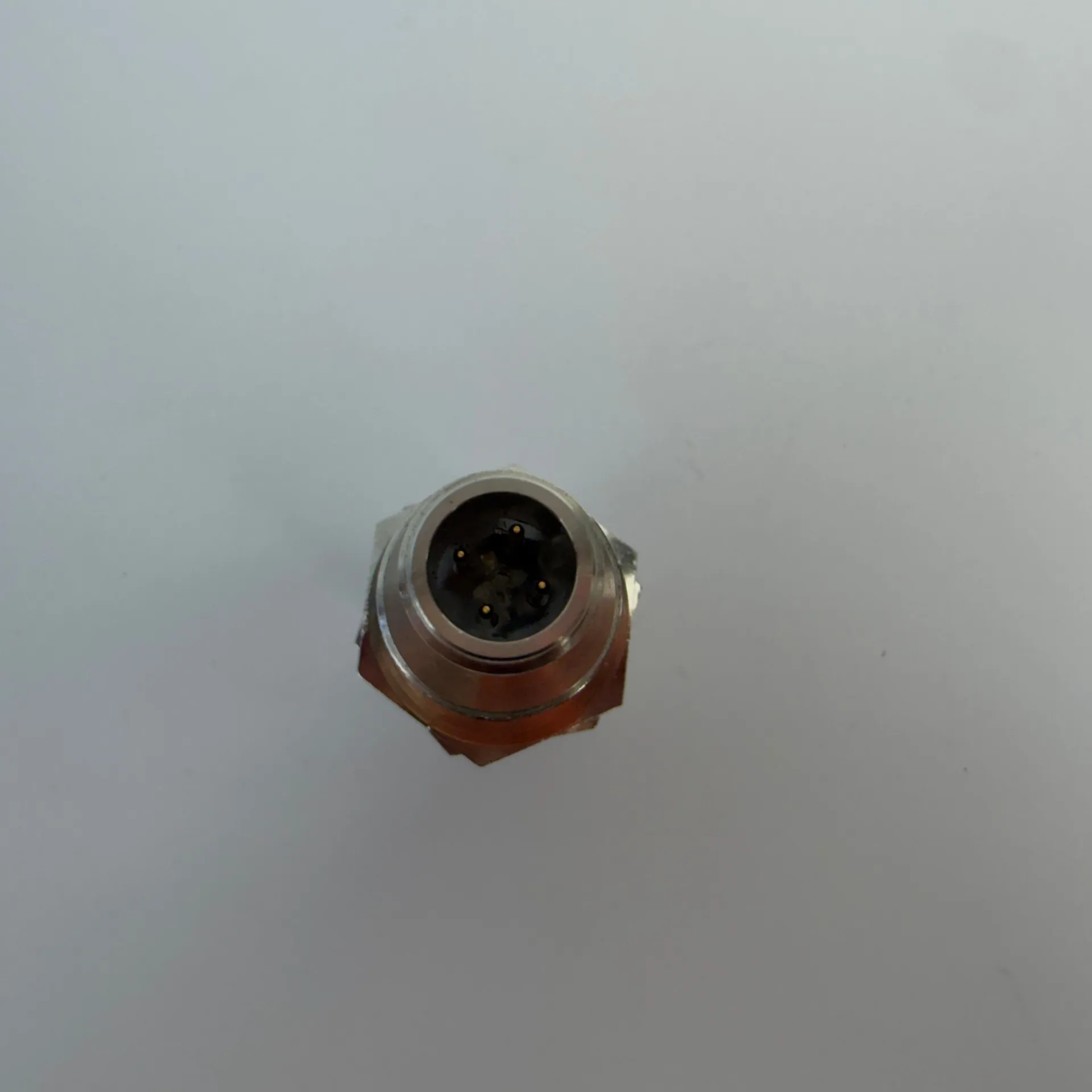

SICK IME18-12BPOZC0S, Part No. 1071261, industrial inductive proximity sensor for non-contact detection of metallic objects in automation and machinery applications. This IME series sensor features an M18 × 1 cylindrical threaded housing, 12 mm nominal sensing range, and quasi-flush installation. It uses a PNP Normally Closed (NC) switching output with DC 3-wire electrical configuration. The sensor operates from 10–30 V DC, supports continuous output current up to 200 mA, and provides a switching frequency of 500 Hz. Connection is via an M12 4-pin male connector. The nickel-plated brass housing and IP67 enclosure rating make it suitable for industrial environments. Technical Specifications Specification Value Manufacturer SICK Series IME Model / MPN IME18-12BPOZC0S Part Number 1071261 Visible Marking IME18 / NP2348 Sensor Type Inductive proximity sensor Housing Standard cylindrical Thread M18 × 1 Diameter 18 mm Nominal Sensing Range (Sn) 12 mm Safe Sensing Range (Sa) 9.72 mm Installation Quasi-flush Output PNP Output Function Normally Closed (NC) Electrical Wiring DC 3-wire Supply Voltage 10–30 V DC Continuous Current ≤200 mA Switching Frequency 500 Hz Voltage Drop ≤2 V Connection M12 male, 4-pin Protection Rating IP67 Housing Material Nickel-plated brass Sensing Face PA 66 plastic Housing Length 69 mm Operating Temperature -25°C to +75°C Protection Short-circuit / power-up pulse protection Package Contents 1 × SICK IME18-12BPOZC0S / 1071261 inductive proximity sensor, as pictured. Shopify Tags SICK, IME18-12BPOZC0S, 1071261, IME18, NP2348, inductive proximity sensor, M18 sensor, PNP sensor, NC sensor, 12mm sensor, M12 sensor, industrial automation SEO Keywords SICK IME18-12BPOZC0S, SICK 1071261, SICK NP2348, IME18 proximity sensor, M18 PNP NC sensor, 12mm inductive sensor Meta Title SICK IME18-12BPOZC0S 1071261 Inductive Sensor Meta Description Used SICK IME18-12BPOZC0S 1071261 inductive proximity sensor with 12 mm sensing range, M18 housing, PNP NC output and M12 connector.
