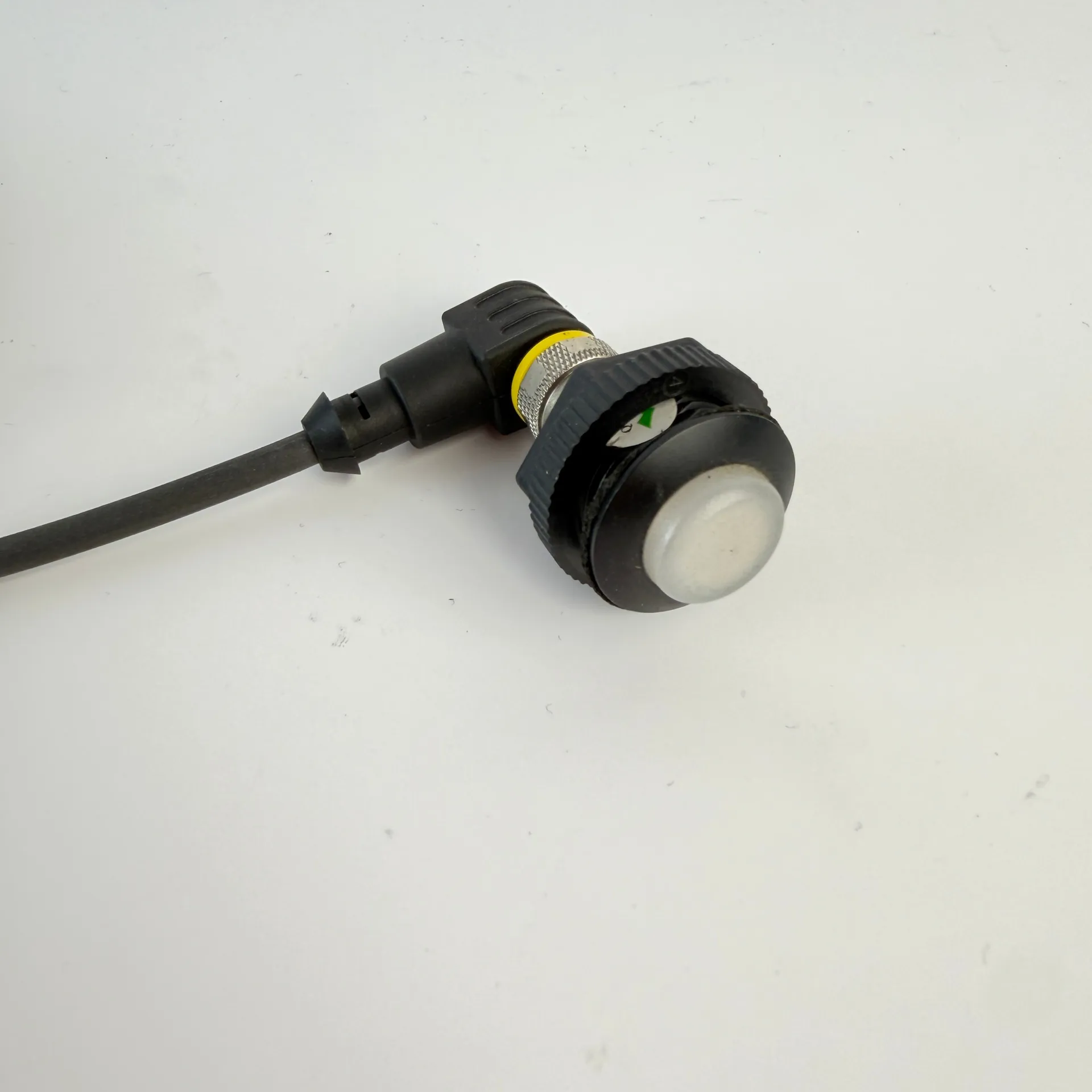

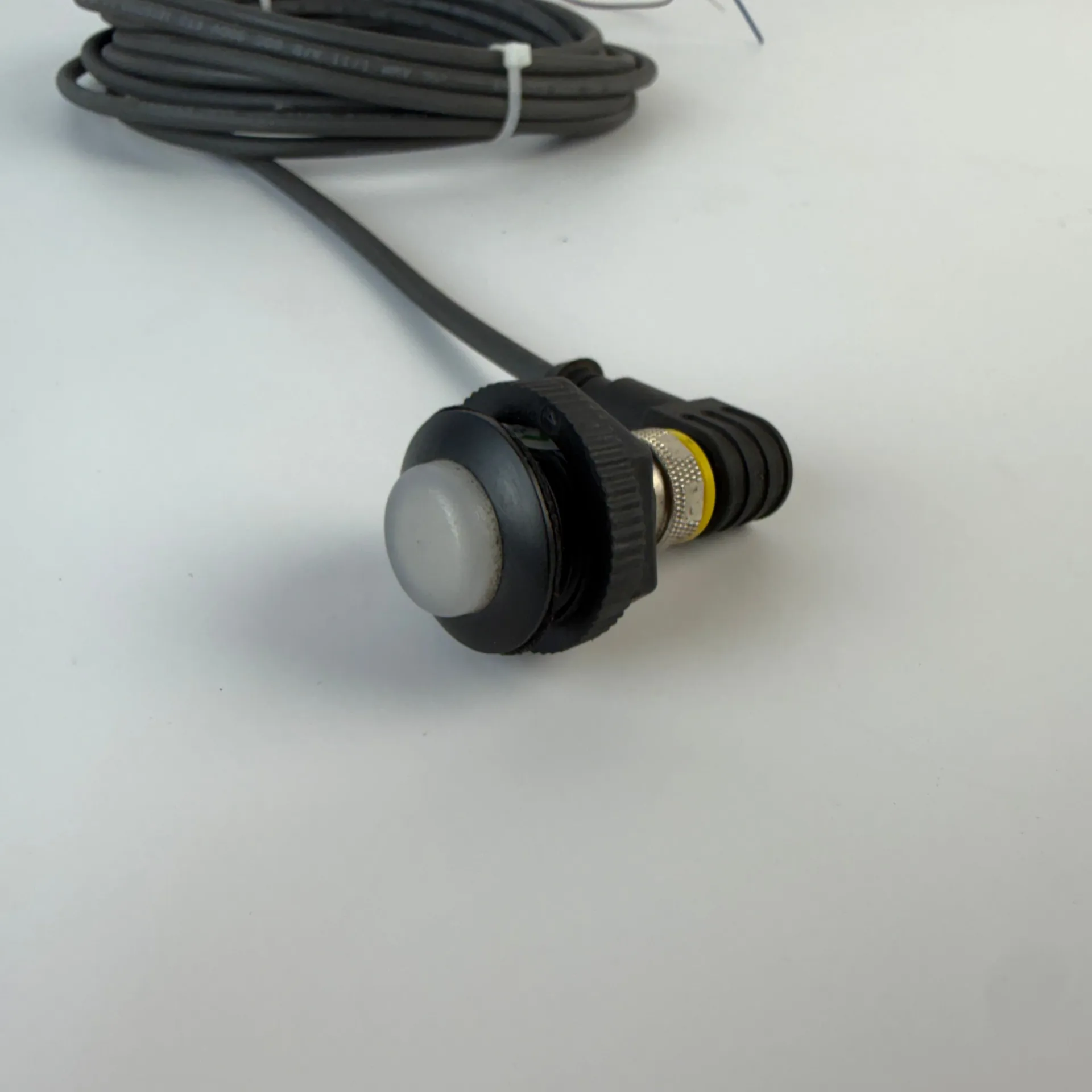

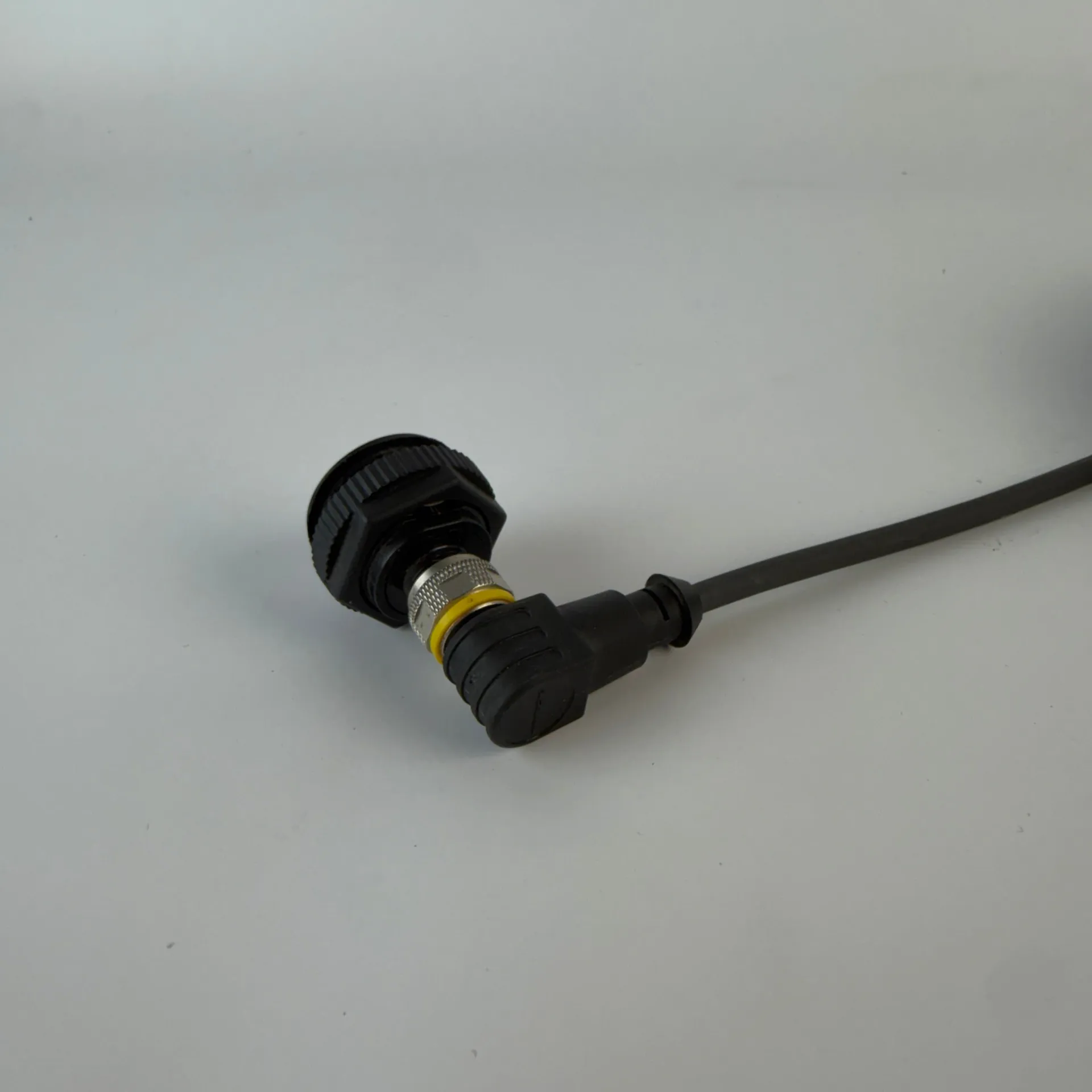

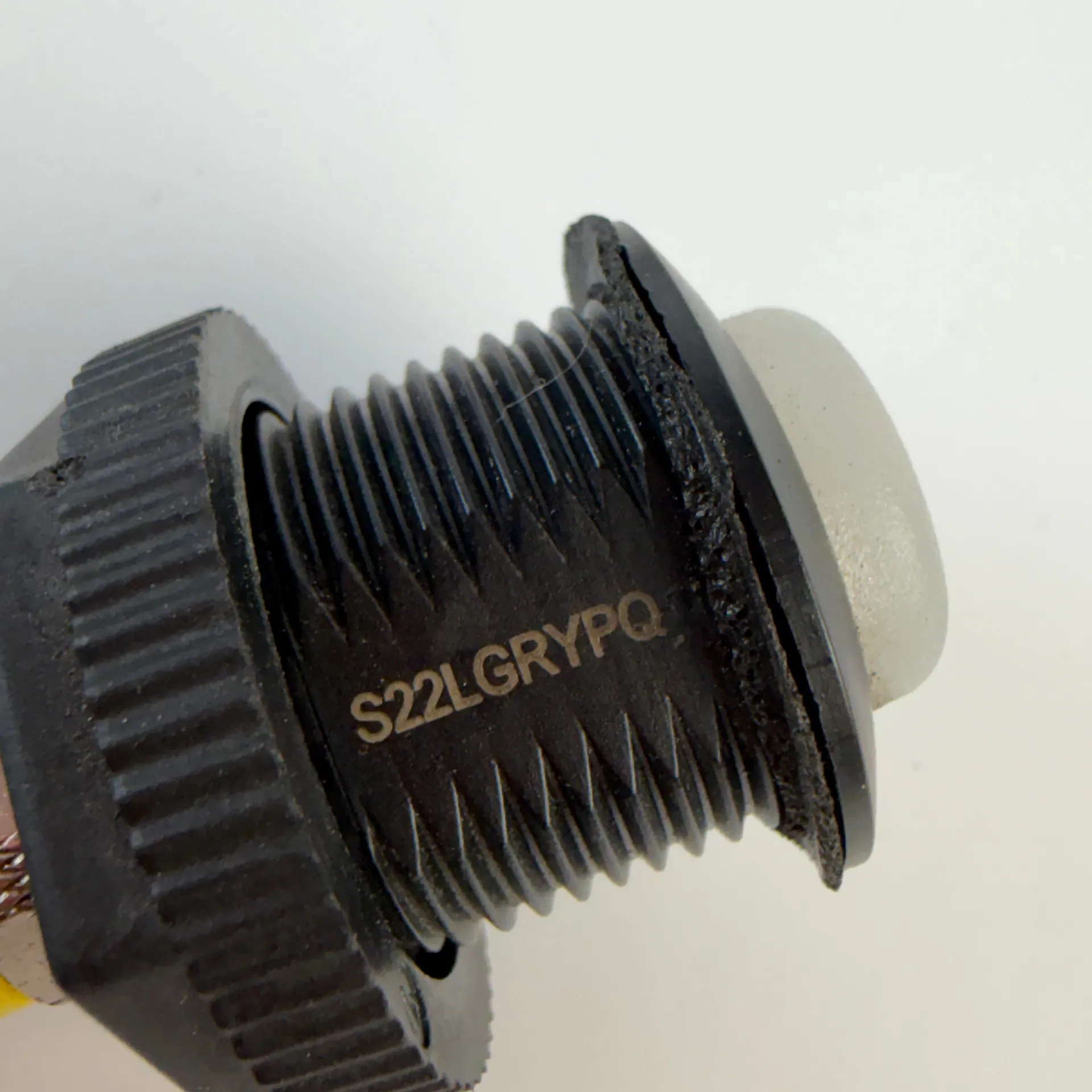

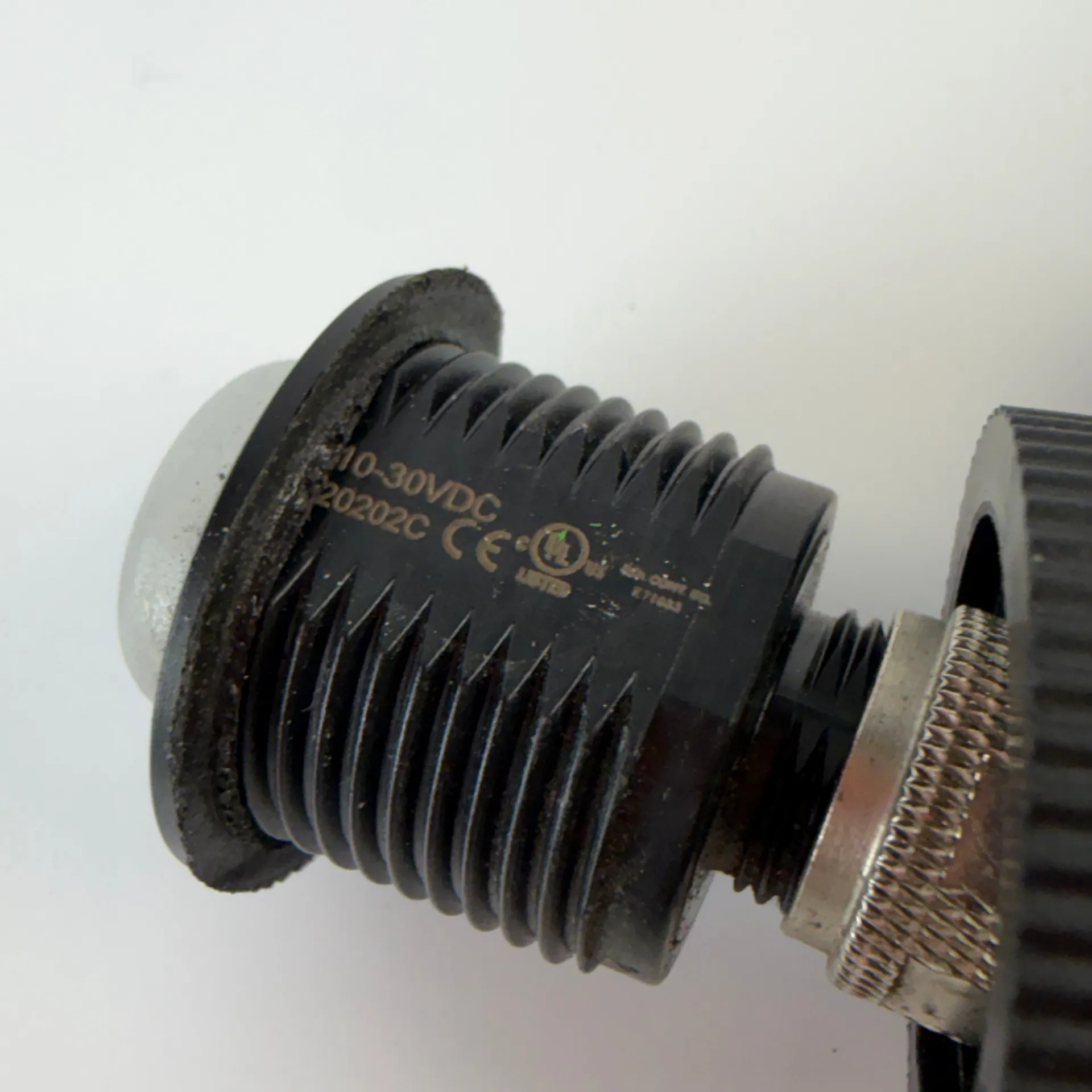

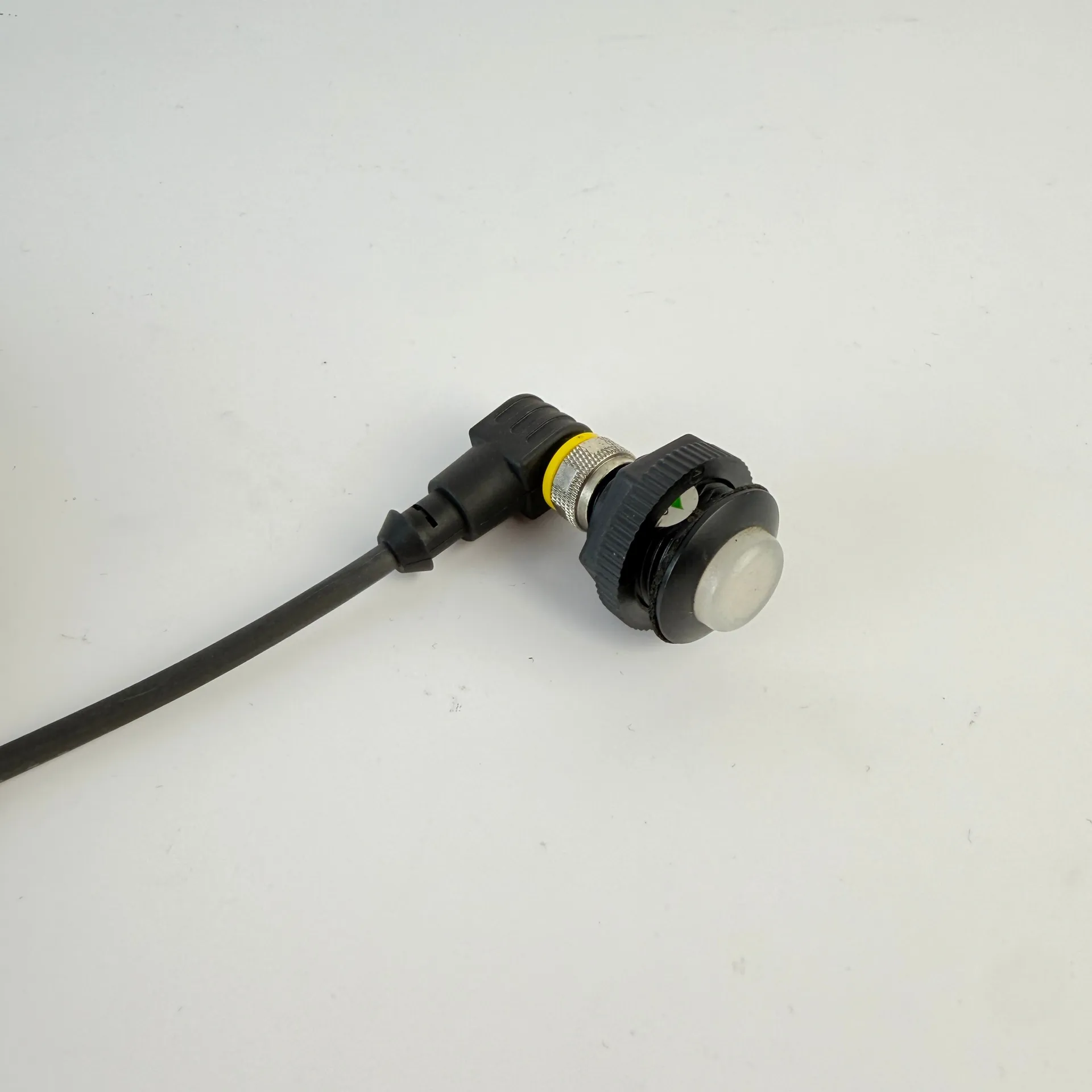

Banner S22LGRYPQ 3-Color LED Panel Mount Indicator 10-30VDC with TURCK 5m M12 Cable

Machine Description

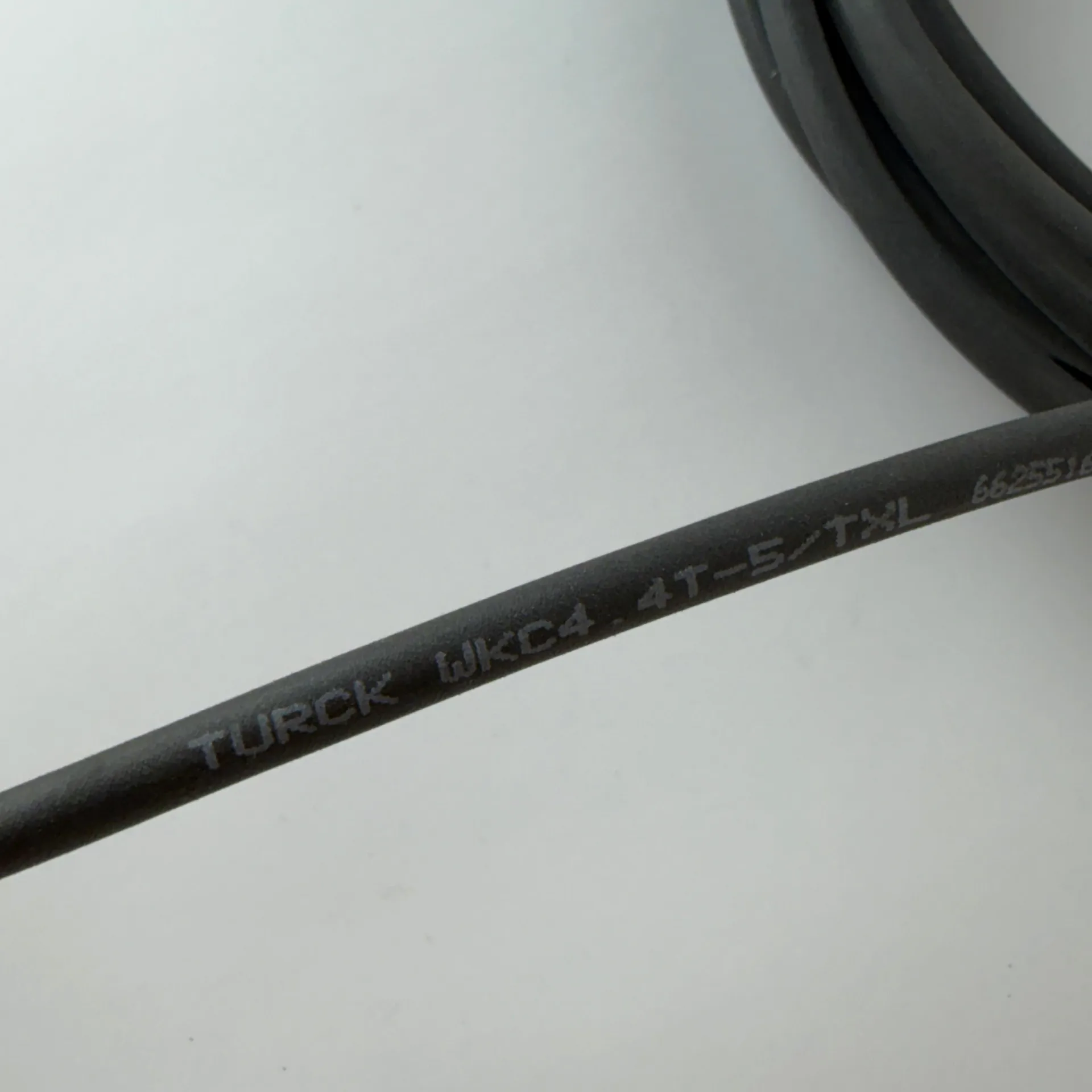

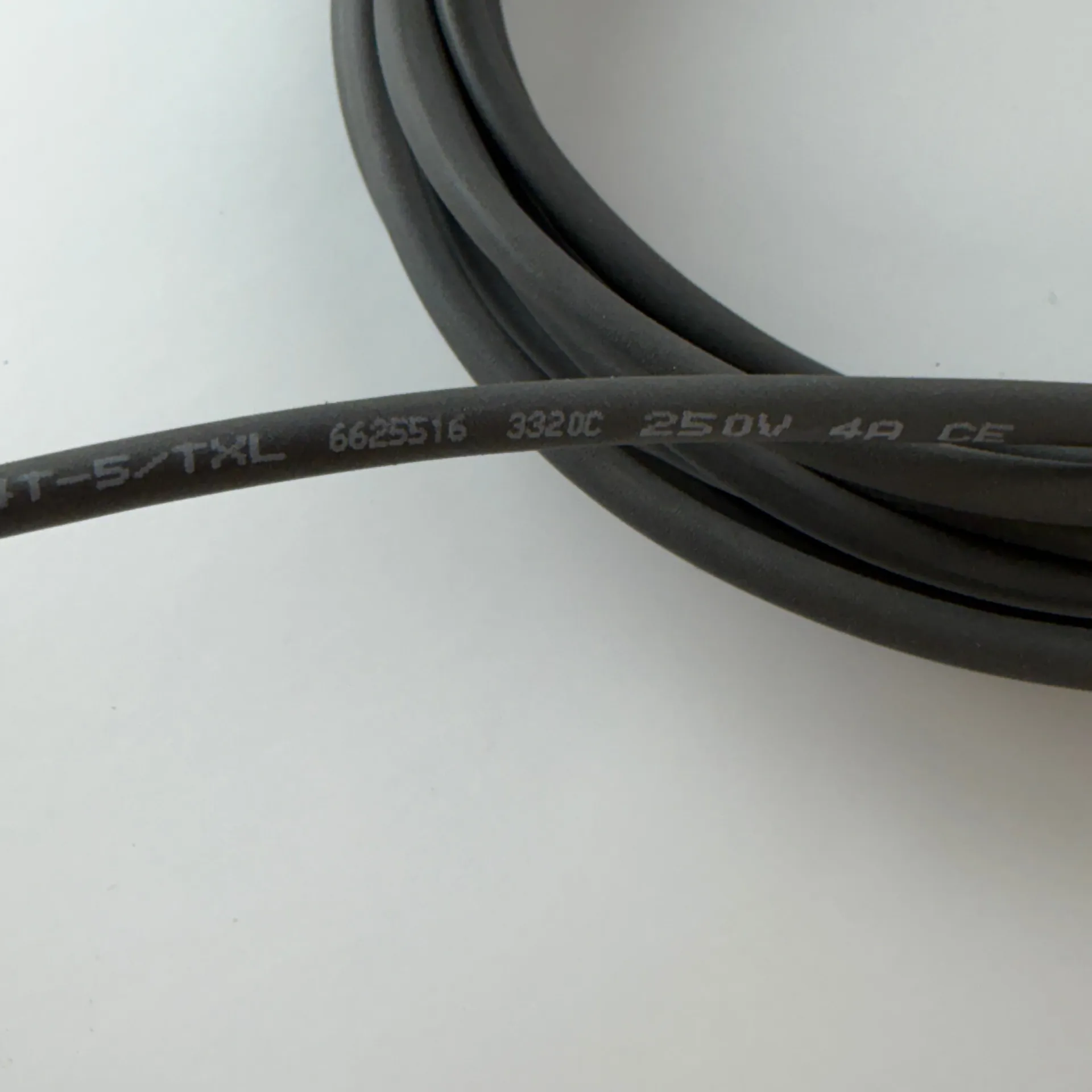

Banner Engineering S22LGRYPQ S22 Series industrial multicolor LED panel-mount indicator supplied with a TURCK WKC4.4T-5/TXL 5-meter M12 connection cable. The S22LGRYPQ is a compact 22 mm panel-mounted status indicator designed for industrial machine and automation applications. It provides three independently controlled indication colors — green, red and yellow — from a single diffused indicator face. The indicator operates from 10–30 VDC with PNP inputs and uses an integral 4-pin M12 quick-disconnect connection. Included TURCK cable is model WKC4.4T-5/TXL, ID 6625516. It features an angled female M12 A-coded 4-pin connector and a 5-meter black PUR cable with open conductors at the opposite end. Banner S22LGRYPQ specifications: • Manufacturer: Banner Engineering • MPN: S22LGRYPQ • Series: S22 • Type: Multicolor LED panel-mount indicator • Indicator colors: Green / Red / Yellow • Number of colors: 3 • Supply voltage: 10–30 VDC • Input type: PNP • Connection: Integral 4-pin M12 quick disconnect • Mounting size: 22 mm • Mounting thread: M22 × 1.5 • Protection rating: IP67 / IP69K • Housing material: Polycarbonate • Operating temperature: -40°C to +50°C Included TURCK cable: • Model: WKC4.4T-5/TXL • ID: 6625516 • Length: 5 m • Connector: Female M12 × 1, angled, A-coded • Number of pins: 4 • Cable material: PUR • Core cross-section: 4 × 0.34 mm² • Protection rating: IP67 / IP69K when properly connected Condition: Used, fully functional.
