Festo DSN-12-10-P-A Pneumatic Cylinder 12mm Bore 10mm Stroke 10 Bar – 10.89R
Technical Specifications
Machine Description

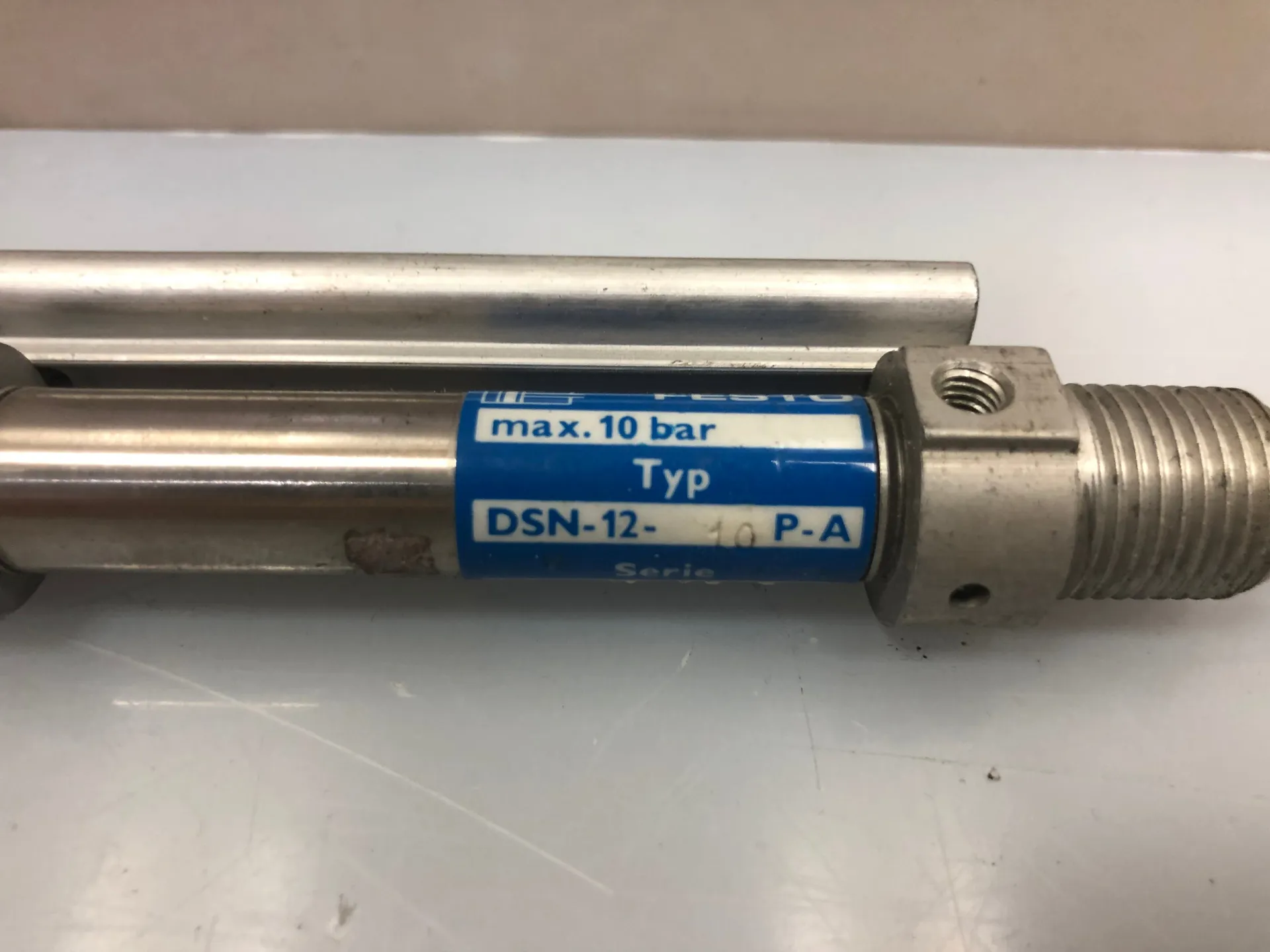

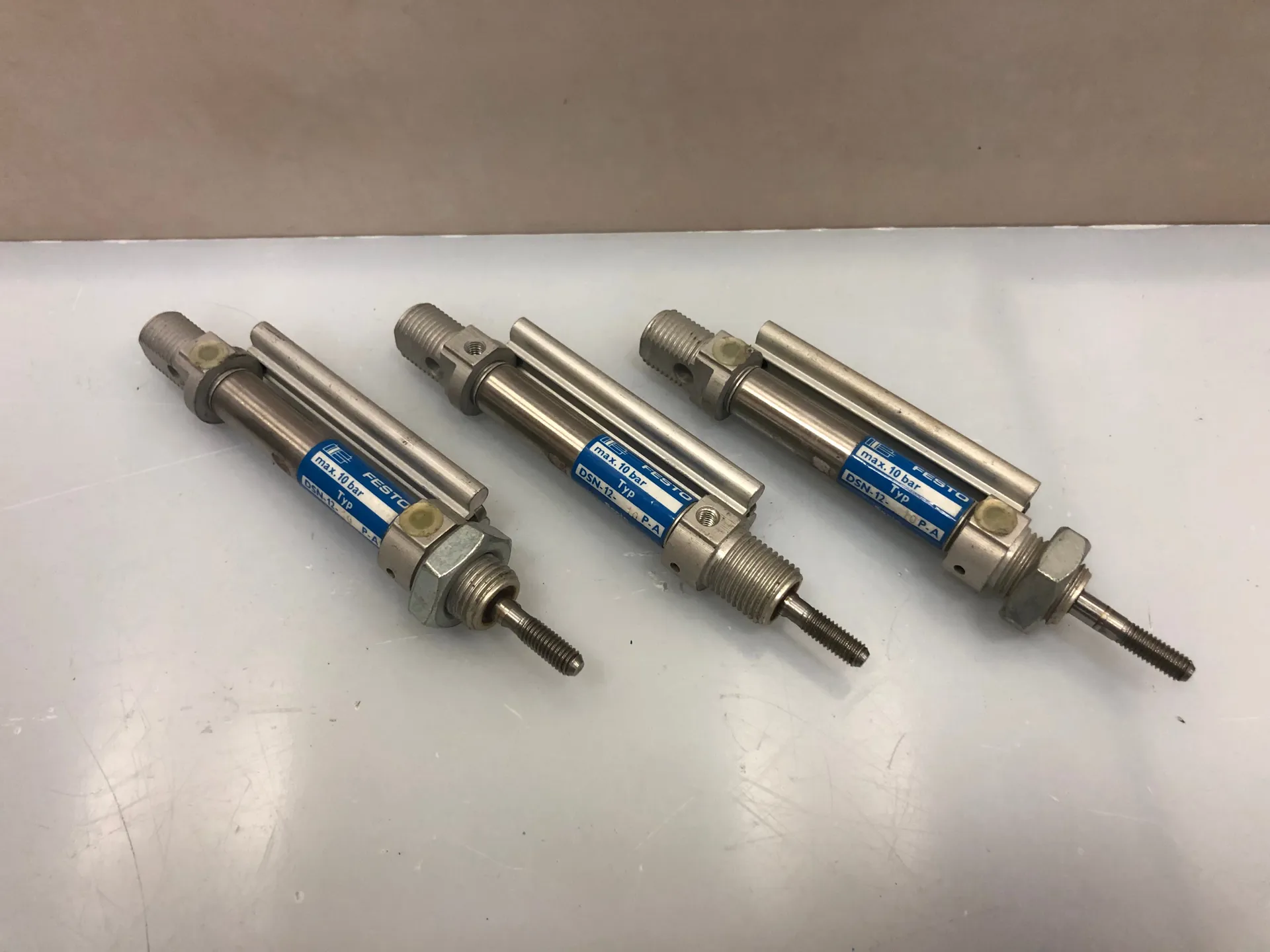

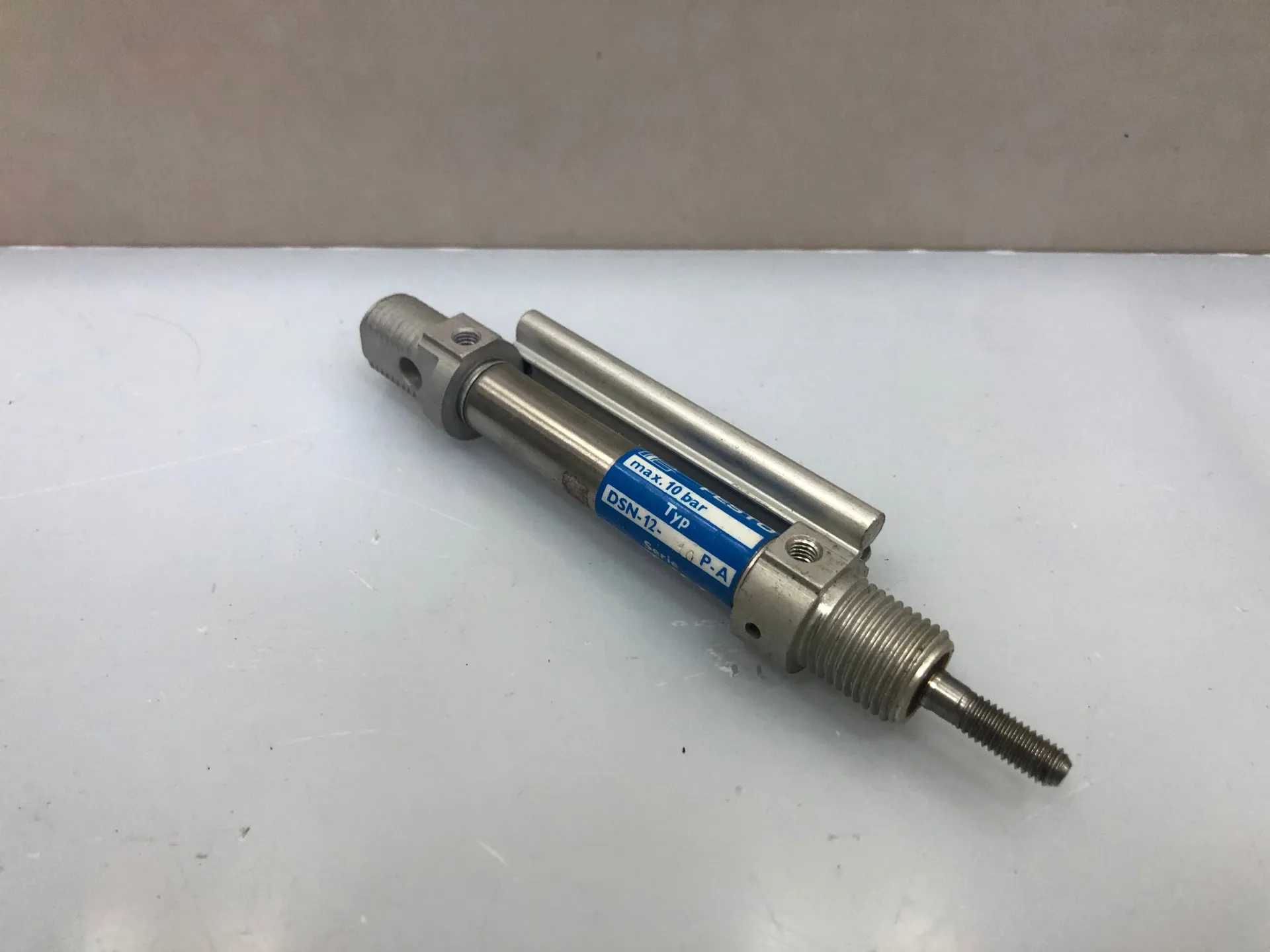

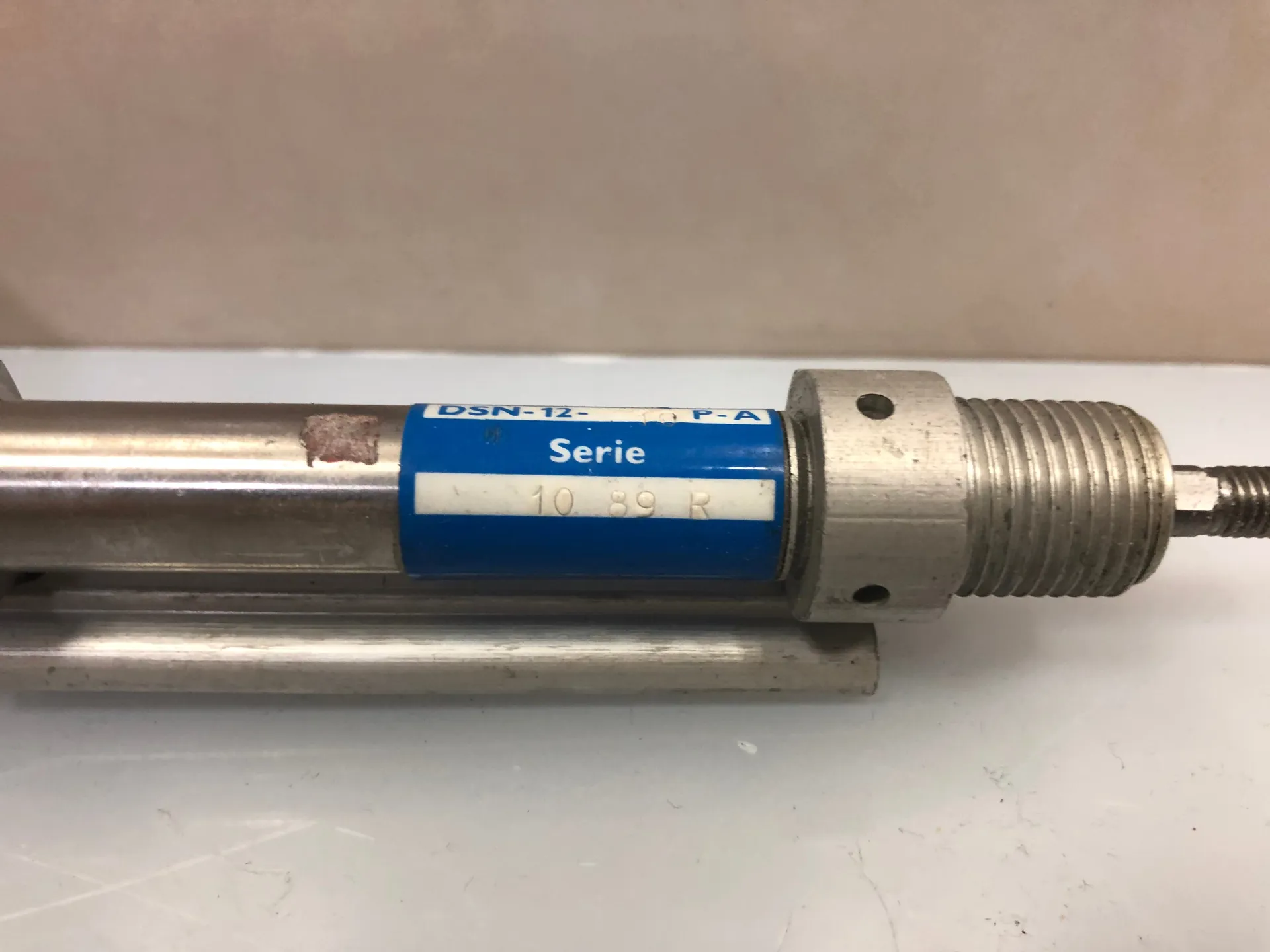

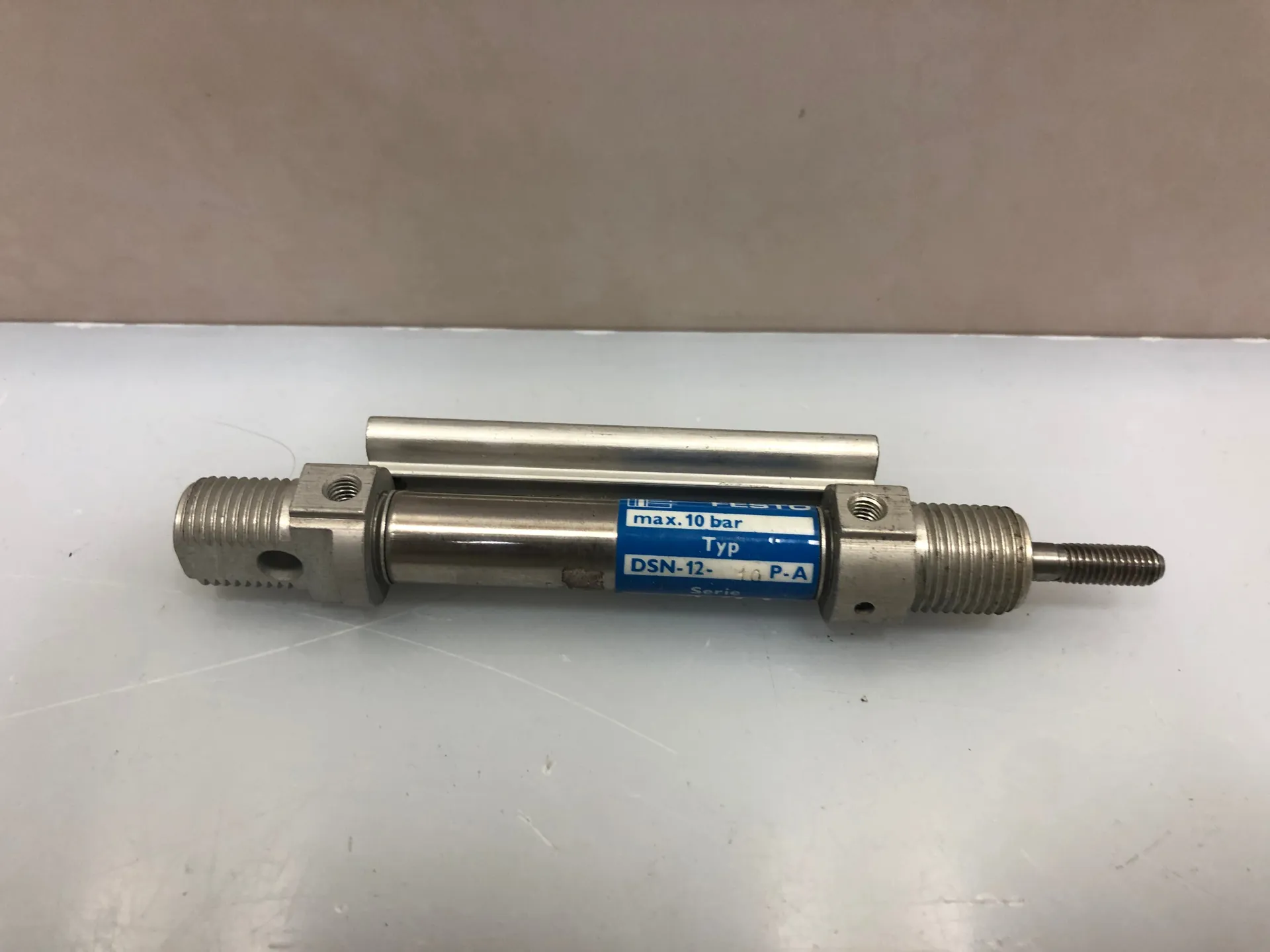

The Festo DSN-12-10-P-A is a compact round-body pneumatic cylinder built according to ISO 6432 standards. With a 12 mm bore and 10 mm stroke, this double-acting cylinder is ideal for space-constrained applications requiring short, precise linear motion. It supports up to 10 bar operating pressure and is suitable for both lubricated and unlubricated compressed air. Technical Specifications: • Model: DSN-12-10-P-A • Marking: 10.89R • Bore Size: 12 mm • Stroke Length: 10 mm • Cylinder Type: Round cylinder (ISO 6432) • Action: Double acting • Piston Rod: Single-ended, stainless steel • Cushioning: Elastic end-position cushioning • Body Material: Stainless steel • Rod Material: Stainless steel • Operating Pressure: Up to 10 bar • Medium: Filtered compressed air, lubricated or non-lubricated • Mounting Options: Nose thread, rear thread, or with optional accessories • Manufacturer: Festo Item condition: Used, in perfect working condition.
Location:Bulevar Konstantina Velikog 38, Sremska Mitrovica, Serbia, Serbia
€35
