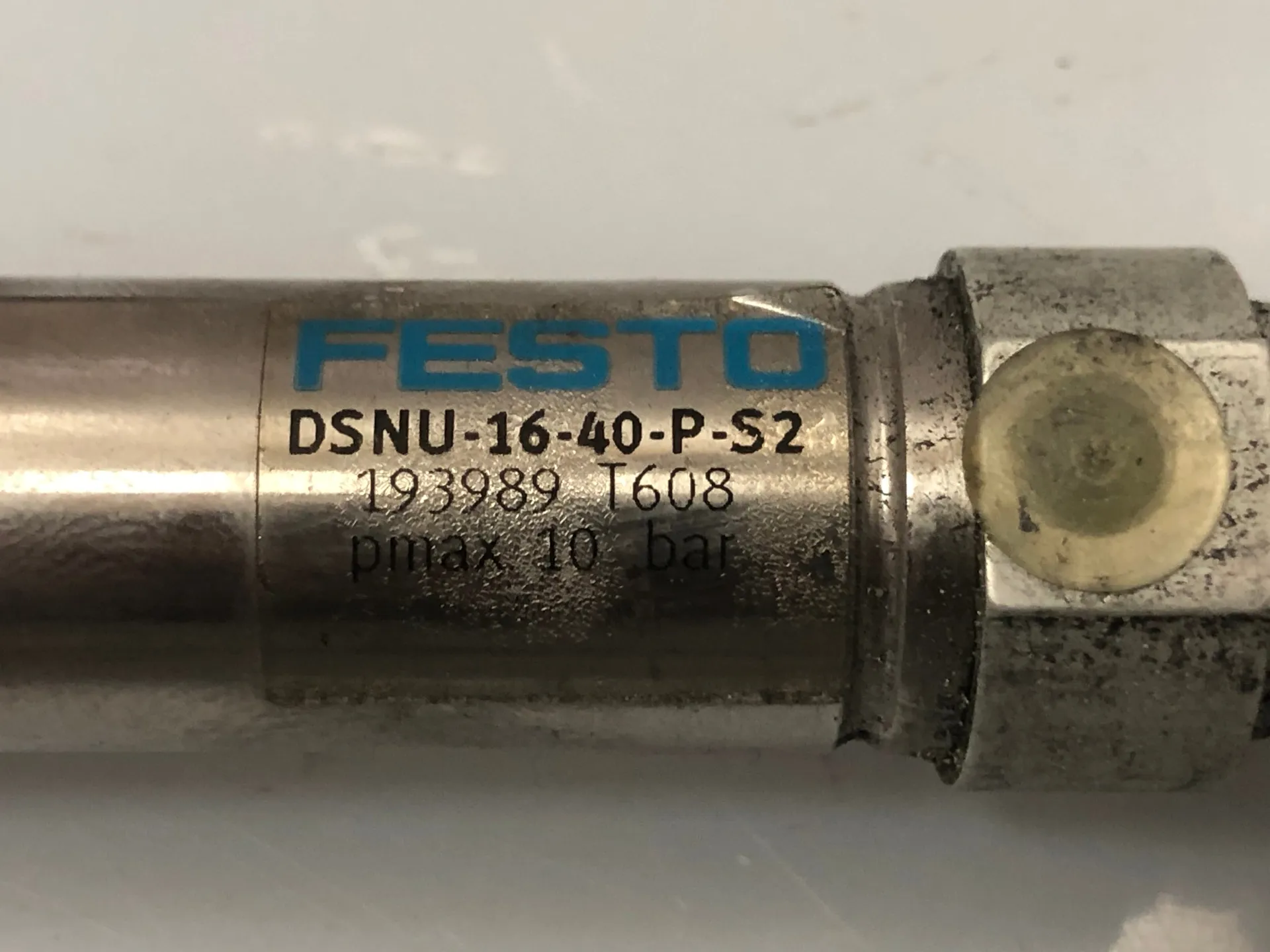

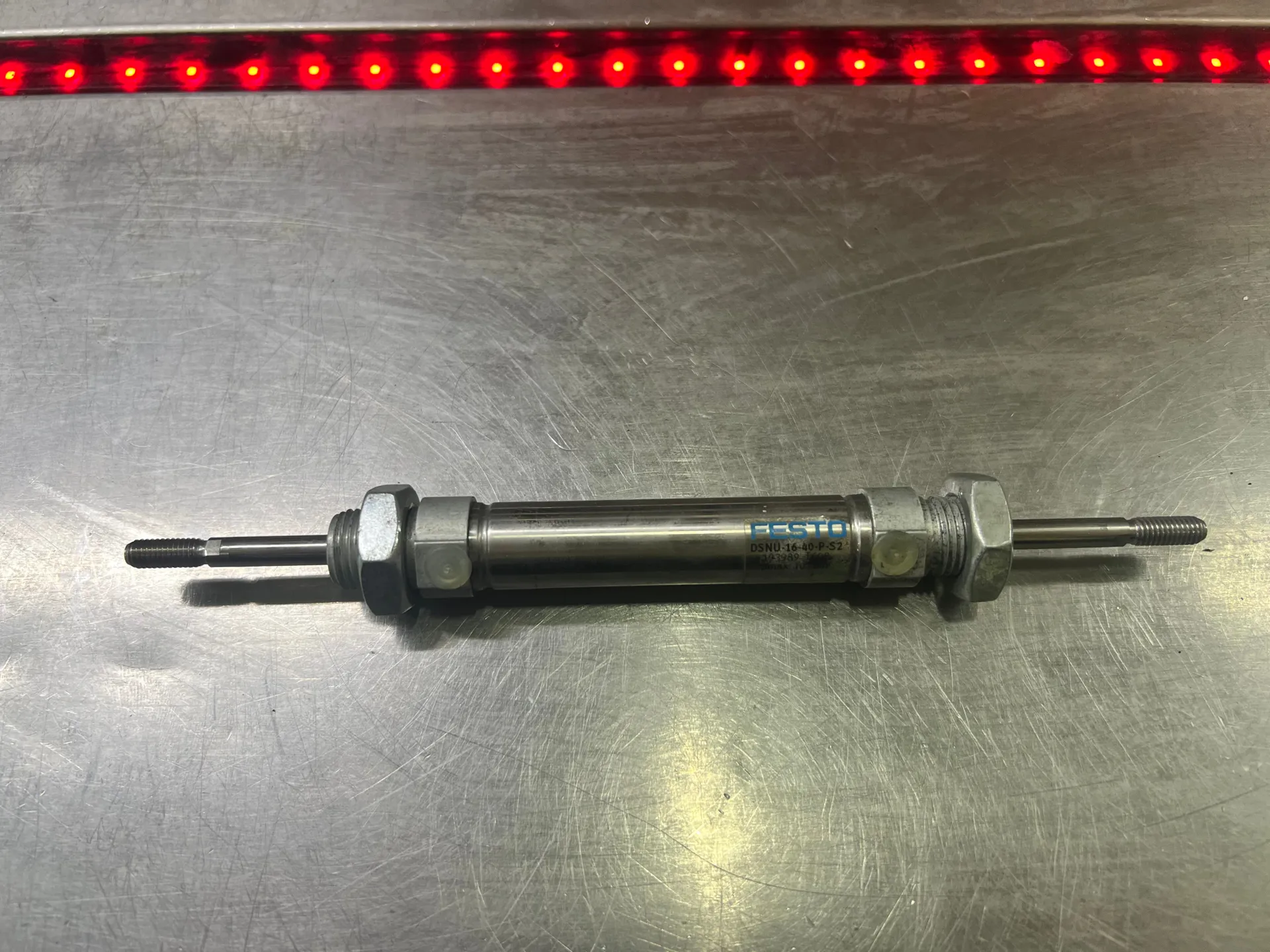

1x Festo DSNU-16-40-P-S2 Pneumatic Cylinder 16mm Bore 40mm Stroke – 193969

Machine Description

The Festo DSNU-16-40-P-S2 is a compact and durable round-body pneumatic cylinder from the DSNU series, designed in accordance with ISO 6432 standards. With a 16 mm bore, 40 mm stroke, and magnetic piston (S2 variant), it is perfect for automation systems requiring reliable motion and compatibility with position sensors. Technical Specifications: • Model: DSNU-16-40-P-S2 • Part Number: 193969 • Alternate Code: DSNU1640PS2 • Bore Size: 16 mm • Stroke Length: 40 mm • Cylinder Type: Round cylinder, ISO 6432 standard • Action: Double acting • Piston Variant: S2 – magnetic piston for proximity sensing • Piston Rod: Double-ended, stainless steel • Cushioning: Elastic end-position cushioning • Body Material: Stainless steel • Rod Material: Stainless steel • Operating Pressure: Up to 10 bar • Medium: Filtered compressed air, lubricated or unlubricated • Mounting Options: Nose thread, rear thread, or optional brackets • Manufacturer: Festo Item condition: New, in perfect working condition.
