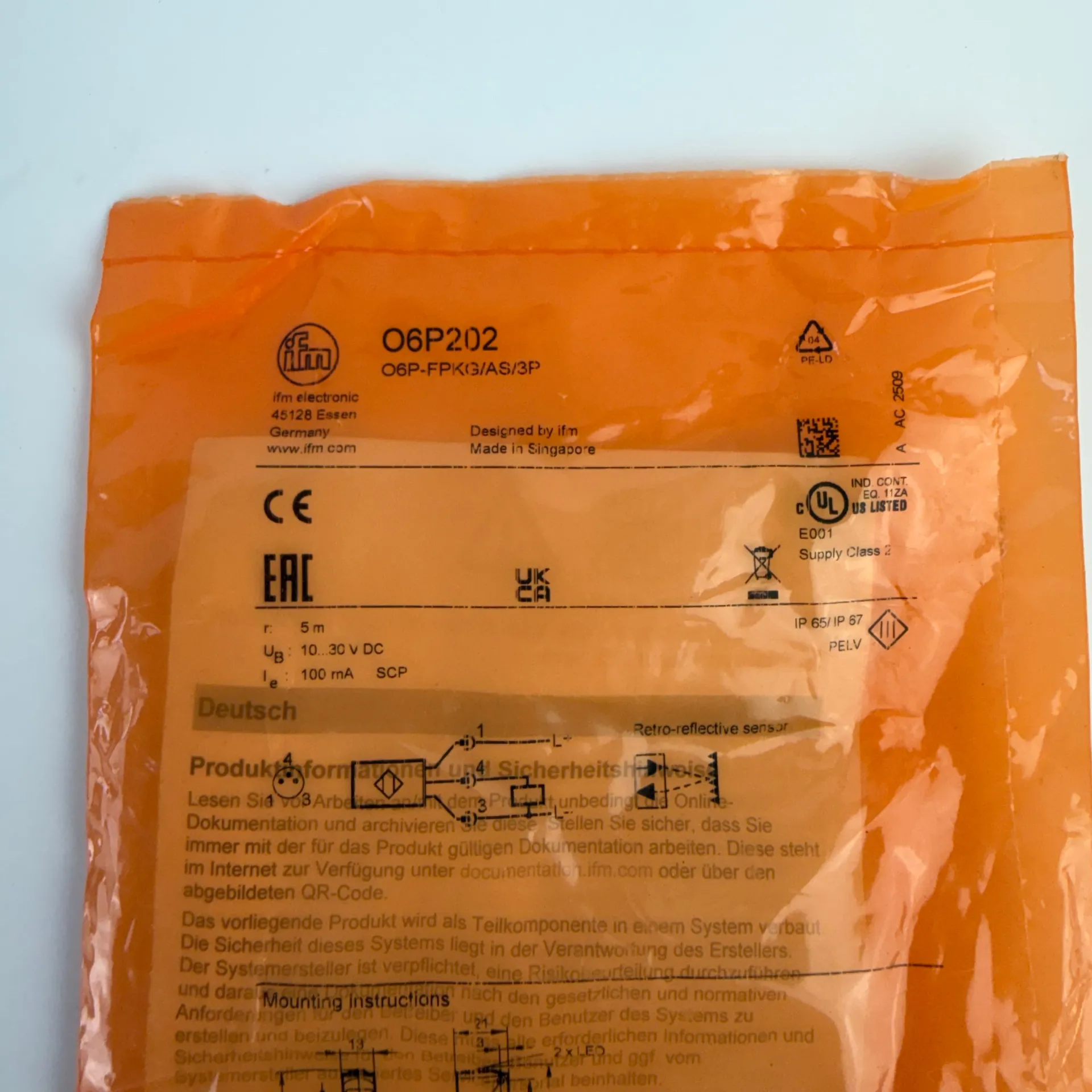

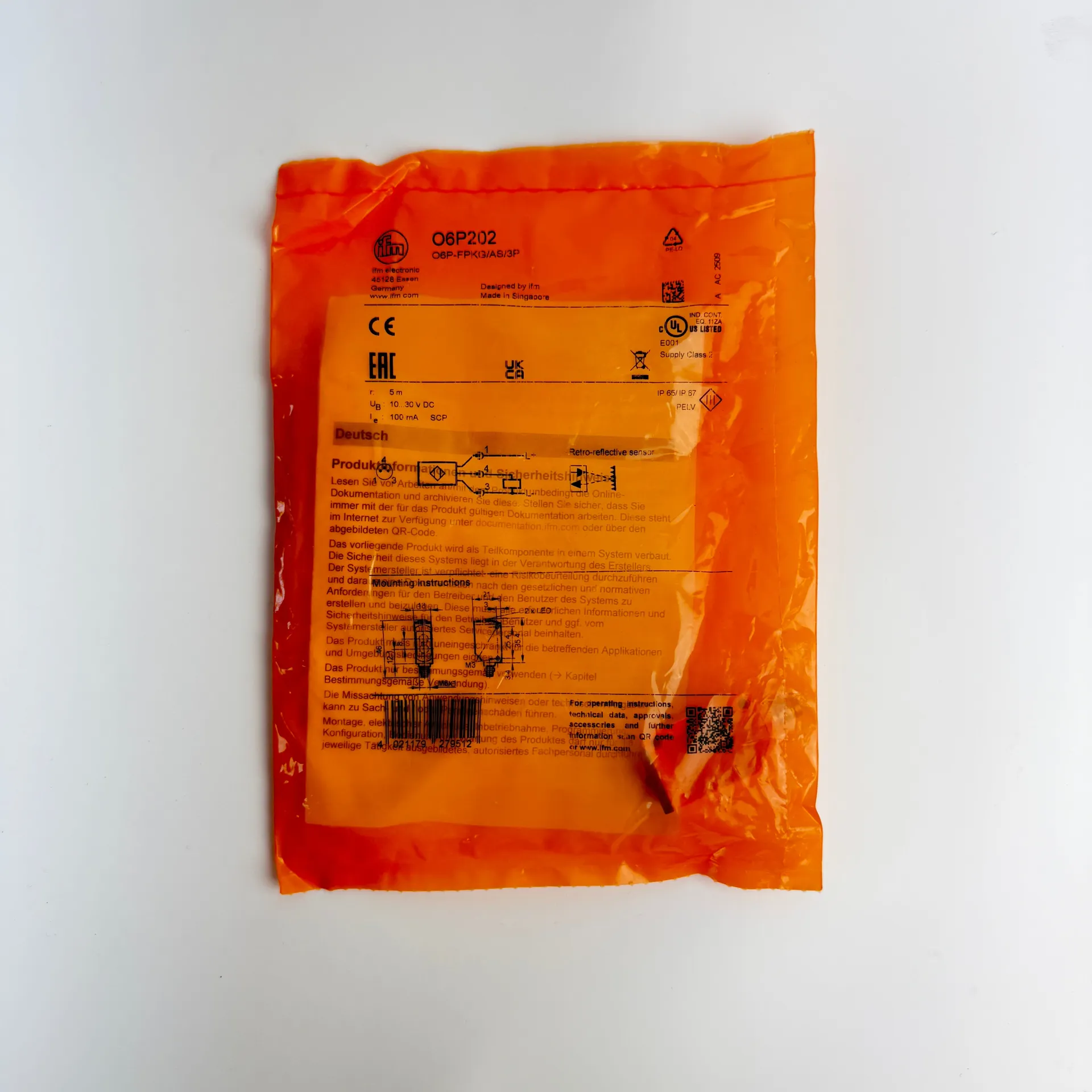

ifm O6P202 O6P-FPKG/AS/3P Retro-Reflective Photoelectric Sensor PNP 5m M8

Machine Description

New ifm O6P202 O6P-FPKG/AS/3P retro-reflective photoelectric sensor for industrial automation and object detection applications. The O6P202 uses visible red light with a polarization filter and provides an adjustable sensing range of 0.05 to 5 m when used with the specified prismatic reflector. It features a PNP switching output with selectable light-on/dark-on operation. The sensor operates from 10–30 V DC, supports up to 100 mA continuous switching output current and has a switching frequency of 1000 Hz. Electrical connection is provided by a 3-pin A-coded M8 connector. The compact rectangular housing is rated IP65/IP67 and includes LED indicators for power and switching status. Condition: New, unused. Technical Specifications Specification Value Manufacturer ifm electronic Part Number / MPN O6P202 Type O6P-FPKG/AS/3P Sensor Type Retro-reflective photoelectric sensor Application Industrial automation Light Source Red light Wavelength 633 nm Polarization Filter Yes Sensing Range 0.05–5 m Range Adjustment Yes Electrical Design PNP Output Function Light-on / Dark-on selectable Operating Voltage 10–30 V DC Current Consumption 12 mA at 24 V Continuous Output Current 100 mA Max. Switching Output Voltage Drop 2.5 V Switching Frequency 1000 Hz Short-Circuit Protection Yes, non-latching Reverse Polarity Protection Yes Connector M8, A-coded, 3-pin Protection Class III Protection Rating IP65 / IP67 Operating Temperature -25°C to +60°C Storage Temperature -40°C to +70°C Dimensions 46 × 13 × 21 mm Weight 18.2 g Housing Rectangular Lens Alignment Side sensing Switching Indicator 1× yellow LED Power Indicator 1× green LED Package Contents 1× ifm O6P202 photoelectric sensor, as shown. Shopify Tags ifm, O6P202, O6P-FPKG/AS/3P, photoelectric sensor, retro-reflective sensor, PNP sensor, optical sensor, 5m sensor, M8 sensor, 10-30VDC, IP67, industrial automation SEO Keywords ifm O6P202, O6P-FPKG/AS/3P, ifm photoelectric sensor, retro reflective sensor, PNP photoelectric sensor, 5m optical sensor, M8 sensor Meta Title ifm O6P202 Retro-Reflective PNP Photoelectric Sensor 5m Meta Description New ifm O6P202 O6P-FPKG/AS/3P retro-reflective photoelectric sensor with PNP output, adjustable 0.05–5 m range, 10–30 V DC supply and M8 connector.
