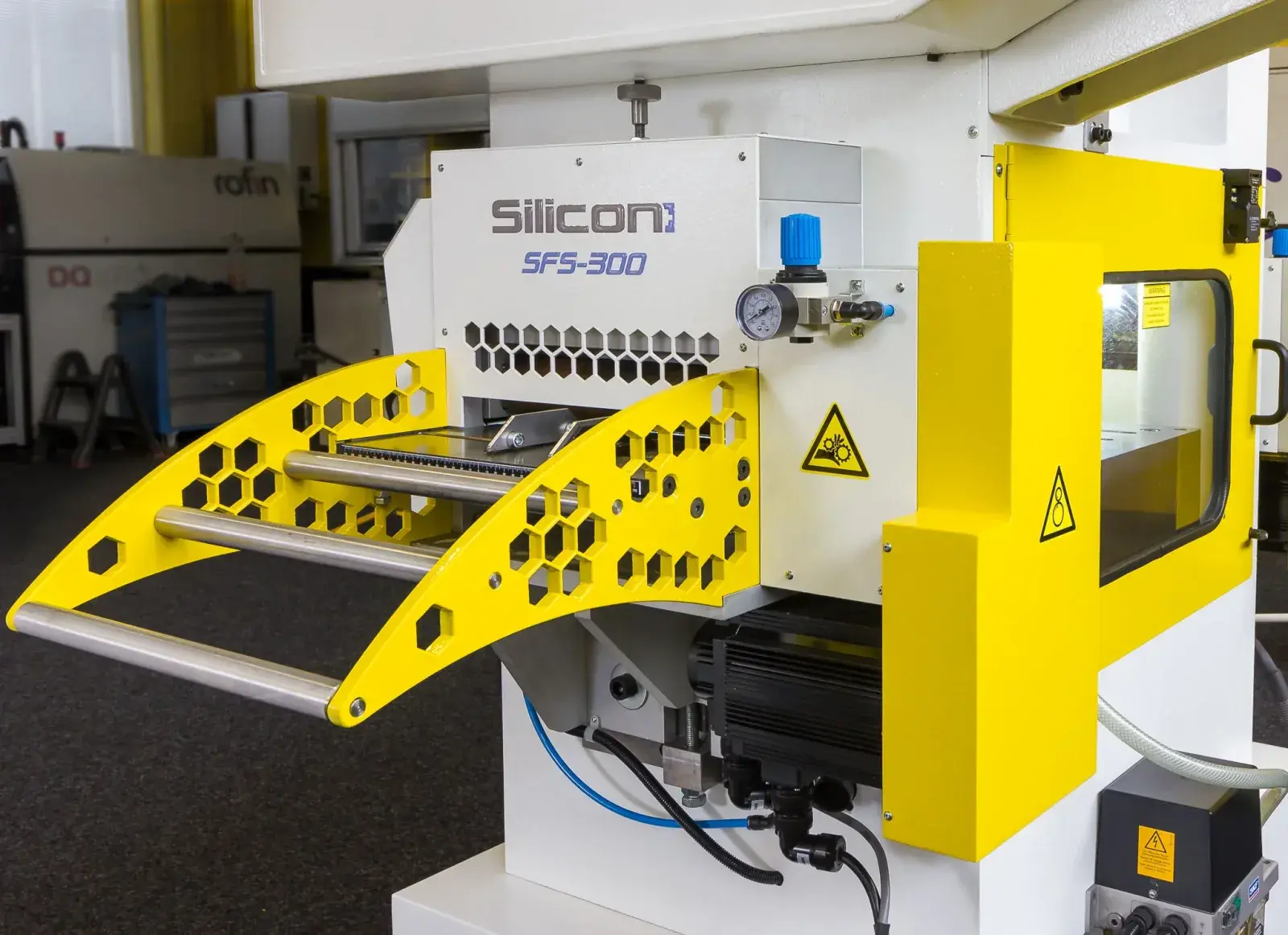

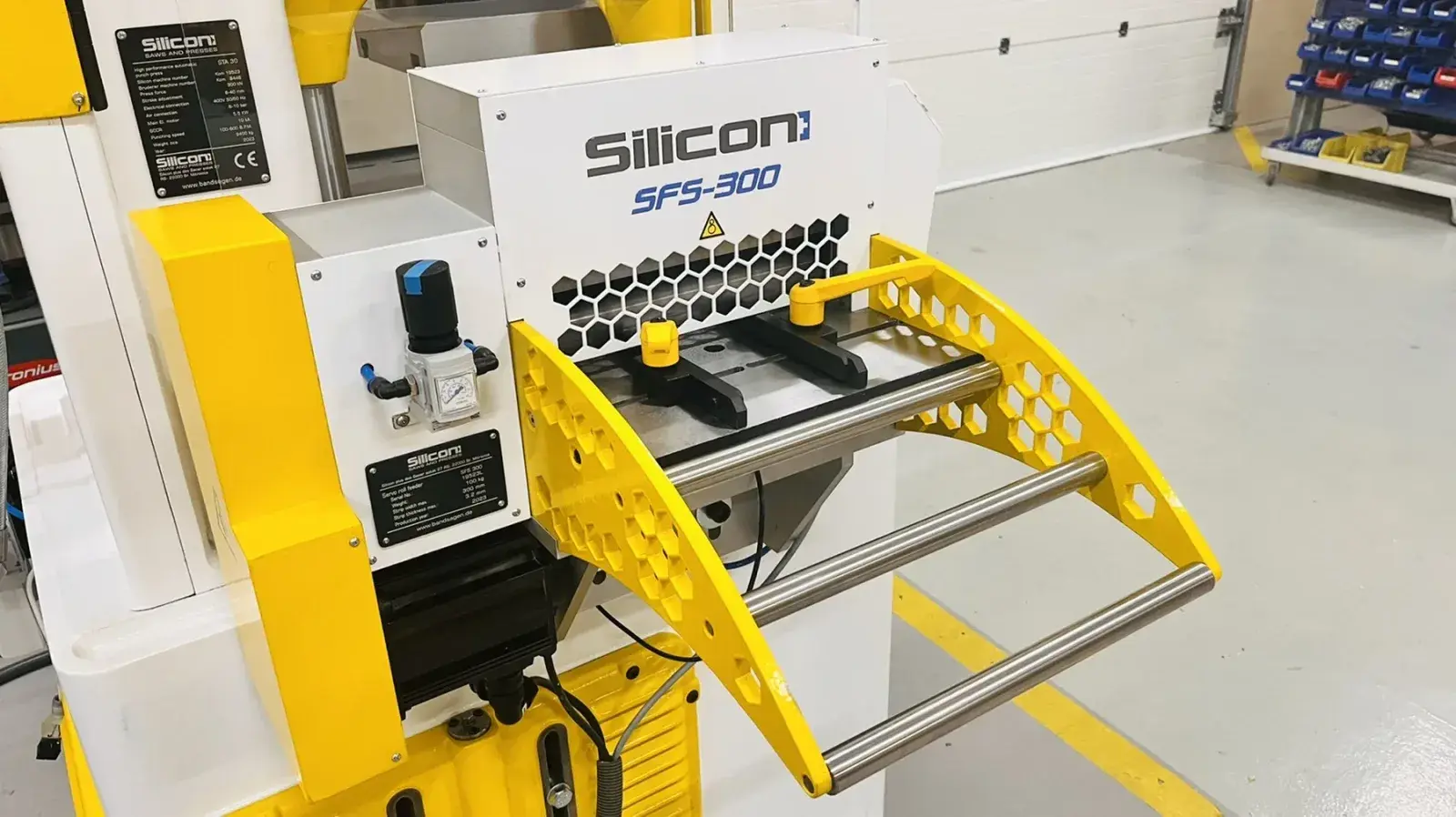

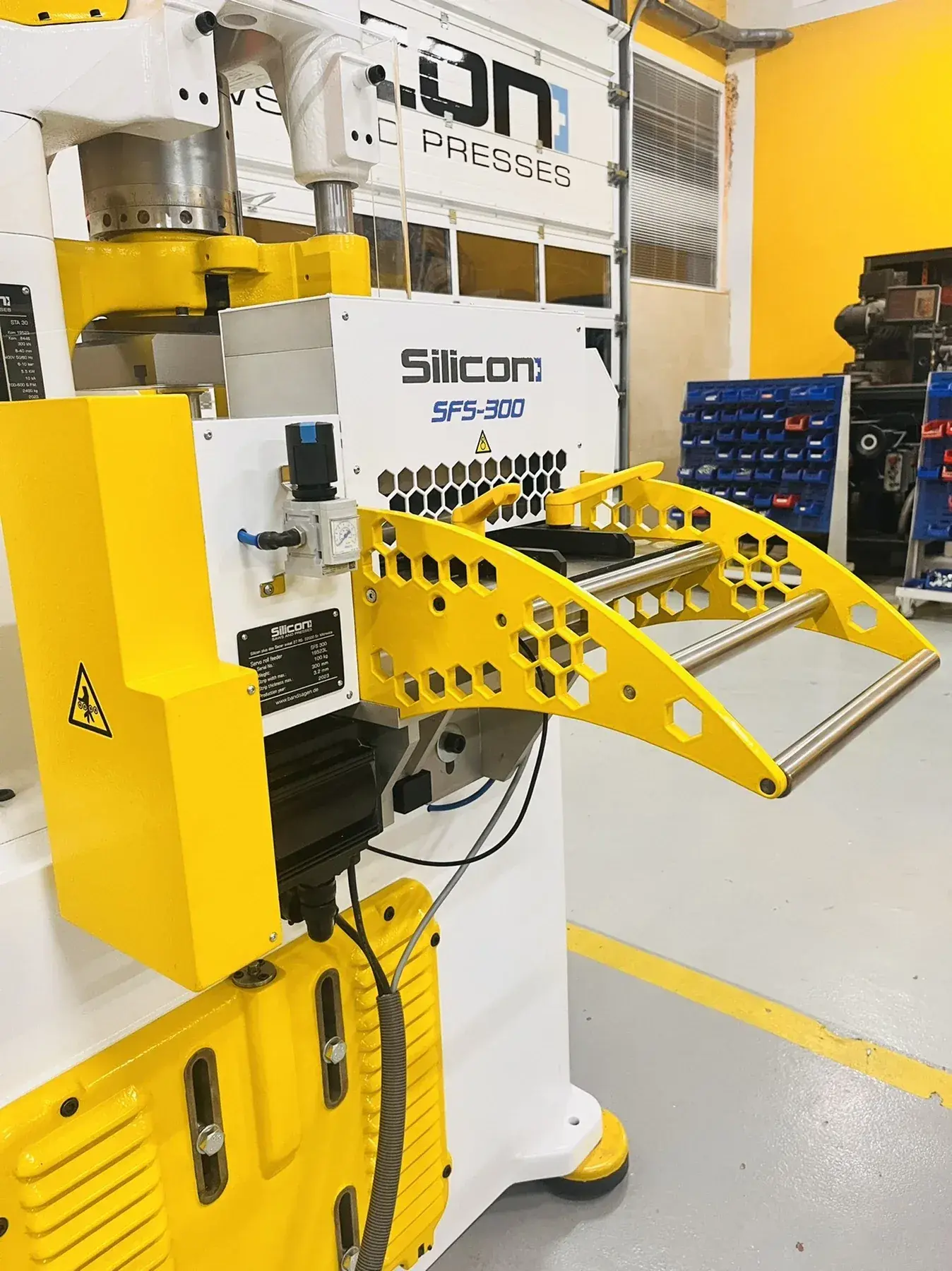

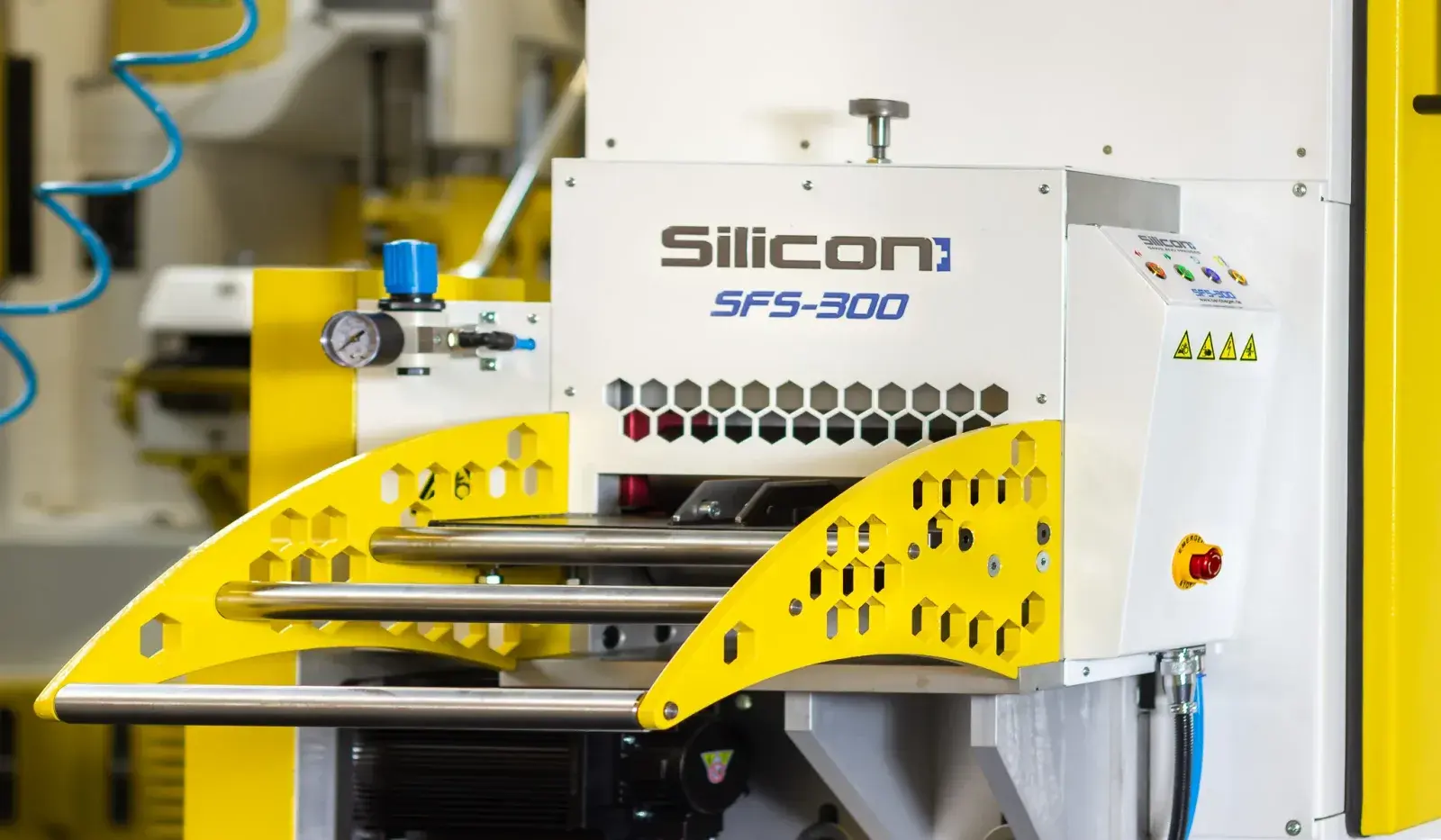

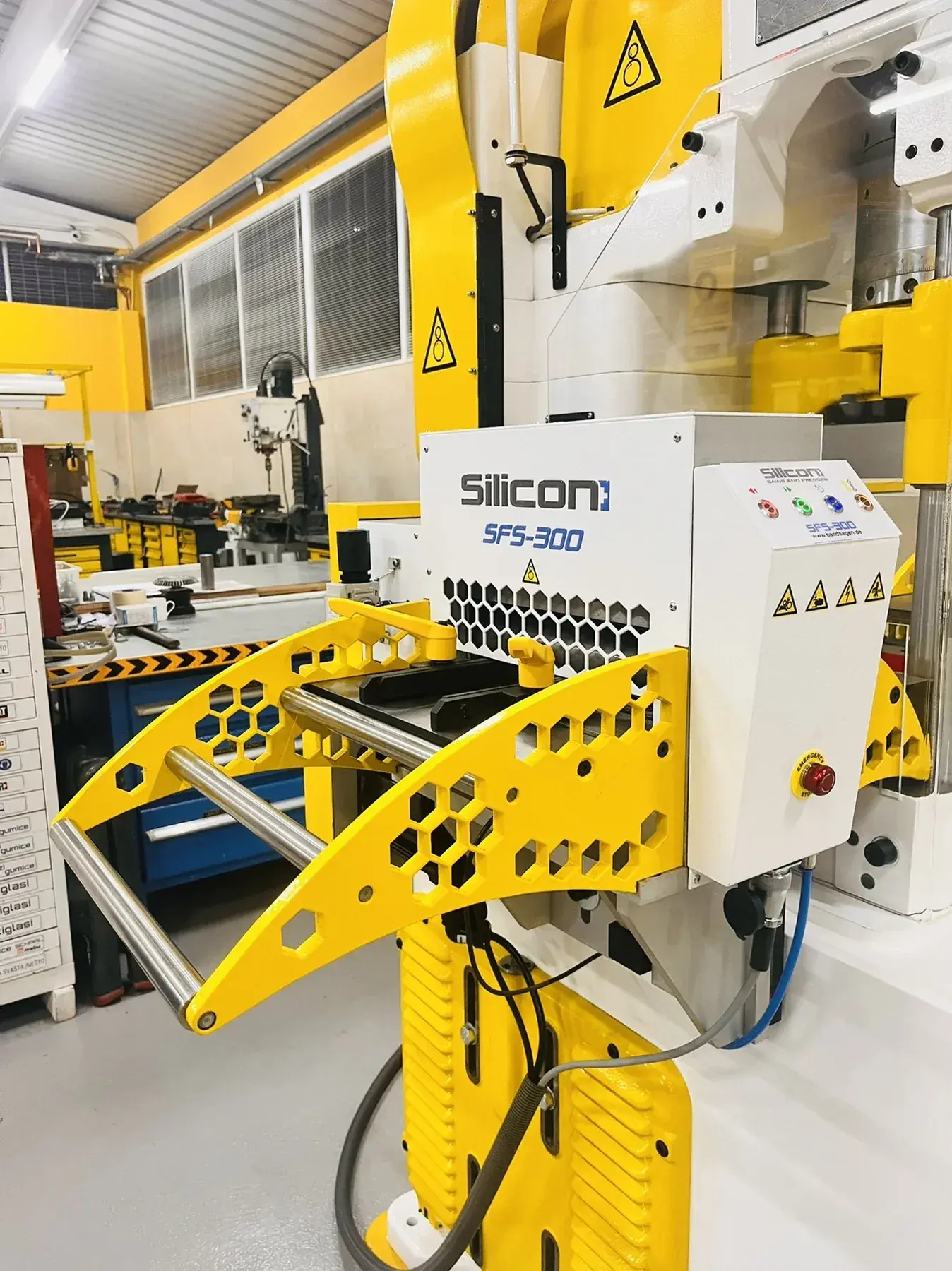

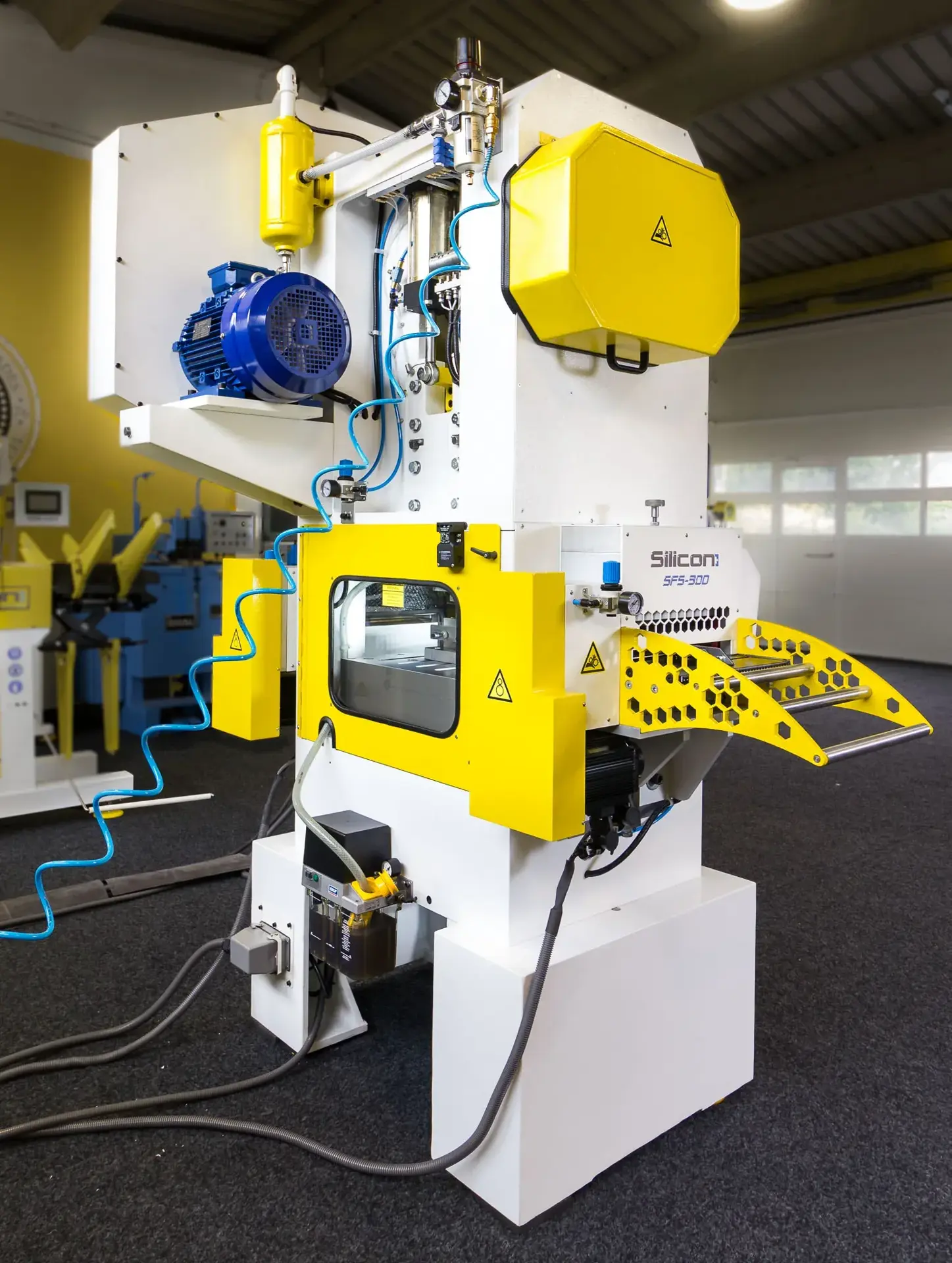

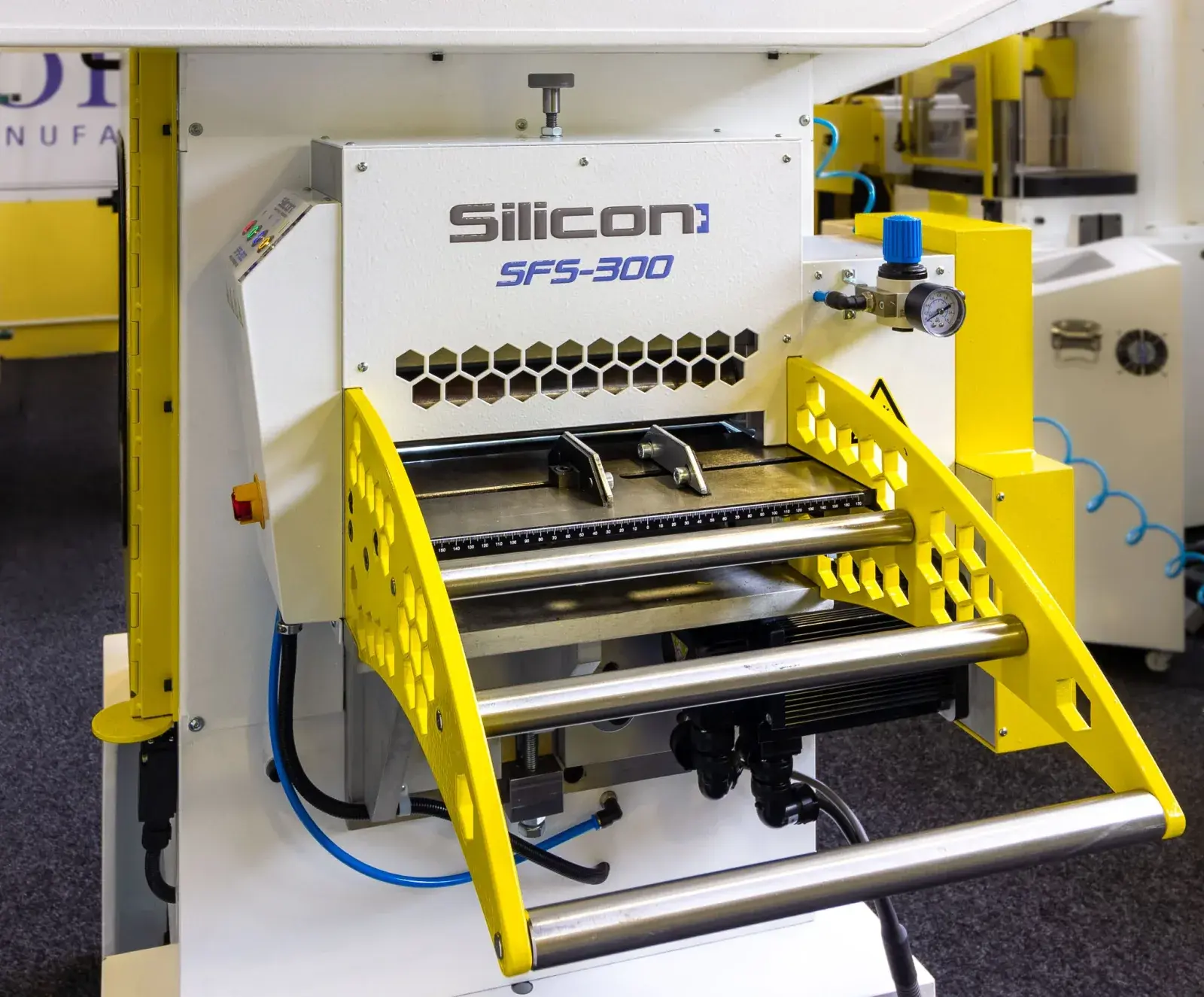

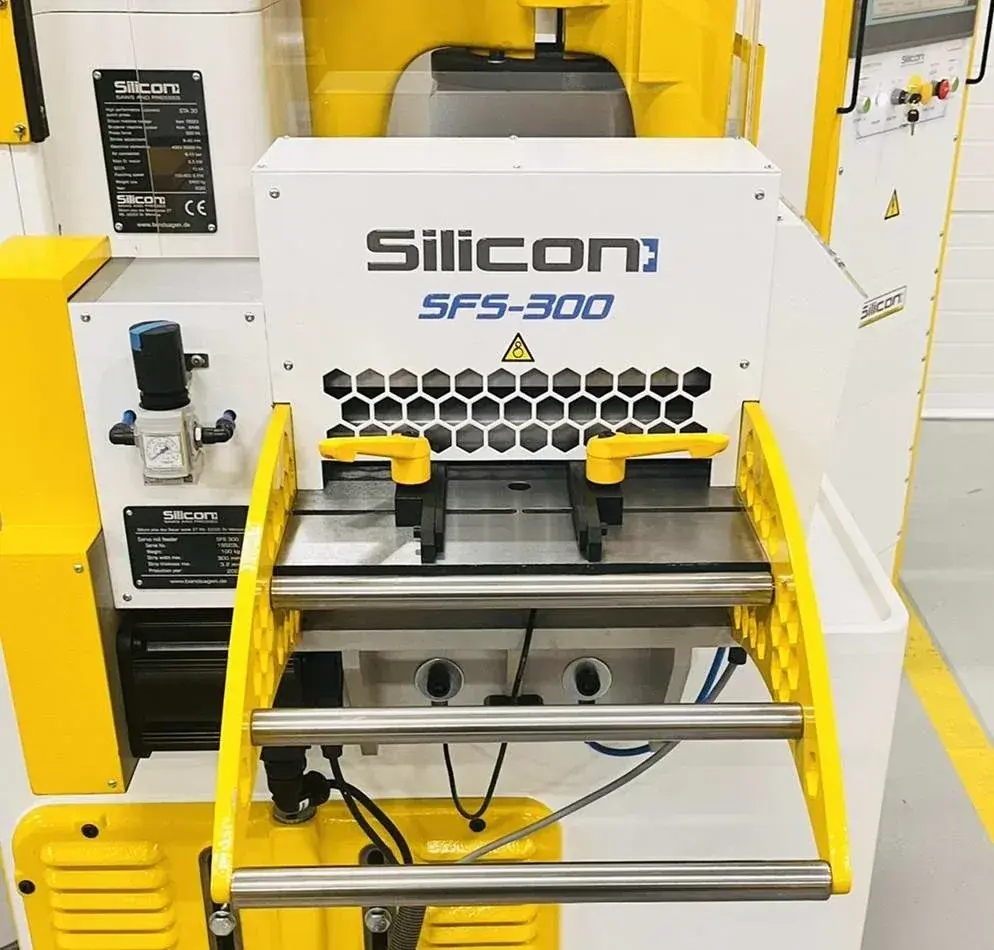

Silicon+ SFS 200 / SFS 300 High-Speed Servo Feeder

Machine Description

New Silicon+ SFS high-speed servo feeder, available as SFS 200 or SFS 300. Driven by a brushless servo motor with synchronous belt transmission, which eliminates gear clearance and wear and runs without noise or lubrication, driving a synchronised pair of roller segments. Synchronisation between the feeder and the punching machine is done through a cam signal from the press PLC. Programmable feeding for up to 10 groups of feeding pitches, saved as recipes; the feed length can be adjusted steplessly during operation. Rolls can be supplied with a PU surface on request for delicate raw material. TECHNICAL SPECIFICATIONS Feeding length: min. 0.10 mm to max. 9,999.99 mm Feeding width: max. 100 mm, 200 mm or 300 mm depending on model Material thickness: 0.20-3.20 mm Feeding angle: 180 deg Die line height: +/-50 mm Max. feeding speed: 20 m/min Strip release: pneumatic, Festo Control: Festo NC touch screen Servo brushless motor: 0.85 kW, 1.8 kW or 2.3 kW Feeder dimensions: 780 x 730 x 680 mm Weight (approx.): 80-150 kg CONDITION AND AVAILABILITY New. In stock, worldwide shipping available. Reference 34326.
