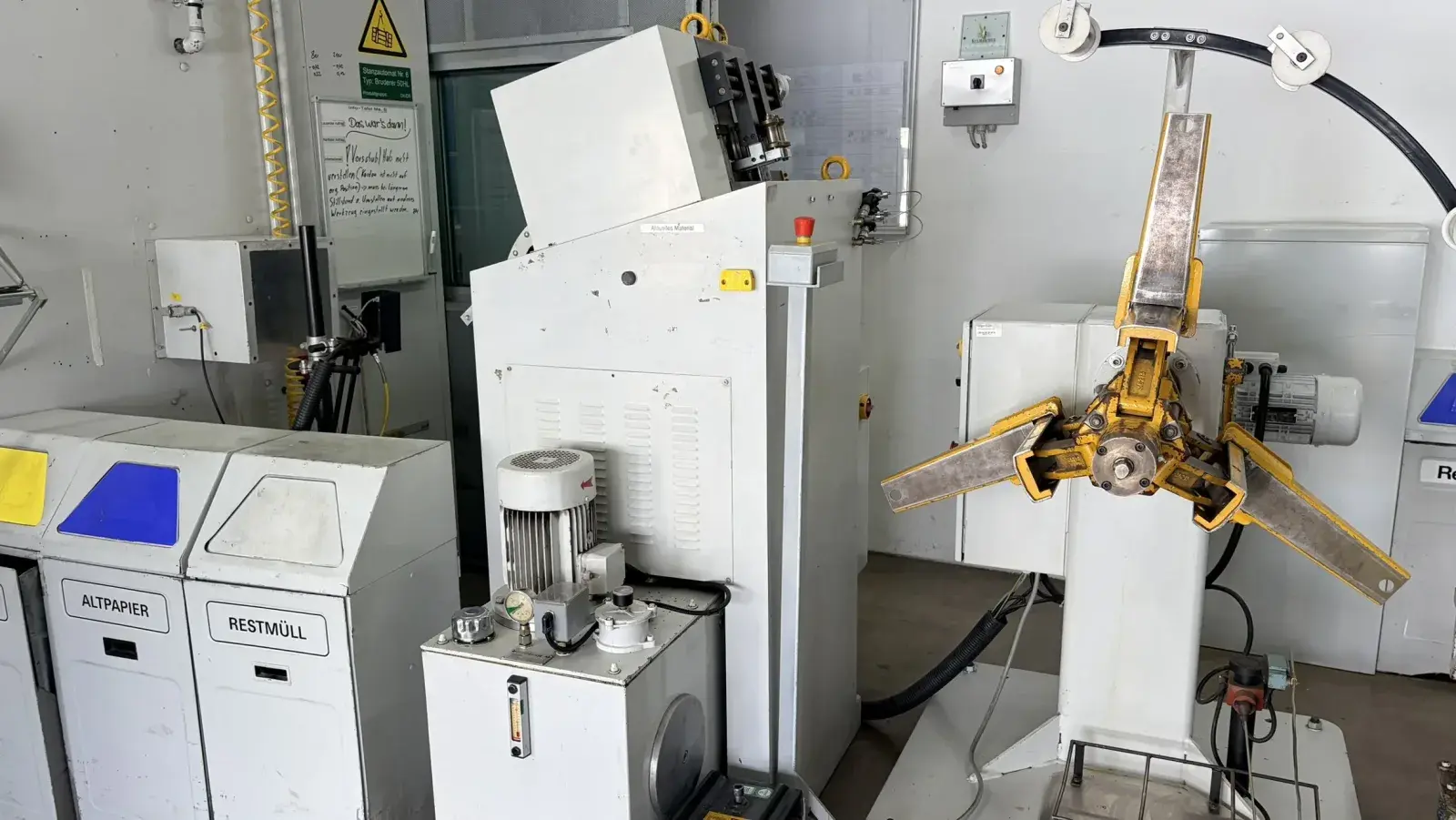

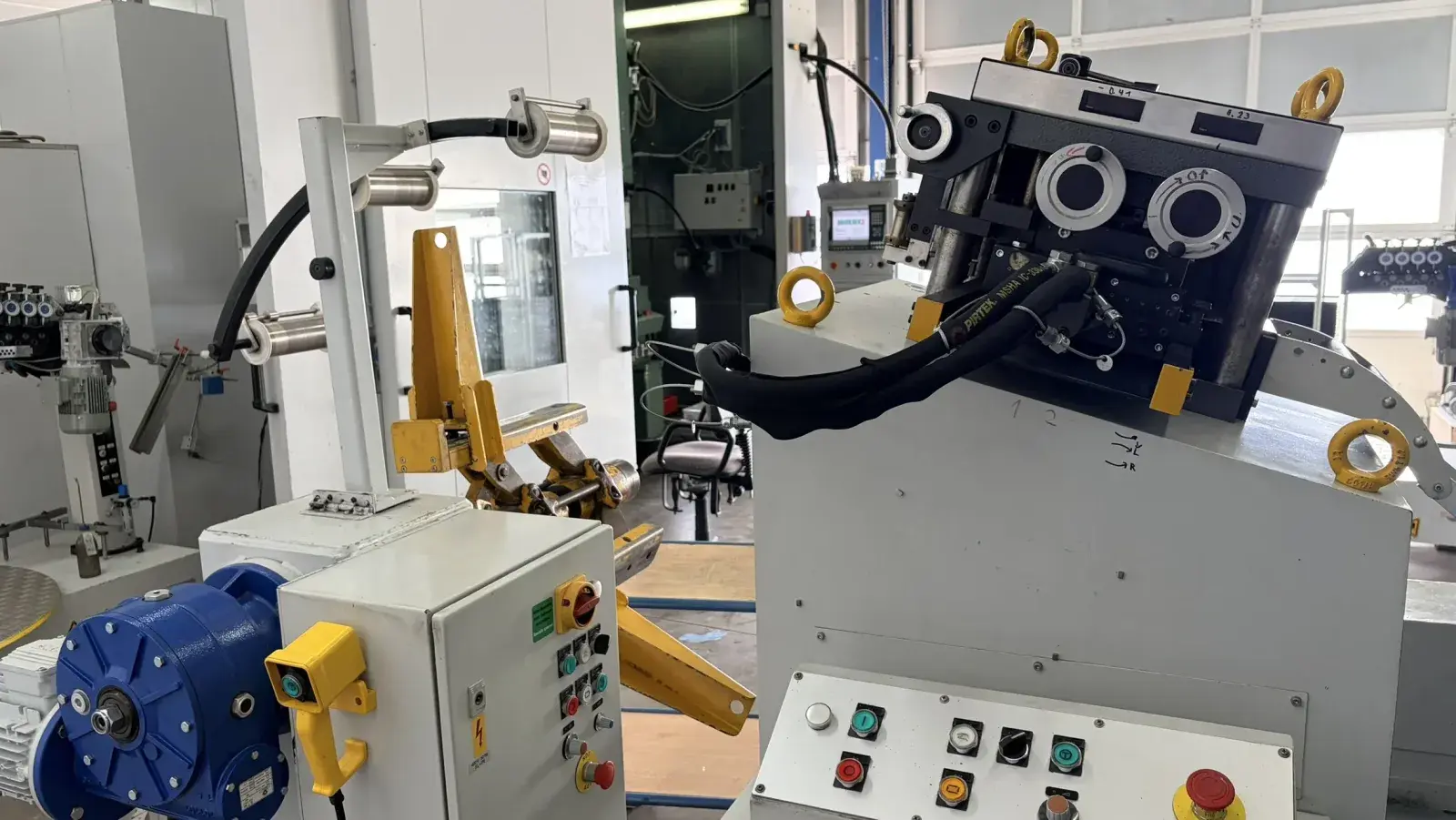

SOPREM Precision Coil Feeding Line - Decoiler 1000 kg + Precision Straightener

Machine Description

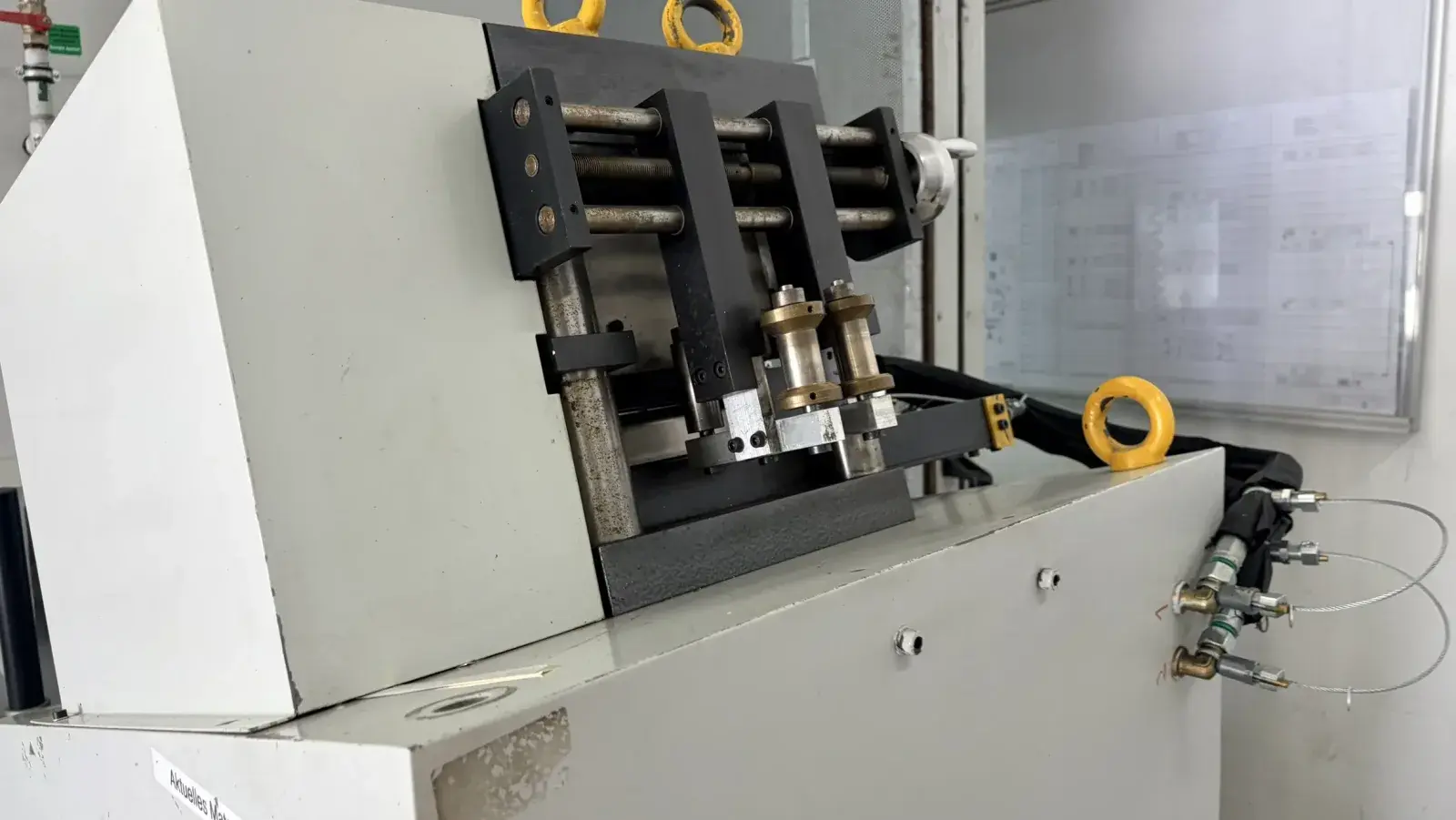

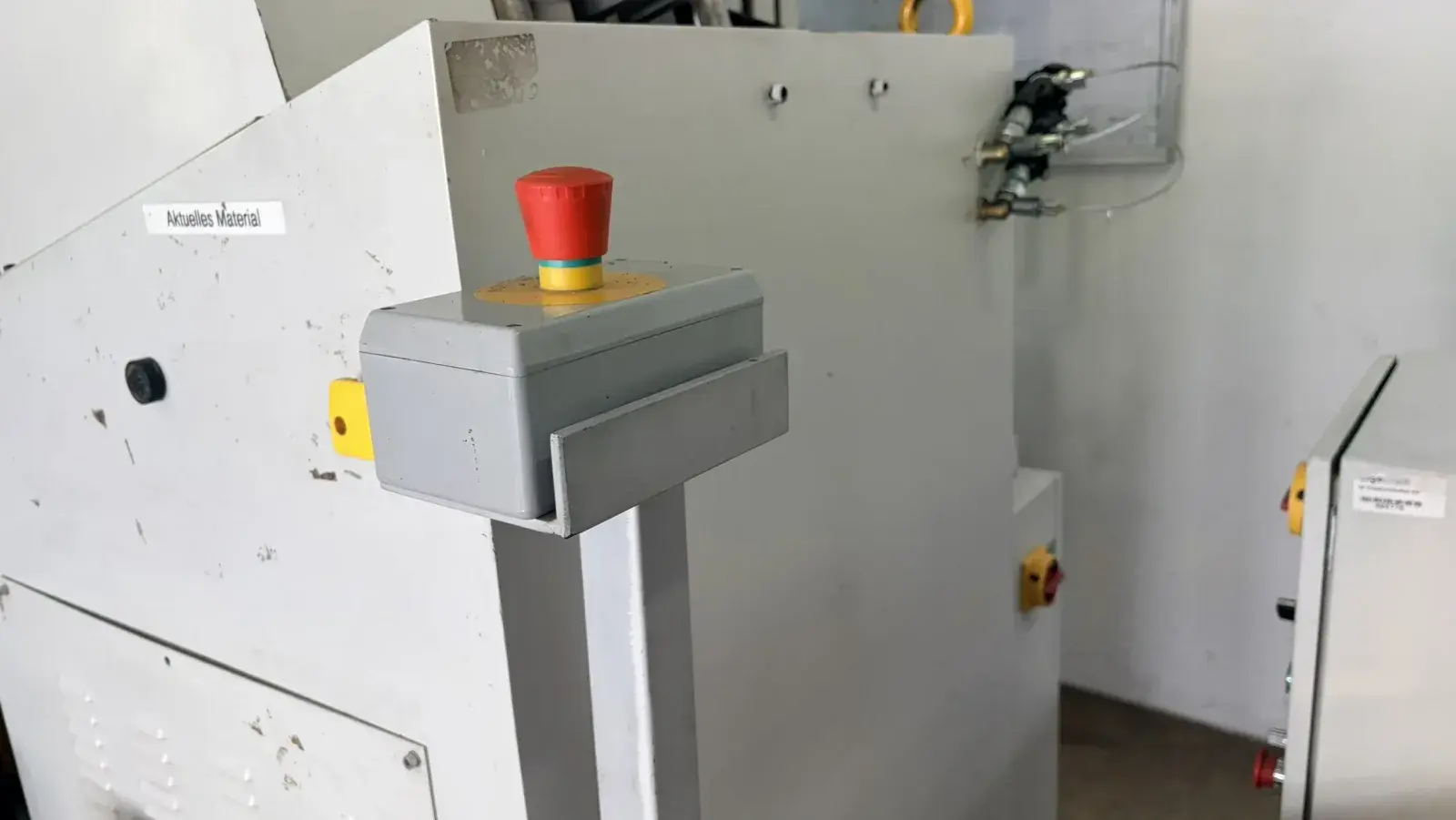

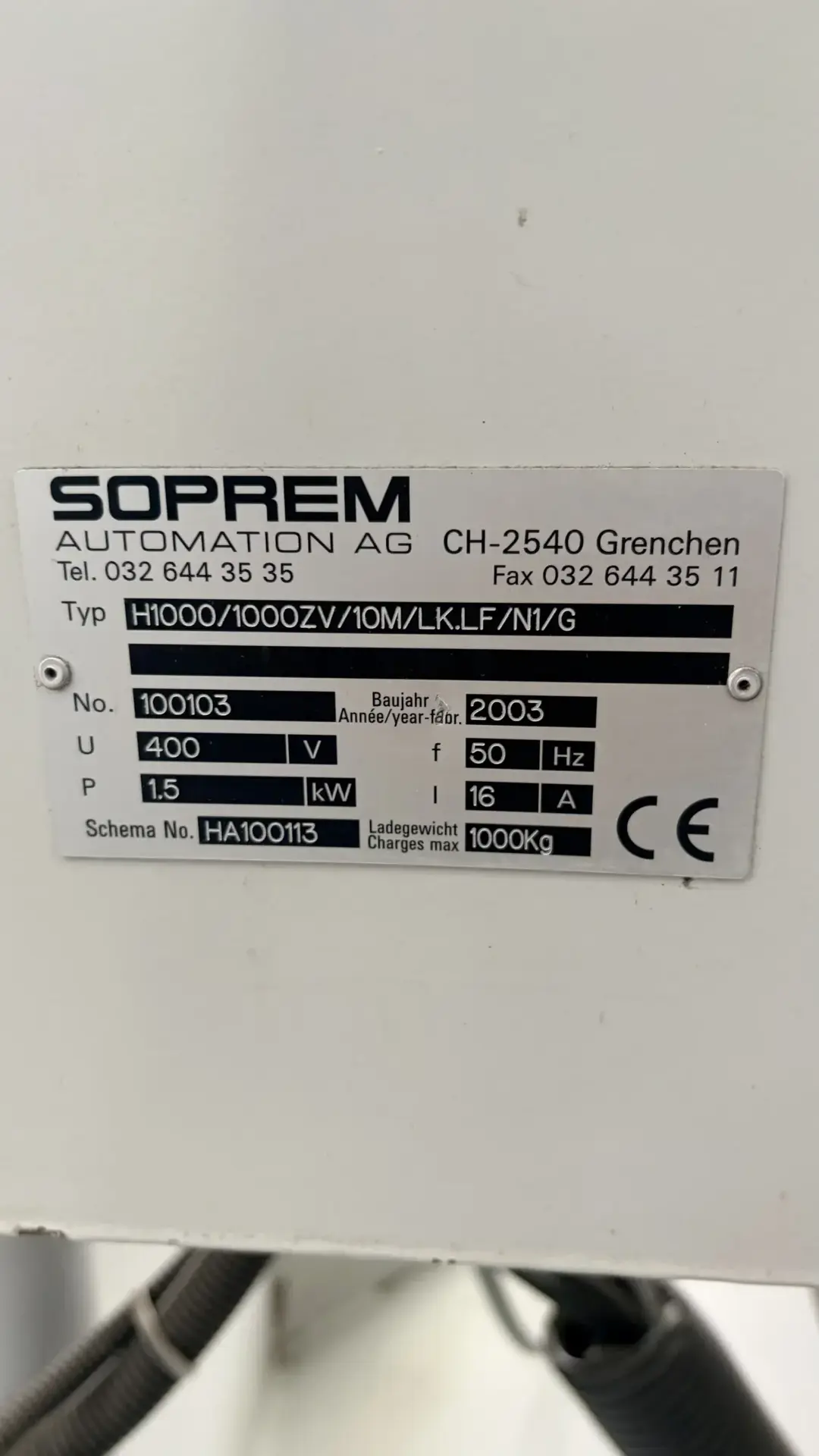

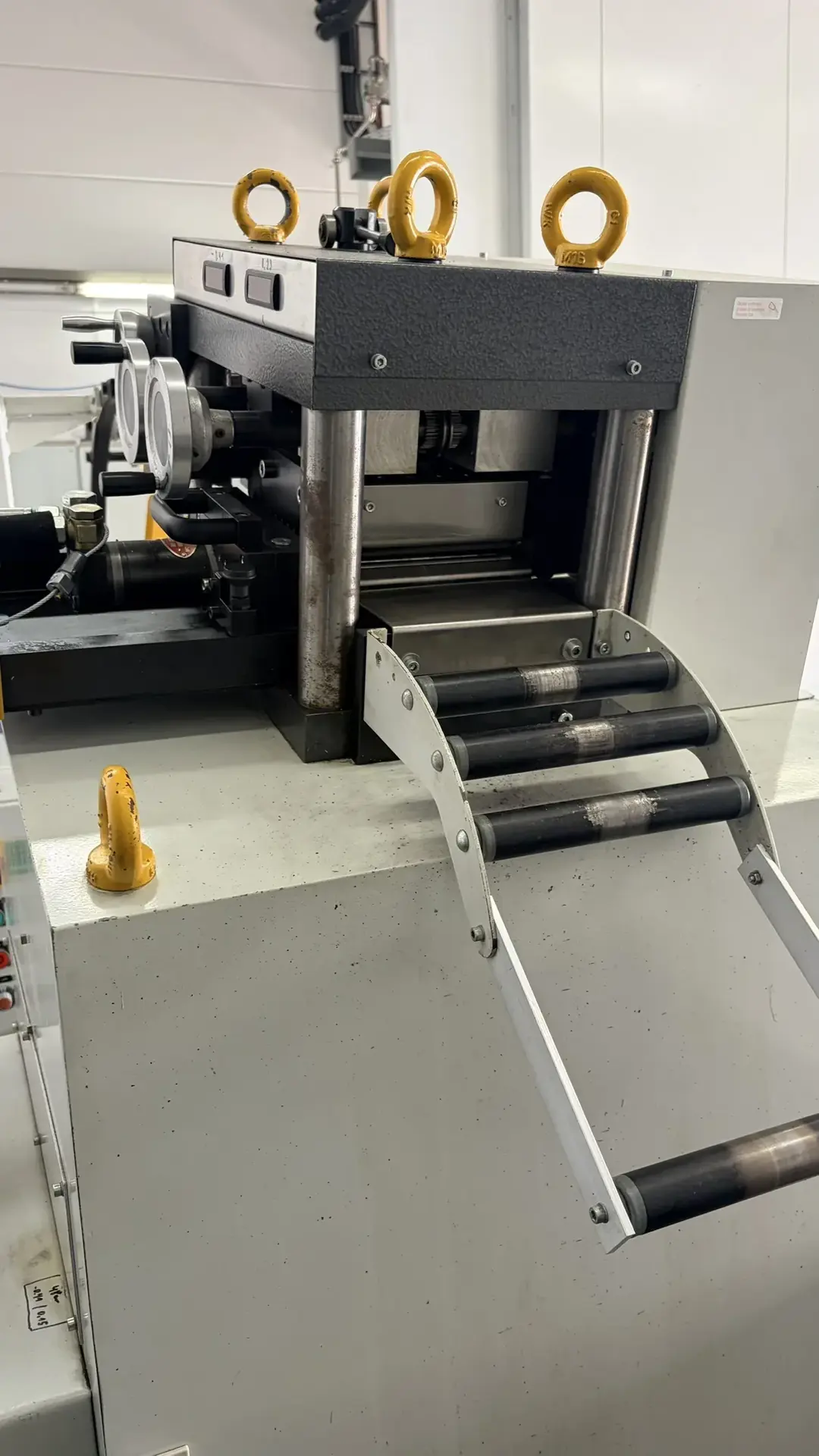

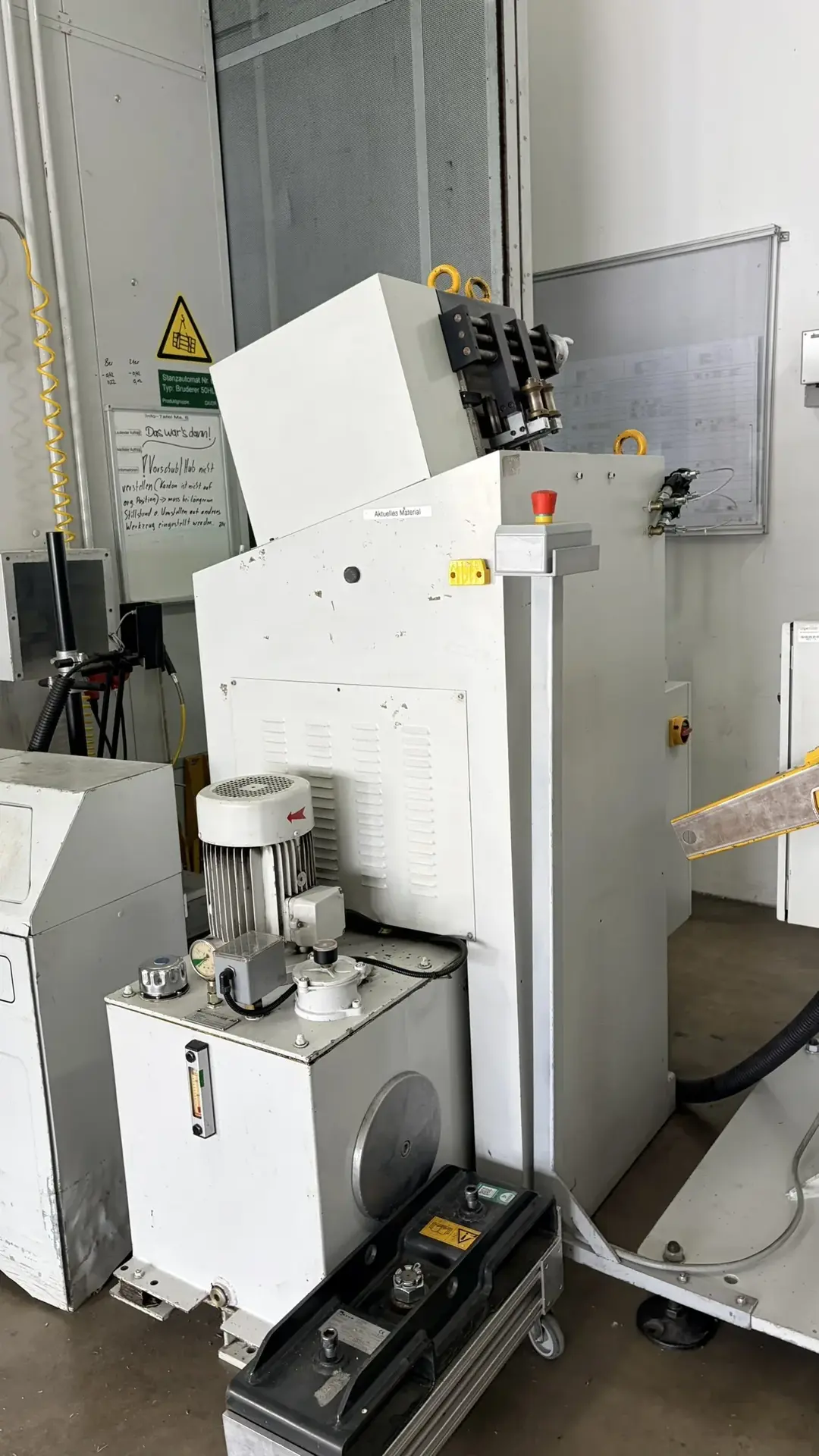

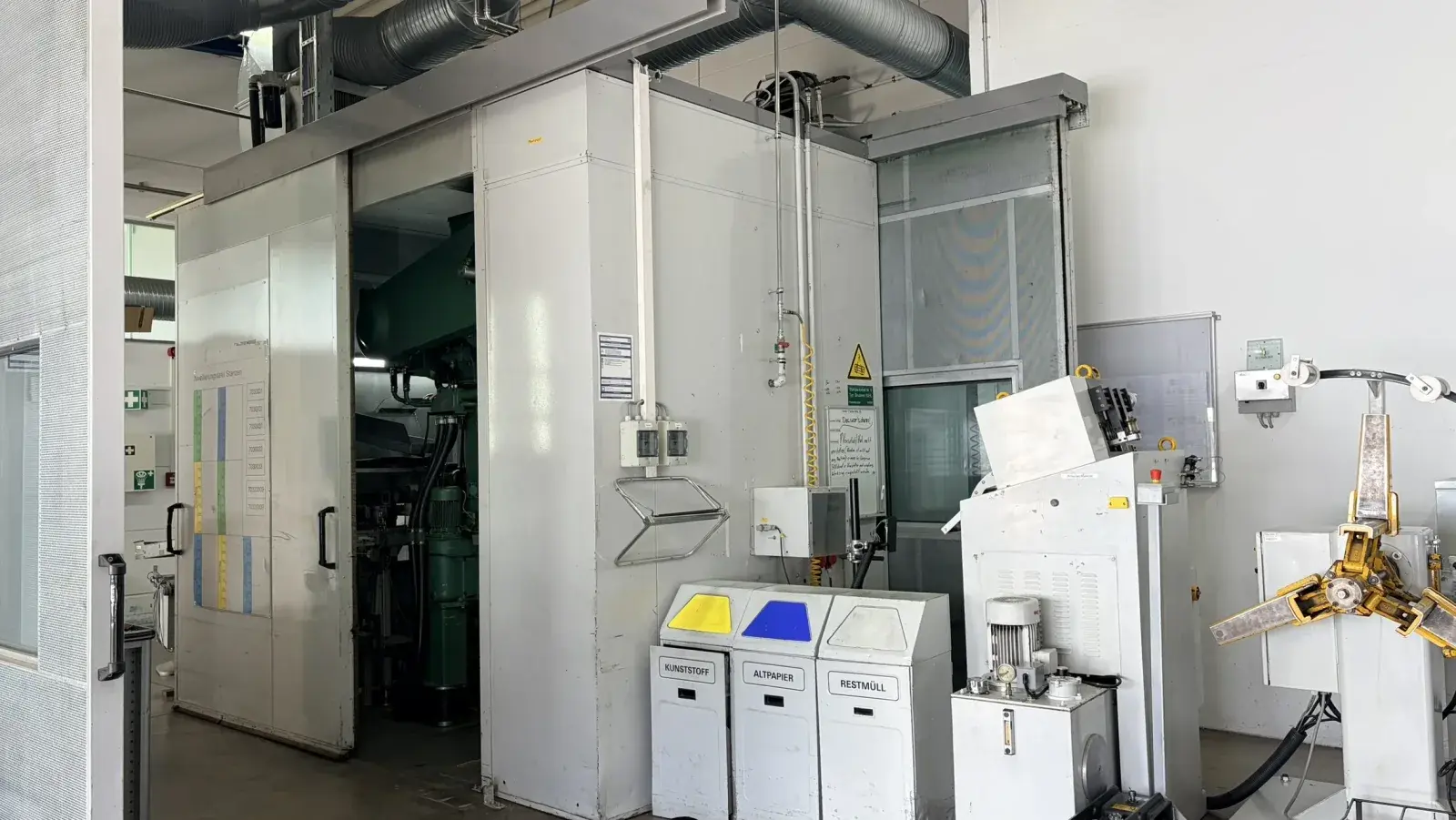

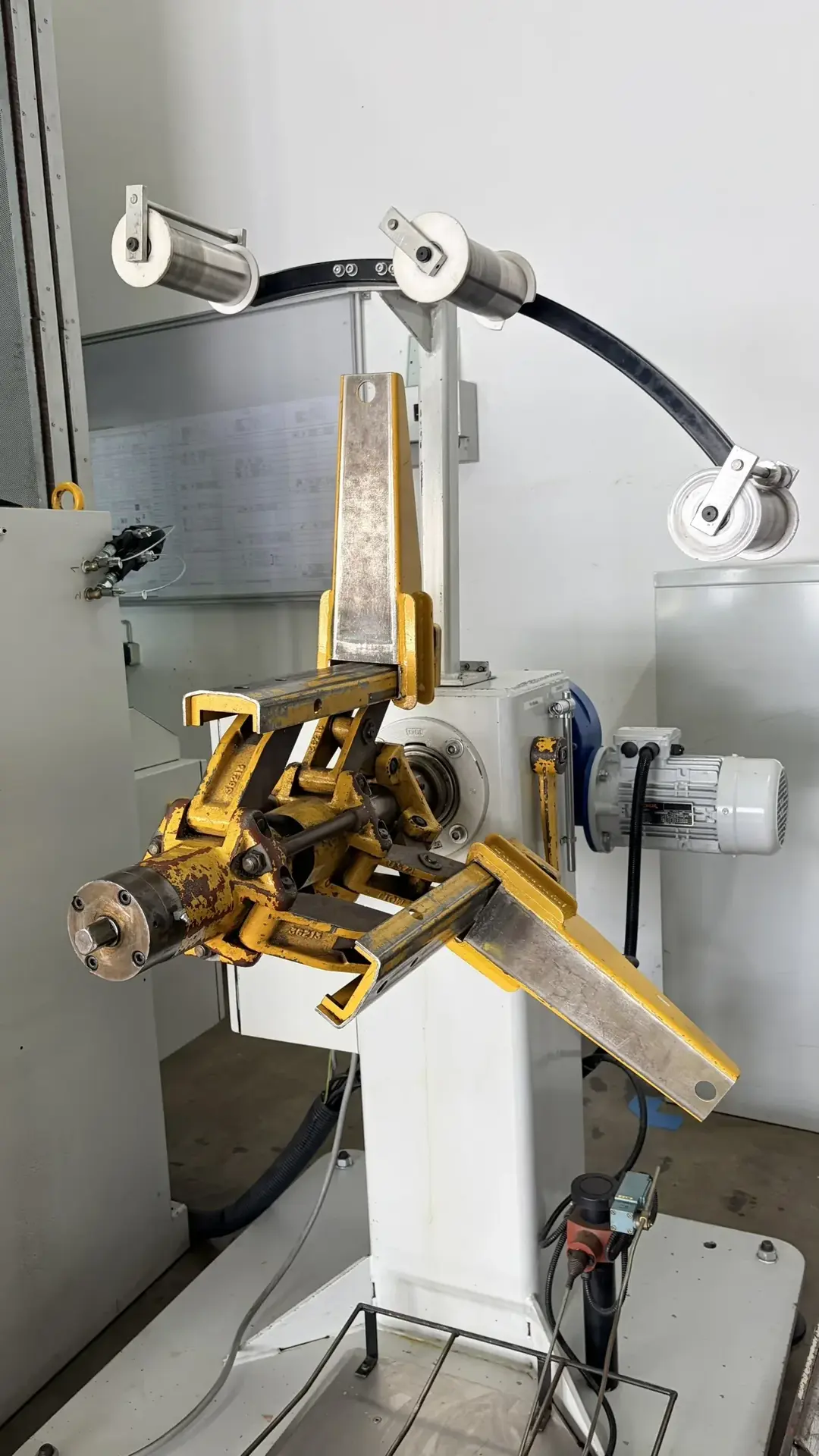

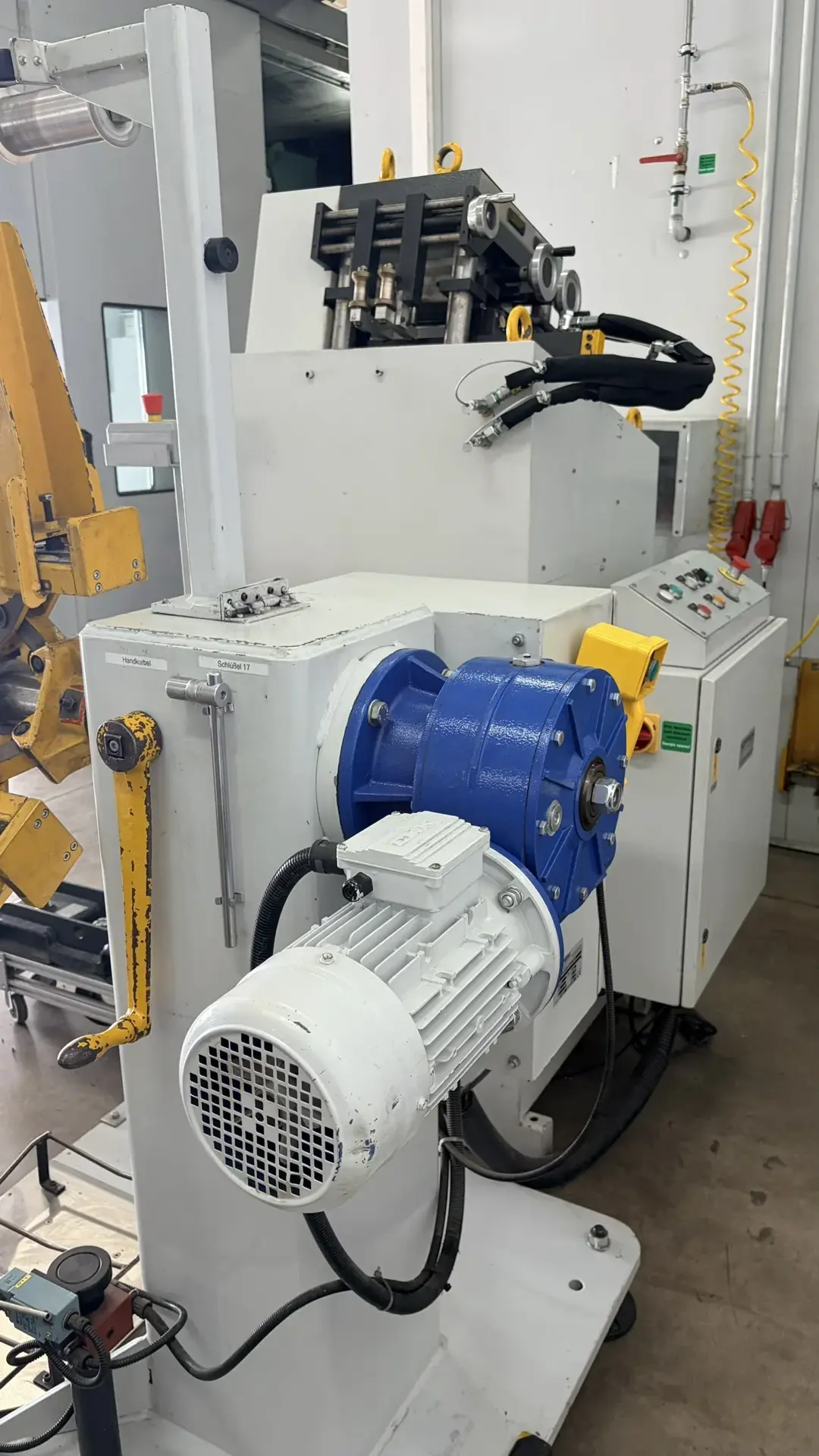

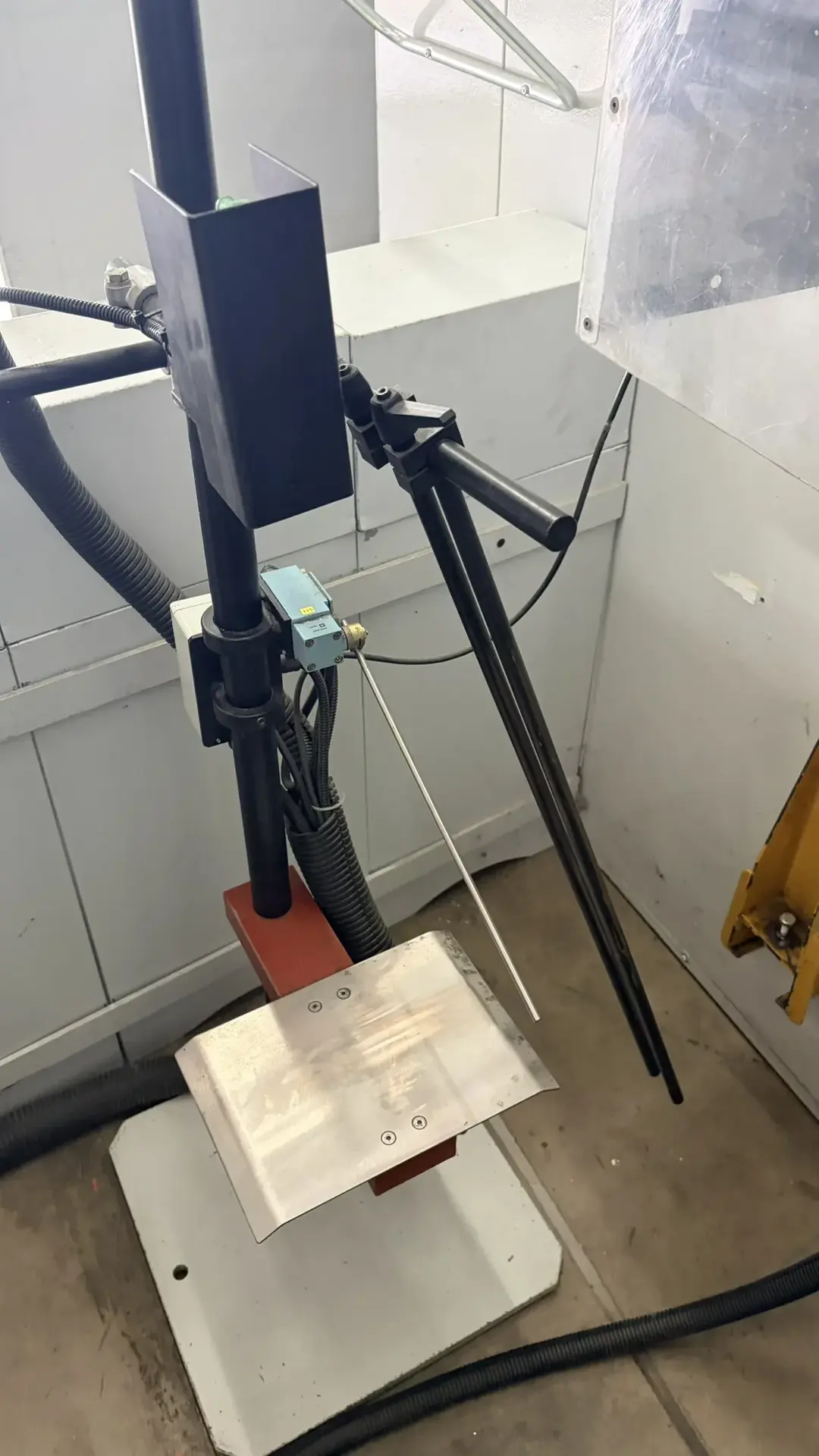

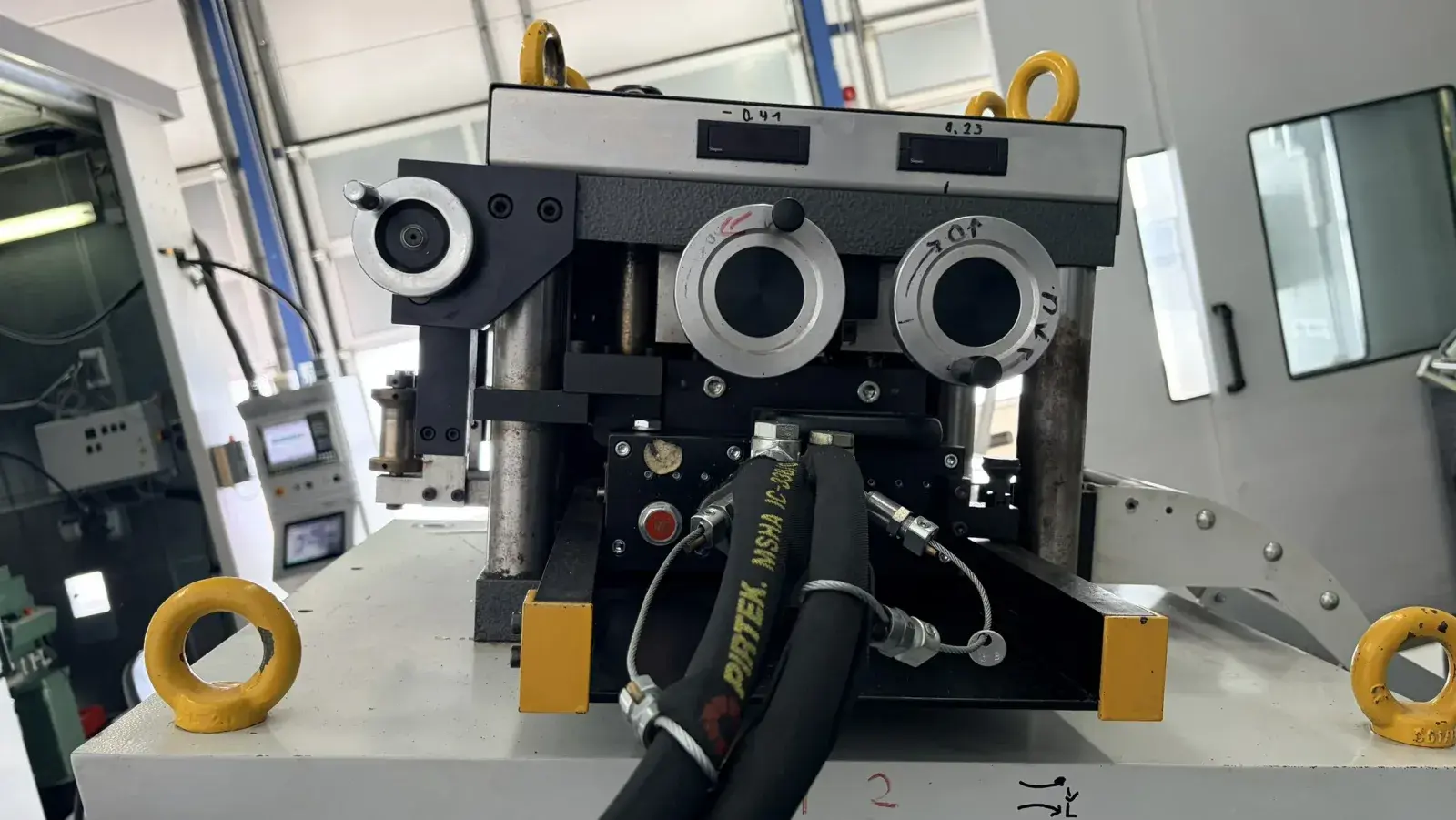

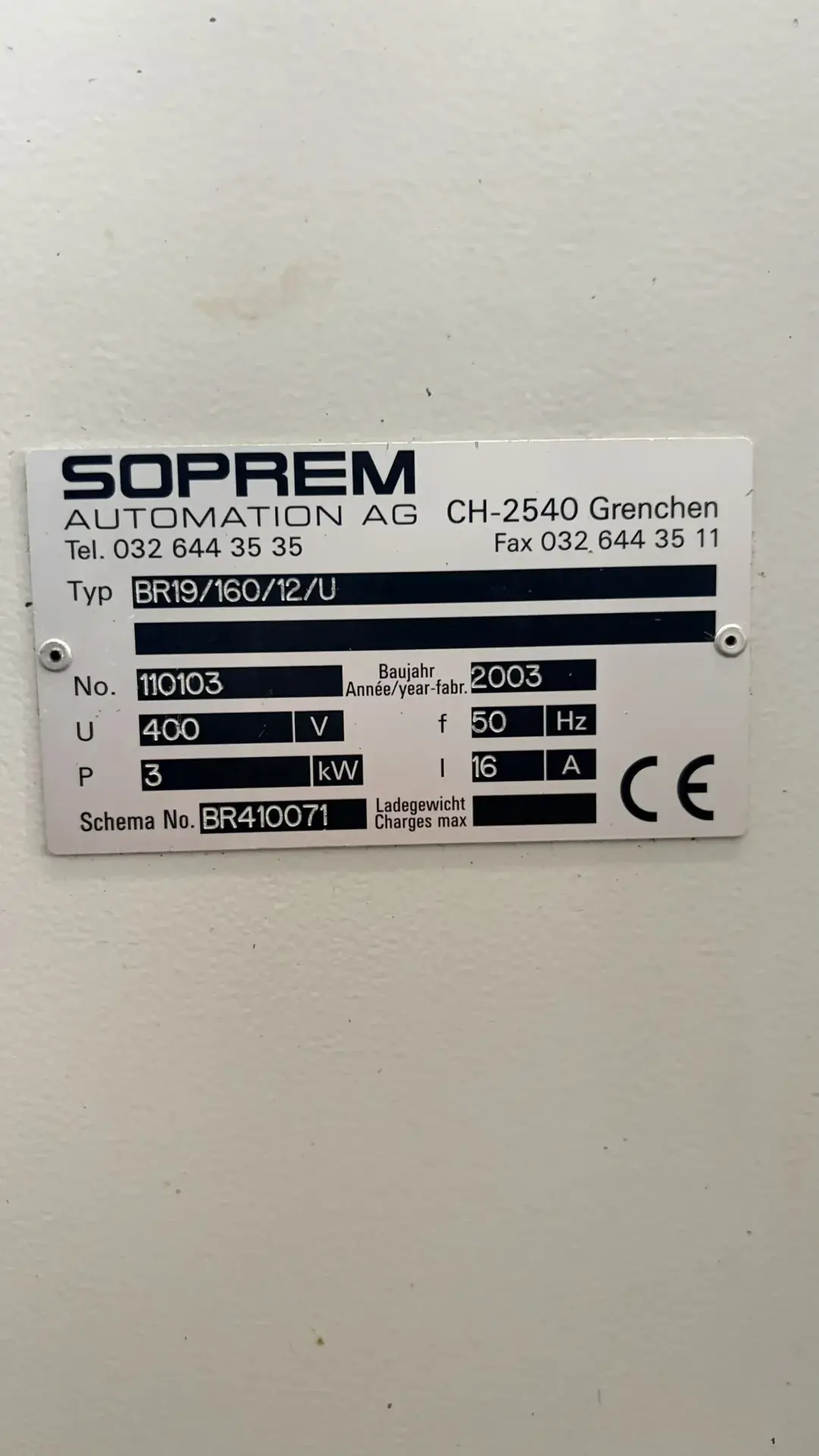

SOPREM precision coil feeding line (decoiler + straightener), built 2003 in Switzerland. Complete matched feeding line for thin precision strip, ready to pair with a small high-speed stamping press. Synchronised line with E-stop interlink to the downstream press. DECOILER / COIL REEL (HASPEL) Type: H1000/1000ZV/10M/LK.LF/N1/G Max. coil weight: 1,000 kg Coil outer diameter: max. 1,000 mm Coil inner diameter: 375-520 mm Reel speed: 2-20 rpm Motor: KSMV 90L (4), 1.5 kW, 1,400 rpm Gearbox: RMI 110 FL LCB, ratio i = 70 Slip clutch: set to 400 Nm Strip sensing: floor contact plate (loop control) PRECISION BAND STRAIGHTENER (RICHTWERK) Type: BR19/160/12/U Function: straightens coil curvature before the press Max. strip thickness: 0.5 mm Max. strip width: 160 mm Drive: hydraulically driven precision straightening unit Hydraulics: approx. 180 l tank, oil per ISO 48 (48 cSt at 40 C, e.g. BP SHF 46 Bartran or Mobil DTE 25) ELECTRICAL SUPPLY 400 VAC, 50 Hz, 3-phase + neutral + earth Rating: 25 A pre-fuse CONDITION AND AVAILABILITY Both units built 2003, made in Switzerland. In stock. Worldwide shipping available. Reference 36326.
