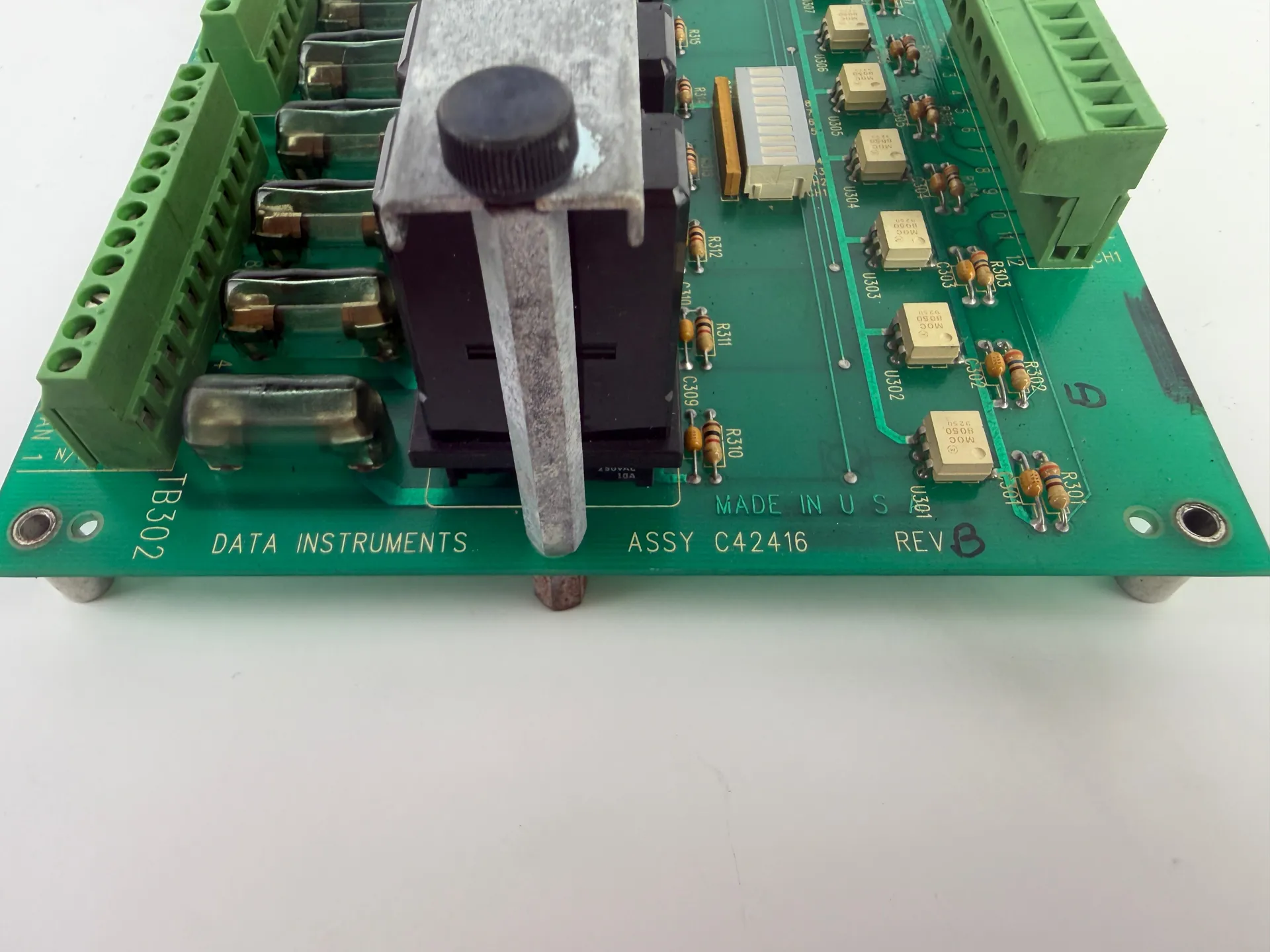

Wintriss Cam Box PCB ASSY C42416 Data Instruments 8 Channel Relay Board

Machine Description

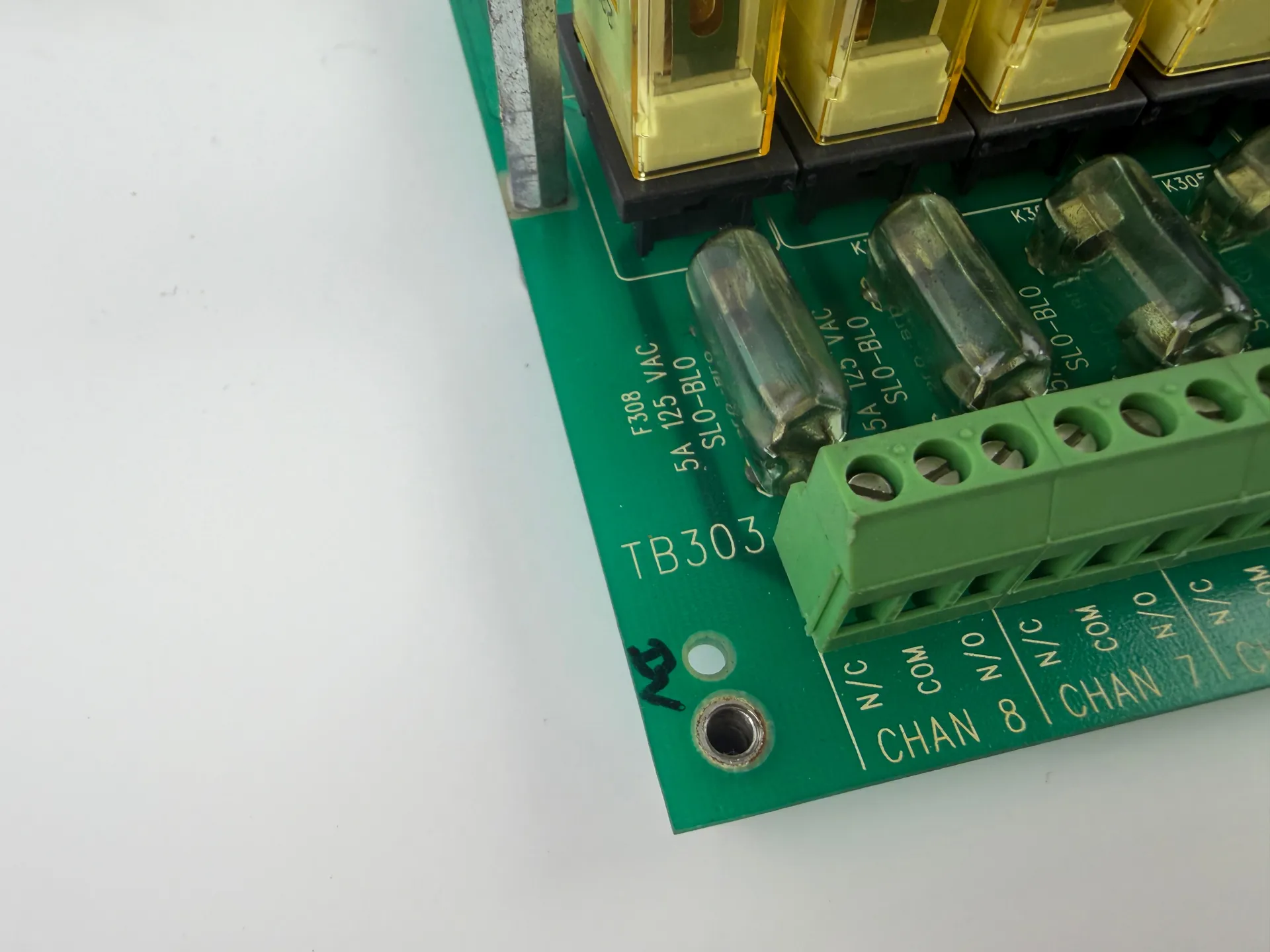

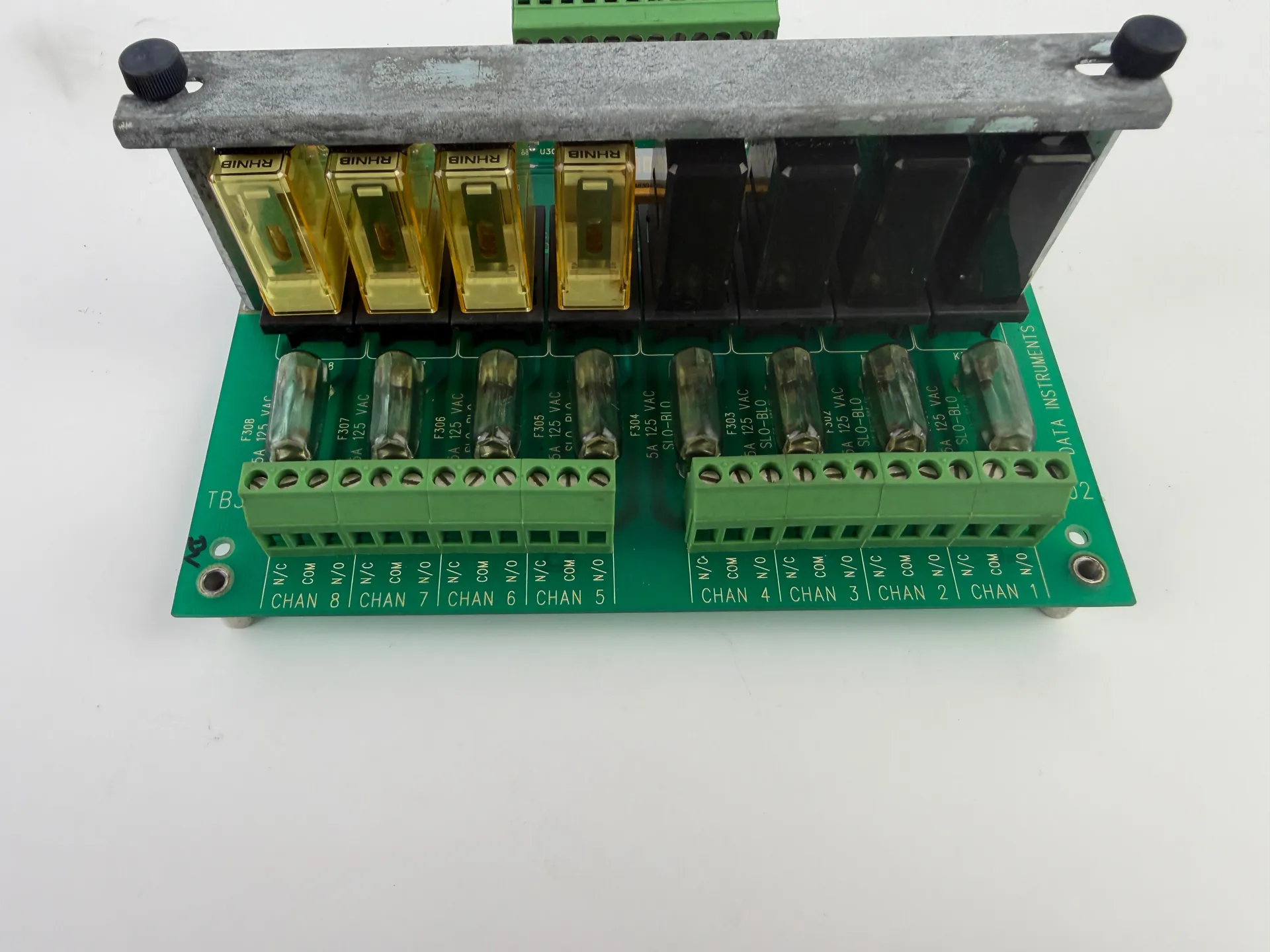

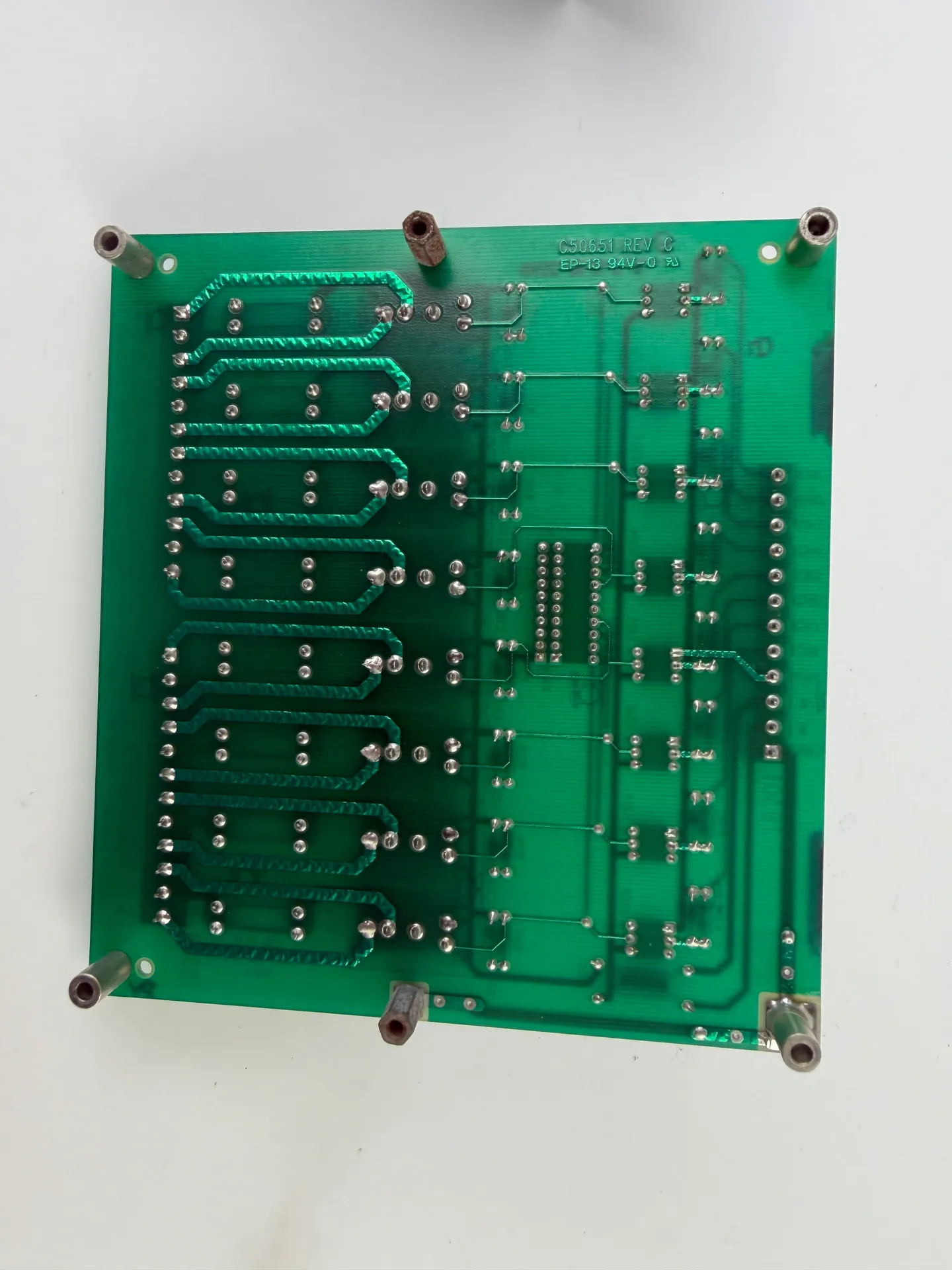

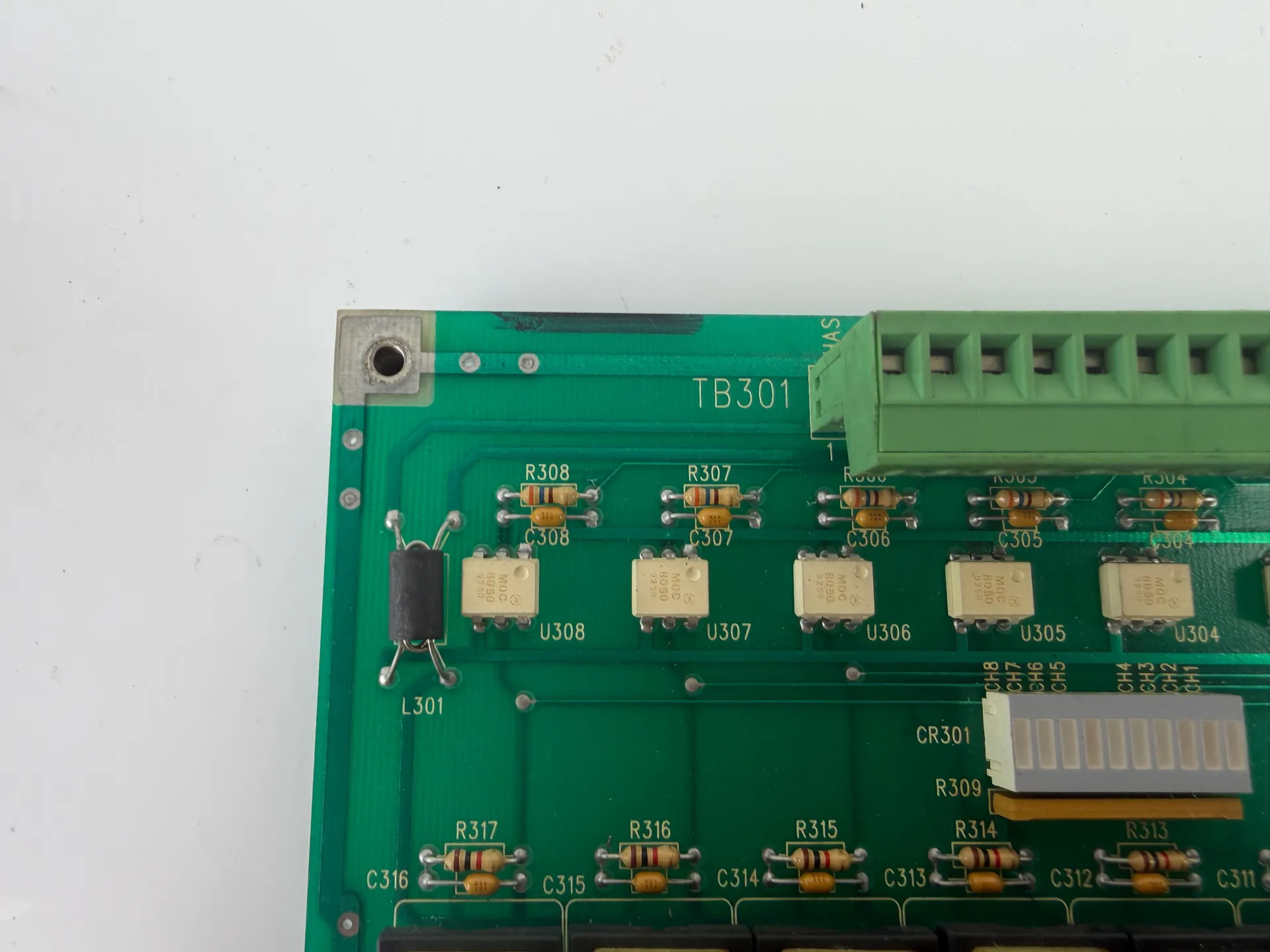

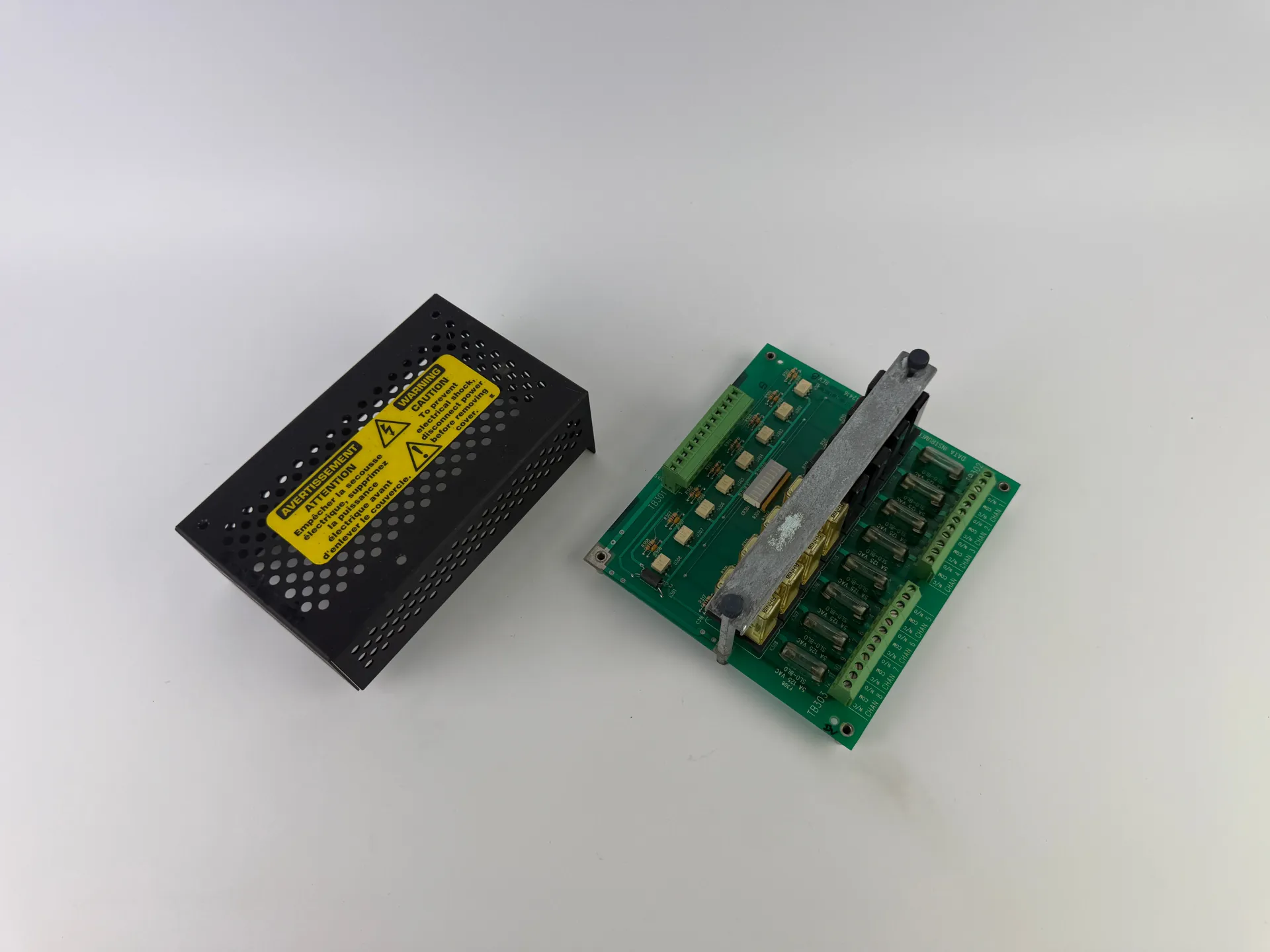

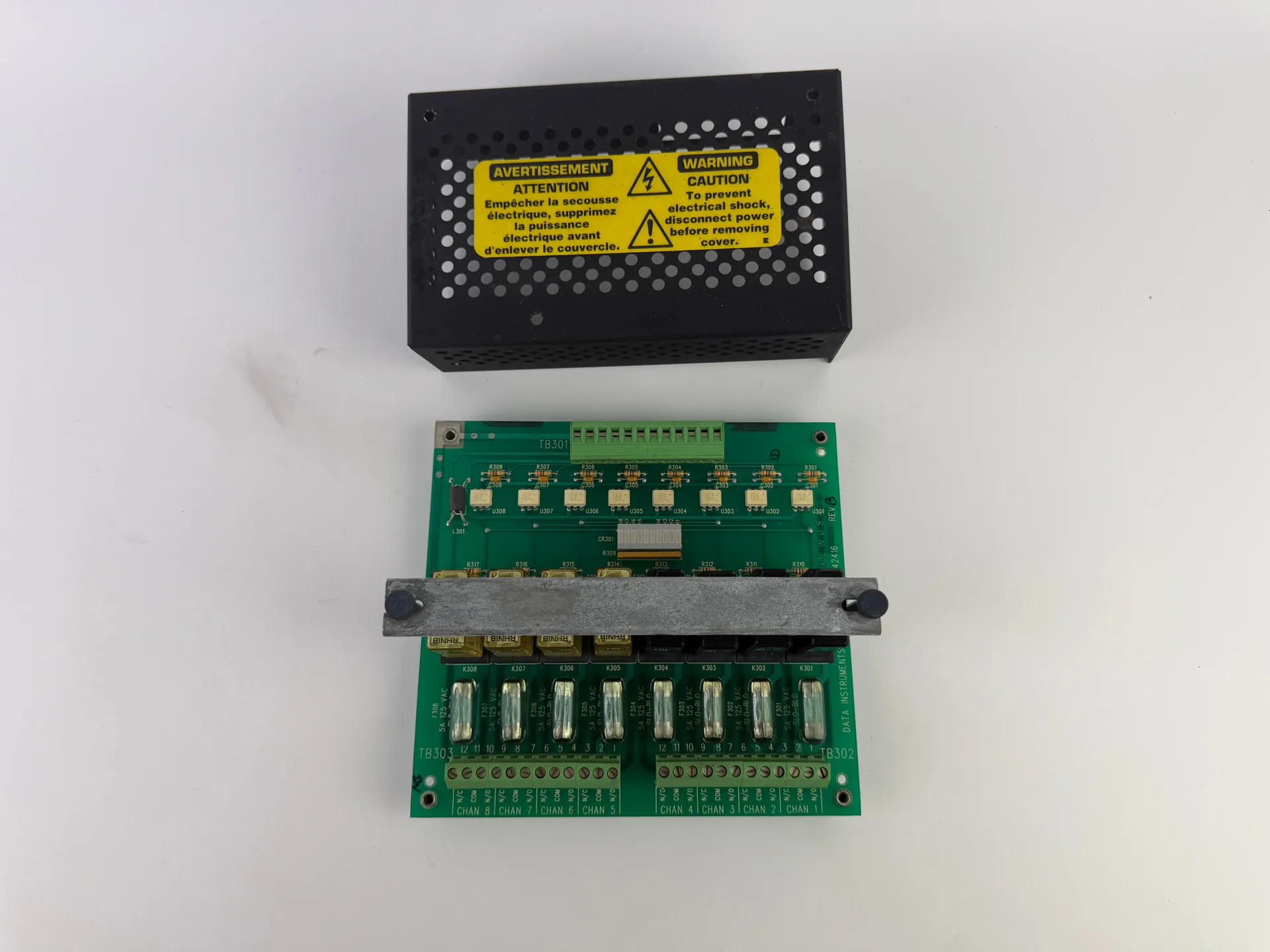

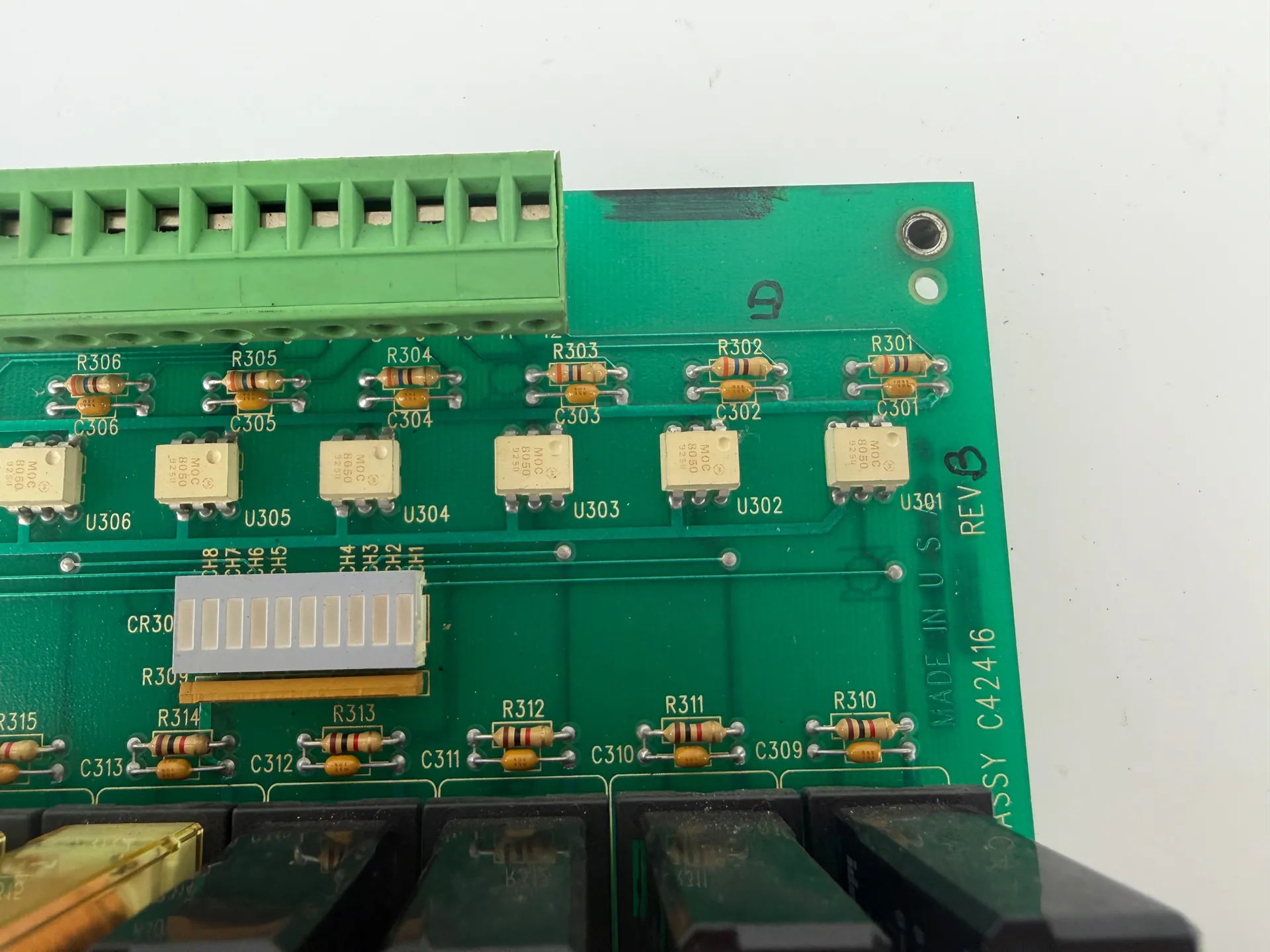

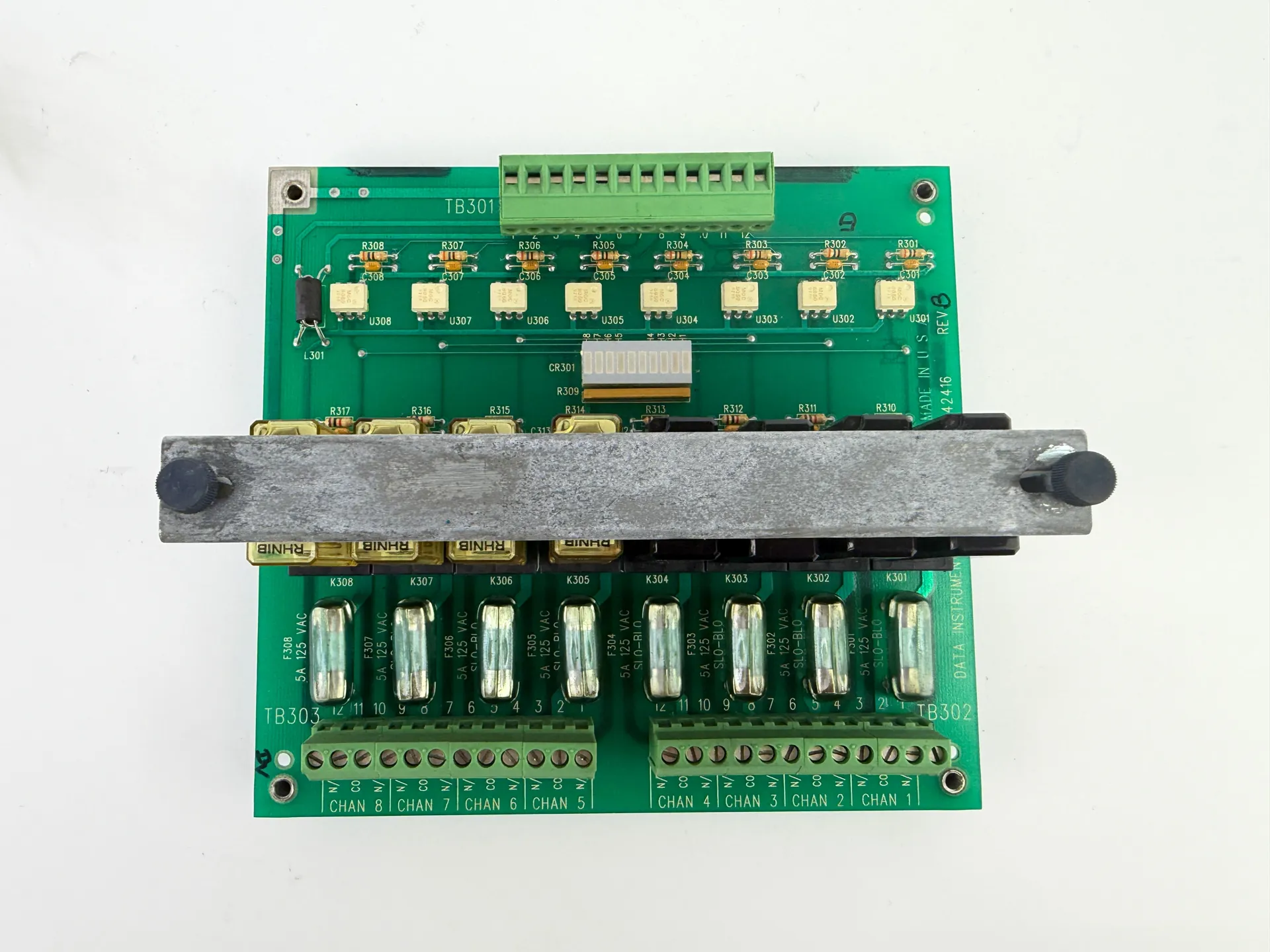

Wintriss Cam Box Circuit Board – Data Instruments ASSY C42416 Industrial relay interface PCB used in Wintriss press control and automation systems. Manufactured by Data Instruments, this board provides multiple channel relay outputs for machine control and signal switching applications. The board features 8 channels with integrated fuse protection and plug-in relay modules, designed for reliable operation in industrial environments. Protective metal cover included. Technical Specifications Manufacturer: Data Instruments Assembly number: C42416 Revision: REV B Application: Wintriss cam box control system Type: Relay output interface board Number of channels: 8 Fuse rating: 5A 125V AC (per channel) Relay modules installed: RHNIB type plug-in relays Terminal blocks: TB301 TB302 TB303 Connection type: Screw terminal industrial connectors Country of manufacture: USA Included: Protective metal cover Item condition: Used, in perfect working condition. The item is supplied exactly as shown in the photos.
