EICO PSD Scope Demodulator Probe 150kHz-250MHz Vintage 110cm Cable

Machine Description

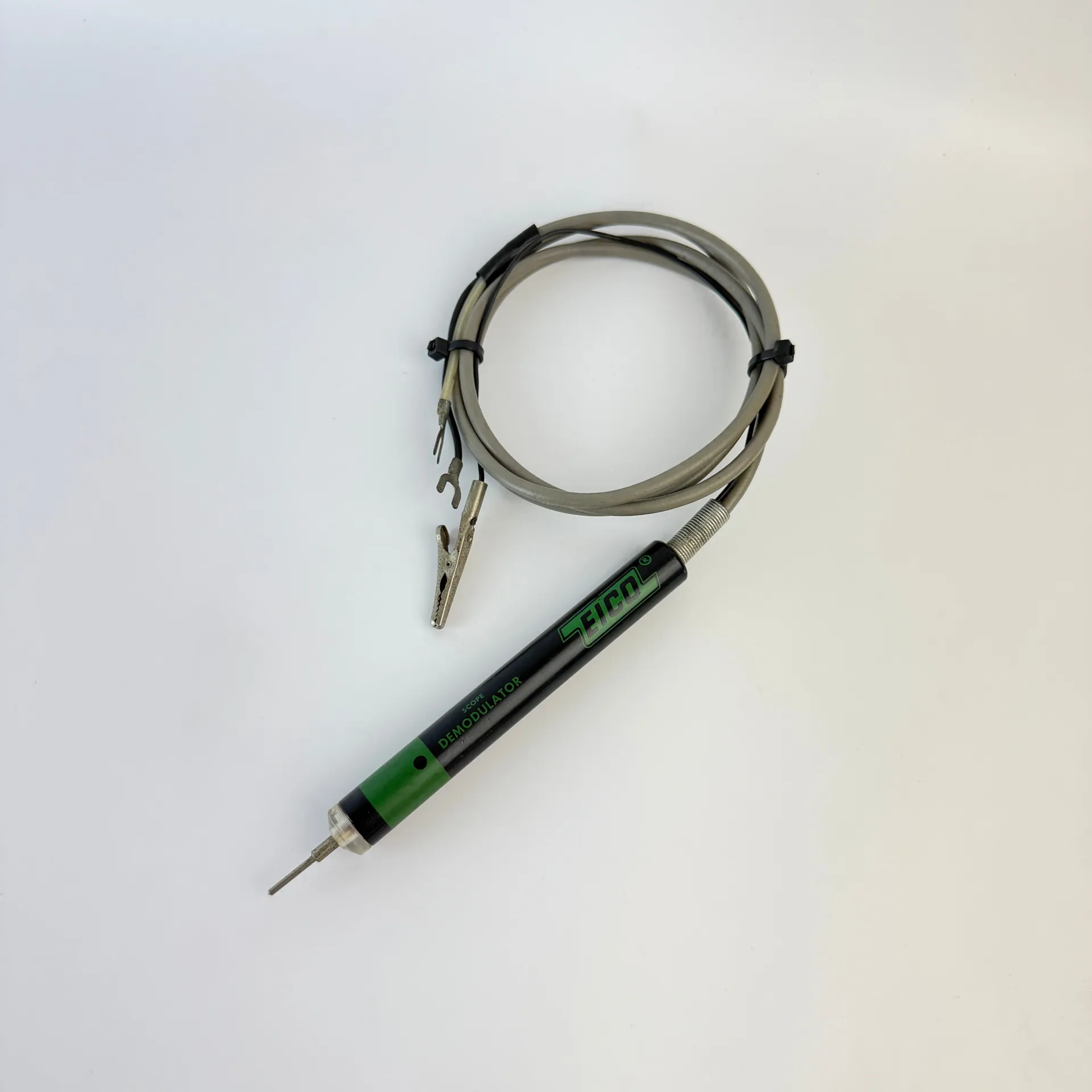

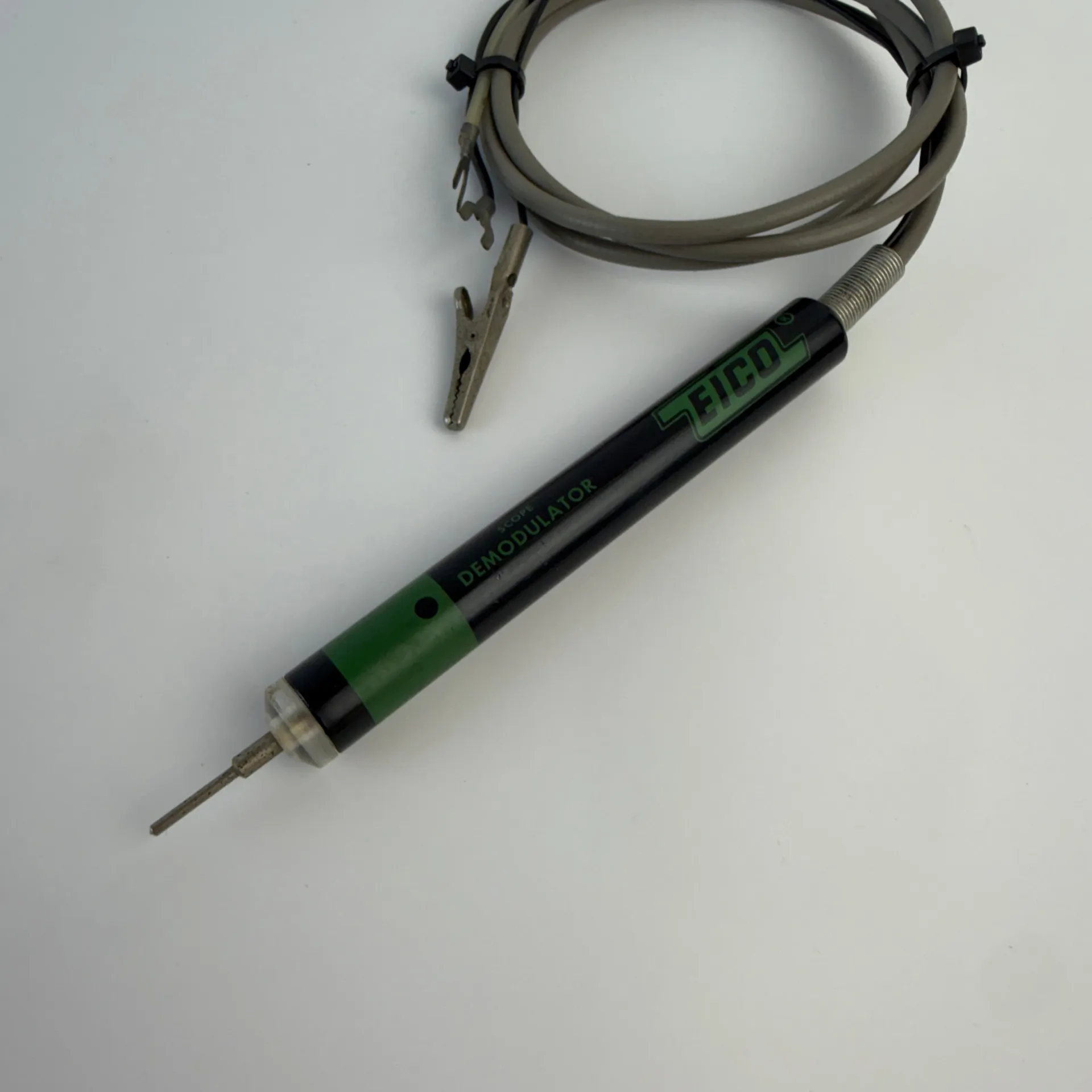

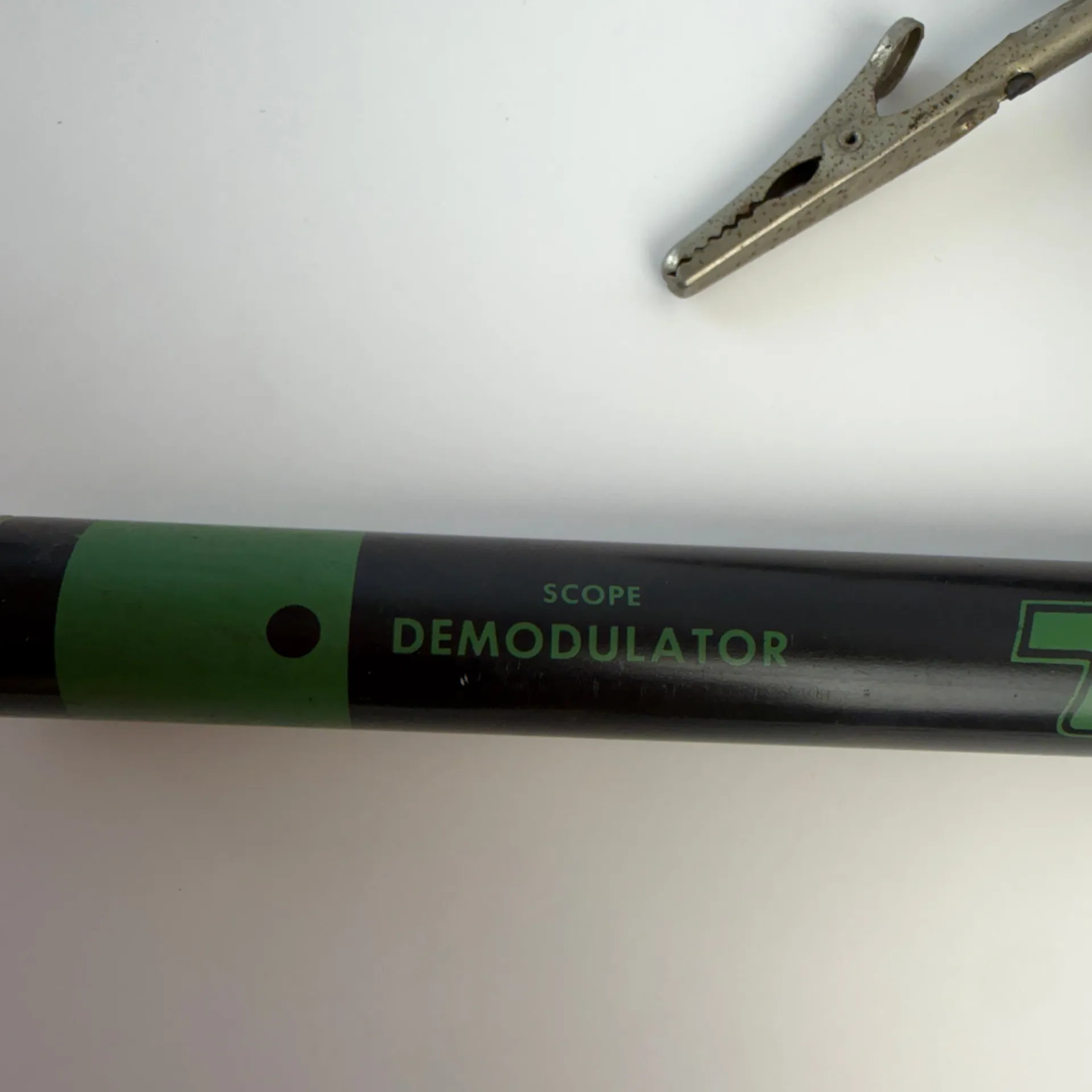

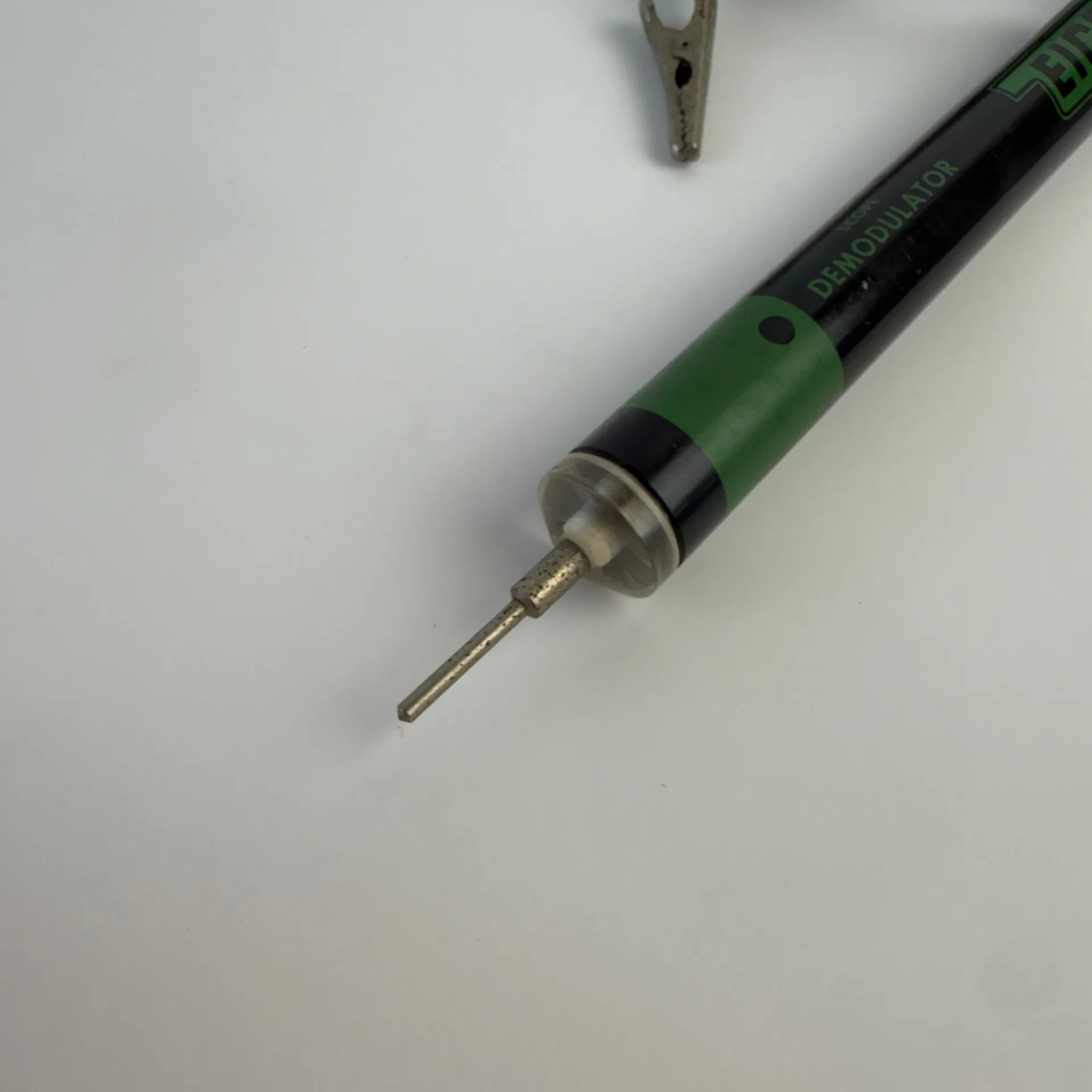

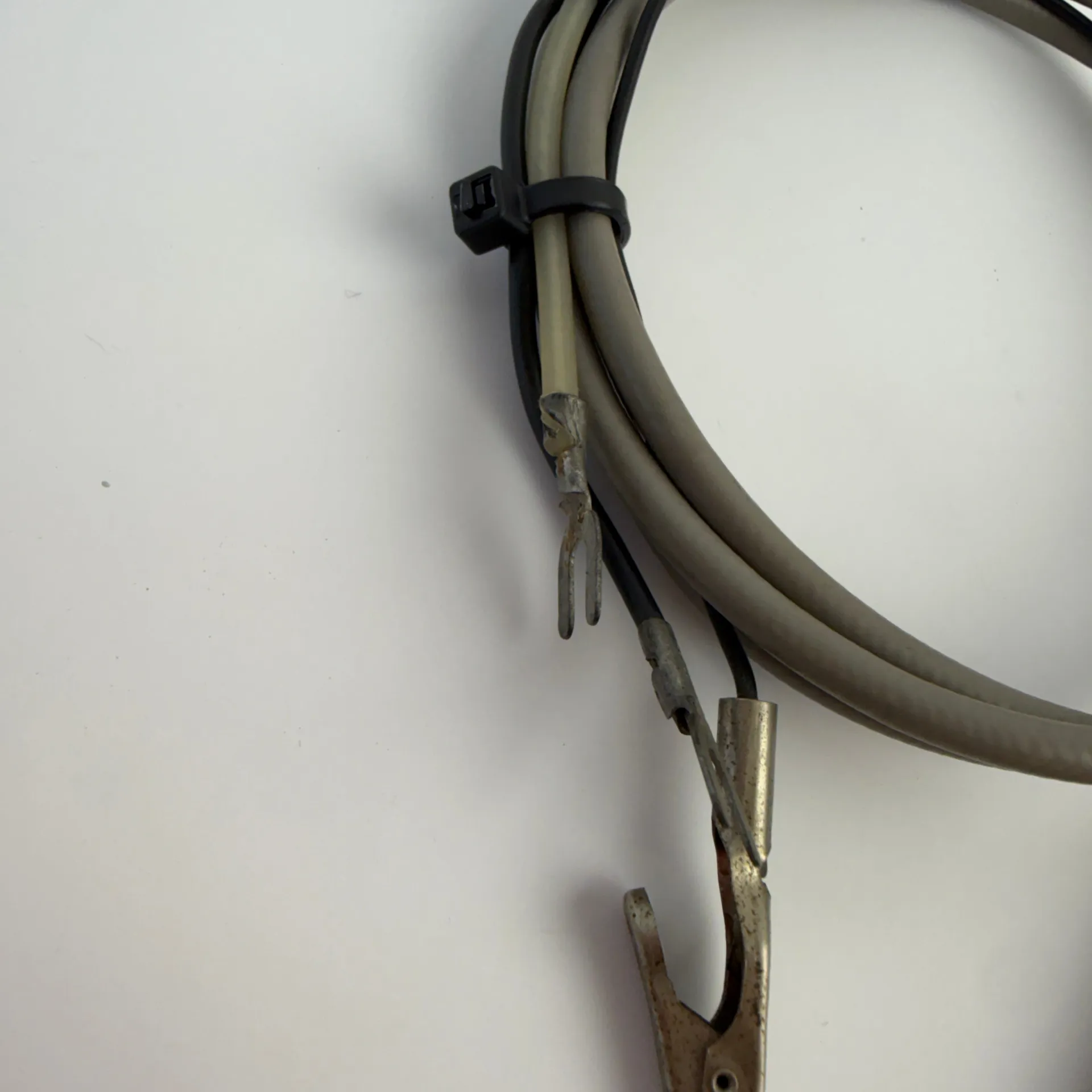

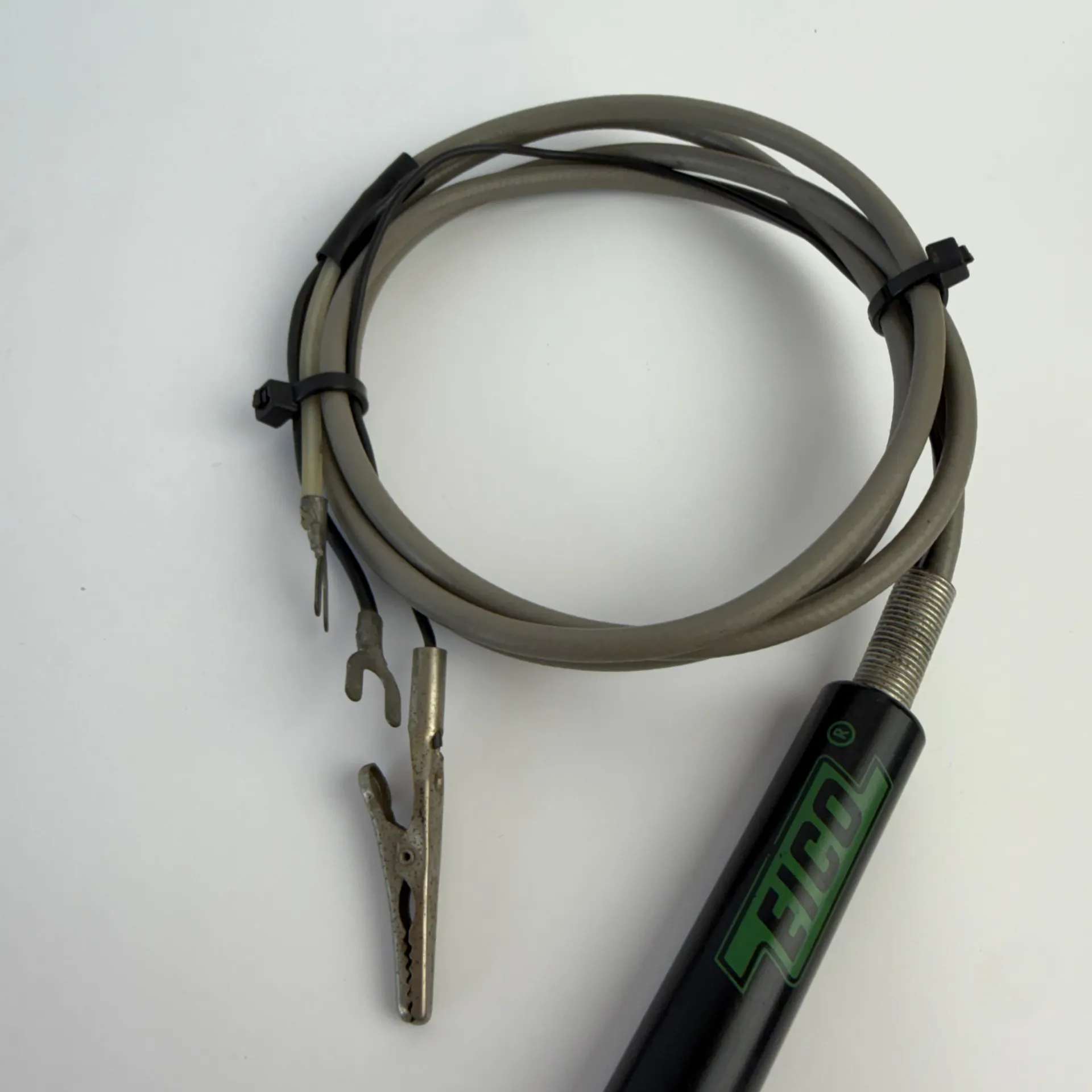

Vintage EICO PSD Scope Demodulator Probe with approximately 110 cm cable, designed for signal tracing and testing RF and IF stages using an oscilloscope. The EICO PSD is a passive demodulator/detector probe that demodulates AM carriers, allowing an oscilloscope to display the modulation waveform rather than the RF carrier itself. Period EICO documentation specifies a carrier frequency range of 150 kHz to 250 MHz. It was designed for servicing and alignment applications in radio and television electronics, allowing an oscilloscope to function as a waveform tracer, gain analyzer and alignment indicator. This example includes the original-style probe lead arrangement with alligator ground clip and connection leads, as pictured. Technical Specifications Specification Value Manufacturer EICO Model PSD Product Scope Demodulator Probe Probe Type Passive detector / demodulator probe Carrier Frequency Range 150 kHz–250 MHz Audio Response 20 Hz–6 kHz Primary Application RF / IF signal tracing Modulation AM carrier demodulation Instruments Oscilloscope / compatible test equipment Cable Length Approx. 110 cm Ground Connection Alligator clip Power Required None Color Black / green Era Vintage Condition Used, fully functional. Old stock. Applications Suitable for vintage electronics servicing applications such as RF/IF signal tracing, waveform observation, gain analysis and alignment work with appropriate test equipment. Package Contents 1 × EICO PSD Scope Demodulator Probe with approx. 110 cm cable and leads, exactly as pictured. Shopify Tags EICO, EICO PSD, scope demodulator, demodulator probe, oscilloscope probe, RF probe, IF probe, signal tracing, vintage test equipment, radio service equipment, electronic test equipment SEO Keywords EICO PSD, EICO scope demodulator, EICO demodulator probe, vintage oscilloscope probe, RF IF demodulator probe, scope detector probe, vintage test equipment Meta Title EICO PSD Scope Demodulator Probe 150kHz-250MHz Meta Description Vintage EICO PSD scope demodulator probe for RF/IF signal tracing. 150 kHz–250 MHz carrier range, 20 Hz–6 kHz audio response and 110 cm cable.
