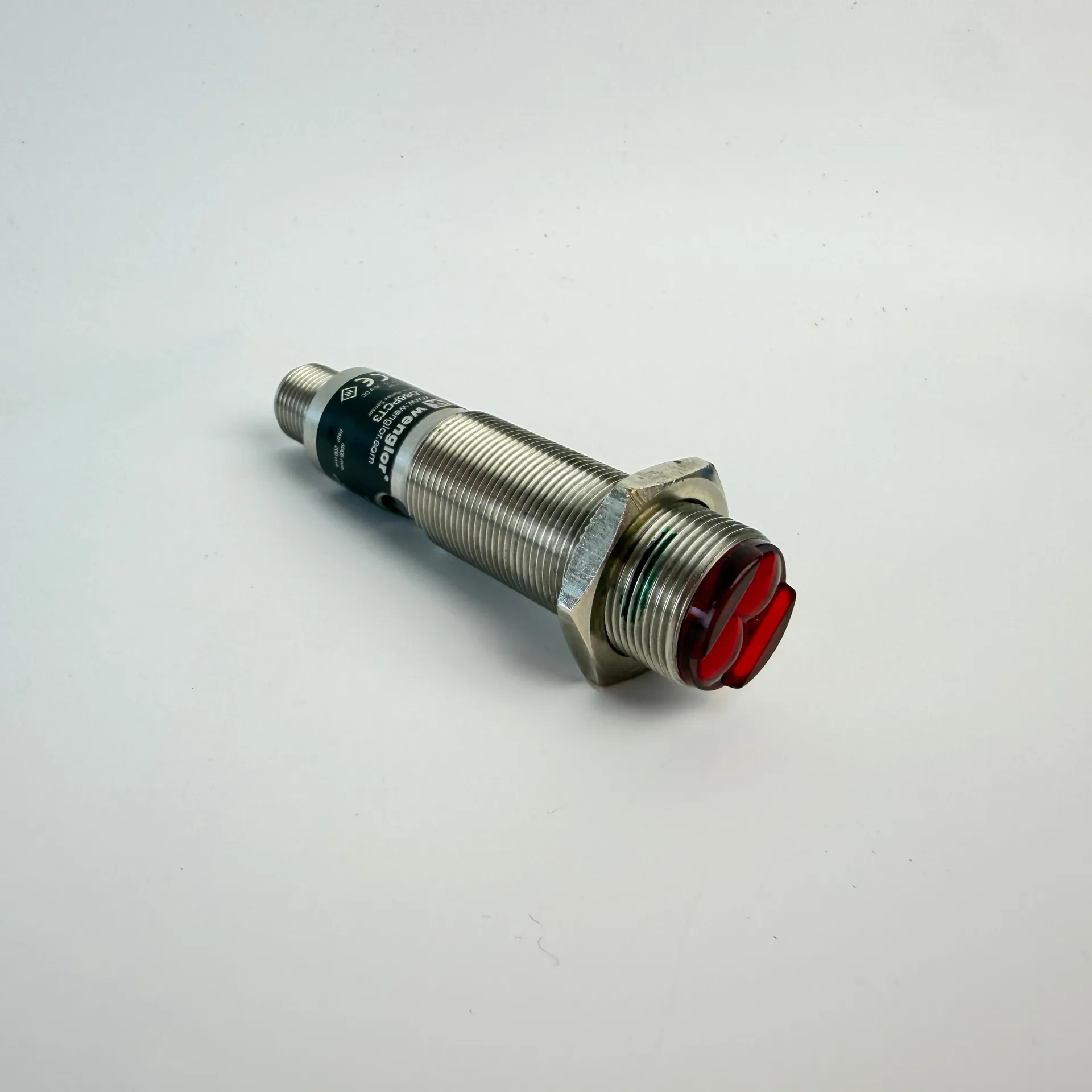

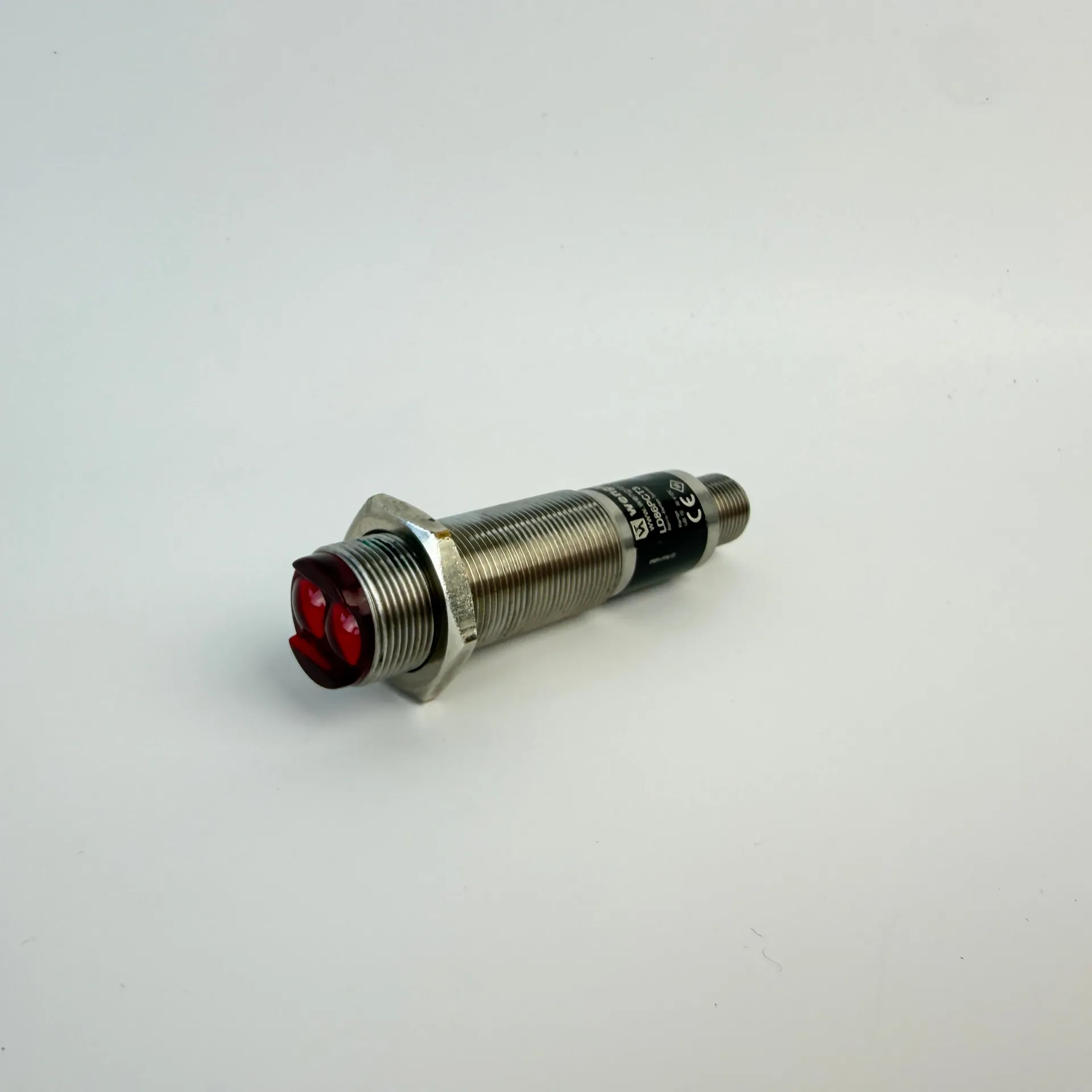

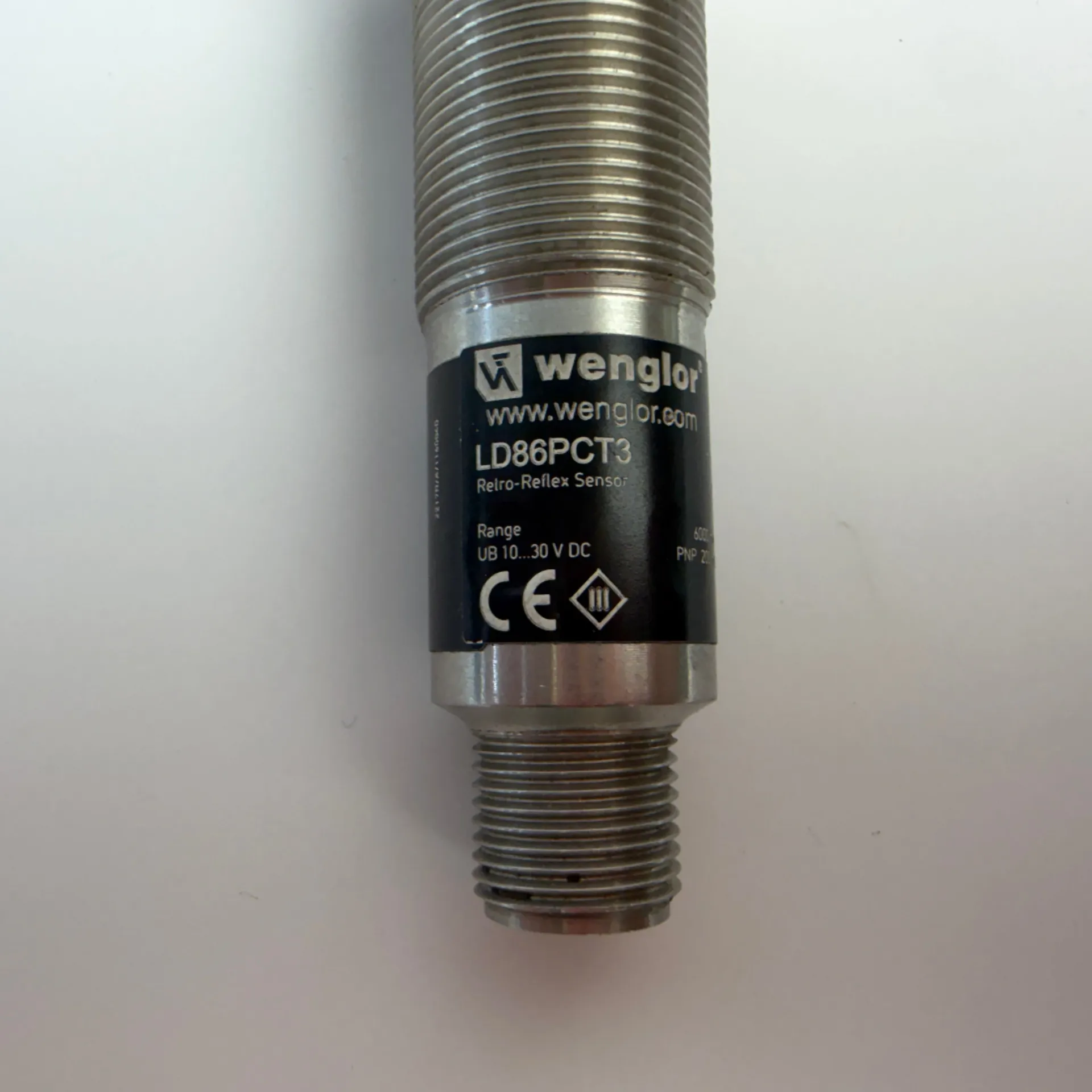

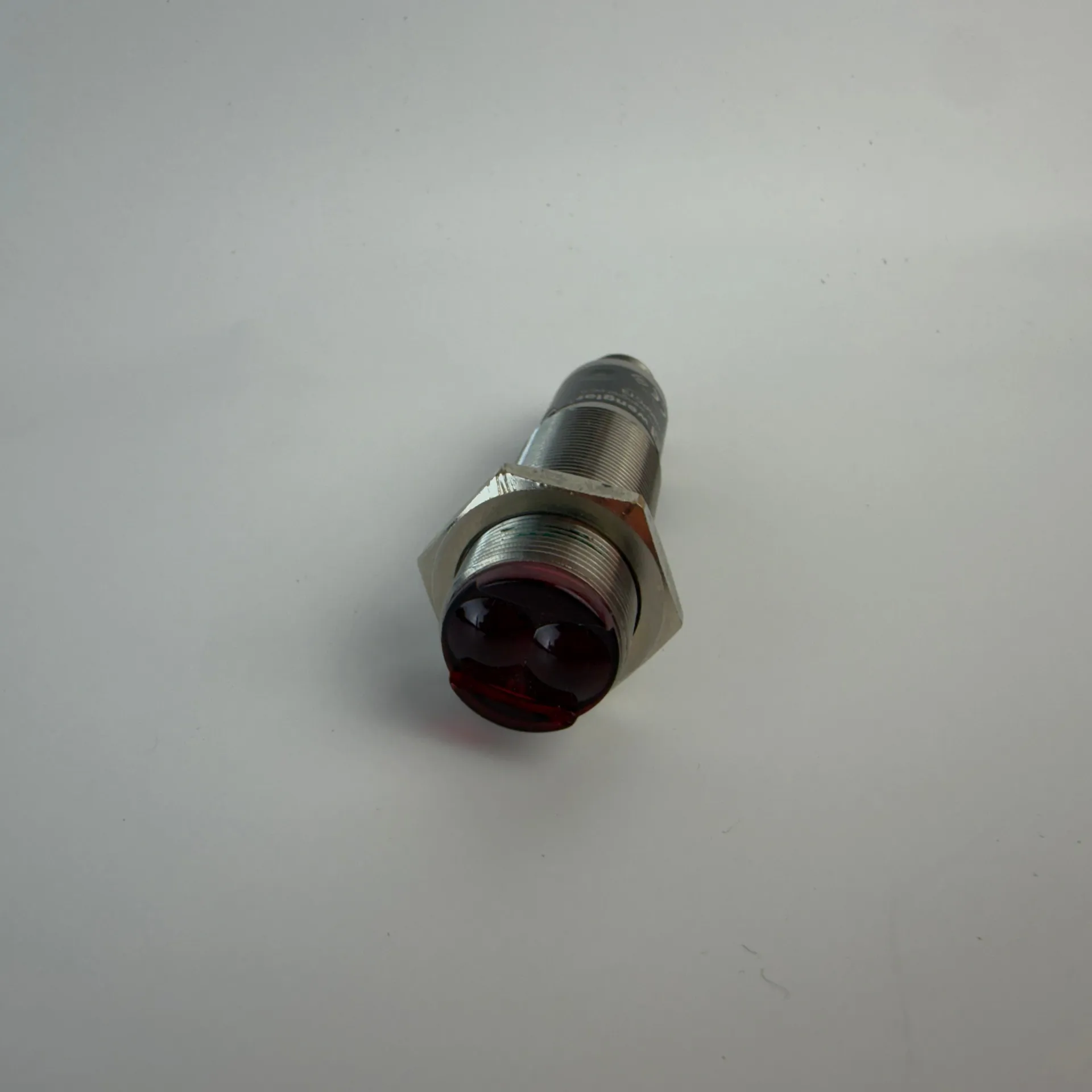

wenglor LD86PCT3 Retro-Reflex Photoelectric Sensor 6m PNP M12

Machine Description

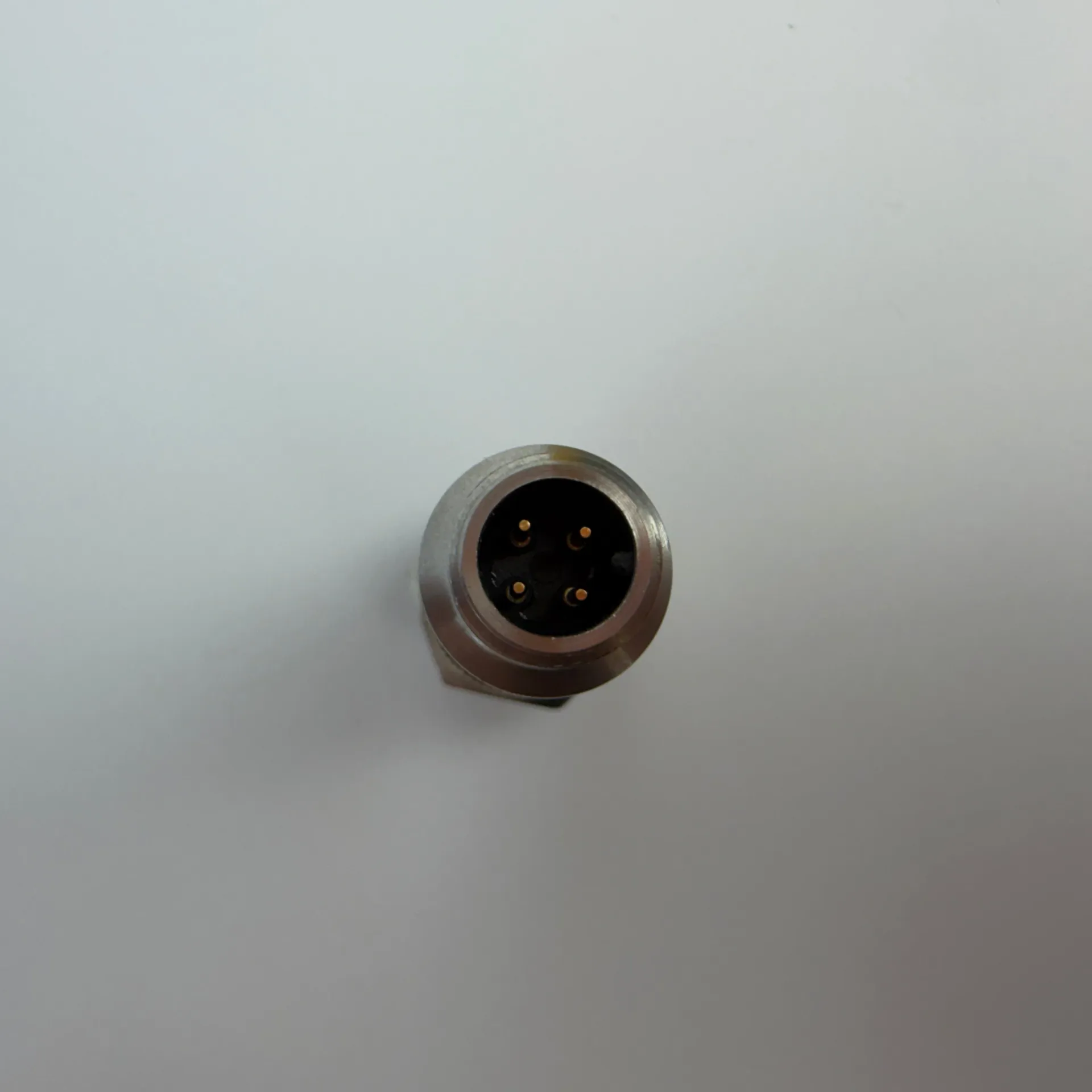

wenglor LD86PCT3 universal retro-reflex photoelectric sensor designed for reliable object detection in industrial automation applications. The sensor provides a sensing range of up to 6,000 mm when used with the specified reference reflector. It uses red light with a polarization filter, helping reliably detect objects including reflective surfaces. The LD86PCT3 operates from 10–30 V DC and features a PNP switching output rated up to 200 mA. The switching function is configurable, including NC/NO operation, and sensor adjustment is performed via teach-in. Its rugged stainless steel V2A housing, full encapsulation and IP67 protection make it suitable for industrial environments. Electrical connection is via an M12 × 1, 4-pin connector. Note: A suitable reflector is required for operation and is not included. Technical Specifications Specification Value Manufacturer wenglor Model / MPN LD86PCT3 Sensor Type Retro-reflex photoelectric sensor Detection Principle Retro-reflective Range Up to 6,000 mm Reference Reflector RQ100BA Light Source Red light Polarization Filter Yes Optics Two-lens optic Opening Angle 5° Switching Hysteresis <5% Supply Voltage 10–30 V DC Current Consumption <40 mA at 24 V Output PNP Switching Current 200 mA Switching Function Configurable NC / NO Switching Frequency 2 kHz Response Time 250 µs Setting Method Teach-in External Teach-in Yes Connection M12 × 1, 4-pin Housing Material Stainless steel V2A (1.4305 / 303) Protection Rating IP67 Protection Class III Operating Temperature -25°C to +60°C Short-Circuit Protection Yes Reverse Polarity Protection Yes Overload Protection Yes Weight Approx. 37 g Package Contents 1 × wenglor LD86PCT3 sensor as pictured. Reflector not included. Shopify Tags wenglor, LD86PCT3, retro-reflex sensor, retro-reflective sensor, photoelectric sensor, PNP sensor, M12 sensor, 6m sensor, industrial sensor, automation sensor, IP67 SEO Keywords wenglor LD86PCT3, LD86PCT3 sensor, wenglor retro reflex sensor, 6m photoelectric sensor, PNP photoelectric sensor, M12 optical sensor Meta Title wenglor LD86PCT3 Retro-Reflex Sensor 6m PNP M12 Meta Description Used wenglor LD86PCT3 retro-reflex photoelectric sensor with 6 m range, PNP output, teach-in, M12 connector and IP67 stainless steel housing.
