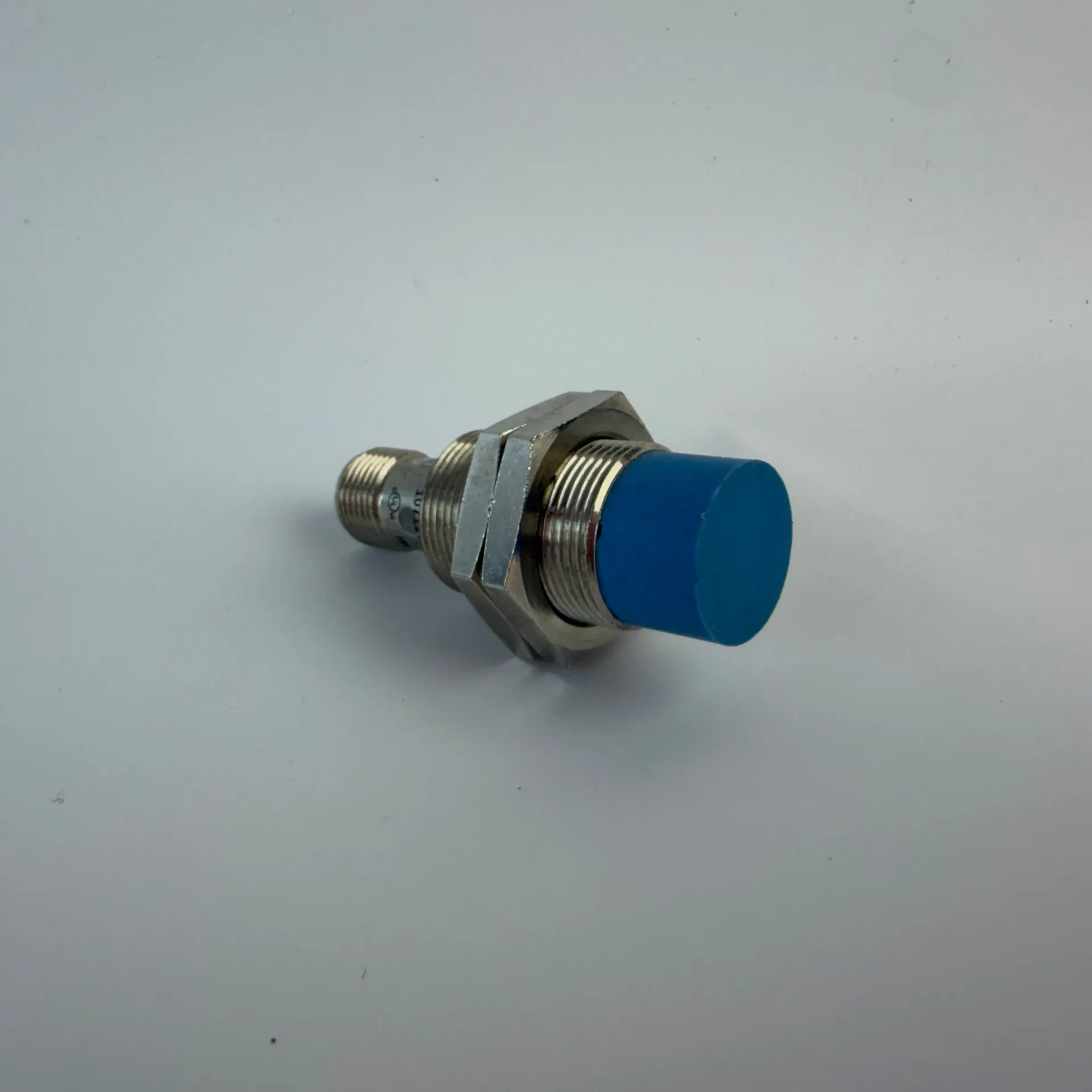

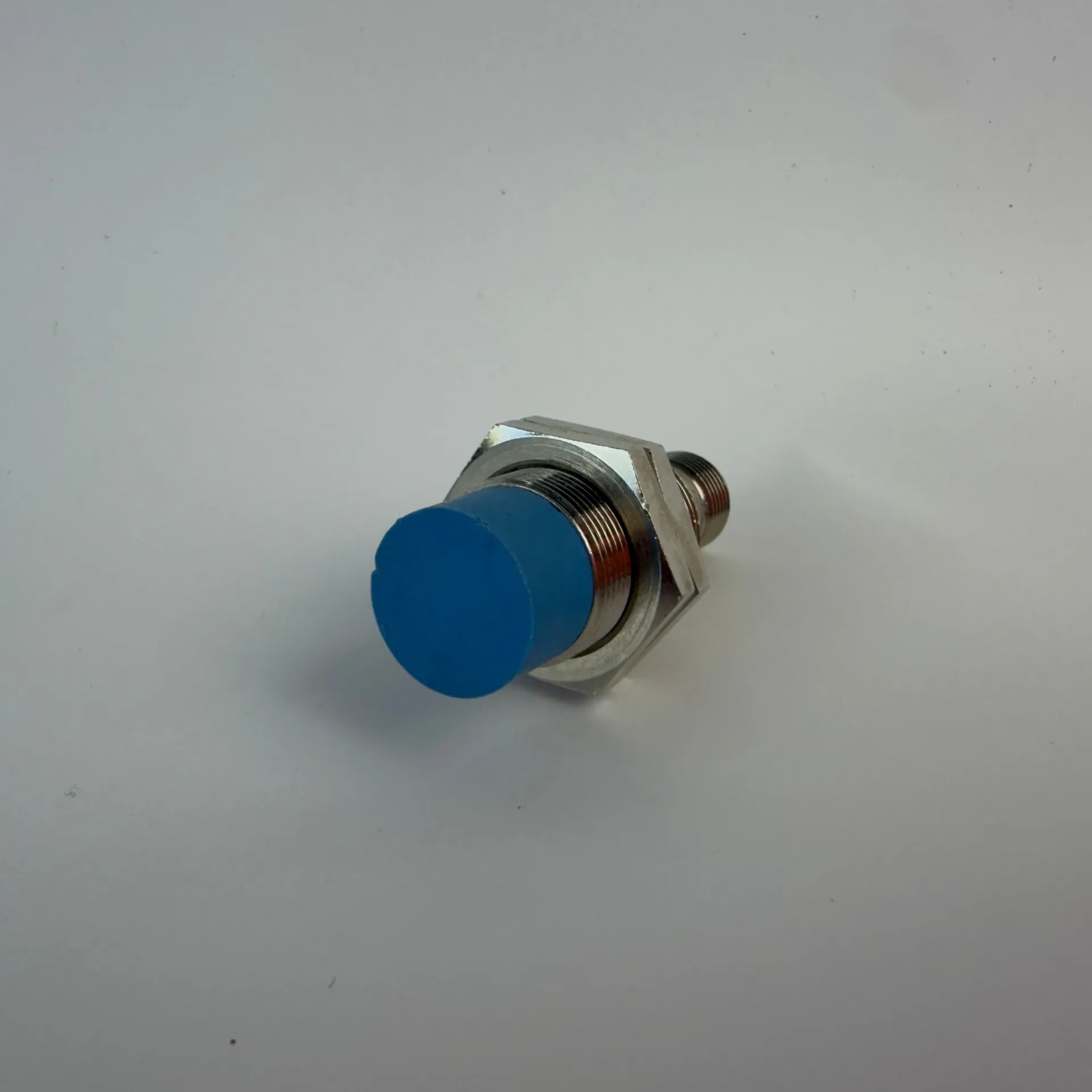

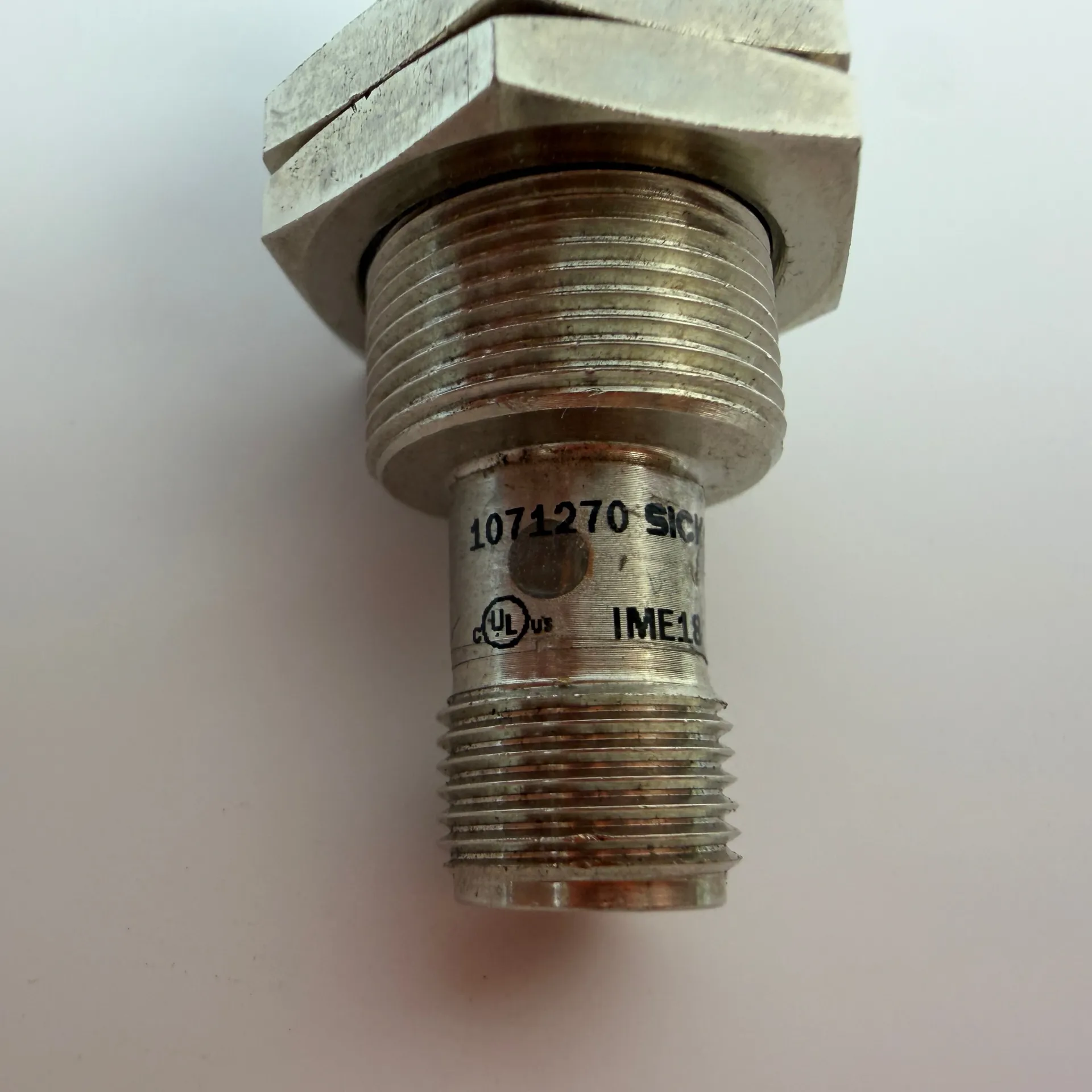

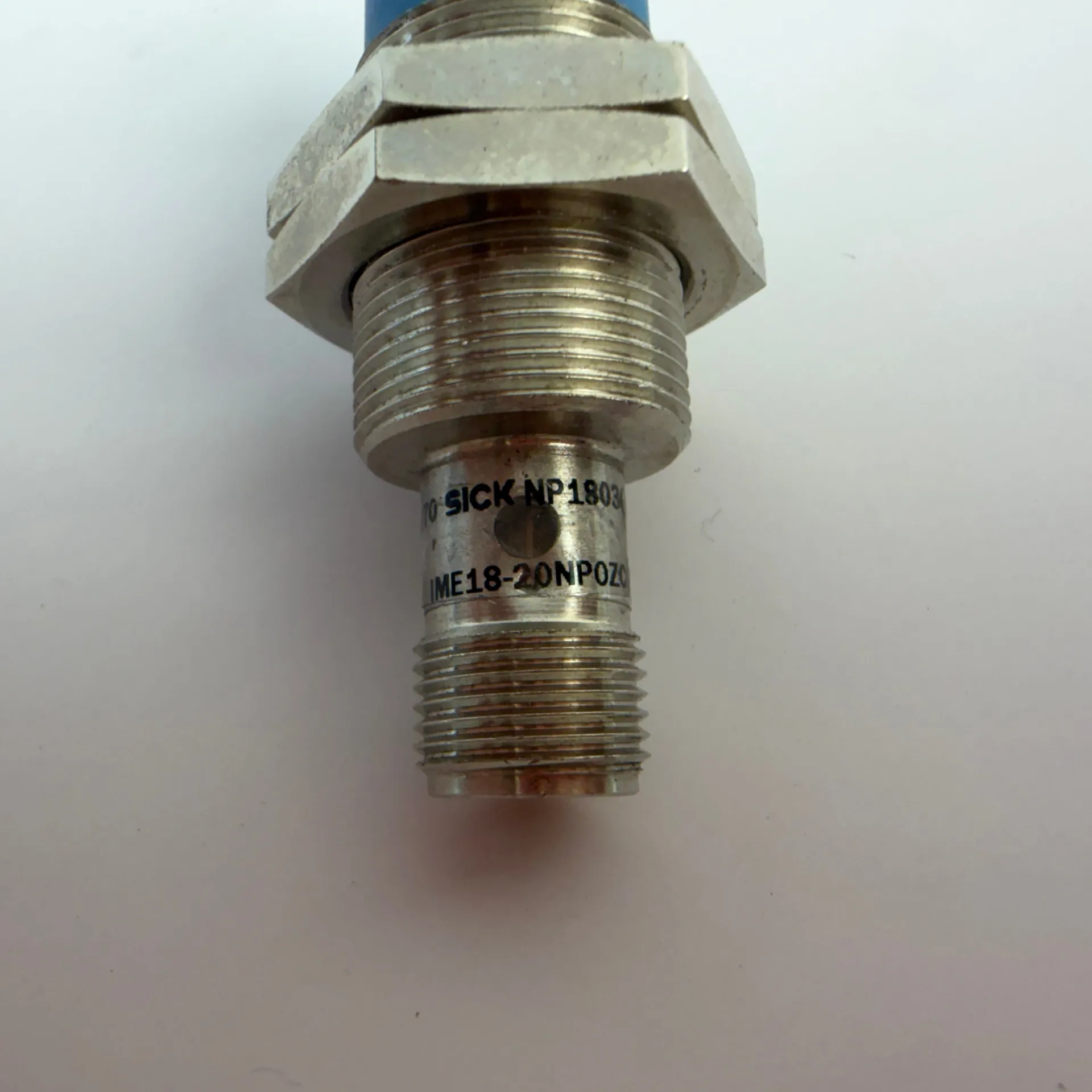

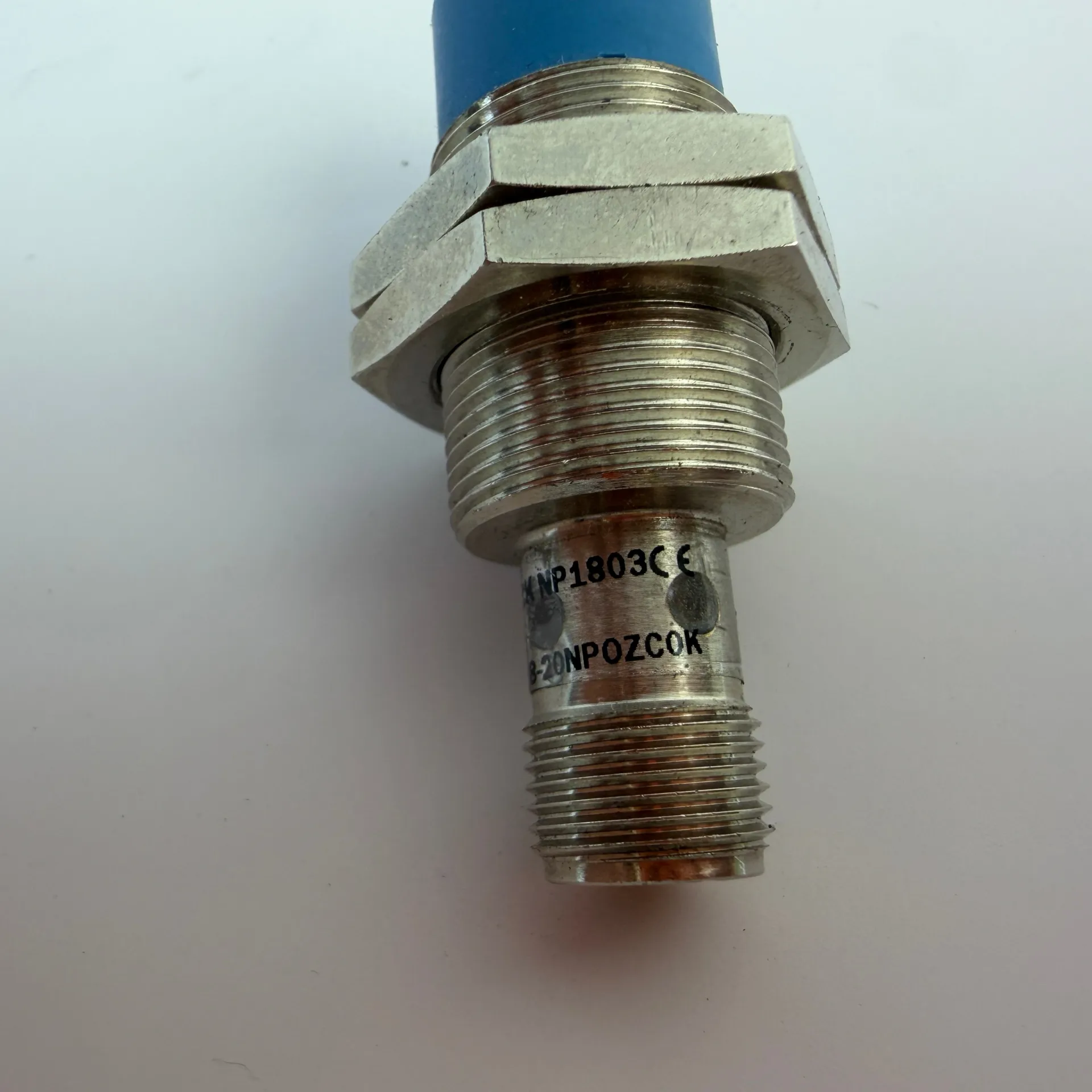

SICK IME18-20NPOZC0K 1071270 M18 Inductive Proximity Sensor PNP NC 20mm

Machine Description

SICK IME18-20NPOZC0K inductive proximity sensor, Part No. 1071270, from the SICK IME series. This industrial proximity sensor features an M18 × 1 threaded short-body housing and an extended 20 mm nominal sensing range. It is designed for non-flush installation and provides a PNP Normally Closed (NC) switching output. The sensor operates from 10–30 V DC, supports up to 200 mA continuous output current, and has a switching frequency of 200 Hz. Connection is provided through a 4-pin M12 male connector. The nickel-plated brass housing and IP67 enclosure rating make it suitable for industrial automation, machine building, positioning and non-contact metal object detection. Condition: Used, fully functional. Technical Specifications Specification Value Manufacturer SICK Series IME Model IME18-20NPOZC0K Part Number 1071270 Sensor Type Inductive proximity sensor Housing Short-body, cylindrical Thread Size M18 × 1 Diameter 18 mm Nominal Sensing Range (Sn) 20 mm Safe Sensing Range (Sa) 16.2 mm Installation Non-flush Output PNP Output Function NC / Normally Closed Electrical Wiring DC 3-wire Supply Voltage 10–30 V DC Continuous Current ≤200 mA No-load Current ≤10 mA Voltage Drop ≤2 V Switching Frequency 200 Hz Connection M12 male, 4-pin Protection Rating IP67 Housing Material Nickel-plated brass Sensing Face PA 66 plastic Housing Length 50 mm Thread Length 23 mm Operating Temperature -25°C to +75°C Short-circuit Protection Yes Power-up Pulse Protection Yes Application Suitable for non-contact detection of metallic objects in industrial automation, machinery, positioning systems, conveyors and manufacturing equipment. Package Contents 1× SICK IME18-20NPOZC0K sensor with 2 mounting nuts, exactly as pictured. Shopify Tags SICK, 1071270, IME18-20NPOZC0K, IME18, IME Series, Inductive Sensor, Proximity Sensor, PNP Sensor, NC Sensor, M18 Sensor, 20mm Sensor, M12 Sensor, 10-30VDC, Industrial Automation SEO Keywords SICK 1071270, IME18-20NPOZC0K, SICK IME18 sensor, M18 inductive proximity sensor, 20mm proximity sensor, PNP NC sensor, SICK inductive sensor Meta Title SICK 1071270 IME18-20NPOZC0K PNP NC Inductive Sensor Meta Description SICK IME18-20NPOZC0K 1071270 inductive proximity sensor with 20 mm sensing range, M18 thread, PNP NC output, 10–30 V DC and M12 connection.
