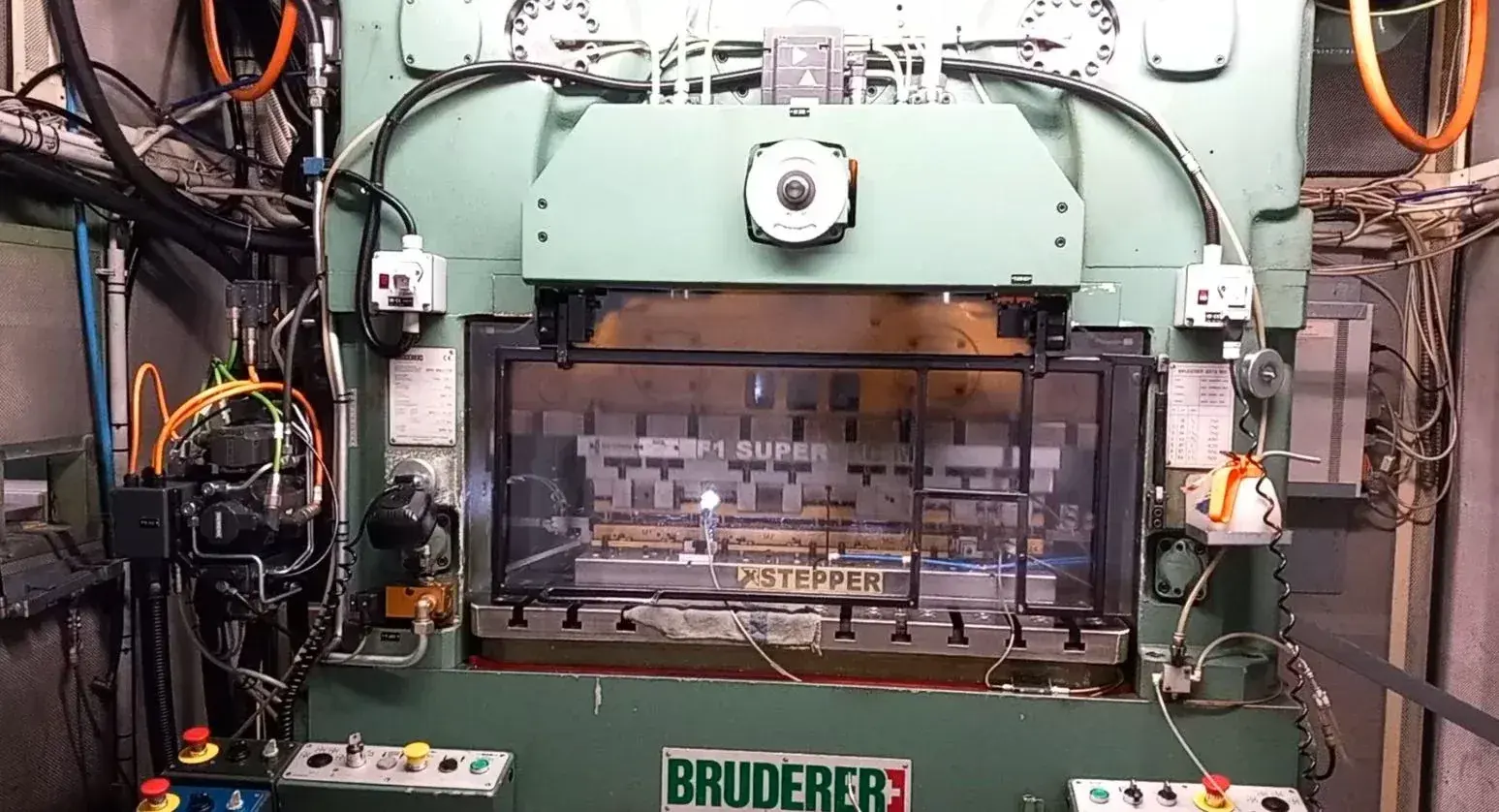

Bruderer BSTA 500-110B

Machine Description

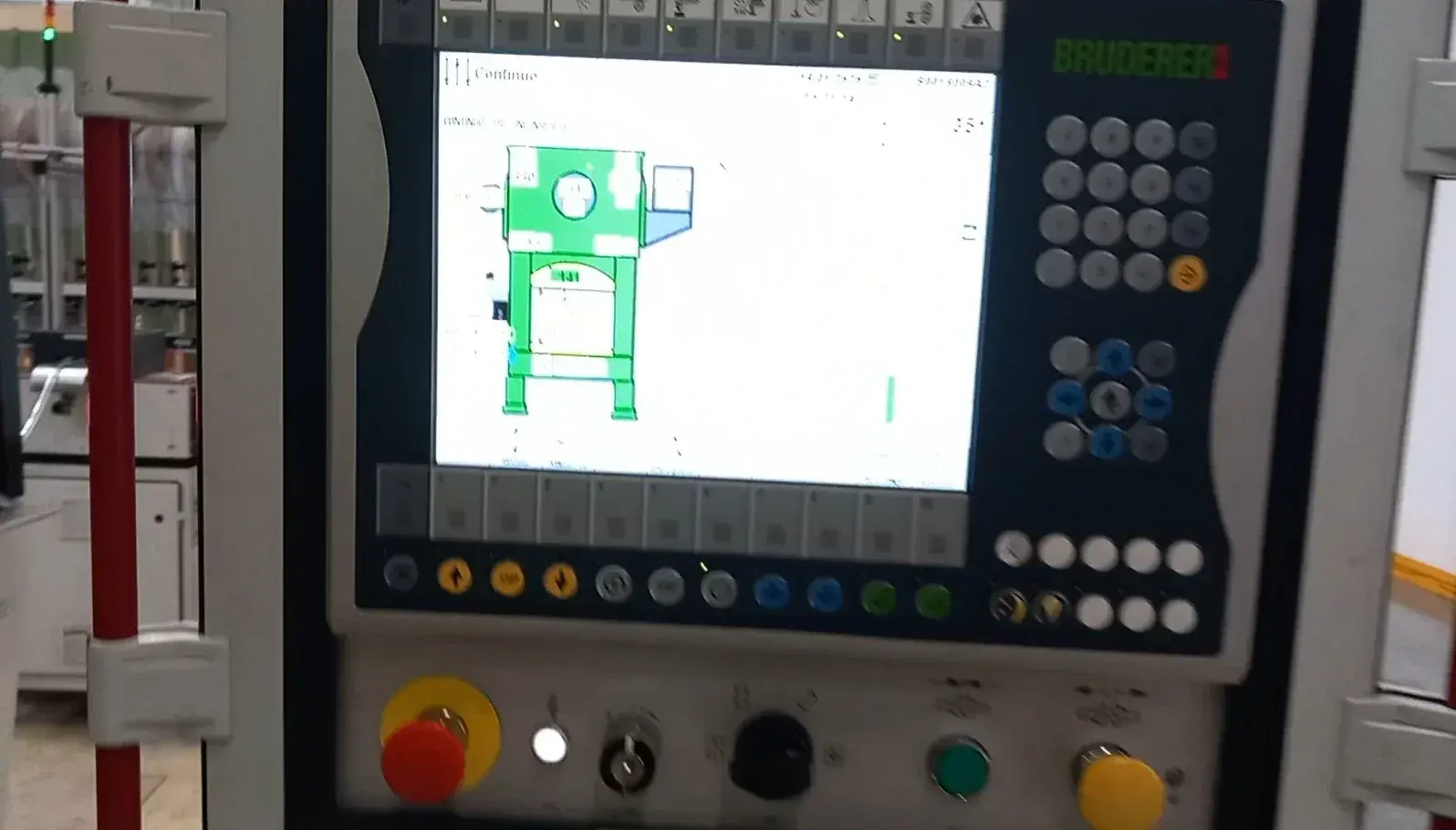

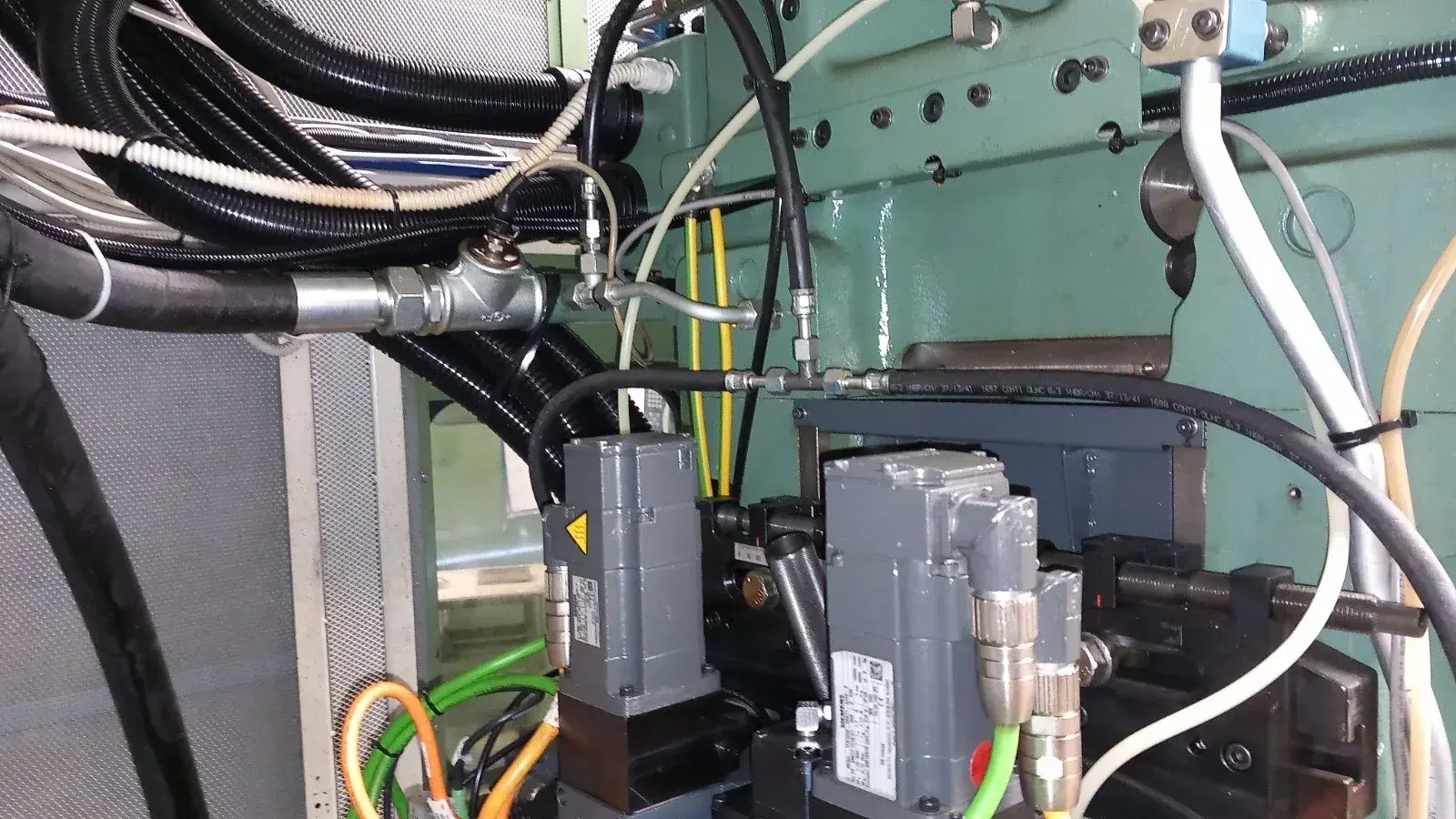

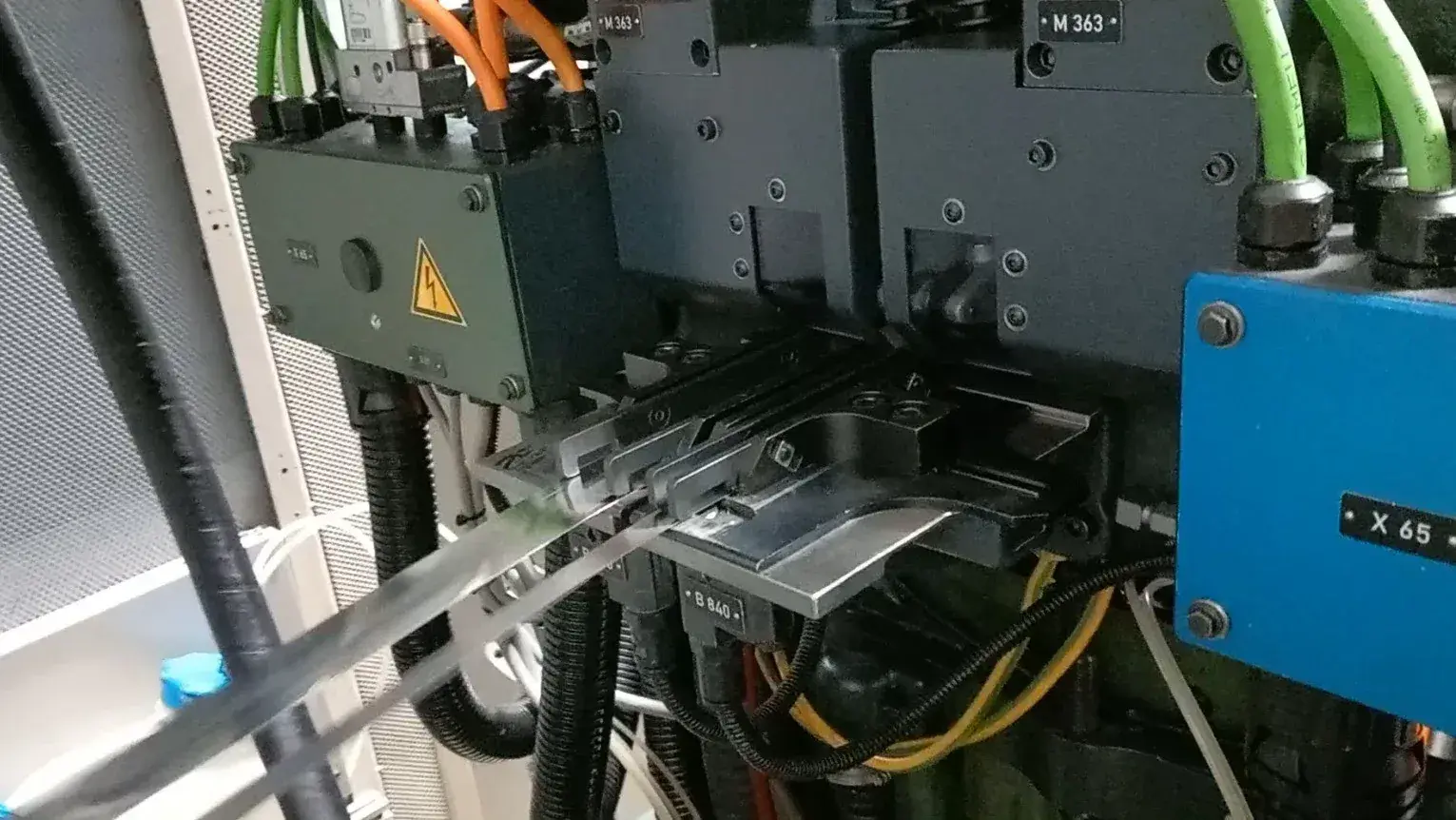

The distinguishing feature of this press is its feeding concept: there are no clamping or gripper bars, the strip being held by driven feed rollers during stamping. It is designed for parallel advancing of two strips, or for feeding pre-profiled and pre-stamped strip. Press: nominal force 500 kN (50 tons), year of manufacture 2008, stroke rate 100-750 spm variable, adjustable stroke 19 / 25 / 34 / 43 / 51 / 57 / 64 mm, ram height adjustment 64 mm, press table area 1080 x 650 mm. Feeder: BSV 75T tandem dual-feed servo unit; feed length, feed angle and pilot release angle are all variable and freely programmable. Control: B2, IPC-based touch-screen press control with programmable memory. The complete specification is set out in the table on this page. Bruderer BSTA 500-110B, reference number 37026. Nominal force: 500 kN (50 tons) Year of manufacture: 2008 Stroke rate: 100–750 spm (variable) Adjustable stroke: 19 / 25 / 34 / 43 / 51 / 57 / 64 mm Ram height adjustment: 64 mm Press table area: 1080 x 650 mm Control: B2, IPC-based touch-screen press control, programmable memory for fast retooling BSV 75T DOUBLE SERVO FEEDER Type: tandem dual-feed servo unit, independently controlled tracks Max. strip width 70 mm per track Max. material thickness: 2 mm Feed length: variable, freely programmable Feed angle: variable Pilot release angle: variable No clamping/gripper bars — strip held by driven feed rollers during stamping Designed for parallel advancing of two strips or feeding pre-profiled/pre-stamped strip
