TR20x4 BFM204 Flanged Bronze Trapezoidal Nut Right-Handed
Technical Specifications
Machine Description

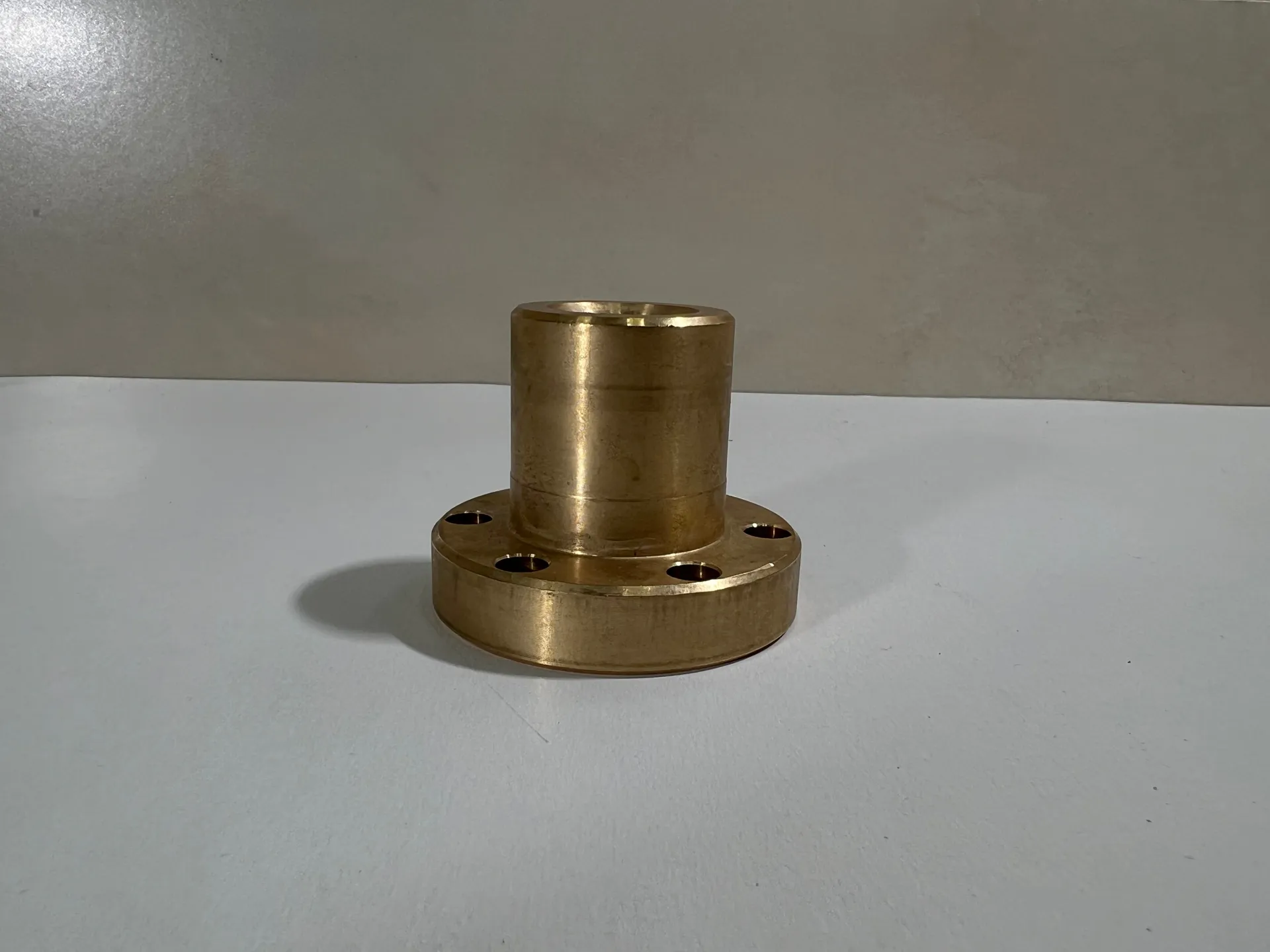

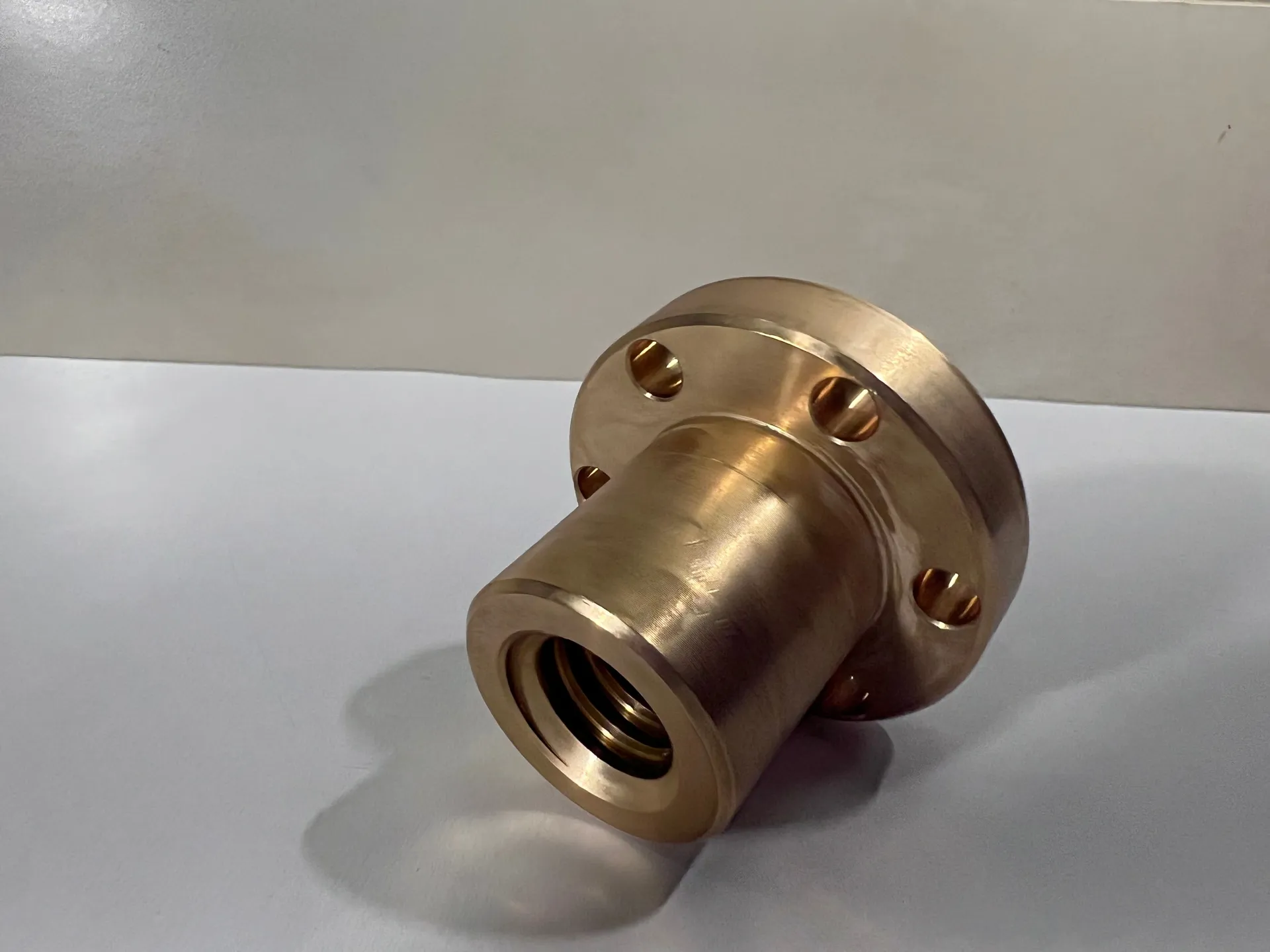

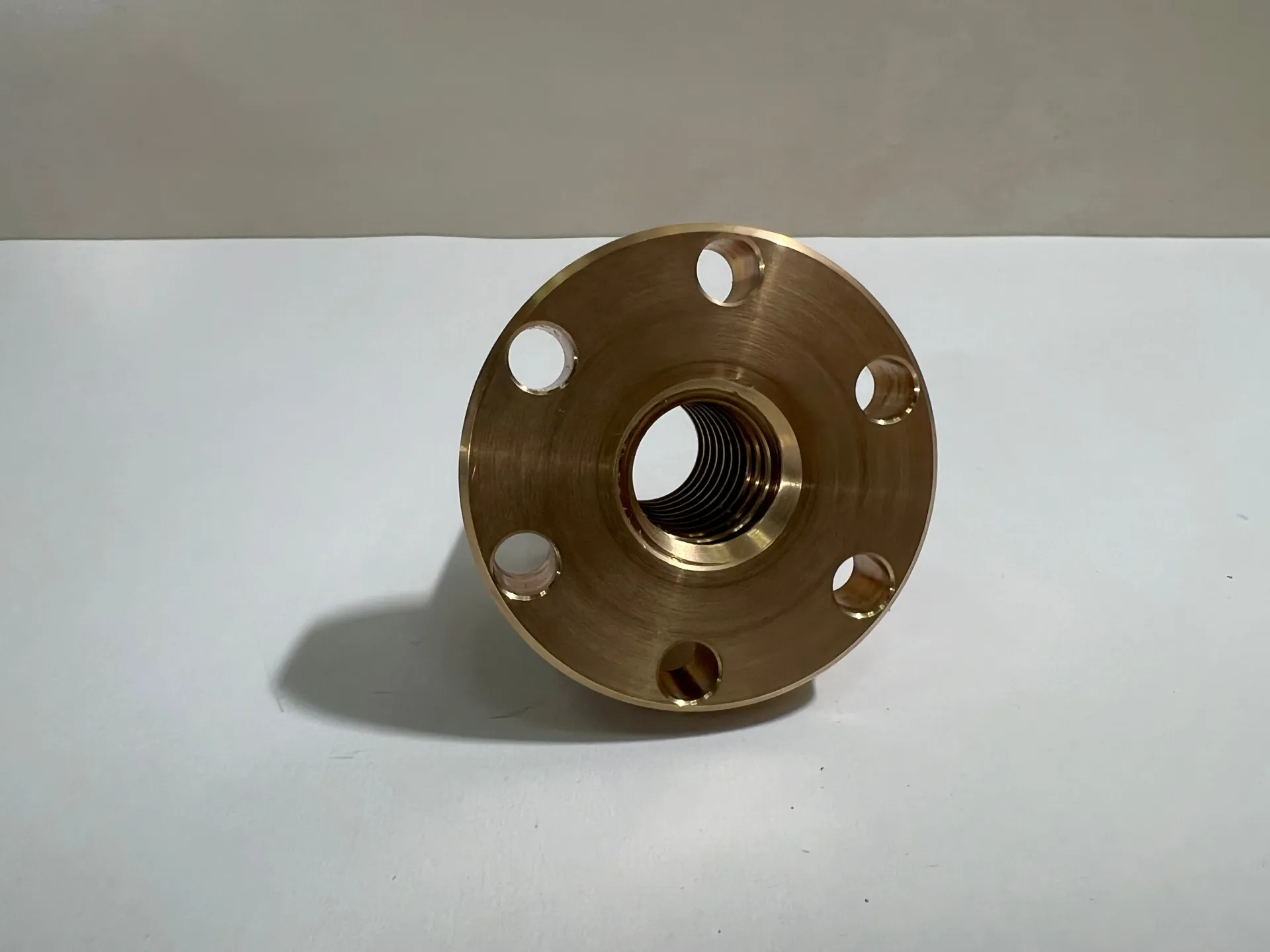

The TR20x4 flanged bronze trapezoidal nut is designed for precise linear motion and power transmission. Manufactured from durable bronze, it provides excellent wear resistance, smooth operation, and long service life. The flange allows secure mounting and easy integration into mechanical assemblies. Technical Specifications: • Material Bronze CC493K Lead Direction Right Hand No. of Starts 1 Diameter [d] 20 Pitch/Lead 4 Diameter [D1] h9 32 Diameter [D4] h11 55 Diameter [D5] 45 Diameter [D6] 7 Dimension [L1] ±0.2 44 Dimension [L2] +0.15/-0 12 Dimension [L3] +0/-0.15 8 Contact Surface (mm²) 870 Mass kg 0.346 • Applications: Commonly used in CNC machines, 3D printers, linear actuators, and mechanical systems requiring precise lead screw motion and durable threaded components. Item condition: New, in perfect working condition.
Location:Bulevar Konstantina Velikog 38, Sremska Mitrovica, Serbia, Serbia
€28
