NEC NL6448AC33-29 10.4" TFT LCD Display Panel 640x480 VGA Industrial

Machine Description

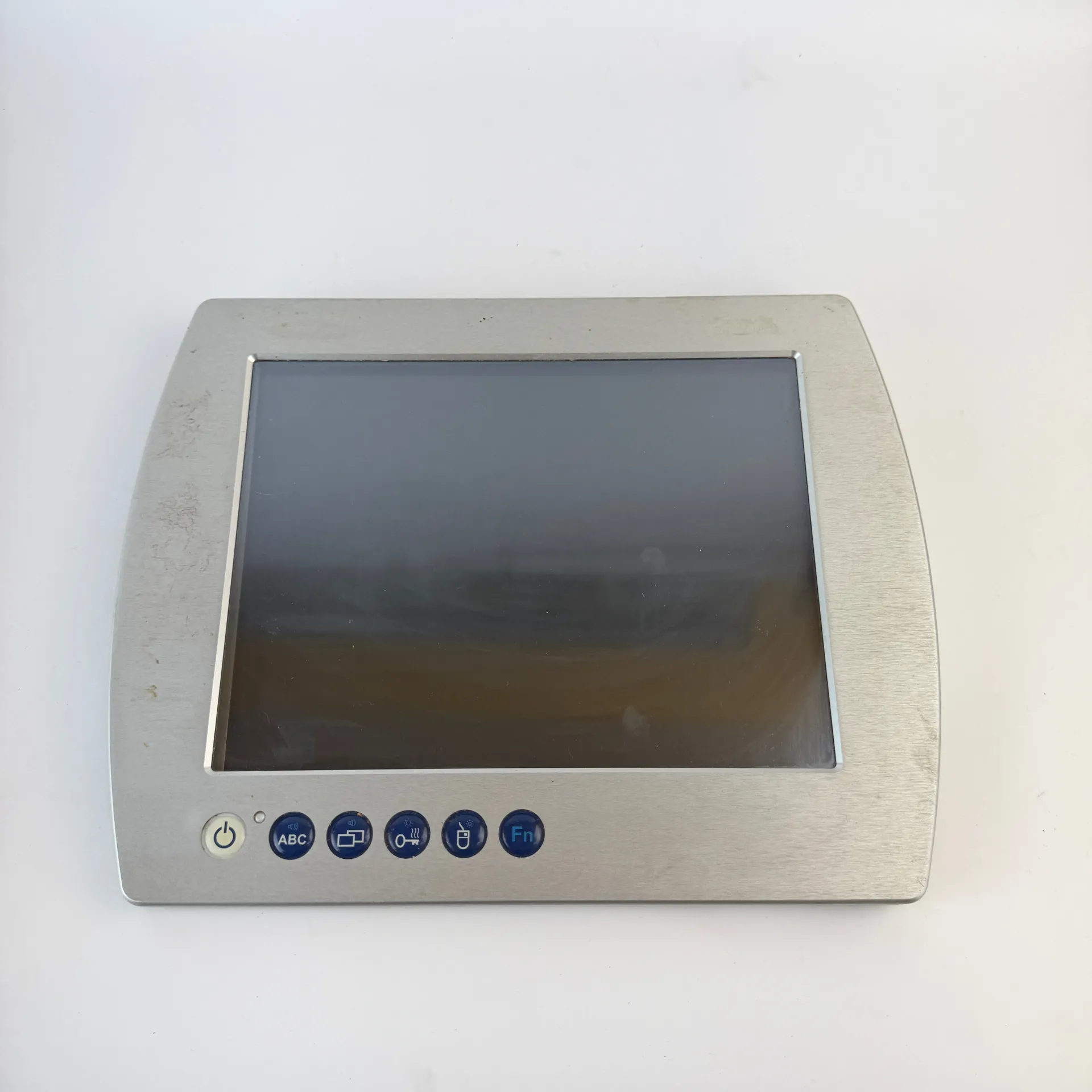

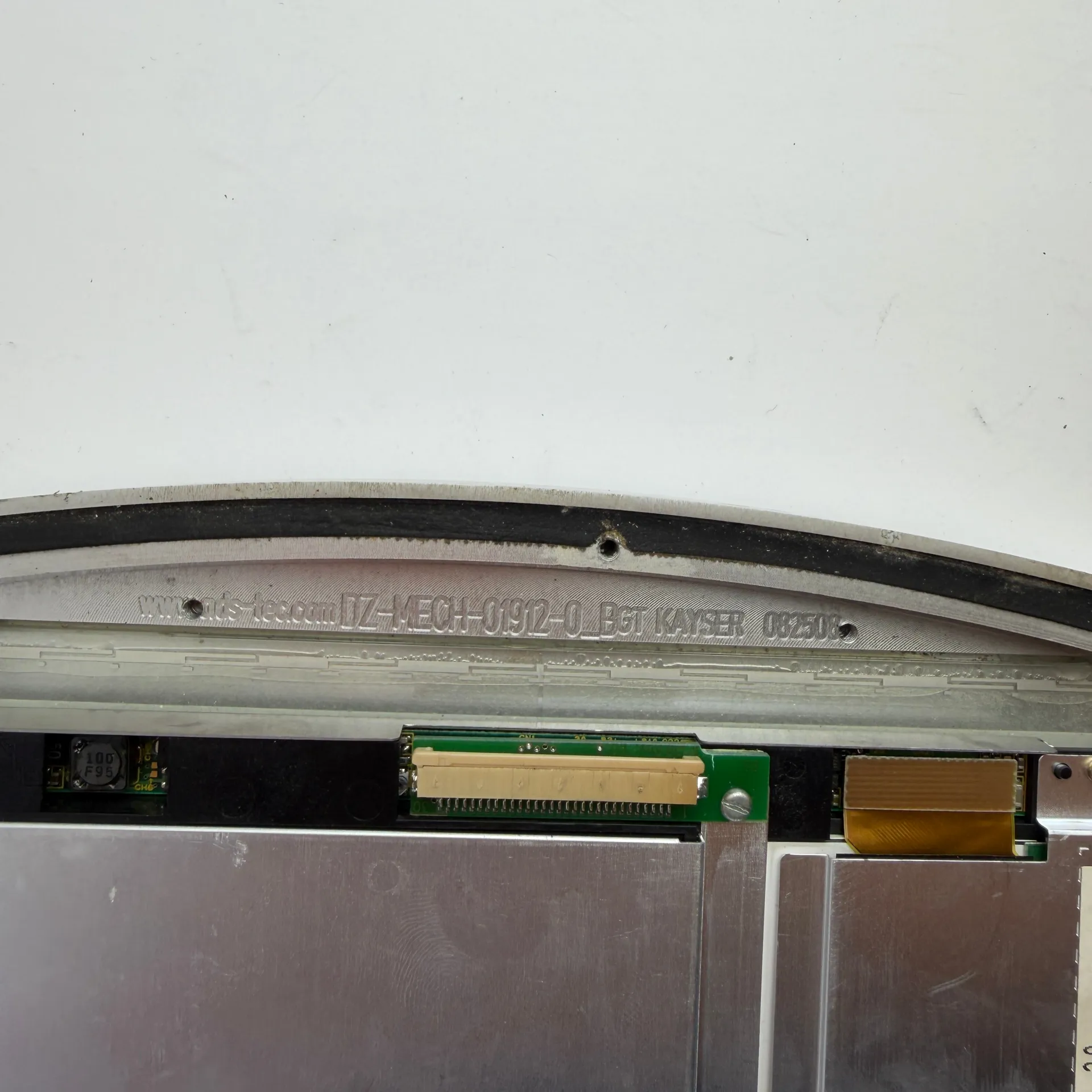

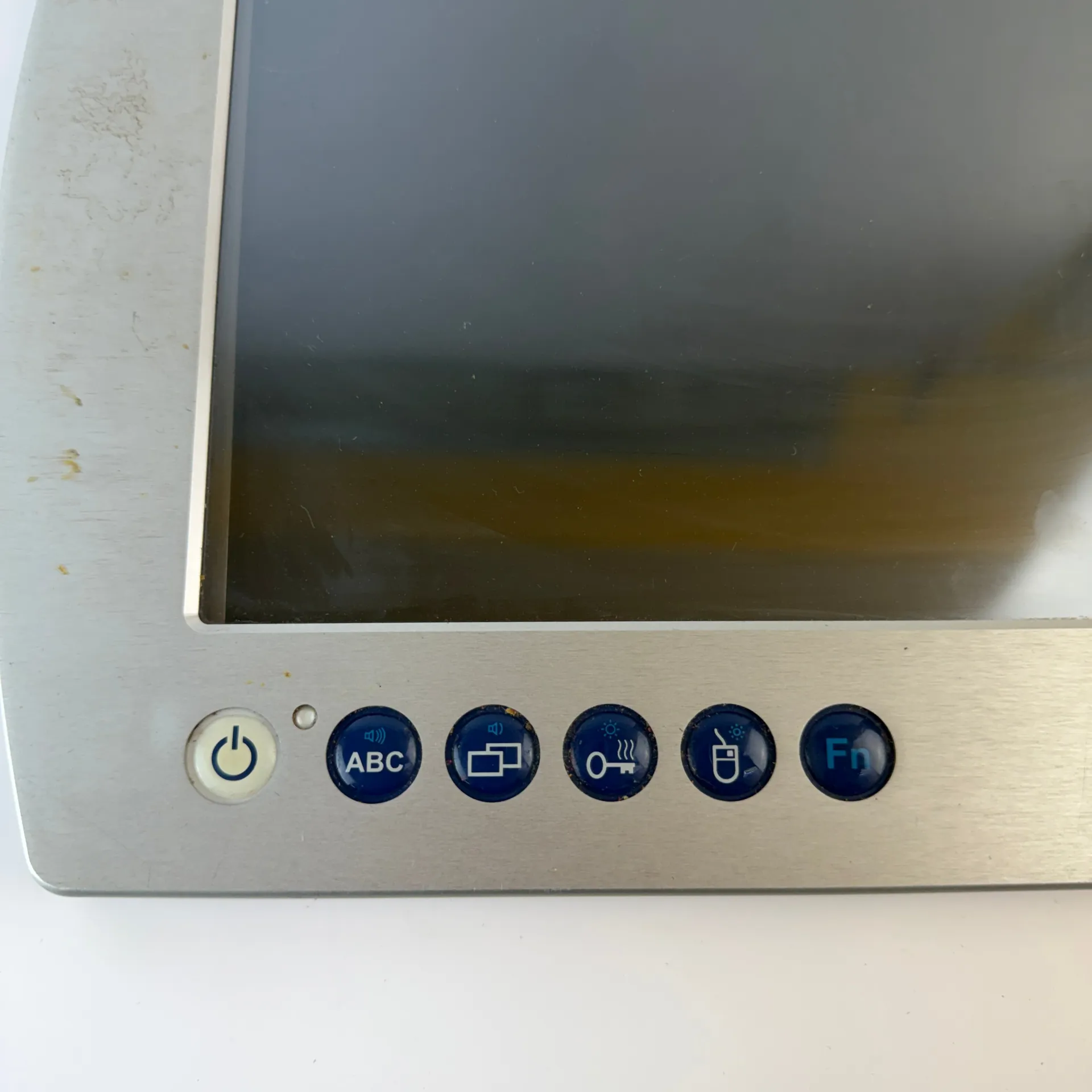

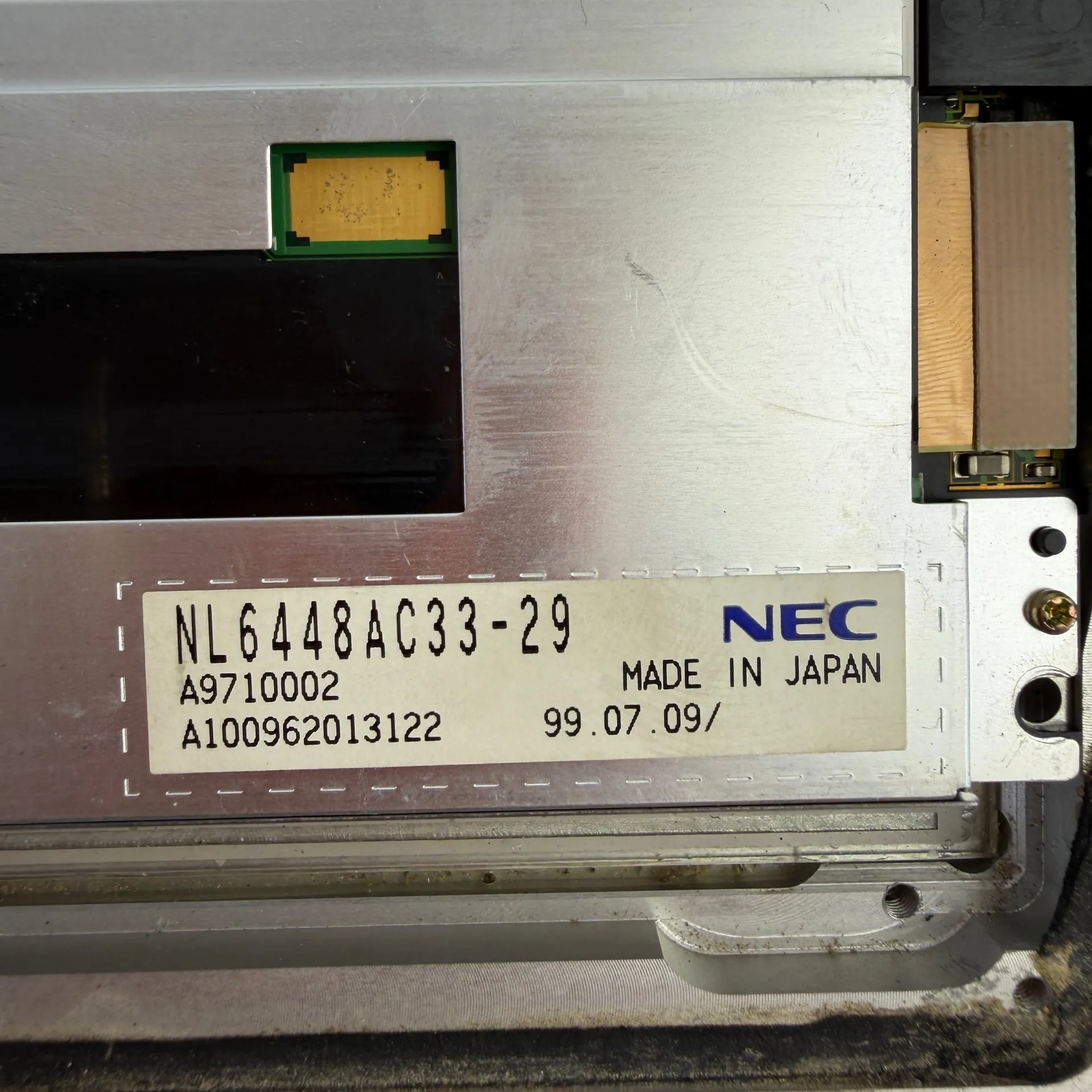

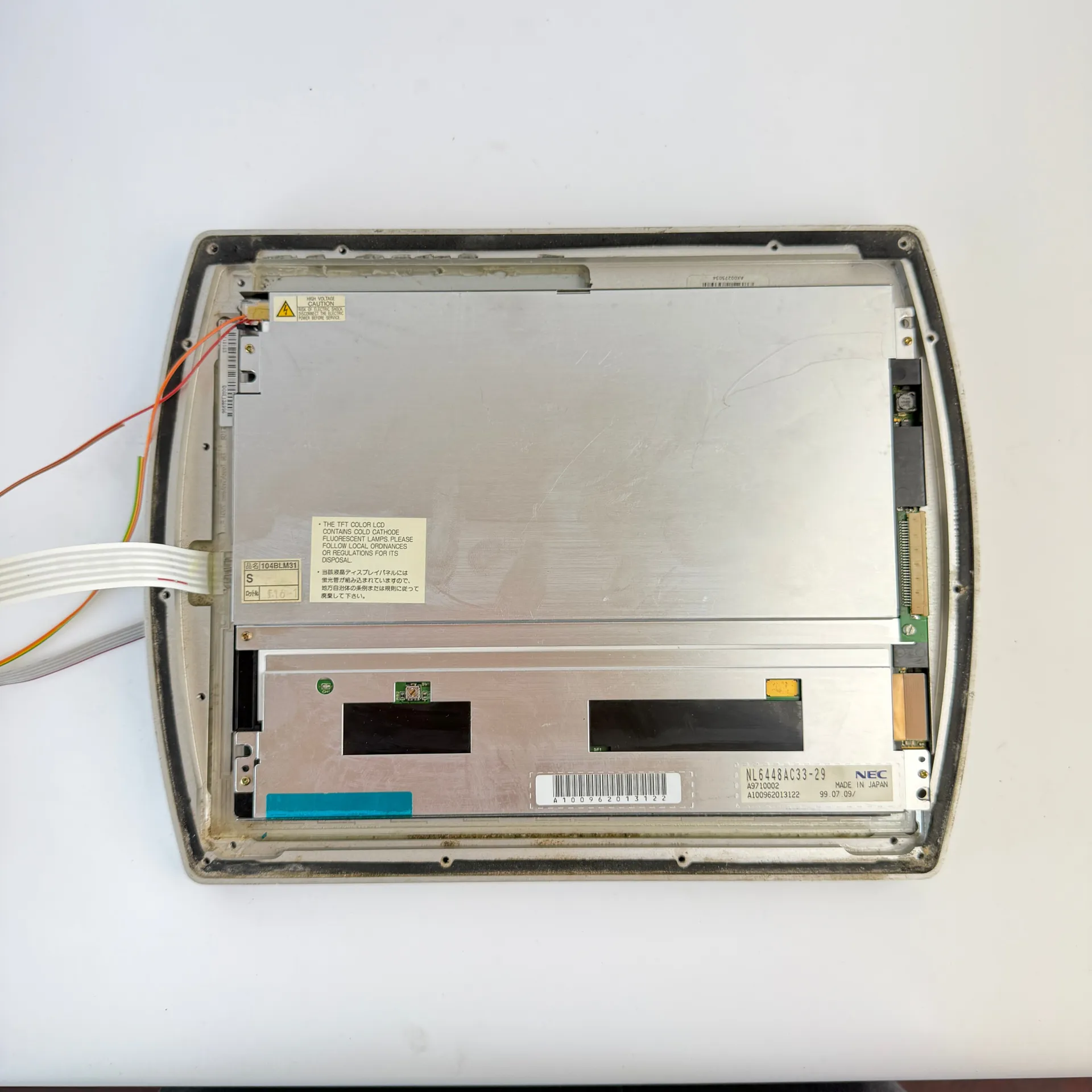

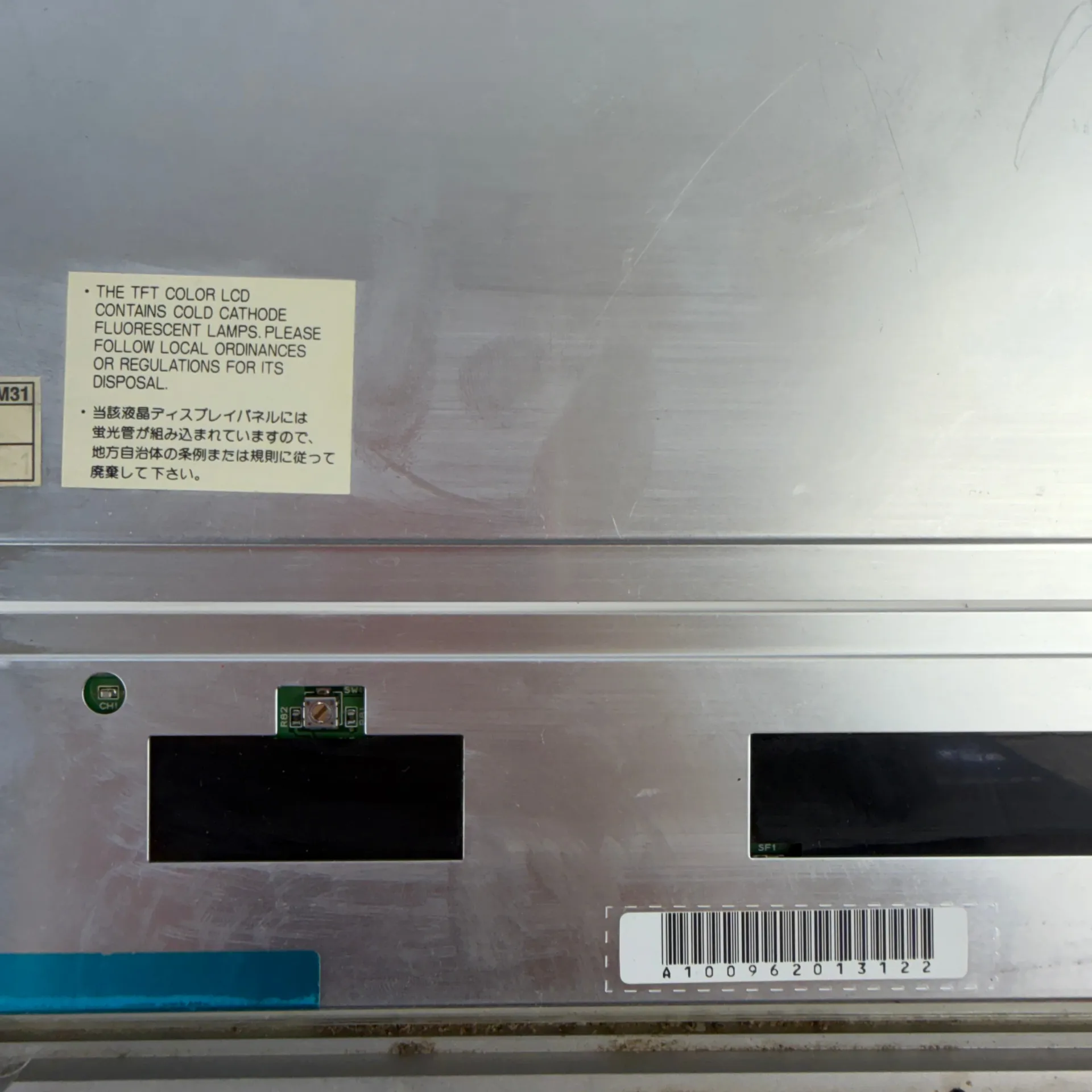

NEC NL6448AC33-29 industrial 10.4-inch TFT color LCD display panel, supplied as the pictured display assembly with front bezel and function buttons. The NL6448AC33-29 is an active-matrix a-Si TFT LCD designed for industrial display applications. It provides VGA 640 × 480 resolution with 262,144 simultaneous colors and a 6-bit digital RGB interface. Specifications: • Manufacturer: NEC • Model: NL6448AC33-29 • Display Type: a-Si TFT Color LCD • Screen Size: 10.4 in / 26 cm • Resolution: 640 × 480 pixels (VGA) • Colors: 262,144 • Active Area: 211.2 × 158.4 mm • Aspect Ratio: 4:3 • Interface: 6-bit digital RGB • Signal Interface: CMOS, 31-pin • Typical Luminance: 250 cd/m² • Display Mode: Transmissive • Backlight: Two-lamp edge-light CCFL system • Backlight Inverter: Incorporated • Supply Voltage (VCC): 3.3 V / 5.0 V • Operating Temperature: 0 to +50°C • Storage Temperature: -20 to +60°C • Panel Country of Manufacture: Japan Designed for applications such as industrial PCs, control-system display terminals and process-controller monitors. The photographs show the NEC LCD installed in a metal front display assembly with physical function buttons. The manufacturer and equipment model associated with this surrounding assembly have not been confirmed; compatibility should therefore be verified by the buyer using the NEC panel number, dimensions, interface and connections. Condition: Used, fully functional.
