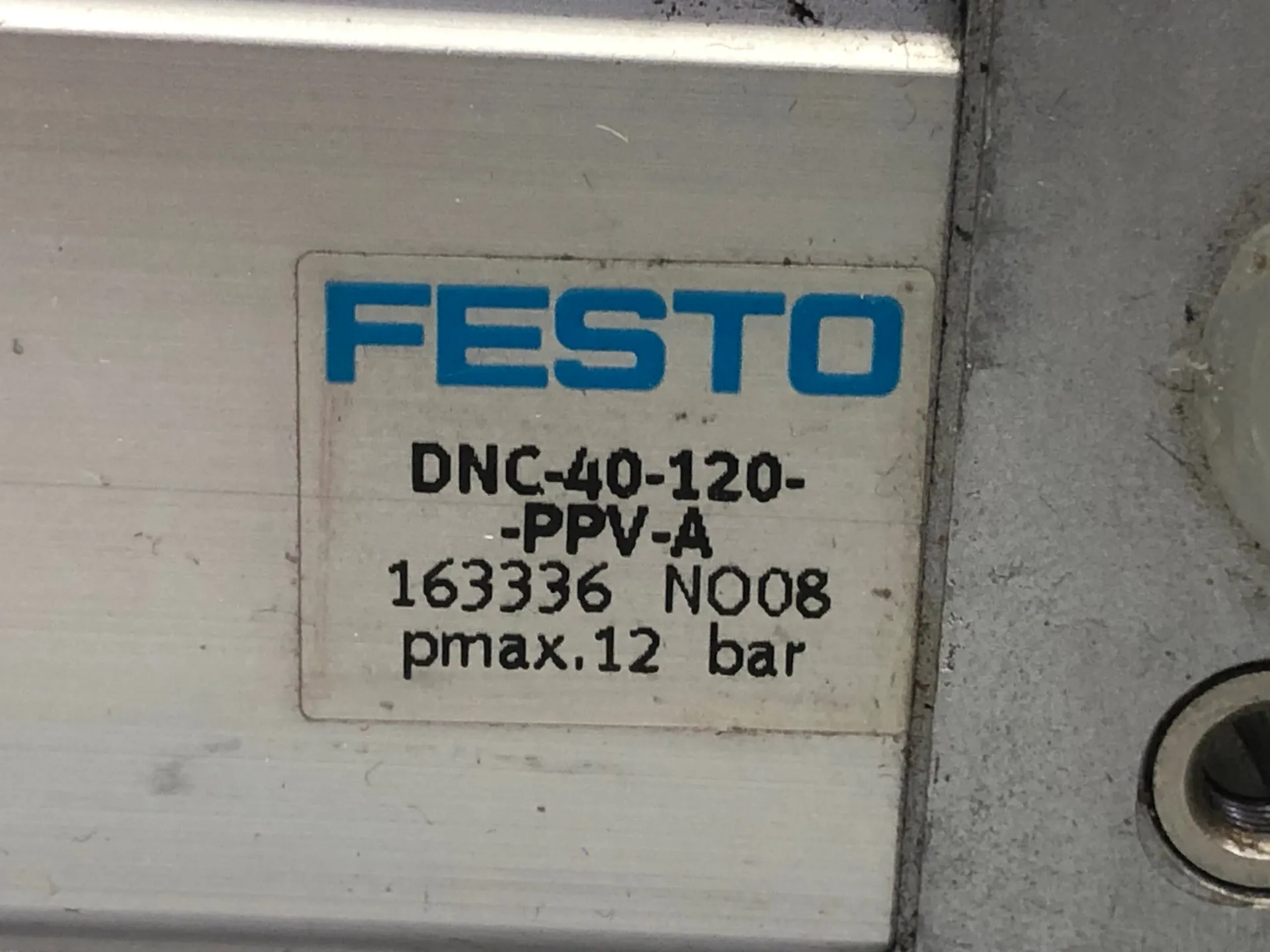

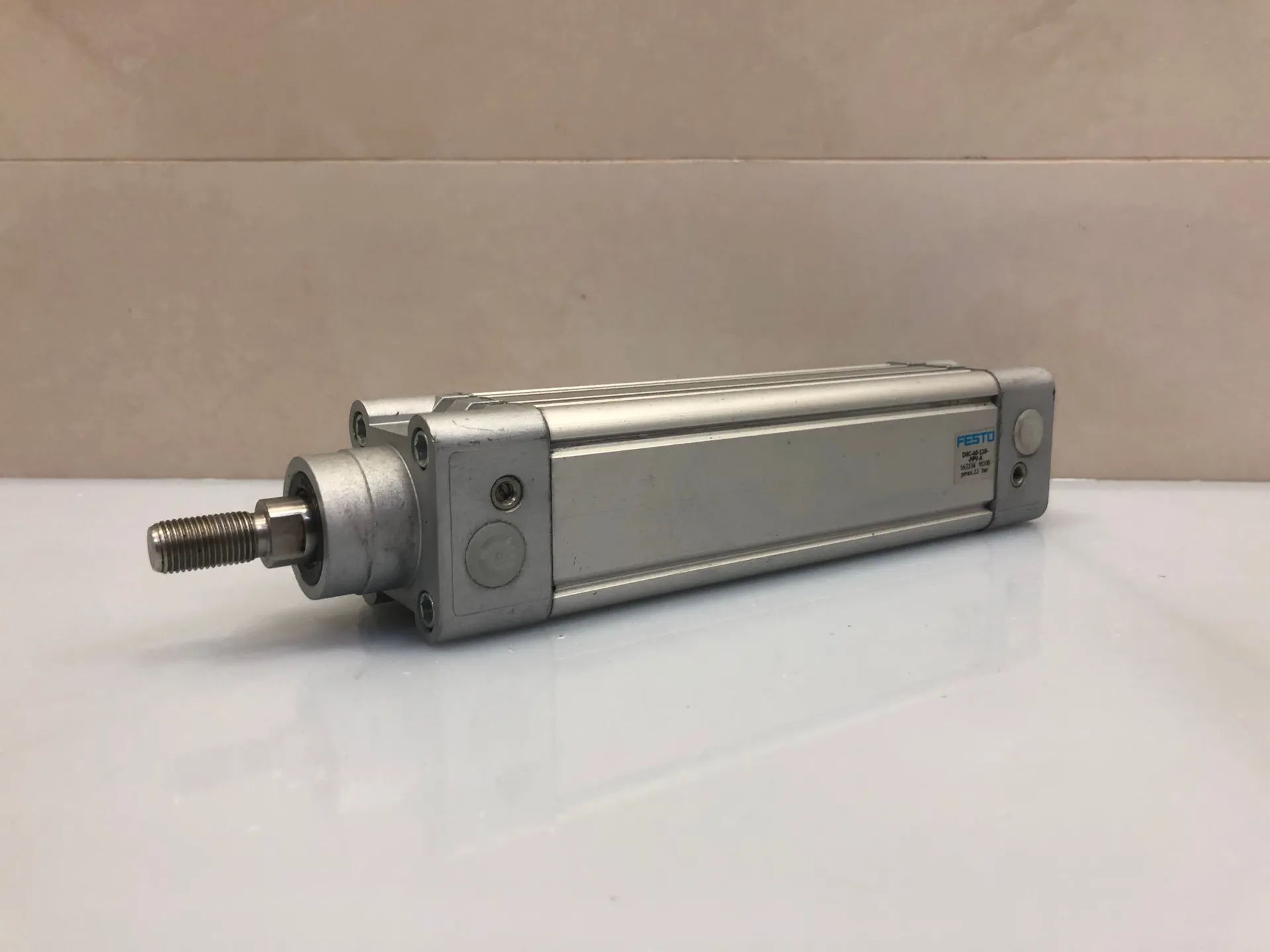

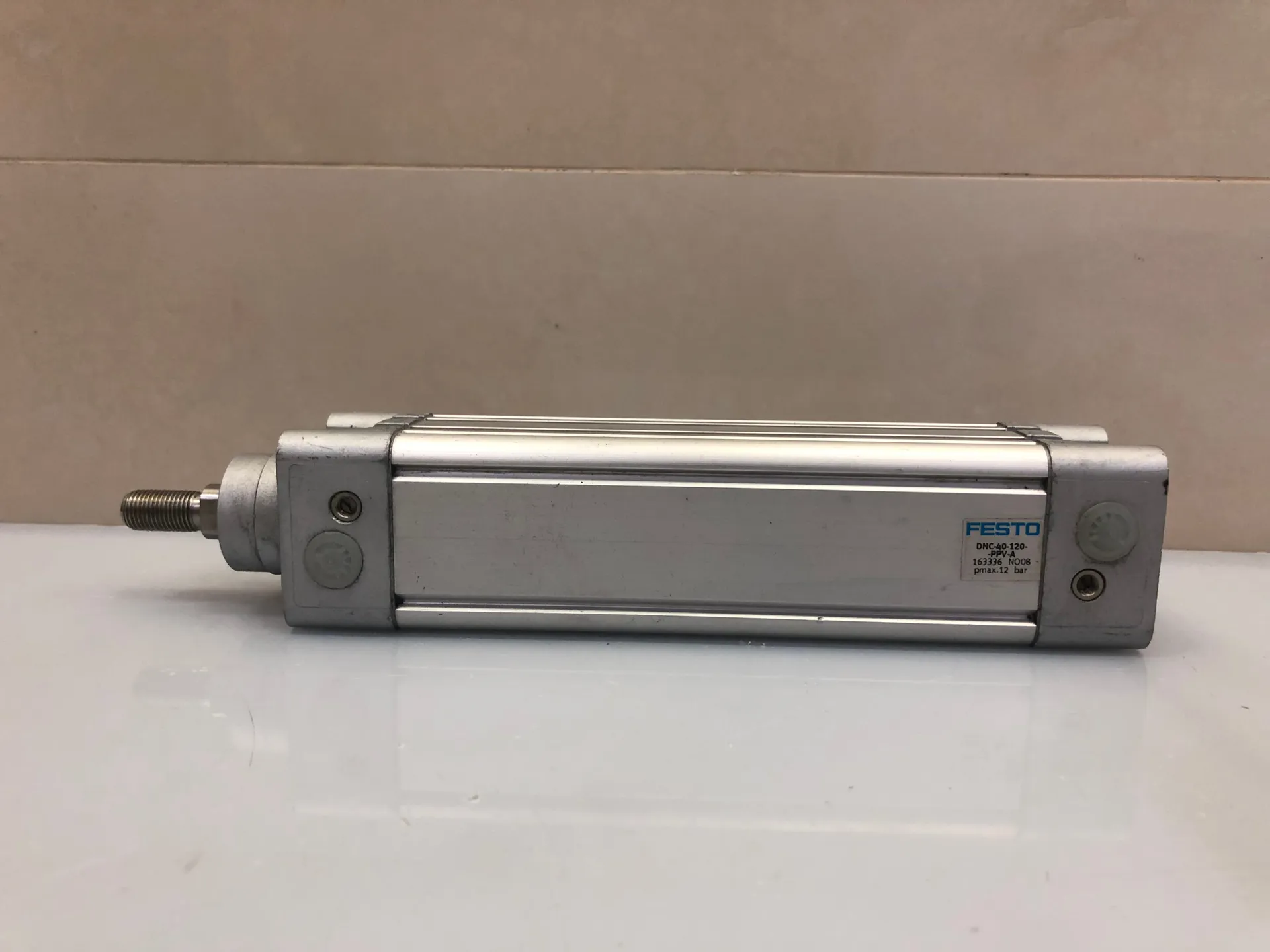

Festo DNC-40-120-PPV-A Pneumatic Cylinder 40mm Bore 120mm Stroke – 163336

Technical Specifications
Machine Description
The Festo DNC-40-120-PPV-A is a robust ISO 15552 standard pneumatic cylinder designed for demanding industrial automation applications. With a 40 mm bore and 120 mm stroke, it offers powerful linear motion with adjustable cushioning for smooth operation and extended service life. Technical Specifications: • Model: DNC-40-120-PPV-A • Part Number: 163336 • Series: DNC • Bore Size: 40 mm • Stroke Length: 120 mm • Standard: ISO 15552 (formerly ISO 6431) • Action: Double acting • Cushioning: Adjustable pneumatic cushioning (PPV) at both ends • Piston Rod: Single-ended, male thread • Body Material: Anodized aluminum profile • Rod Material: Stainless steel • Operating Pressure: Up to 12 bar • Medium: Filtered, lubricated or unlubricated compressed air • Mounting Options: Various (flange, foot, trunnion, etc. – not included) • Manufacturer: Festo Item condition: Never used, but have few markings from storage
Location:Bulevar Konstantina Velikog 38, Sremska Mitrovica, Serbia, Serbia
€90
