SICK IME18-08BPSZW2S 1040968 Inductive Proximity Sensor M18 8mm PNP NO

Machine Description

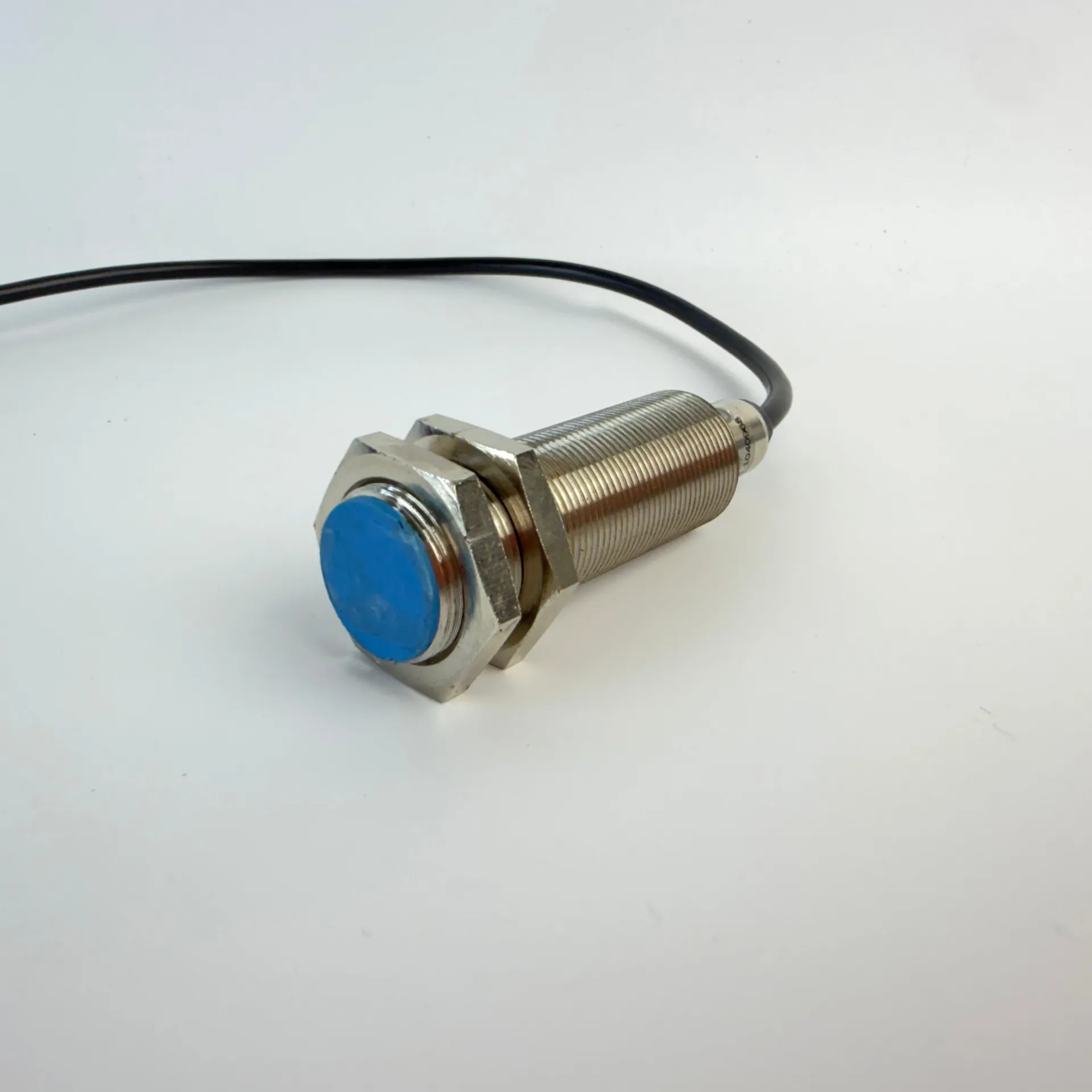

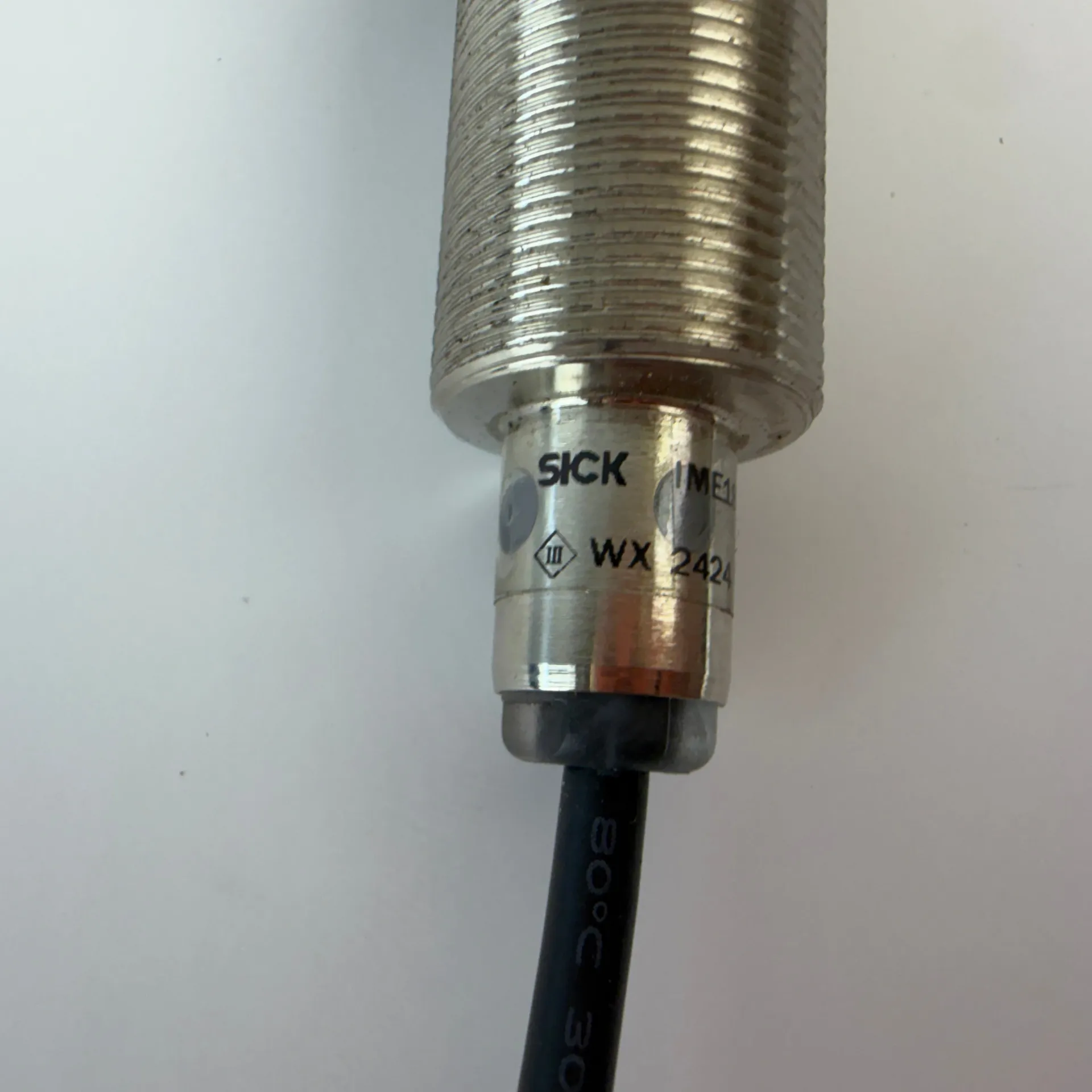

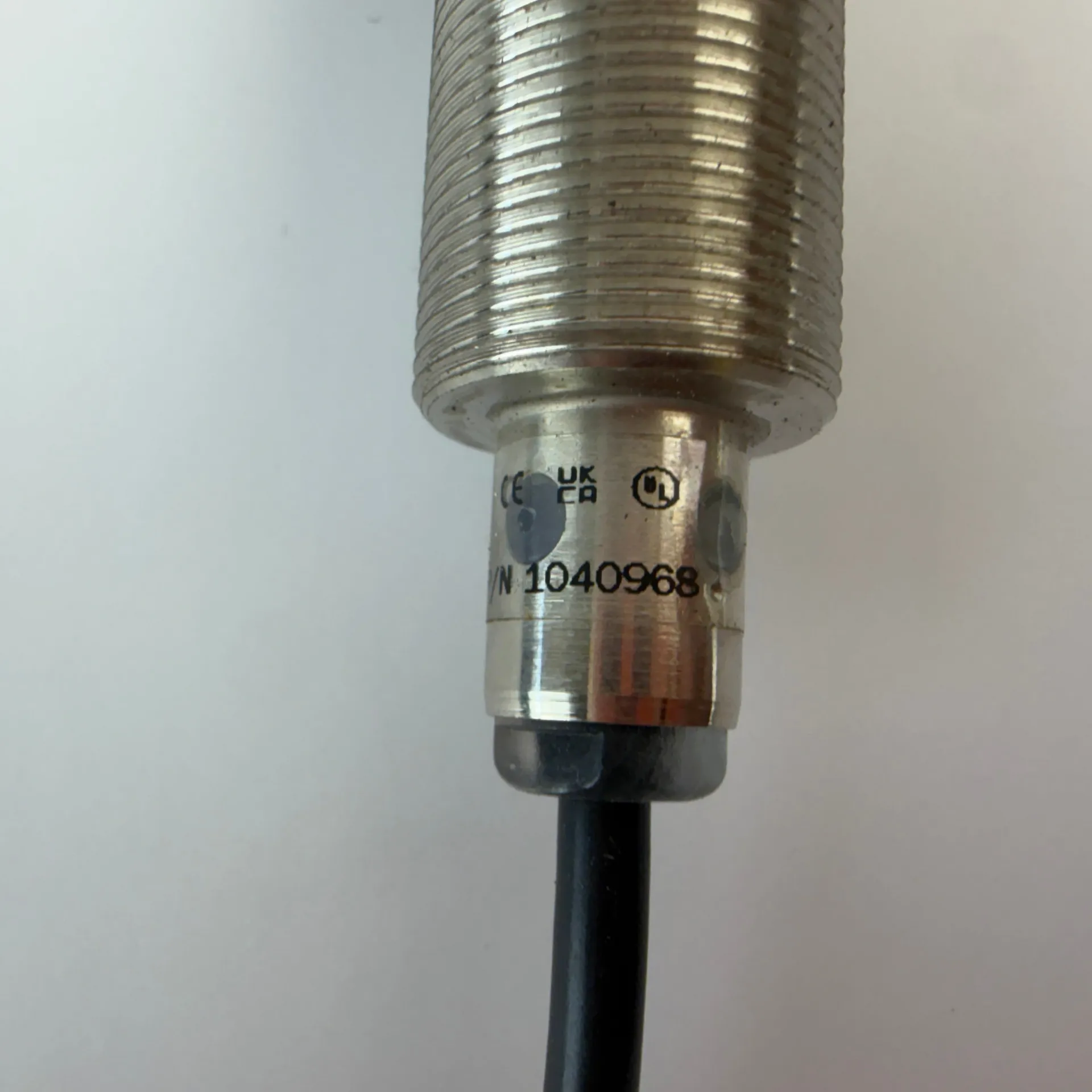

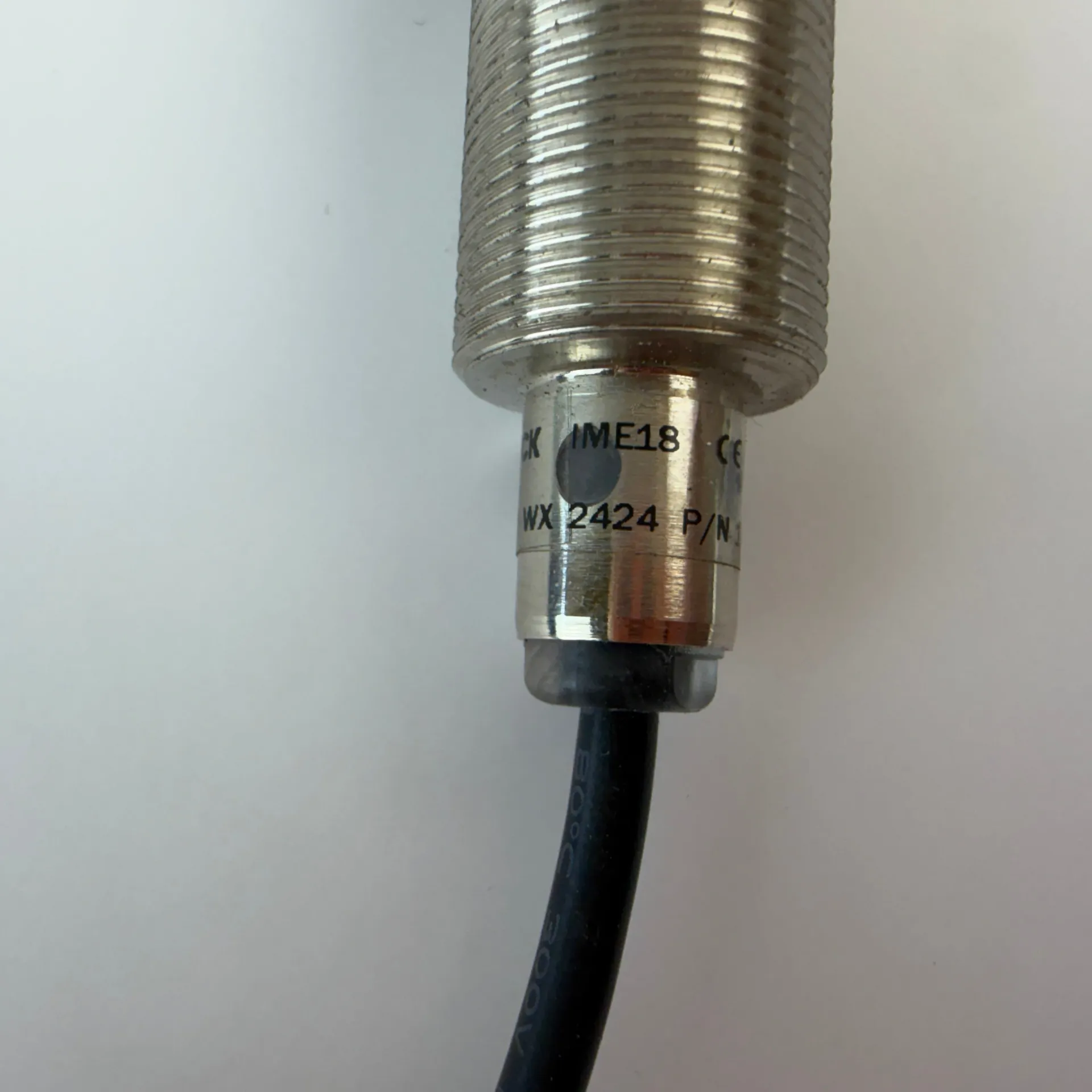

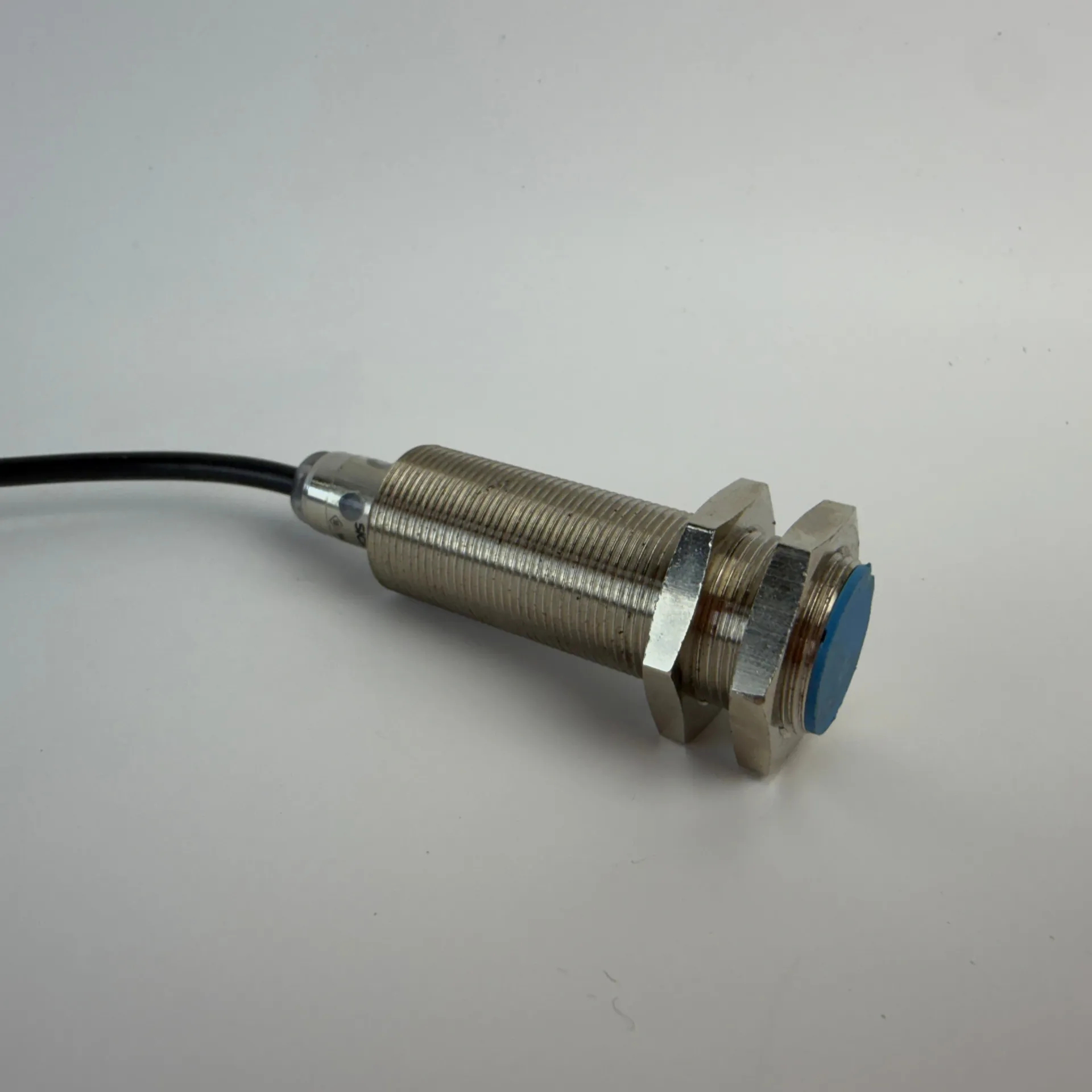

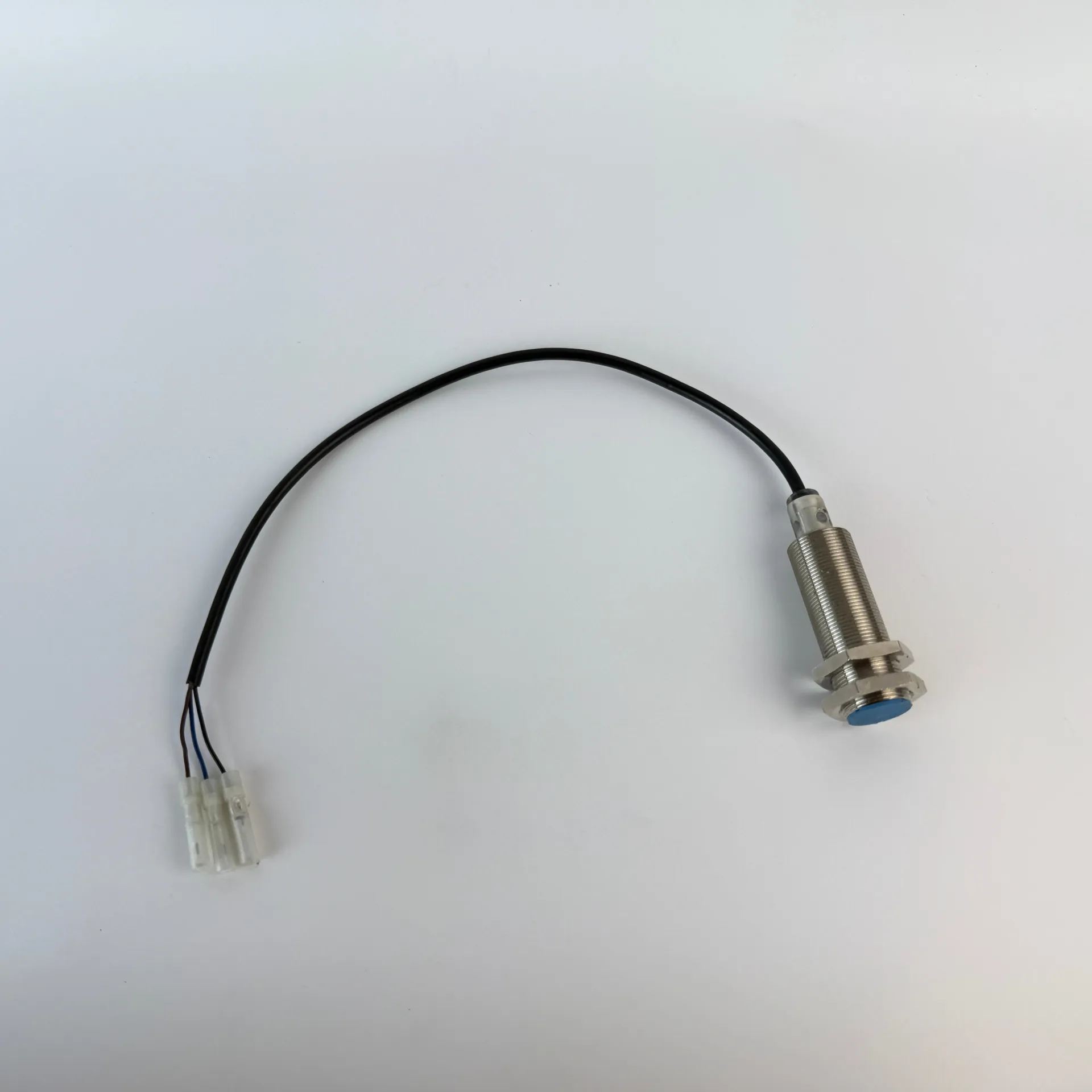

SICK IME18-08BPSZW2S, part number 1040968, inductive proximity sensor for non-contact detection of metallic objects in industrial automation and machinery applications. This IME18 series sensor features an M18 × 1 cylindrical threaded housing, nominal sensing range of 8 mm, flush mounting capability and a PNP normally-open (NO) switching output. It operates from 10–30 V DC and supports a continuous output current of up to 200 mA. The sensor has a nickel-plated brass housing and IP67 enclosure rating for industrial environments. This particular unit has a cable termination as shown in the supplied photographs. Please verify the photographs and connection arrangement for your application. Technical Specifications Specification Value Manufacturer SICK Model / MPN IME18-08BPSZW2S Part Number 1040968 Series IME18 Sensor Type Inductive proximity sensor Housing Cylindrical, threaded Thread M18 × 1 Diameter 18 mm Nominal Sensing Range (Sn) 8 mm Assured Sensing Range (Sa) 6.48 mm Installation Flush Switching Output PNP Output Function Normally Open (NO) Electrical Configuration DC 3-wire Supply Voltage 10–30 V DC Continuous Output Current ≤200 mA Switching Frequency 1,000 Hz Voltage Drop ≤2 V No-load Current ≤10 mA Protection Rating IP67 Housing Material Nickel-plated brass Active Face Material PA66 plastic Operating Temperature -25°C to +75°C Standard Housing Length 67 mm Threaded Length 52 mm Wiring Brown (BN): L+ Blue (BU): M / 0 V Black (BK): PNP NO switching output Package Contents 1 × SICK IME18-08BPSZW2S / 1040968 sensor, exactly as pictured. Shopify Tags SICK, IME18-08BPSZW2S, 1040968, IME18, inductive sensor, proximity sensor, M18 sensor, PNP sensor, normally open, 8mm sensor, industrial automation, IP67 SEO Keywords SICK 1040968, SICK IME18-08BPSZW2S, IME18 proximity sensor, M18 inductive sensor, 8mm PNP proximity sensor, SICK inductive sensor Meta Title SICK IME18-08BPSZW2S 1040968 M18 Inductive Sensor Meta Description Used SICK IME18-08BPSZW2S 1040968 inductive proximity sensor with 8 mm sensing range, M18 housing, PNP NO output, 10–30 V DC supply and IP67 protection.
