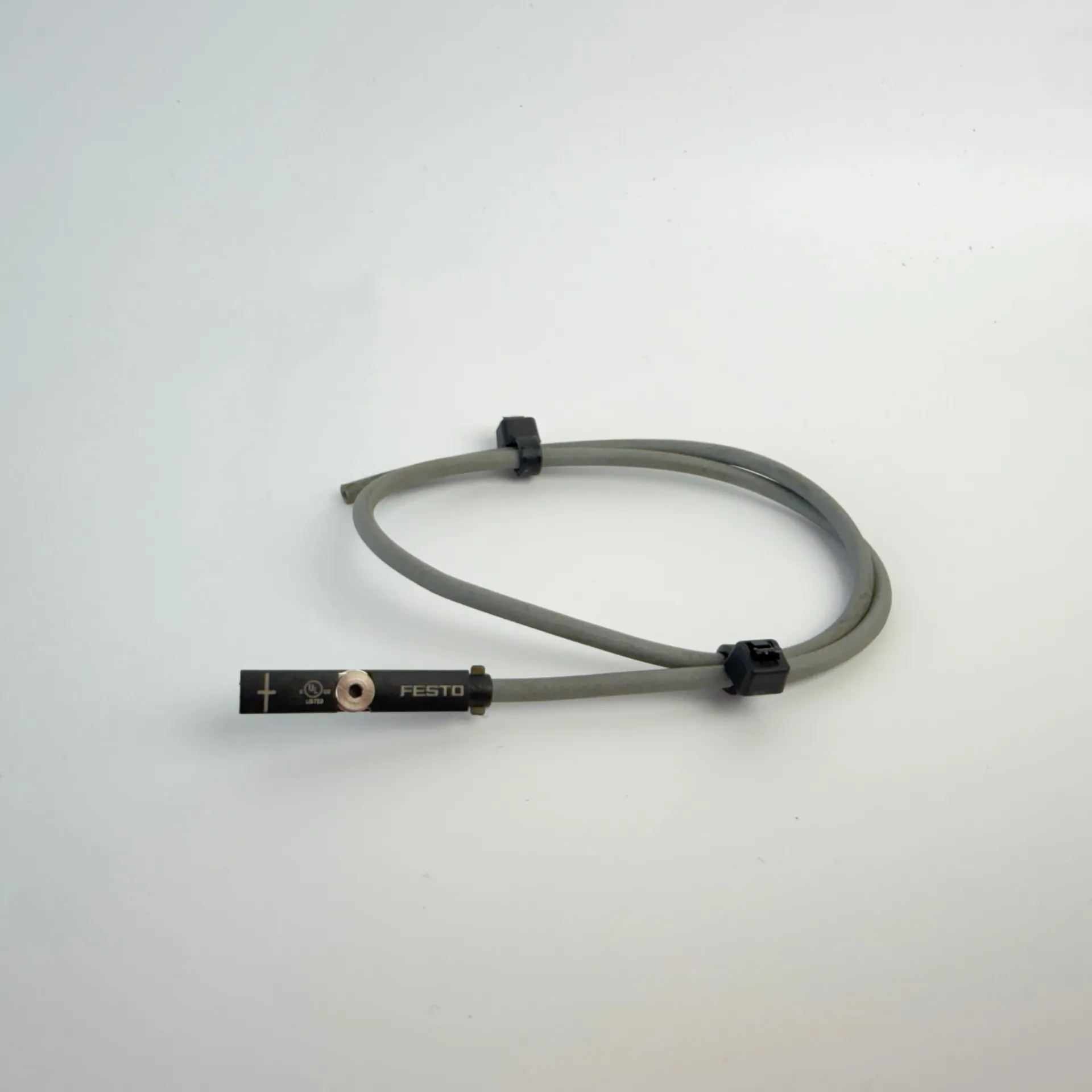

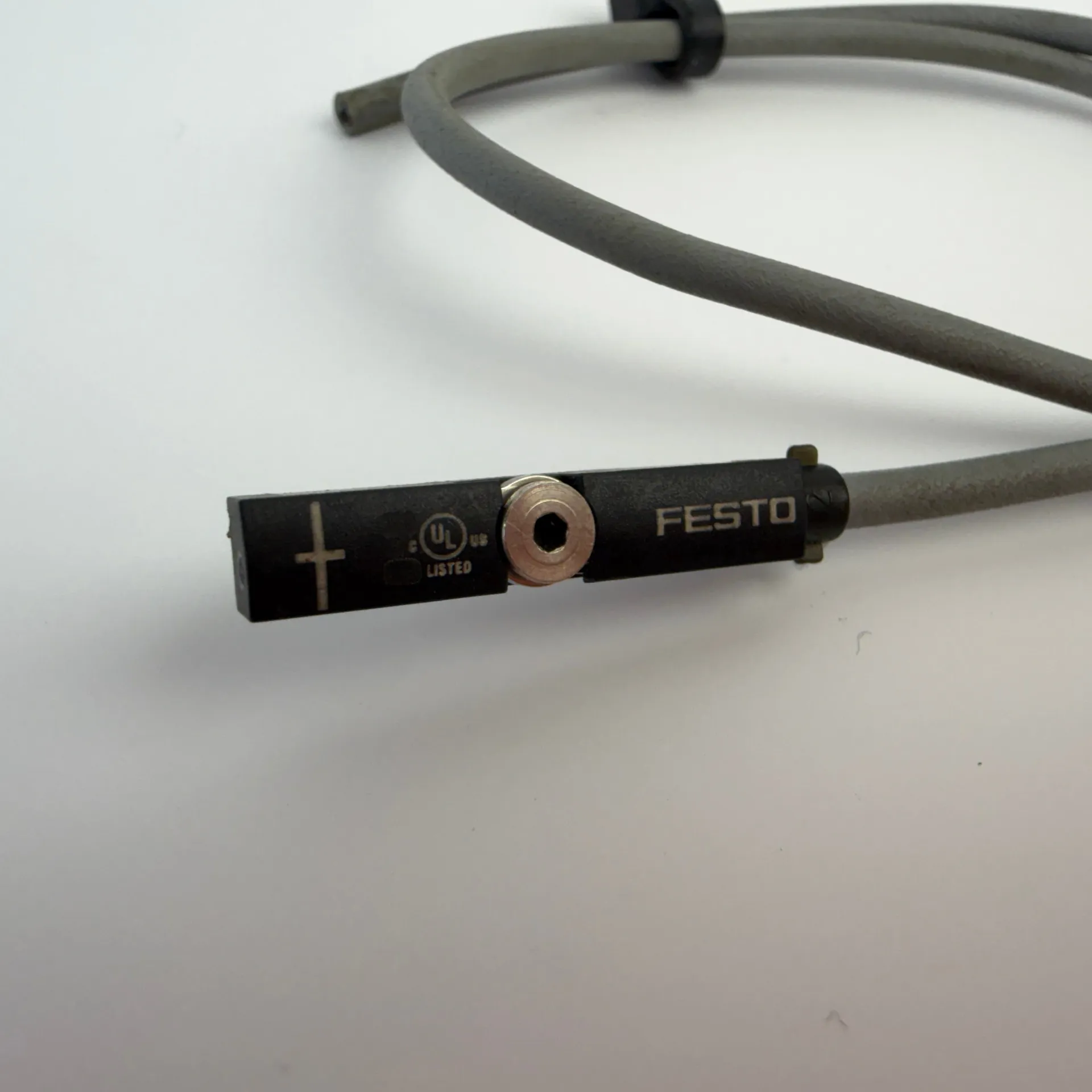

Festo 574336 SMT-8M-A-PS-24V-E-5,0-OE Proximity Sensor PNP NO 35cm Cable

Machine Description

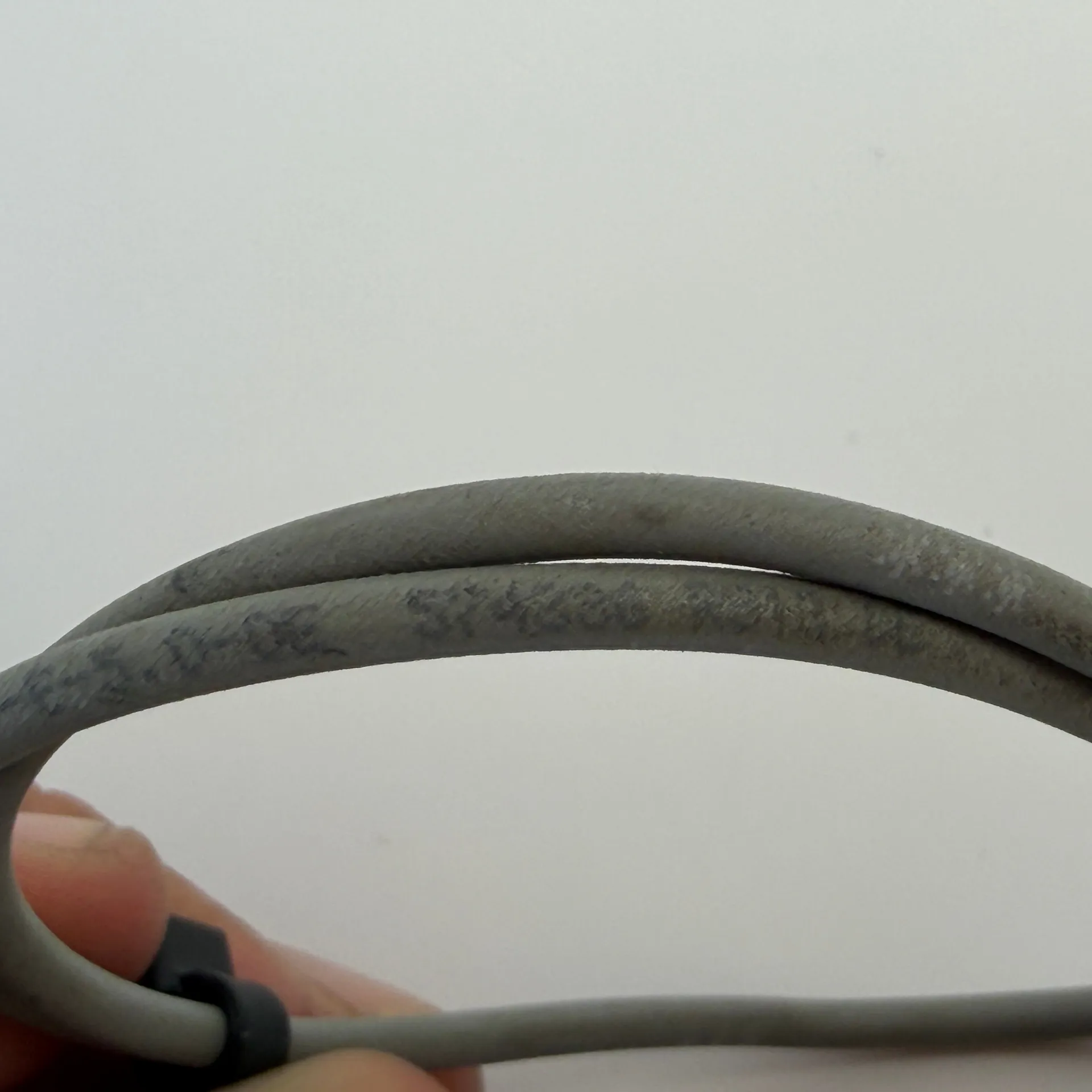

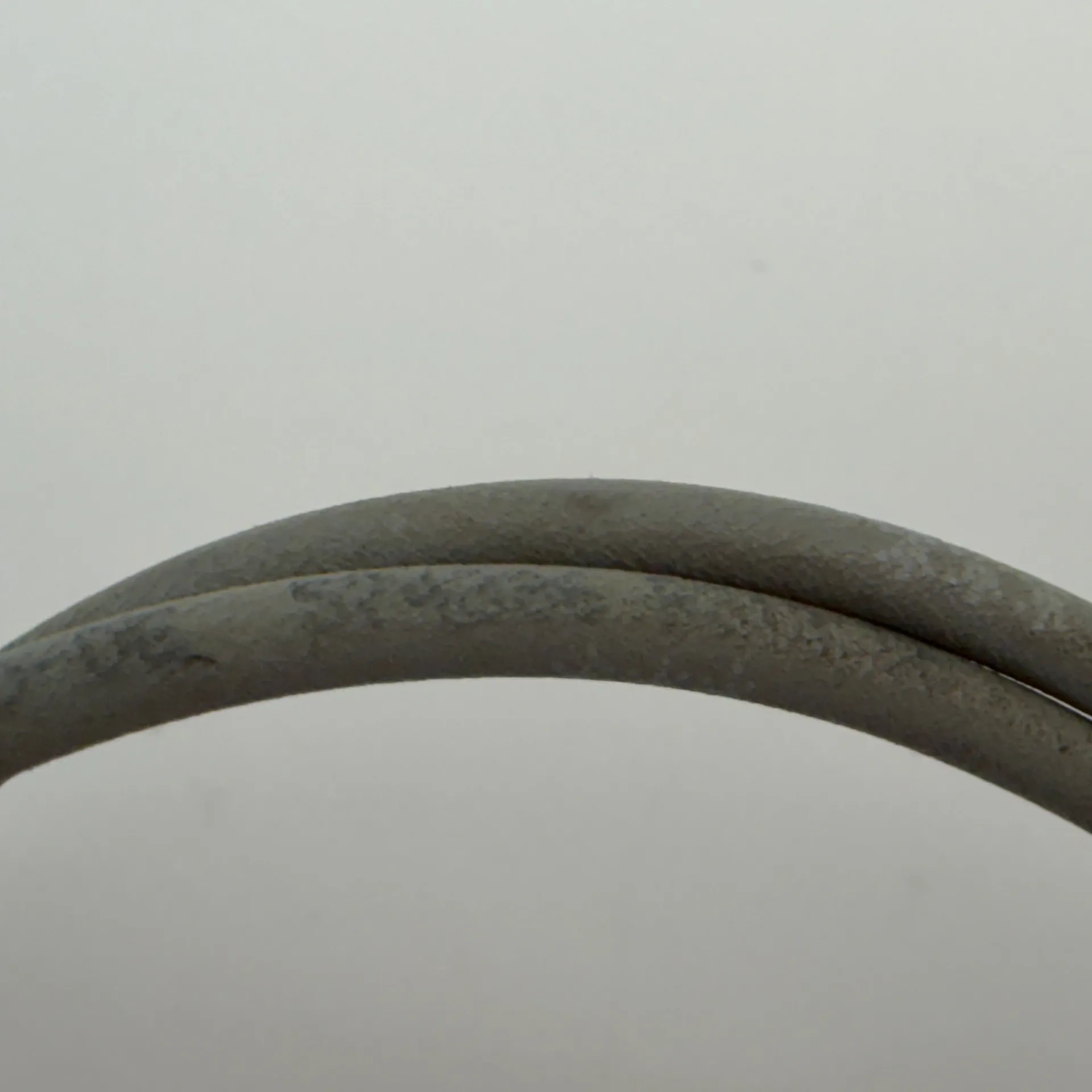

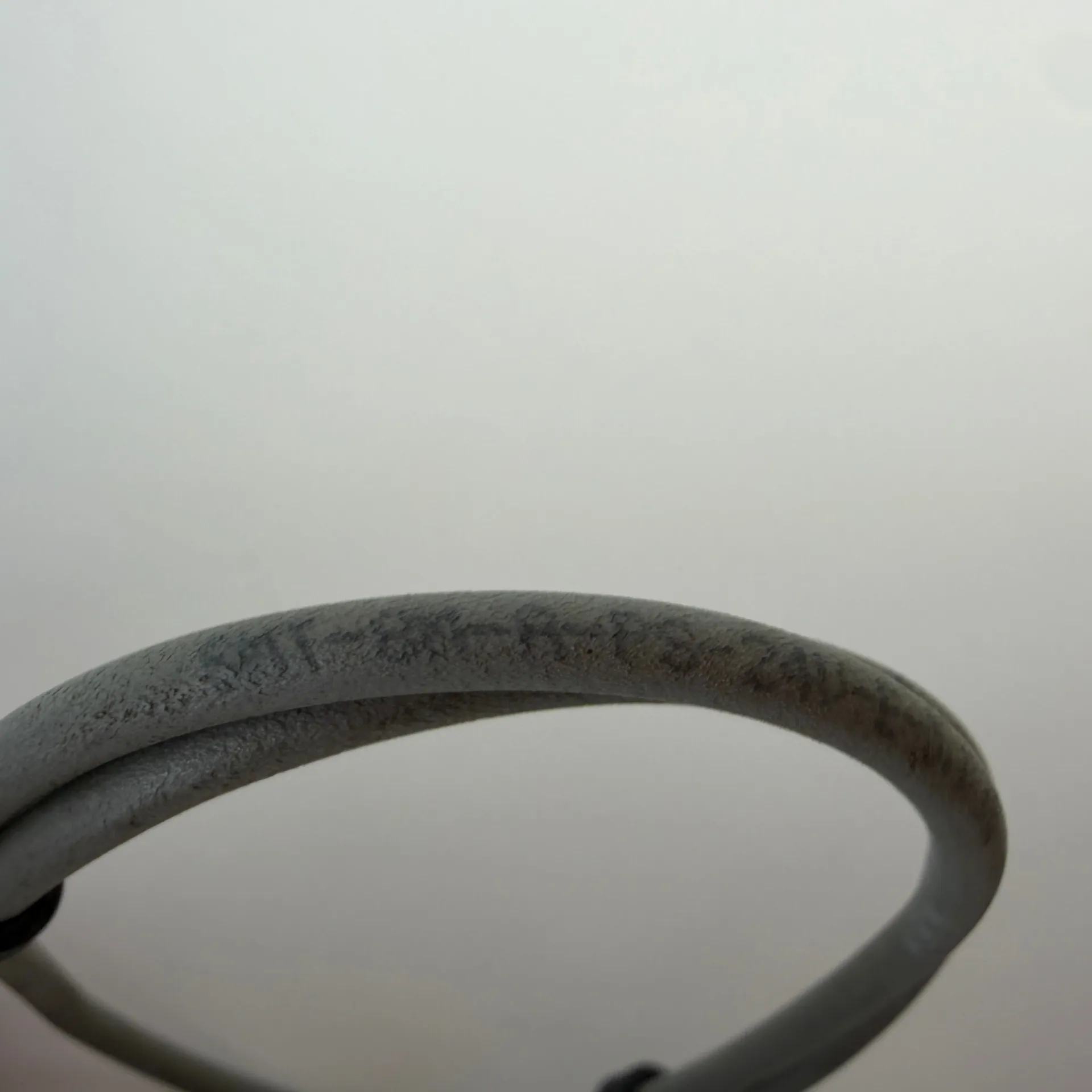

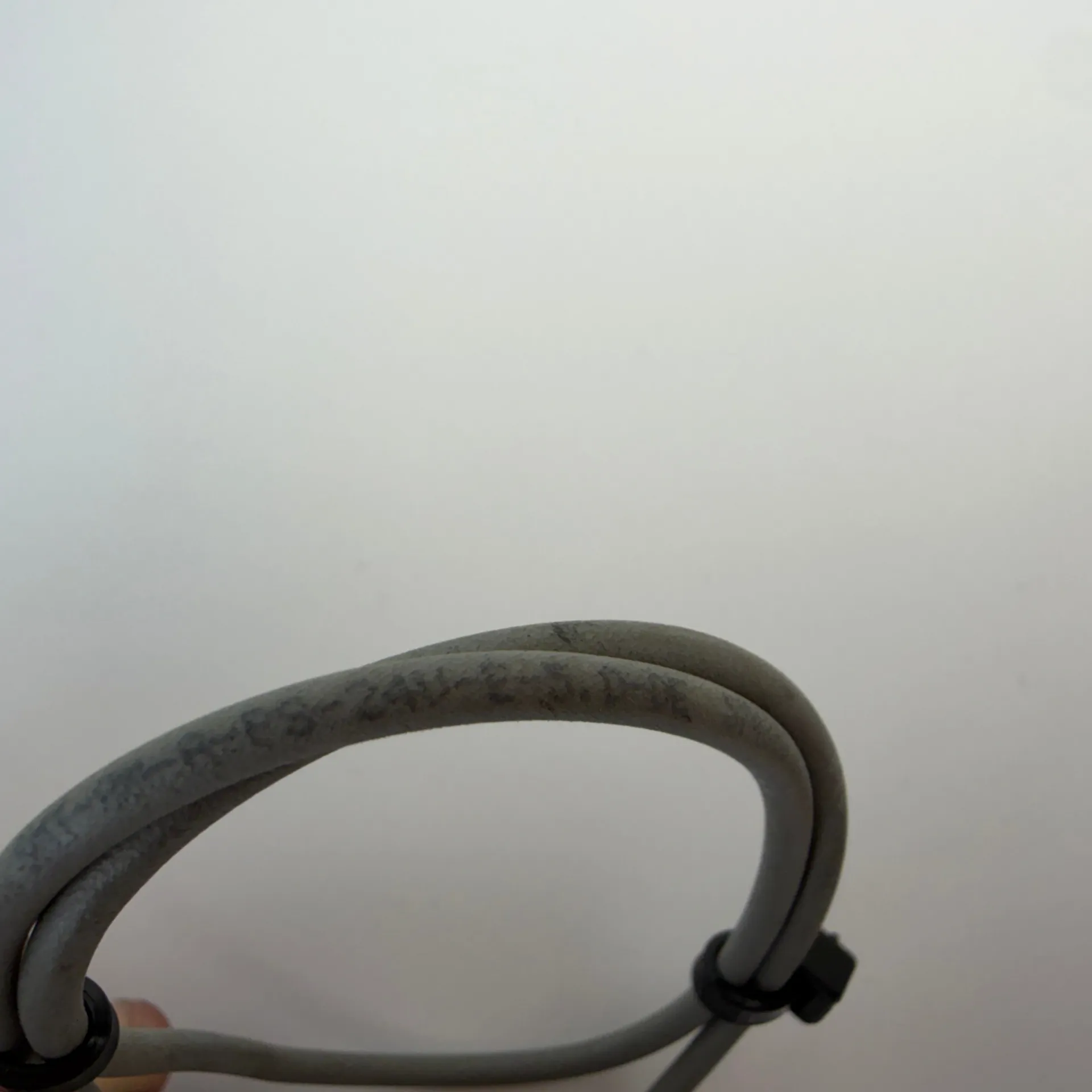

Festo 574336 SMT-8M-A-PS-24V-E-5,0-OE magneto-resistive proximity sensor for position detection on compatible pneumatic cylinders and drives with T-slot mounting. The sensor features a PNP normally-open (NO) switching output, 24 V DC rated operating voltage and a 5–30 V DC operating voltage range. Important: Part number 574336 was originally manufactured with a 5 m cable. The cable on this specific used unit has been shortened and is approximately 35 cm long, with an open end. Please review the actual product photos before purchase. Suitable for industrial automation and pneumatic cylinder position sensing. Technical Specifications Specification Value Manufacturer Festo Part Number / MPN 574336 Model SMT-8M-A-PS-24V-E-5,0-OE Series SMT-8M-A Product Type Proximity / position sensor Design T-slot Measuring Principle Magneto-resistive Measured Variable Position Switching Output PNP Switching Function Normally Open (NO) Rated Operating Voltage 24 V DC Operating Voltage Range 5–30 V DC Maximum Output Current 100 mA Maximum Switching Frequency 130 Hz Repeatability 0.2 mm Switch-On Time 1.3 ms Switch-Off Time 7.3 ms Voltage Drop 1.5 V Electrical Connection 3-wire cable, open end Actual Cable Length Approx. 35 cm – shortened Factory Cable Length for 574336 5 m Short-Circuit Protection Yes Overload Protection Yes Reverse Polarity Protection Yes Ambient Temperature -40°C to +85°C Special Feature Oil-resistant Standard EN 60947-5-2 Certification c UL us Listed Package Contents 1 × Festo 574336 proximity sensor with approx. 35 cm cable, exactly as pictured. Shopify Tags Festo, 574336, SMT-8M-A, SMT-8M-A-PS-24V-E-5.0-OE, proximity sensor, position sensor, cylinder sensor, T-slot sensor, PNP sensor, normally open, 24V DC, pneumatic sensor, industrial automation SEO Keywords Festo 574336, Festo SMT-8M-A, SMT-8M-A-PS-24V-E-5.0-OE, Festo proximity sensor, Festo cylinder sensor, PNP NO sensor, T-slot position sensor Meta Title Festo 574336 SMT-8M-A PNP NO Proximity Sensor 35cm Cable Meta Description Used Festo 574336 SMT-8M-A-PS-24V-E-5,0-OE magneto-resistive T-slot proximity sensor, PNP NO, with shortened approx. 35 cm cable.
