Bruderer BSTA 80 H BBV 320

Machine Description

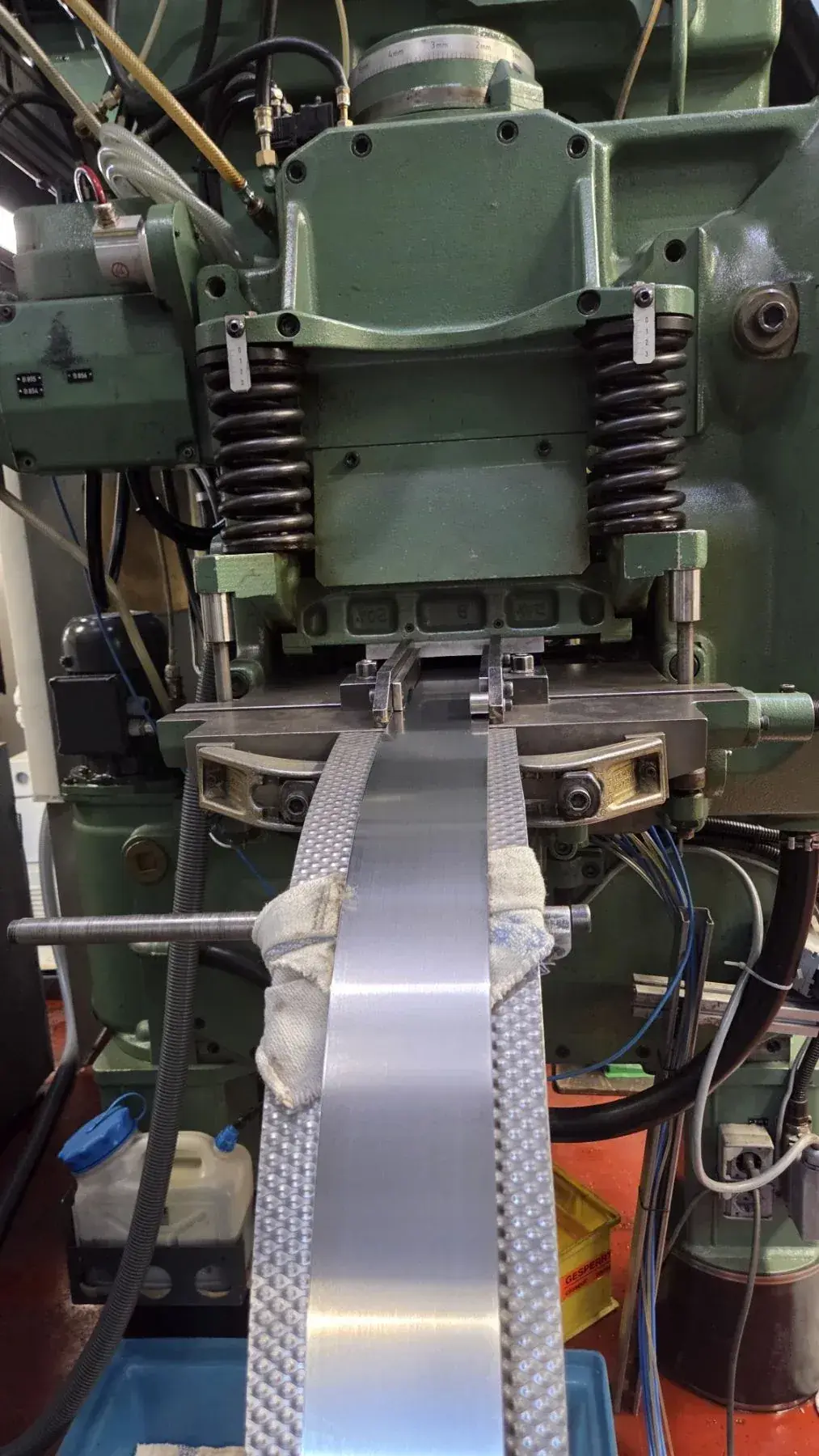

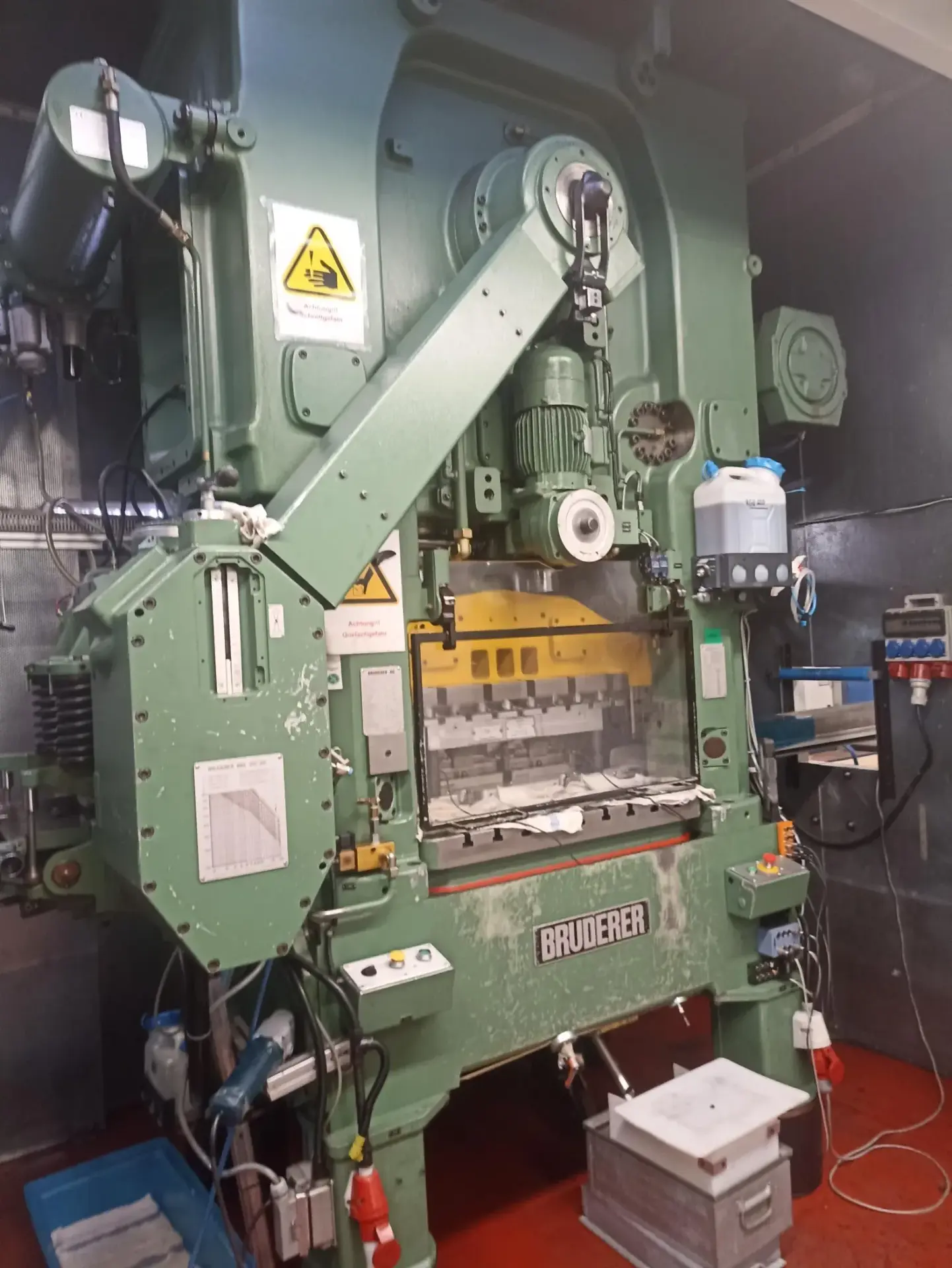

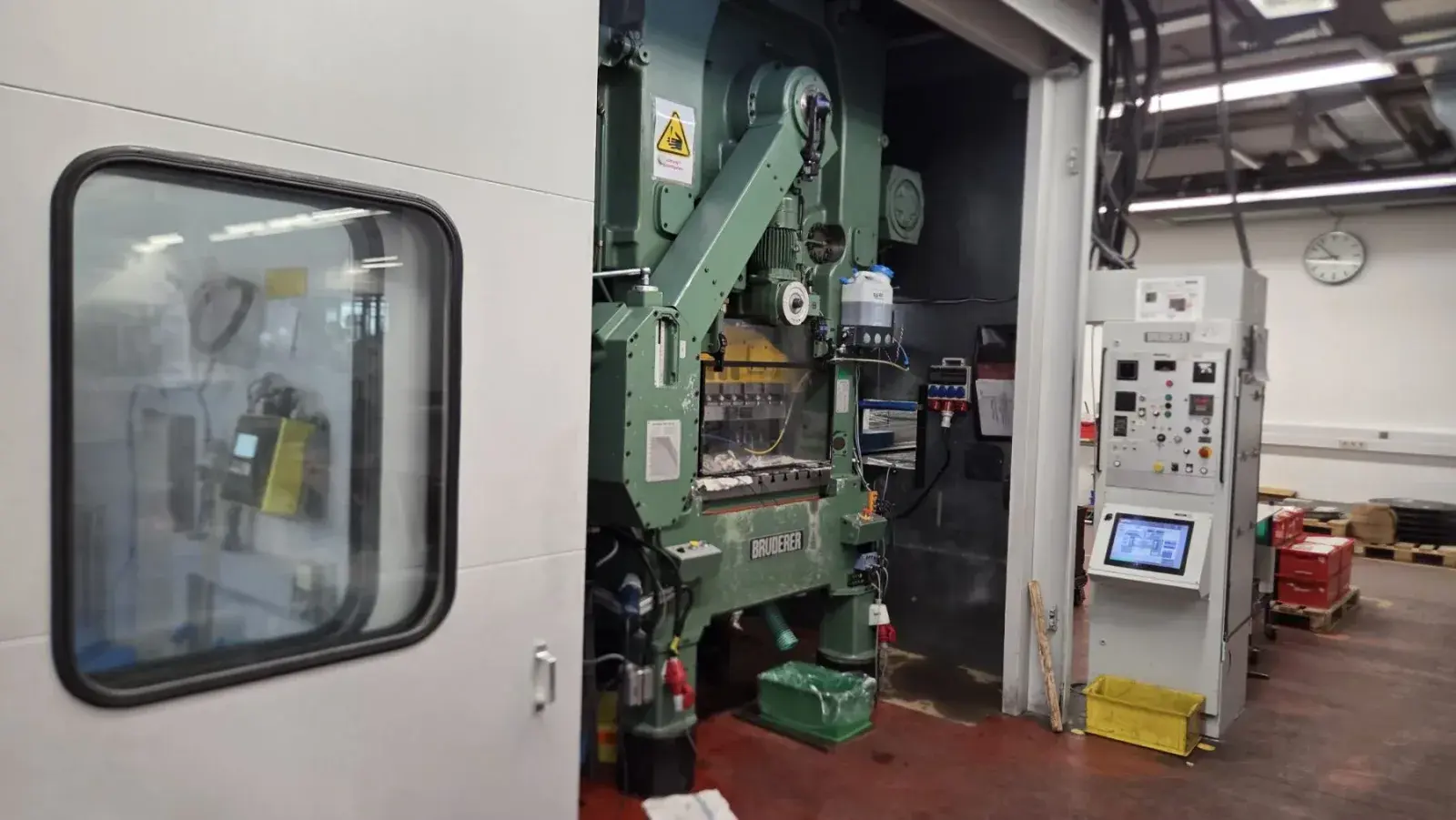

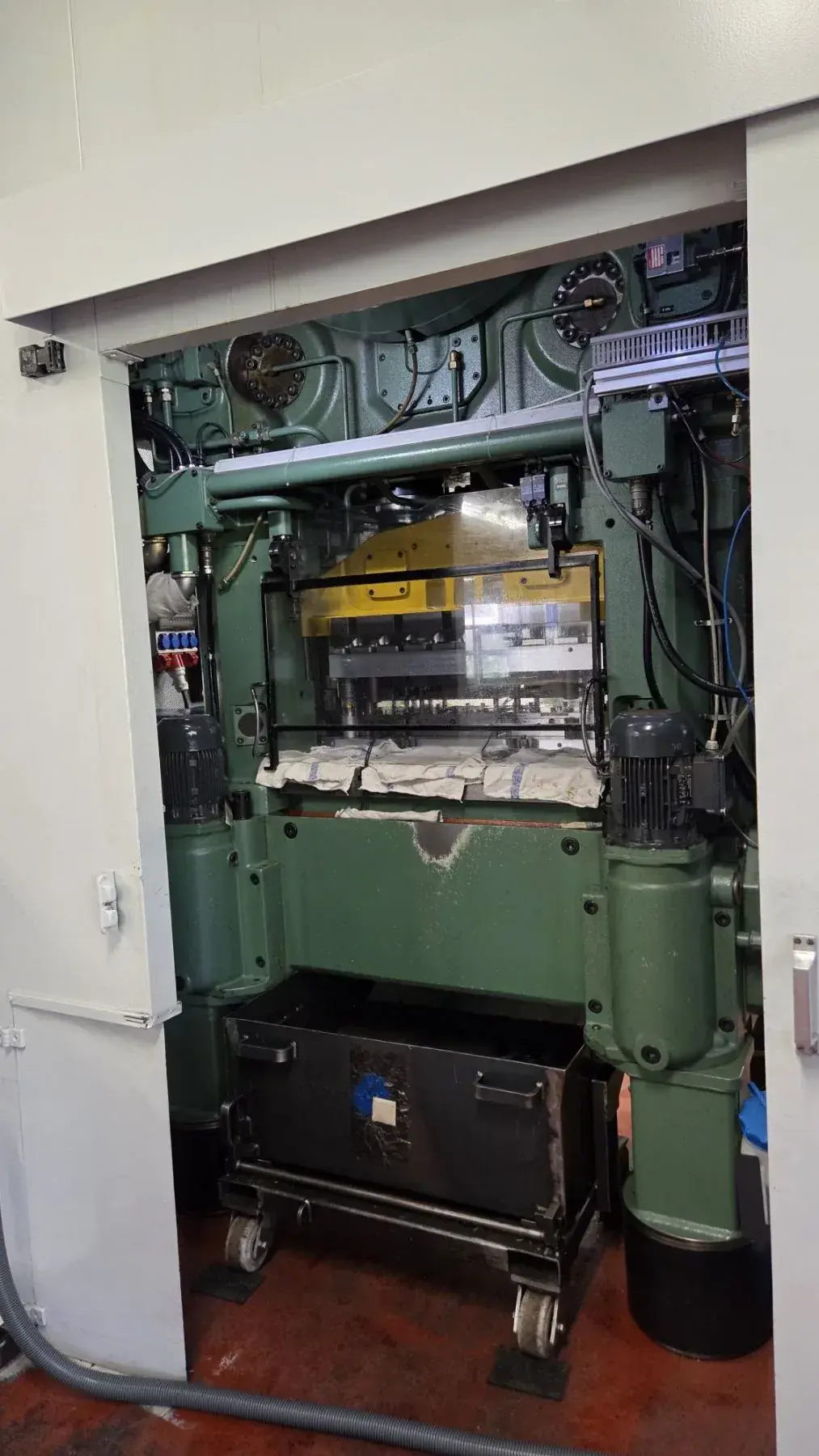

BRUDERER BSTA 80 H Ref. 36926 High Speed Automatic Stamping Press • 1994 • ID: 36926 The Bruderer BSTA 80H is an 80-ton high-speed stamping press built for heavy-duty progressive-die production, fitted with a BBV 320/200 strip feeder and Unidor tool monitoring. In stock in Pforzheim, ready for inspection. Technical Specifications Nominal force: 800 kN (80 tons) Tool monitoring: Unidor Stroke rate: 100–1,000 spm Strip feeder: Bruderer BBV 320/200 Adjustable stroke: 16–63 mm Clamping plate area: 970 mm Main drive: 43 kW Power supply: 380 V / 50 Hz Ram area: 760 x 510 mm Table area: 950 x 910 mm Strip inlet height (adjustable): 80–180 mm Max. strip width: 360 mm Max. material thickness: 3 mm Machine dimensions: 2834 x 1742 x 3460 mm Weight: approx. 15,550 kg Operating hours (main drive): approx. 28,067 h
