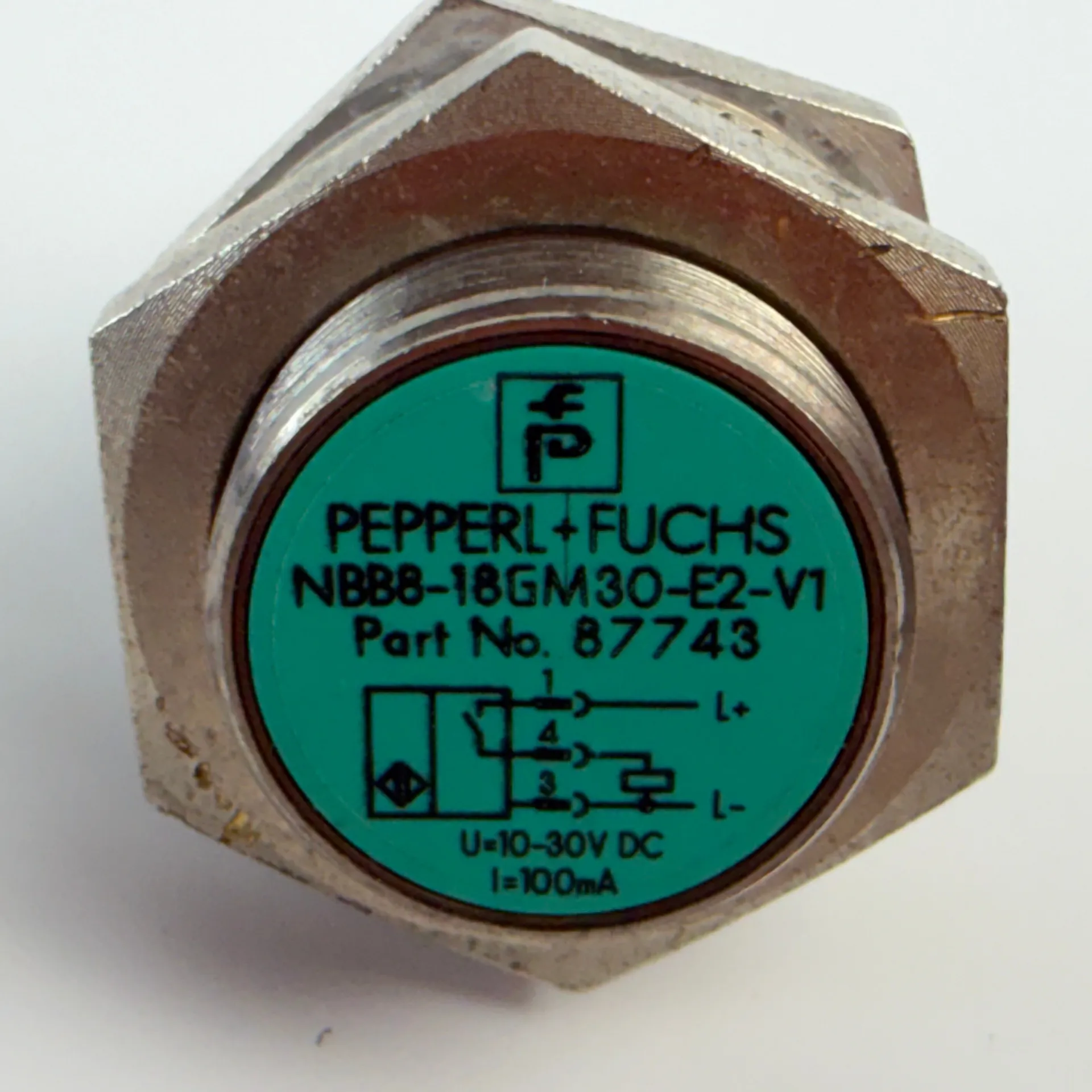

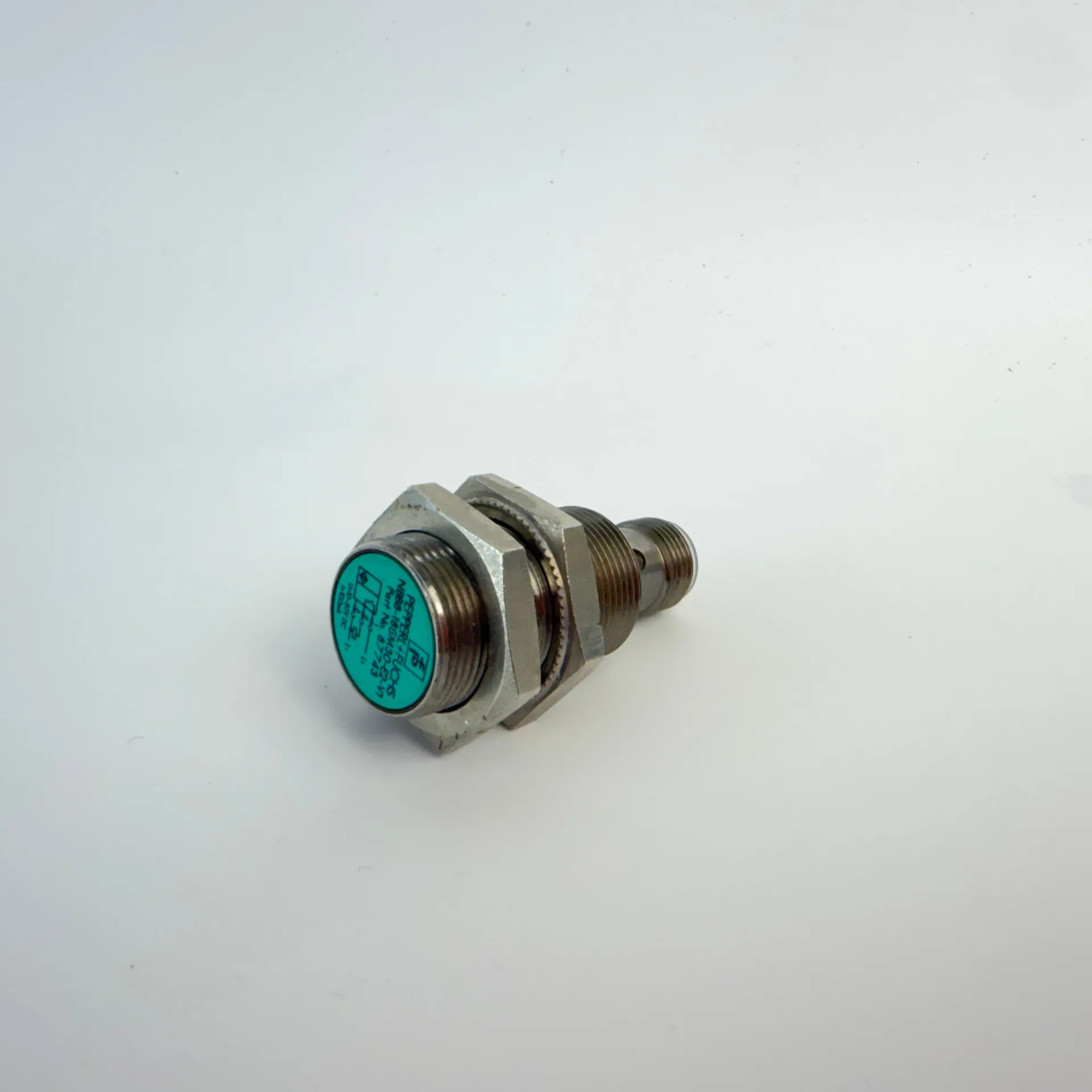

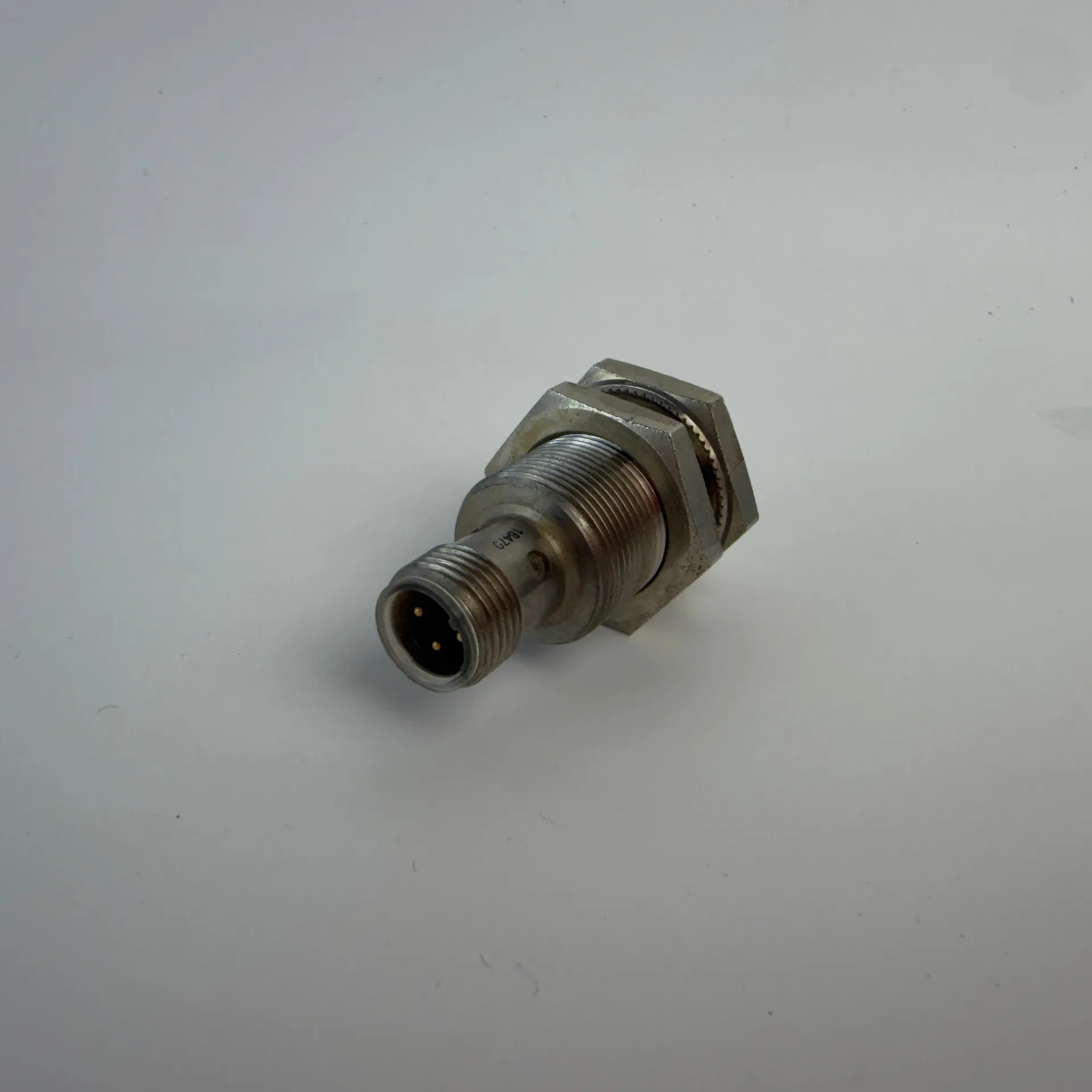

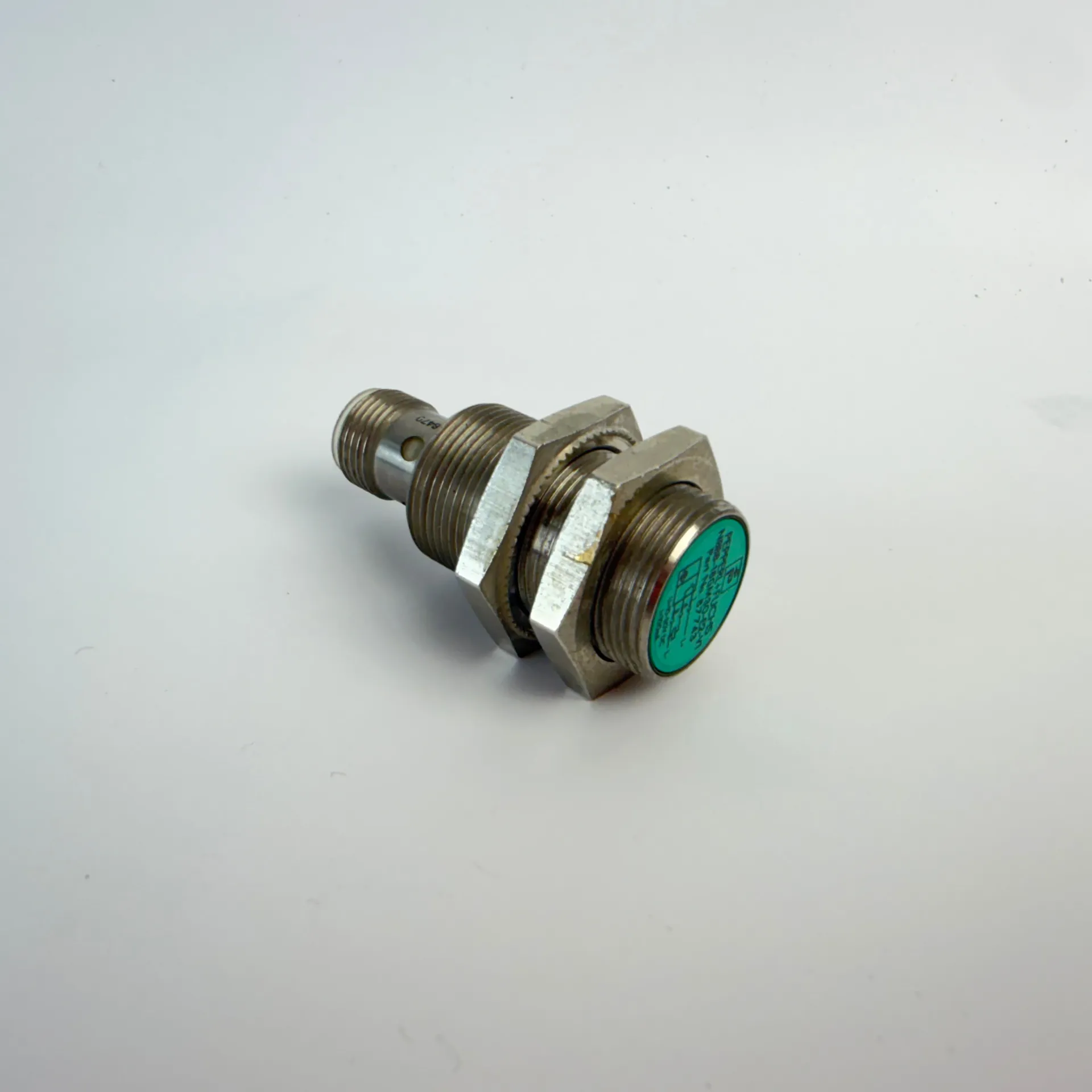

Pepperl+Fuchs NBB8-18GM30-E2-V1 87743 Inductive Proximity Sensor M18 PNP NO 8mm

Machine Description

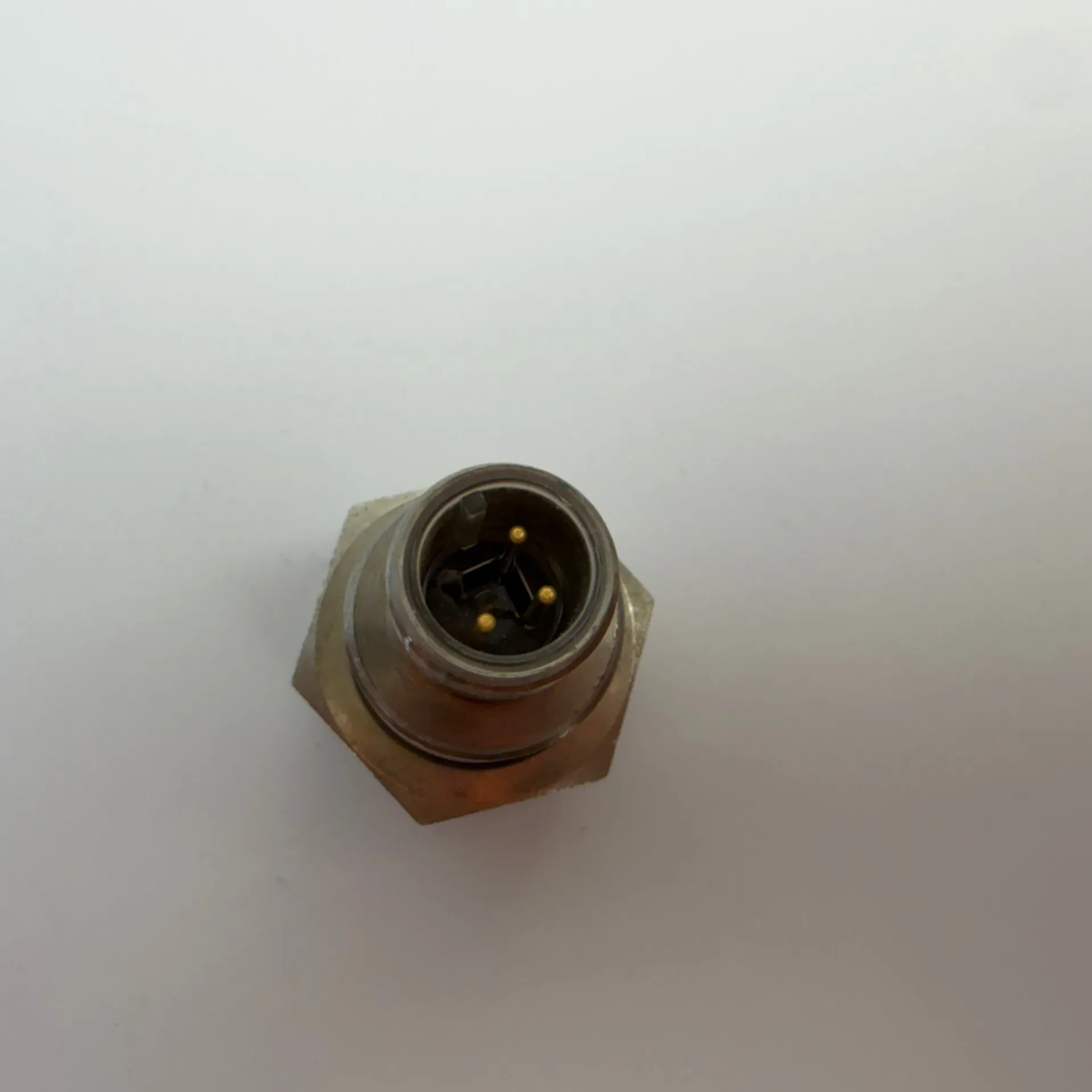

Pepperl+Fuchs NBB8-18GM30-E2-V1 industrial inductive proximity sensor, Part No. 87743, designed for non-contact detection of metallic objects in industrial automation and machinery. The sensor features an M18 × 1 threaded cylindrical housing, 8 mm nominal sensing distance, flush mounting capability and a PNP Normally Open (NO) 3-wire output. Electrical connection is provided through a standard M12 × 1, 4-pin connector. The sensor operates from 10–30 V DC and supports an operating current up to 100 mA. Suitable for industrial automation, position monitoring, machine control and metal object detection. Technical Specifications Specification Value Manufacturer Pepperl+Fuchs Model / MPN NBB8-18GM30-E2-V1 Part No. 87743 Sensor Type Inductive proximity sensor Housing Cylindrical threaded Thread M18 × 1 Rated Sensing Distance 8 mm Assured Operating Distance 0–6.48 mm (-25 to +70°C) Installation Flush Output PNP Switching Function Normally Open (NO) Output Configuration 3-wire Operating Voltage 10–30 V DC Operating Current 0–100 mA Switching Frequency 0–500 Hz Voltage Drop ≤3 V Indicator Yellow LED Connector M12 × 1, 4-pin Housing Material Nickel-plated brass Sensing Face PBT Protection Rating IP67 Ambient Temperature -40°C to +70°C Protection Reverse polarity & short-circuit protection Package Contents 1 × Pepperl+Fuchs NBB8-18GM30-E2-V1 sensor, as pictured. Shopify Tags Pepperl+Fuchs, NBB8-18GM30-E2-V1, 87743, inductive sensor, proximity sensor, M18 sensor, PNP sensor, NO sensor, 8mm sensor, M12 sensor, industrial automation SEO Keywords Pepperl Fuchs NBB8-18GM30-E2-V1, 87743 proximity sensor, Pepperl Fuchs inductive sensor, M18 PNP proximity sensor, 8mm inductive sensor Meta Title Pepperl+Fuchs NBB8-18GM30-E2-V1 87743 Proximity Sensor Meta Description Used Pepperl+Fuchs NBB8-18GM30-E2-V1 87743 inductive proximity sensor with 8 mm sensing distance, M18 housing, PNP NO output and M12 connector.
