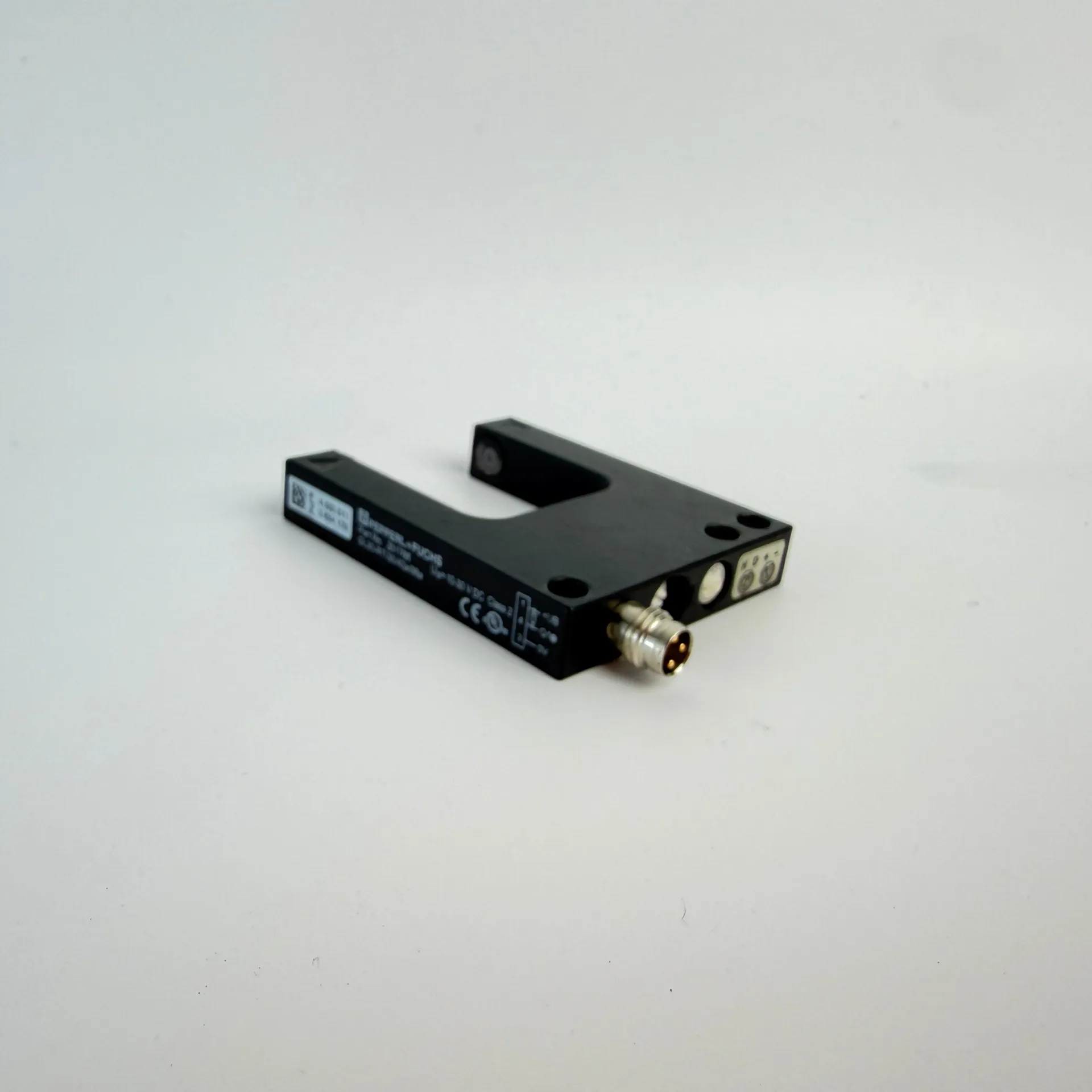

Pepperl+Fuchs GL30-RT/30/40a/98a 201766 Photoelectric Slot Sensor 30mm NPN

Machine Description

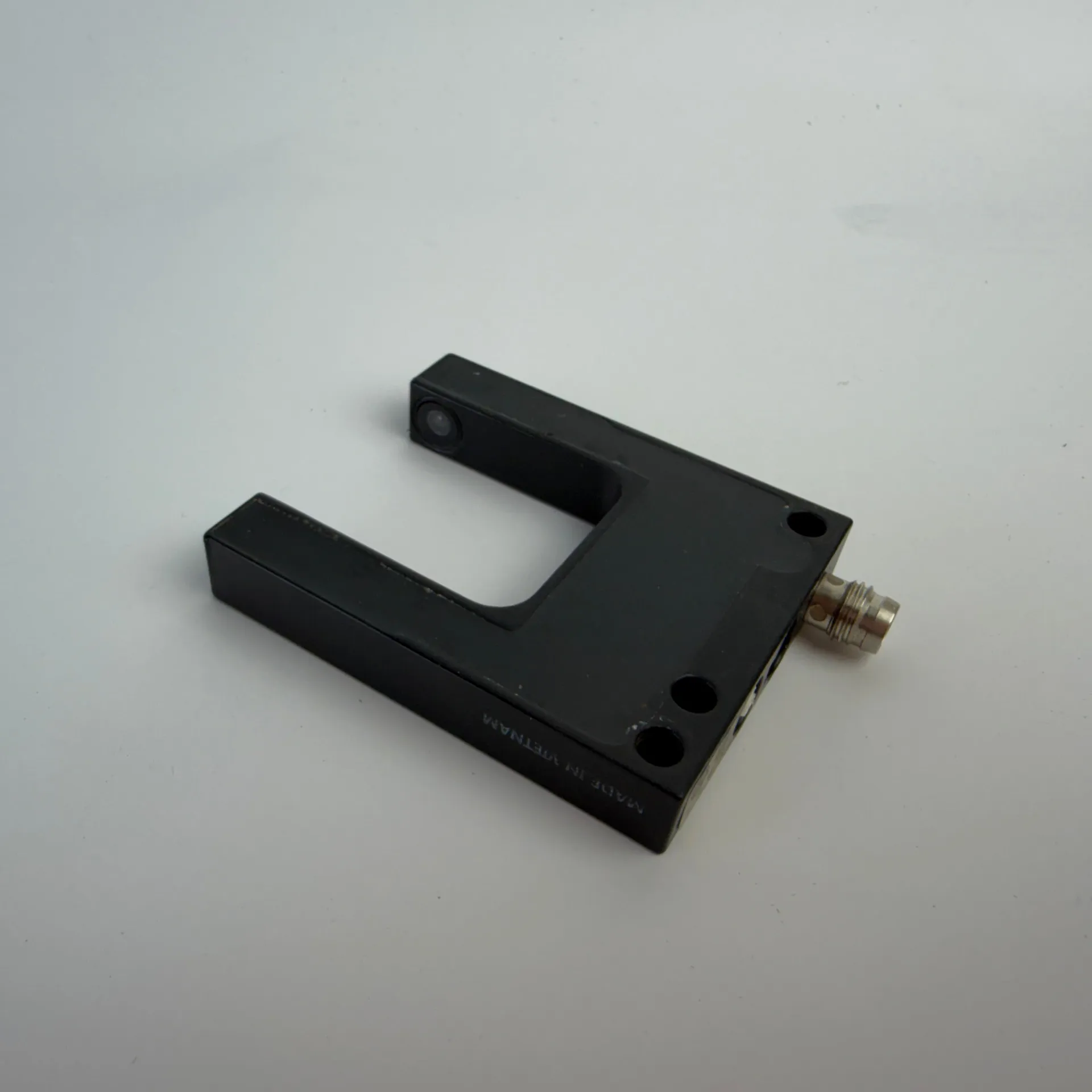

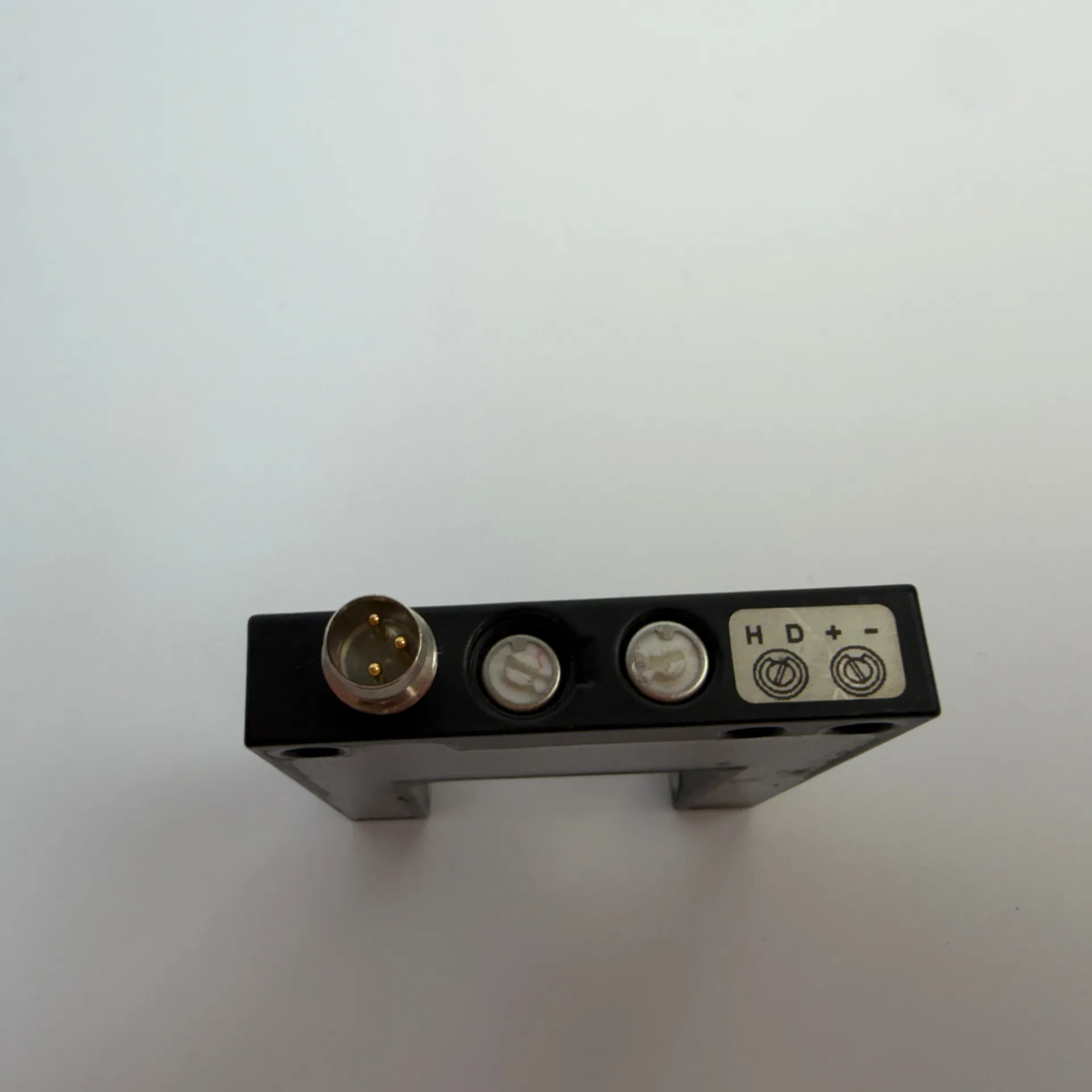

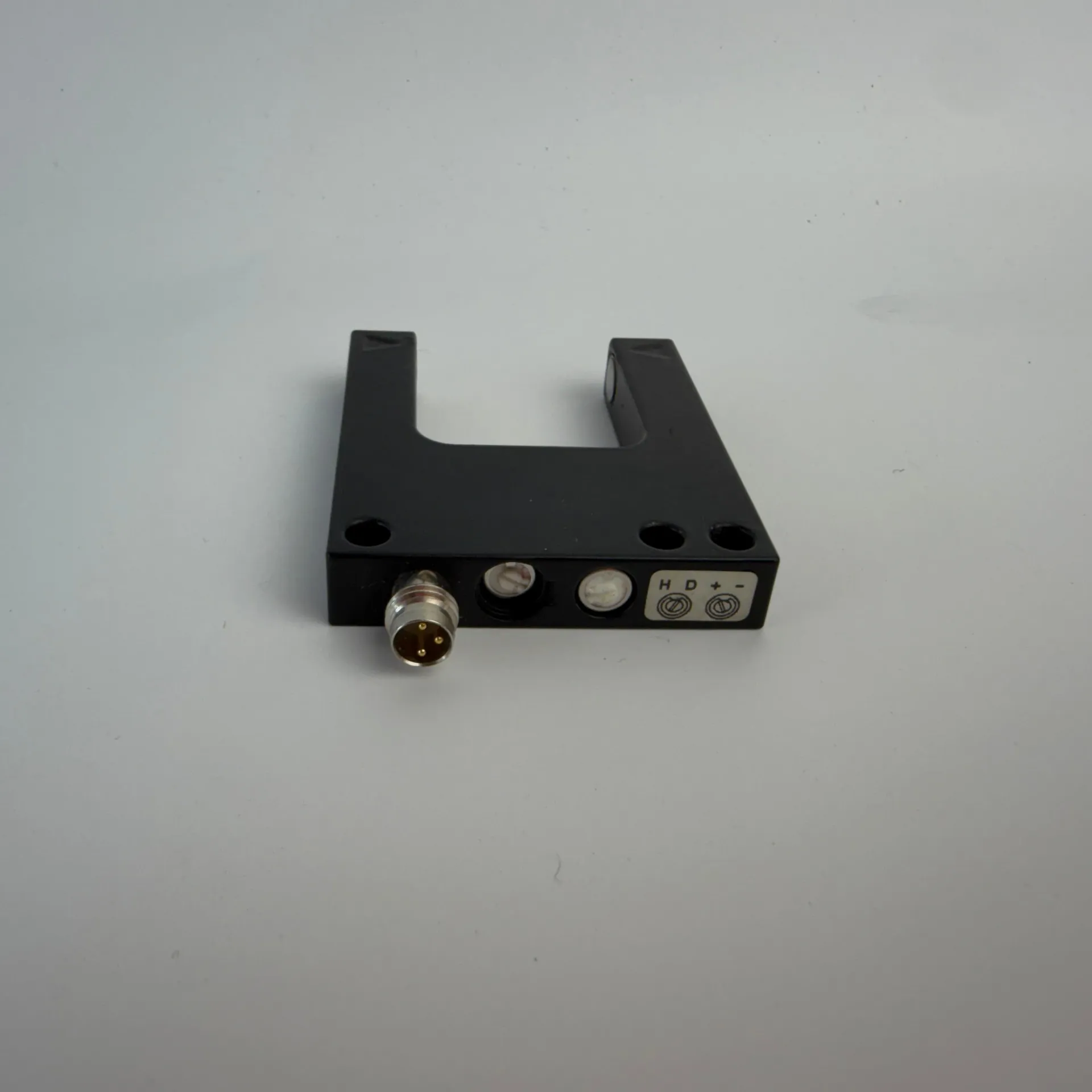

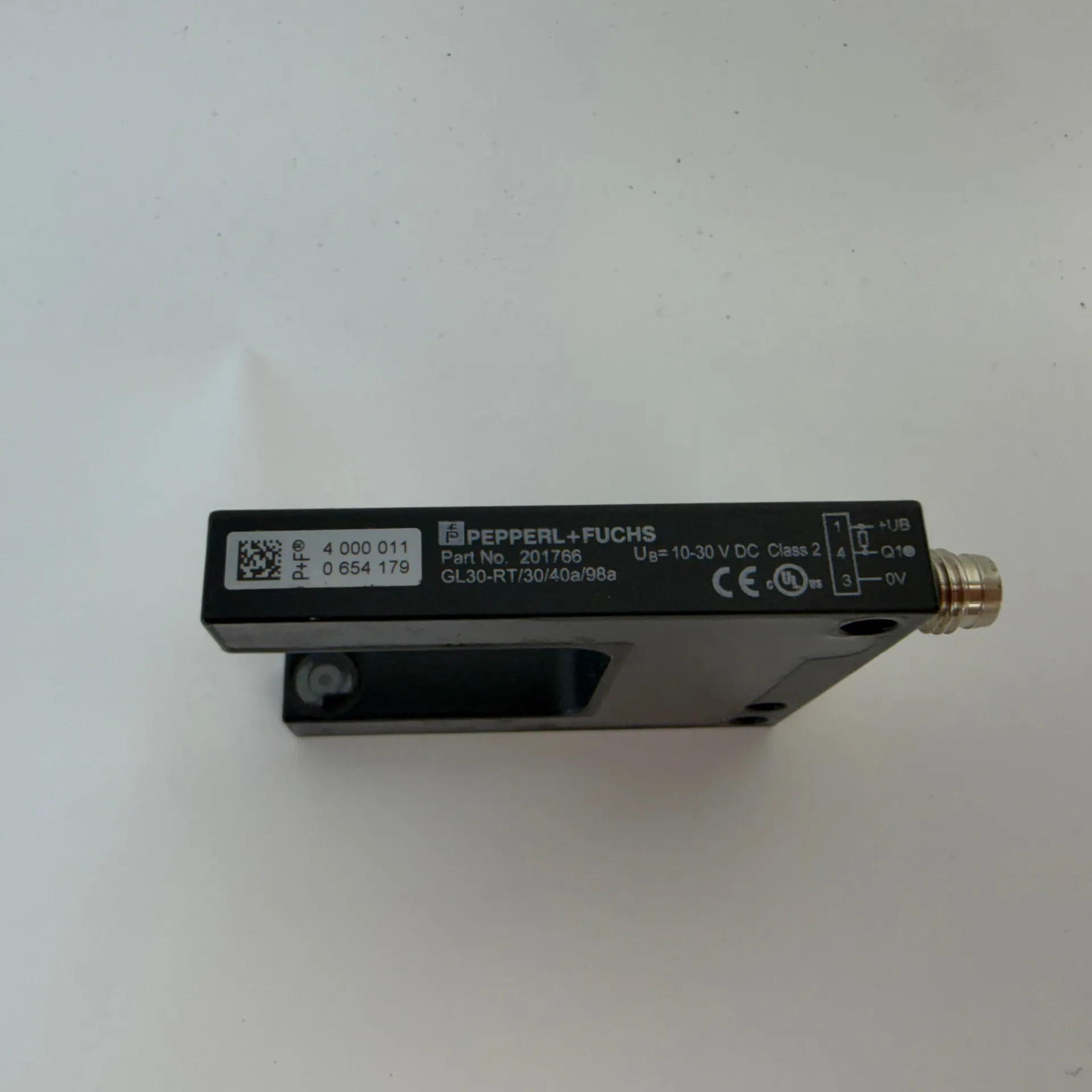

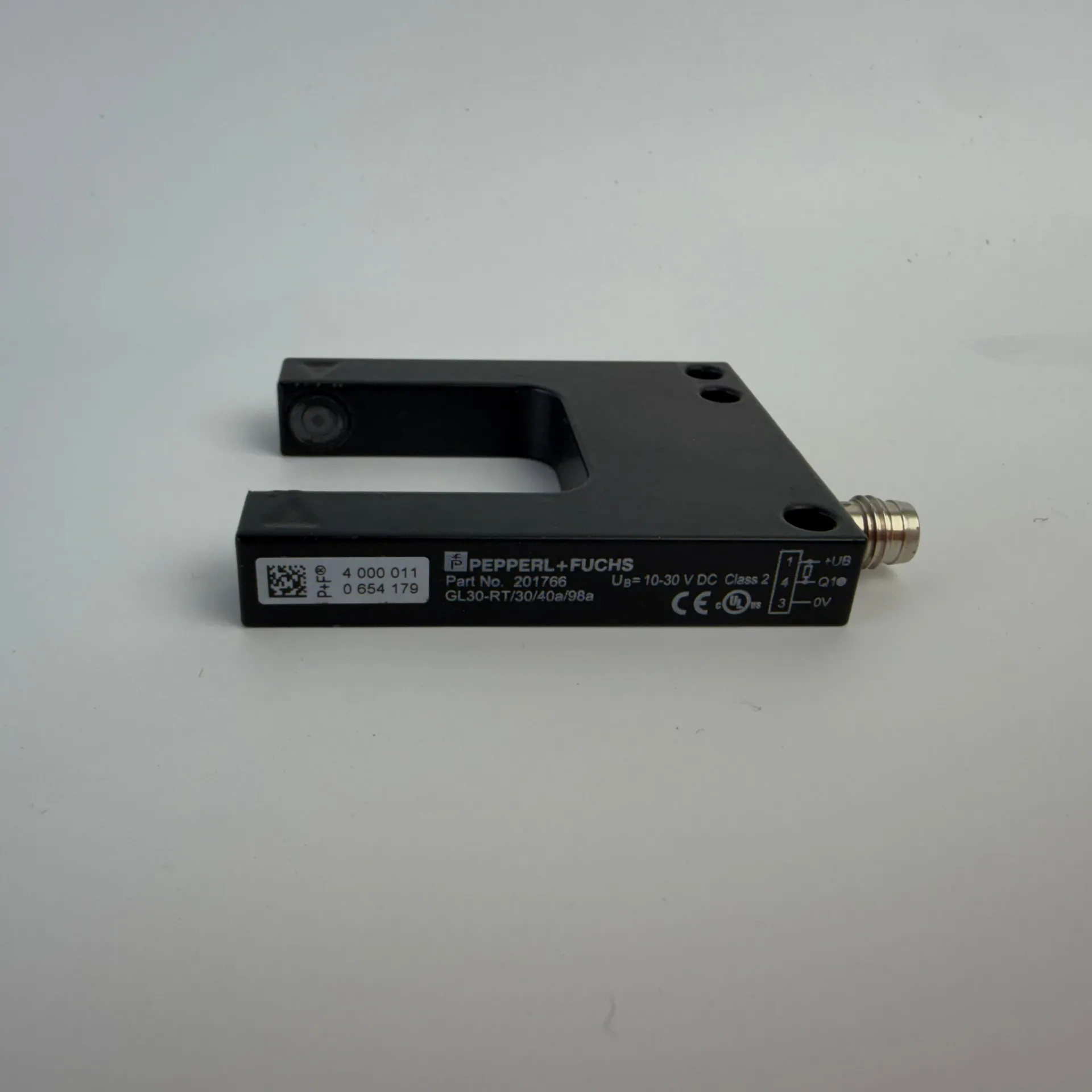

Pepperl+Fuchs GL30-RT/30/40a/98a photoelectric slot sensor, Part No. 201766, designed for reliable detection of small objects in industrial automation and machine applications. The sensor features a 30 mm slot width, 35 mm slot depth and modulated visible red LED light. It operates from 10–30 V DC and provides a single NPN open-collector output with short-circuit protection. With a switching frequency of 3 kHz, response time of up to 160 µs, and repeat accuracy of 0.05 mm, the GL30 series is suitable for fast detection and positioning applications. Sensitivity adjustment and light/dark switching are integrated directly into the sensor. Connection is via a 3-pin M8 connector. Condition: Used, fully functional. Counteroffers welcome. Technical Specifications Specification Value Manufacturer Pepperl+Fuchs Model GL30-RT/30/40a/98a Part Number 201766 Sensor Type Photoelectric slot / fork sensor Light Source LED Light Type Modulated visible red light Slot Width 30 mm Slot Depth 35 mm Target Size 0.3 mm Operating Voltage 10–30 V DC No-load Supply Current ≤15 mA Output 1 × NPN open collector Output Protection Short-circuit protected Switching Voltage Max. 30 V DC Switching Current Max. 100 mA Switching Mode Light/dark selectable Switching Frequency 3 kHz Response Time ≤160 µs Repeat Accuracy 0.05 mm Ambient Light Limit 100,000 Lux Connection M8, 3-pin Protection Rating IP67 Operating Temperature -20°C to +60°C Storage Temperature -20°C to +75°C Housing Powder-coated die-cast zinc Optical Face Glass Dimensions 60 × 10 × 50 mm Weight Approx. 60 g Country Marking Made in Vietnam Application Suitable for industrial automation applications requiring fast, precise detection of objects passing through a 30 mm sensor slot, including machine automation, positioning, counting and presence detection. Package Contents 1× Pepperl+Fuchs GL30-RT/30/40a/98a sensor, exactly as pictured. Shopify Tags Pepperl+Fuchs, Pepperl Fuchs, 201766, GL30-RT/30/40a/98a, GL30, Photoelectric Sensor, Slot Sensor, Fork Sensor, NPN Sensor, 30mm Slot, M8 Sensor, 10-30VDC, Industrial Sensor, Automation Sensor SEO Keywords Pepperl Fuchs 201766, GL30-RT/30/40a/98a, Pepperl Fuchs slot sensor, 30mm fork sensor, NPN photoelectric sensor, GL30 sensor, industrial photoelectric sensor Meta Title Pepperl+Fuchs 201766 GL30-RT/30/40a/98a Slot Sensor Meta Description Pepperl+Fuchs GL30-RT/30/40a/98a Part No. 201766 photoelectric slot sensor with 30 mm slot, NPN output, 10–30V DC supply and M8 connection.
