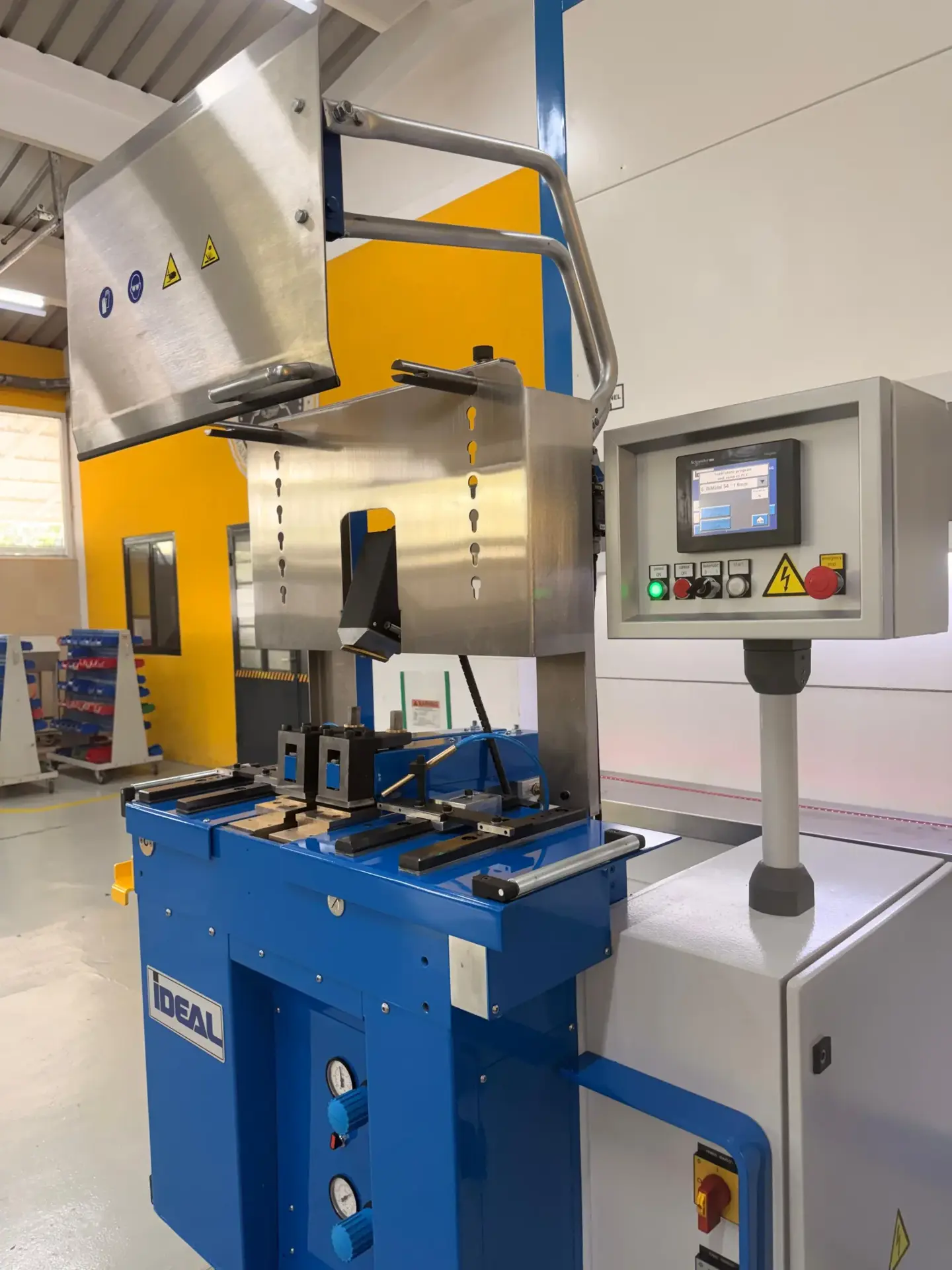

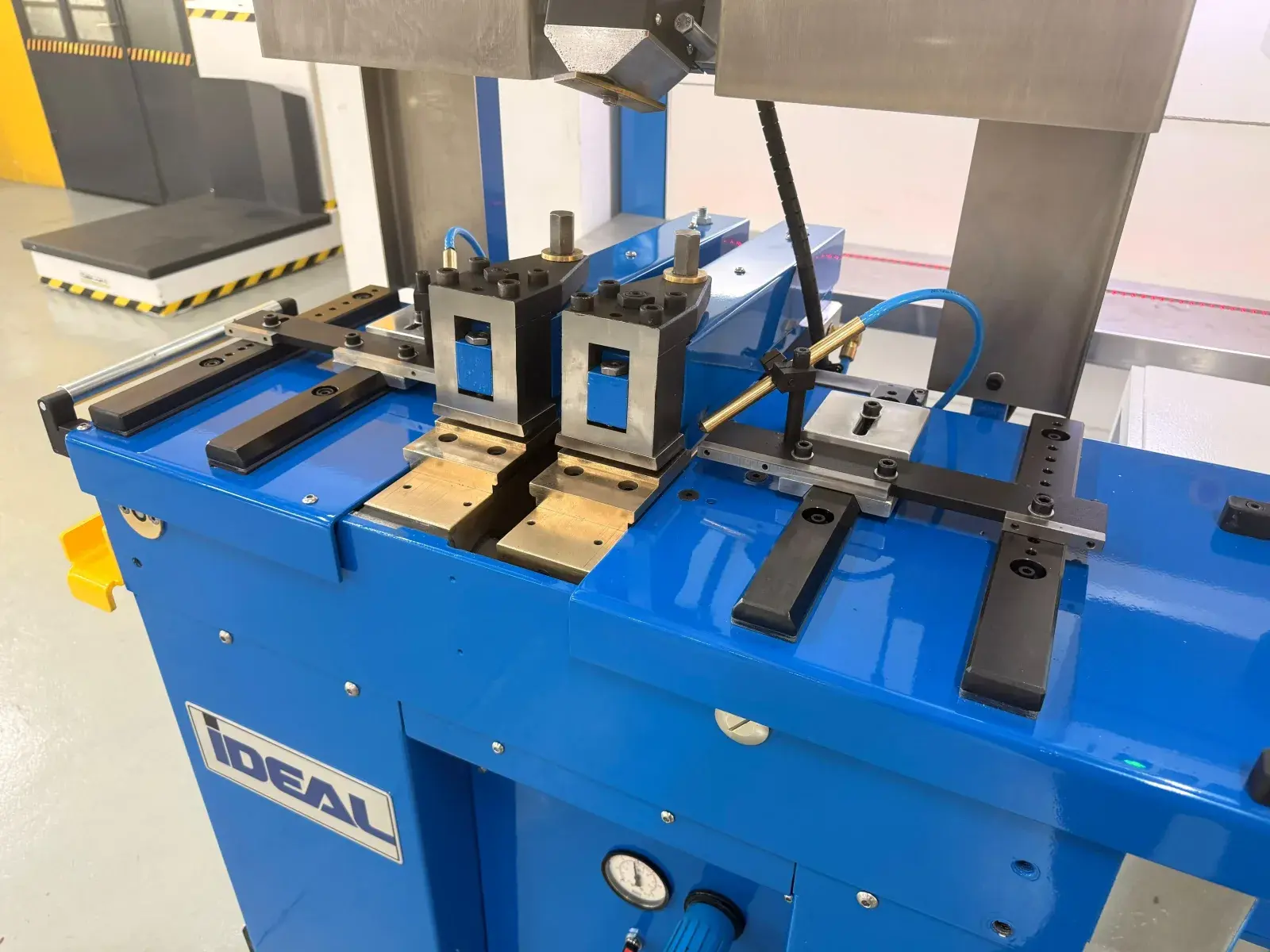

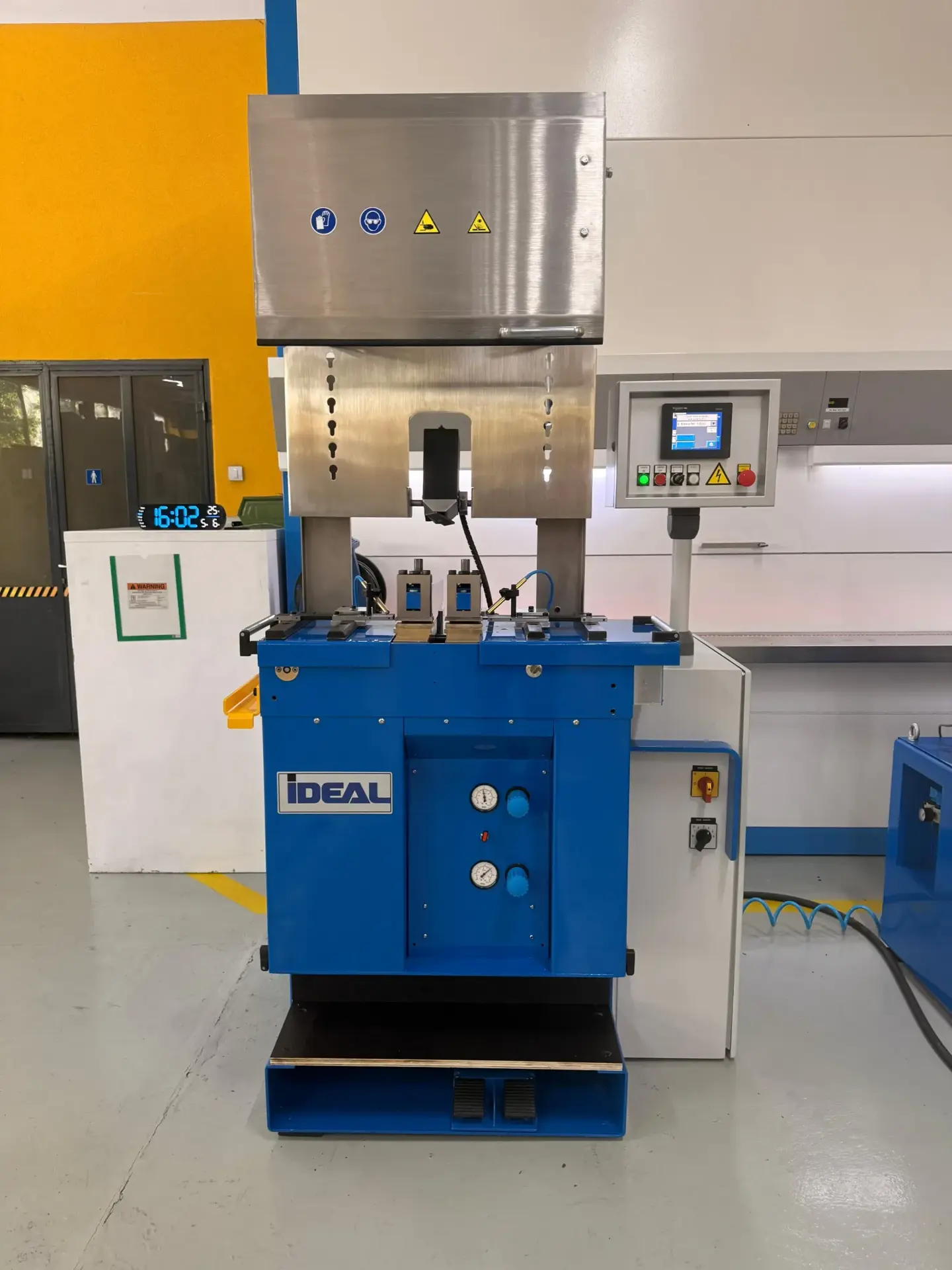

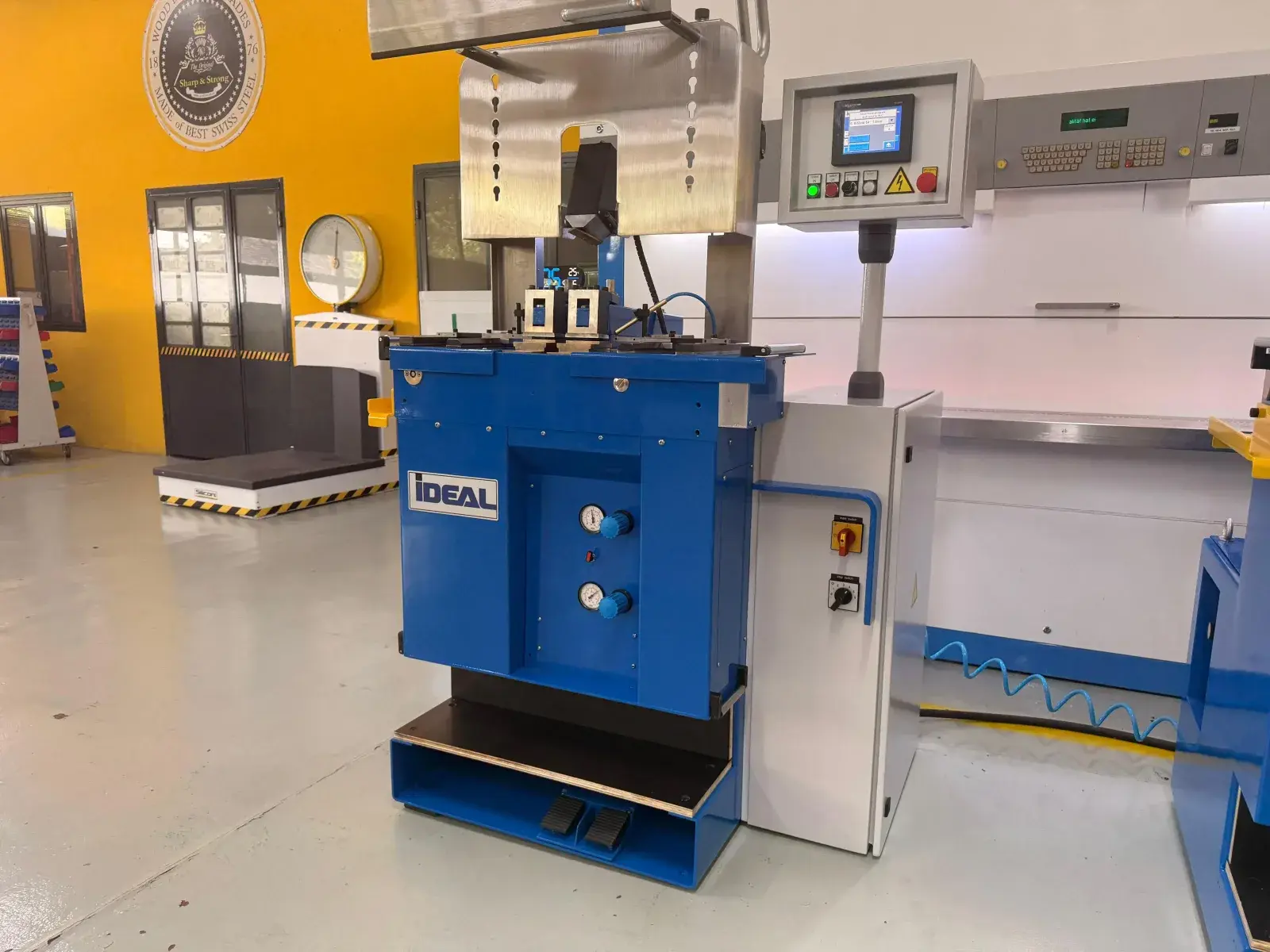

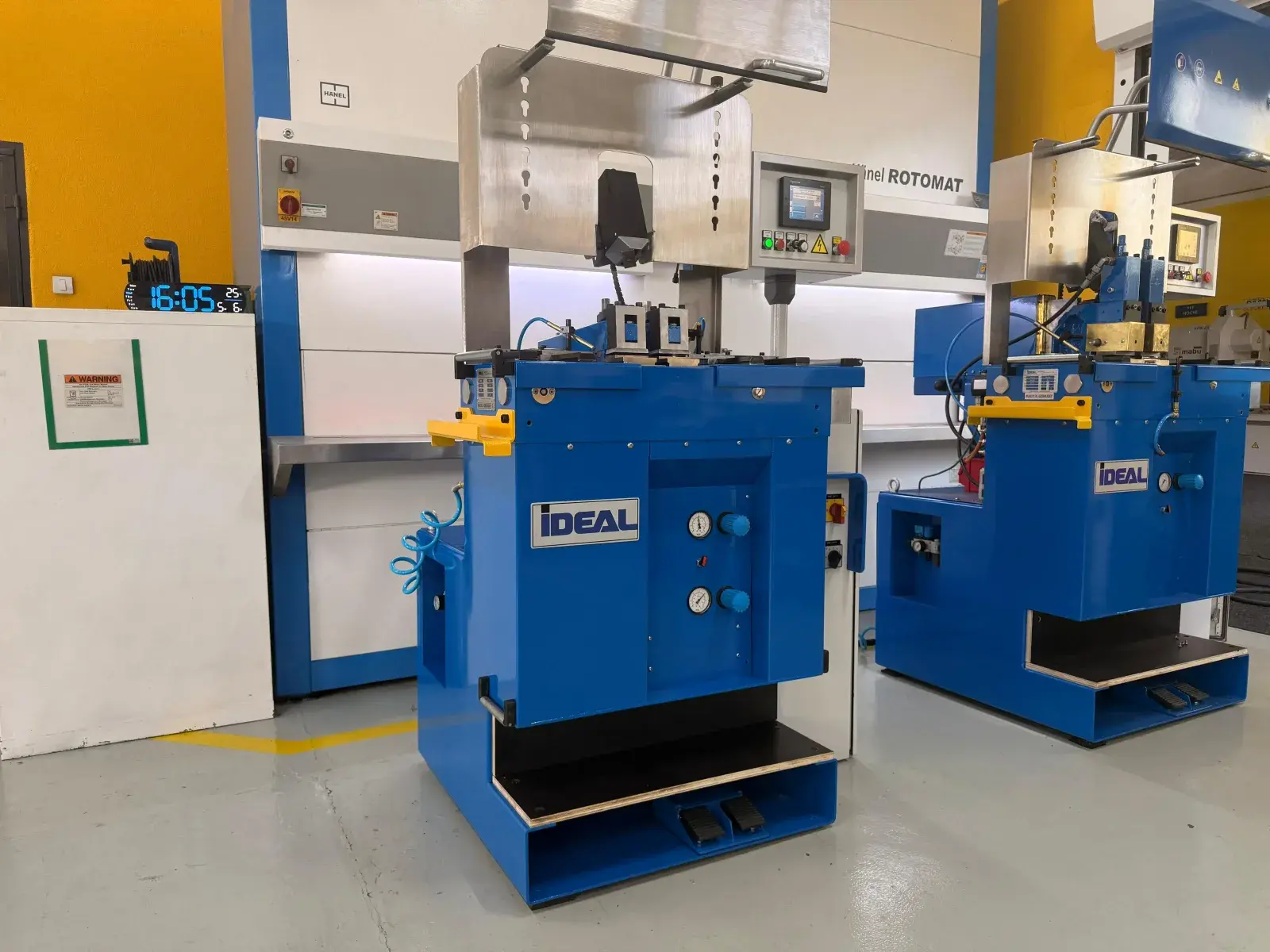

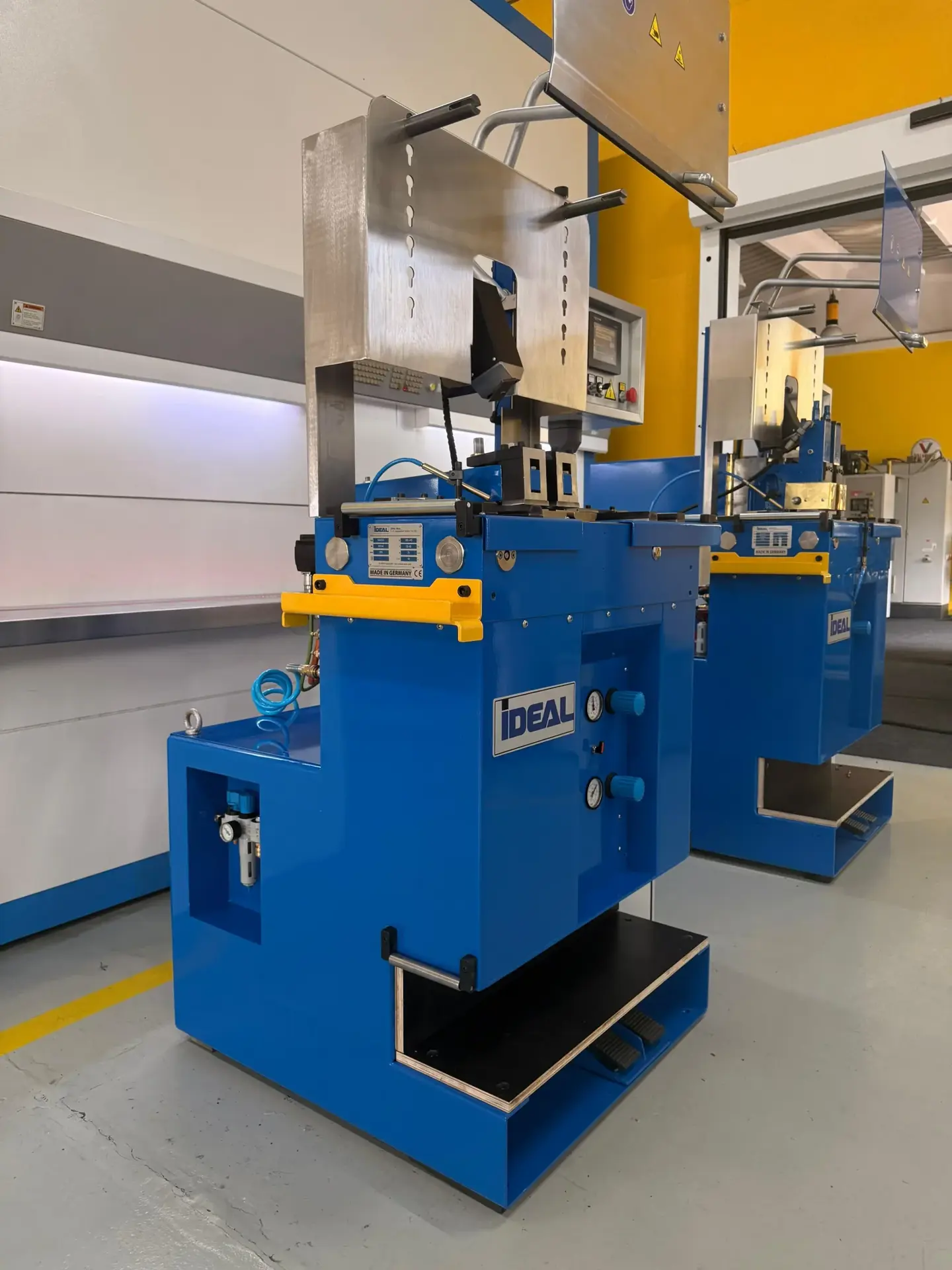

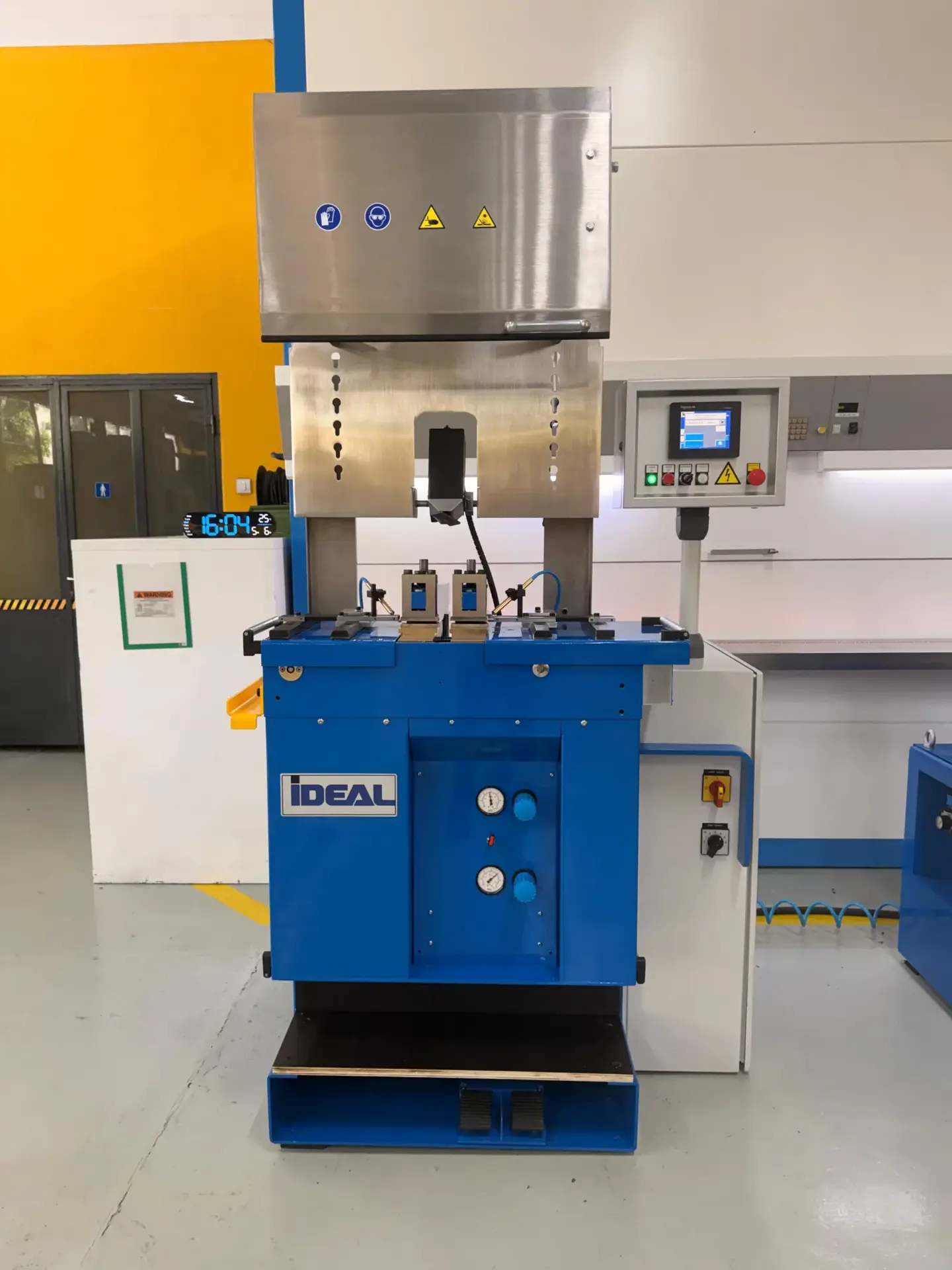

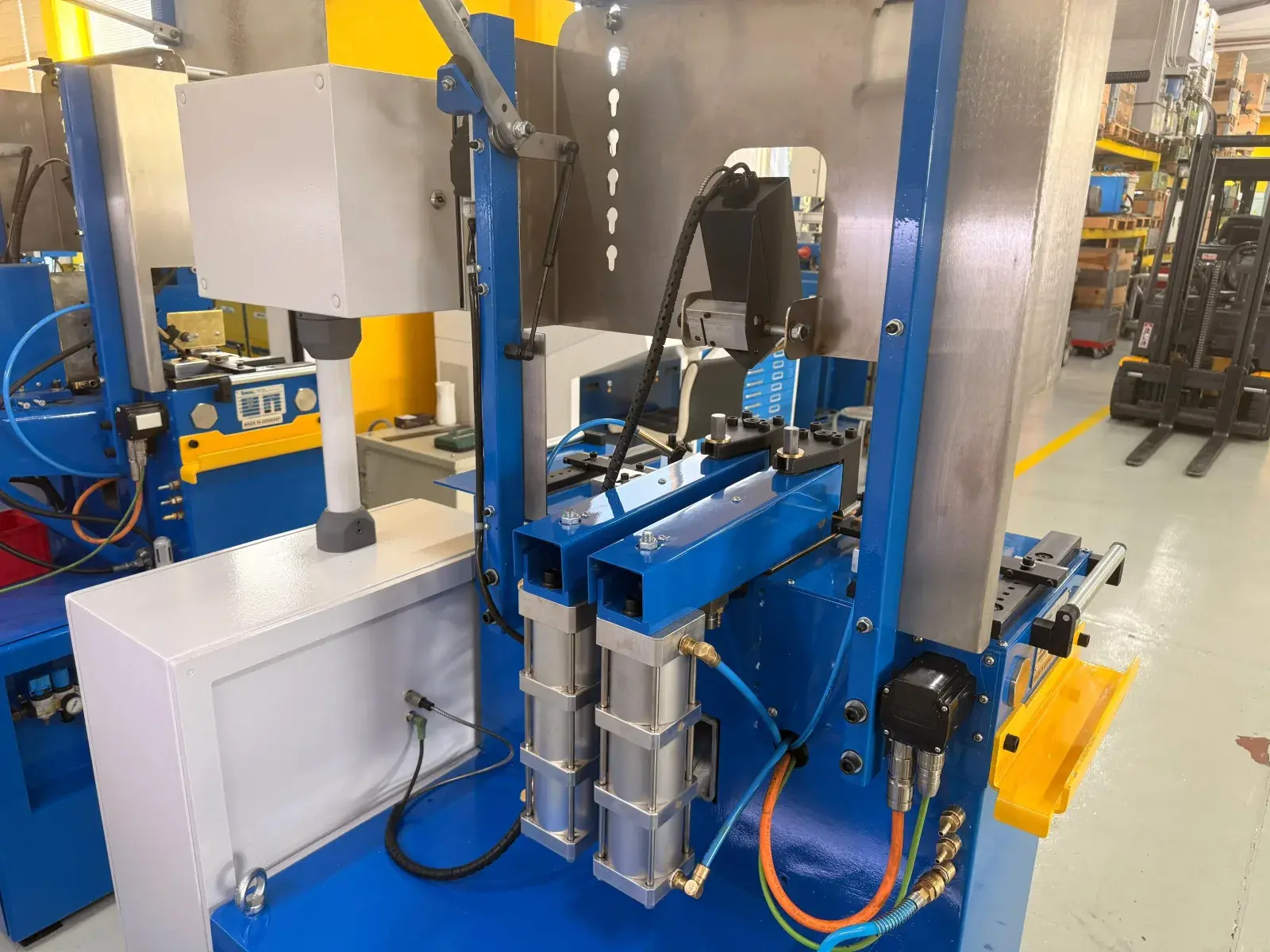

iDEAL BAS 320 Flash Butt Welding Machine for Band Saw Blades up to 50 mm

Machine Description

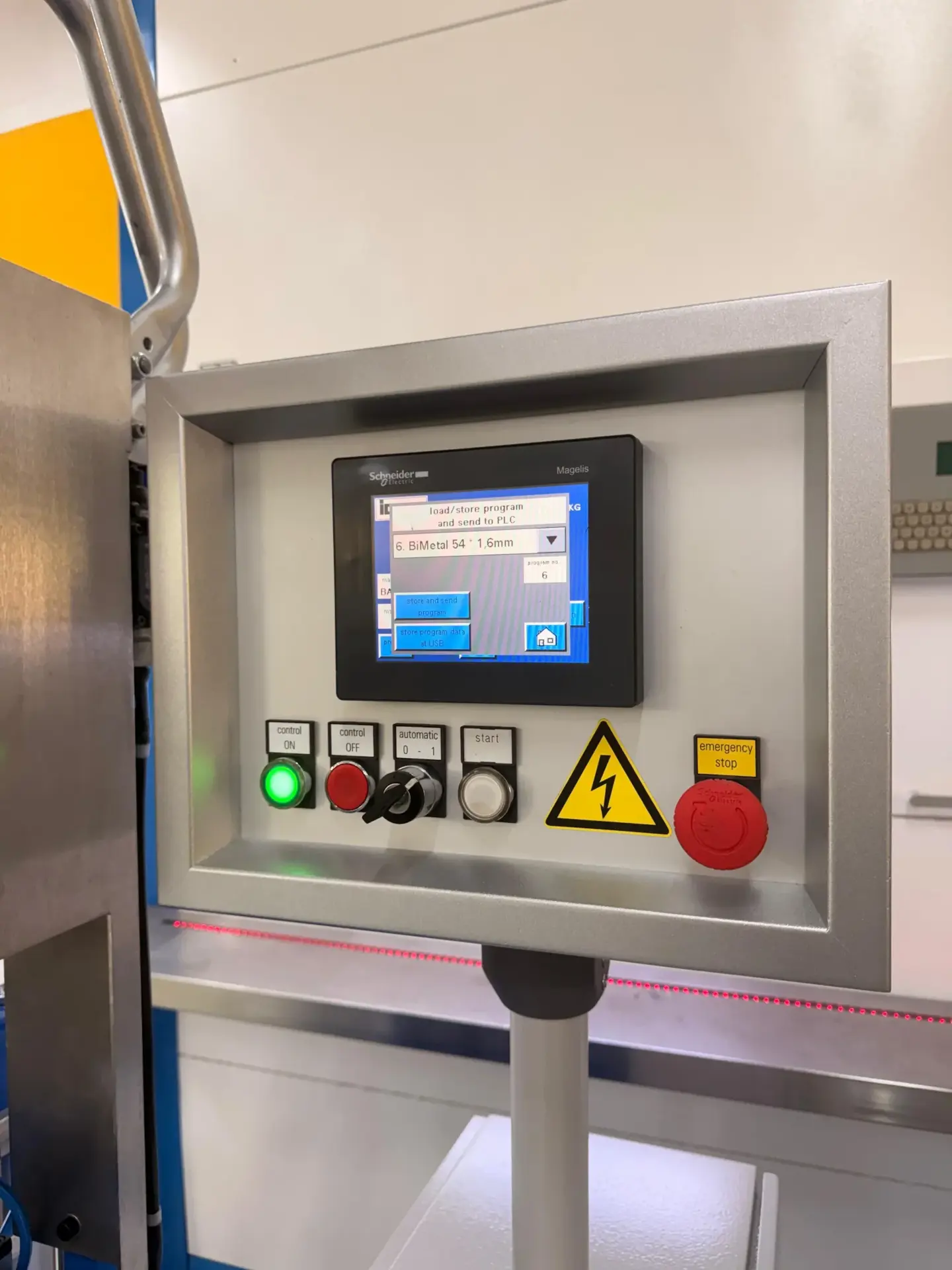

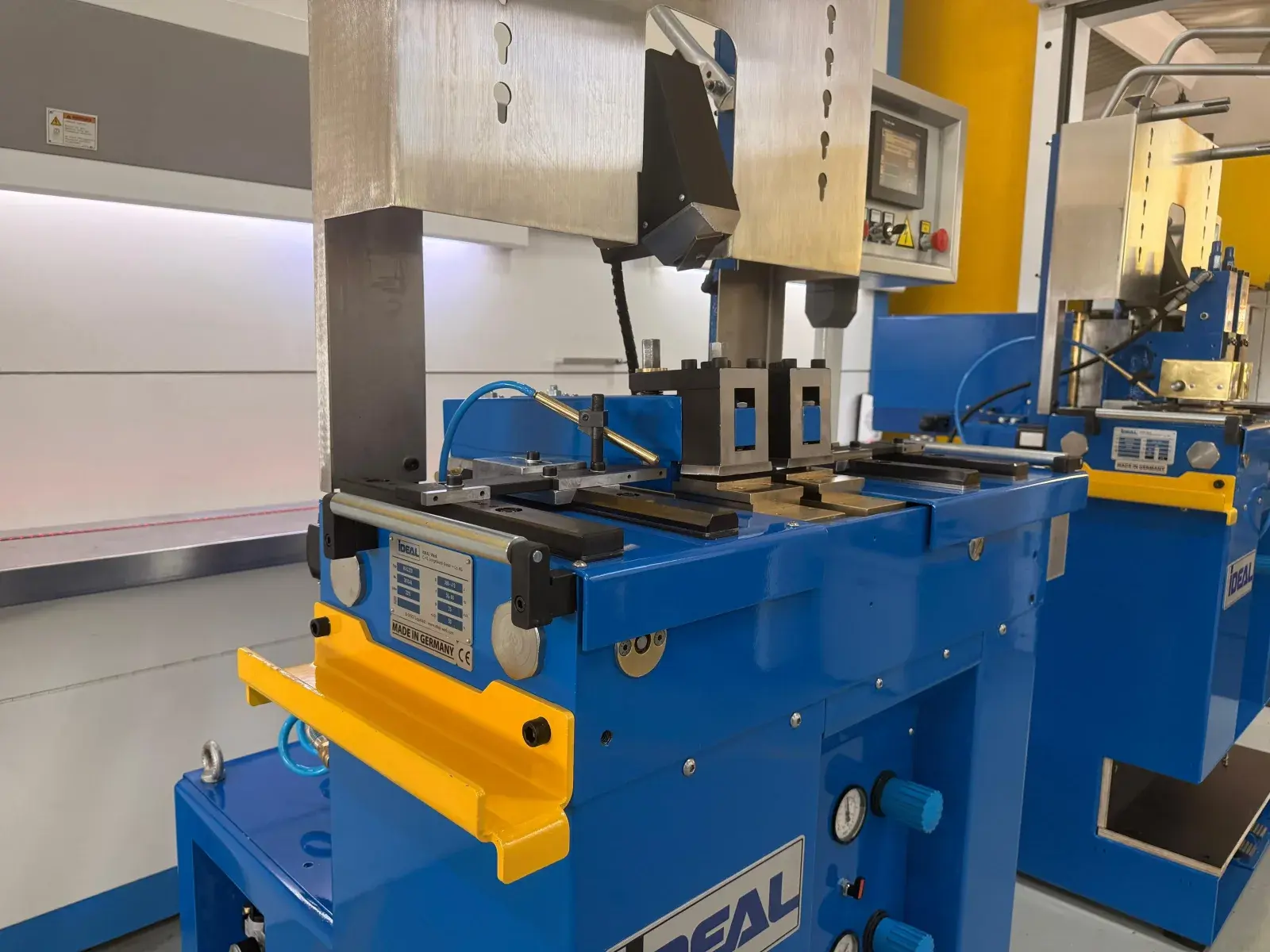

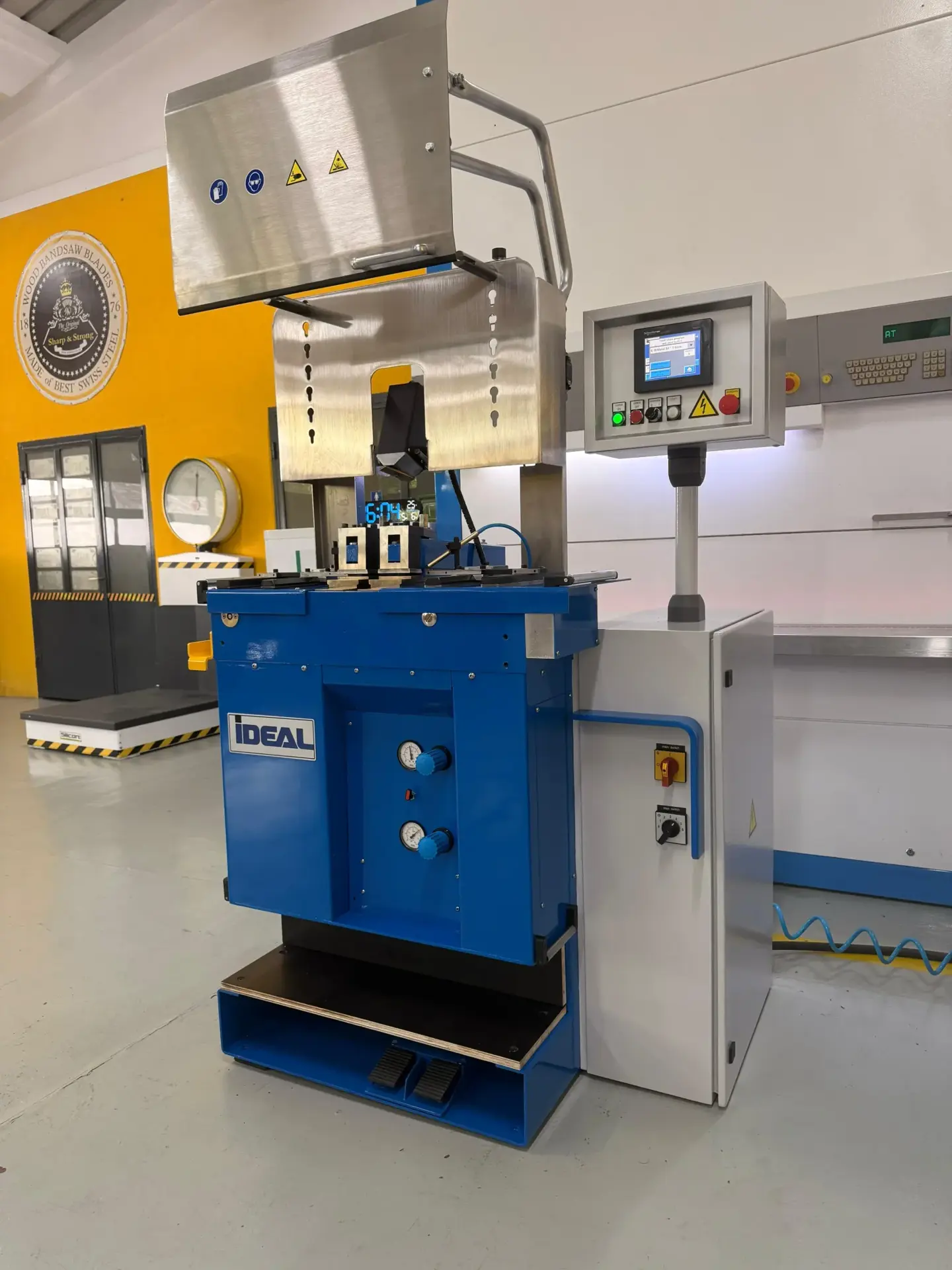

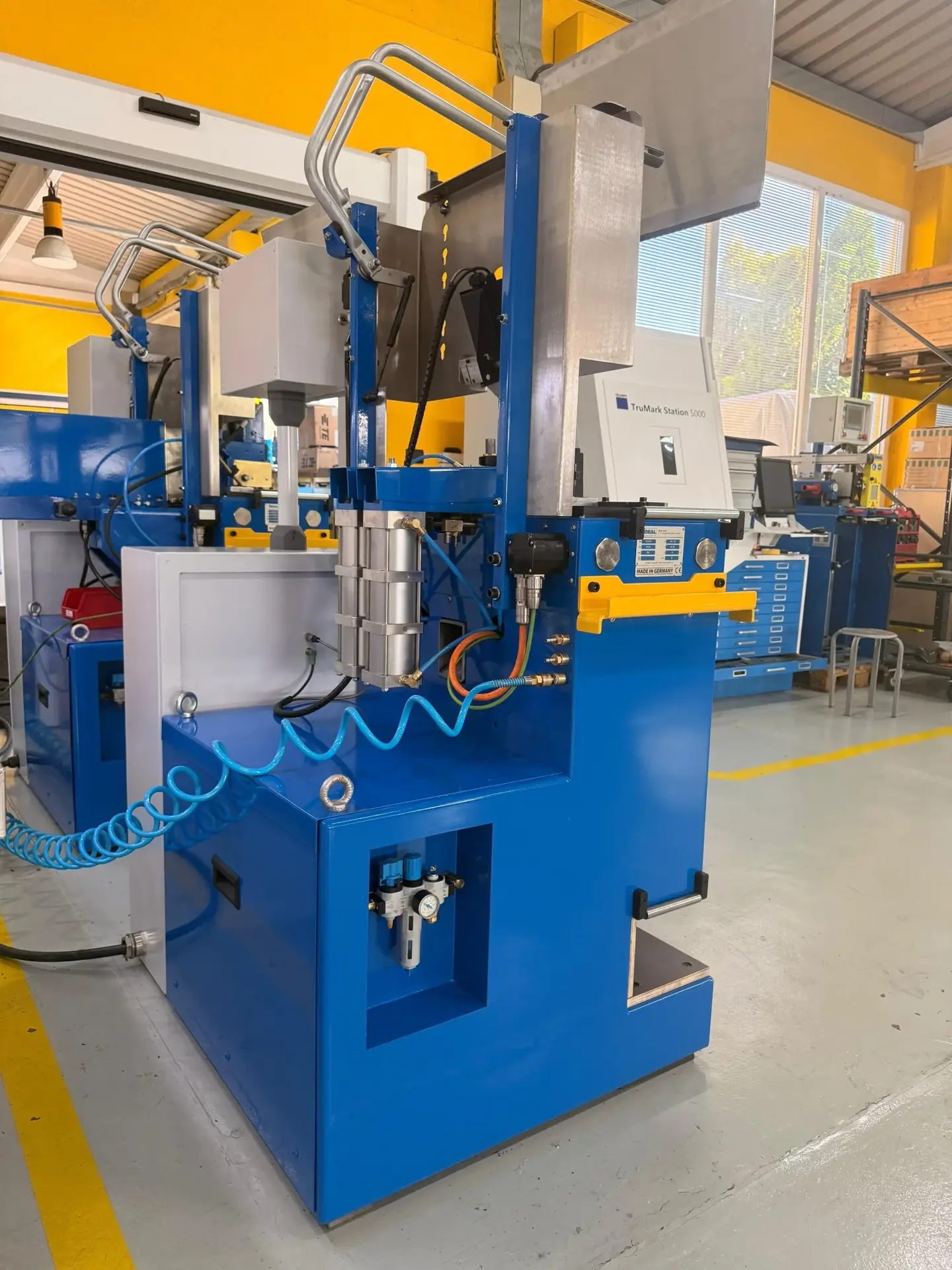

iDEAL BAS 320 flash butt welding machine for band saw blades, year 2016. Handles the full spectrum of blade types - bi-metal, carbide, wood and stainless steel - up to 50 mm clamping width, covering blade dimensions from 6 x 0.40 mm up to 54 x 1.60 mm on bi-metal stock. At 25 kVA with 38 kN clamping force and 10 kN upsetting force it delivers consistent, high-integrity welds across carbon and stainless steel strip with maximum cross-sections of 150 mm2 and 60 mm2 respectively. The welding and annealing cycle is fully automatic and recipe-controlled from the touch panel: the operator inserts the blade, presses start and the machine handles the rest. Pneumatic clamping, water-cooled electrodes and an 800 kg industrial frame make it a workhorse for sawmills, blade service centres and large metalworking operations. TECHNICAL SPECIFICATIONS Make and model: iDEAL BAS 320 Year: 2016 Nominal output (50% DC): 25 kVA Secondary voltage: 2.8-5.5 V (6 stages) Control voltage: 24 VDC Connection voltage: 380-420 V Clamping force: 38 kN Upsetting force (max.): 10 kN Air pressure (min.): 6 bar Air consumption per cycle: 52.6 Nl at 6 bar Cooling water consumption: 4-5 l/min at 20-25 C Machine weight: approx. 800 kg Dimensions (W/D/H): 1,214 / 957 / 1,982 mm Max. clamping width: 50 mm CAPACITY Bi-metal / carbide band saws: 6 x 0.40 - 54 x 1.60 mm Wood saw blades: 6 x 0.40 - 50 x 1.10 mm Stainless steel saw blades: 10 x 0.40 - 40 x 0.80 mm Strip blades: 6 x 0.40 - 50 x 1.00 mm Steel strip S235JR: max. 150 mm2 Stainless steel: max. 60 mm2 EQUIPMENT AND FEATURES Flash butt welding principle with fully automatic welding and annealing cycle Recipe-based parameter management via touch panel Welding and annealing sequence runs automatically after the start button Pneumatic clamping device Water-cooled electrodes CE marked (EC Machinery Directive 2006/42/EC) CONDITION AND AVAILABILITY In stock. Worldwide shipping available. Reference 35826.
