iDEAL BAS 065-11 Band Saw Blade Welder, Hydraulic Clamping, Blades to 60 mm

Machine Description

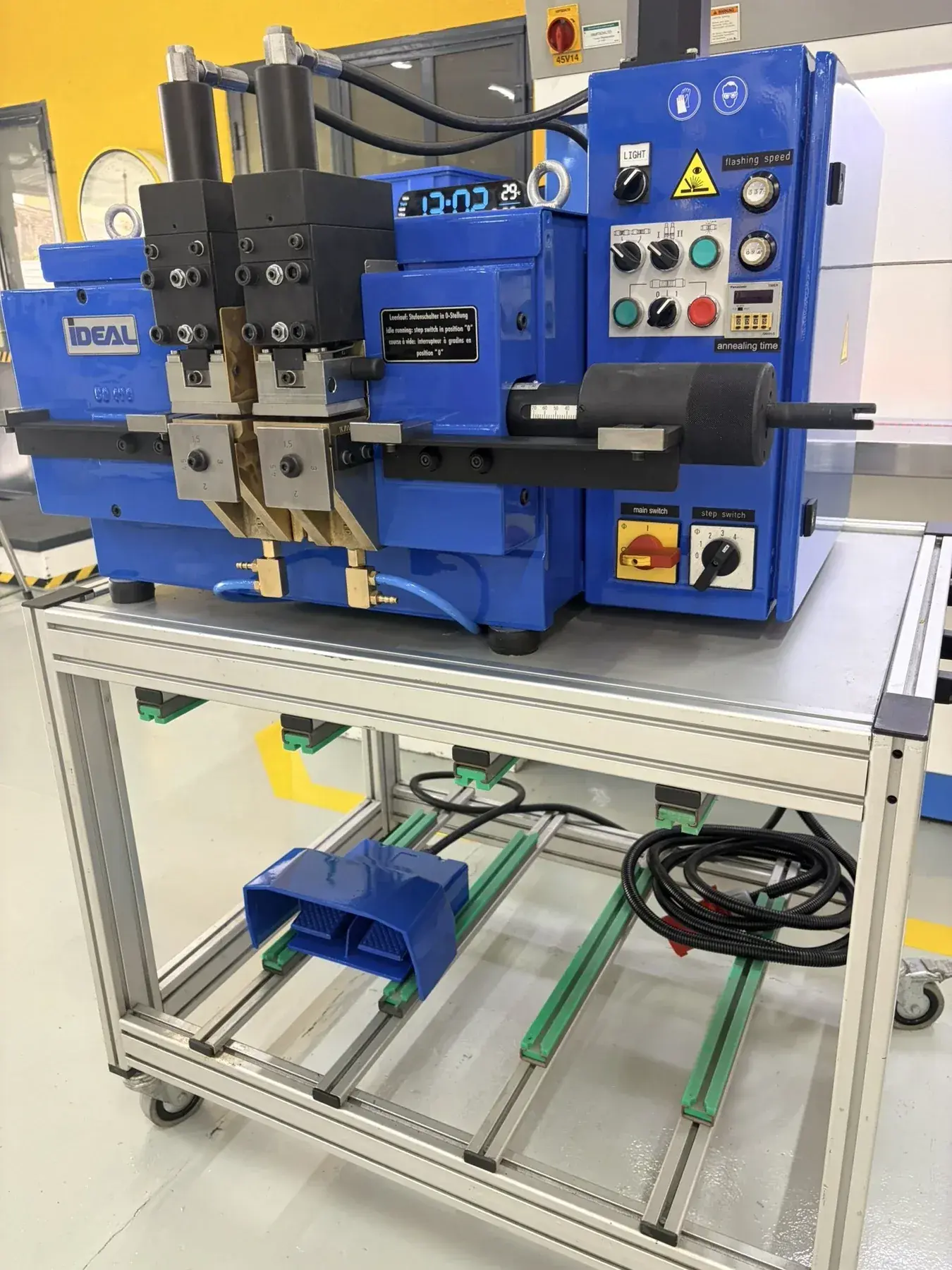

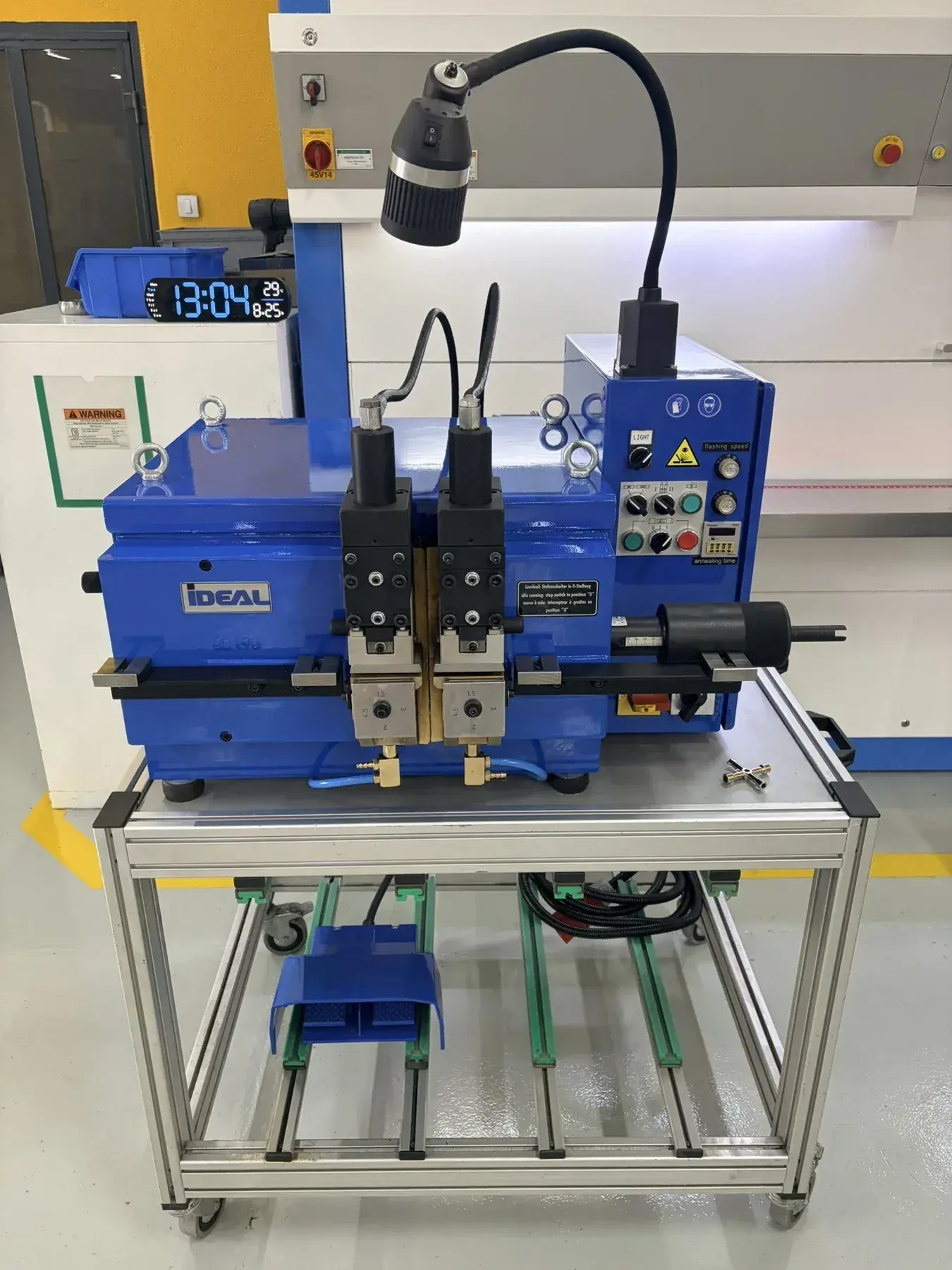

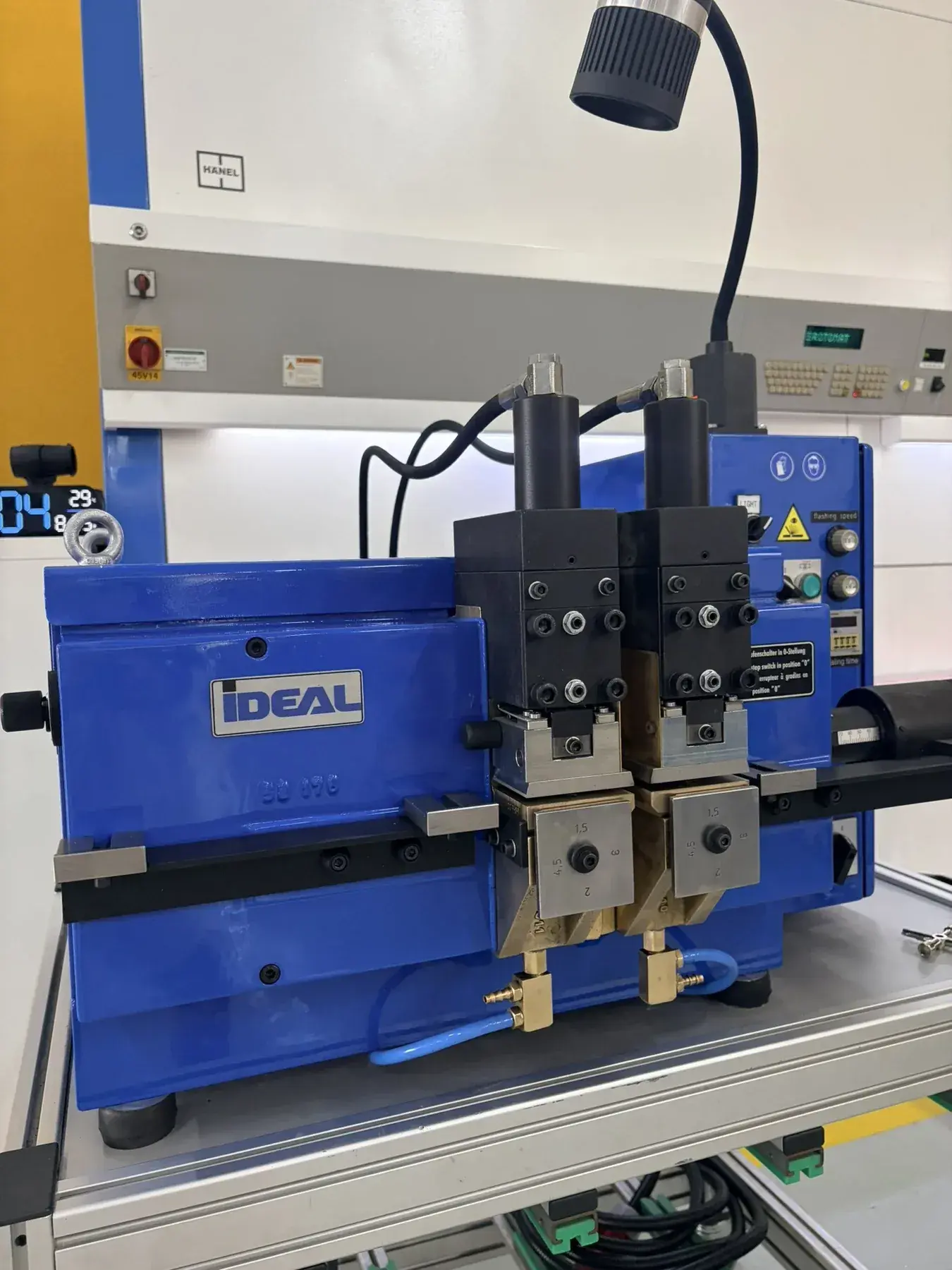

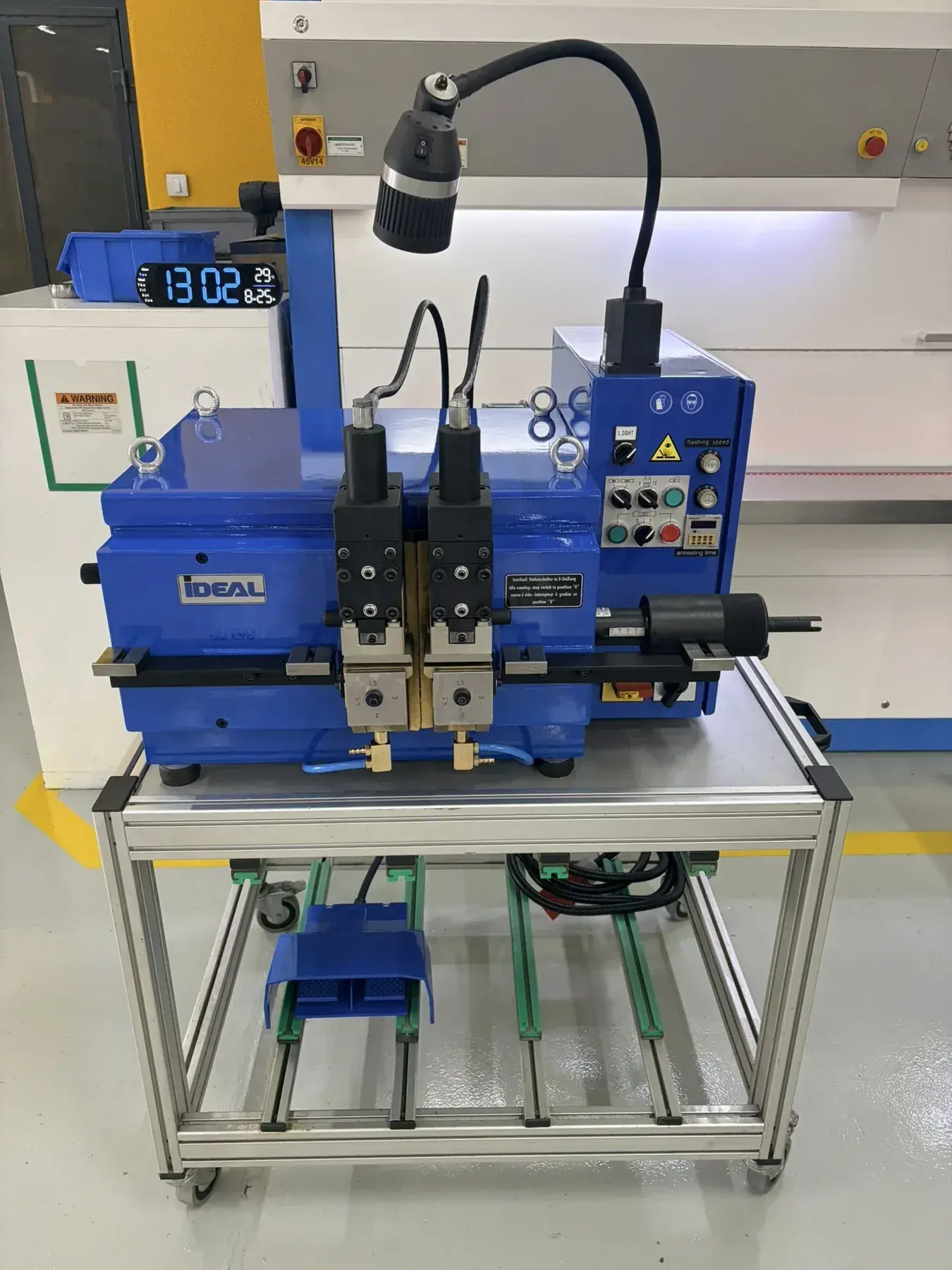

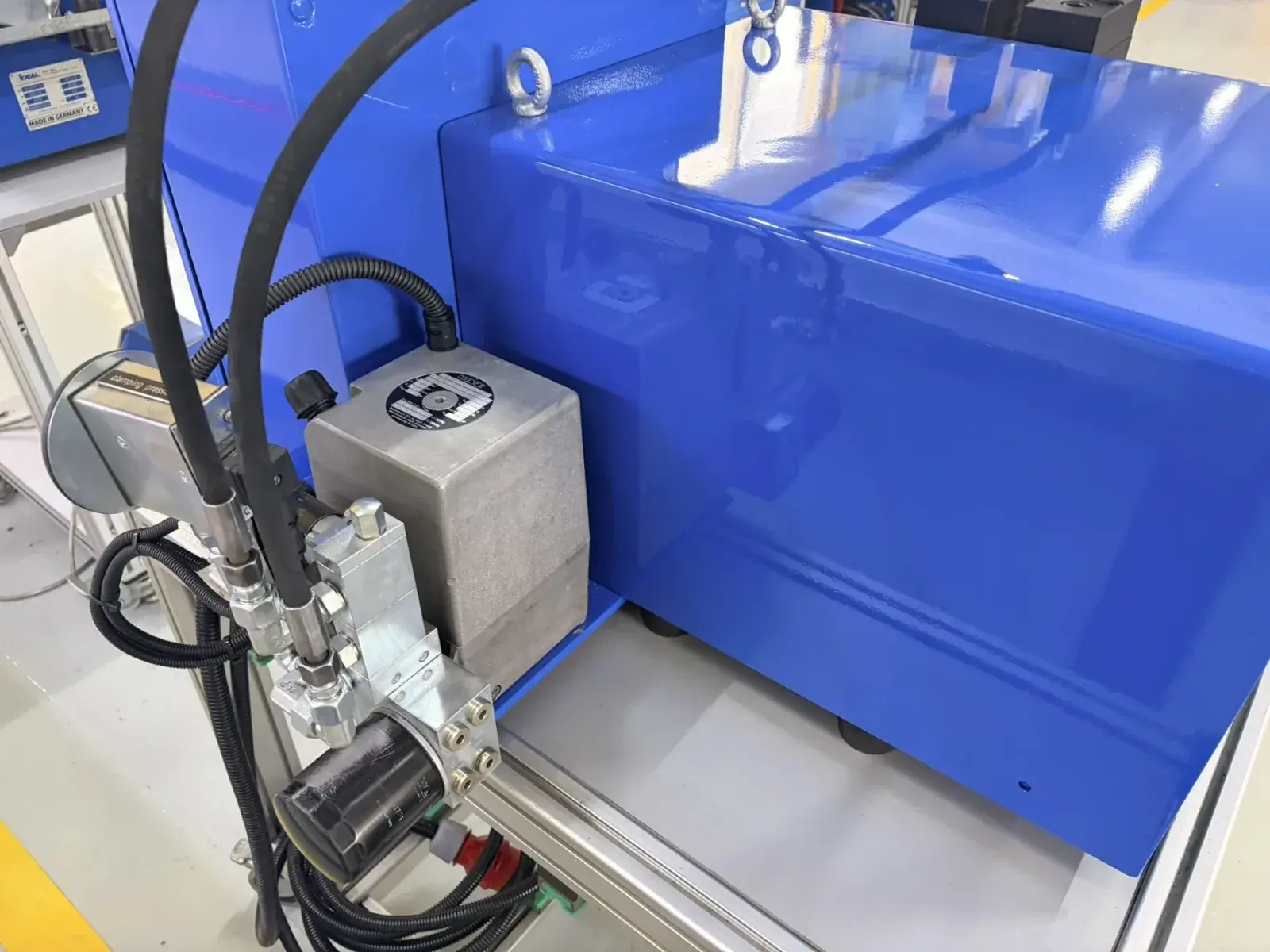

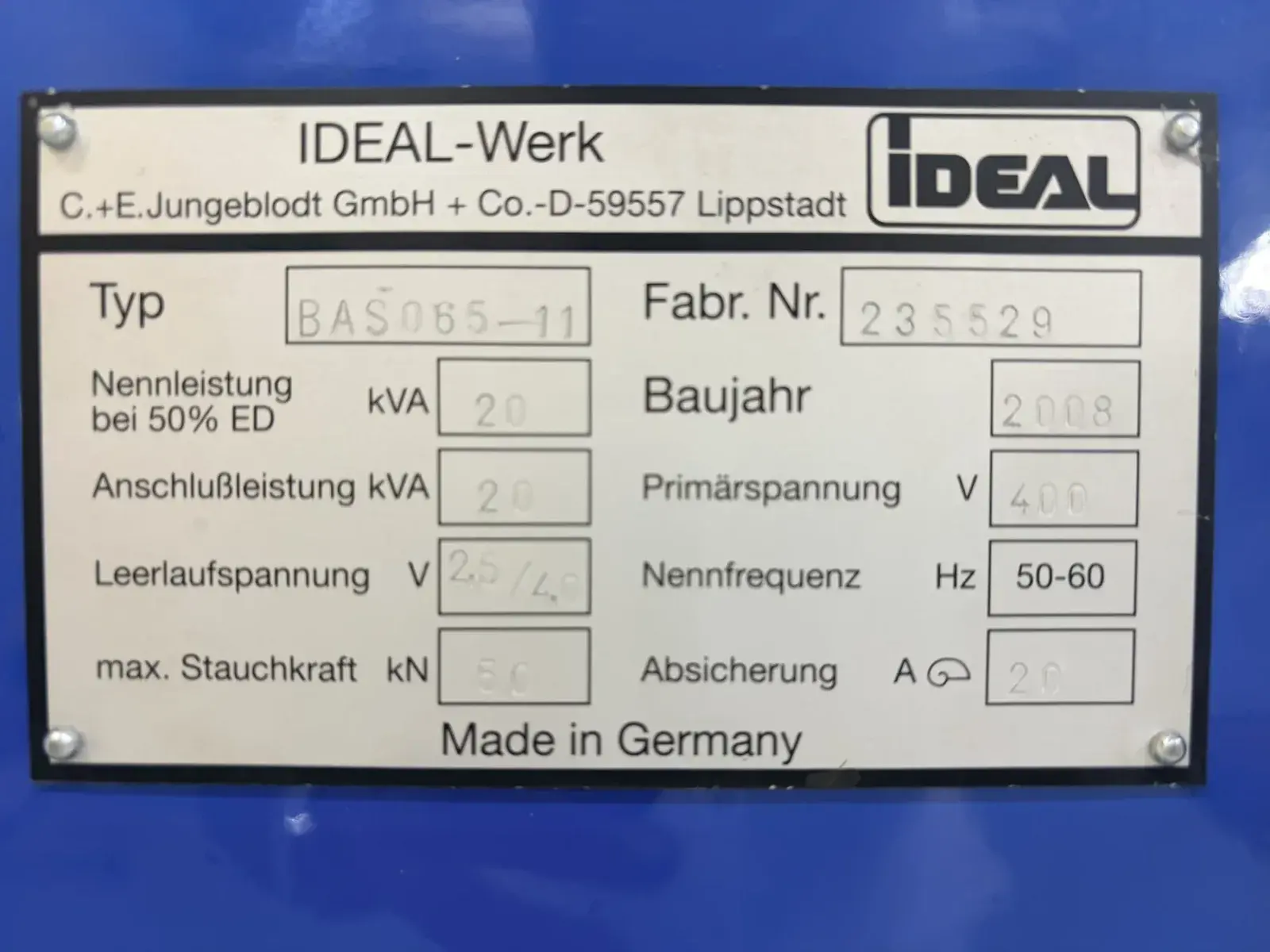

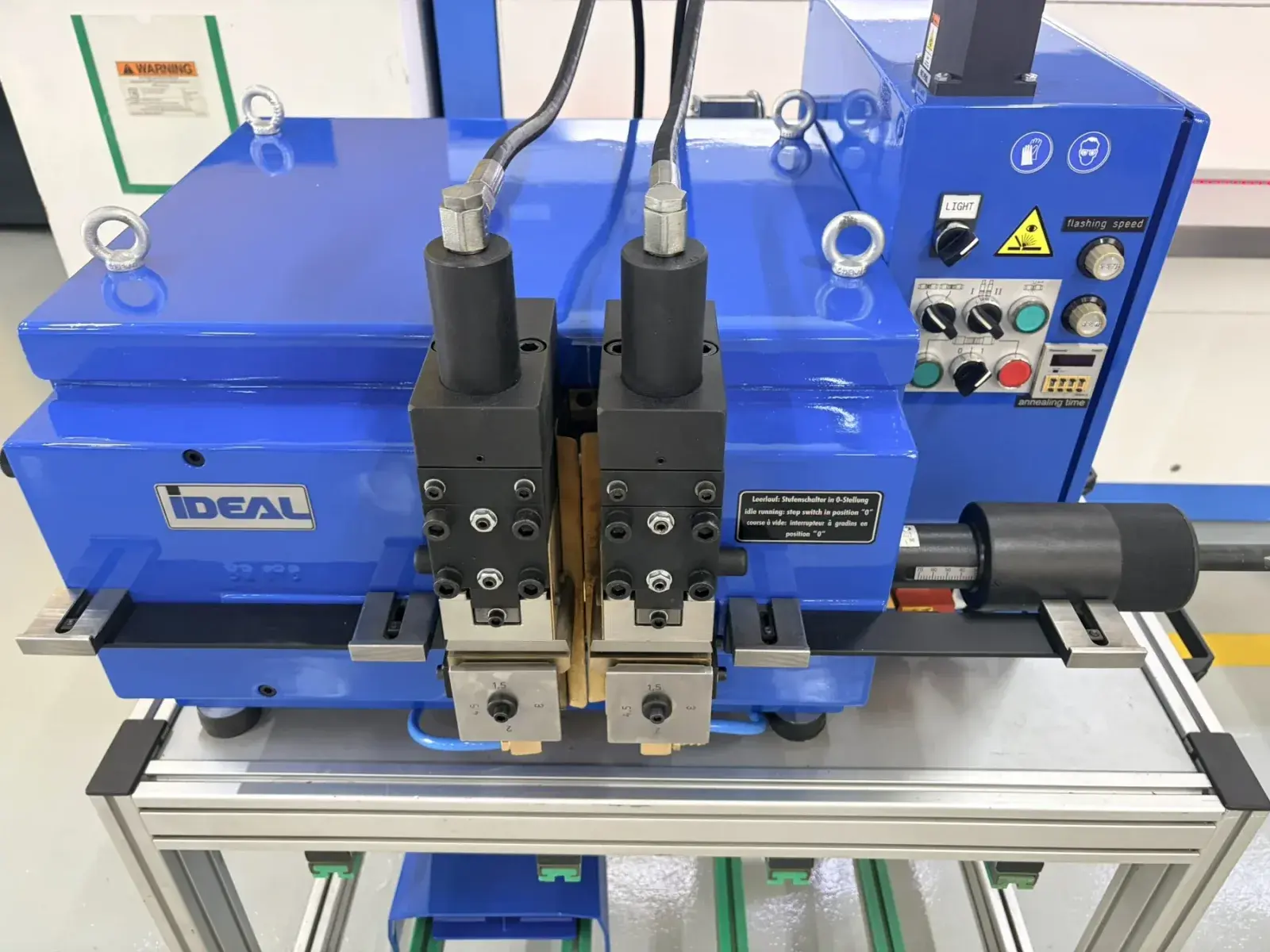

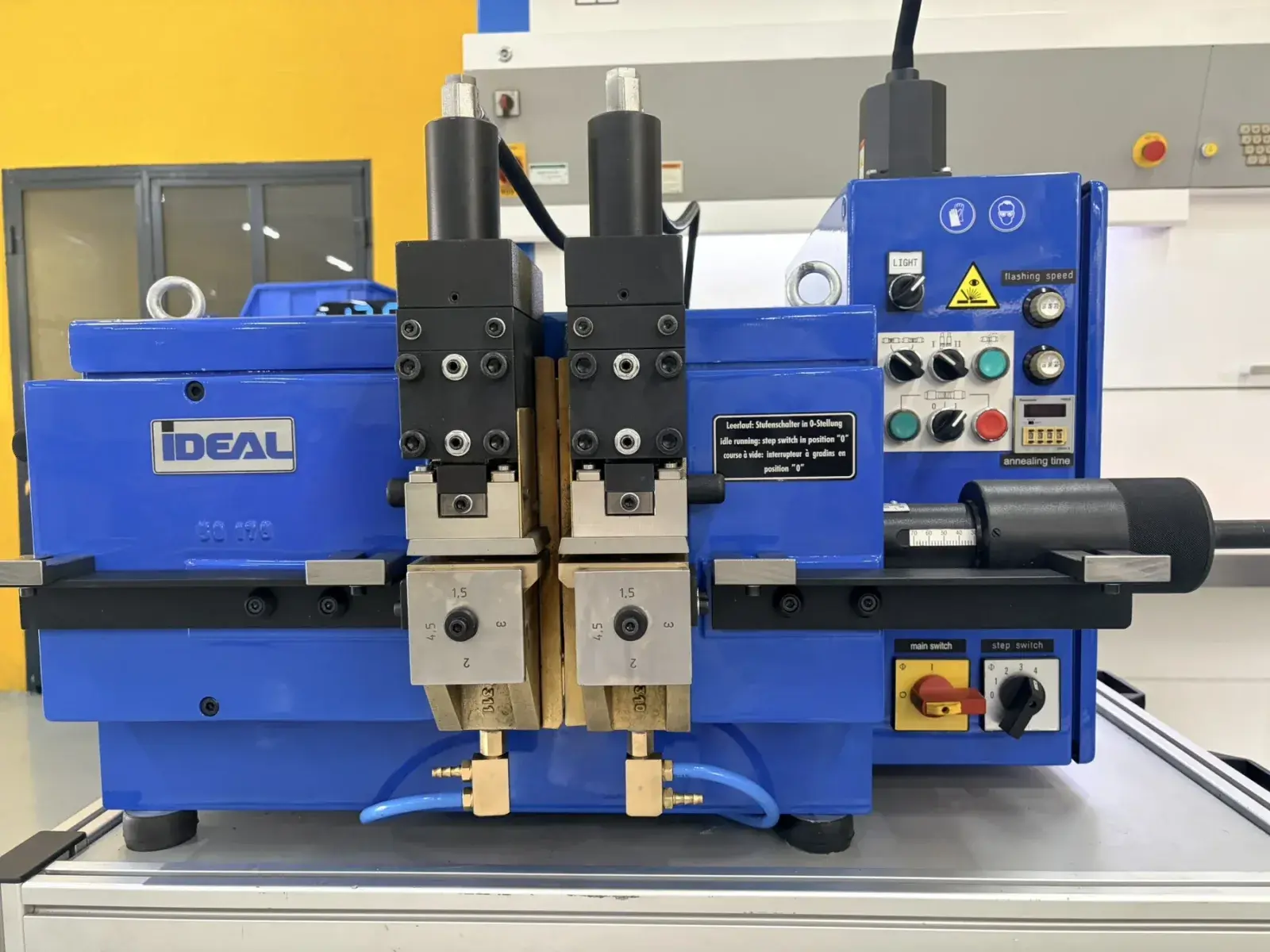

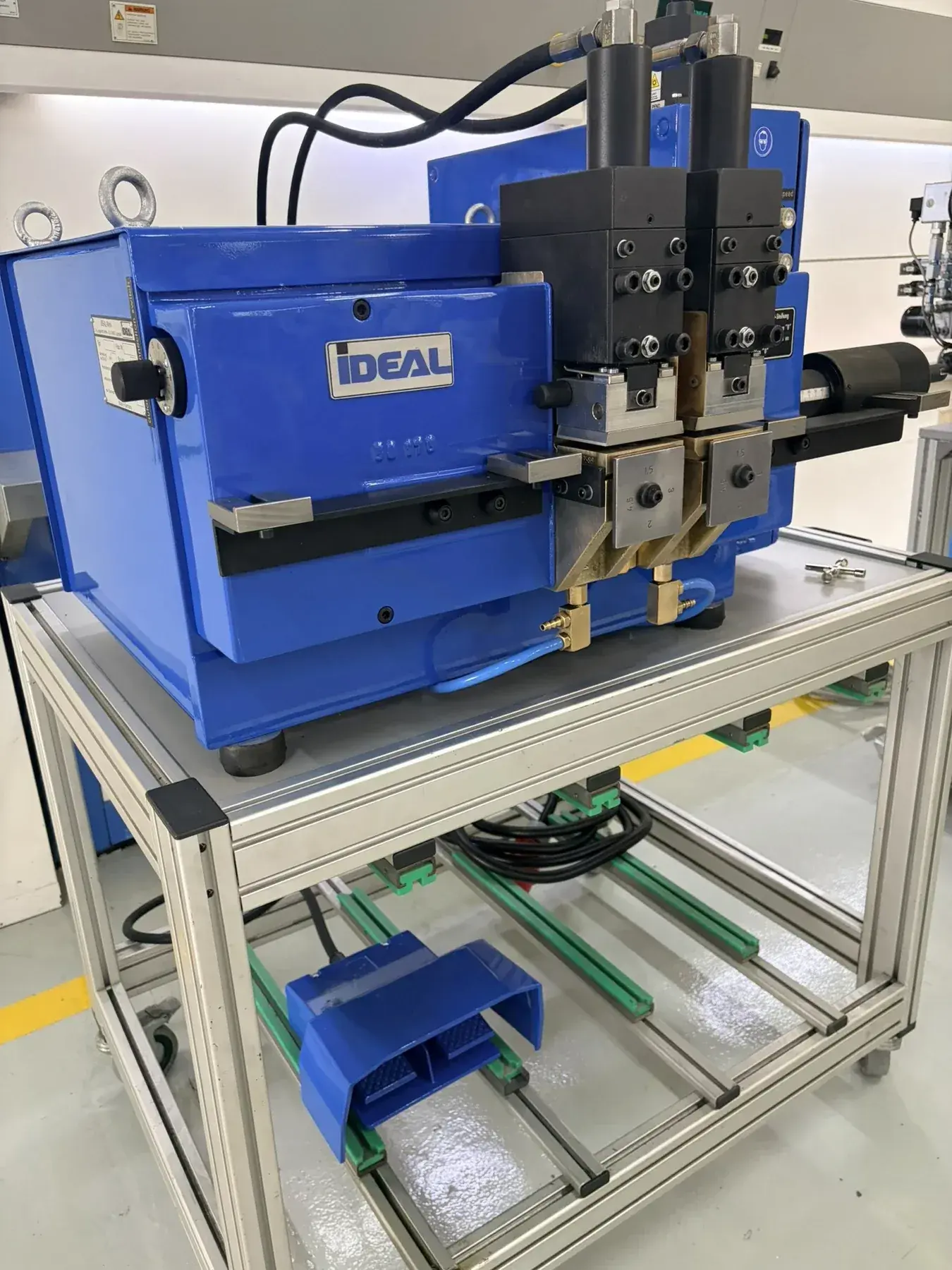

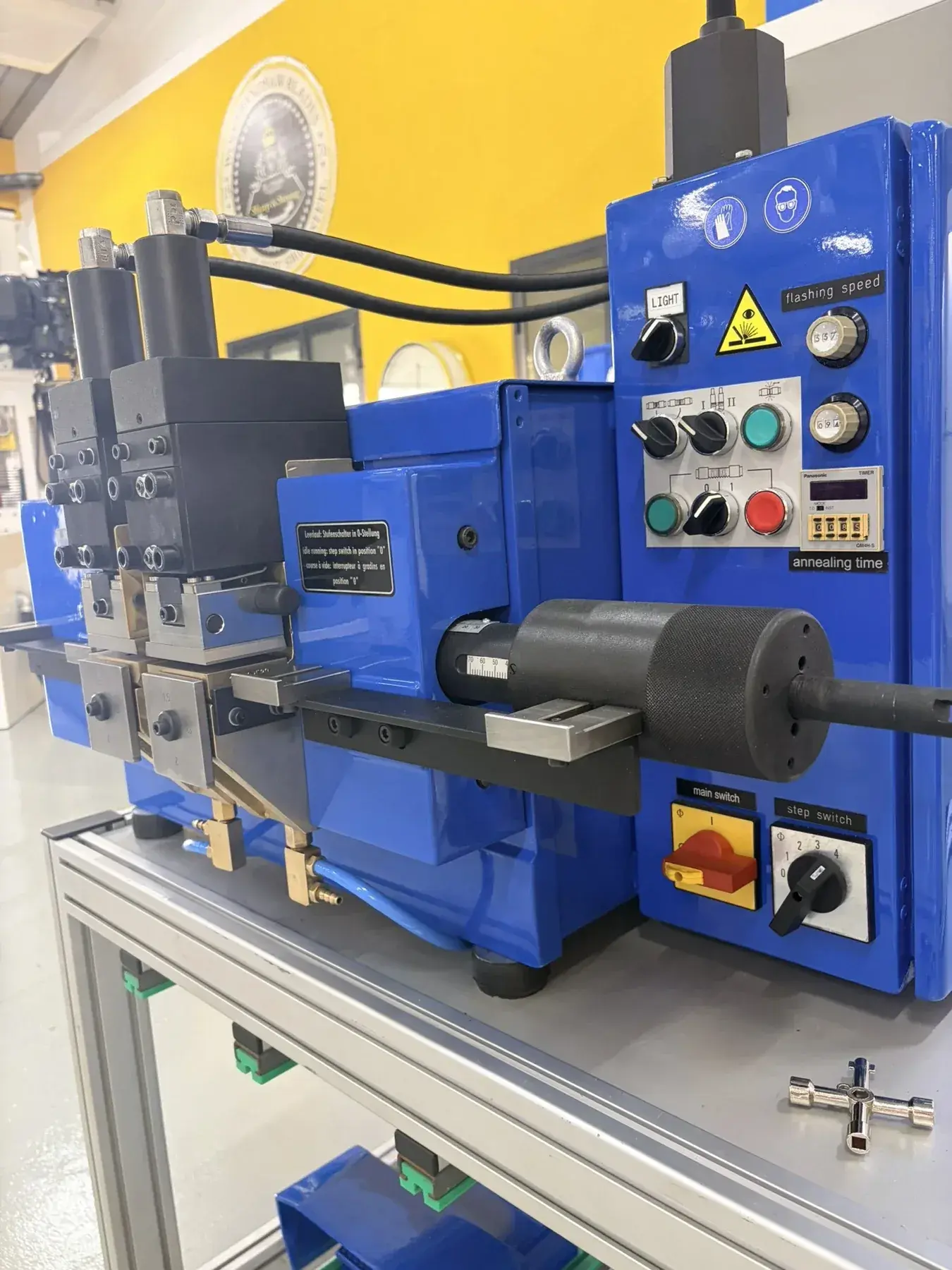

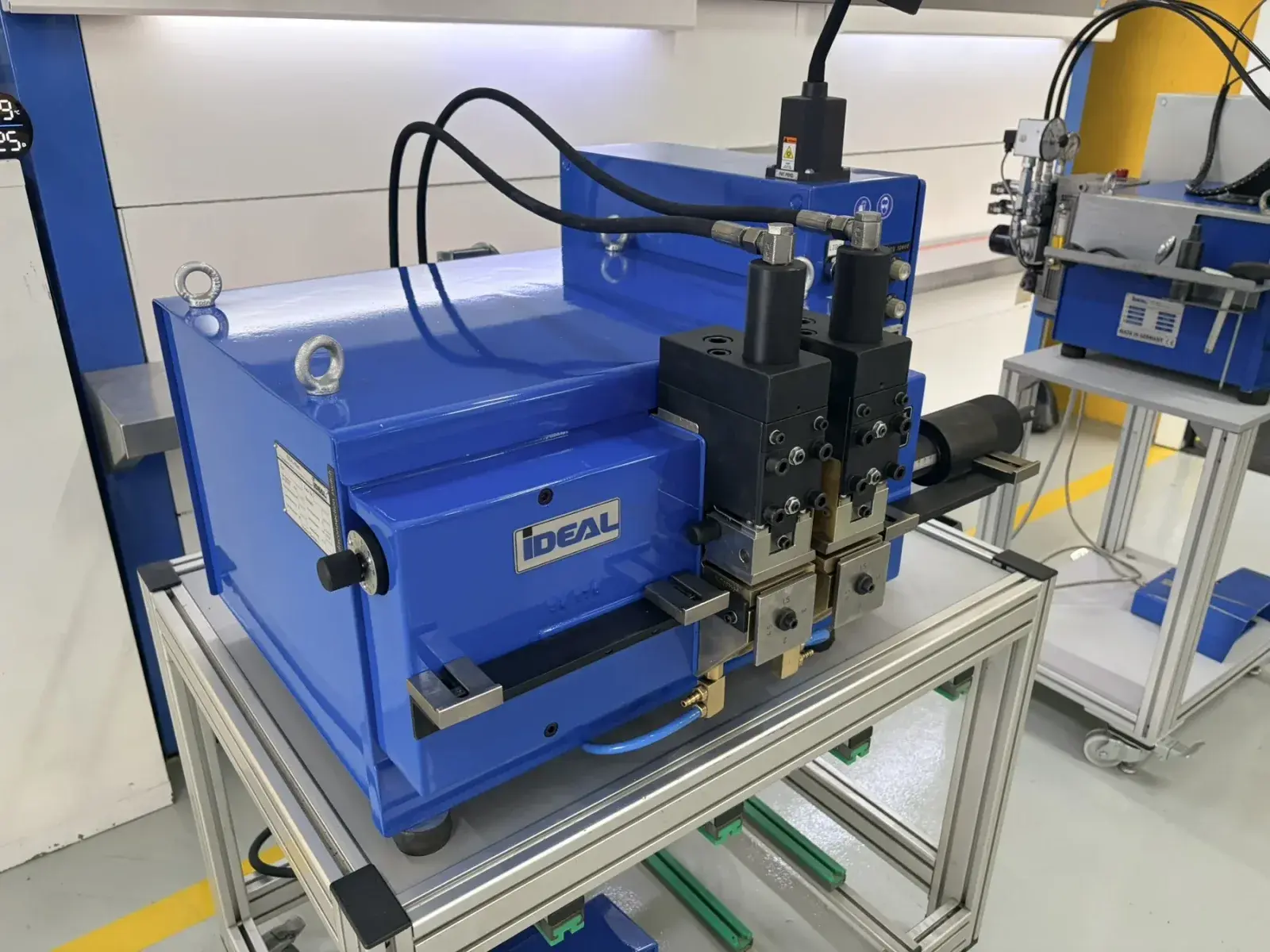

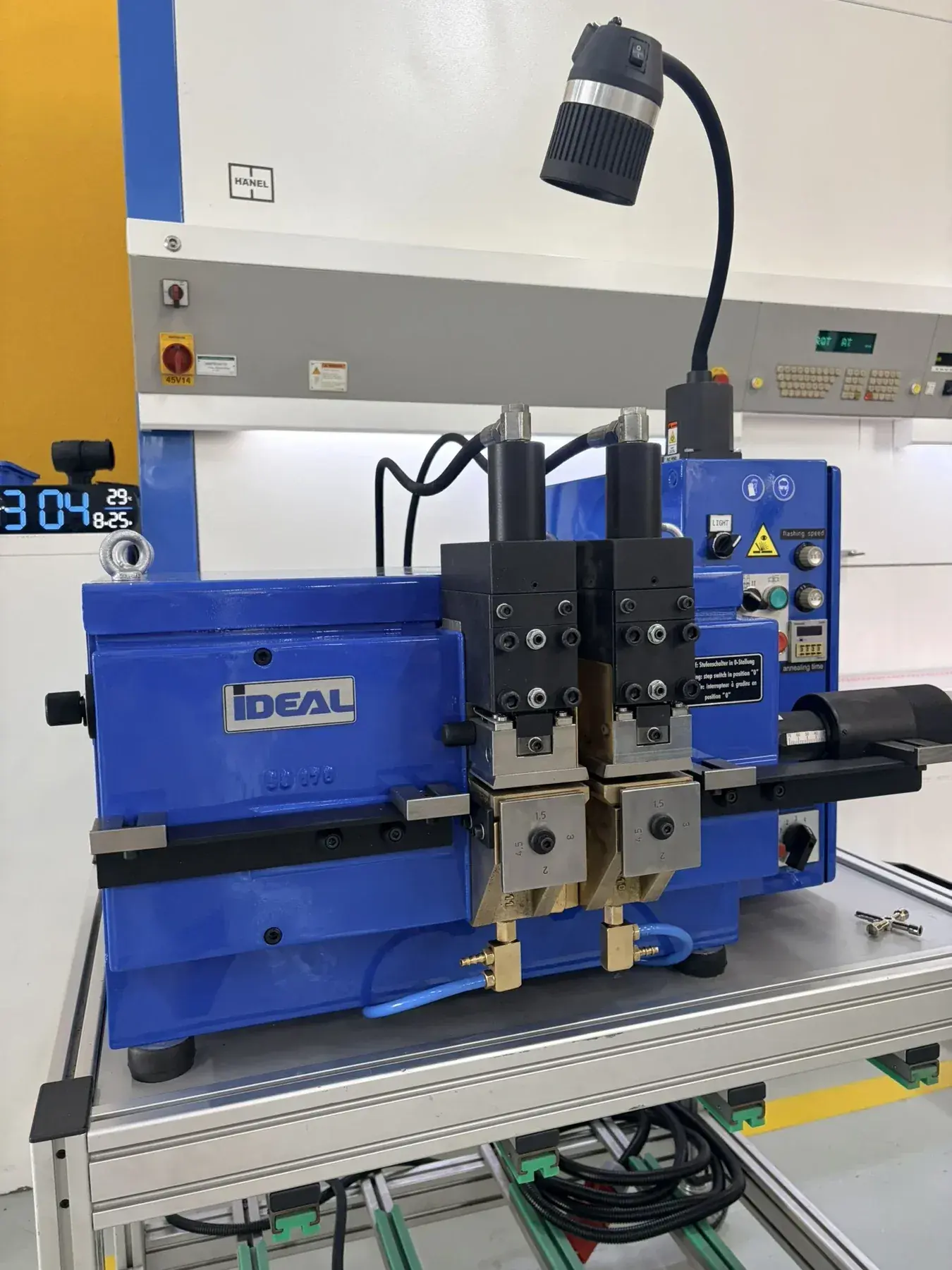

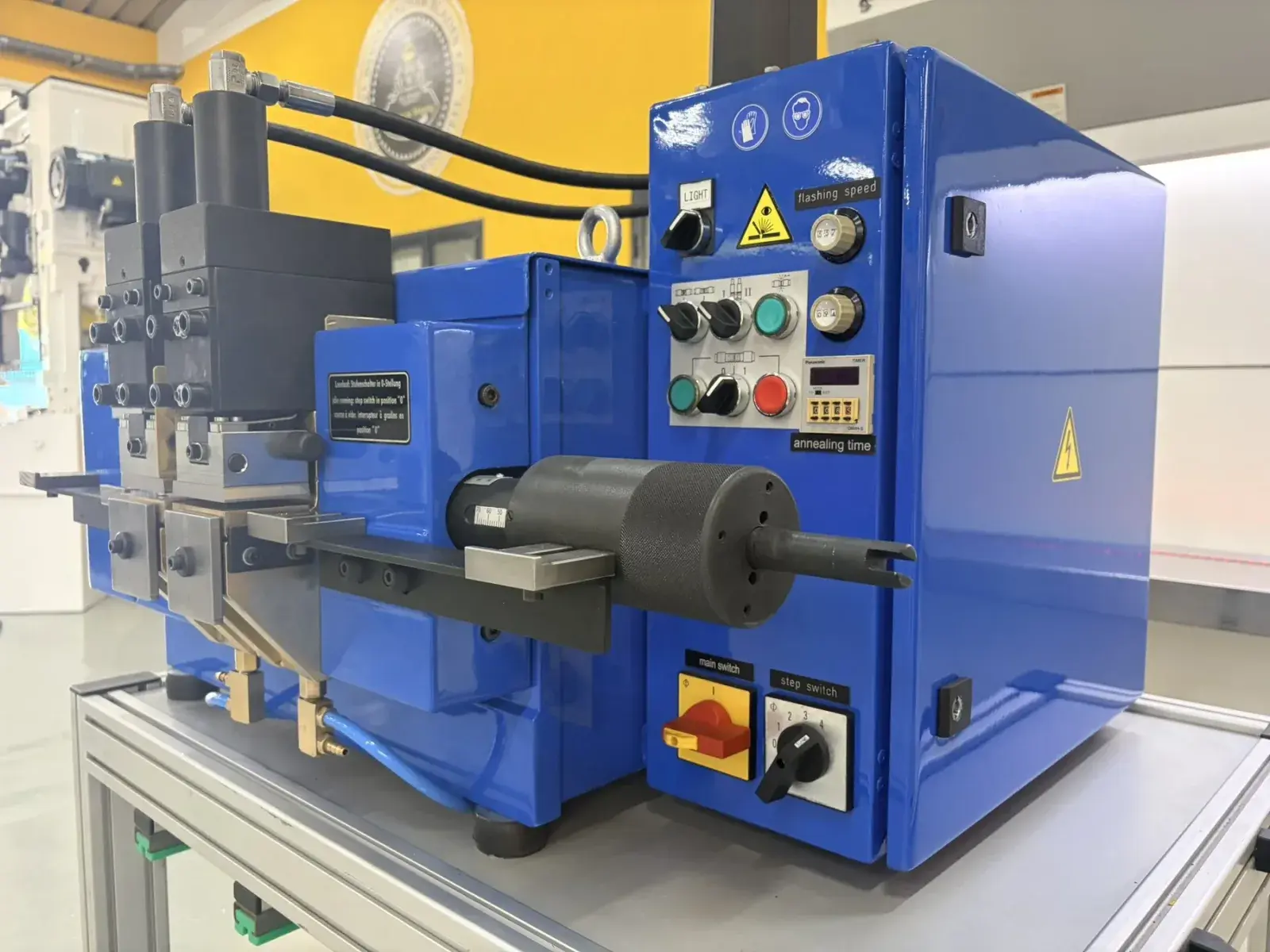

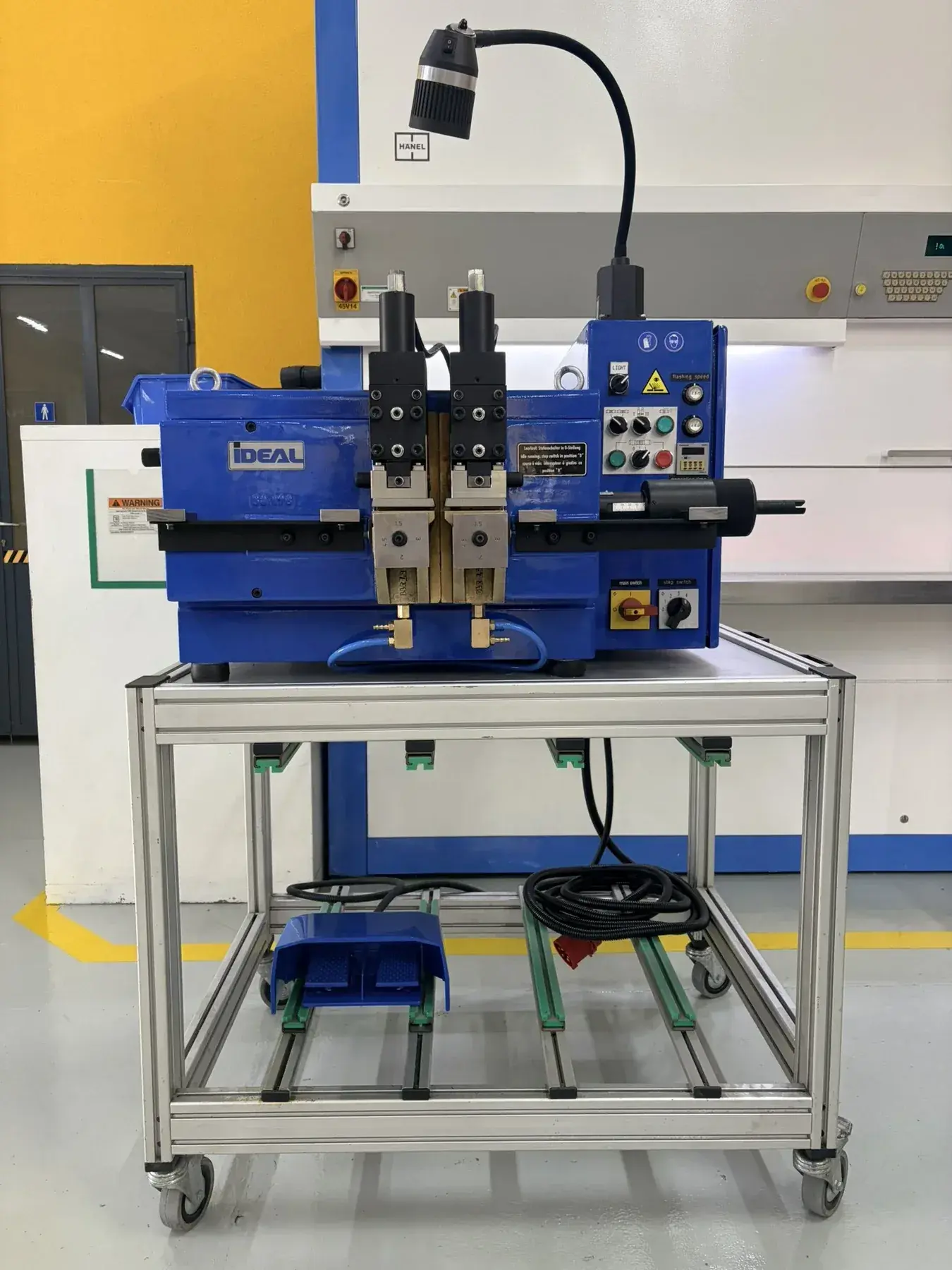

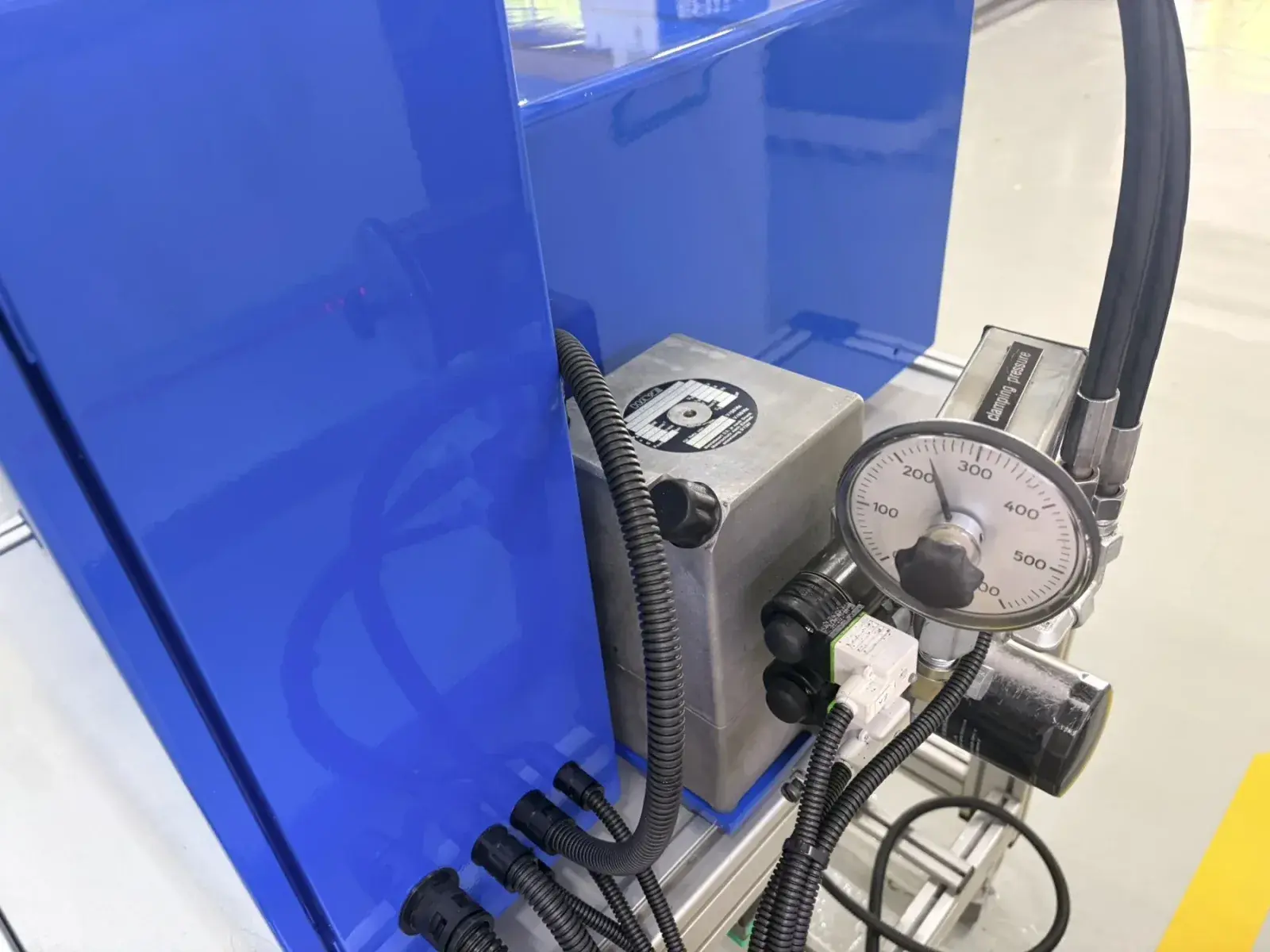

iDEAL BAS 065-11 resistance butt welding machine for band saw blades, made in Germany by IDEAL-Werk C.+E. Jungeblodt GmbH + Co., Lippstadt. Serial no. 235529, year of manufacture 2008. Hydraulic clamping (the "-11" version): both clamping jaws are operated hydraulically by foot switch, so the operator keeps both hands free to position the blade. The hydraulic power unit with clamping pressure gauge is mounted on the machine. Welding current is selected with the step switch; flashing speed and annealing time are set on the front control panel, with a Panasonic timer for the annealing cycle. A flexible work light is fitted above the welding zone. TECHNICAL SPECIFICATIONS Make and model: iDEAL BAS 065-11 Year of manufacture: 2008 Serial no.: 235529 Clamping: hydraulic, foot switch operation Max. upsetting force: 50 kN Voltage: 400 V Frequency: 50/60 Hz Power: 20 kVA at 50% duty cycle Secondary voltage: 2.5-4.0 V Fuse protection: 20 A Band thickness: 0.4-2.5 mm Clamping width: 60 mm Machine weight: approx. 420 kg net / 480 kg gross Packing dimensions: approx. 1,150 x 1,150 x 1,150 mm CAPACITY Bi-metal band saw blades: 10 x 0.7 - 41 x 1.6 mm Wood band saw blades: 10 x 0.7 - 60 x 1.0 mm Stainless steel band saw blades: 10 x 0.4 - 35 x 0.8 mm Band knives: 10 x 0.4 - 40 x 0.8 mm Strip steel cross-section: 7-100 mm2 (stainless up to 50 mm2) CONDITION AND AVAILABILITY Used, in working order and repainted. Electrical cabinet, hydraulics and controls are shown in the photographs. In stock, worldwide shipping available. Reference 38126.
