Sangiacomo T 130 RCE

Machine Description

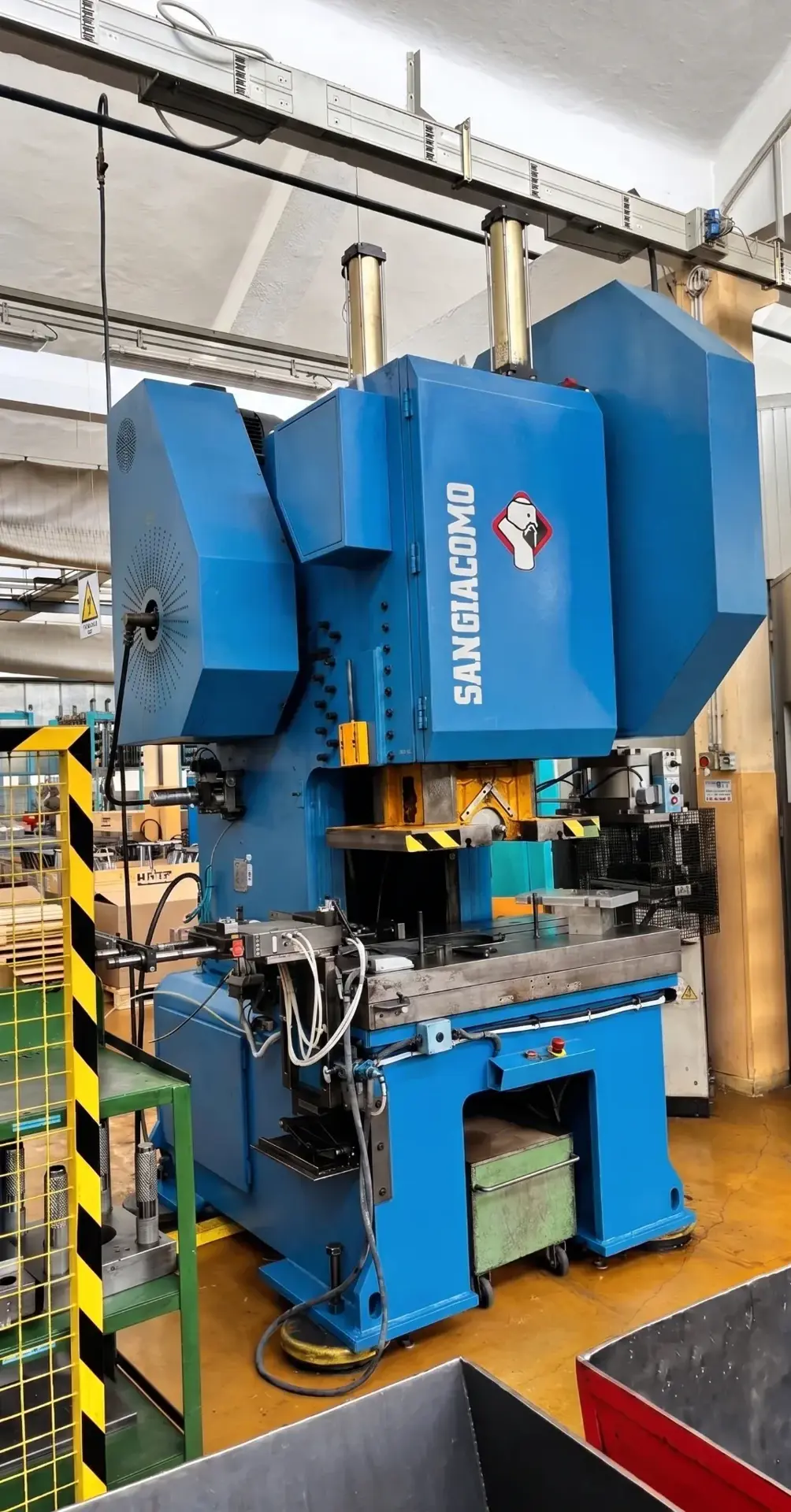

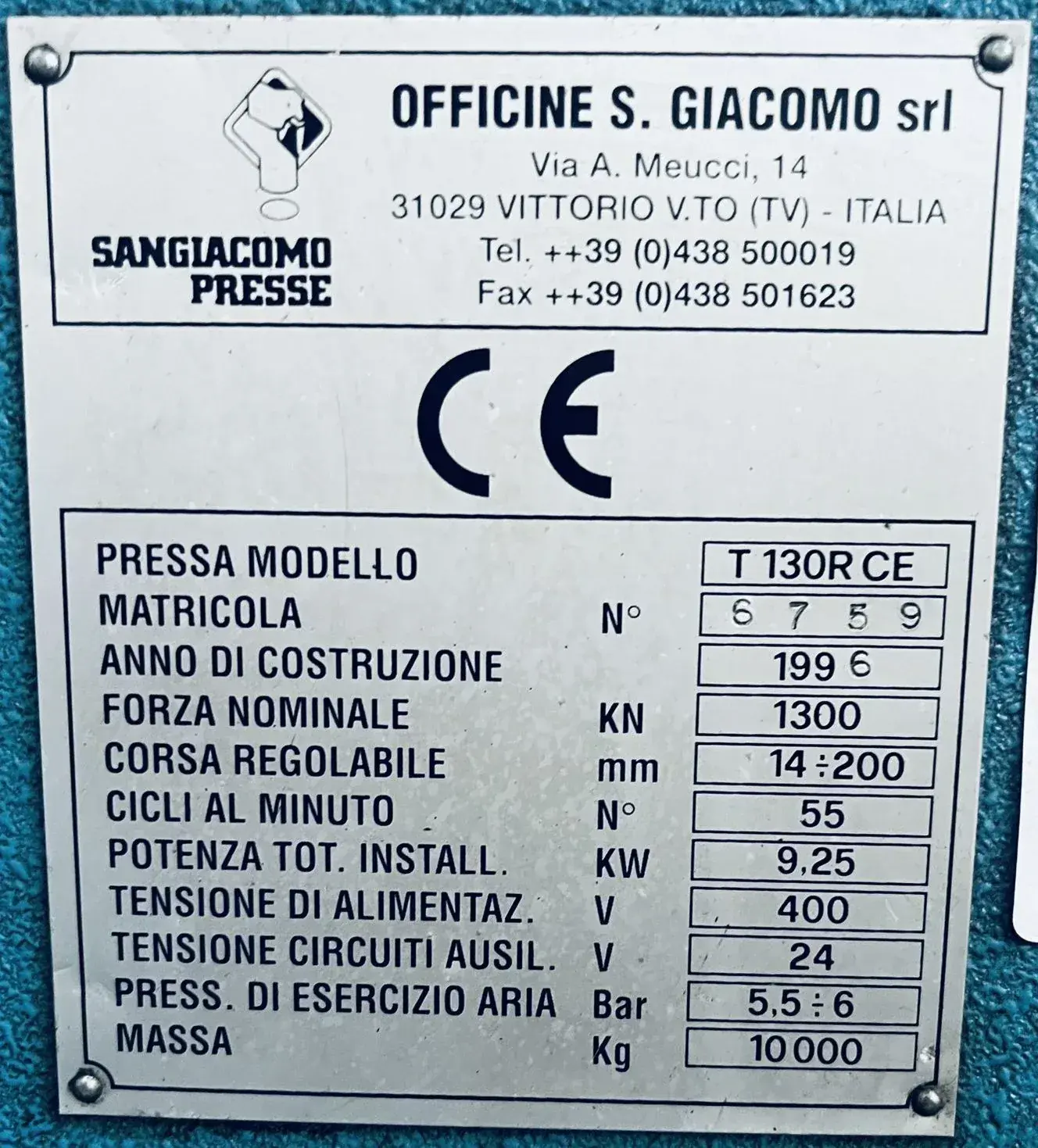

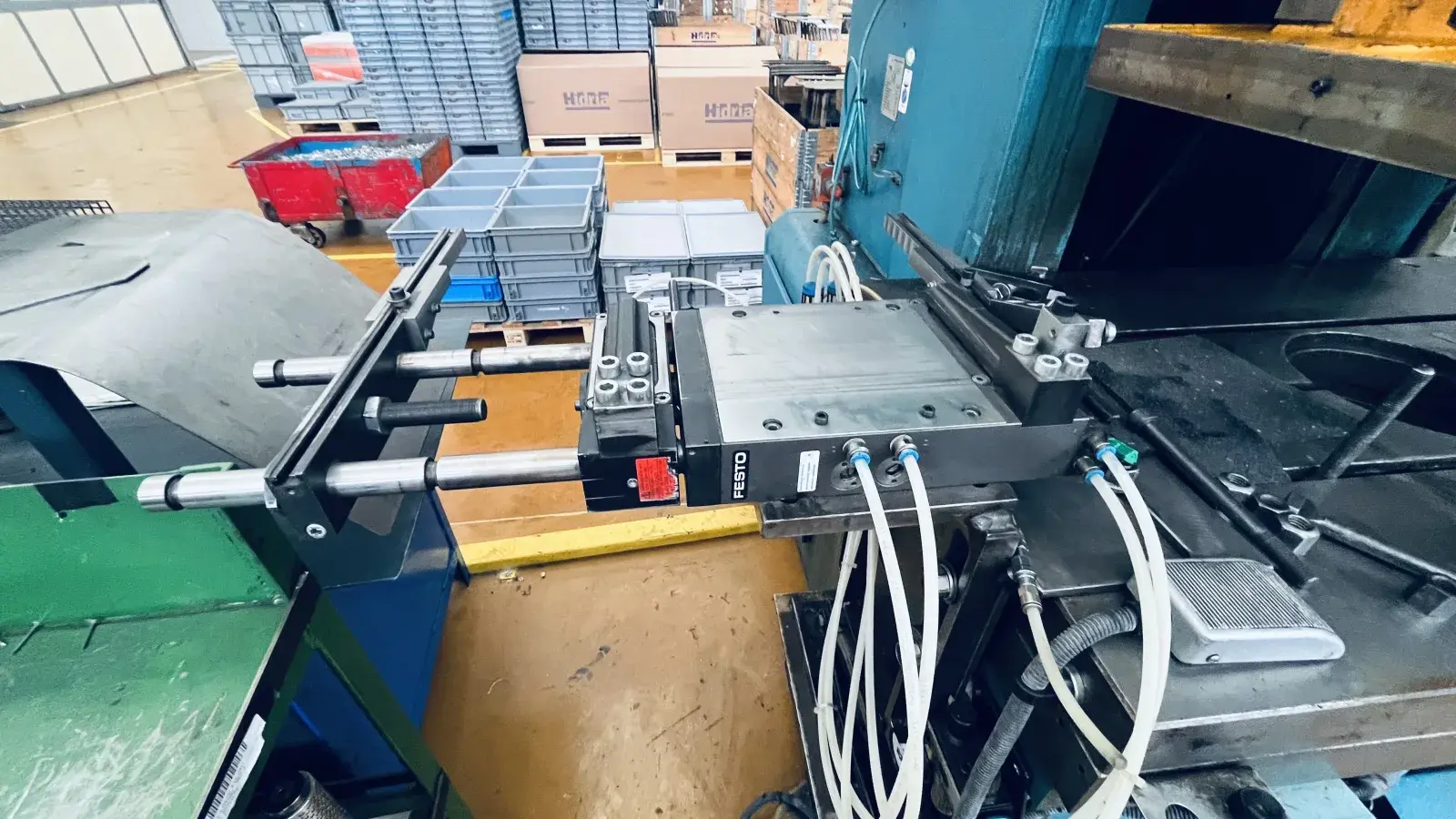

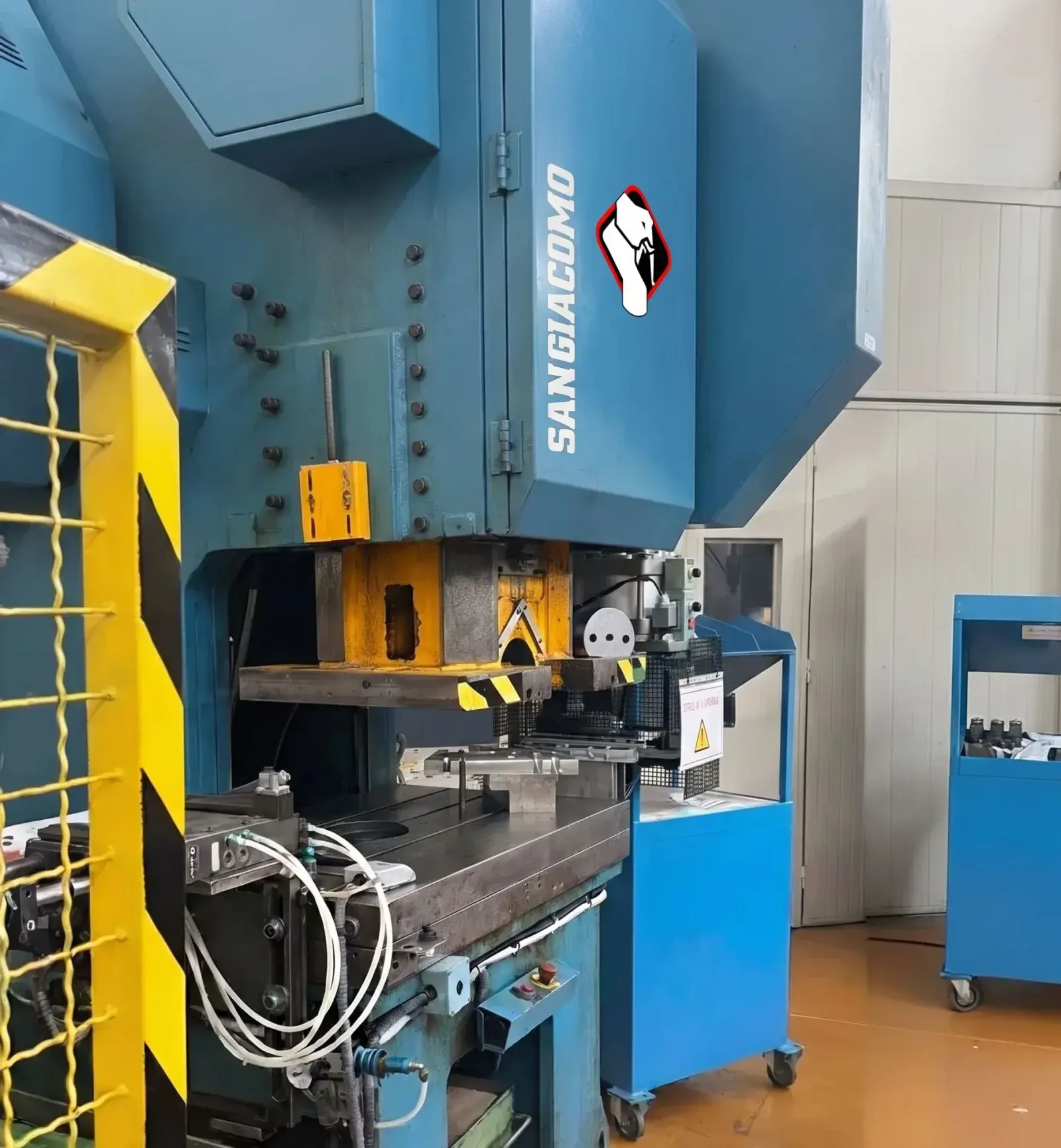

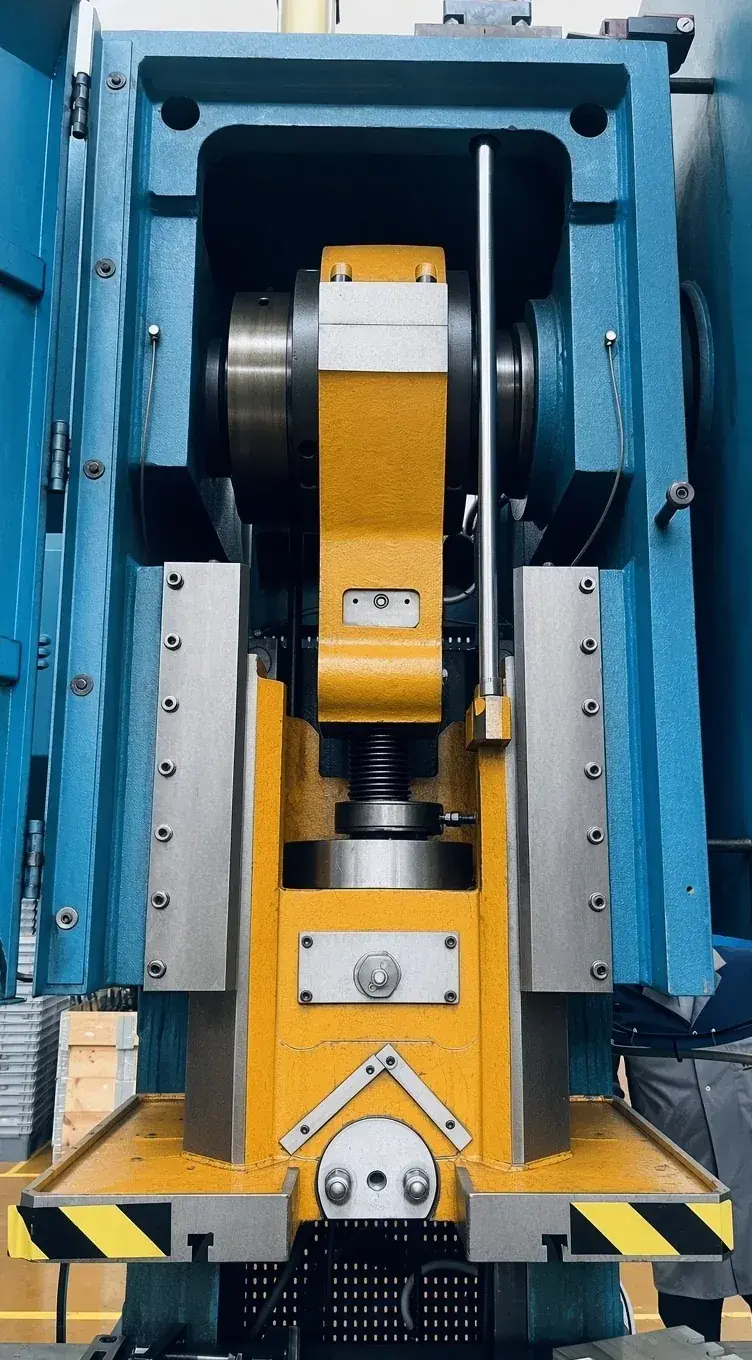

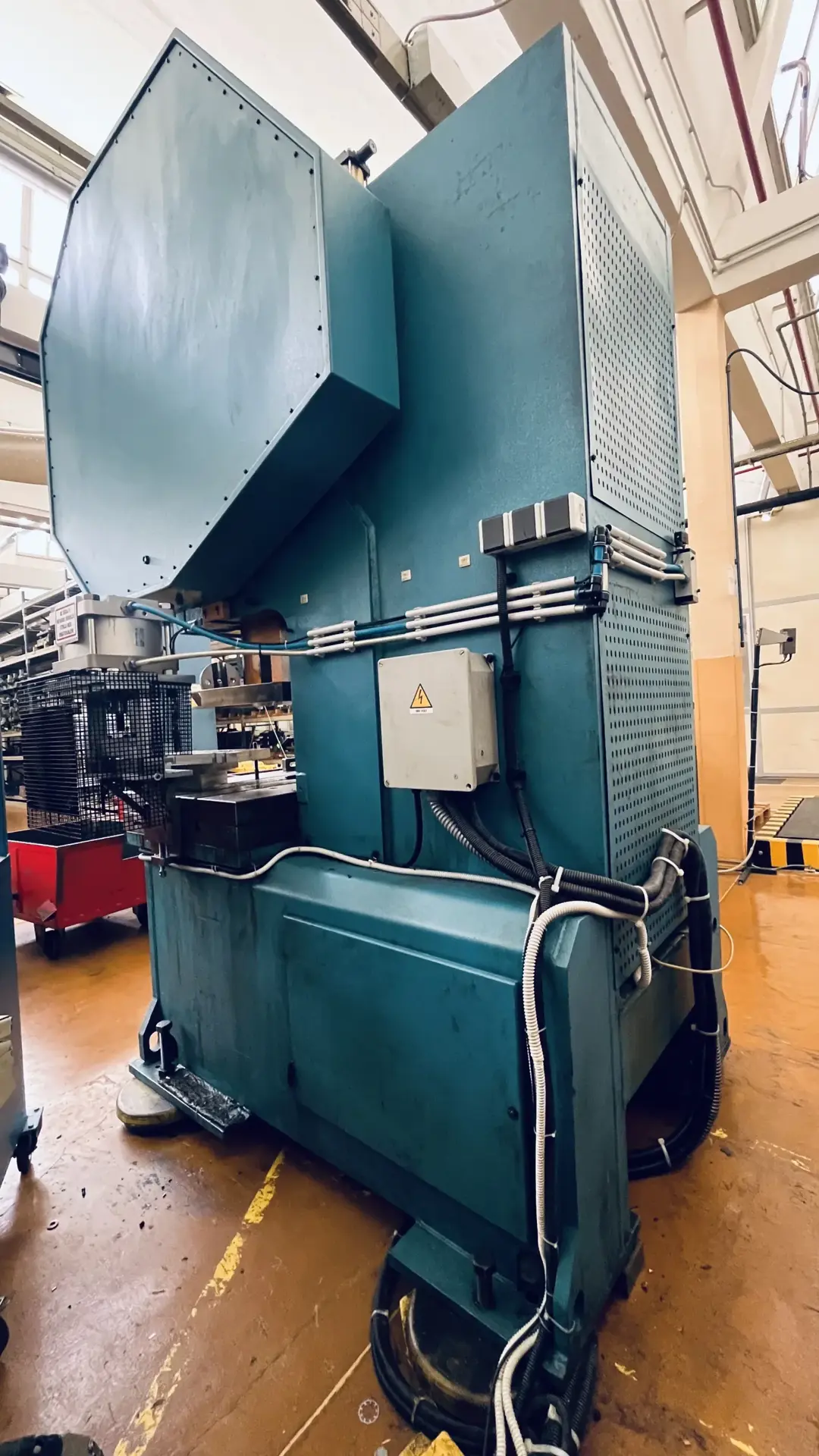

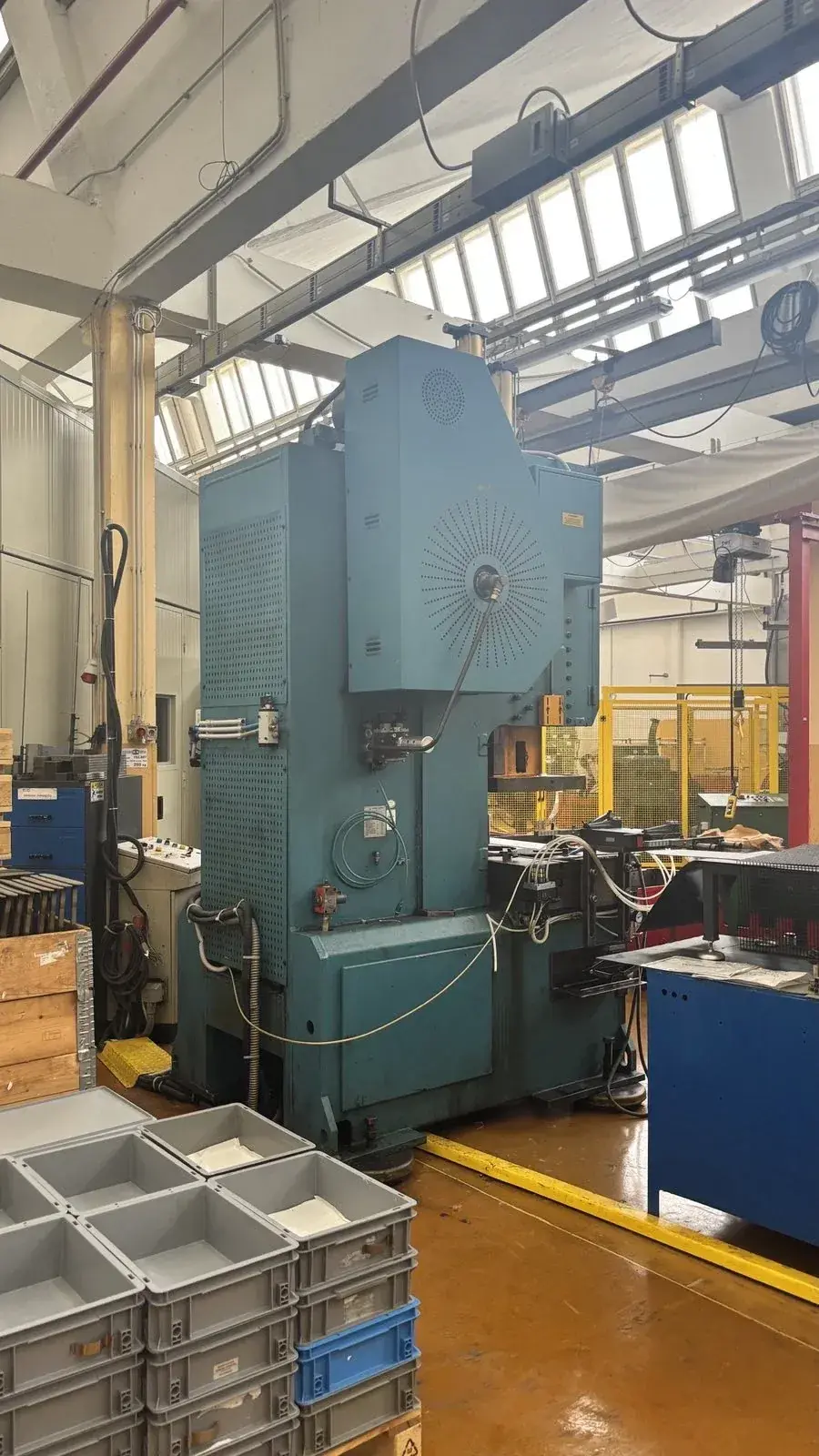

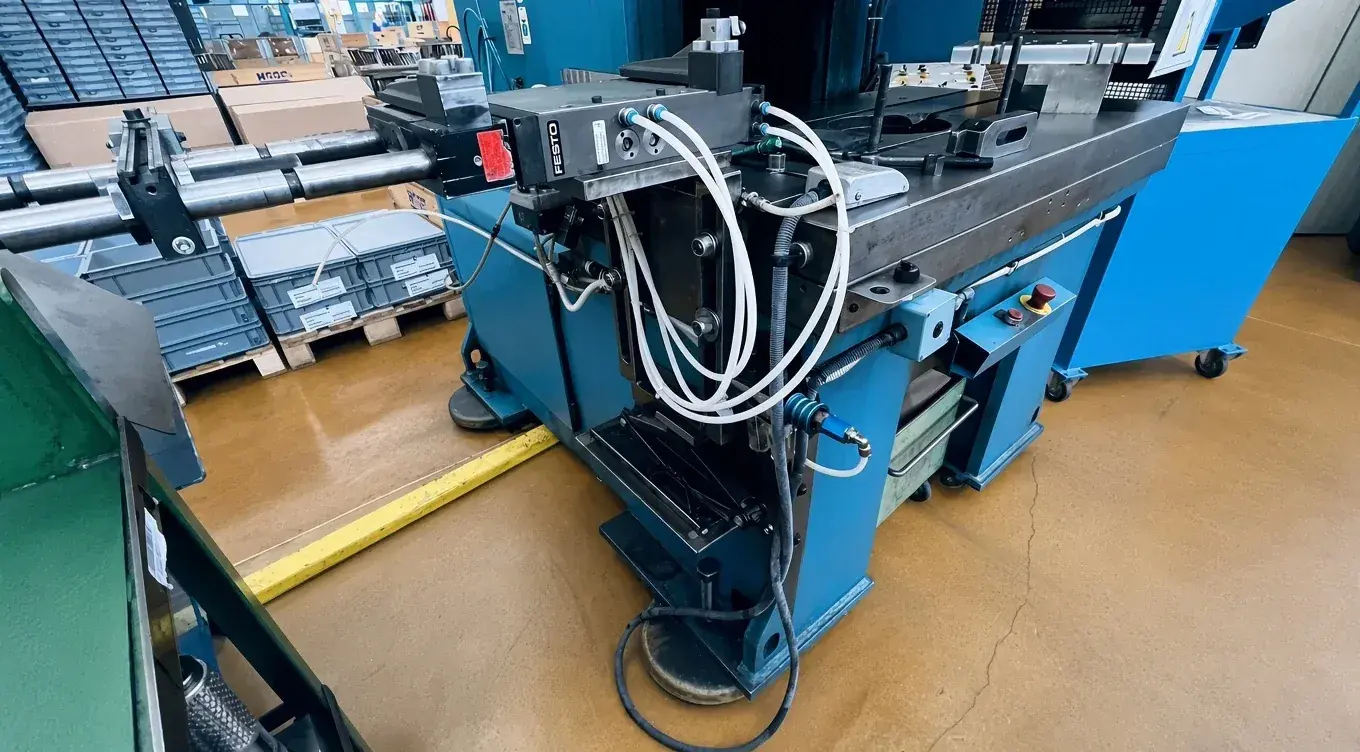

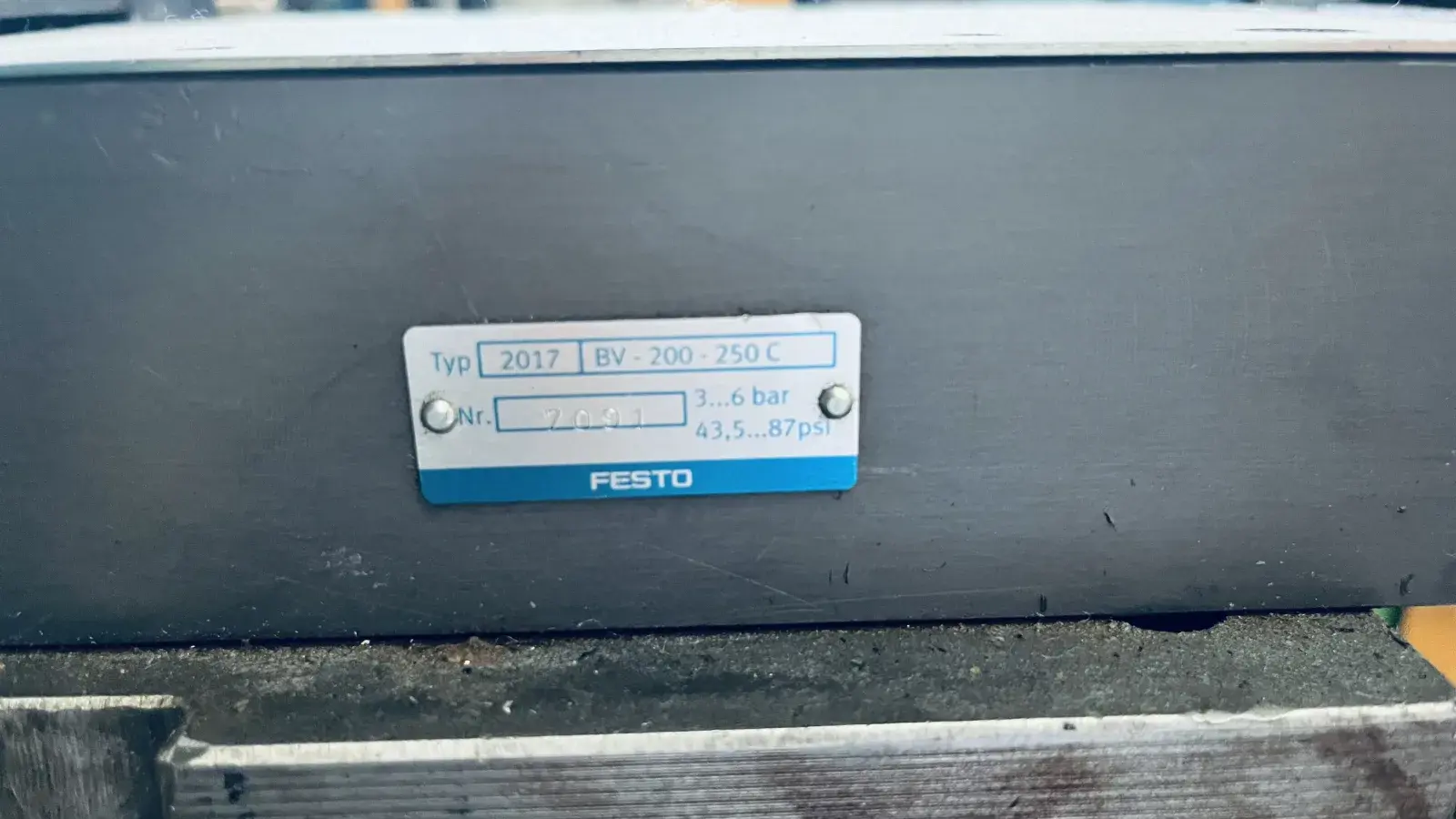

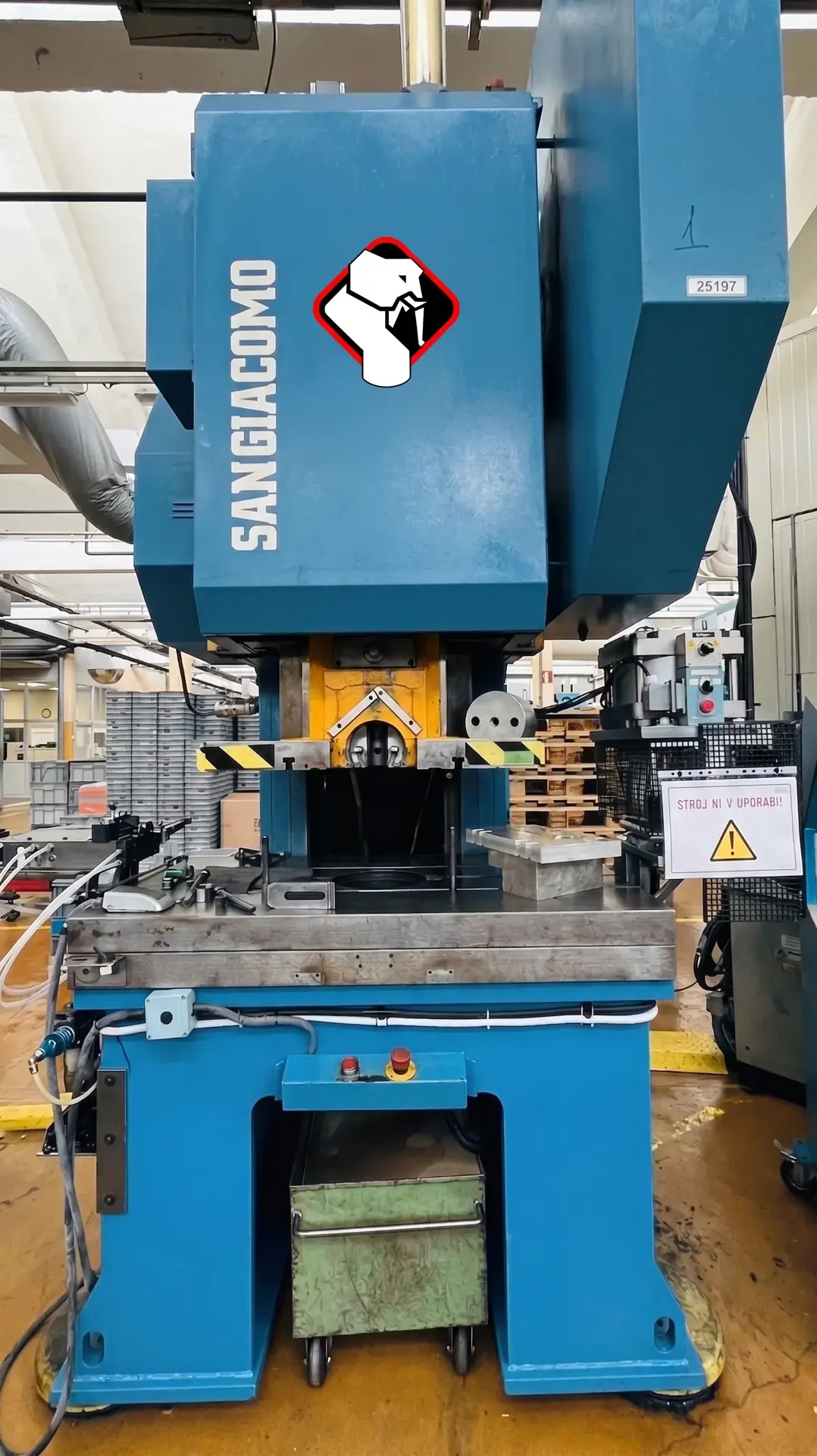

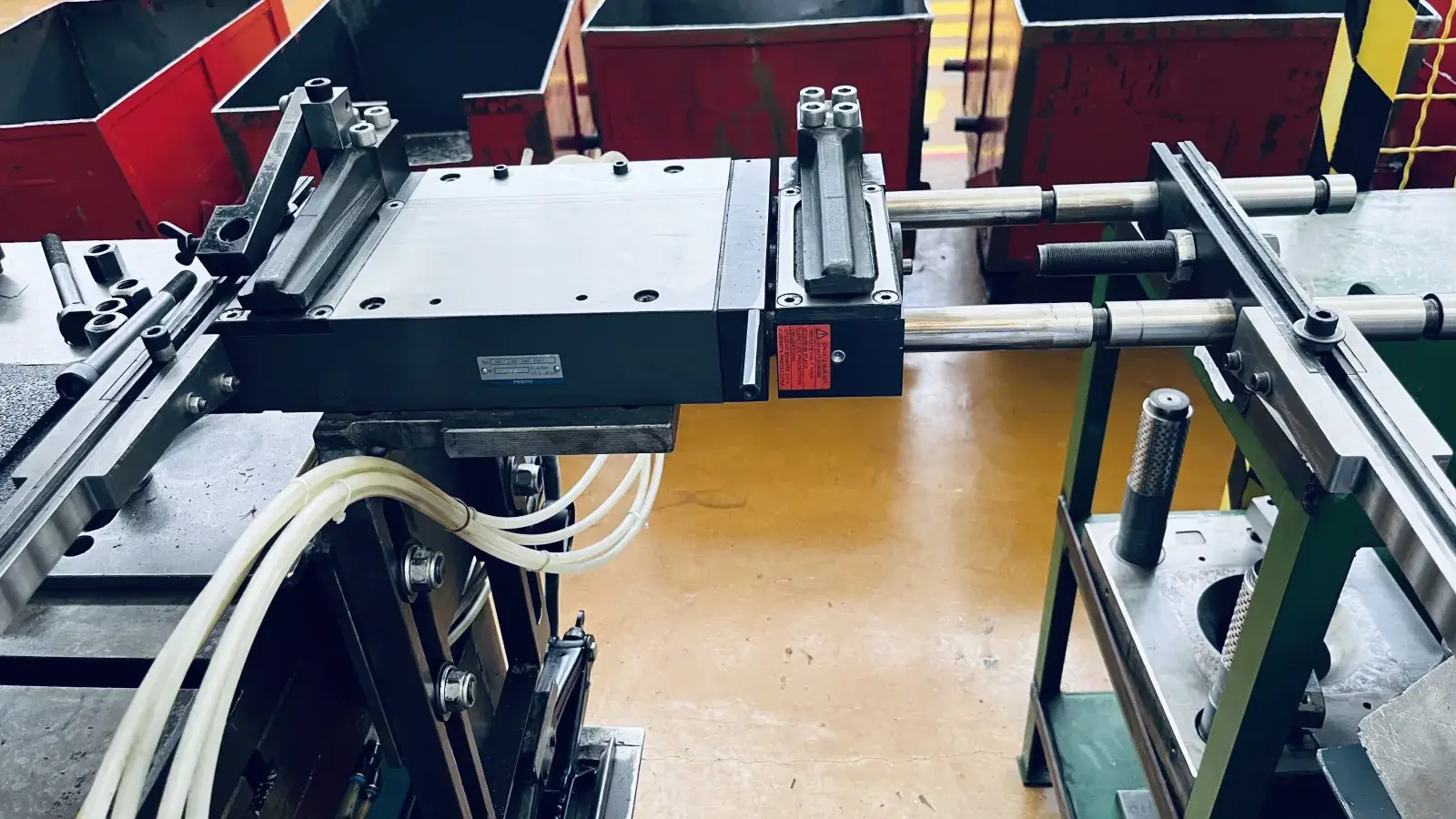

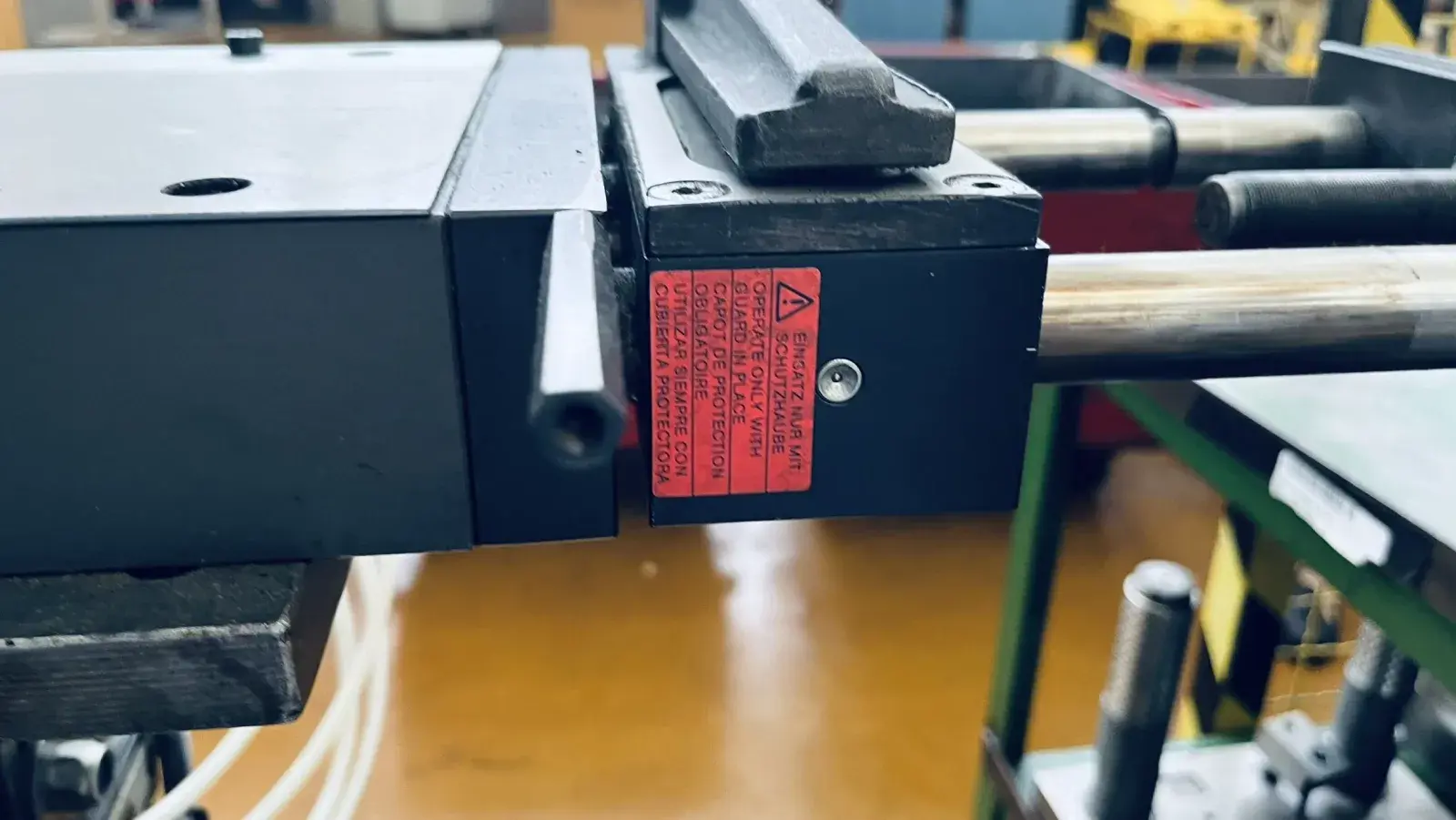

SANGIACOMO T 130 RCE C-Frame Eccentric Press • 1996 • ID: 33025 Italian-built C-frame eccentric press by S. Giacomo srl, Vittorio Veneto. CE certified. Year of manufacture: 1996, serial no. 6759. Rated at 130 metric tons (1,300 kN nominal force) with adjustable stroke 14–200 mm and max 55 strokes/min. Supplied complete with a Festo BV-200-250-C pneumatic feed unit — a heavy-duty pneumatic clamp feeder with 200 mm width and 250 mm max feed length, operating on filtered compressed air at 3–6 bar. Suitable for strip/coil feeding in progressive die and blanking operations. Model: T 130R CE Serial: 6759 Year: 1996 Nominal force: 1,300 kN (130 t) Stroke (adjustable): 14–200 mm Stroke rate: 55 spm max Installed power: 9.25 kW Main voltage: 400 V Air pressure: 5.5–6 bar Weight: 10,000 kg CE certified: Yes Feeder – Festo BV-200-250-C Type: Pneumatic clamp feed unit Max feed length: 250 mm Max width: 200 mm Operating pressure: 3–6 bar
