Schaal SEP 80 SWV 3E

Machine Description

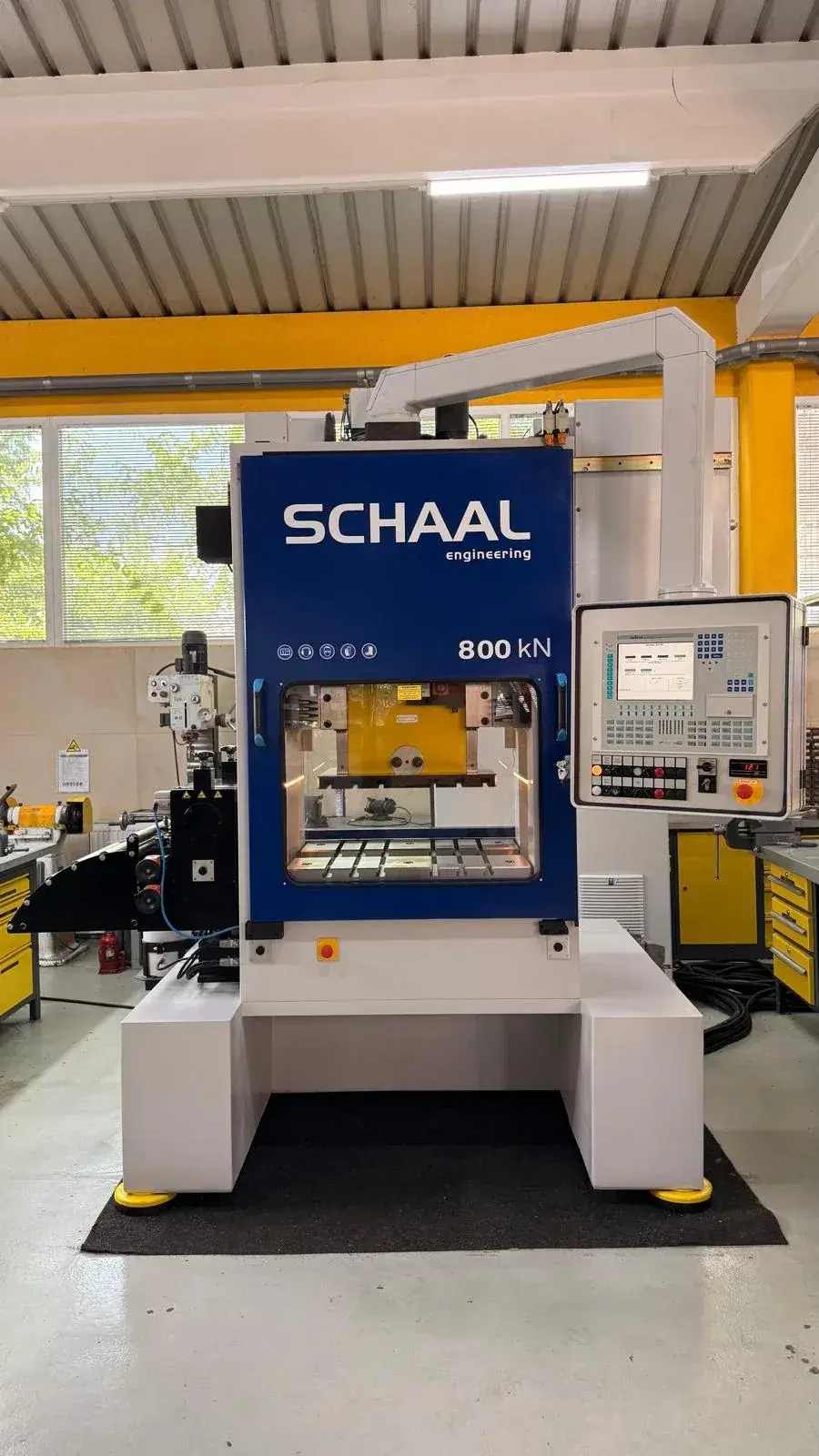

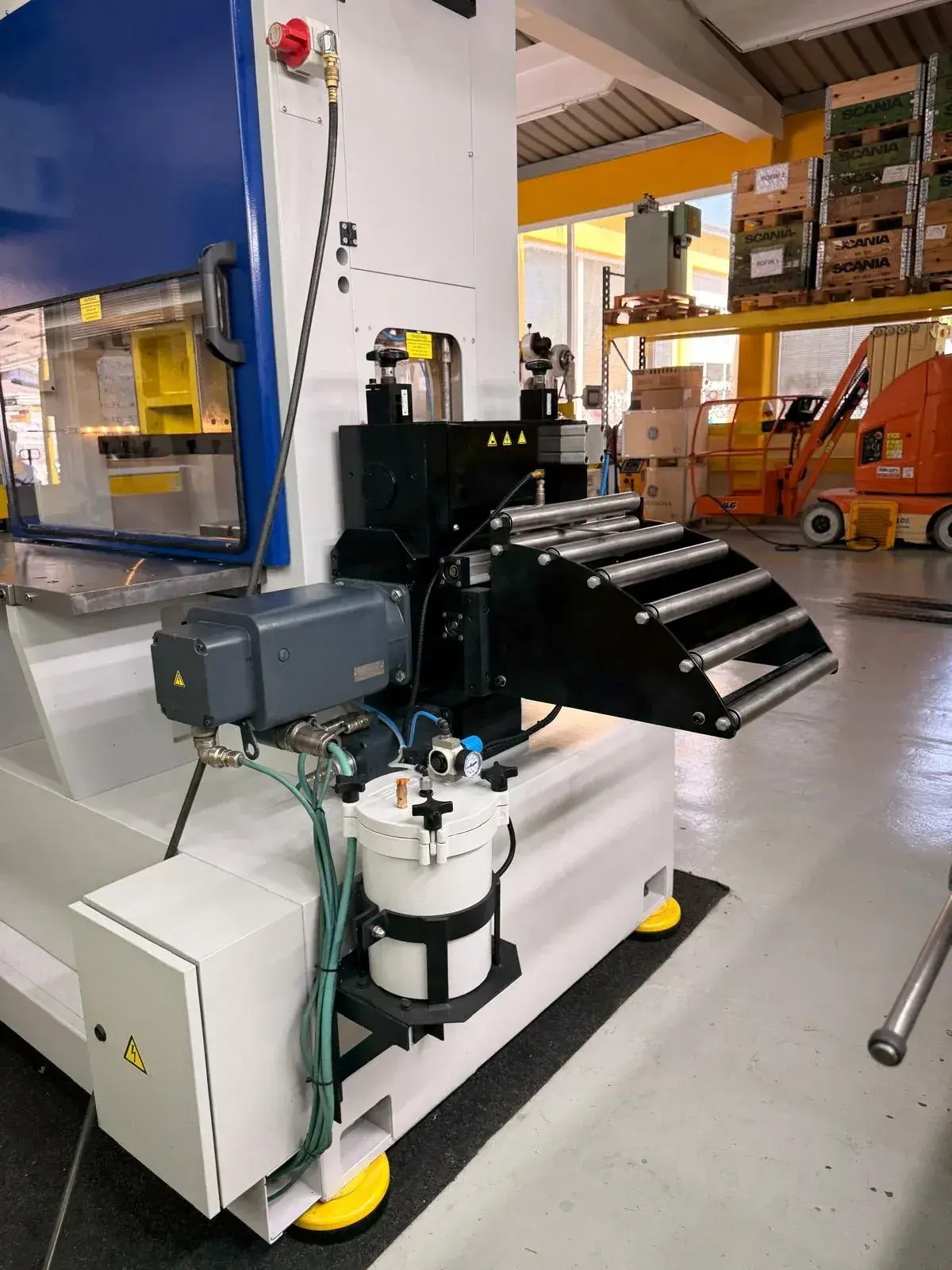

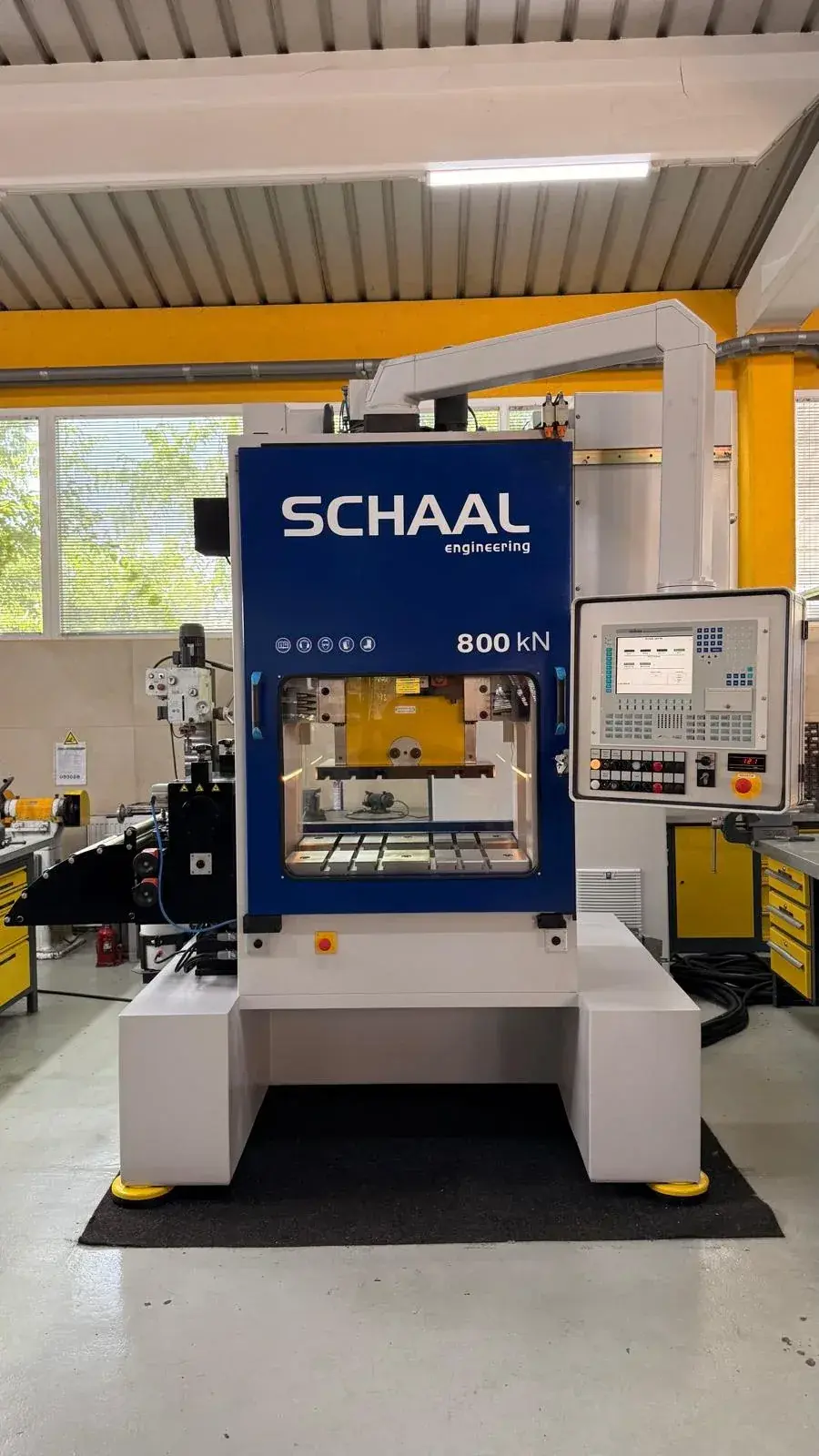

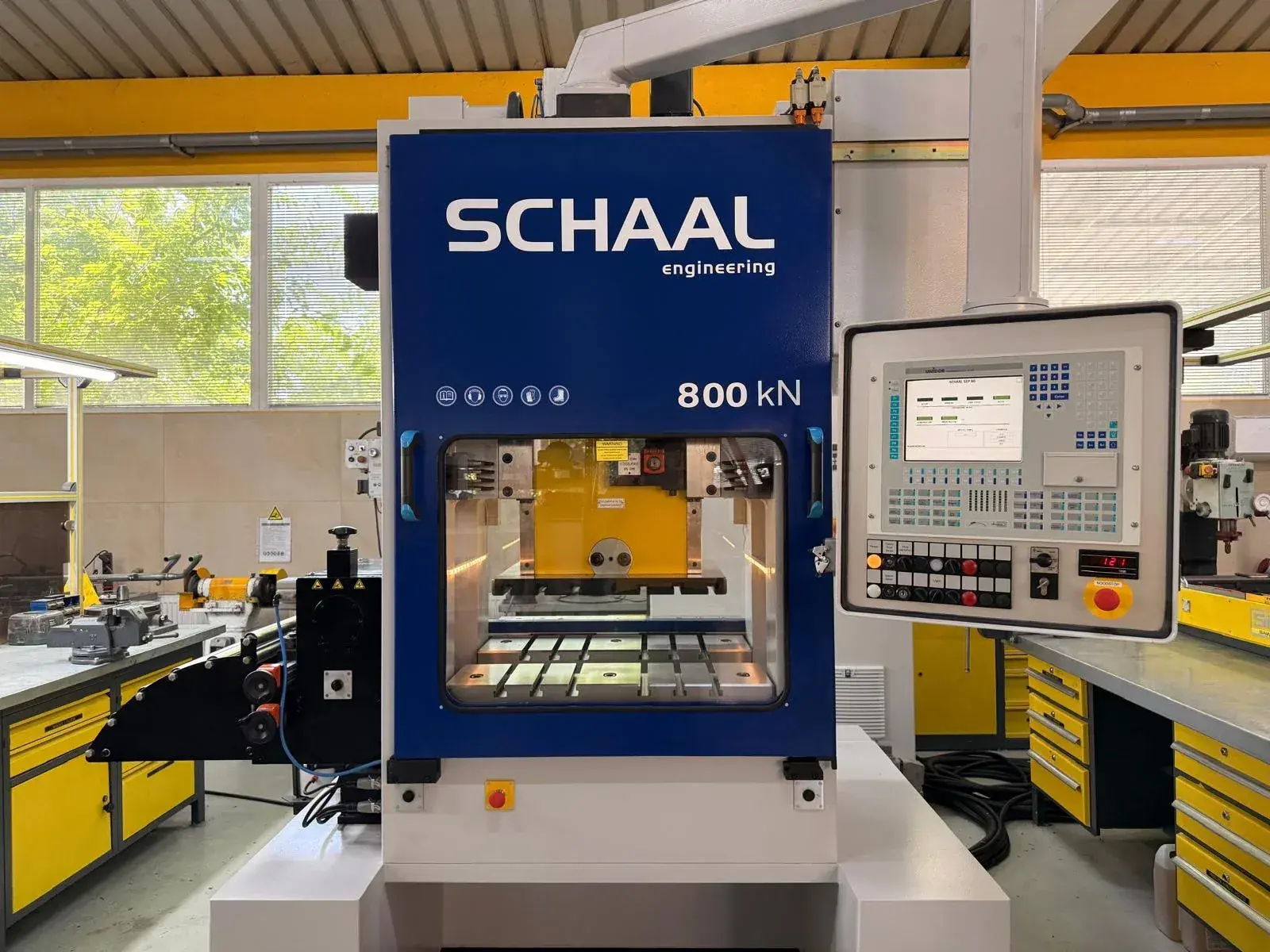

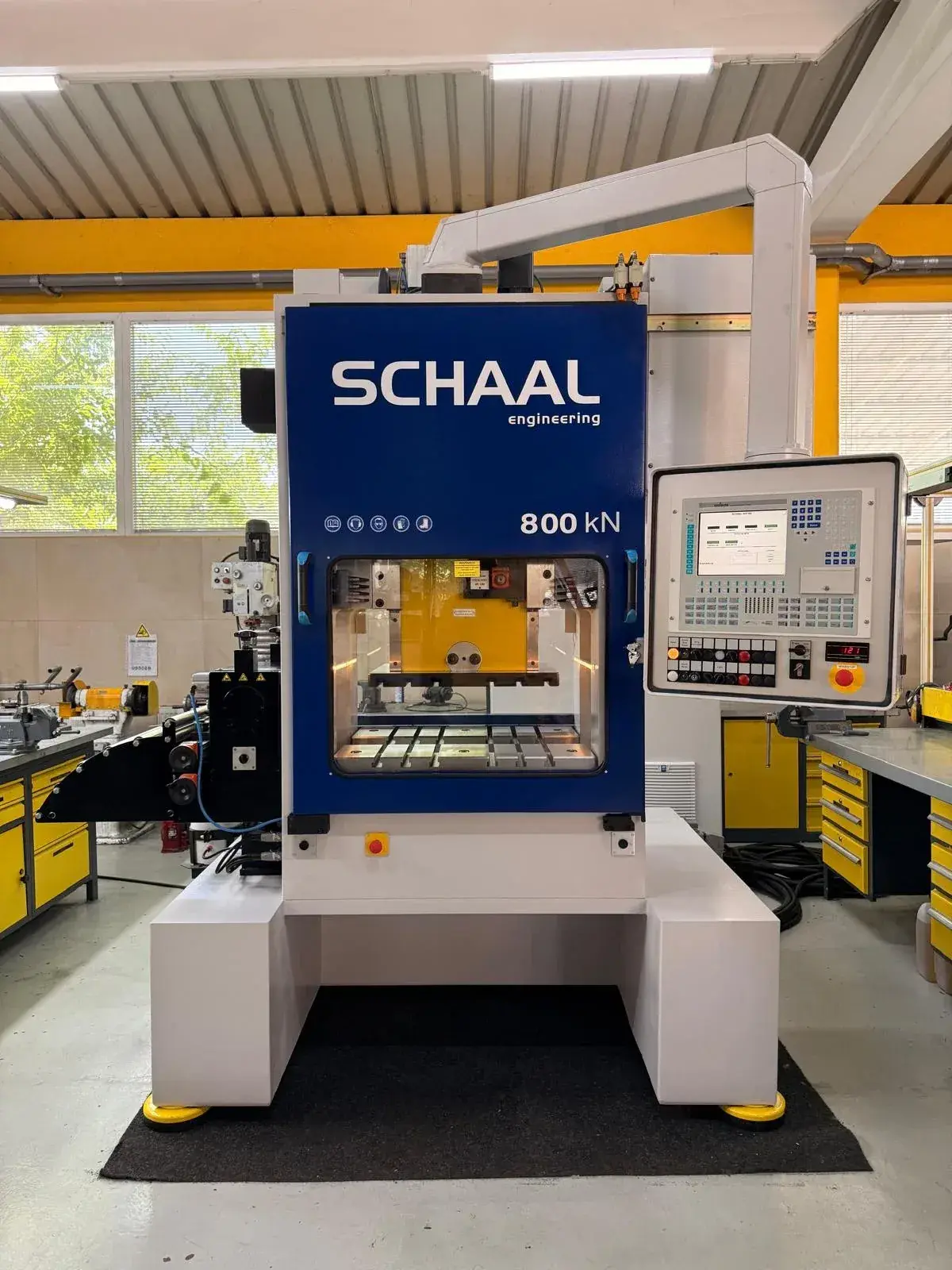

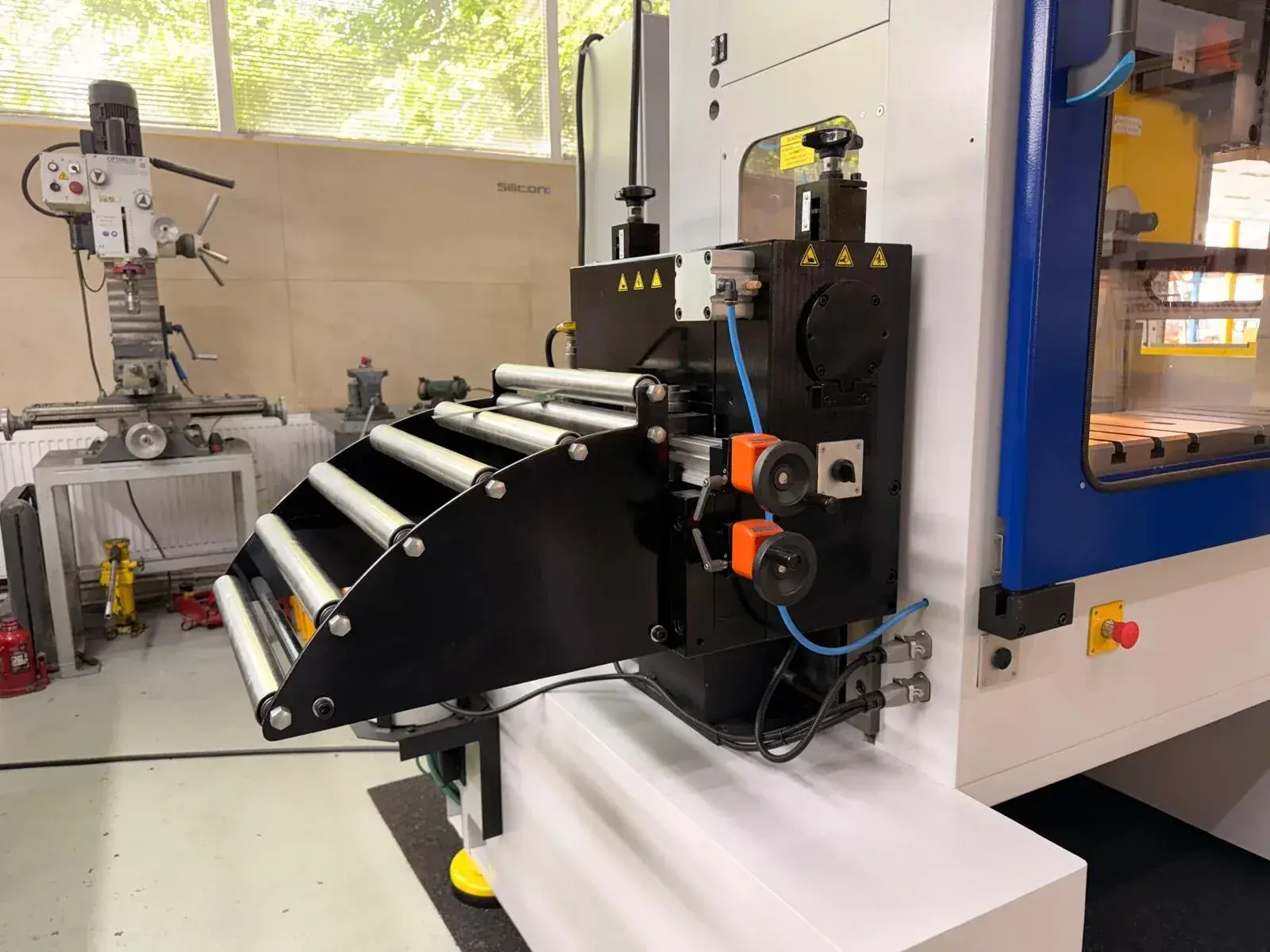

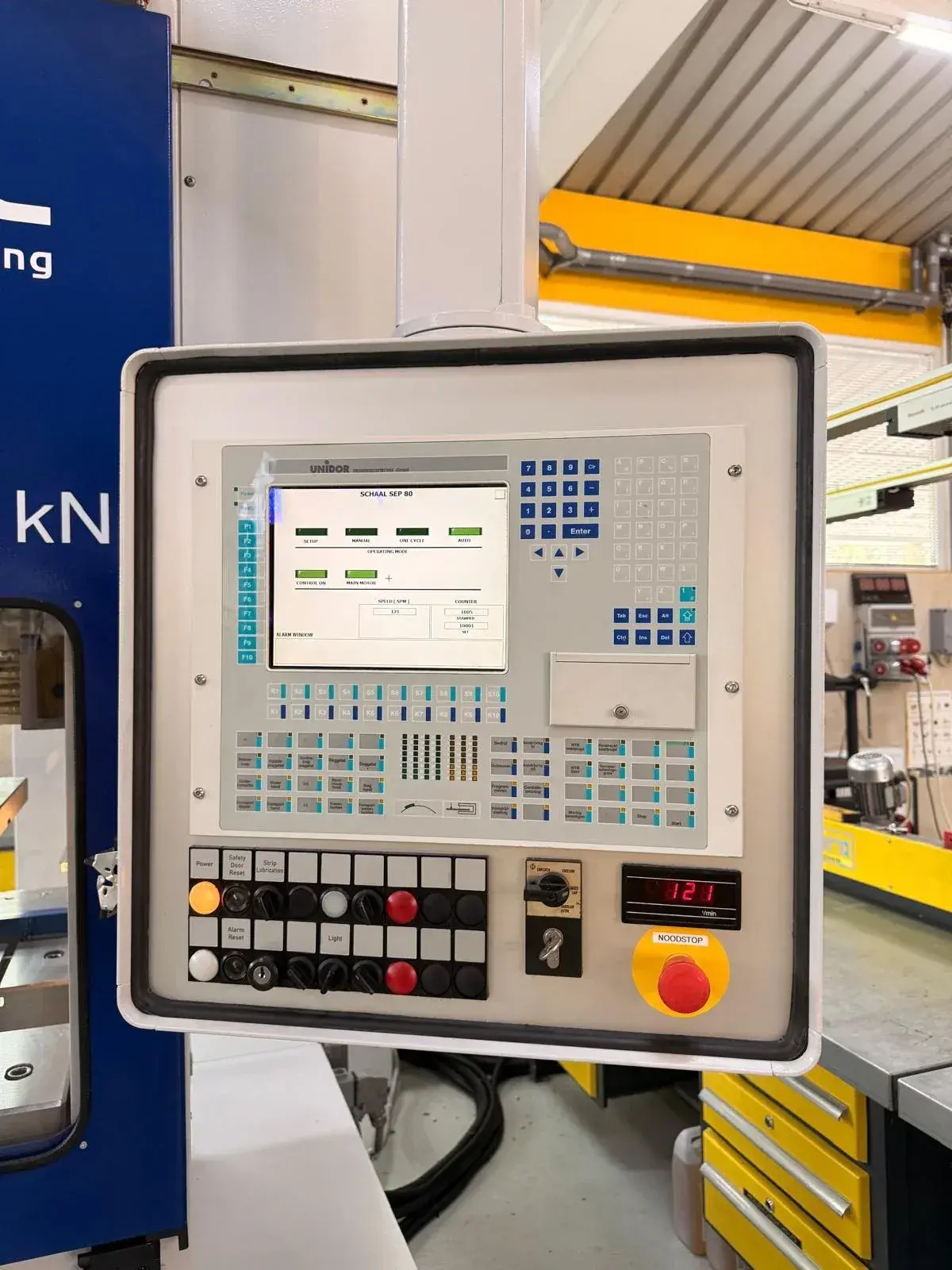

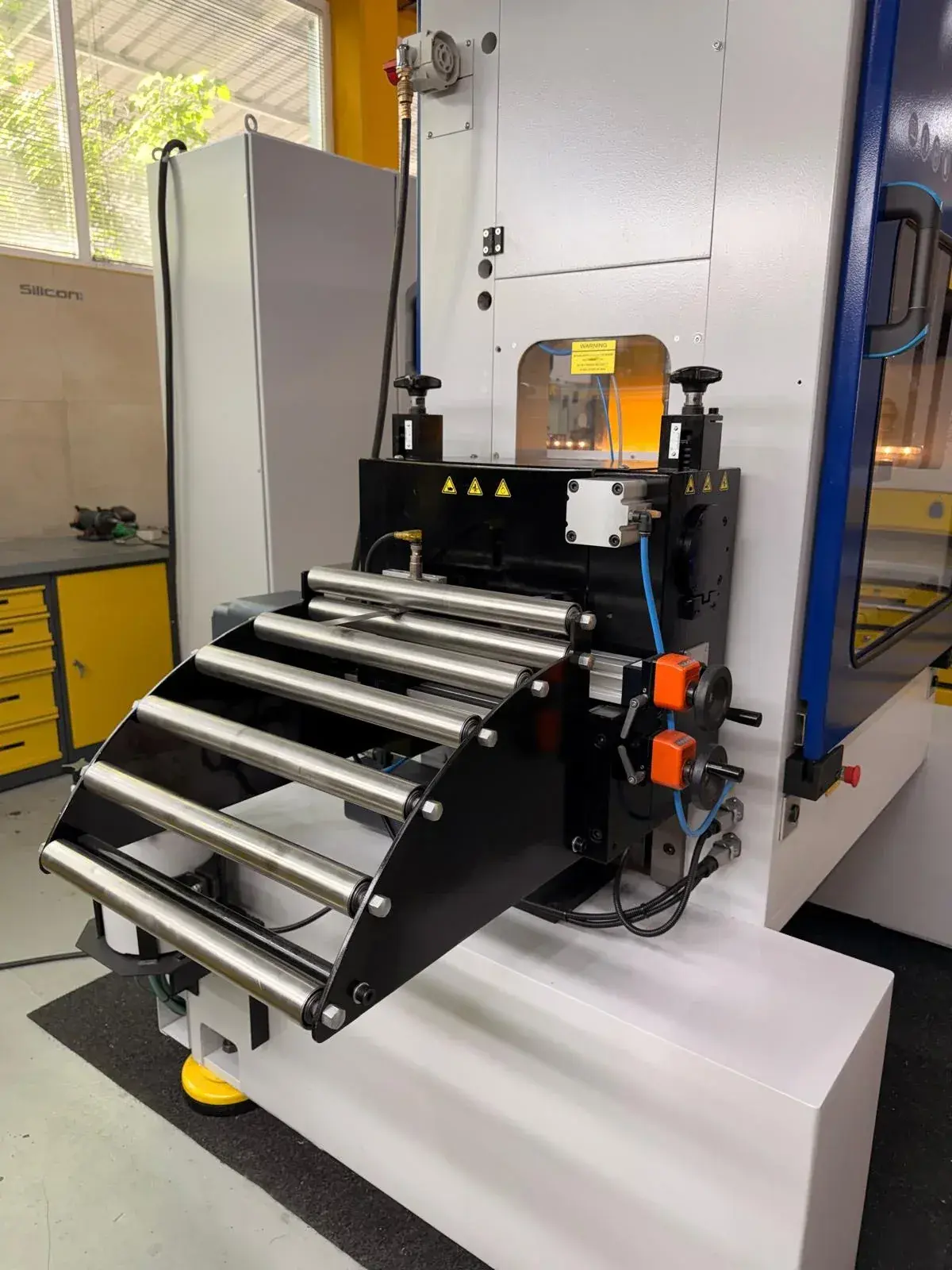

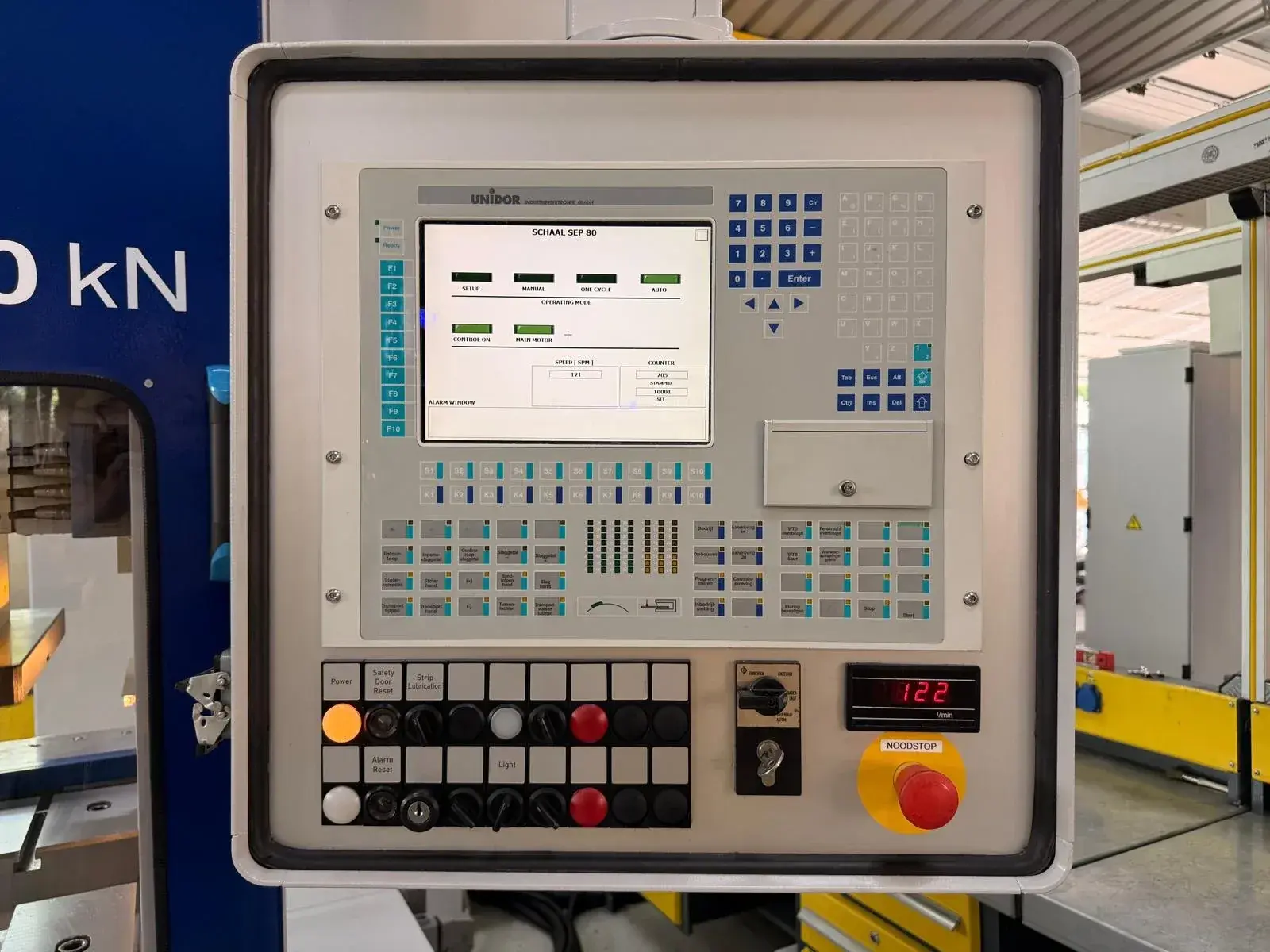

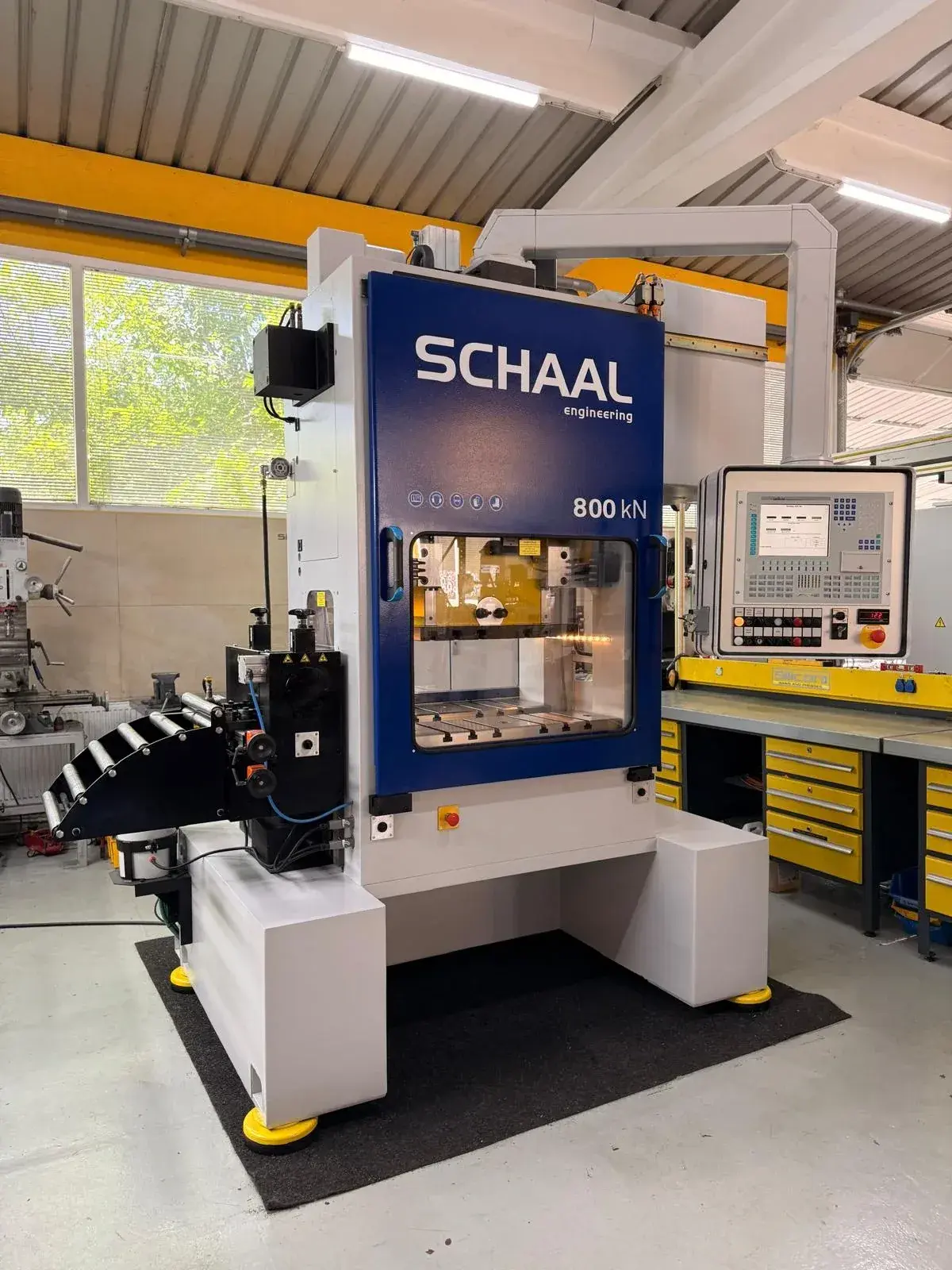

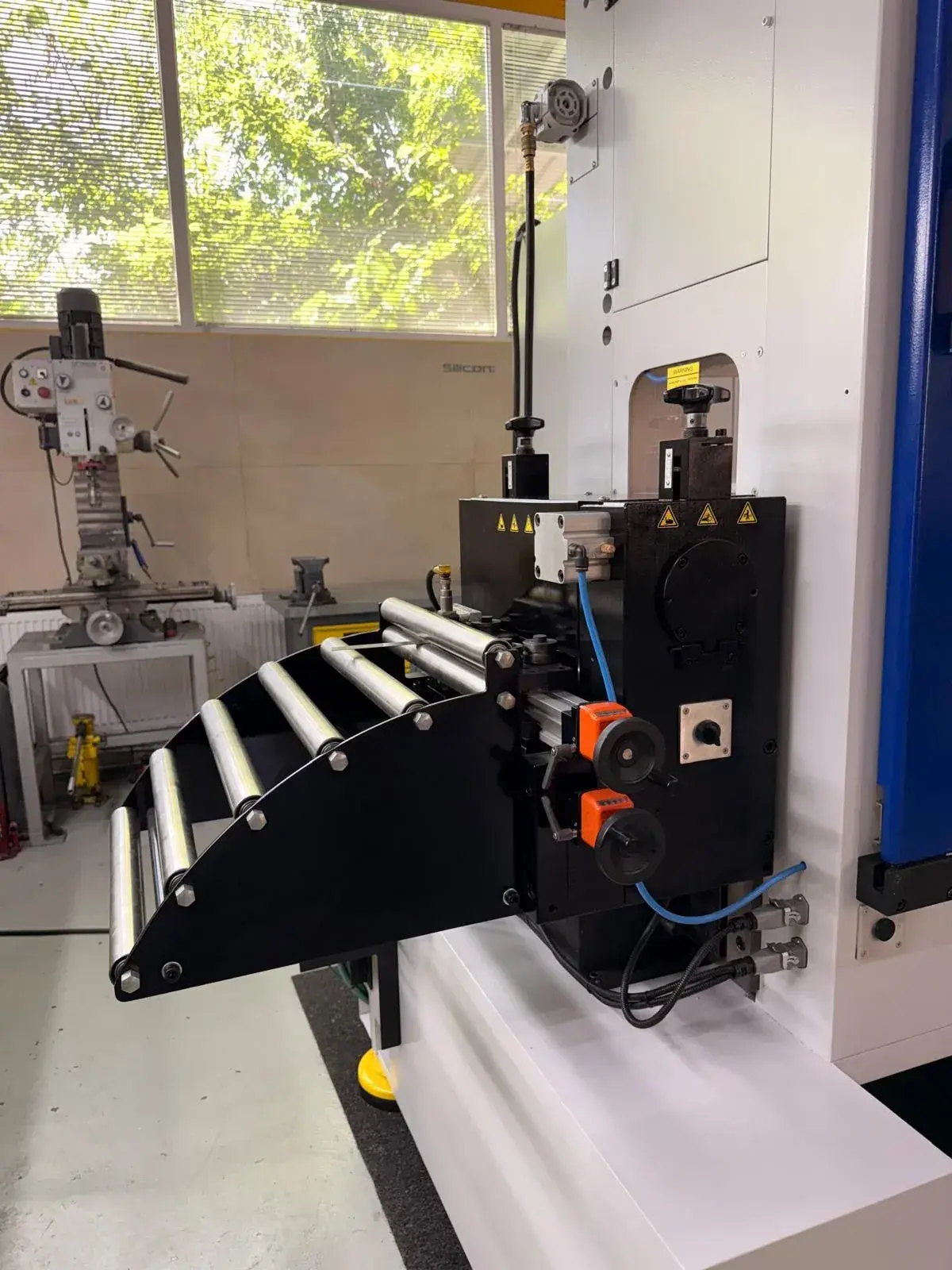

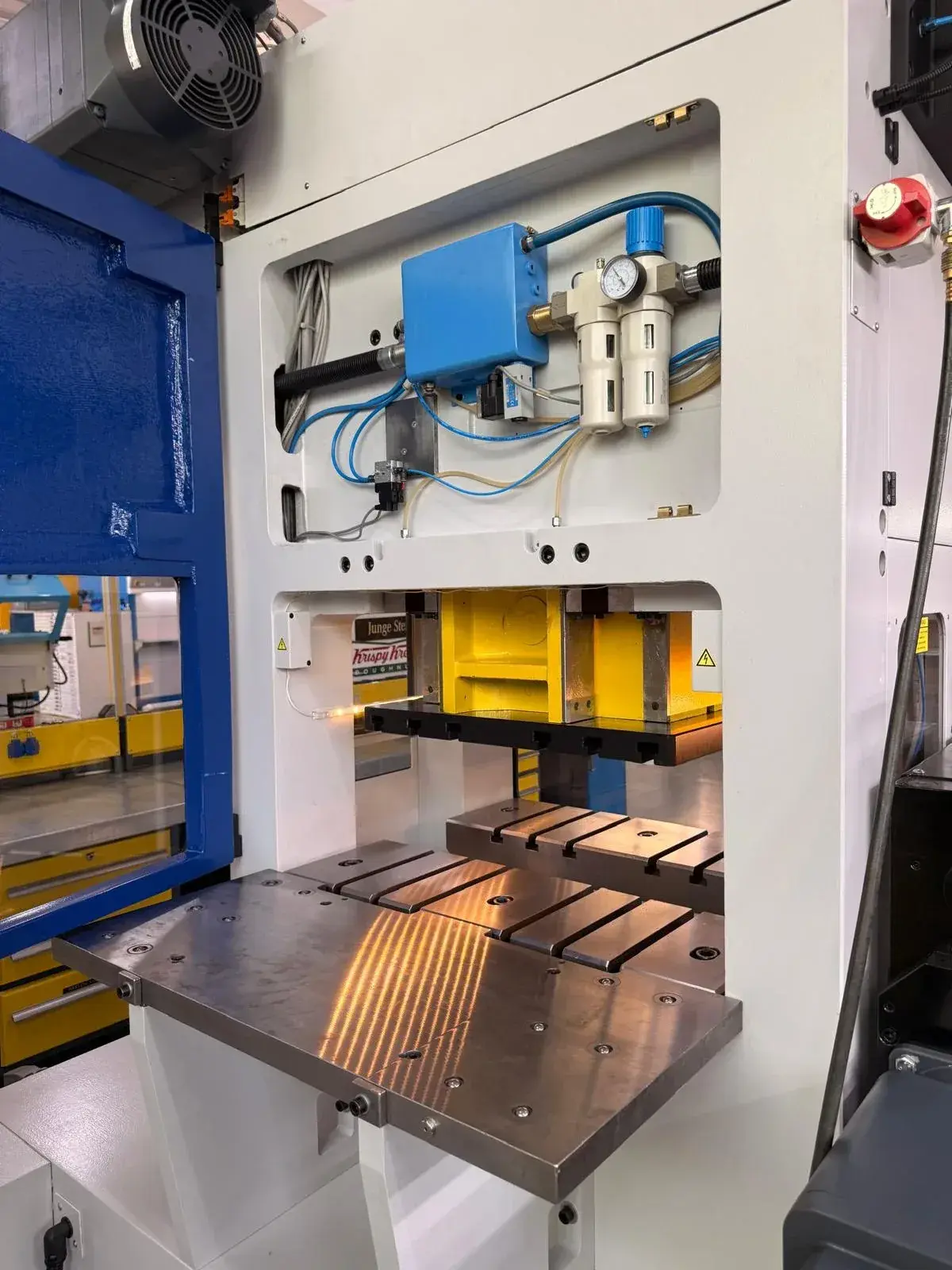

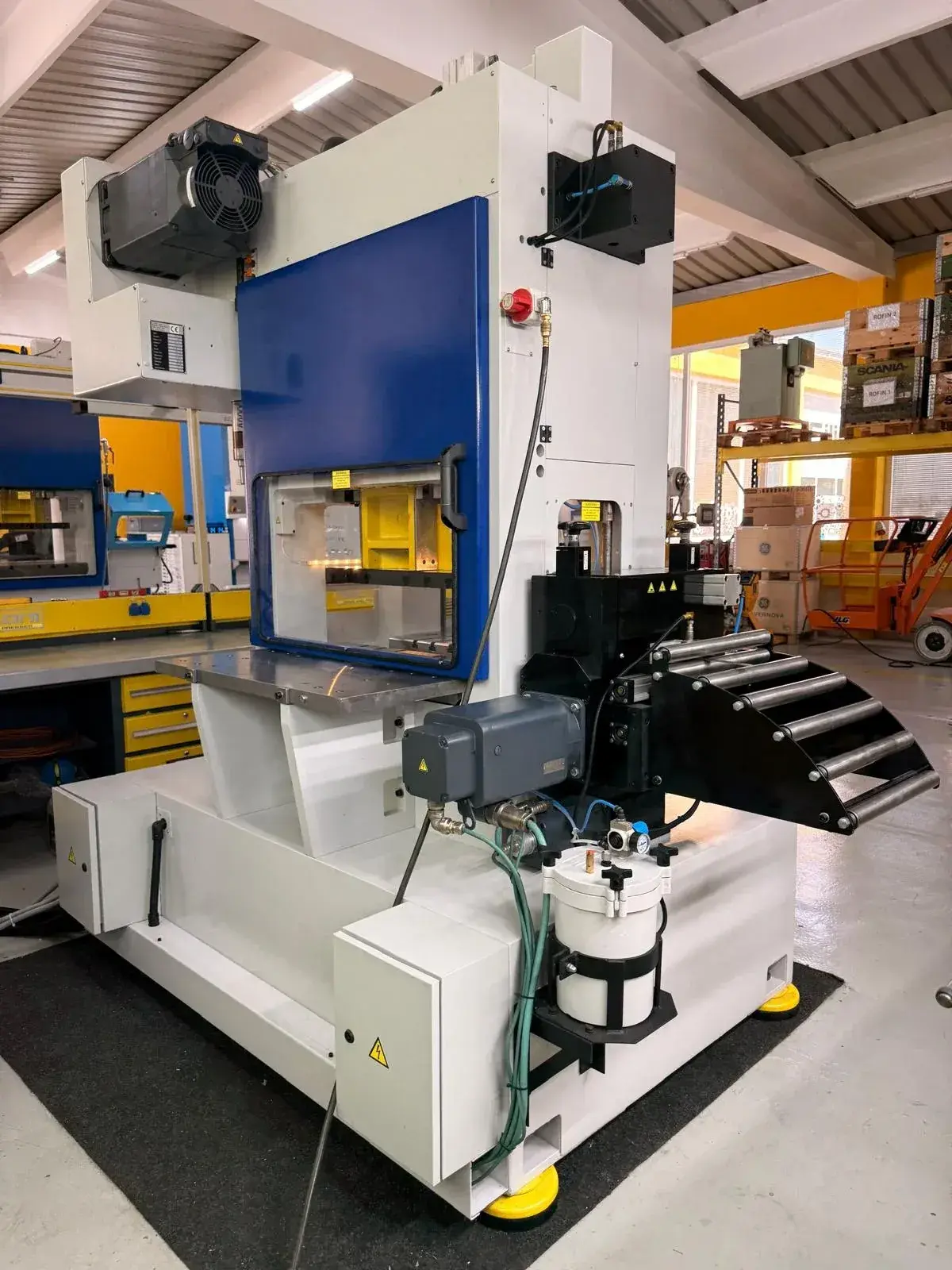

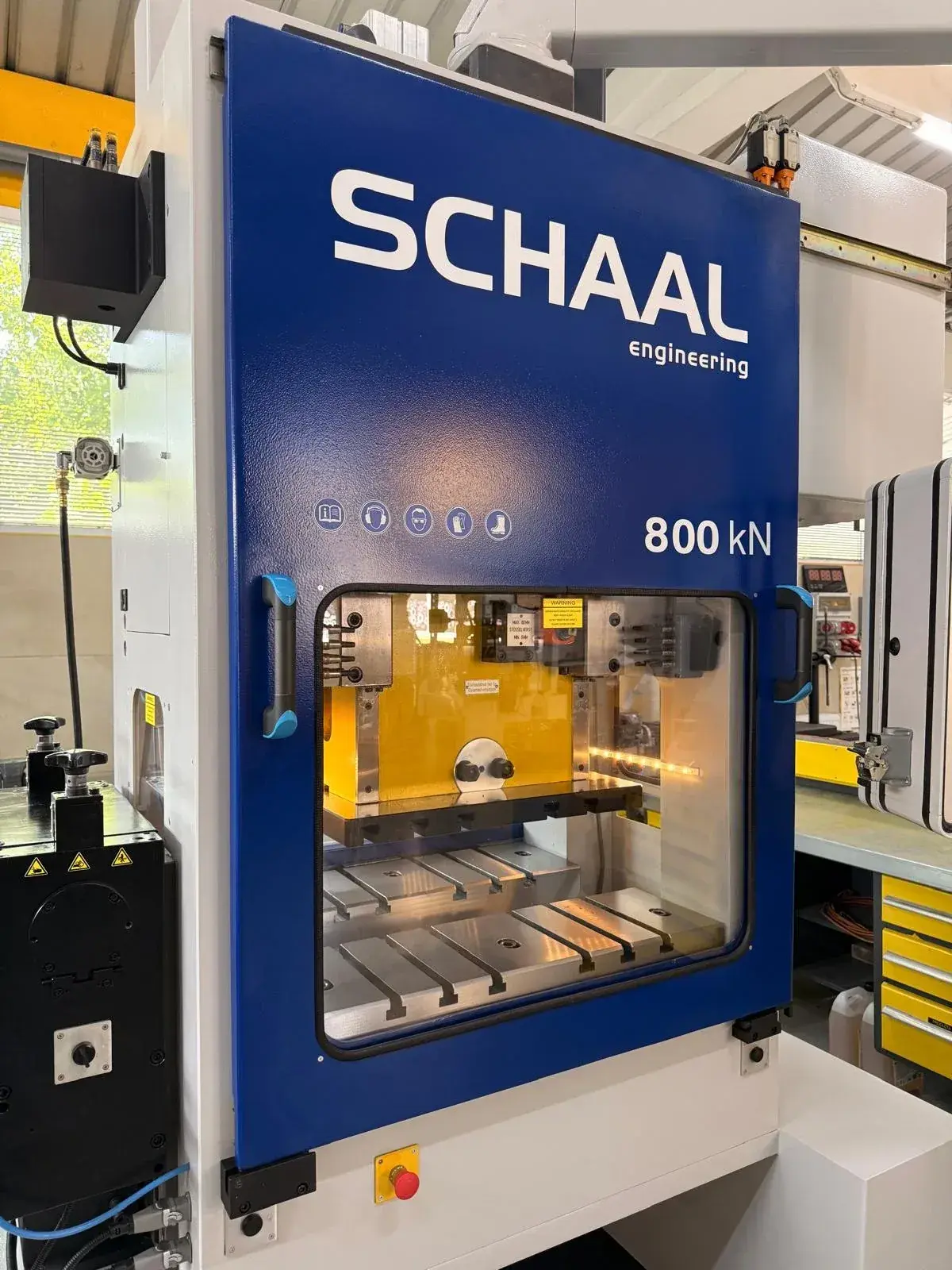

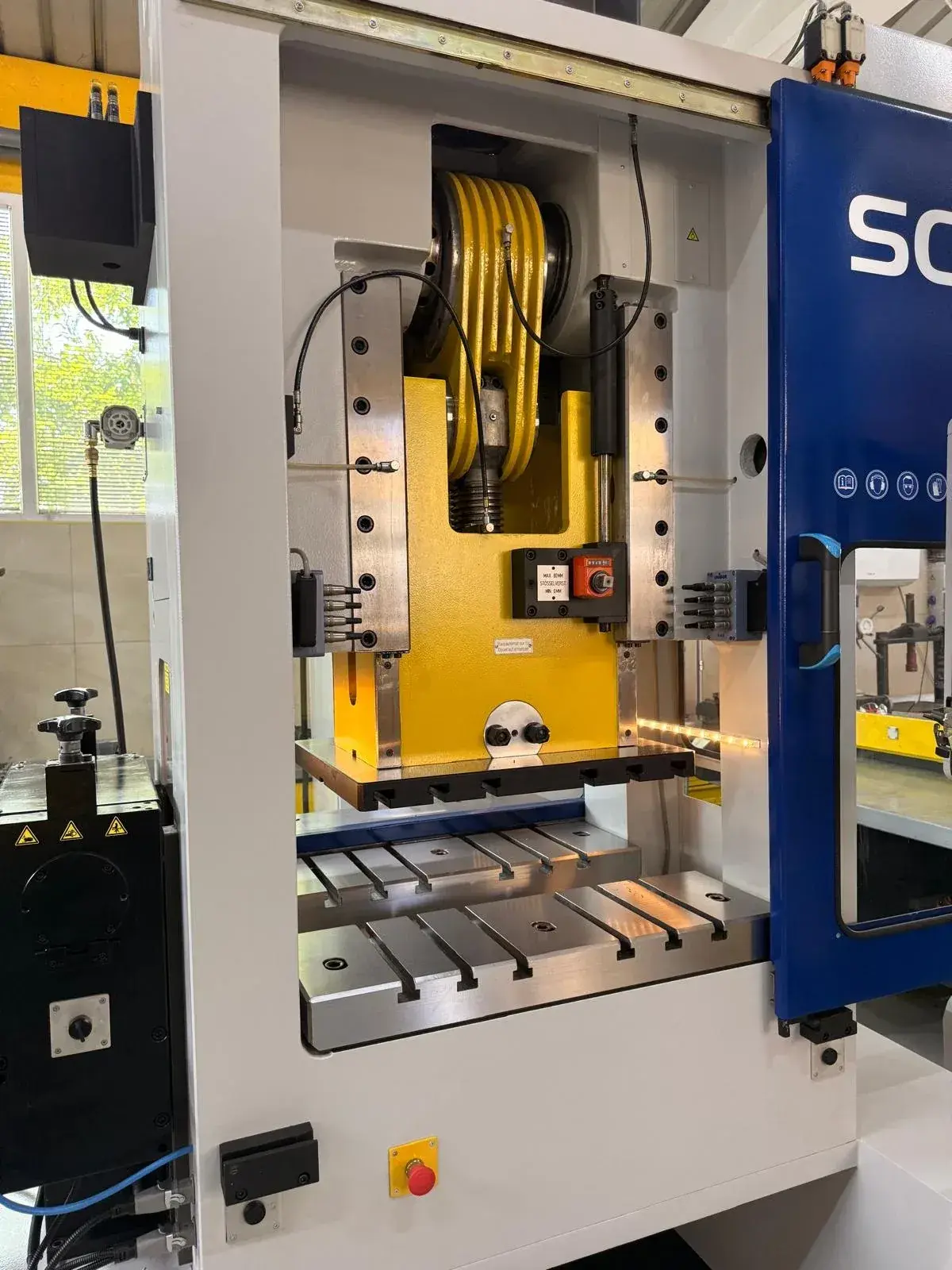

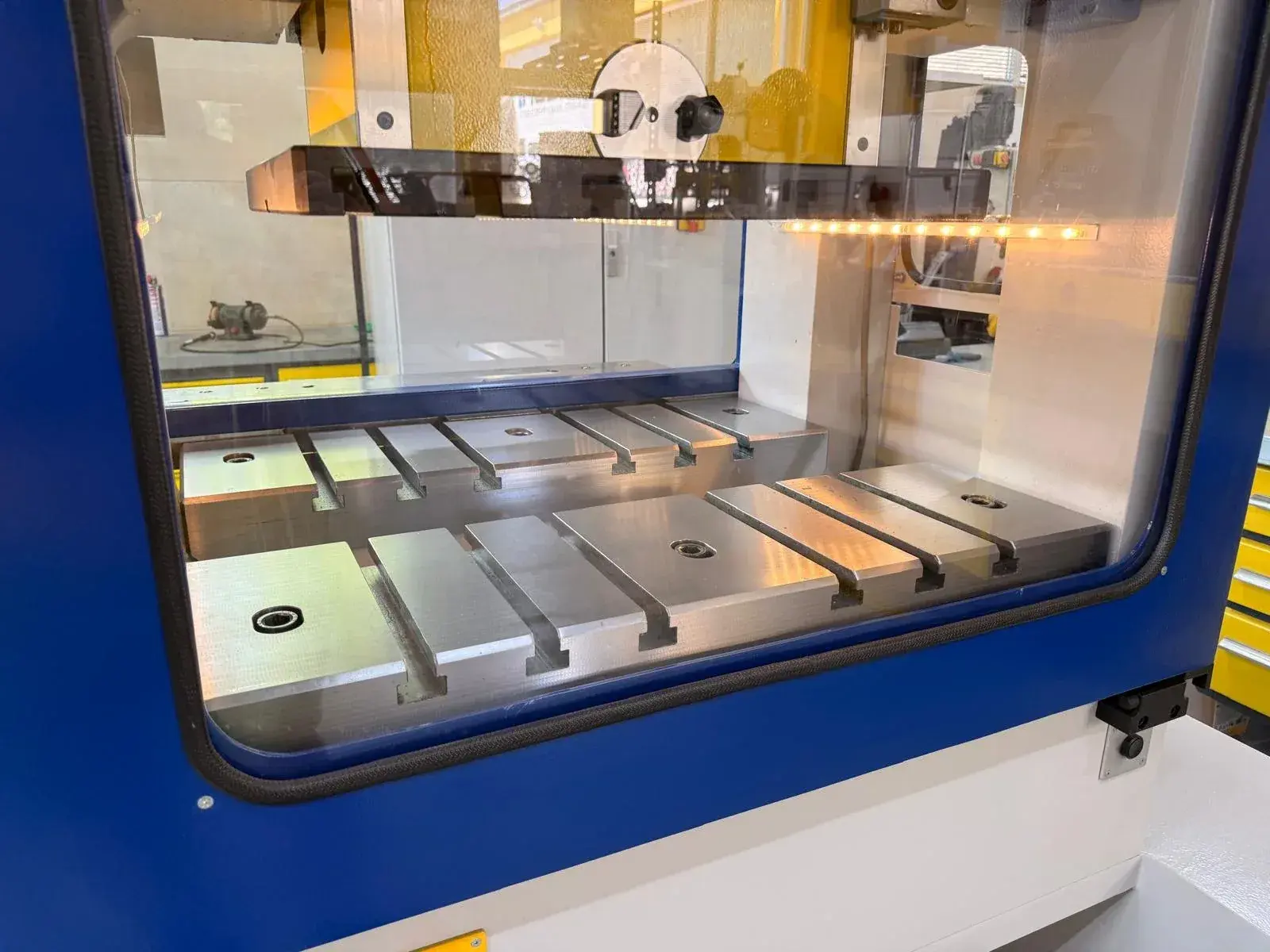

Schaal SEP 80 Ref. 34626 Automatic Stamping Press • 2000 • ID: 34626 A press of this size is normally bought for one reason: part quality that does not drift across a shift. The O-form double-column cast frame here is vibration-damped, which is what holds tolerances through long progressive die and fine-blanking runs. The machine was built in 2000 under machine number 00-1564 and carries CE marking. Main figures: press force 800 kN, 60 – 320 SPM, adjustable stroke 8-80 mm, ram adjustment 80 mm, ram dimensions 500 × 400 mm over a table of 830 × 700 mm, bolster plate 80 mm thick. Installed power is 26 kW from a 3 × 400 V, 50 Hz supply, and the press weighs 8,000 kg. Feeder: SCHAAL SWV 3E roll feeder, feed length 0-9,999.9 mm fully programmable, strip width up to 320 mm, strip thickness 0-4 mm. The complete specification, including ram bore, keyway and pass line, is set out in the table above. Schaal SEP 80, reference number 34626. Manufacturer A. Schaal GmbH & Co. Werkzeug- u. Maschinenbau Type SEP 80 Year of manufacture 2000 Machine number 00-1564 CE marking Yes Press force 800 kN Speed: 60 - 320 SPM Adjustable stroke 8–80 mm Distance table-to-ram (max, ram down, with bolster) 310 / 355 mm Ram adjustment 80 mm Ram dimensions 500 × 400 mm Ram bore Ø 50 × 90 mm Ram keyway 30 H7 mm Table size 830 × 700 mm Bolster plate thickness 80 mm Strip pass line over table (with bolster) 120 mm ± 40 mm Total installed power 26 kW Supply voltage 3 × 400 V, 50 Hz Rated current 40 A Pre-fuse 50 A Weight 8,000 kg Feeder SCHAAL SWV 3E roll feeder Feed length: 0–9,999.9 mm (fully programmable) Strip width: up to 320 mm Strip thickness: 0–4 mm
