Bruderer BSTA 50 UL High Speed Press

Machine Description

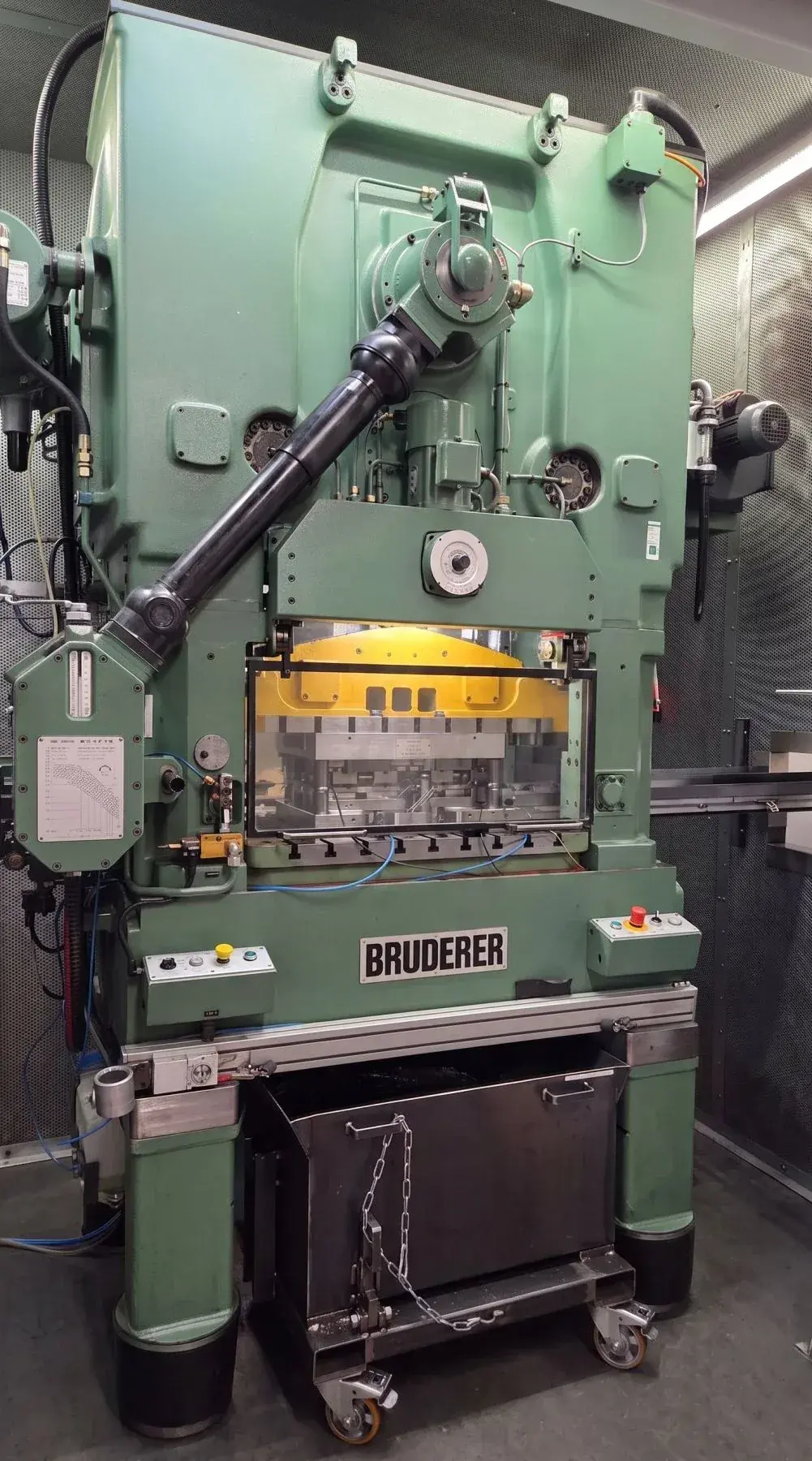

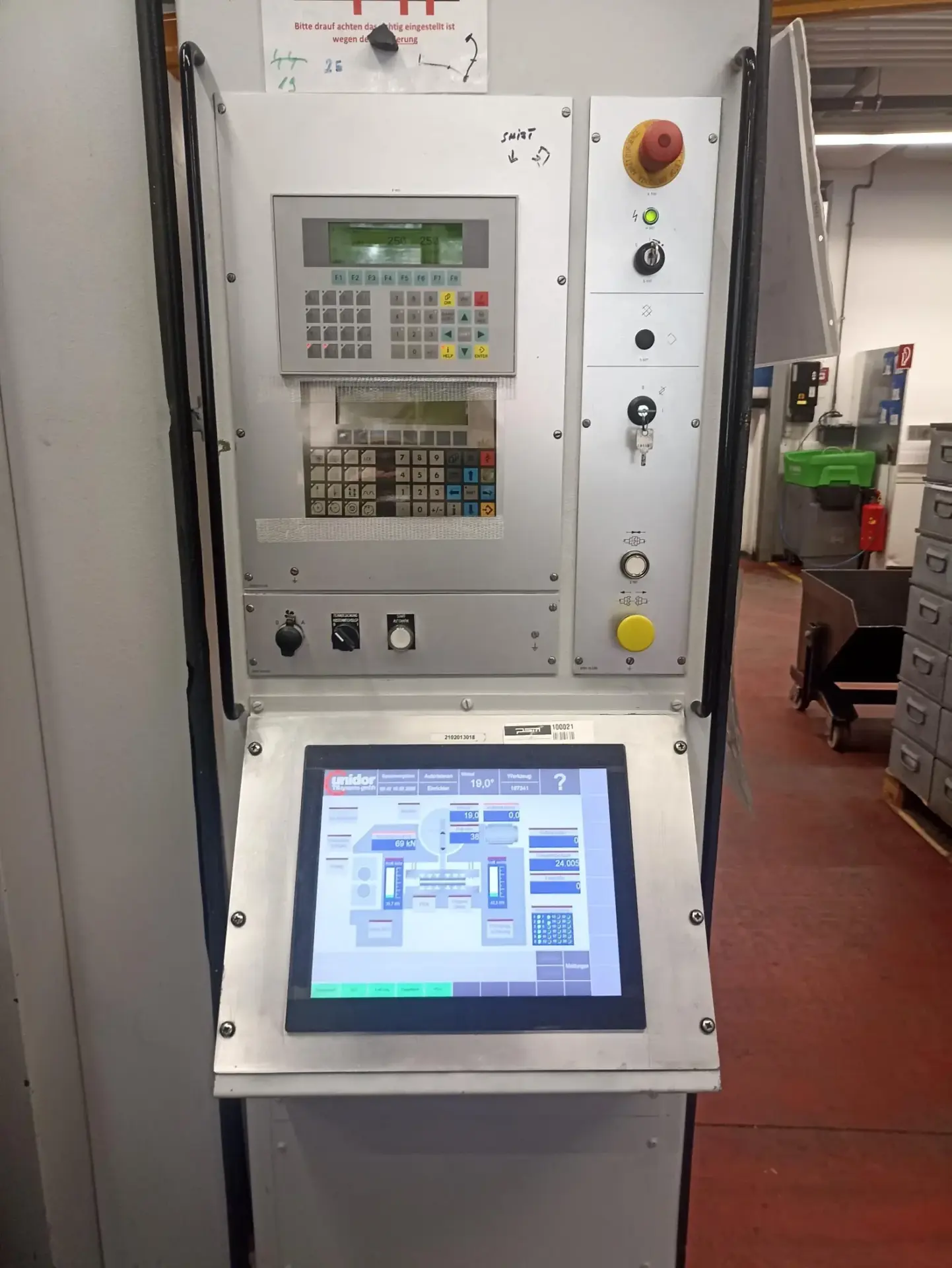

BRUDERER BSTA 50 UL High Speed Automatic Stamping Press • 1995 • ID: 36826 The BSTA 50UL is a Bruderer high-speed precision stamping press rated at 500 kN (50 tons) nominal force, engineered for continuous progressive-die production at variable stroke rates from 100 to 1,120 strokes per minute. The press is equipped with a Bruderer BBV 202/120 strip feeder, delivering strip widths up to 203 mm and handling material thicknesses up to 4 mm. Adjustable stroke is 16 and 51 mm, with strip inlet height adjustable across a 50–140 mm range to accommodate varying tooling and material profiles. Nominal force: 500 kN (50 tons) Tool monitoring: Unidor Stroke rate: 100–1120 strokes per minute (variable) Strip feeder: Bruderer BBV 202/120 Adjustable stroke: 16–51 mm Tool max length 950 mm Main drive: 22 kW Power supply: 400 V / 50 Hz Table area: 940 x 580 mm Strip inlet height (adjustable): 50–140 mm Max. strip width: 203 mm Max. material thickness: 4 mm Machine dimensions: 3100 x 2700 x 1800 mm Weight: approx. 8,150 kg Operating hours (main drive): 42,416 h Sound-insulating cabin available on request
