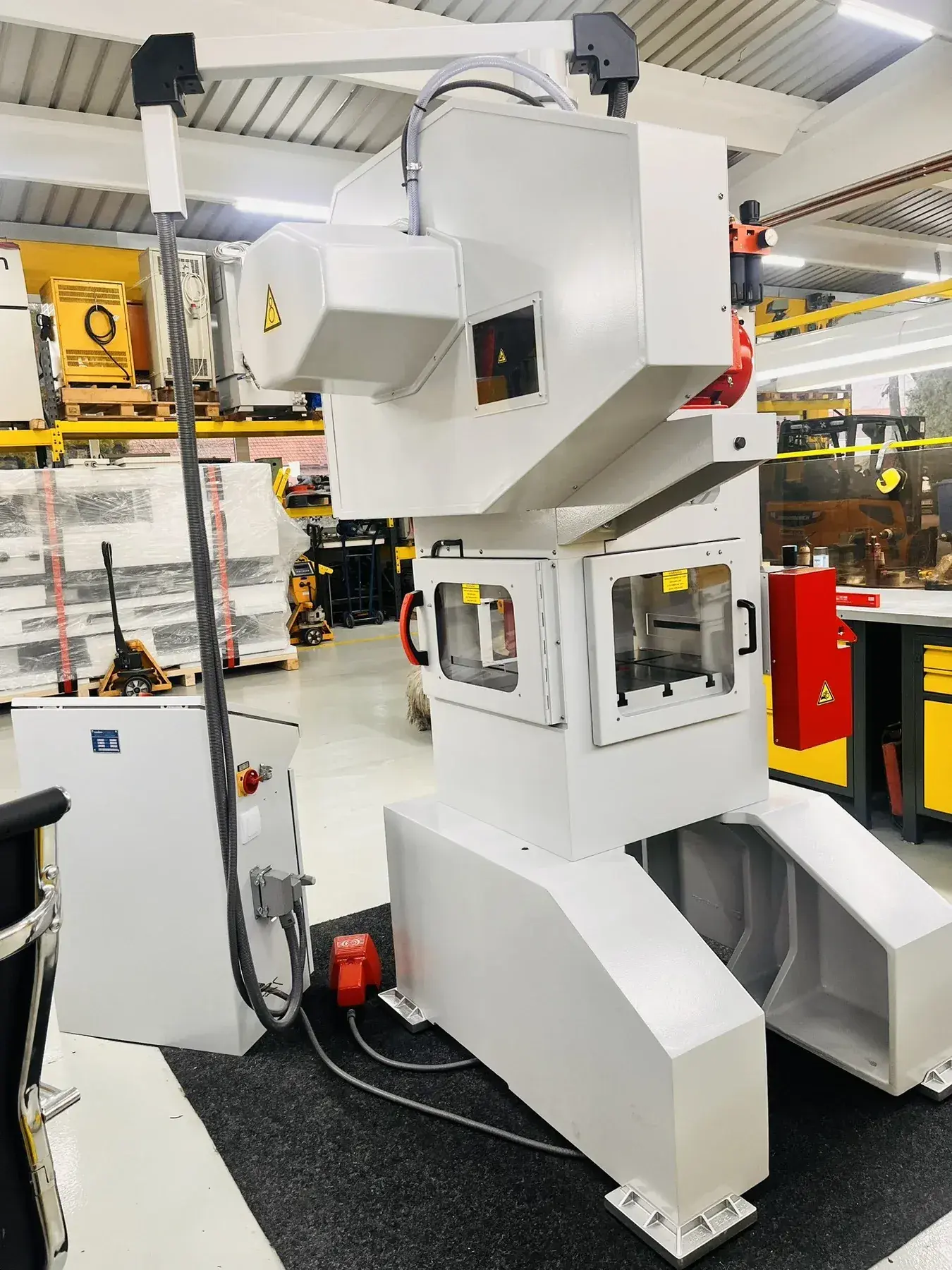

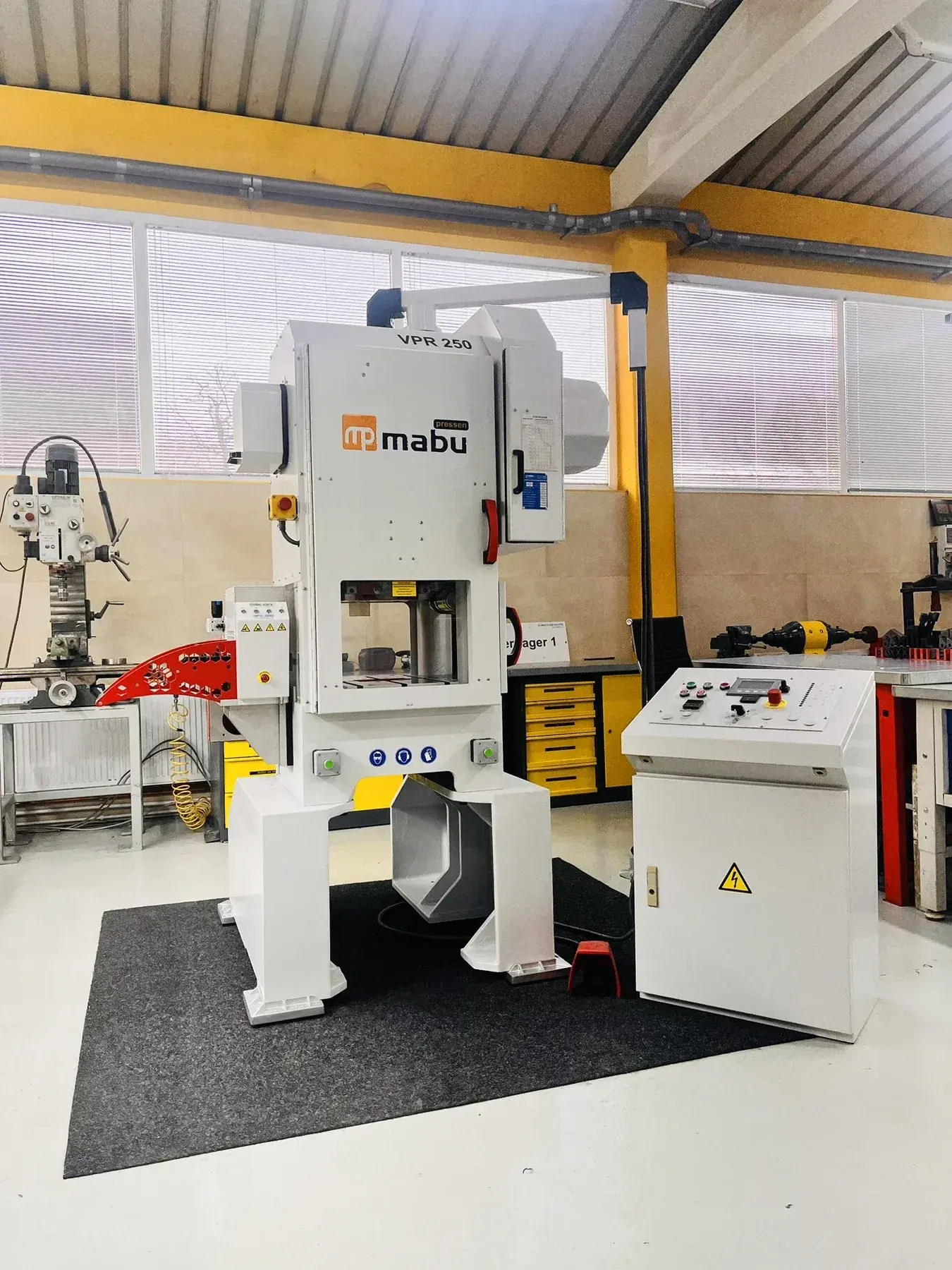

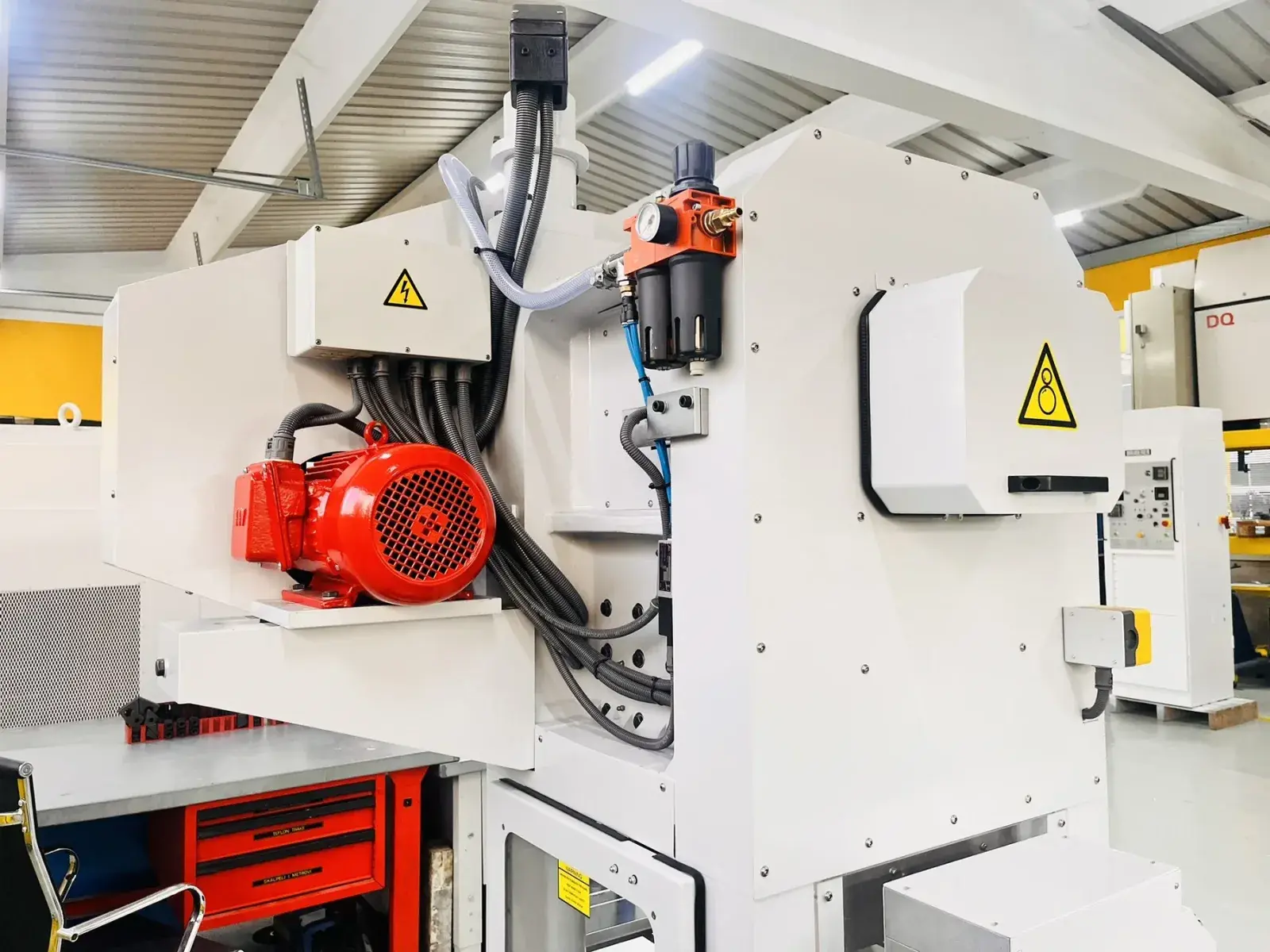

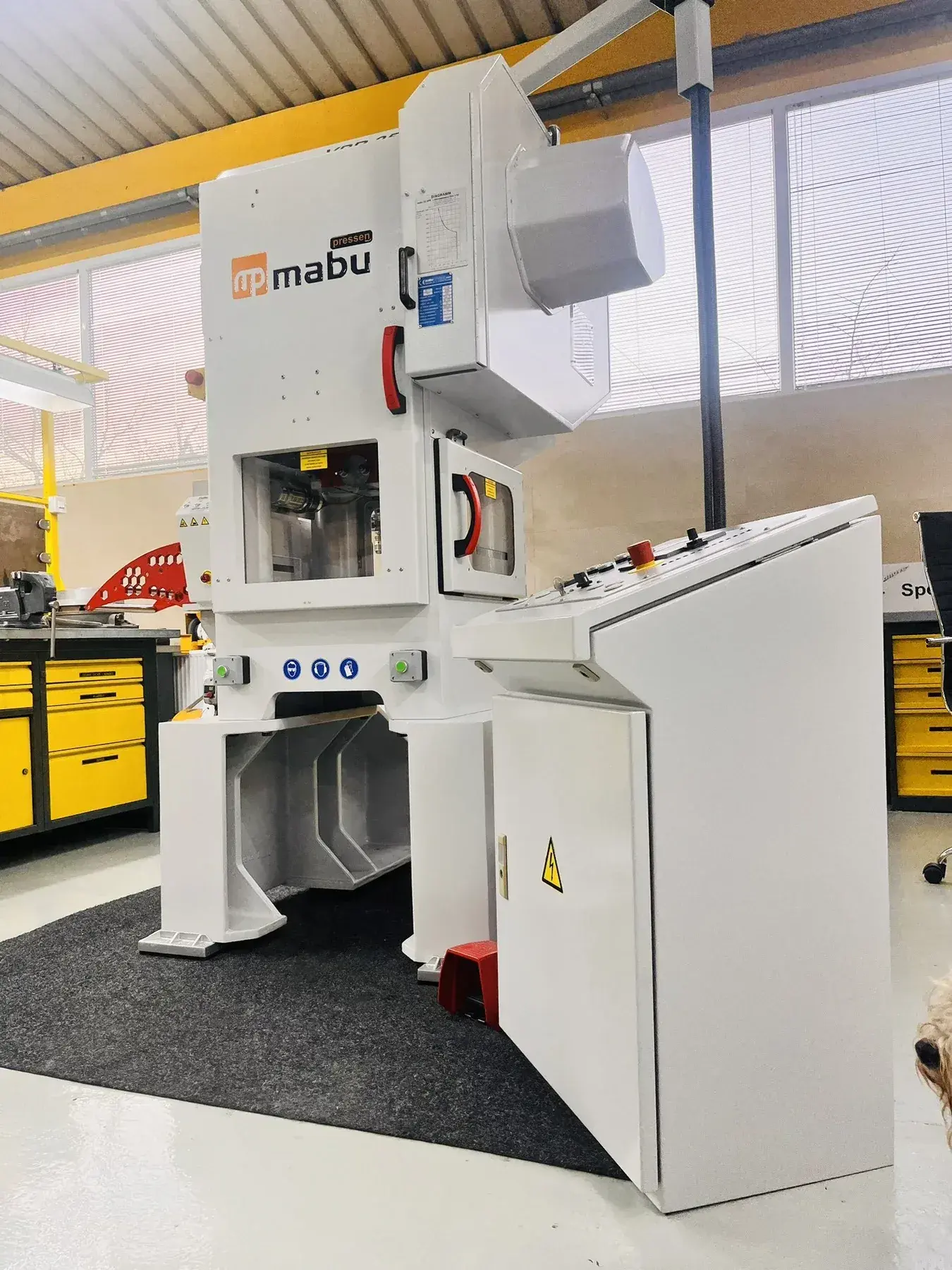

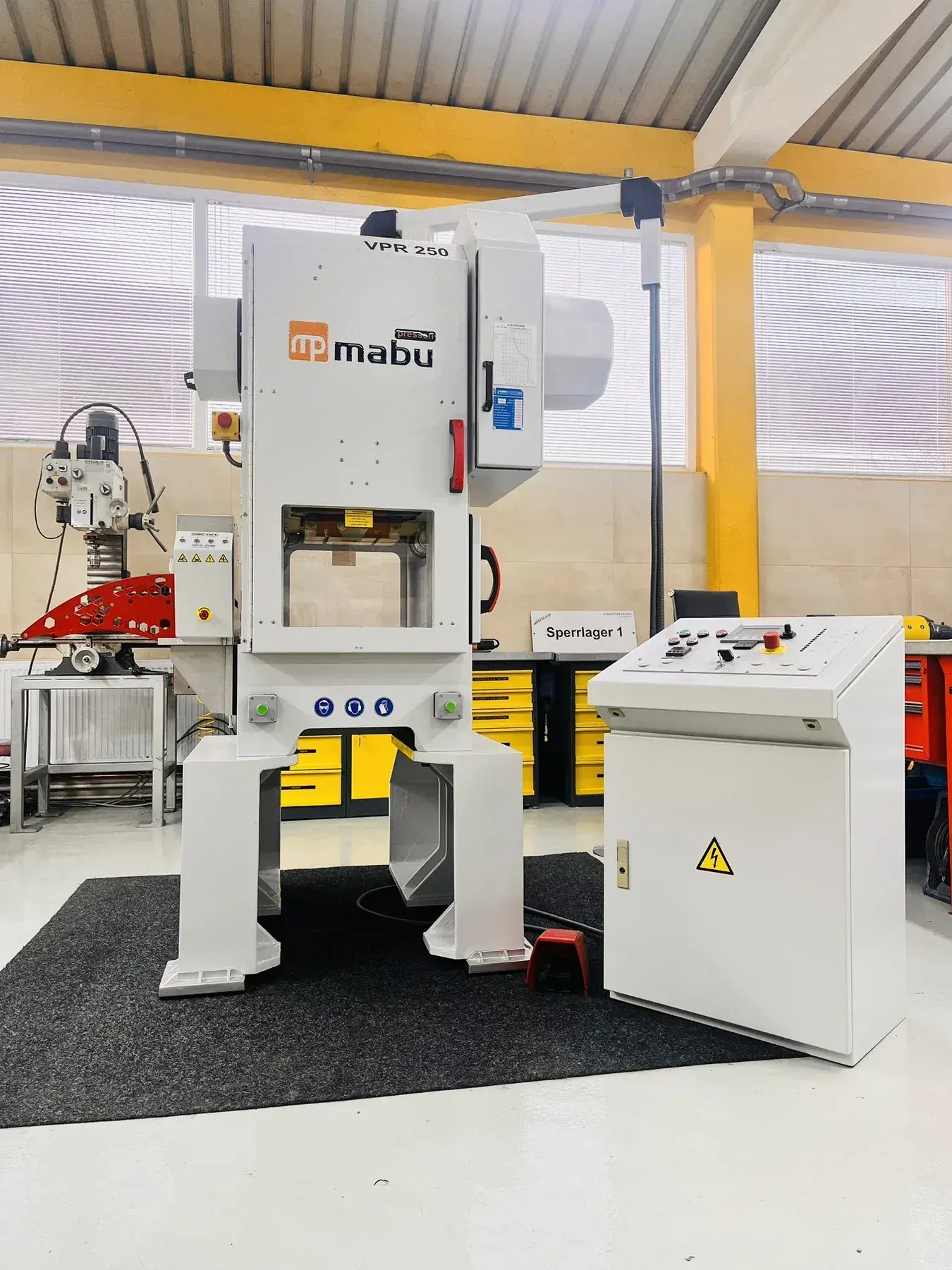

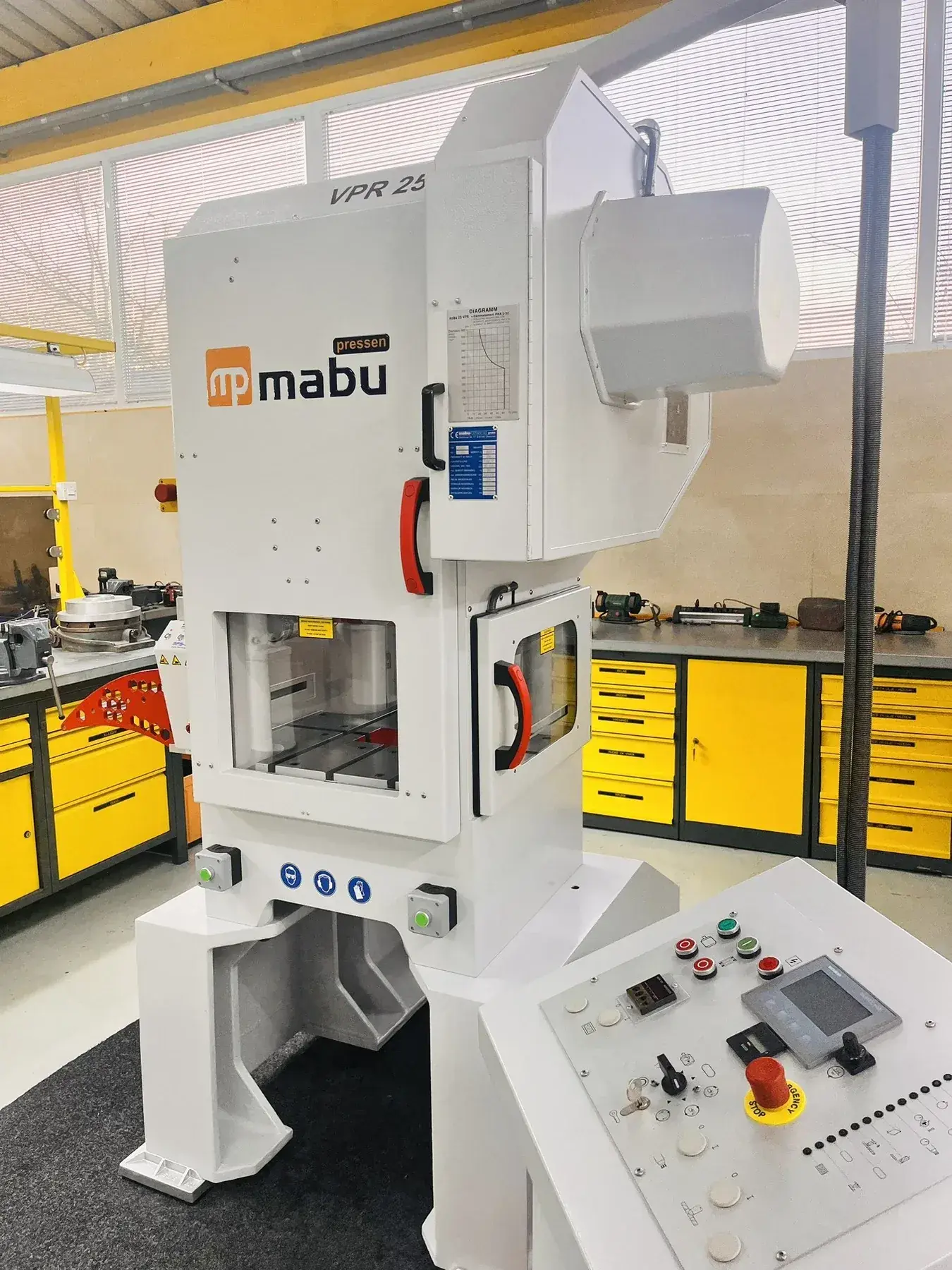

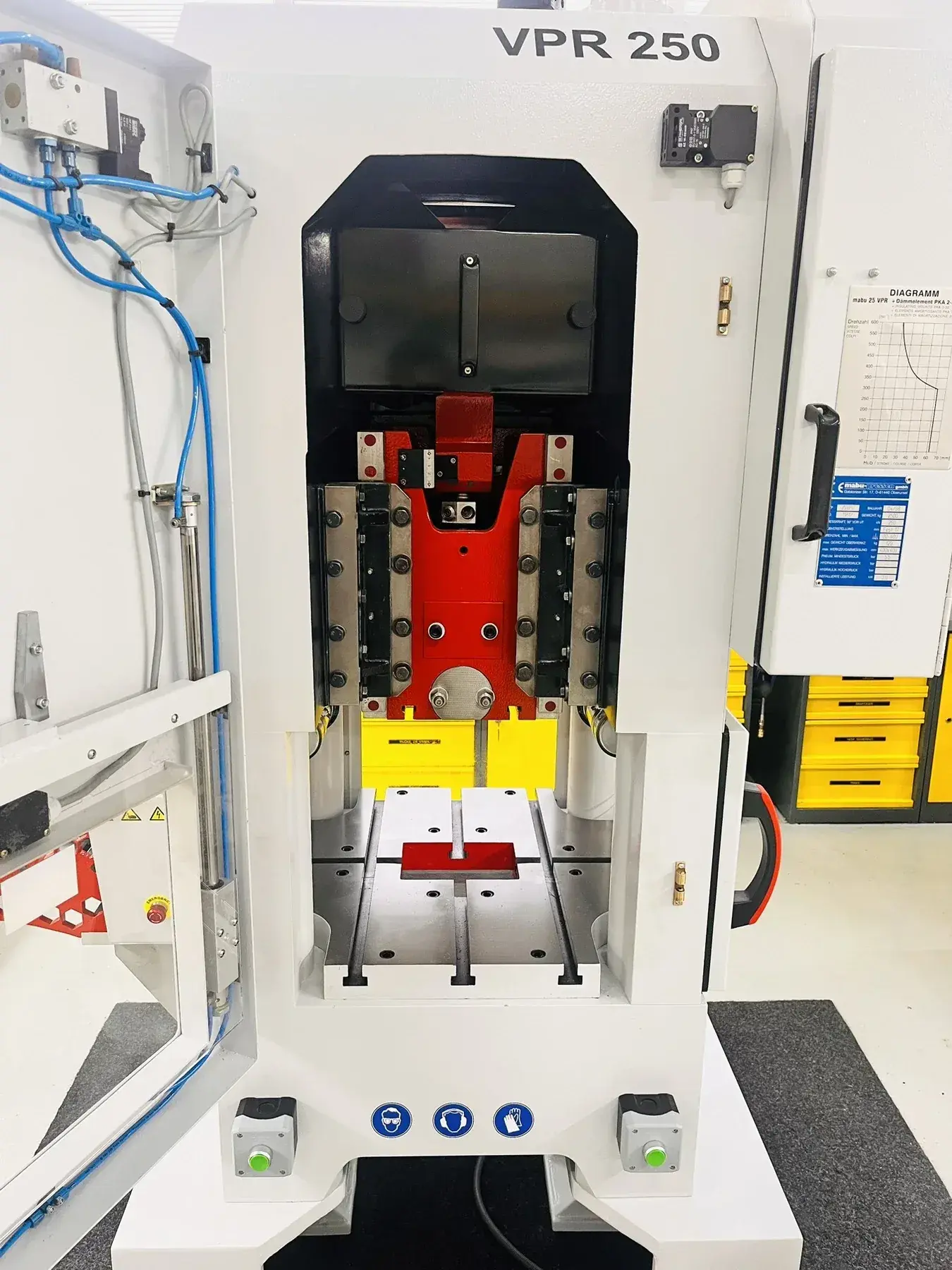

Mabu 25 VPR Automatic Punching Press 250 kN with Silicon SFS 200 Servo Feeder

Machine Description

Mabu 25 VPR automatic punching press, made in Germany, year of manufacture 1998 and completely overhauled in December 2023. 250 kN (25 t) maximum pressure, speed range 80-400 strokes per minute, fitted with a Silicon SFS 200 servo feeding device on the left-hand side. In stock, tested and ready for delivery. TECHNICAL SPECIFICATIONS Make and model: Mabu 25 VPR Year of manufacture: 1998 Completely overhauled: December 2023 Max. pressure: 250 kN (25 t) Speed range: 80-400 spm Fixed stroke: 17 mm Ram adjustment: 40 mm Max. tool dimensions: 400 x 400 mm Power: 3 kW Current: 230 / 400 V Air connection: 5.5 bar Machine dimensions (H x W x D): 2350 x 1700 x 1400 mm Weight (approx.): 2,500 kg FEEDER Silicon SFS 200 servo feeding device, left-hand side Max. strip width: 200 mm EQUIPMENT AND FEATURES Operating modes: manual, one-cycle and automatic Two-hand start and foot-clamp start Electrical cabinet with Mabu Pf 1.3 control Front and rear safety guards with inspection glass Technical documentation and operating instructions in English and German CE certificate and EUR-1 certificate of origin CONDITION AND AVAILABILITY In stock, tested and ready for delivery. Worldwide shipping available. Reference 23123.
