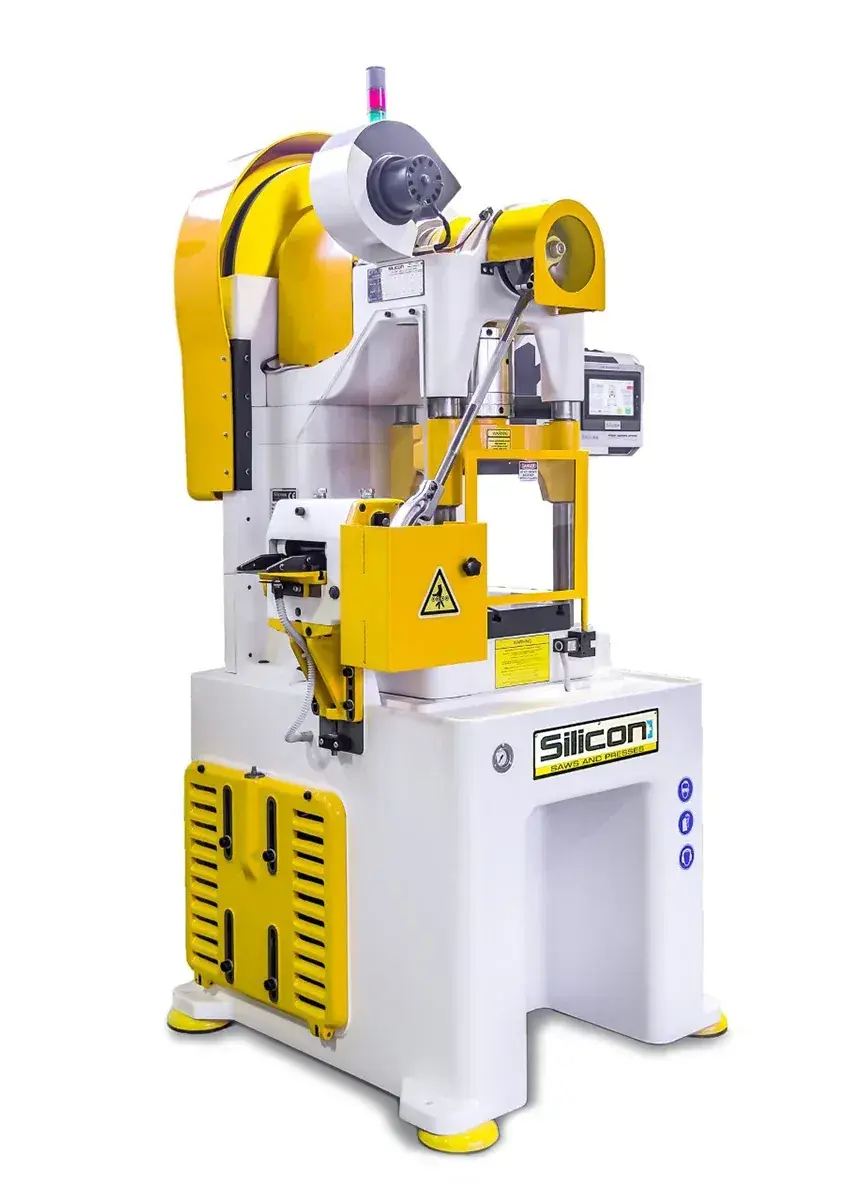

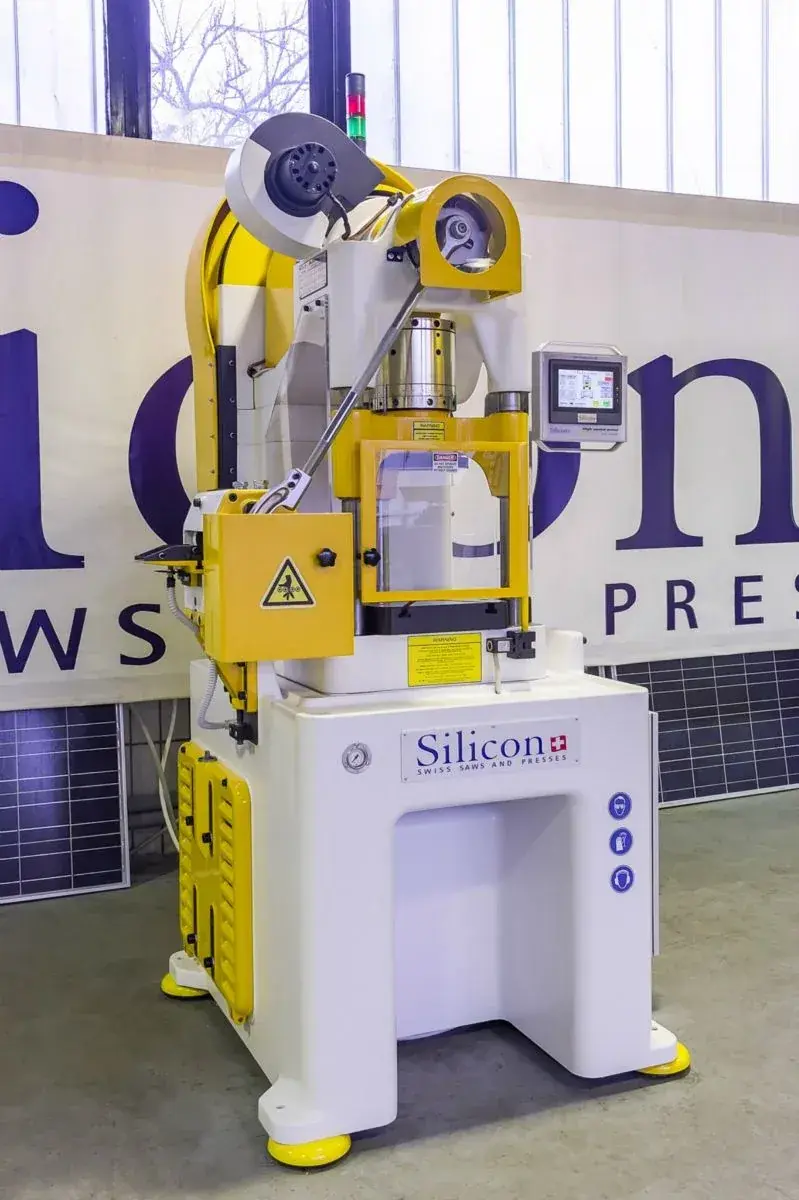

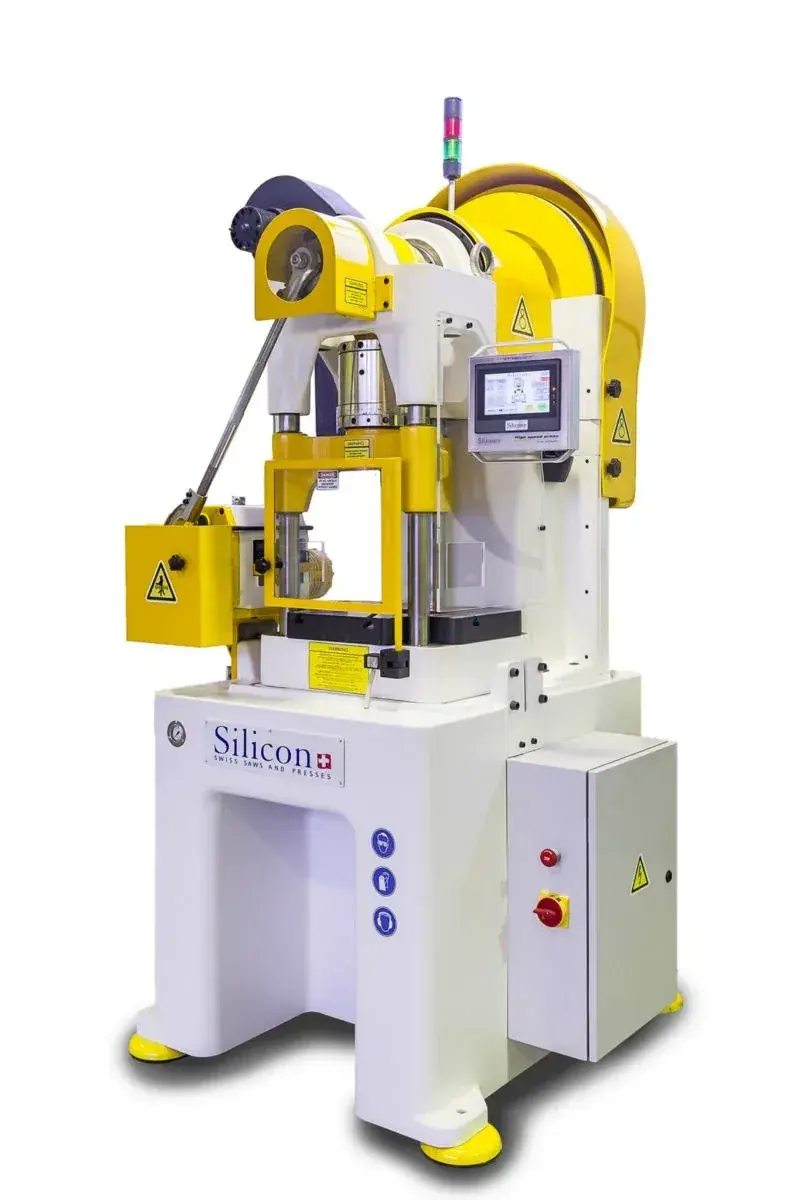

Silicon+ STA 30 High-Speed Automatic Punching Press 300 kN, 100-600 spm

Machine Description

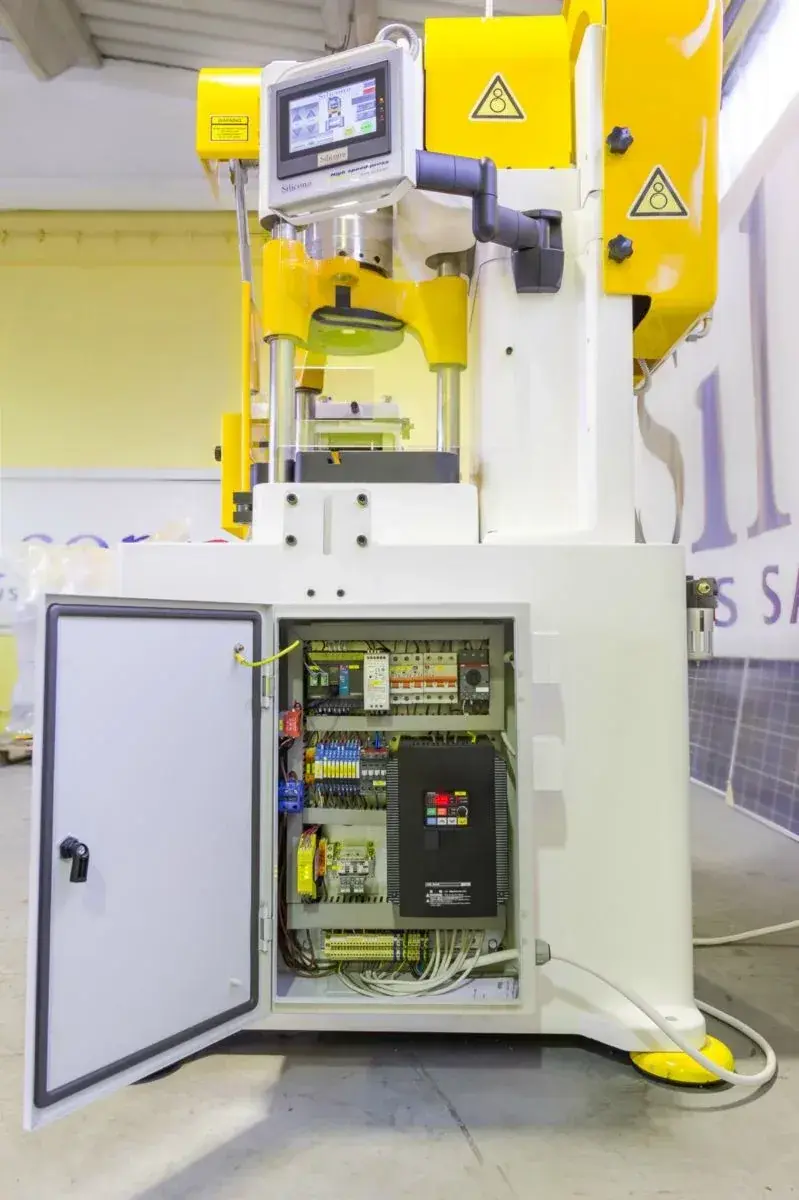

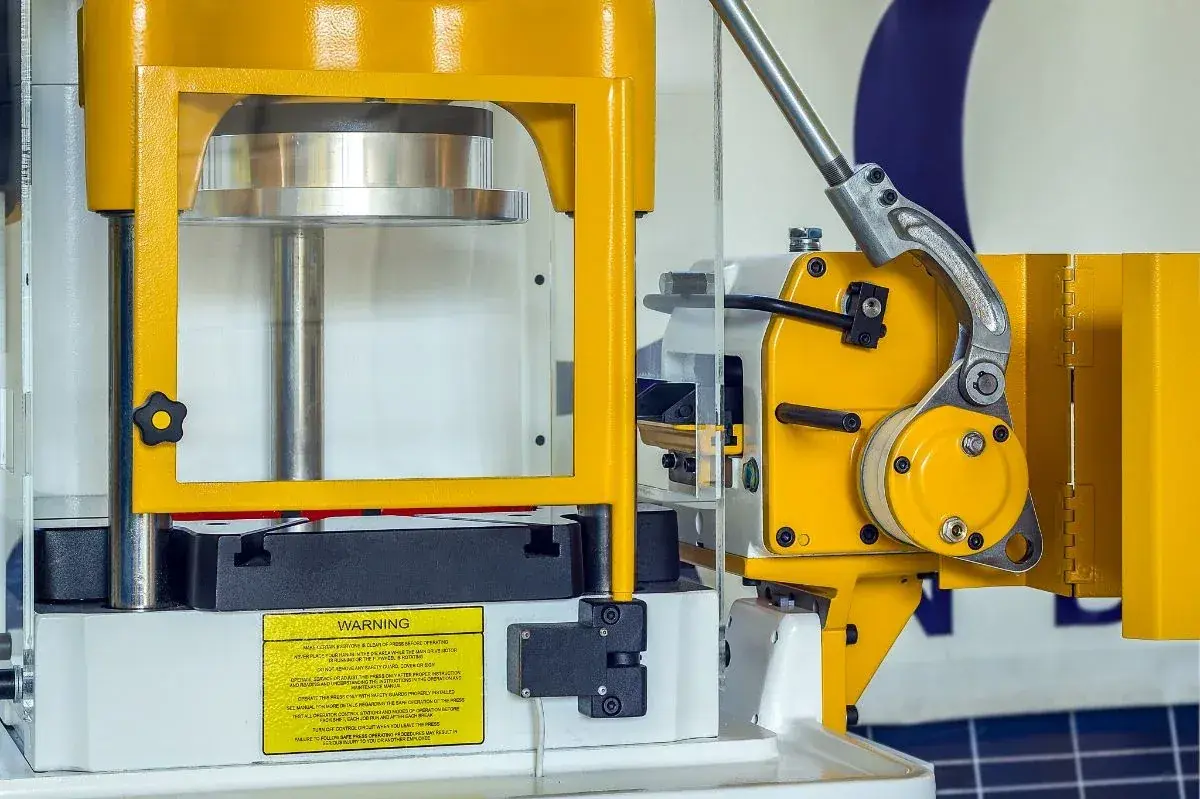

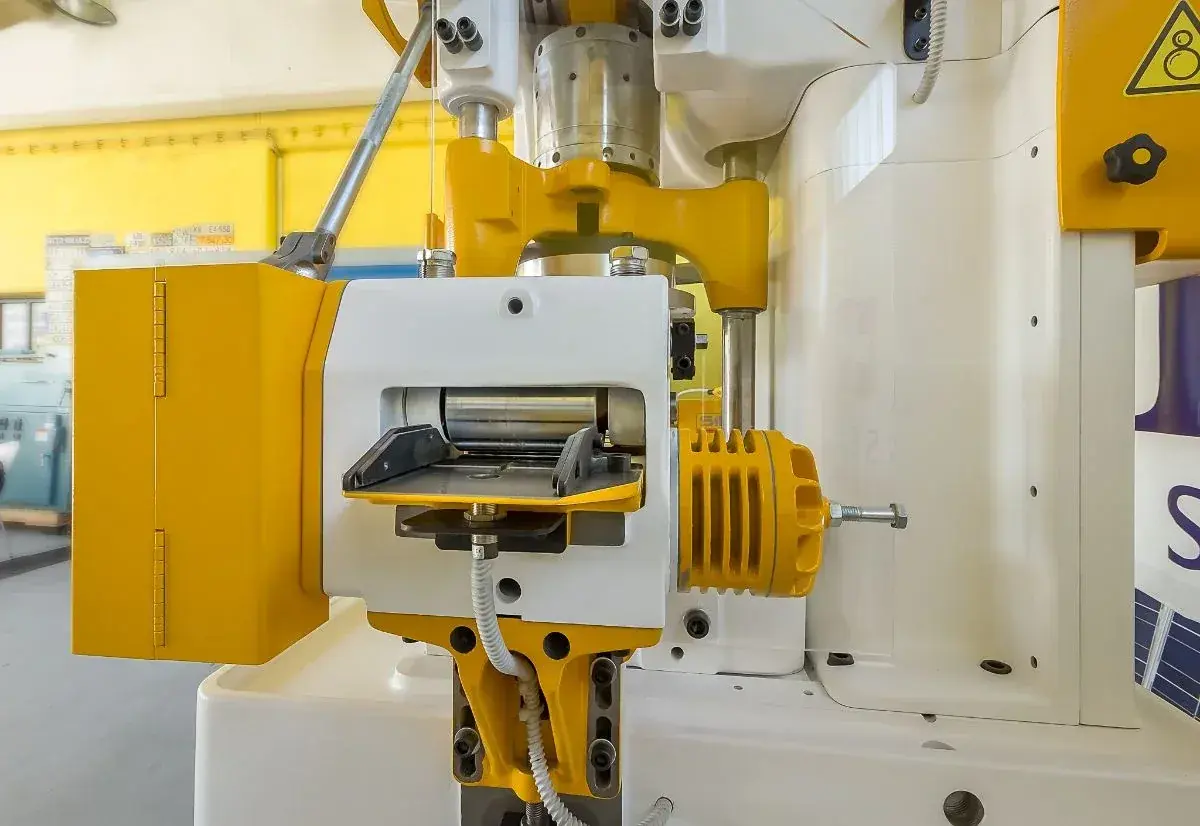

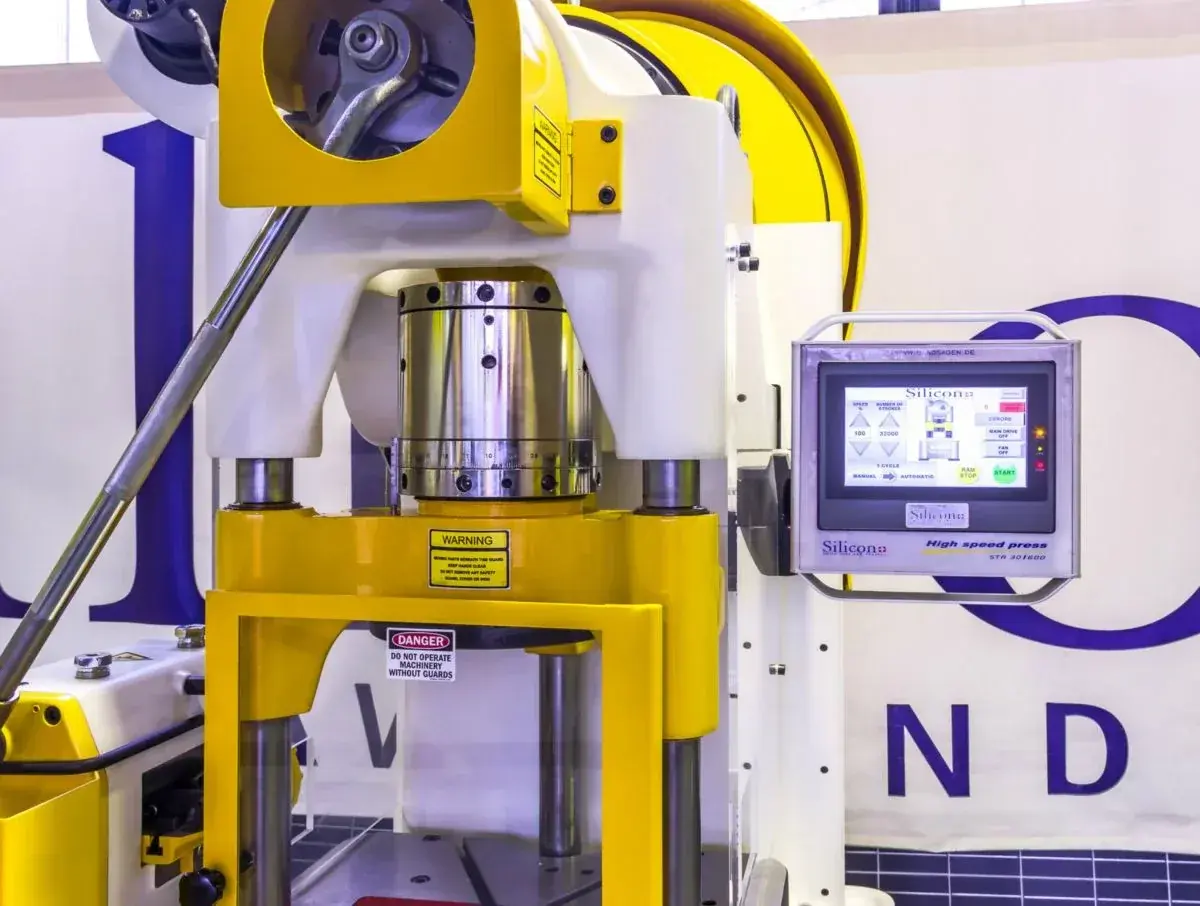

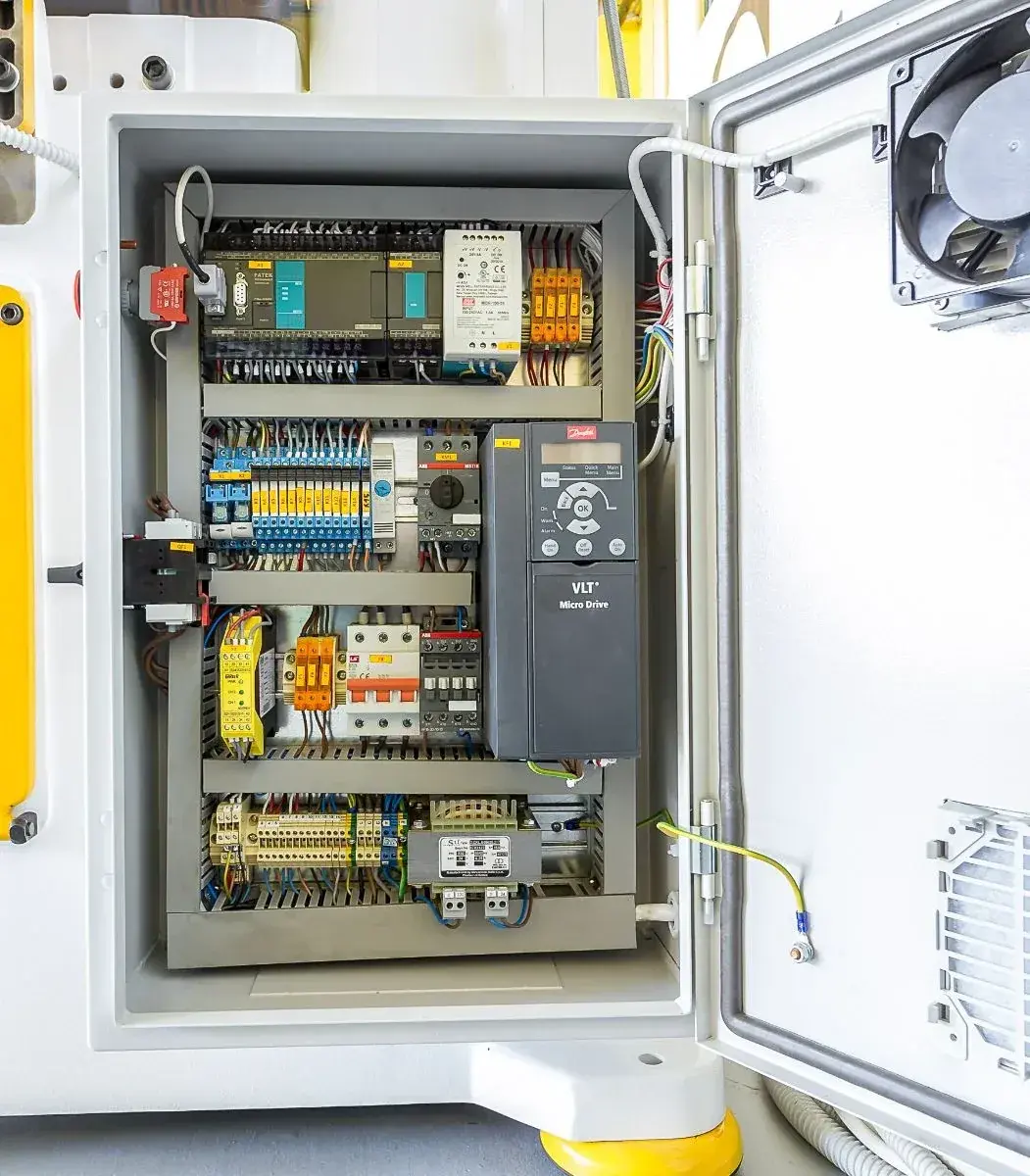

Silicon+ STA 30 high-speed automatic punching press, 2026. 300 kN (30 t) stroke power, adjustable 100-600 strokes per minute, synchronised roll feed for strip widths from 5 to 150 mm, PLC touch-screen control. Supplied with CE certificate and EUR1 certificate of European origin, and a one-year warranty. TECHNICAL SPECIFICATIONS Stroke power: 300 kN (30 tons) Stroke rate: 100-600 strokes per minute, adjustable Adjustable stroke: 8-40 mm Table: 540 x 300 mm Strip width: 5-150 mm Max. strip thickness: 2.5 mm Power consumption: 5.5 kW Compressed air: 5-10 bar Year: 2026 EQUIPMENT AND FEATURES Synchronised roll feed, strip width 5-150 mm PLC touch-screen logical interface control Stroke and speed counter with programmable auto stop Three working modes: manual, single stroke and automatic Pneumatic clutch and brake Central lubrication Operator's instruction manual in English CE certificate and EUR1 certificate of European origin WARRANTY AND AVAILABILITY One-year warranty. In stock, worldwide shipping available. Reference 33526. All specifications non-binding, subject to change without notice.
