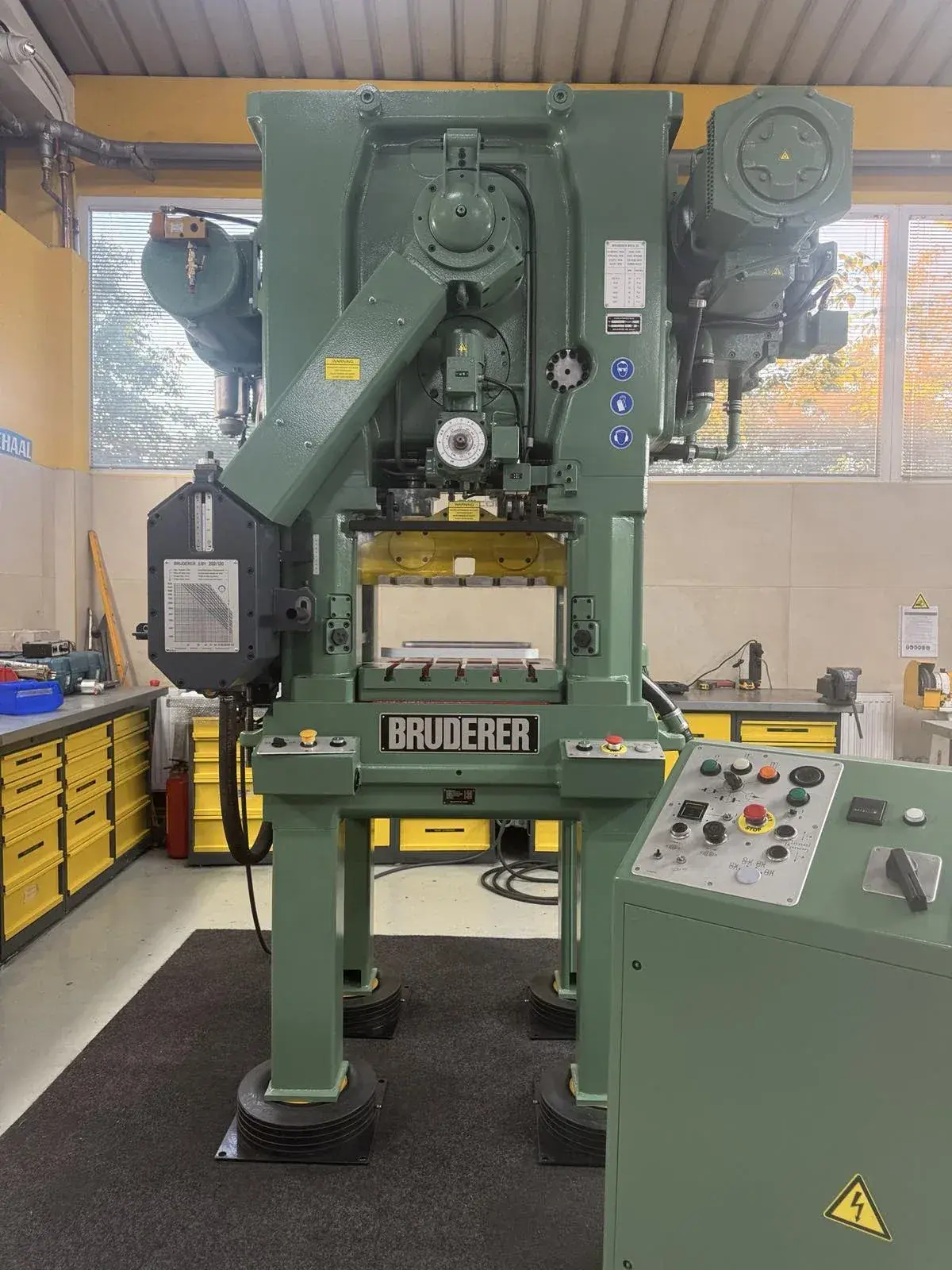

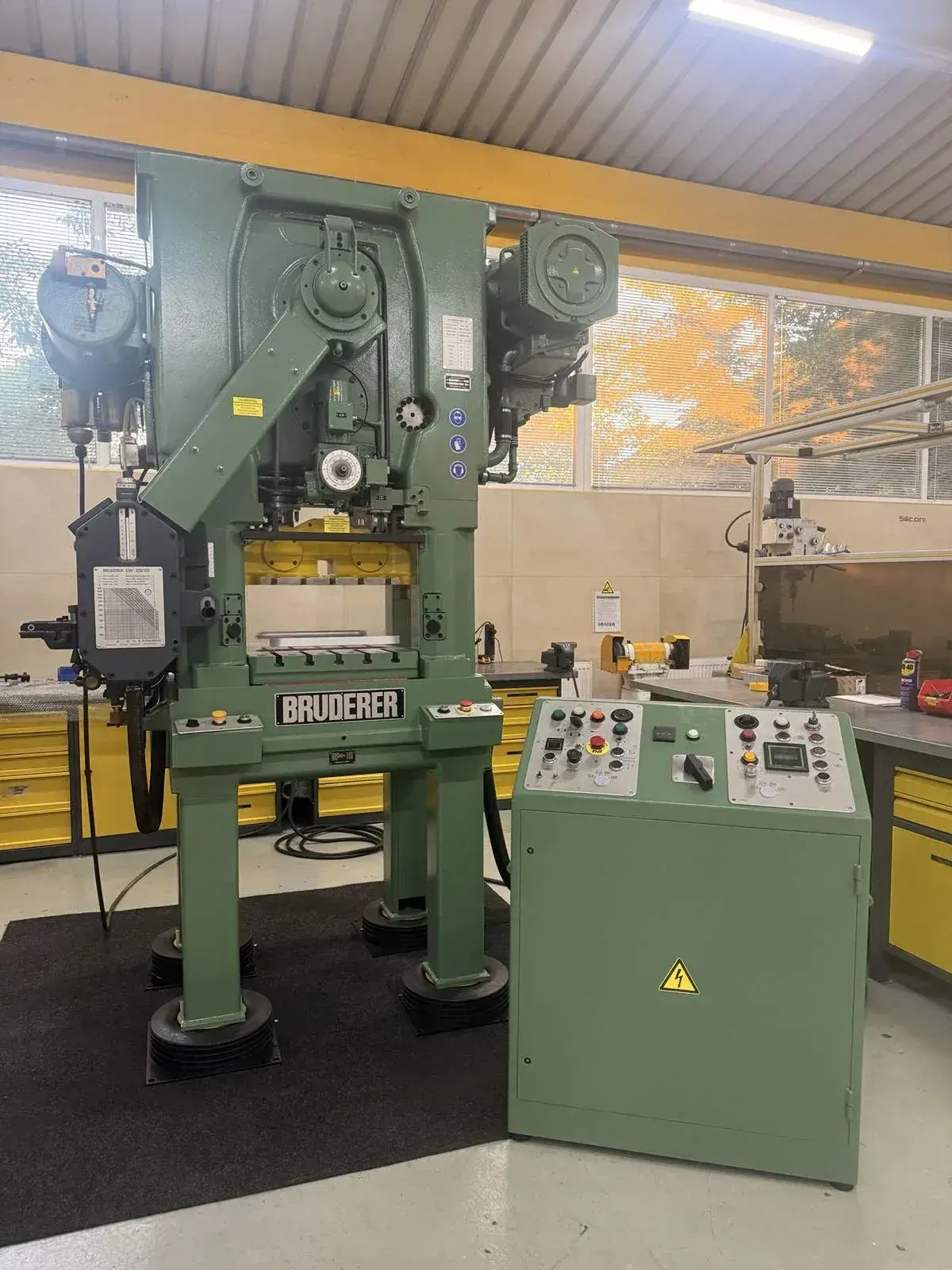

Bruderer BSTA 25 High-Speed Stamping Press 250 kN with BBV 202/120 Feeder

Machine Description

Swiss-built Bruderer BSTA 25 high-speed stamping press for high-volume production of precision stampings such as connectors, contacts and fine blanked parts. Built 1980 and refurbished. The 4-column monoblock frame runs on a hydrostatic variable-speed drive with pneumatic clutch and brake, and a circulating oil lubrication system with oil pump and oil cooler serves the drive train. Strip is handled by a Bruderer BBV 202/120 synchronised mechanical roll feeder. TECHNICAL SPECIFICATIONS Make and model: Bruderer BSTA 25 Year of manufacture: 1980 Nominal press force: 250 kN (25 tons) Stroke rate: 100-1,500 SPM Adjustable stroke: 13 / 16 / 19 / 25 / 32 / 38 mm Ram / slide adjustment: 51 mm Shut height range: 230-281 mm Bolster / table area: 530 x 530 mm Longitudinal passage between uprights: 540 mm Lateral strip passage: 200 mm Machine weight (approx.): 4,800 kg Machine dimensions (L x W x H): 2,055 x 1,355 x 2,620 mm FEEDER Bruderer BBV 202/120, synchronised mechanical roll feeder Max. strip width: 200 mm Max. feed pitch: 120 mm Feed angle: 180 deg EQUIPMENT AND FEATURES 4-column monoblock frame design Hydrostatic variable-speed drive Pneumatic clutch and brake Circulating oil lubrication system with oil pump and oil cooler Front and rear safety guards Anti-vibration rubber feet on four supports Separate electrical control cabinet Documentation available in German, English and Italian CONDITION AND AVAILABILITY In stock, refurbished. Worldwide shipping available. Reference 35926.
