Schaal SEP 40 High-Speed Stamping Press 400 kN with SZV 2 Feeder

Machine Description

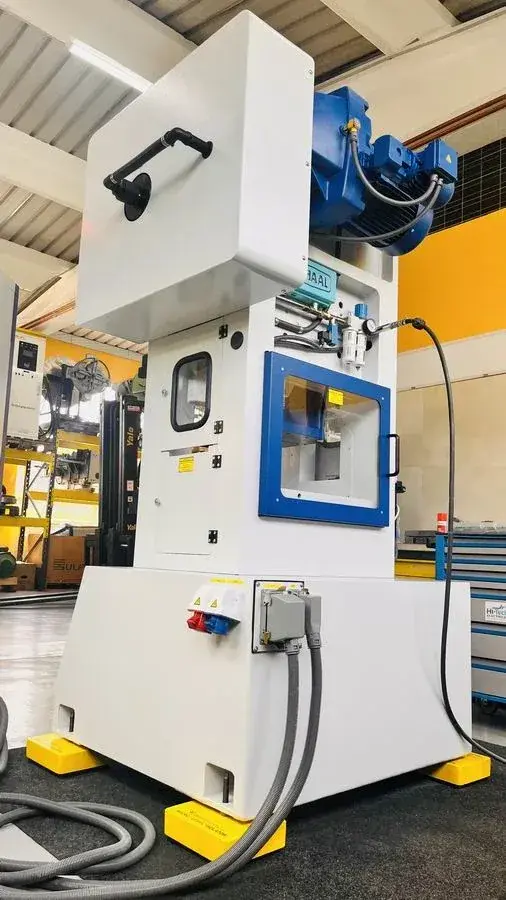

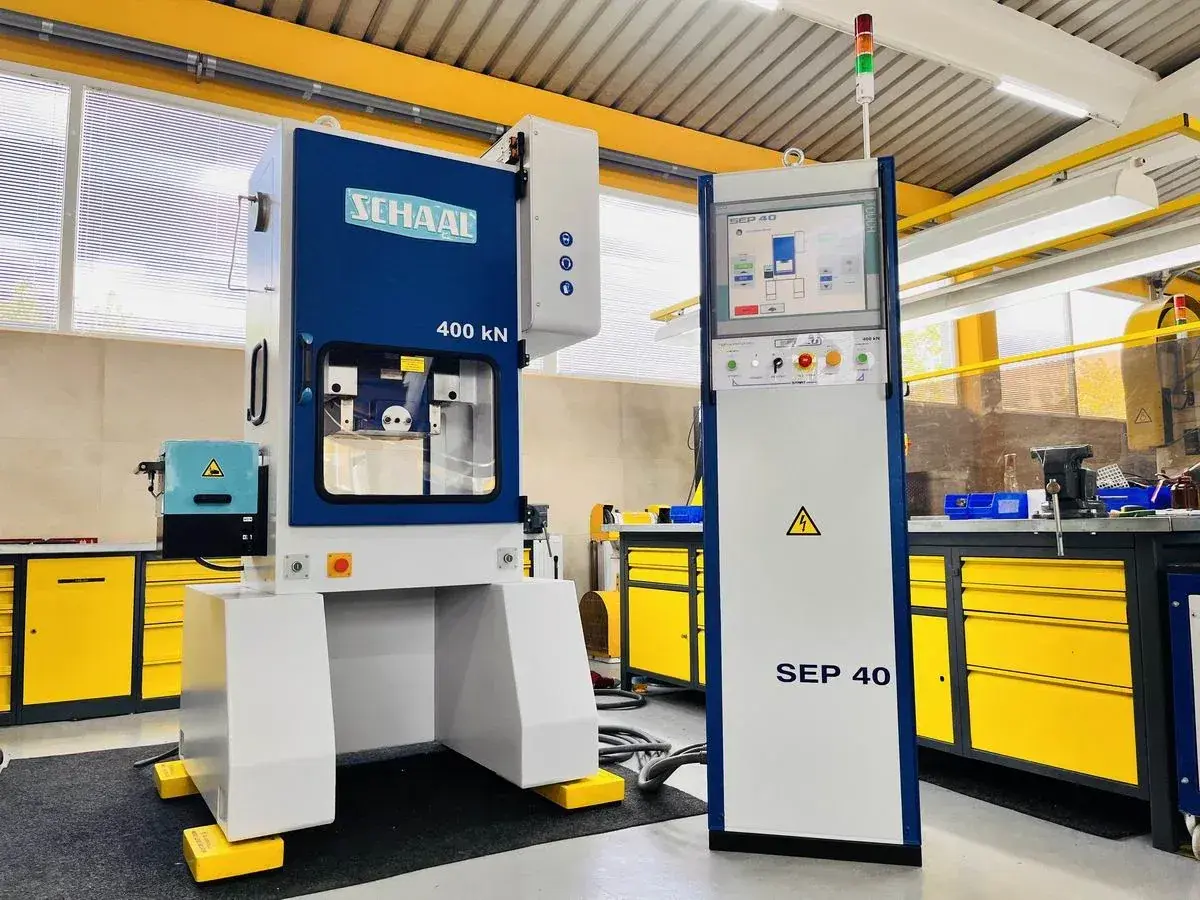

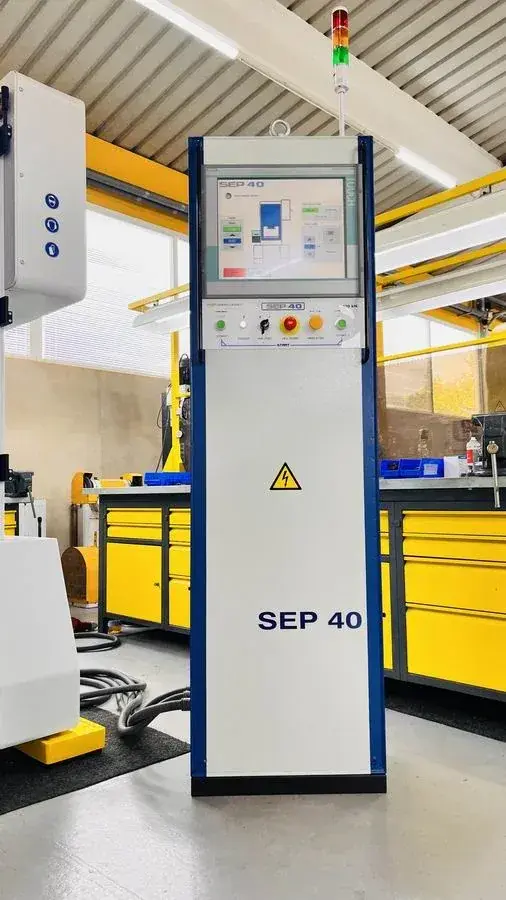

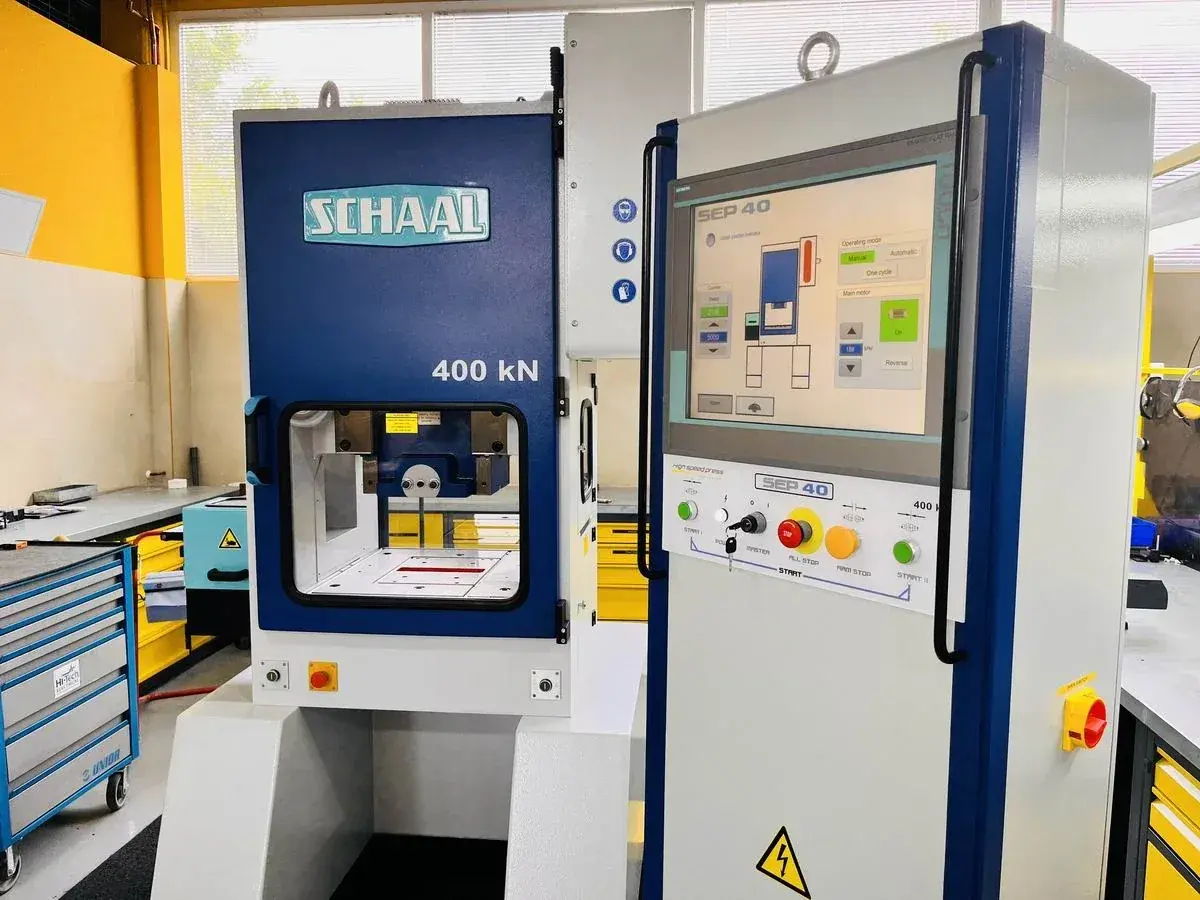

Schaal SEP 40 high-speed automatic stamping press, built 1990, with SZV 2 gripper feeding device. 400 kN (40 t) nominal capacity, 80-400 strokes per minute, feed accuracy +/-0.01 mm. The overhaul is carried out once the machine is ordered, so it is handed over freshly reworked rather than after long shelf storage. The control is replaced in full: a Siemens PLC with touch-screen operation takes the place of the original electrics. TECHNICAL SPECIFICATIONS Make and model: Schaal SEP 40 Year: 1990 Nominal capacity: 400 kN (40 t) Stroke rate: 80-400 strokes per minute Table dimensions: 550 x 580 mm Ram surface area: 340 x 300 mm Variable stroke: 8-70 mm Stroke range: 8, 10, 15, 20, 25, 31, 36, 41, 46, 50, 54, 58, 61, 64, 66, 68, 69, 70 mm Ram adjustment: 70 mm Feeding device: gripper feeder SZV 2 Strip width: 8-120 mm Feed length: 2-80 mm Material thickness: 0.1-2 mm Feeding angle: 180 deg Feed accuracy: +/-0.01 mm Drive power: 5.5 kW Dimensions (H x W x L): 2300 x 1600 x 1400 mm Weight: 3,800 kg INCLUDED Completely new control with Siemens PLC and touch screen Gripper feeding device SZV 2 Operating instructions in German and English Electrical schematics New CE certificate CONDITION AND AVAILABILITY In stock. Machine is overhauled upon order. Worldwide shipping available. Reference 14026.
