Bruderer BSTA 200 Automatic Punching Press 200 kN with BBV 100/75 Feeder

Machine Description

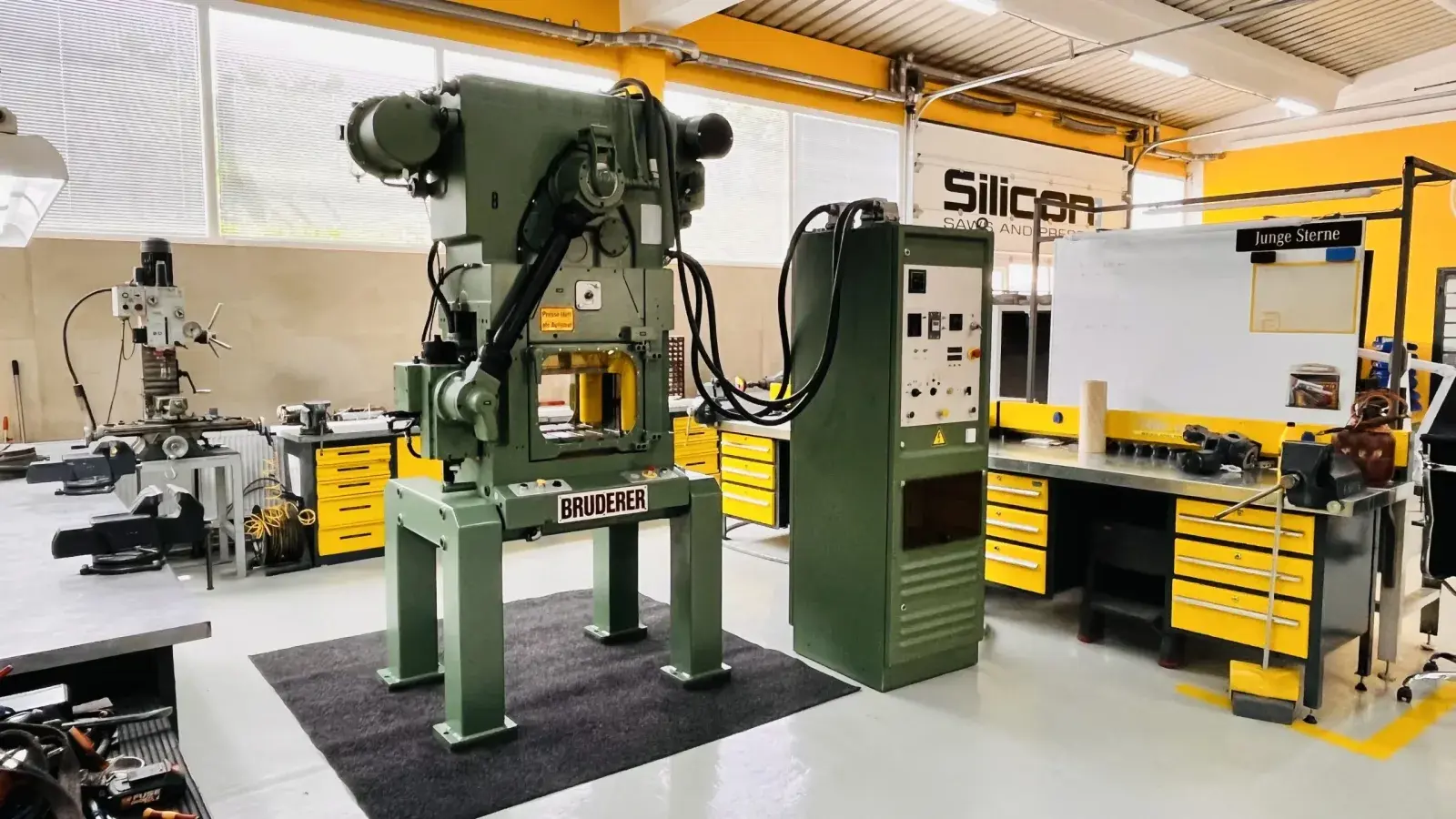

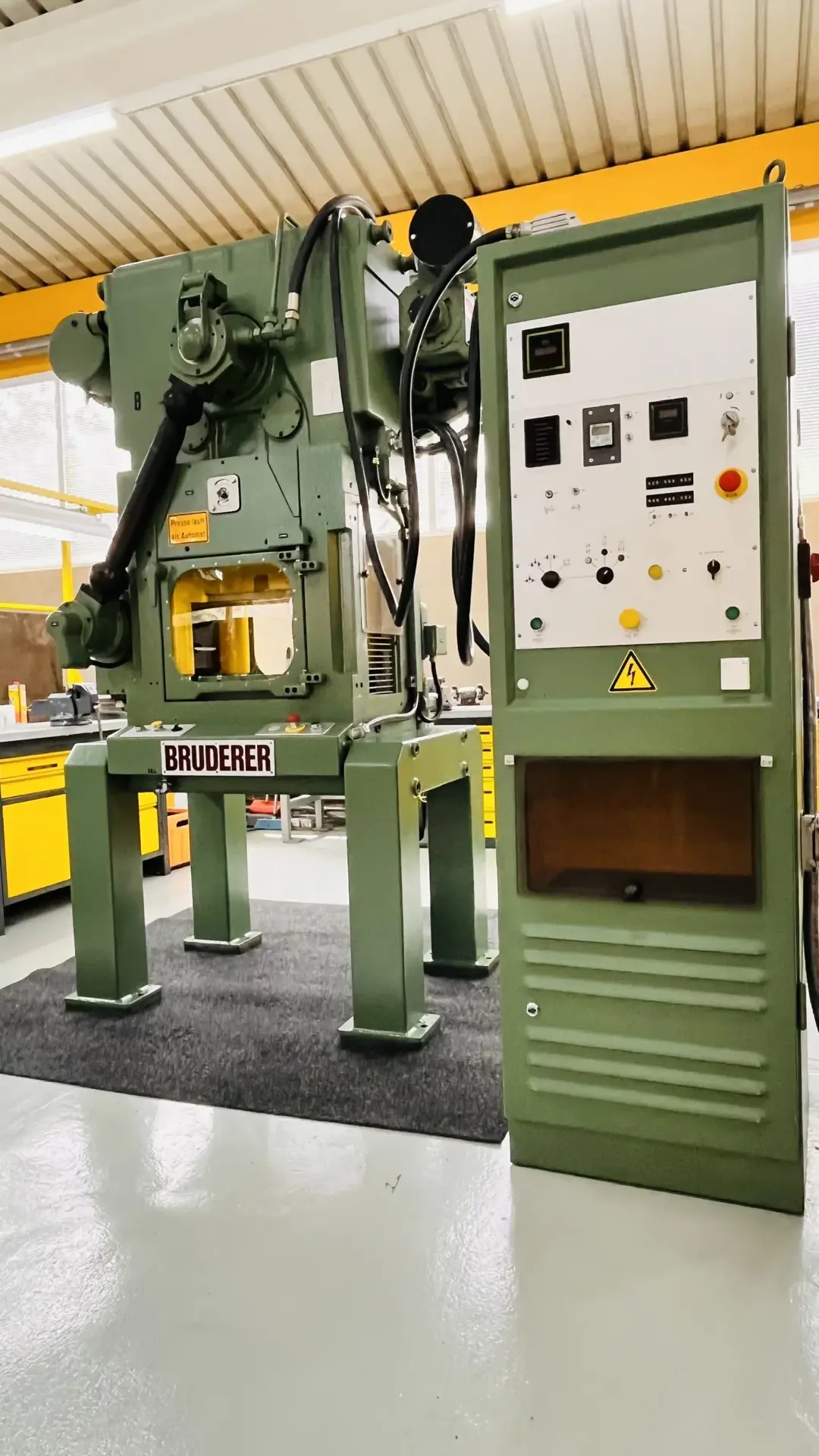

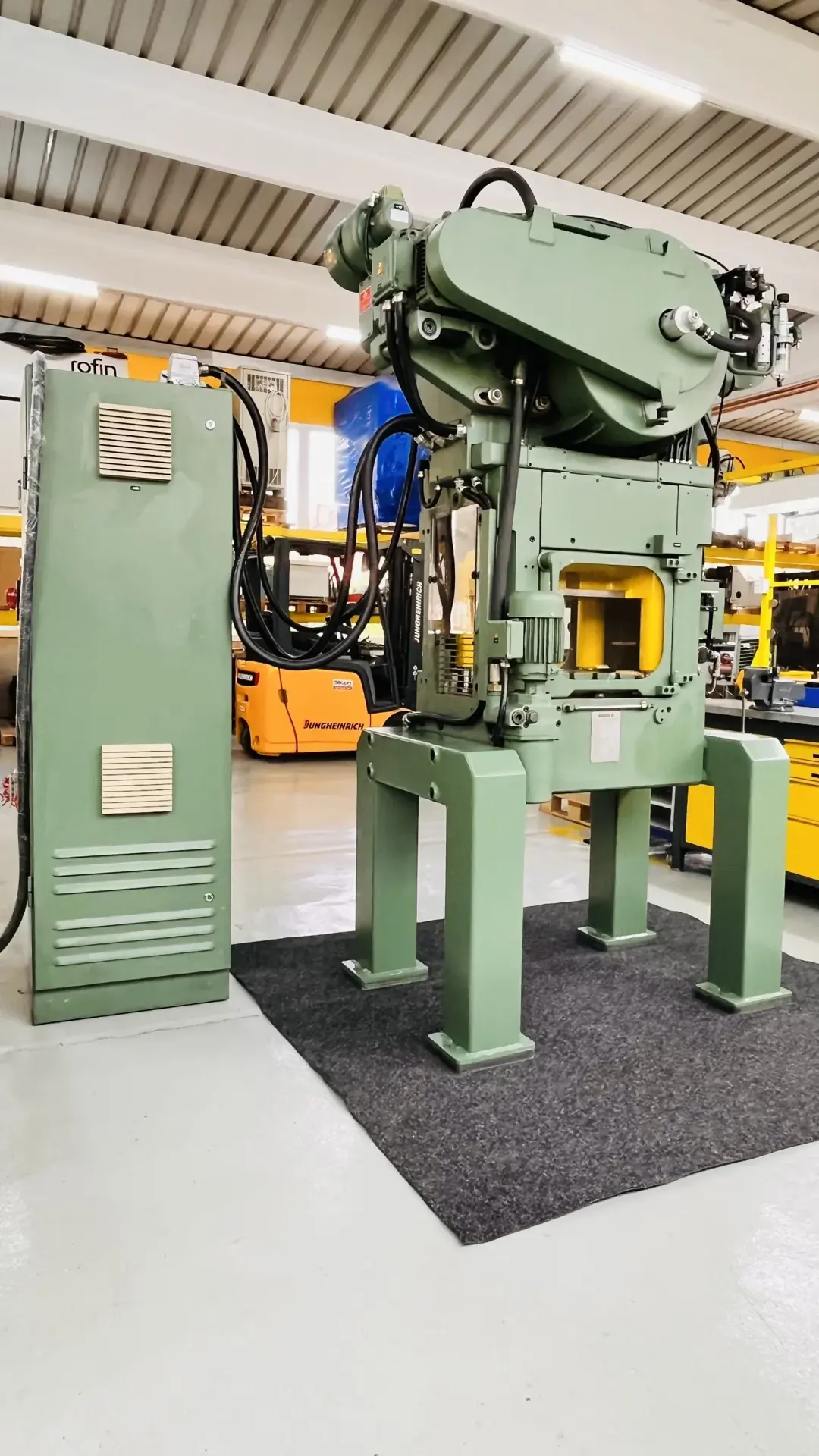

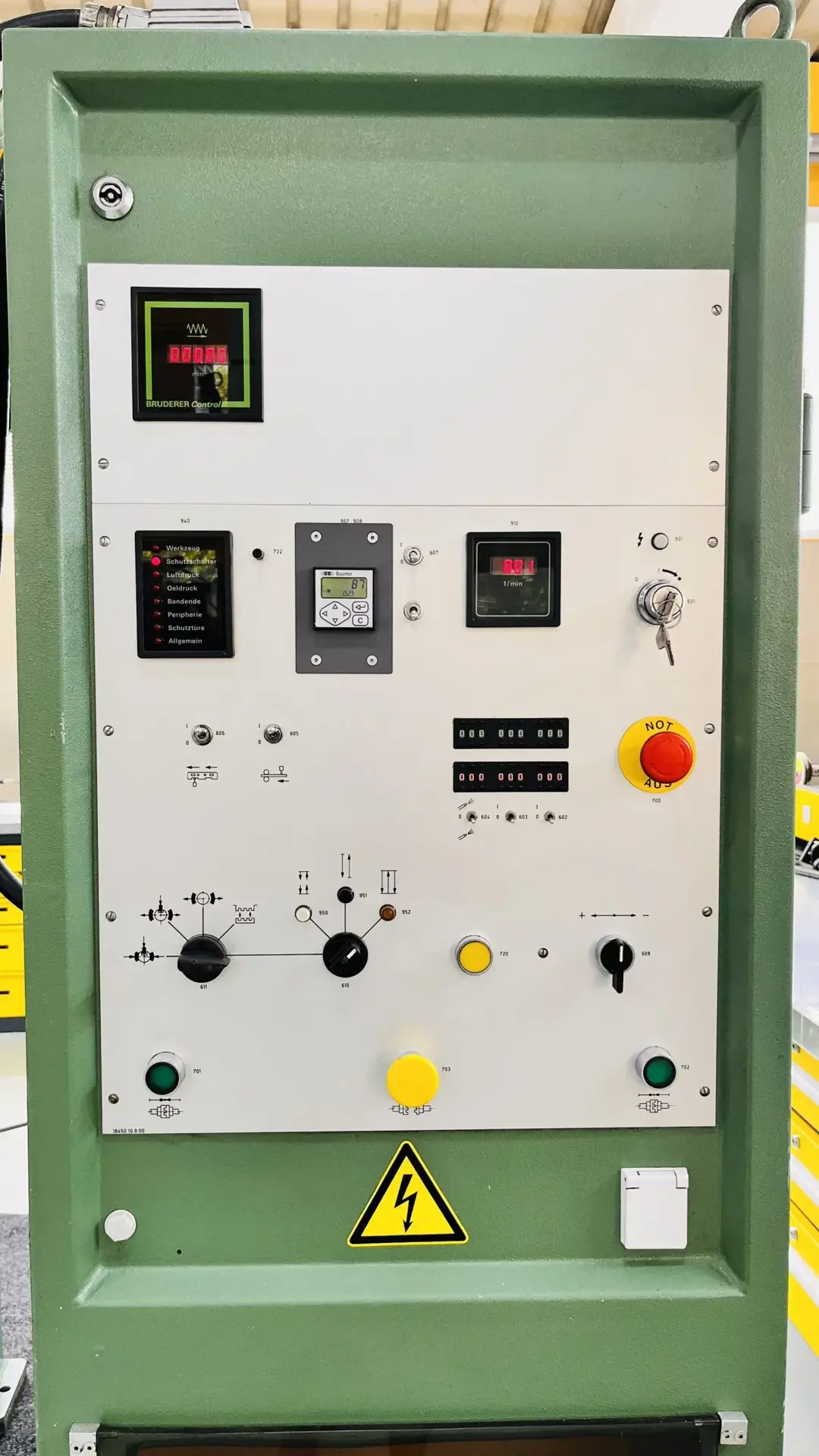

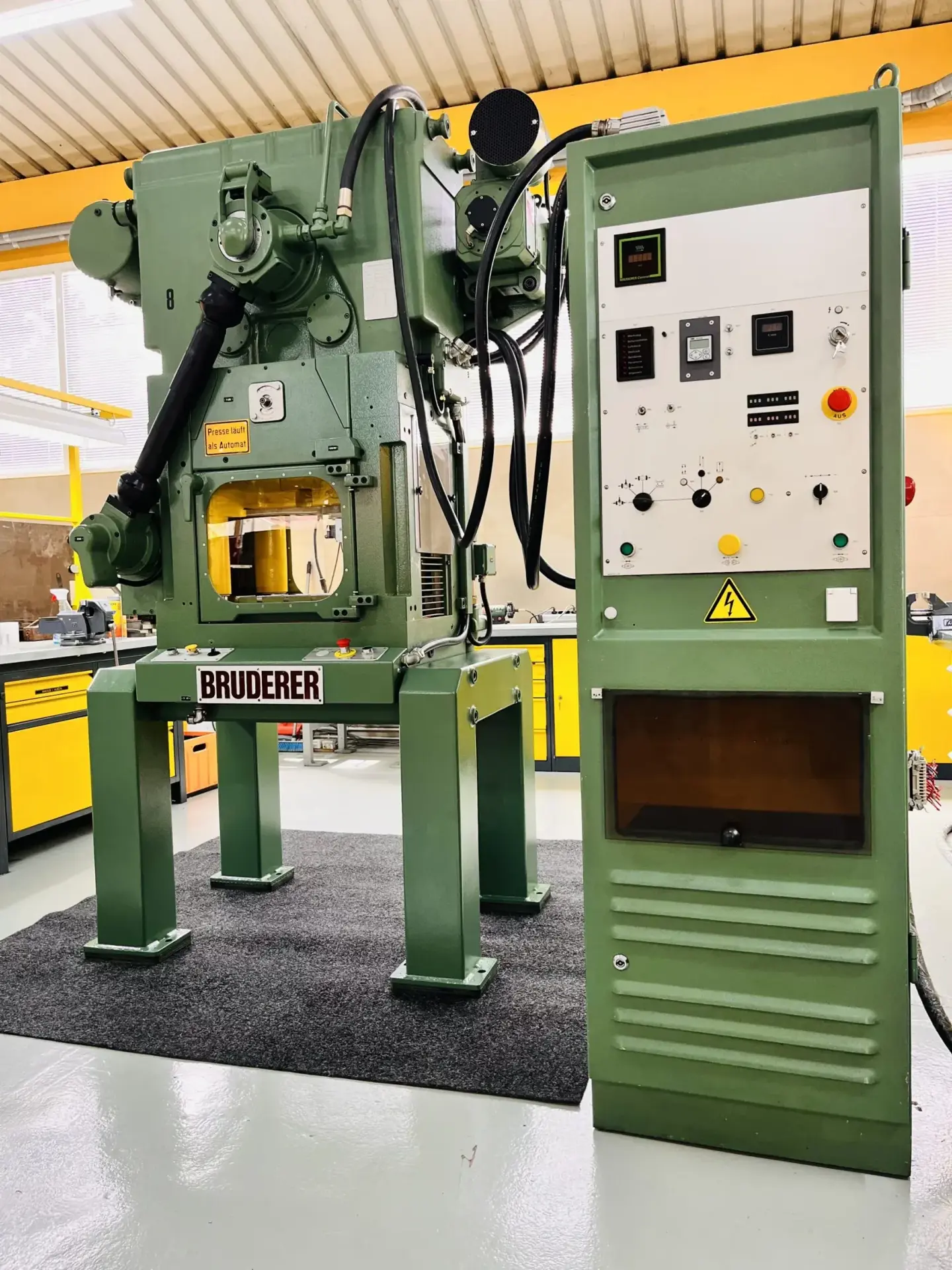

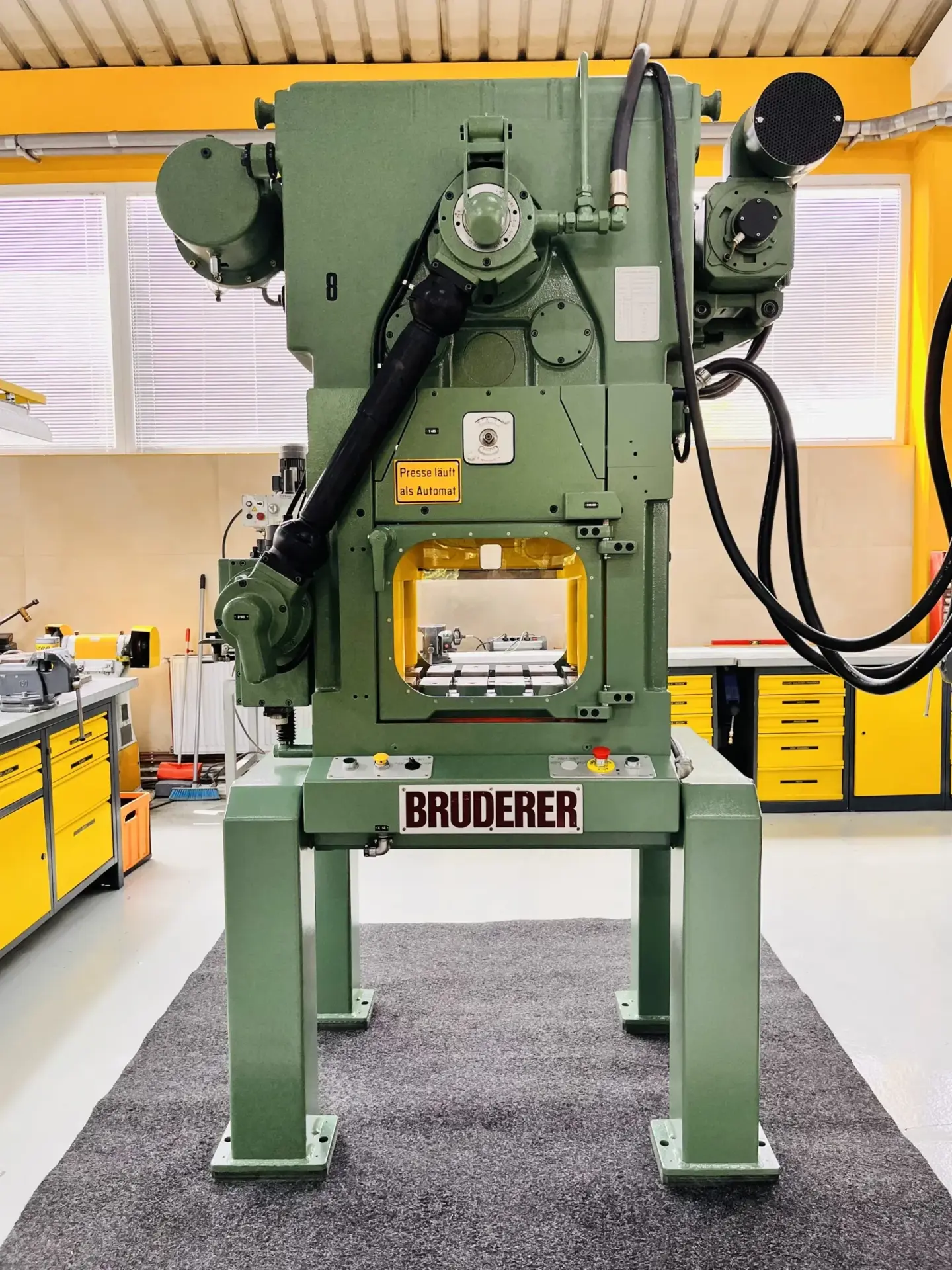

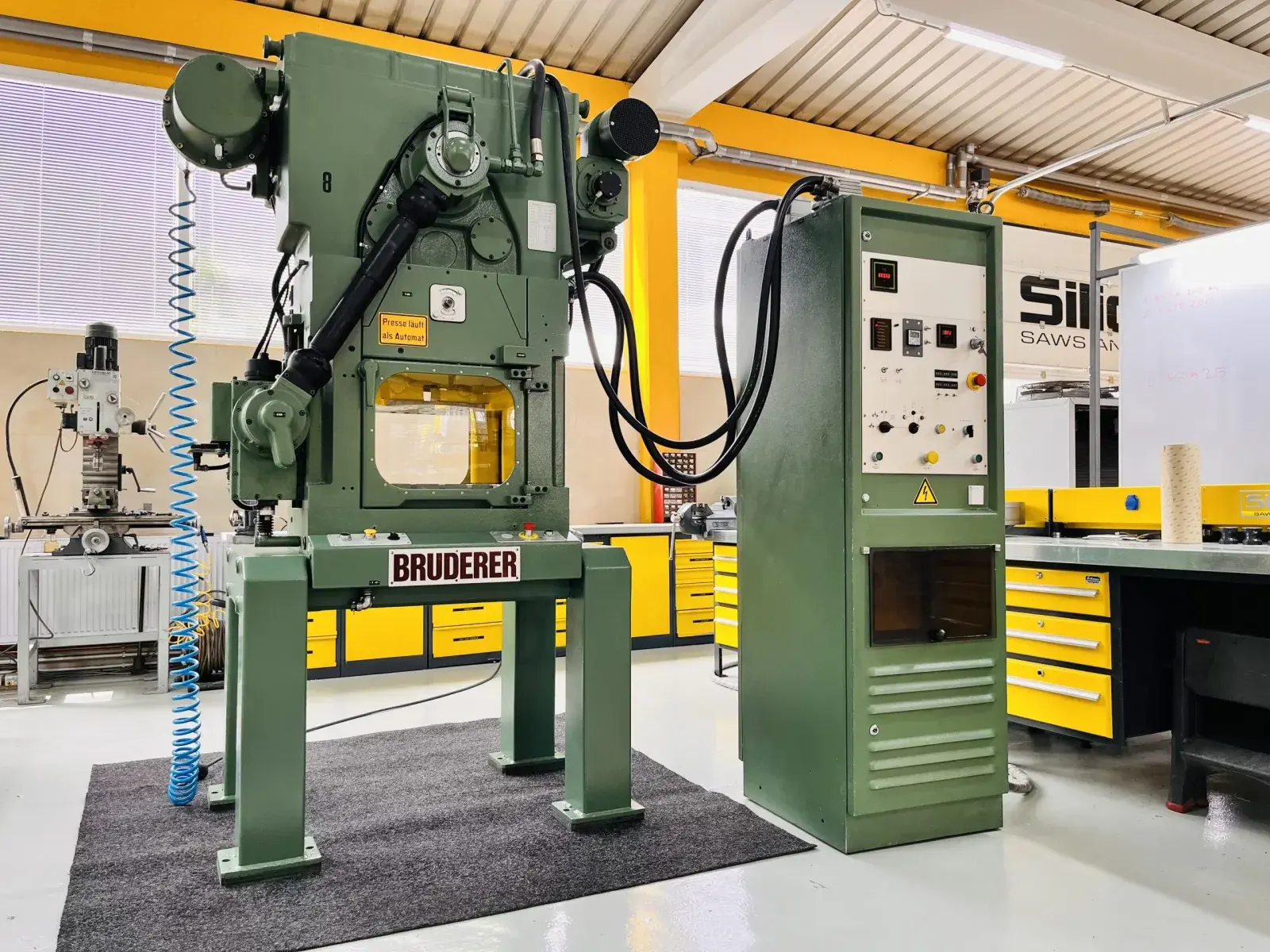

Bruderer BSTA 200 high-performance automatic punching press. 200 kN (20 t) maximum pressure, speed range 100-600 strokes per minute. Fitted with a BBV 100/75 feeder on the left-hand side, switch cabinet and control system. All original technical documentation in German included. TECHNICAL SPECIFICATIONS Make and model: Bruderer BSTA 200 Max. pressure: 200 kN (20 t) Speed range: 100-600 spm Adjustable stroke: 8, 13, 19, 25, 32, 38, 44, 51 mm Ram height adjustment: 51 mm Table size: 510 x 400 mm Bed opening: 400 x 160 mm Max. tool width between the columns: 410 mm Connected load: 36 kVA Power: 400 V, 50 Hz Control voltage: 24 V Machine dimensions (H x W x D): 2540 x 1661 x 855 mm Weight (approx.): 3,100 kg EQUIPMENT INCLUDED BBV 100/75 feeder, left-hand side Switch cabinet and control system All original technical documentation in German CONDITION AND AVAILABILITY In stock. Worldwide shipping available. Reference 24824.
