Bruderer BSTA 25 EL High-Speed Stamping Press 250 kN with BBV 190/85 Feeder

Machine Description

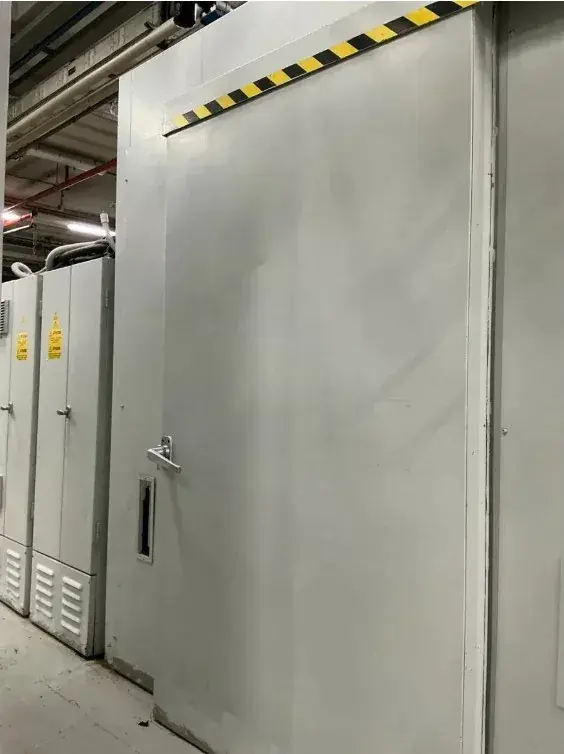

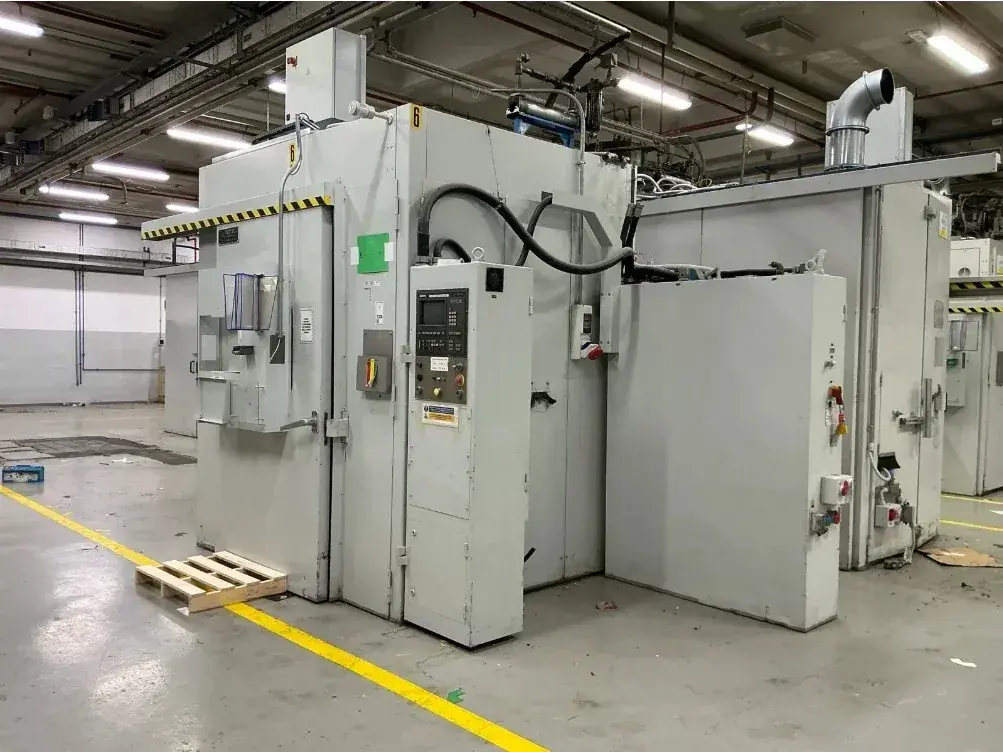

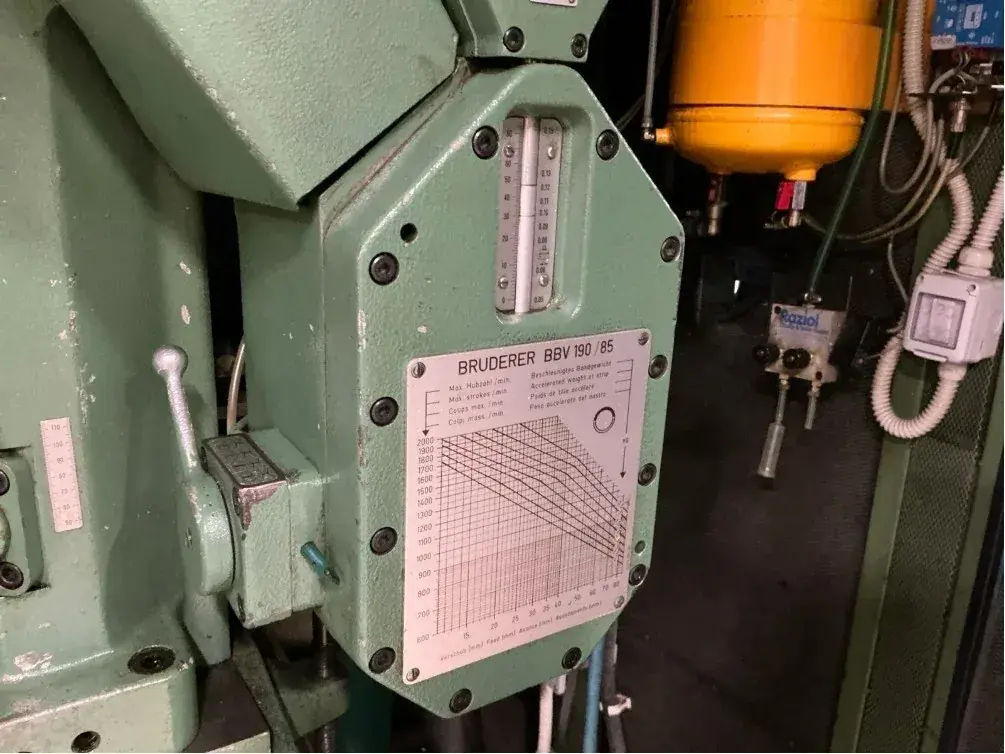

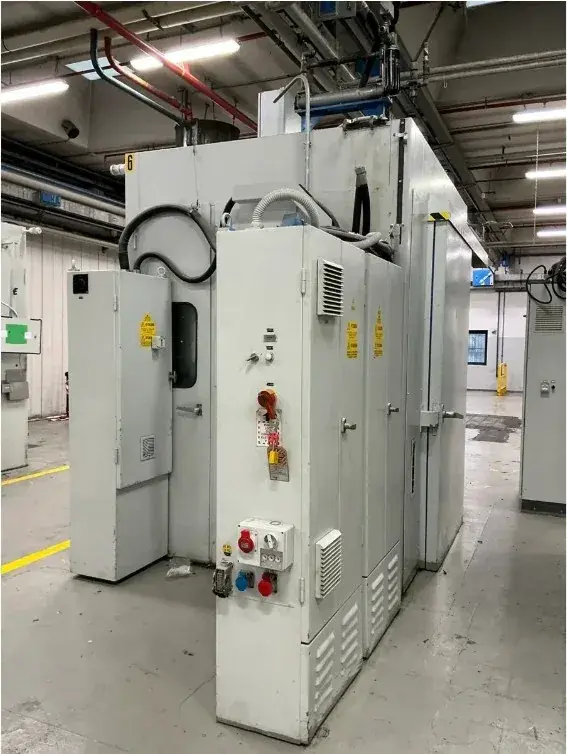

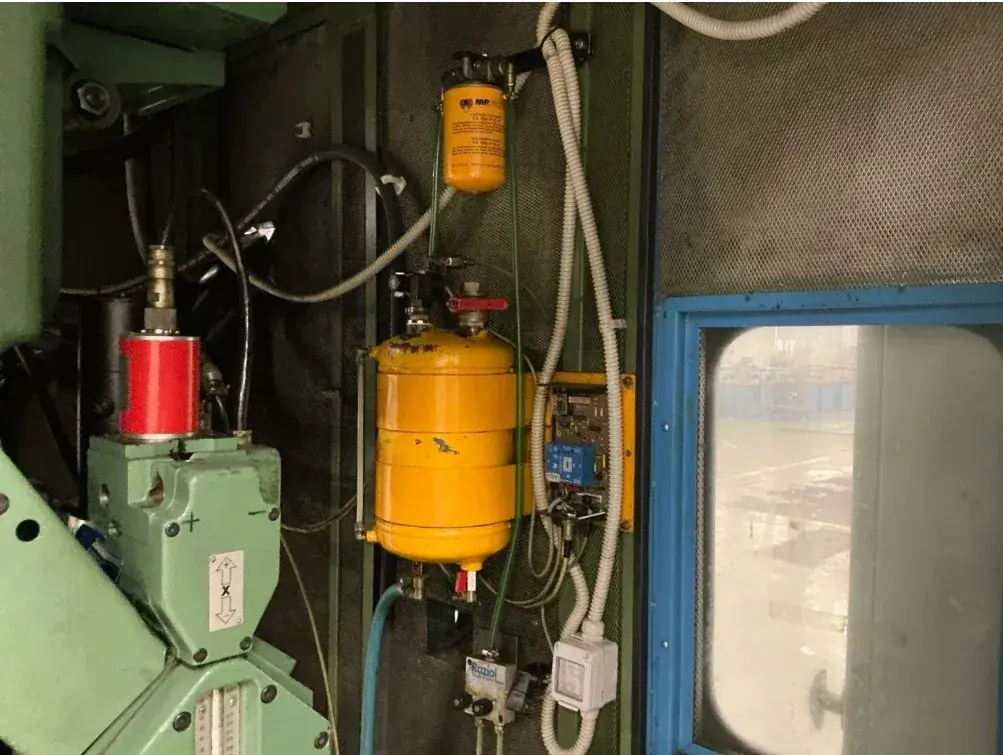

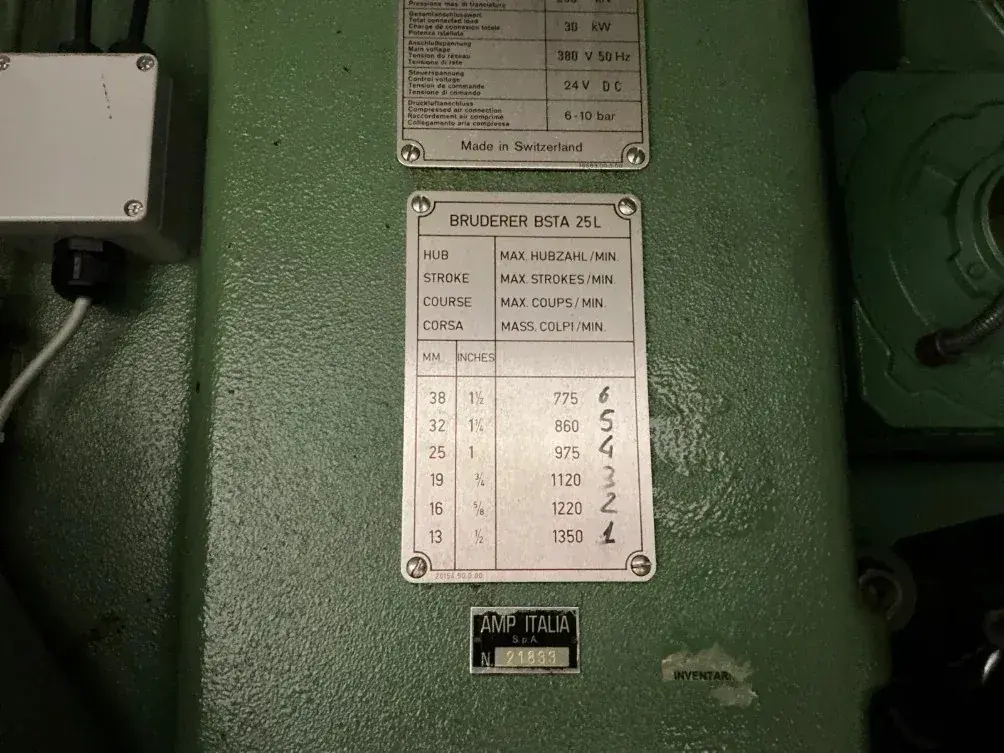

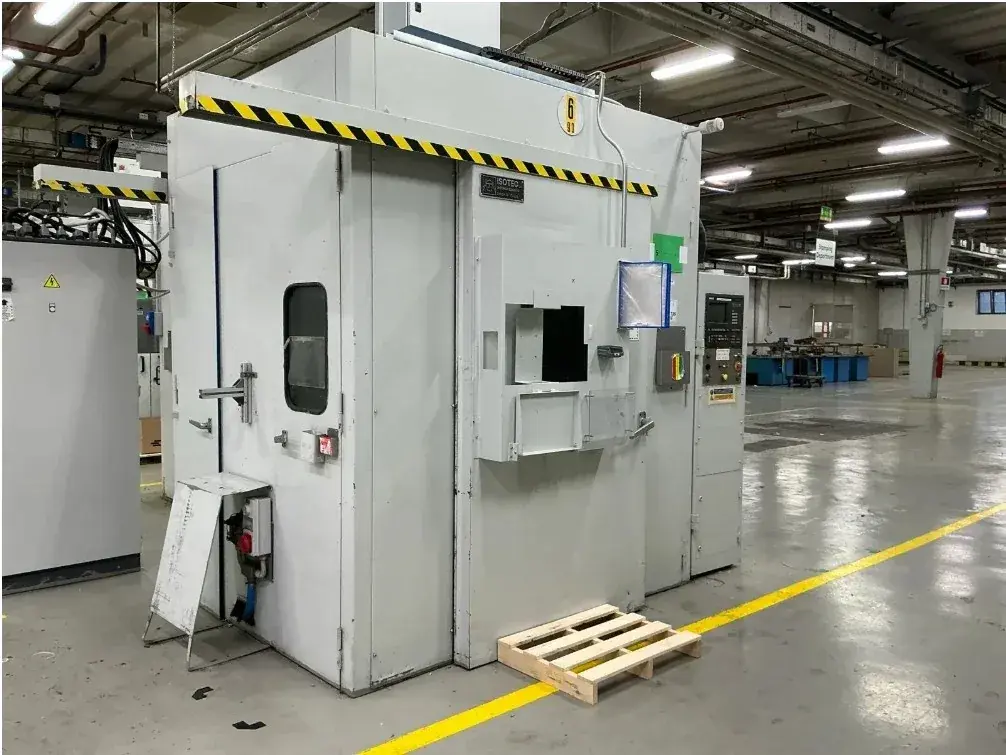

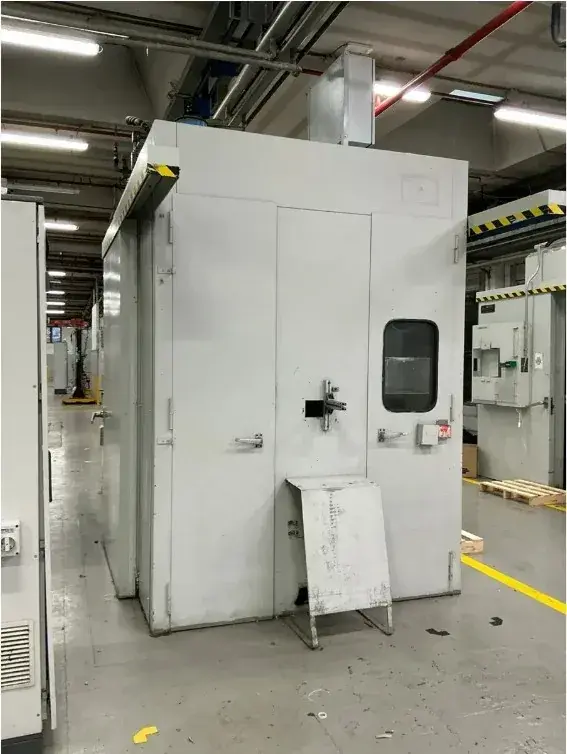

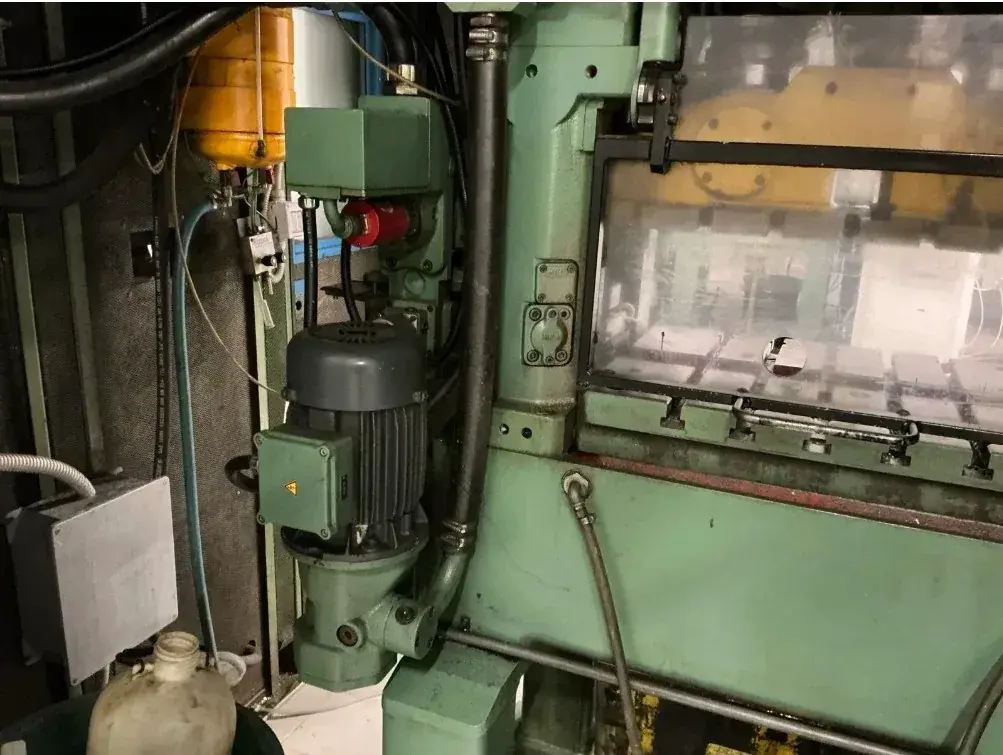

Well-maintained Bruderer BSTA 25 EL high-speed stamping press from 1989. Nominal force 250 kN (25 t), six adjustable stroke positions from 13 to 38 mm and a maximum speed of 1,350 strokes per minute. Fitted with a Bruderer BBV 190/85 roll feeder on the right-hand side for strip widths up to 160 mm and variable feed lengths up to 85 mm. TECHNICAL SPECIFICATIONS Make and model: Bruderer BSTA 25 EL Year of manufacture: 1989 Nominal capacity: 250 kN (25 tons) Stroke rate: 100-1,350 strokes per minute Adjustable stroke: 13, 16, 19, 25, 32, 38 mm Slide / ram adjustment: 51 mm Table dimensions: 640 x 530 mm Passage between the supports: longitudinal 640 mm, lateral 220 mm Feeder: Bruderer BBV 190/85, right-hand side Max. strip width: 160 mm Feed length: variable, up to 85 mm Weight (approx.): 5,000 kg EQUIPMENT INCLUDED Bruderer BBV 190/85 roll feeder Front and rear safety guards Oil pump Heat-exchange oil cooler Mounted on four spring feet for vibration isolation Full documentation OPTIONAL Sound-insulating cabin CONDITION AND AVAILABILITY In stock, well-maintained condition. Worldwide shipping available. Reference 34926.
