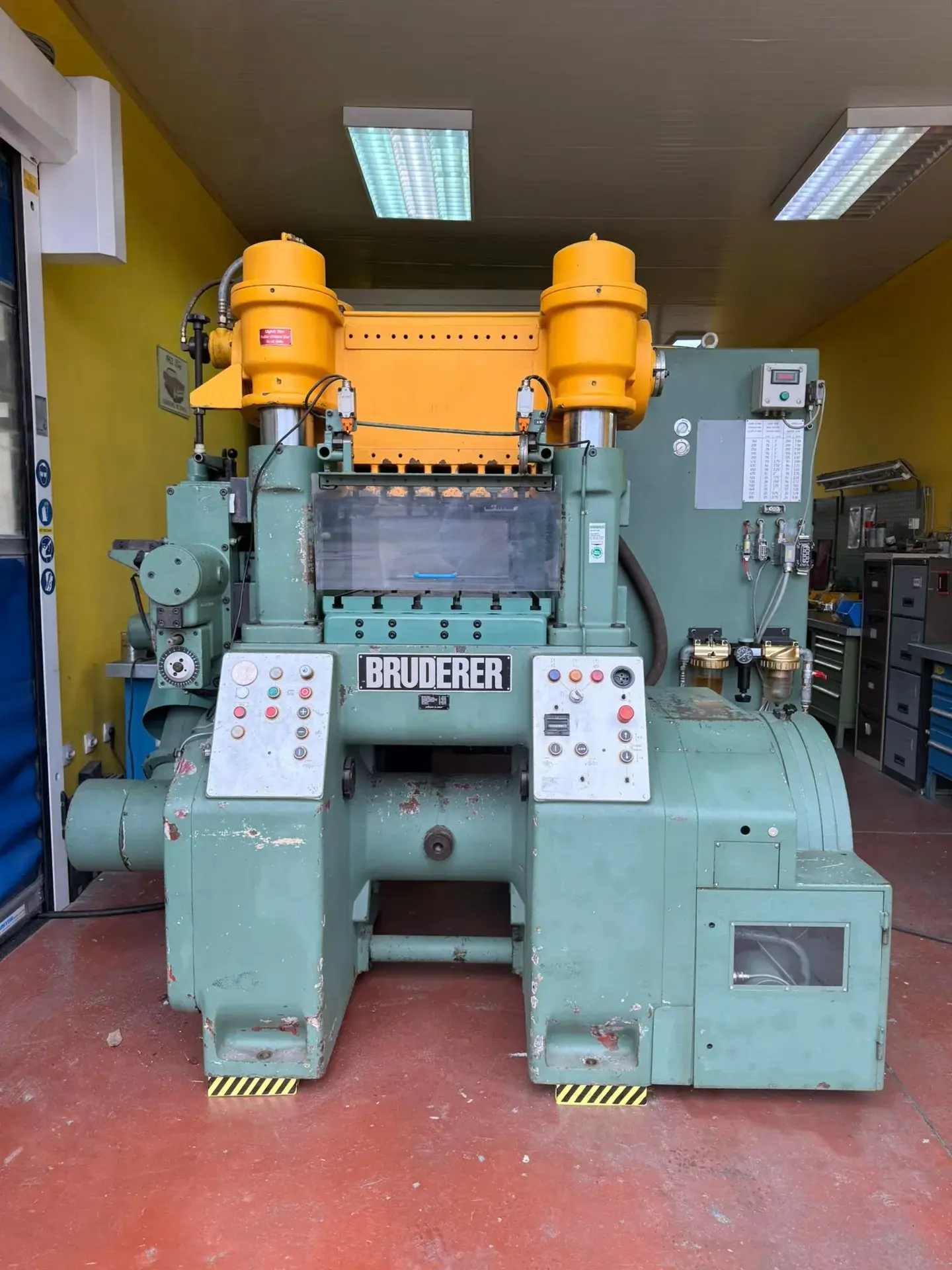

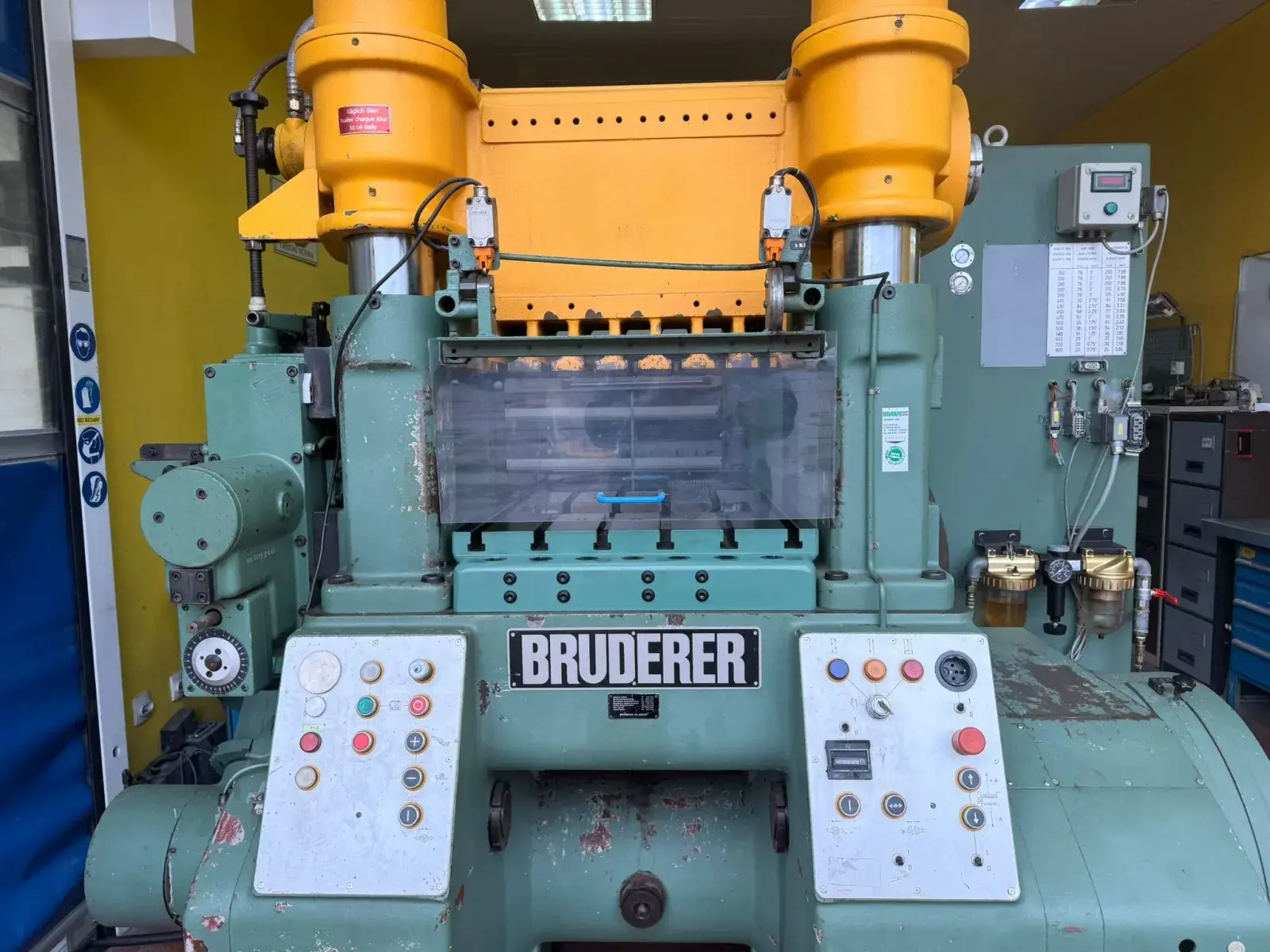

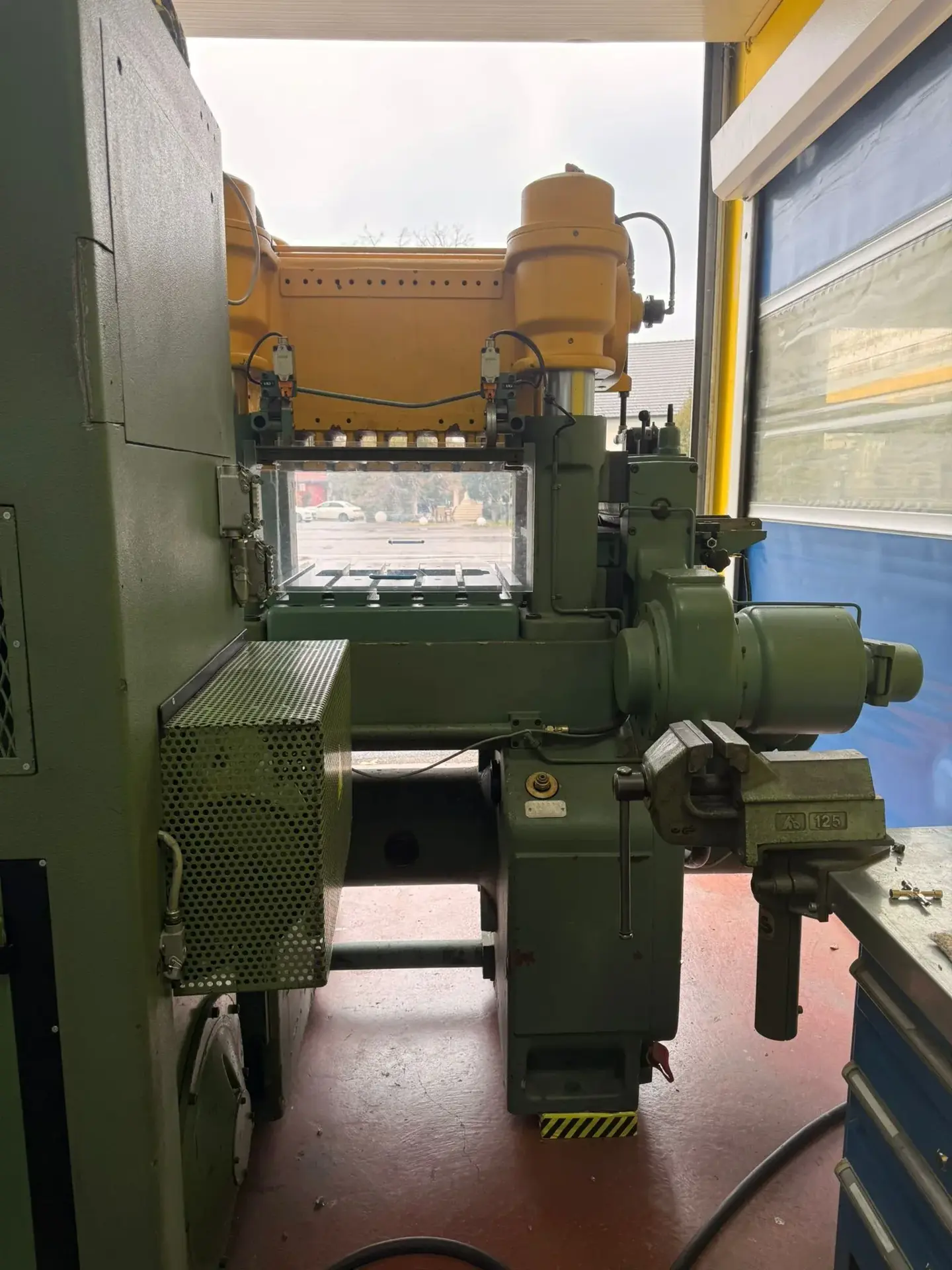

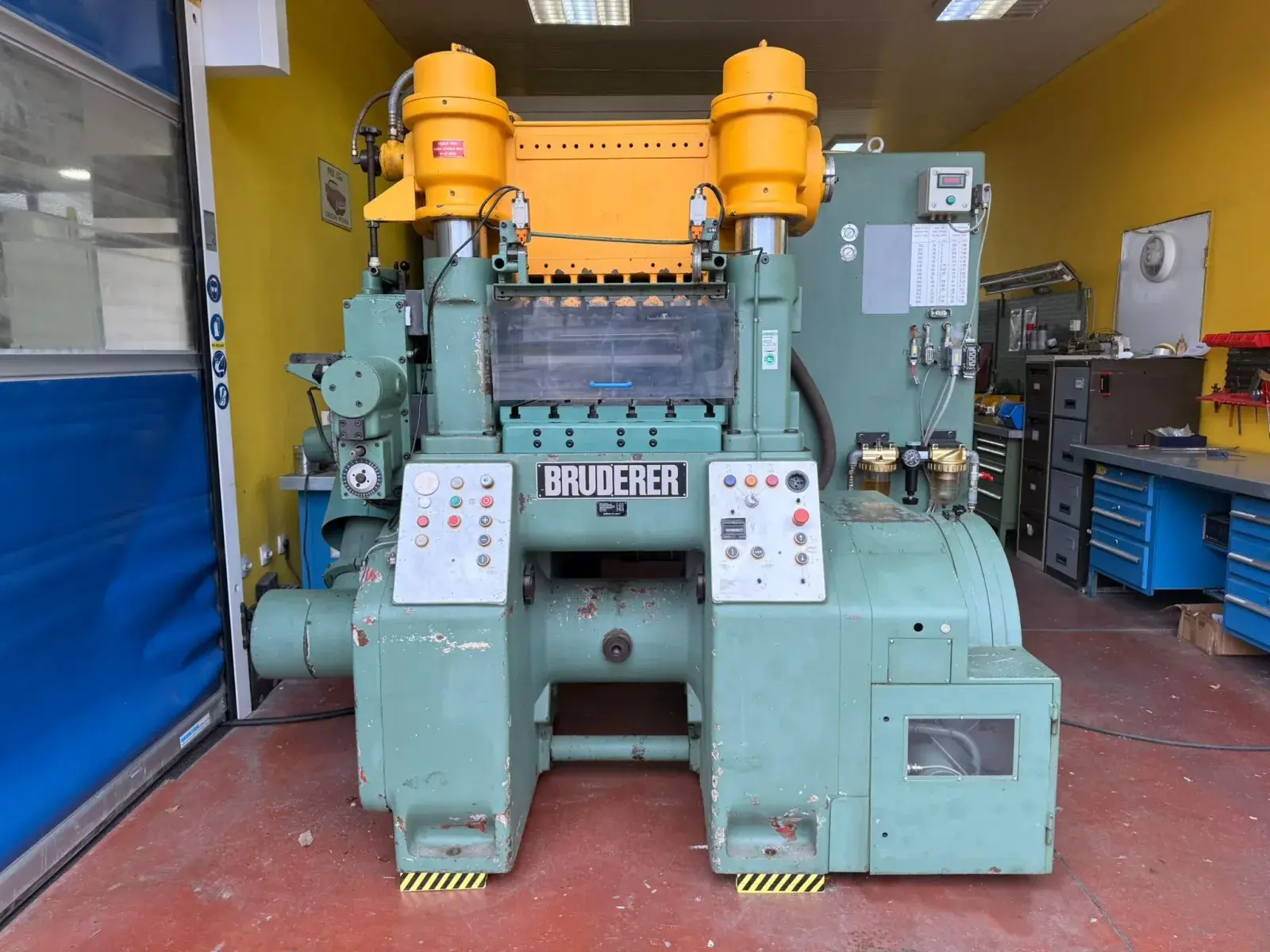

Bruderer BSTA 60 High-Speed Stamping Press 600 kN with BBV 300 Feeder

Machine Description

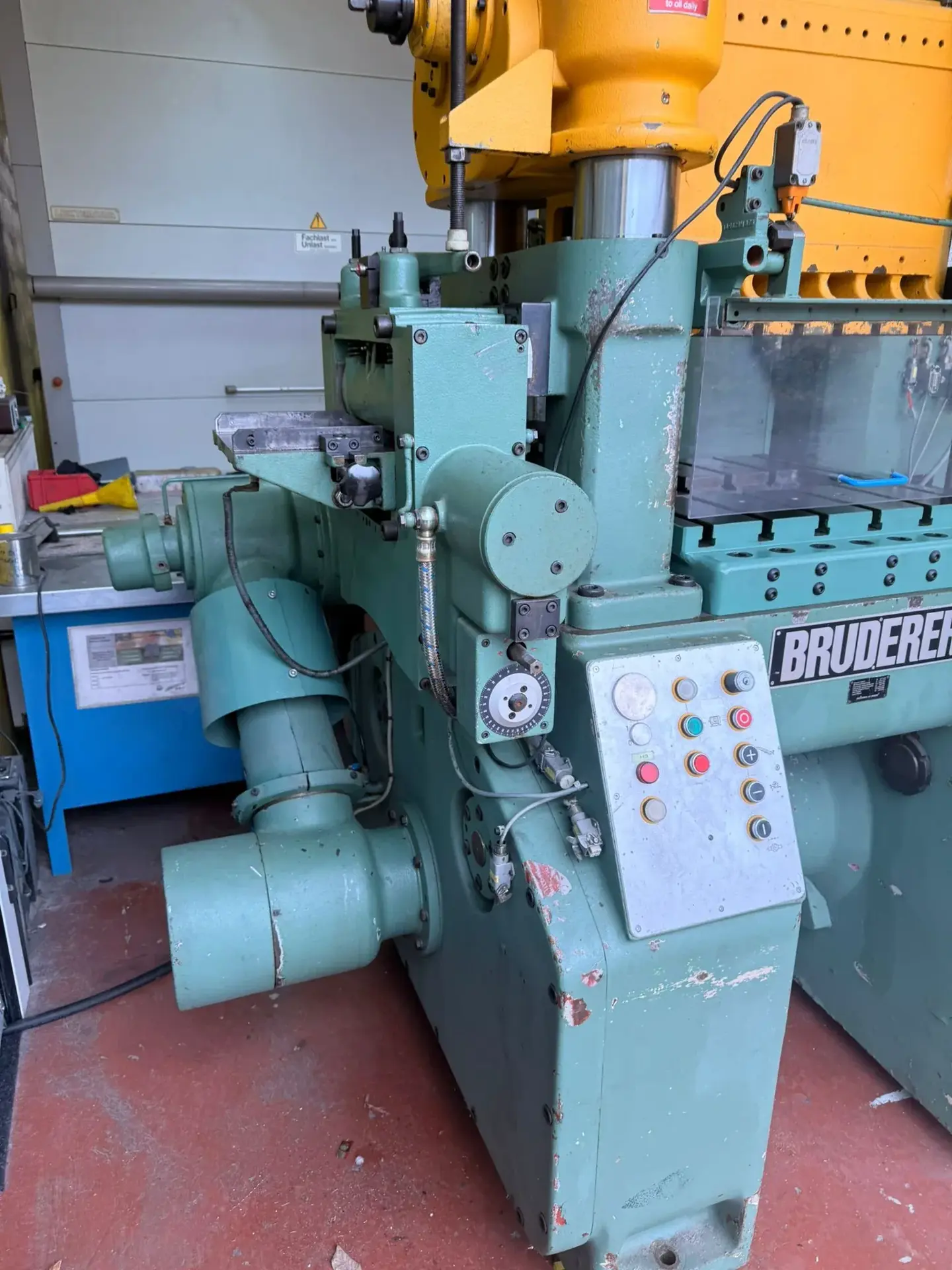

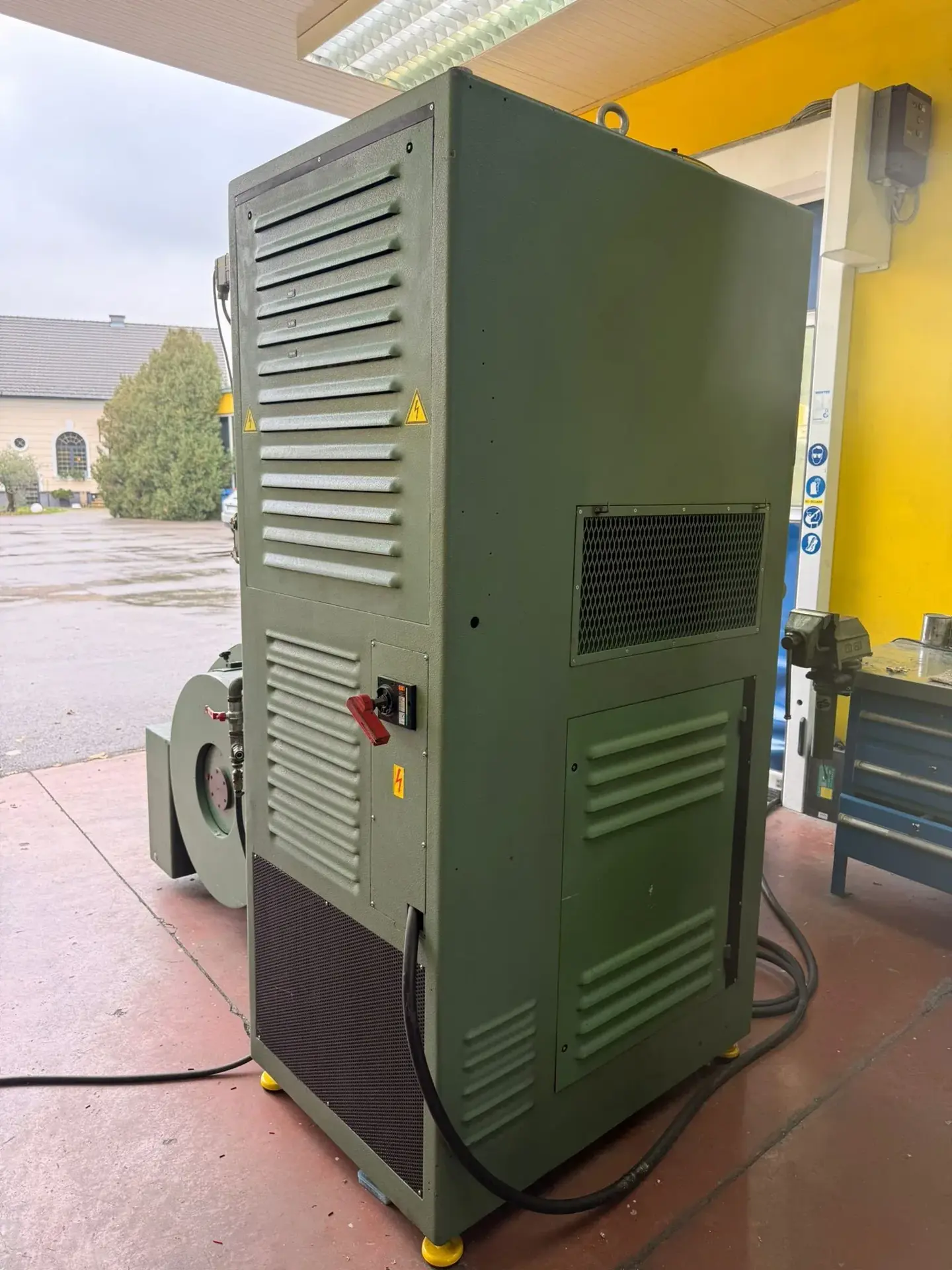

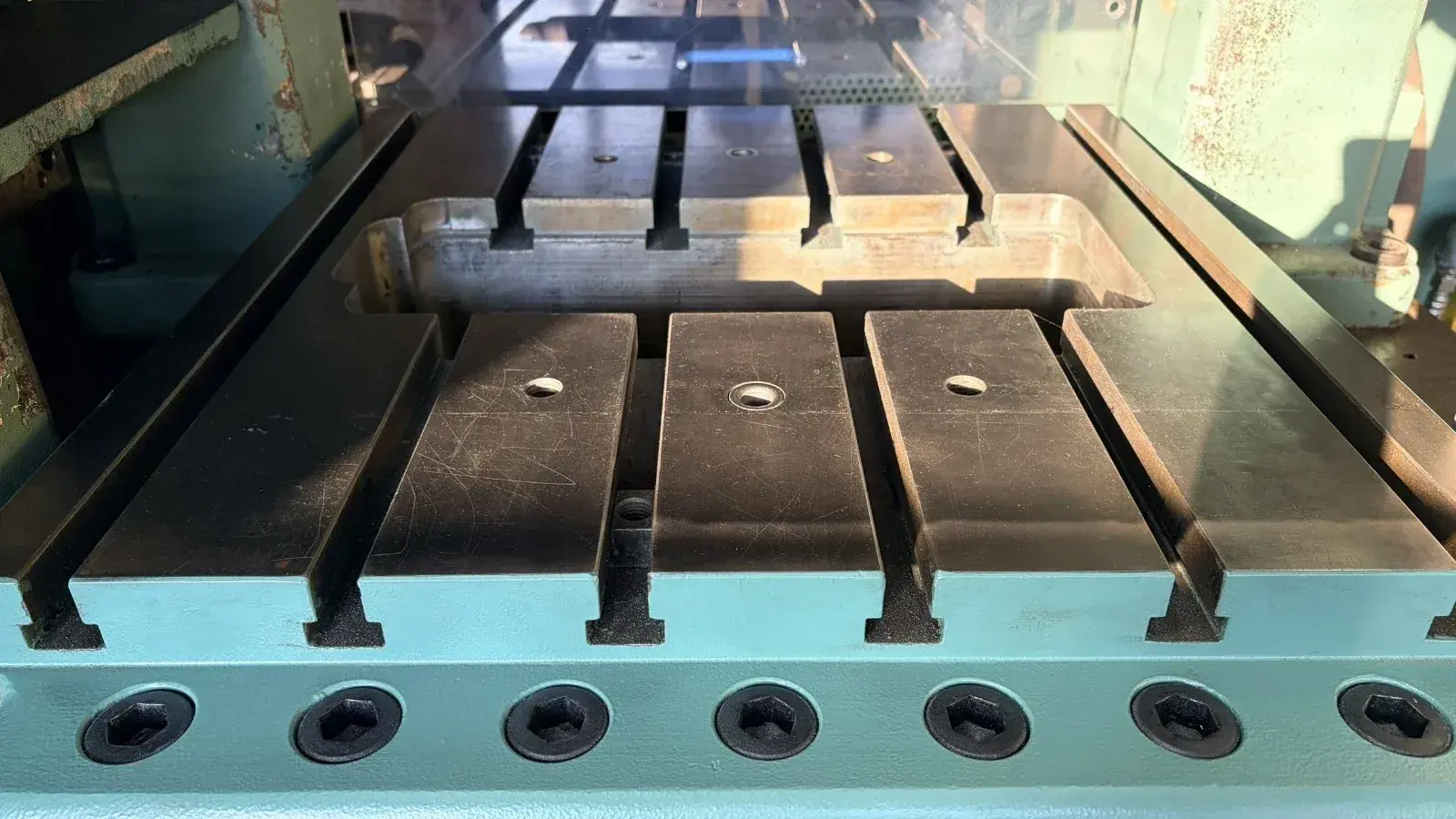

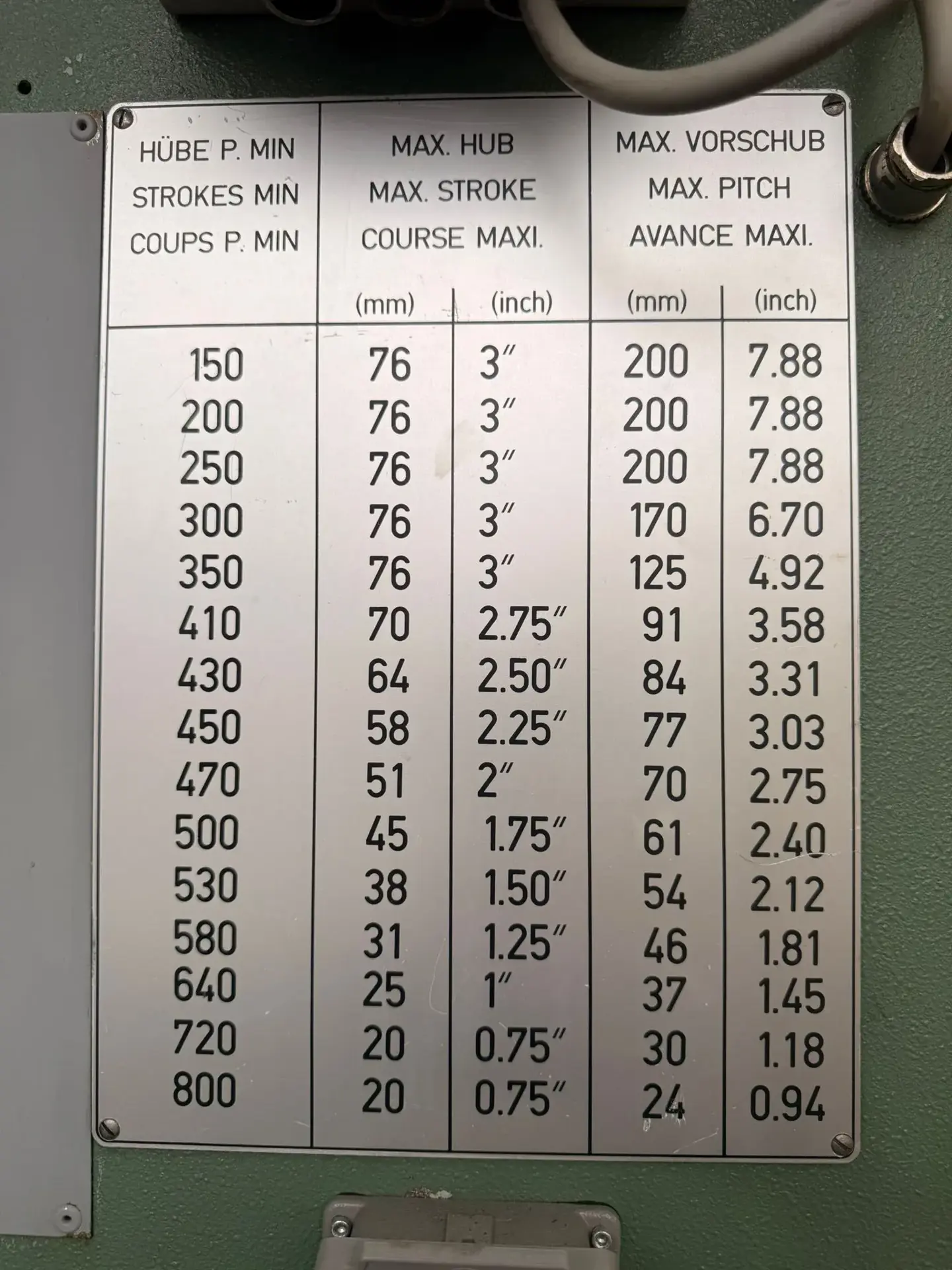

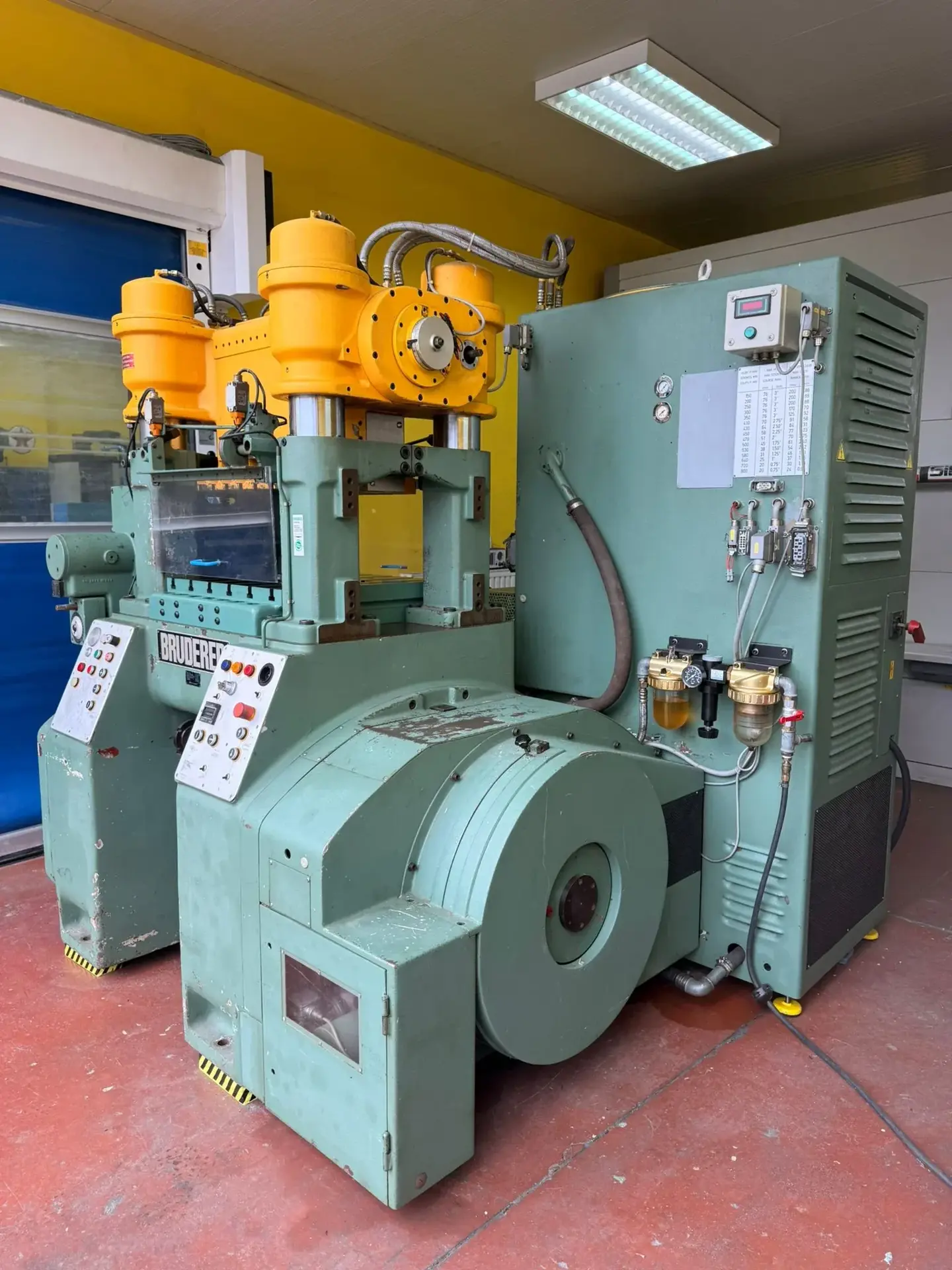

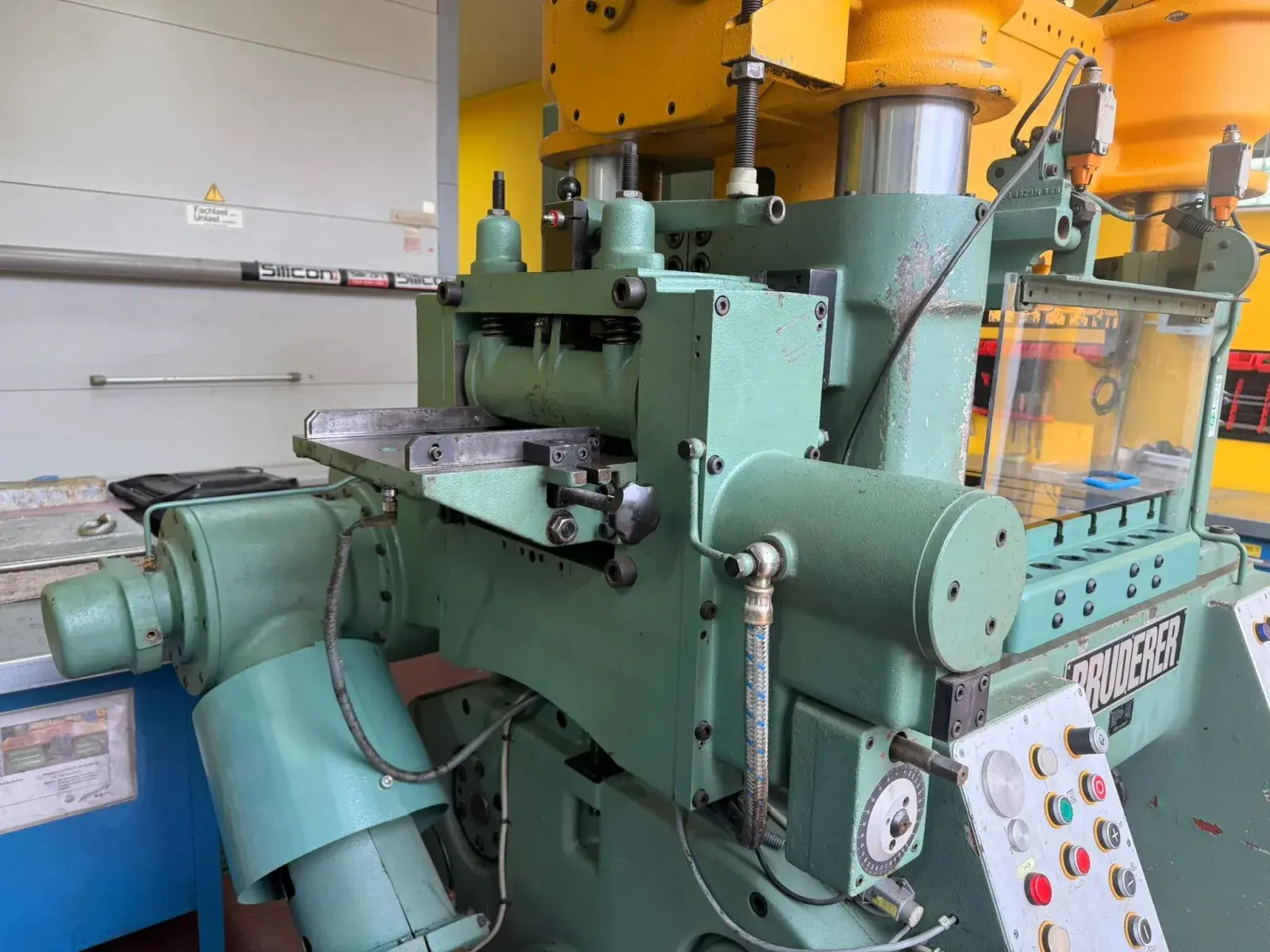

Bruderer BSTA 60 high-speed stamping press with BBV 300/200 automatic strip feeder. 600 kN nominal force, 100-800 strokes per minute, fully automatic operation. Swiss-built precision press in excellent technical and visual condition, tested under power in 2025 and available immediately from Europe. TECHNICAL SPECIFICATIONS Nominal force: 600 kN Stroke rate: 100-800 strokes per minute Max. feed length: 200 mm Year: unknown (no ID plate) Tested under power: 2025 Drive power: 30 hp Control voltage: 24 V AC Power connection: 440 V AC / 50 Hz Adjustable stroke: 20 / 25 / 31 / 38 / 45 / 51 / 58 / 64 / 70 / 76 mm Shut / ram height adjustment: 80 mm Max. tool installation width: 620 mm Strip pass width: up to 320 mm Ram area: 800 x 500 mm Table area: 620 x 680 mm Max. strip width: 300 mm Max. feeding pitch: 200 mm Max. material thickness: 6 mm Feeding angle: 180 deg Compressed air connection: 6-10 bar Machine footprint (L x W x H): 2210 x 2075 x 2190 mm Weight (approx.): 8,000 kg EQUIPMENT INCLUDED BBV 300 fully synchronised mechanical strip feeder system Integrated control cabinet Pneumatic clutch and brake Adjustable stroke and shut height Oil cooling unit Ready for integration with peripheral systems CONDITION AND AVAILABILITY Machine fully tested and in excellent technical and visual condition. In stock, immediate availability from Europe. Worldwide shipping available. Reference 32925.
