Bruderer BSTA 200M High-Speed Stamping Press 200 kN, 1,800 spm with BBV 101/75 Feeder

Machine Description

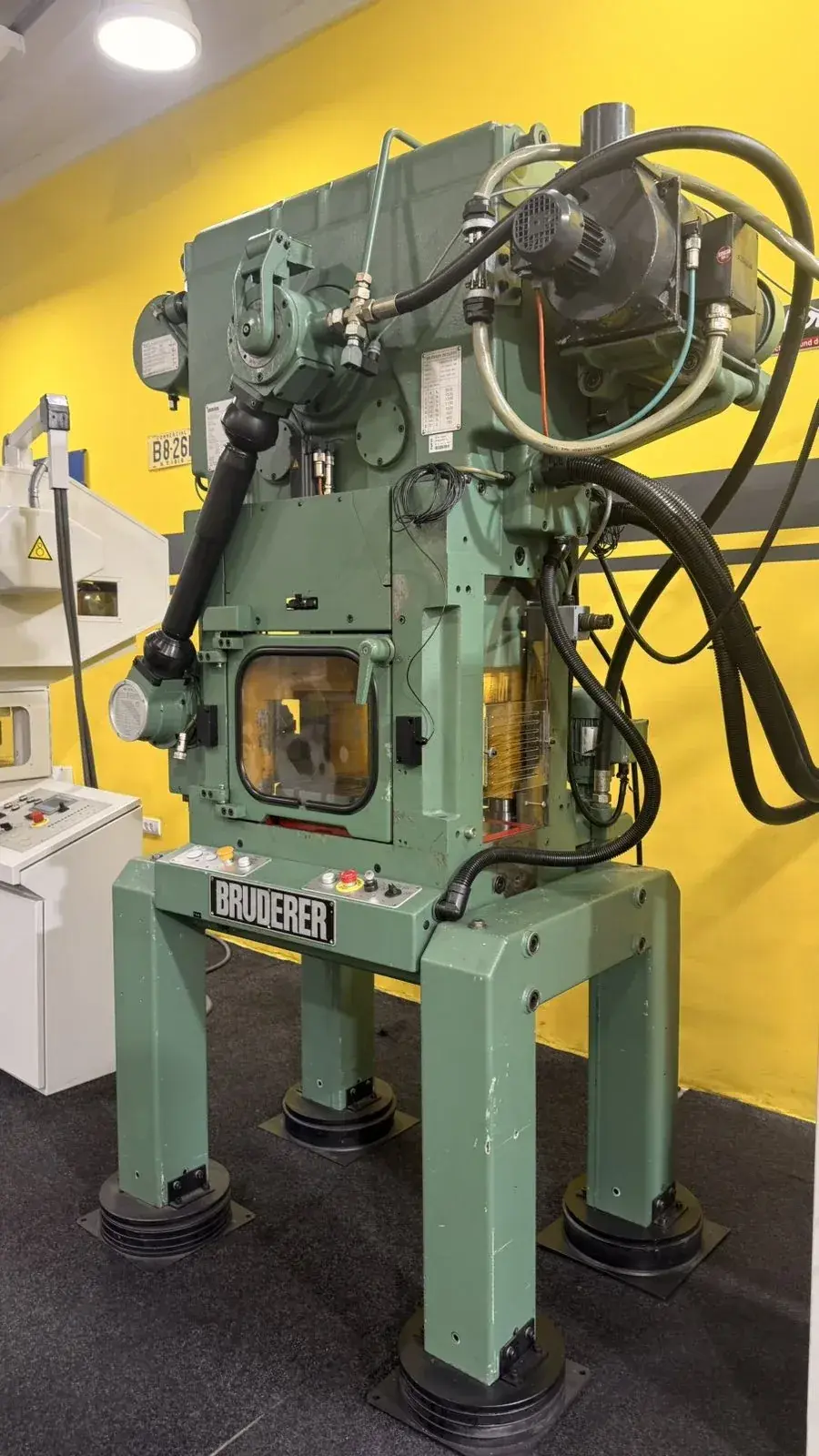

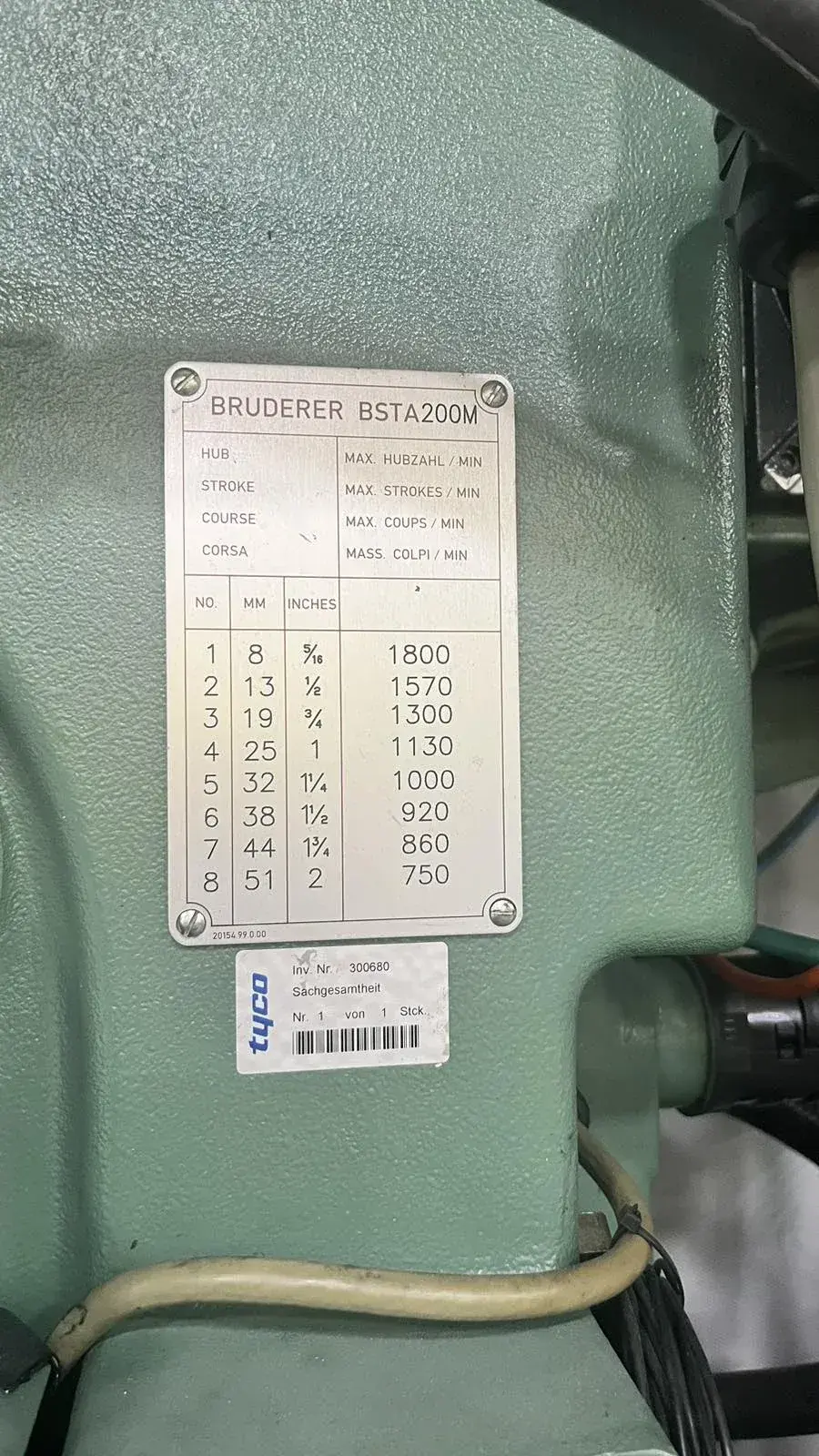

Bruderer BSTA 200M high-performance automatic punching press, year of manufacture 1996. 200 kN (20 t) maximum pressure, speed range 100-1,800 strokes per minute, with a compact footprint. Fitted with a Bruderer BBV 101/75 feeder on the left-hand side. Please note: the sound cabin is sold separately and is not included in the machine price. TECHNICAL SPECIFICATIONS Make and model: Bruderer BSTA 200M Year of manufacture: 1996 Max. pressure: 200 kN (20 t) Speed range: 100-1,800 spm Hours under power: 51,574 Adjustable stroke: 8, 13, 19, 25, 32, 38, 44, 51 mm Ram height adjustment: 51 mm Clamping plate dimensions: 510 x 400 mm Bed opening: 400 x 160 mm Max. mould width between the columns: 410 mm Max. strip passage width: 260 mm Machine dimensions (H x W x D): 2540 x 1661 x 855 mm Weight (approx.): 3,100 kg FEED Bruderer BBV 101/75, left-hand side Max. strip width: 125 mm Max. feed pitch: 75 mm ELECTRICAL Connected load: 51 kVA Power: 400 V, 50 Hz Control voltage: 24 V Control cabinet and control system included CONDITION AND AVAILABILITY In stock. Worldwide shipping available. Reference 23524.
