Bruderer BSTA 50 USL

Machine Description

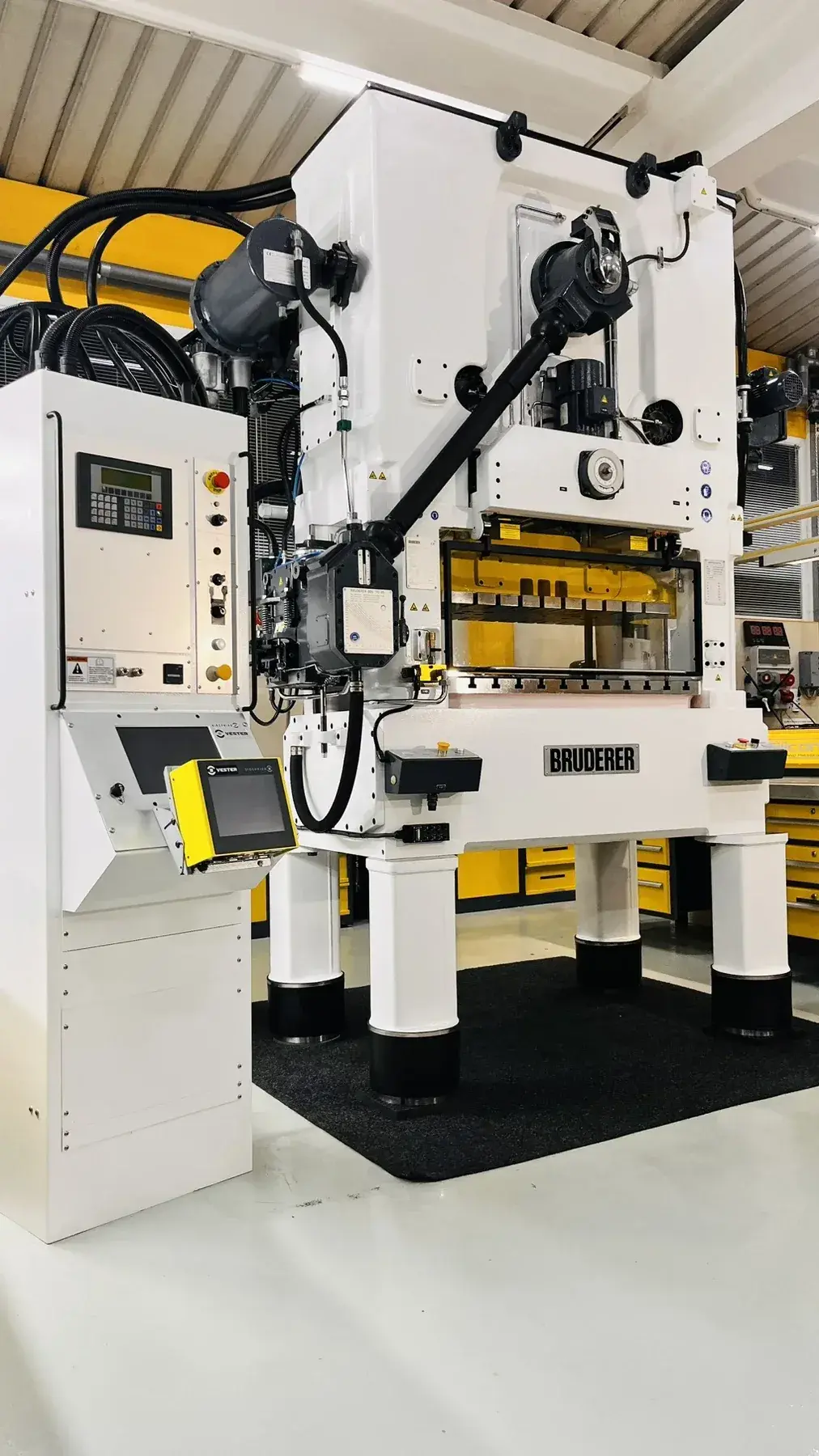

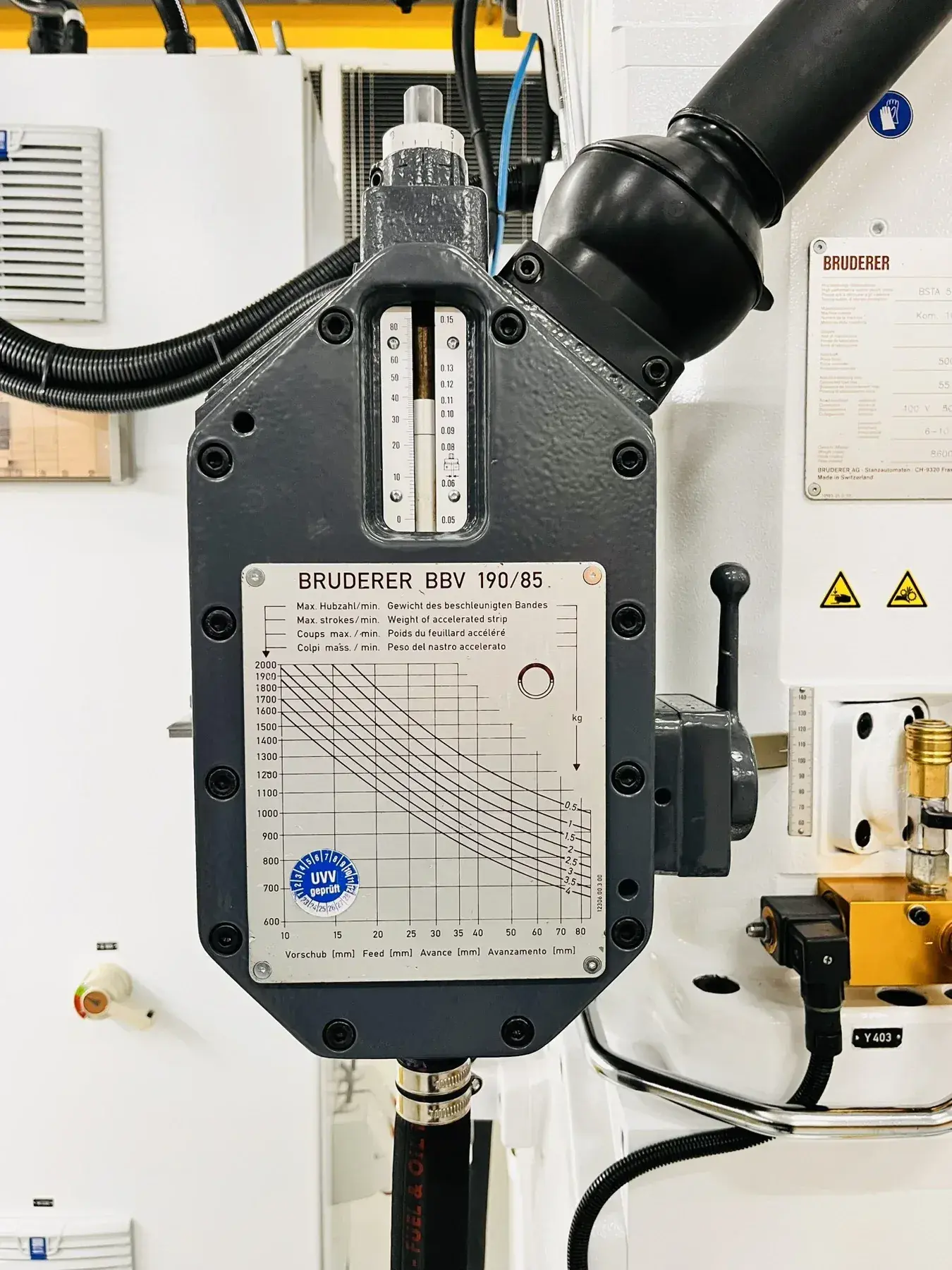

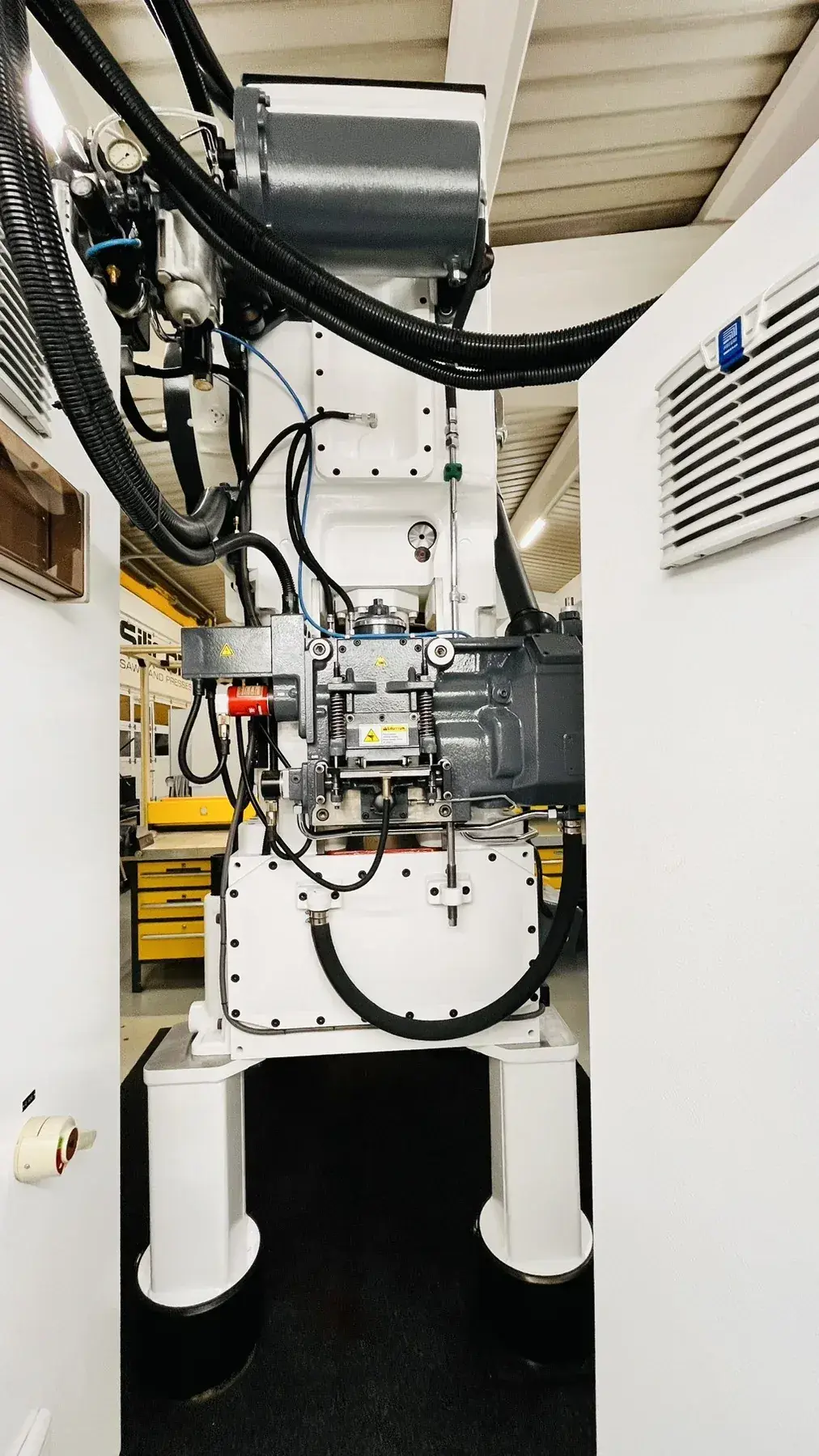

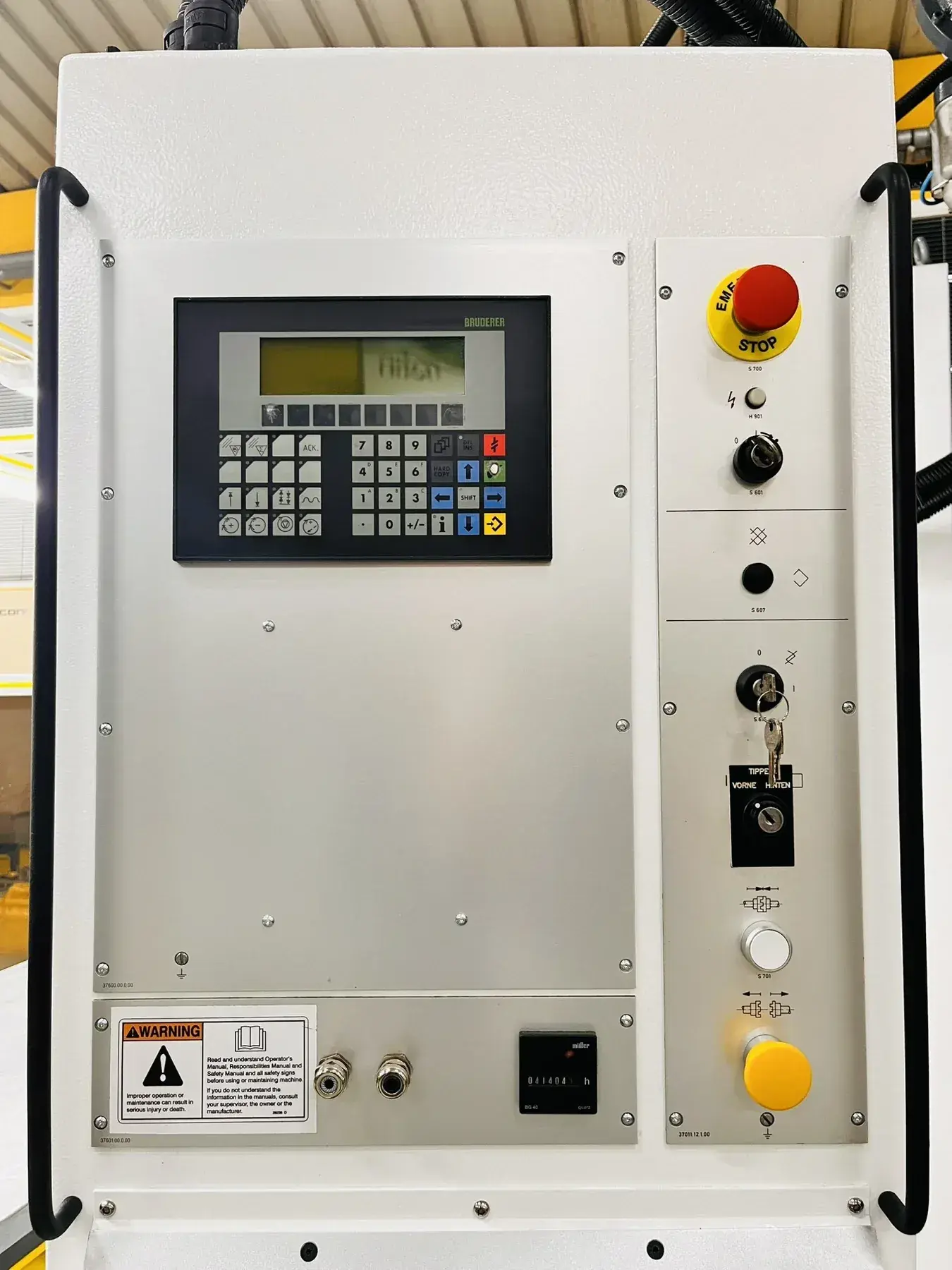

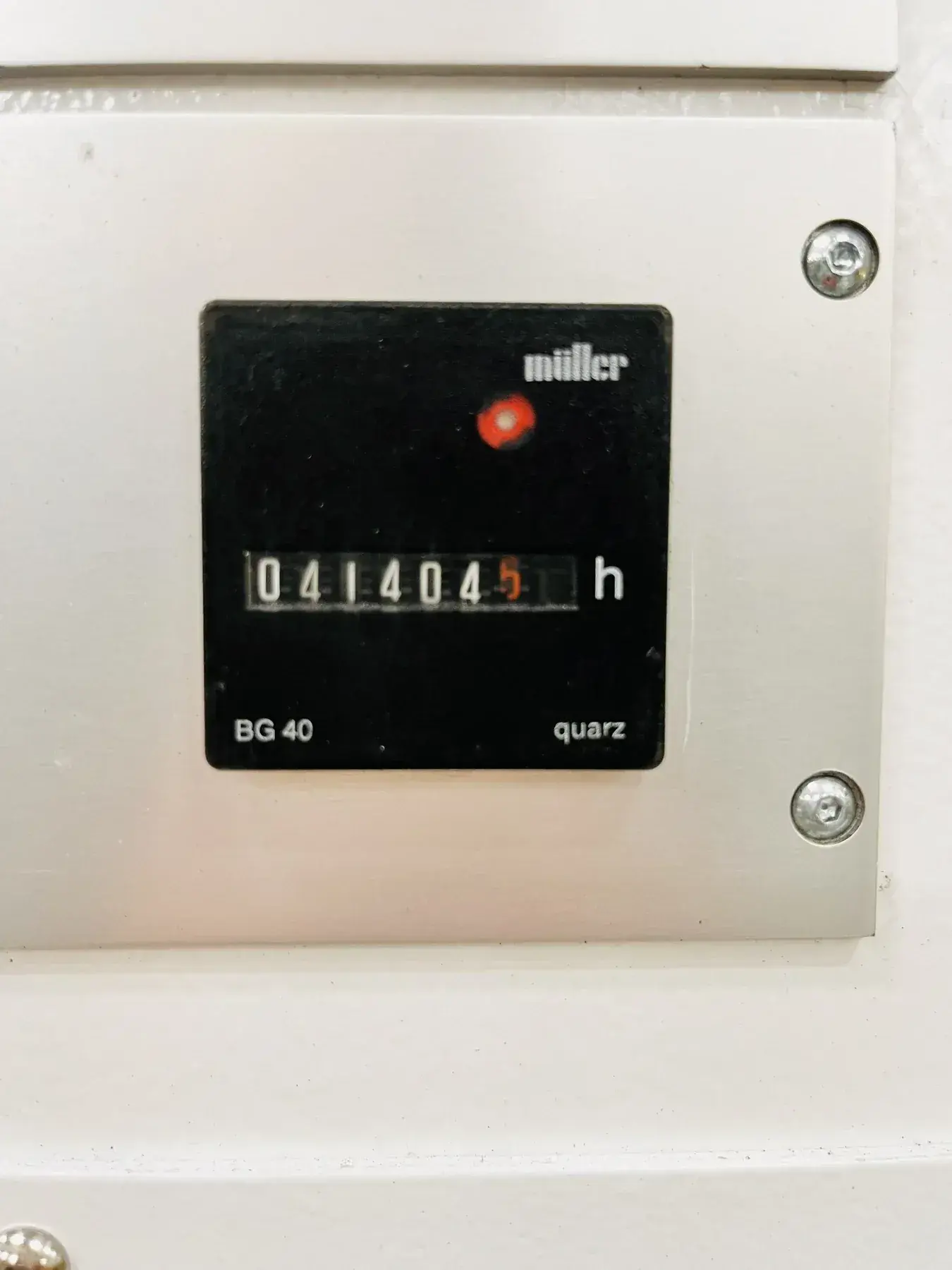

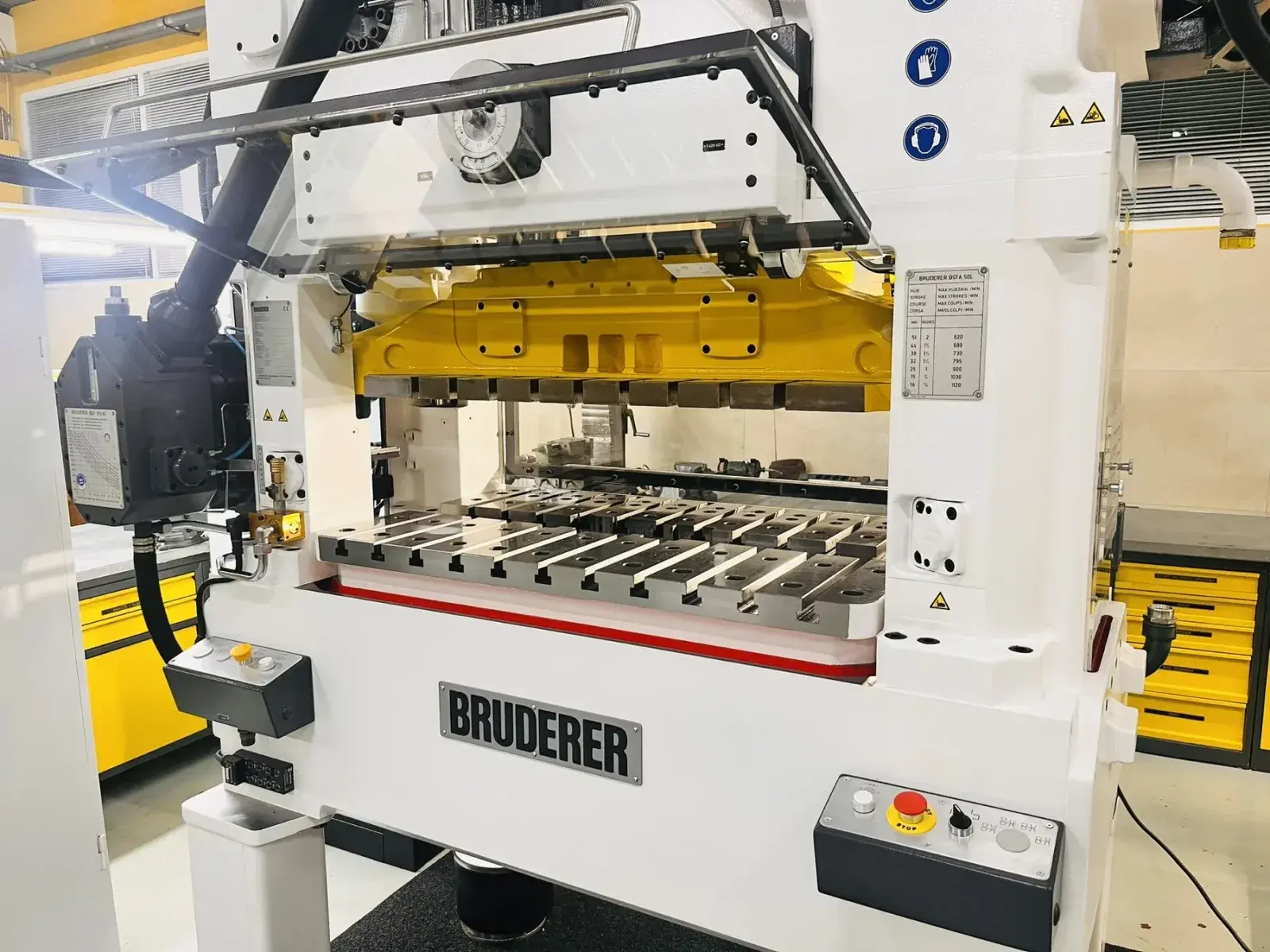

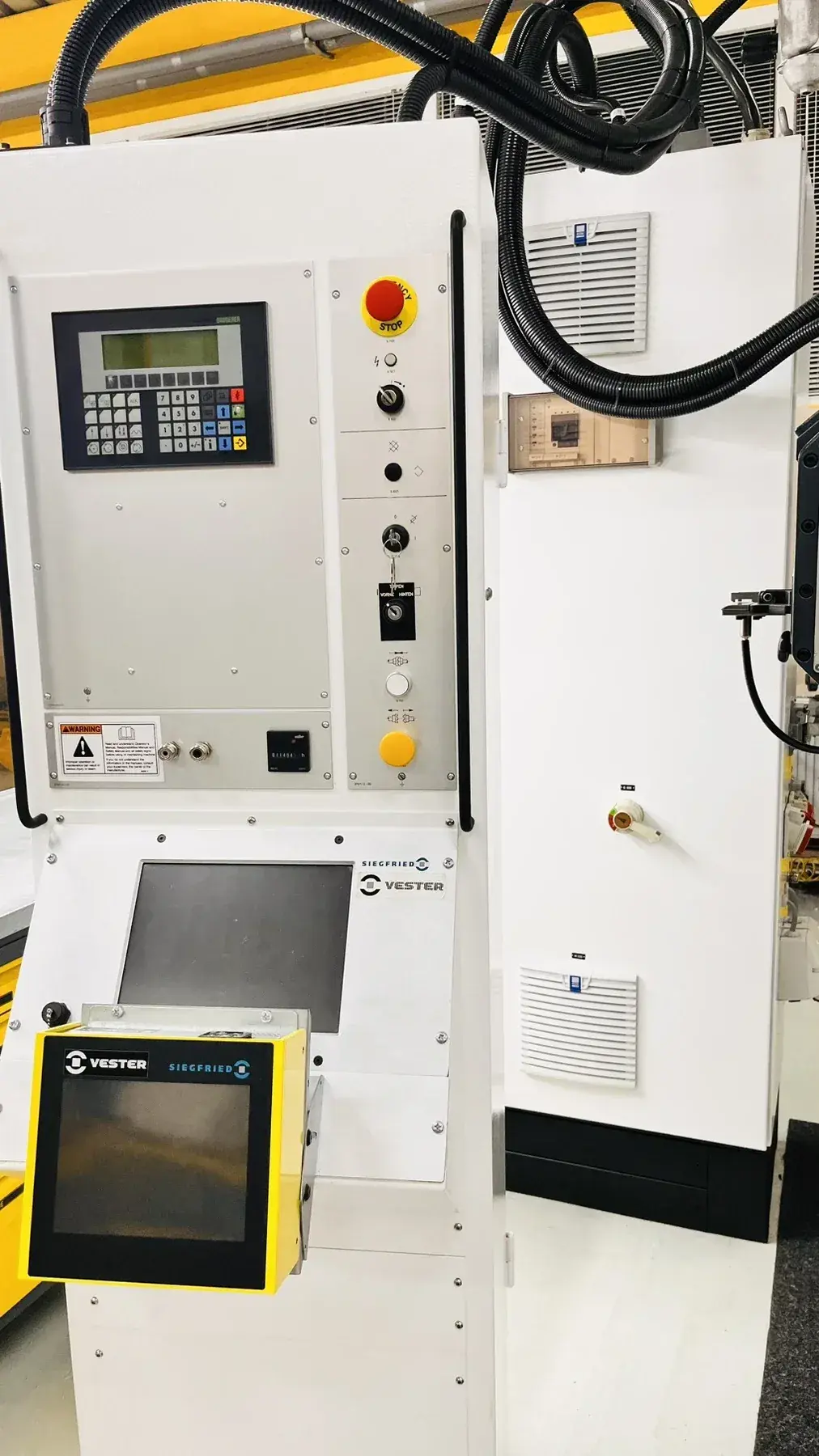

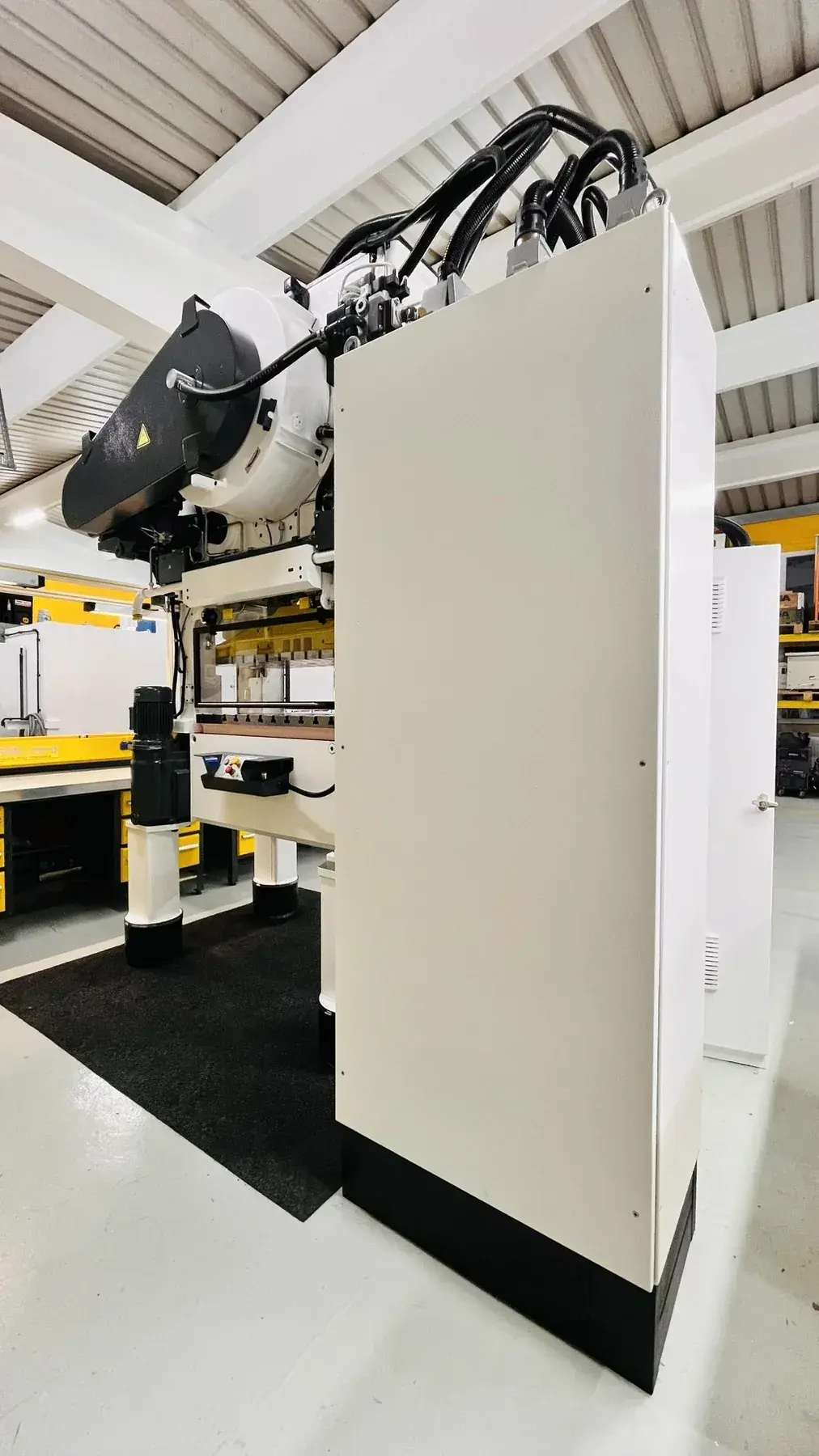

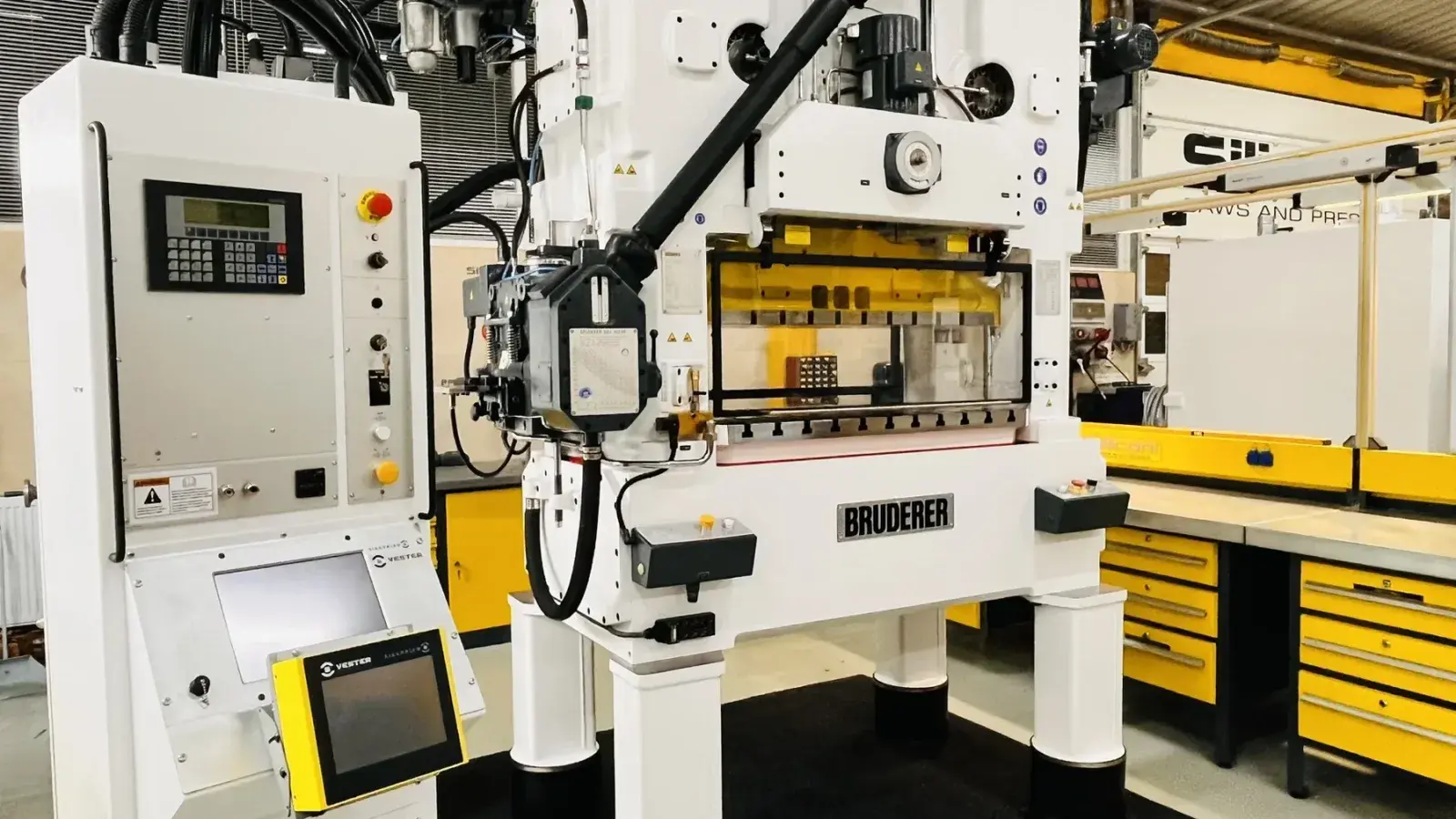

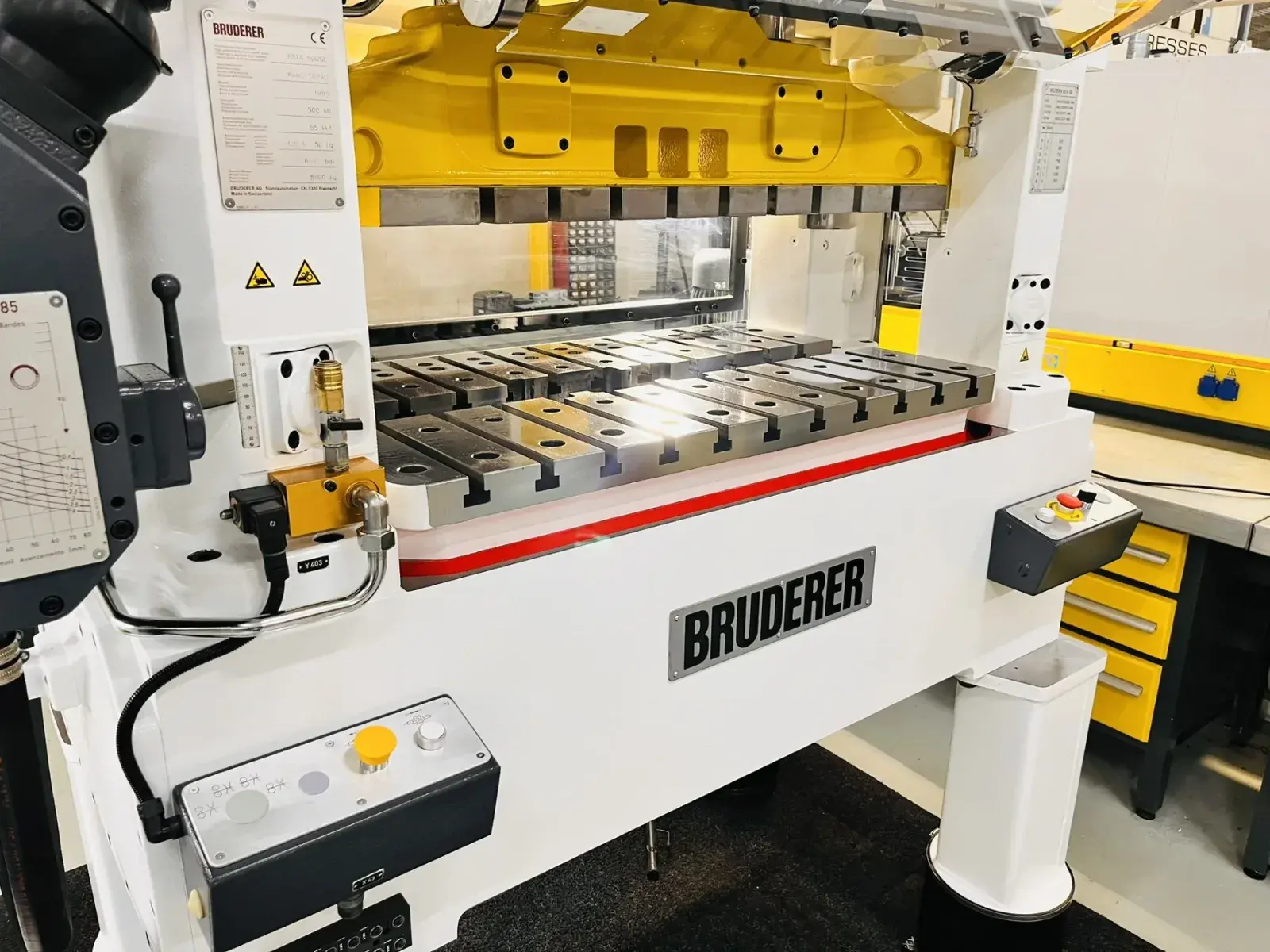

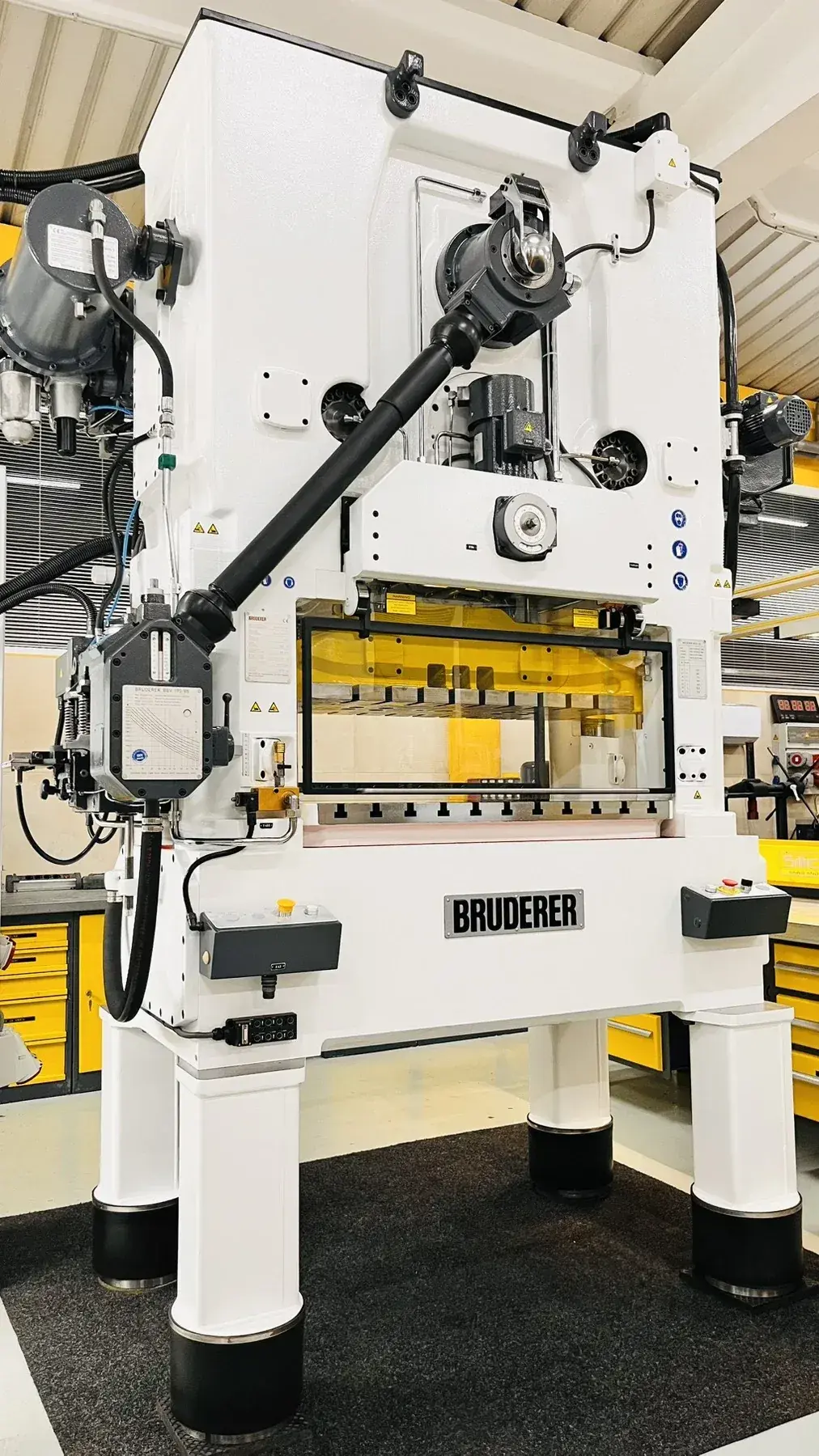

Bruderer BSTA 500 USL High Speed Automatic Stamping Press • 1995 • ID: 30225 FOR SALE: BRUDERER BSTA 500 USL High-Speed Stamping Press With Automatic Strip Feeder BBV 190/85 500 kN | 100–1120 spm | Fully automatic | Top-tier Swiss quality Nominal force 500 kN (50 T) Table area 1080 × 650 mm Stroke rate 100–1120 strokes per minute Working hours 41000 h Year 1995 Reconditioned Year 2025 Main motor: 22 kW Control voltage: 24V DC Power connection: 400V / 50Hz / 62 kVA Adjustable stroke: 16 / 19 / 25 / 32 / 38 /44 / 51 mm Shut height adjustment: 64 mm Max tool installation width: 1100 mm Strip pass width: up to 256 mm Ram area: 980 × 420 mm Table area: 1080 × 650 mm Strip entry height adjustable: 60–140 mm Max strip width: 120 mm Max feeding pitch: 85 mm Max material thickness: 4 mm Feeding angle: 180 Deg Machine Dimensions (with BBV 190)(L × W × H): 2407 × 1278 × 3150 mm Weight (approx.): 8,000 kg Feeder BBV 190 – fully synchronized mechanical strip feeder system Integrated control cabinet Pneumatic clutch and brake Adjustable stroke and shut height Compressed air connection: 6–10 bar Oil cooling unit included Ready for integration with peripheral systems CE Certificate Machine in excellent technical and visual condition Fully serviced and tested Immediate availability from Europe Worldwide shipping available
